*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

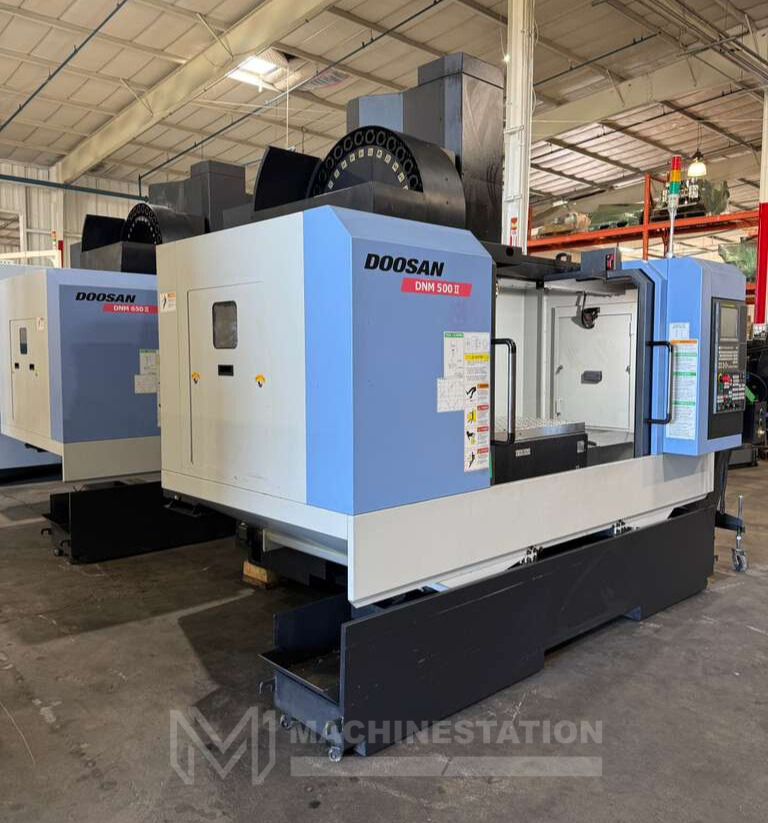

| Make: | Doosan |
| Model: | DNM-500II |
| Year: | 2013 (Sold & Installed in 2014) |
| Features: |
|---|

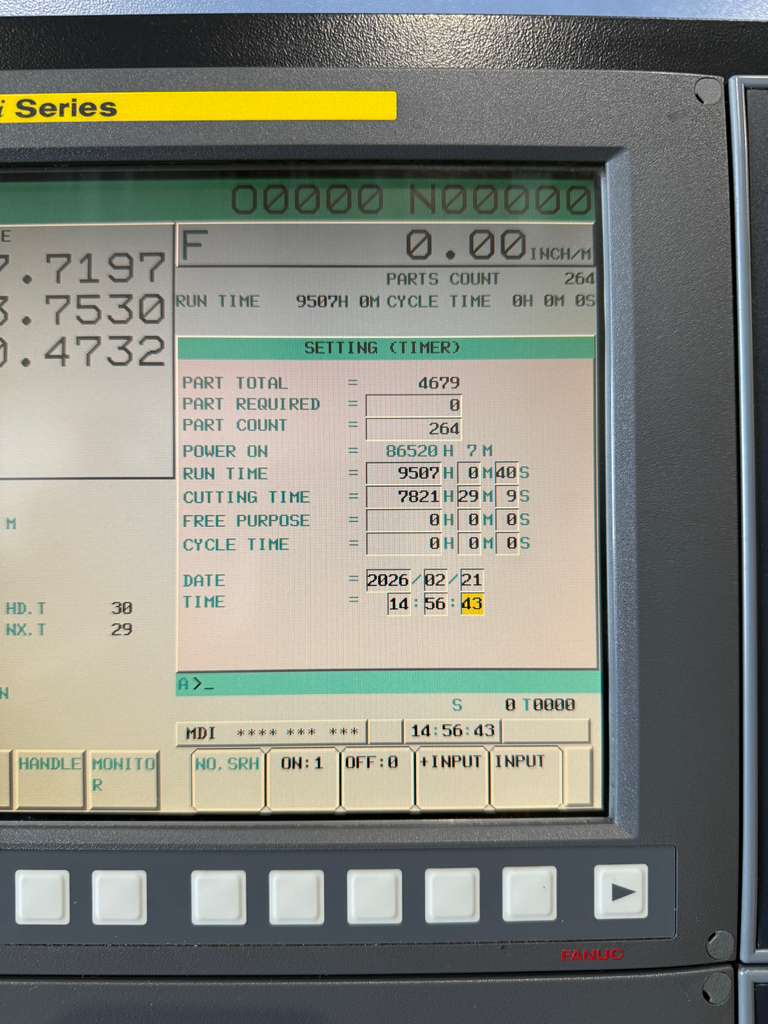

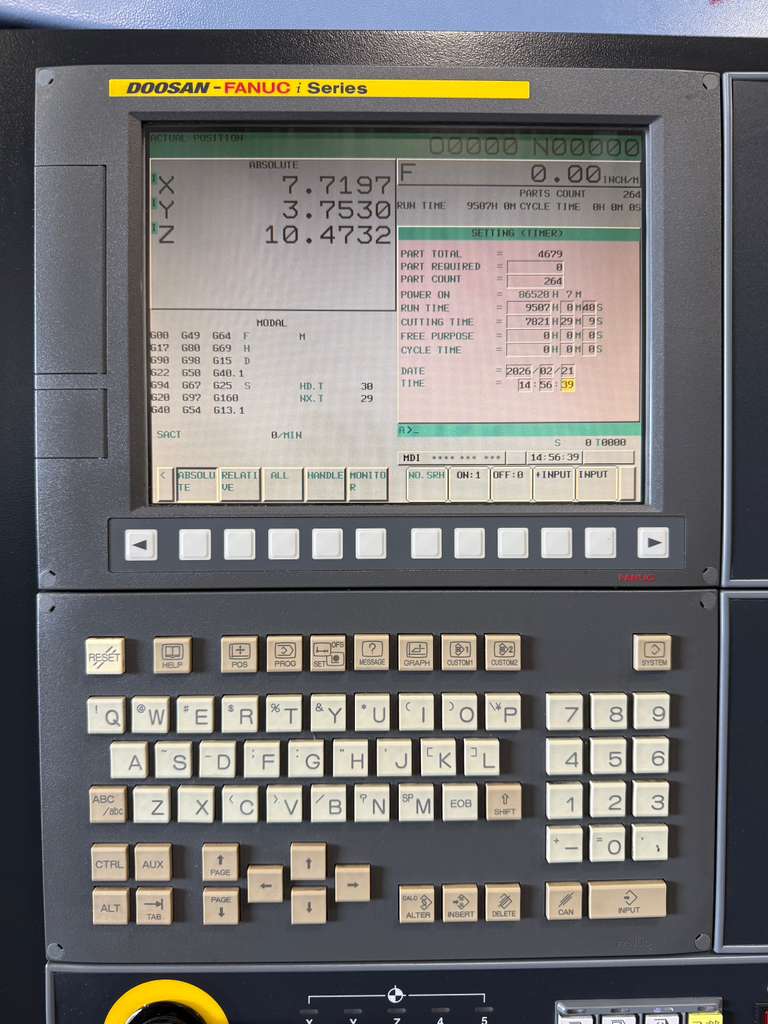

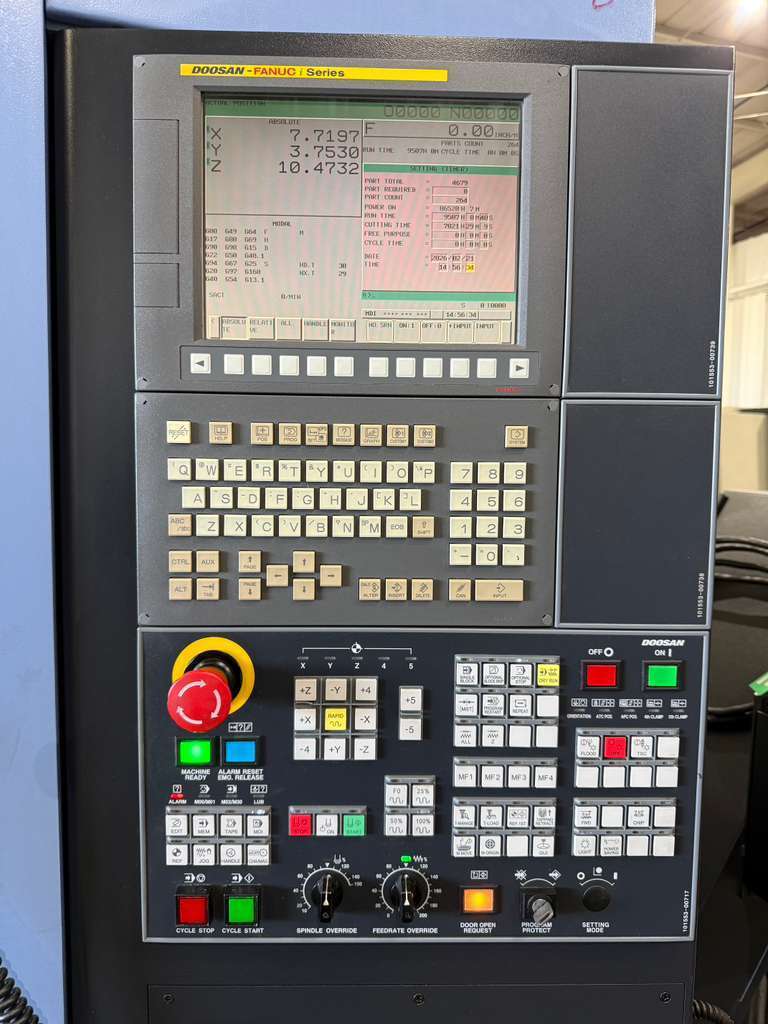

| Doosan Fanuc i-Series CNC Control |
| 12,000 RPM High Speed Spindle |
| Through Spindle Coolant |

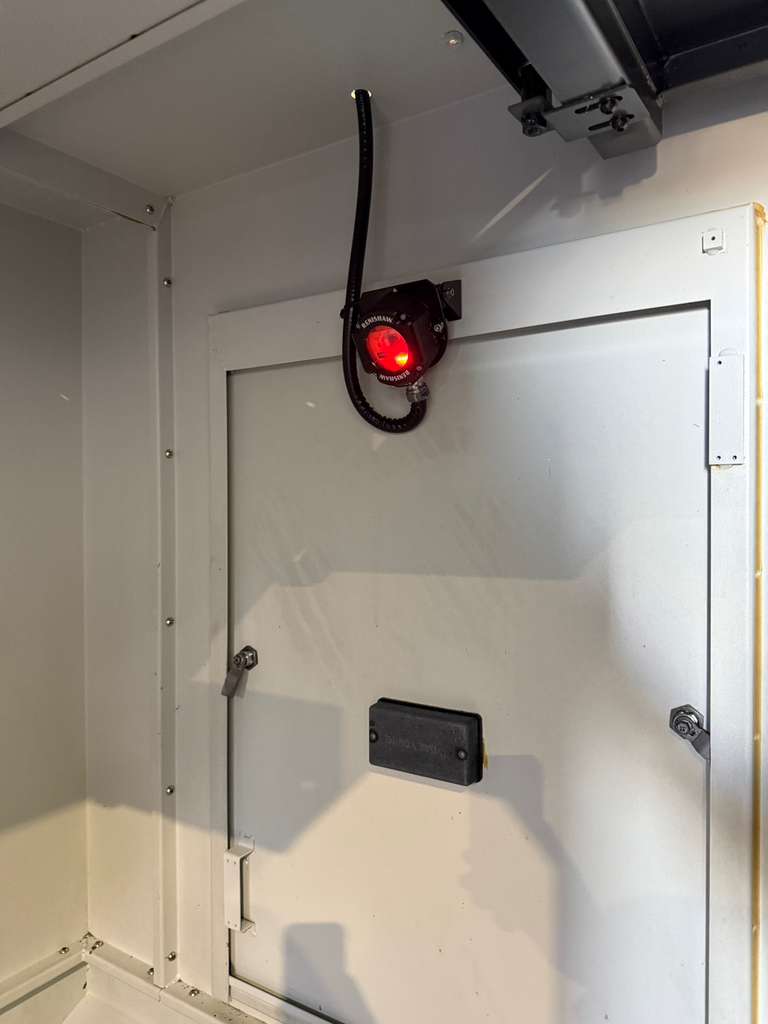

| Renishaw Probing System Ready (Probe Needed) |
| 30 Station Automatic Tool changer |
| CAT-40 Taper Spindle |
| USB Drive |
| PCMCIA Card Slot |
| MPG Hand Wheel Control |
| Automatic Lubrication System |
| Rigid Tapping |

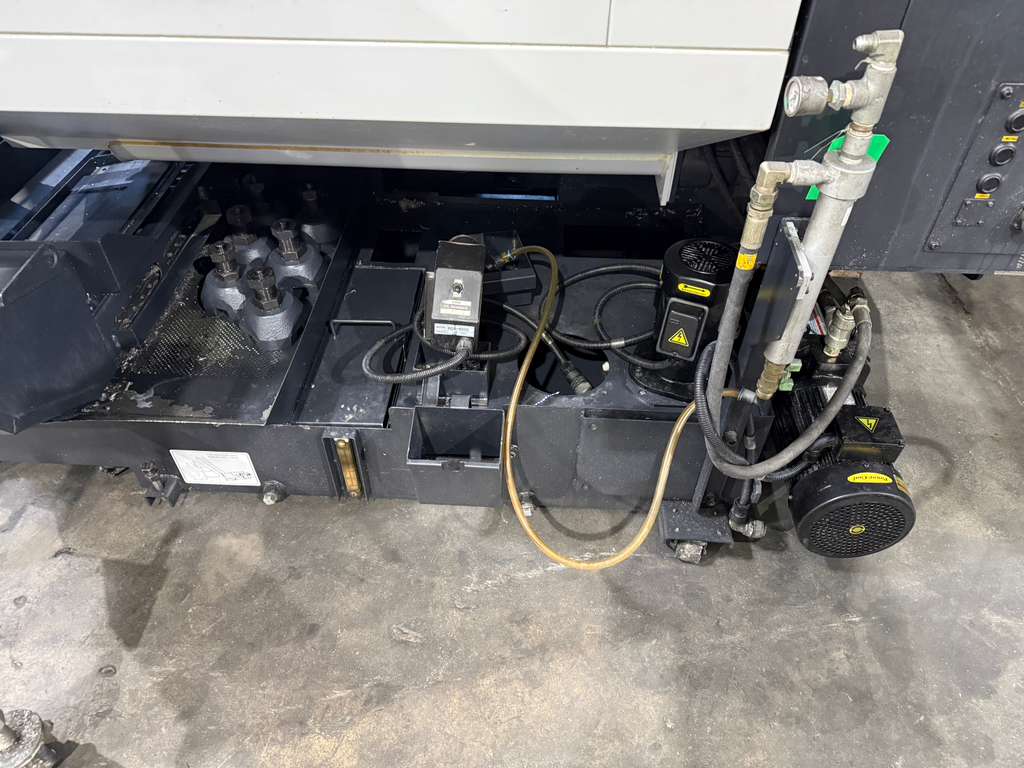

| Coolant System |

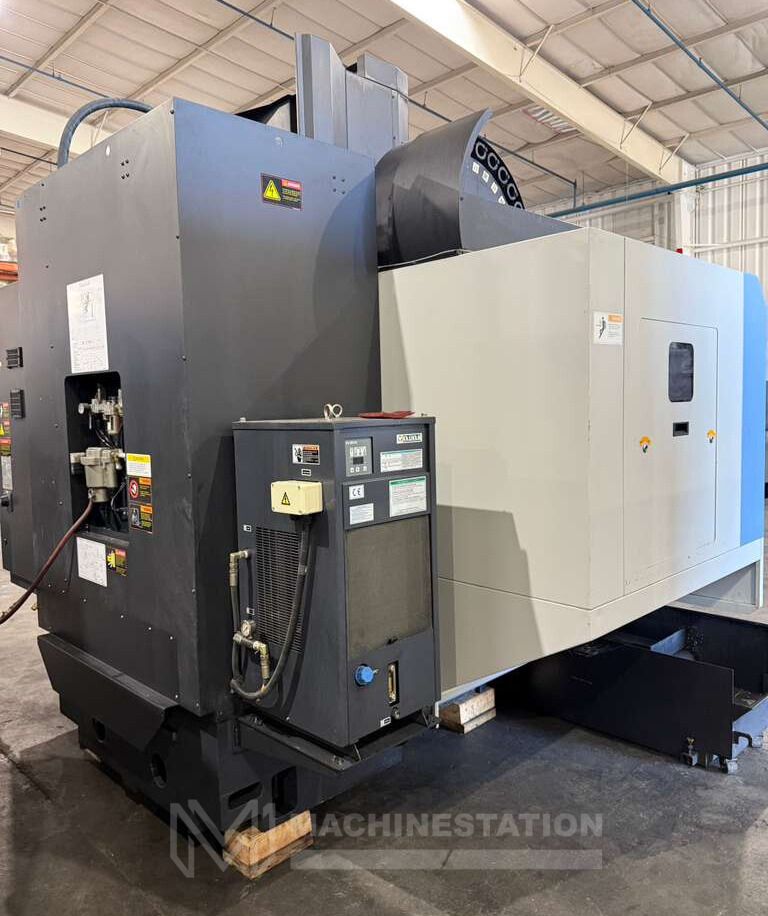

| Spindle Chiller Unit |
| Dual Chip Augers |

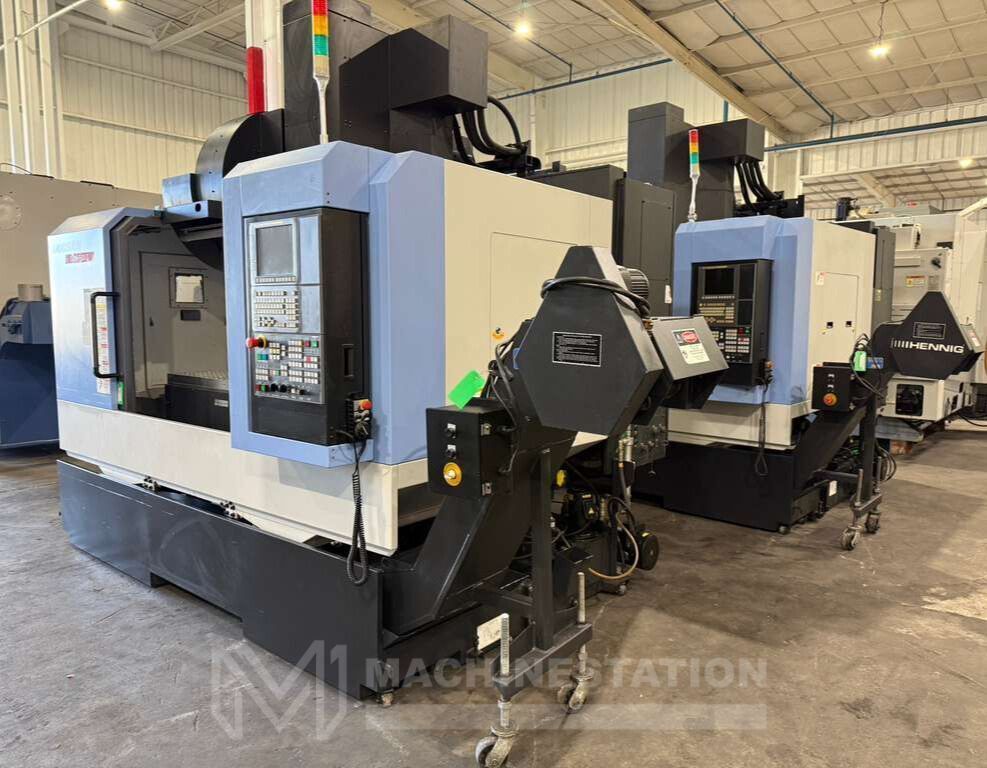

| Chip Conveyor |
| Travels: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 21.3″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Cutting Feed Rates: 590 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0 |

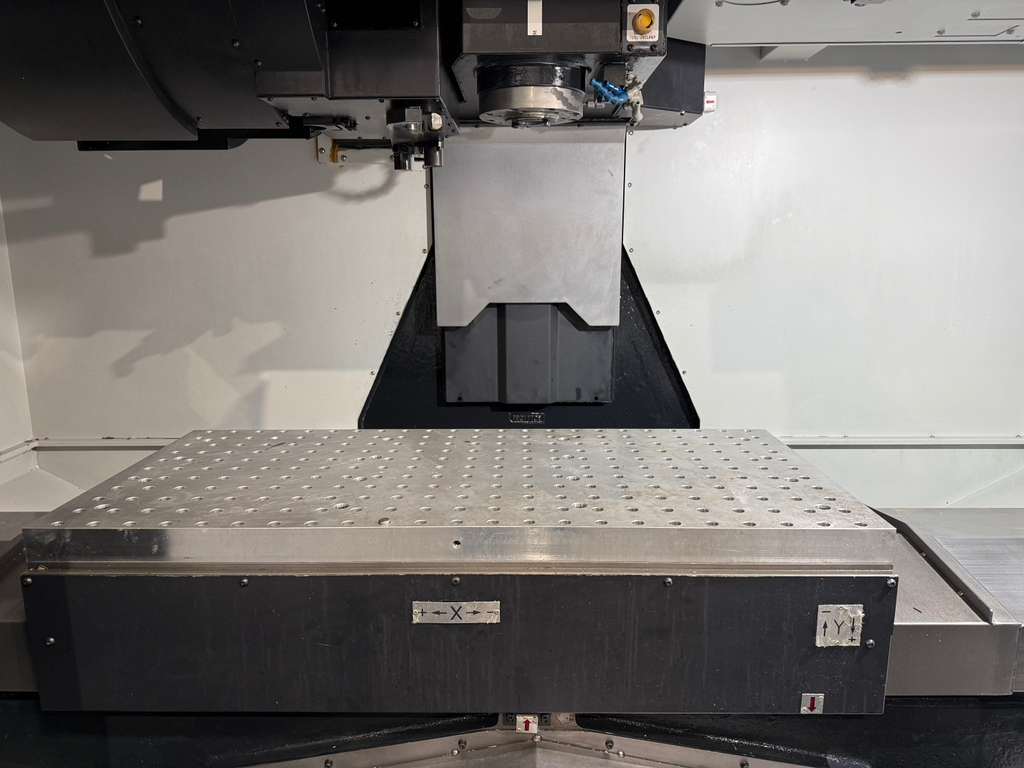

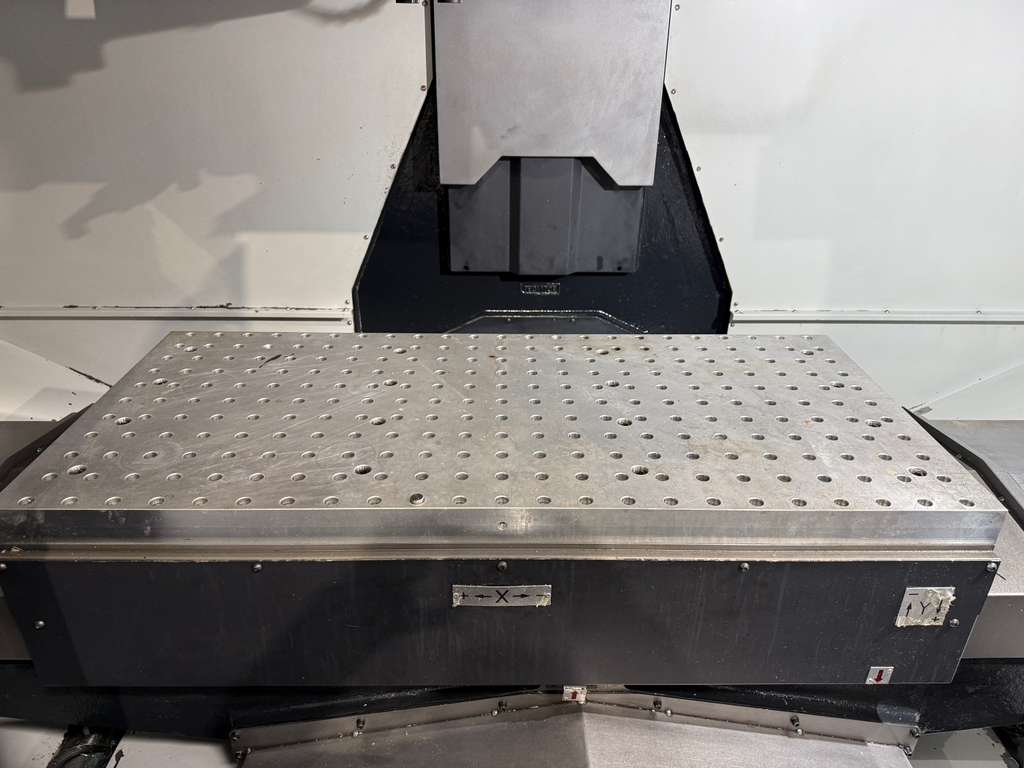

| Table: |
|---|
| Length: 47.2″ |
| Width: 21.3″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 1764 lbs |

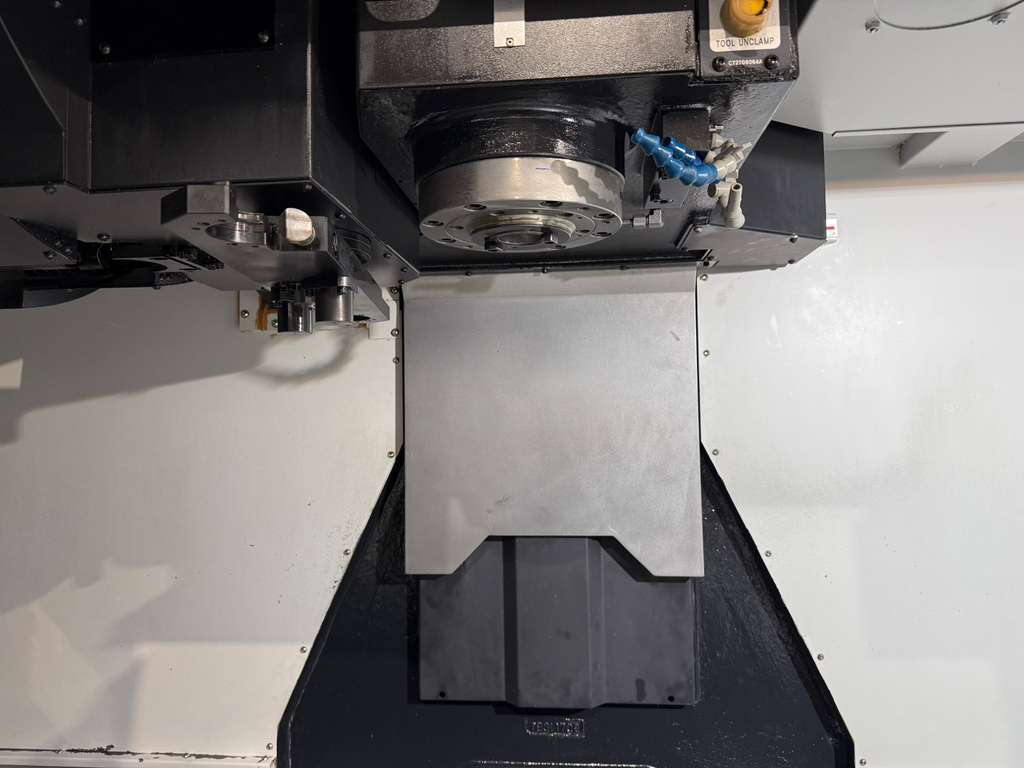

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 20 HP |

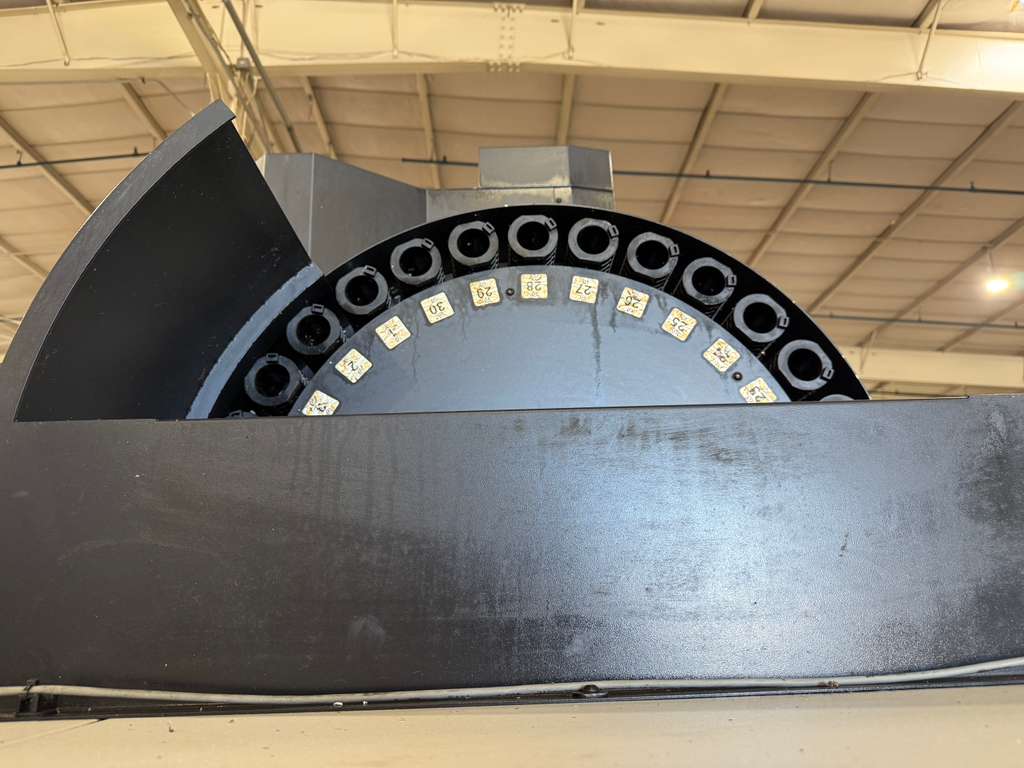

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
|---|
| Air Required: 90 psi 4 scfm |

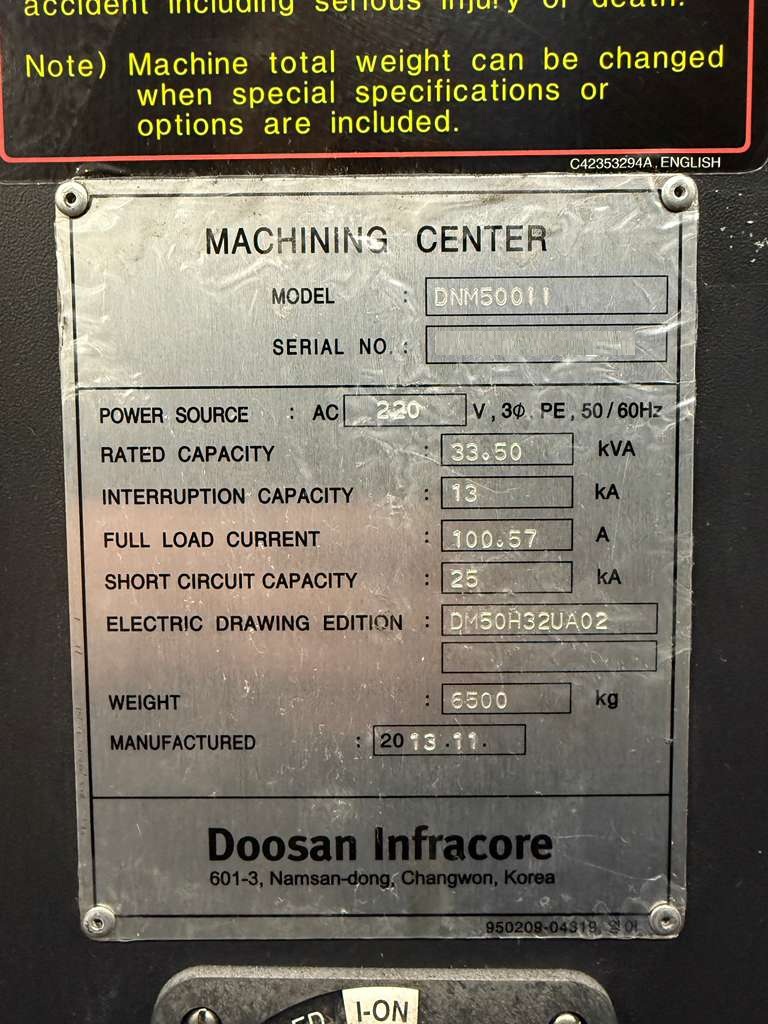

| Power: 220v / 30 kva / 3-Phase / 50/60 Hz |
| Overall Dimensions: 116″ x 96″ x 107″ High |
| Weight: 14330 lbs |
