*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model: | ZT 2500Y |
| Year: | 2000 |
| Equipped With: |
|---|
| Mitsubishi MSC-501 CNC Control |

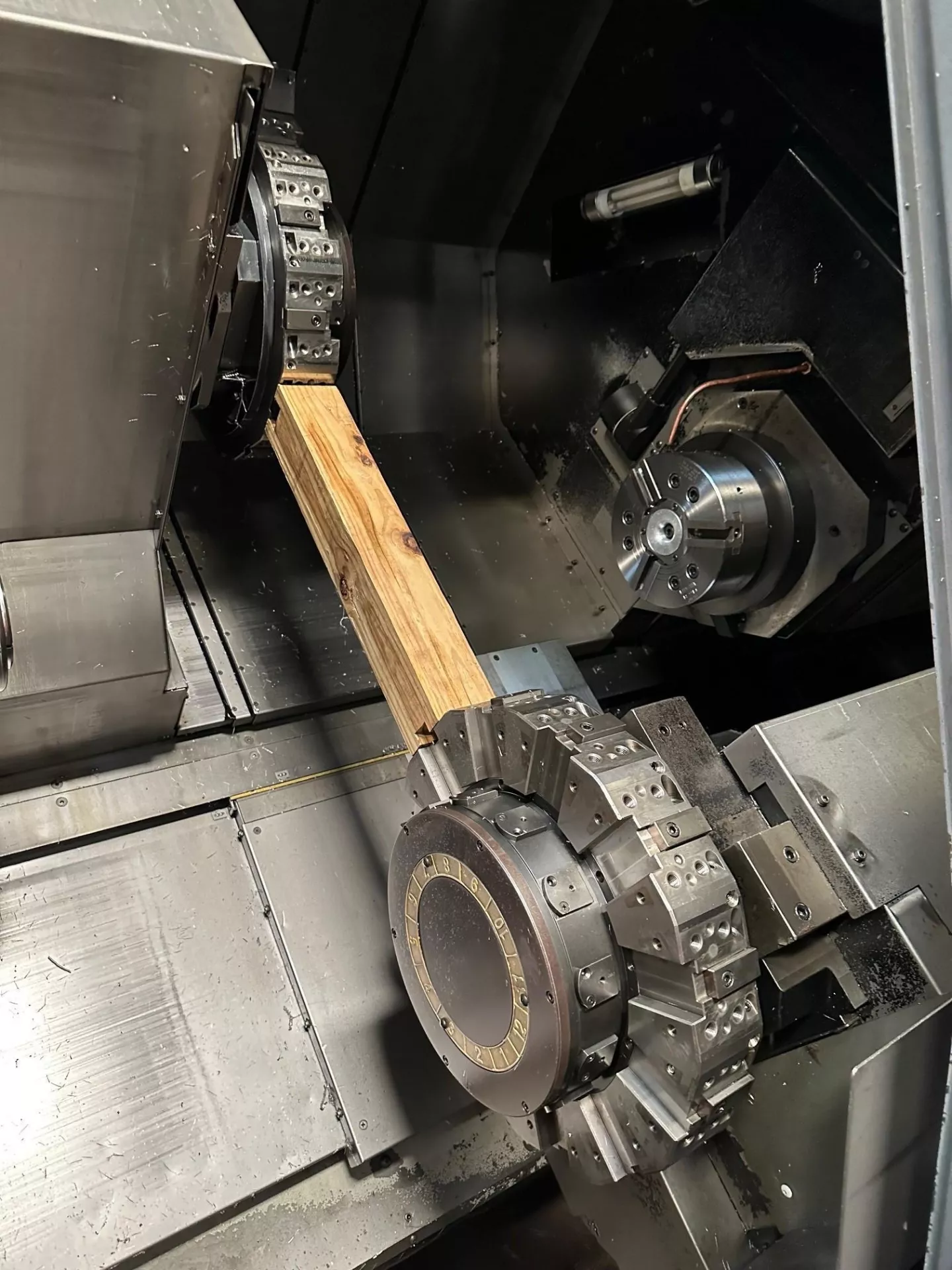

| Twin Turrets |
| Y-Axis |
| Live Tooling |
| Hinge Chip Conveyor |
| (2) Tool Presetters |
| Bar Feed Interface |
| Flood Coolant System |
| Misc. Rotary & Static Tool Holder Package |
| Dual Electric Foot Pedals |
| Capacity: |
|---|
| Chuck Size: 10″ |
| Max Swing: 14.9″ |
| Max Turning Diameter: 14.9″ |
| Distance Between Centers: 51.2″ |
| Bar Capacity: 2.8″ |
| Travels: |
|---|
| X-Axis Travel: 11″ |
| Z-Axis Travel: 37.8″ |
| Y-Axis Travel: Yes |
| Rapid Traverse (X-Axis): 945 IPM |
| Rapid Traverse (Z-Axis): 945 IPM |
| Spindle: |
|---|
| Maximum Spindle Speed: 4,000 RPM |
| Main Spindle Motor: 30 HP |
| Live Tooling: |
|---|
| Live Tooling: Yes |
| Live Tool Speed: 6,000 RPM |
| Live Tool Motor: 6 HP |
| Turret: |
|---|
| Number of Turrets: 2 |
| Turret Capacity: 12 Stations Each |
| General: |
|---|
| Number of Controlled Axes: 5 |

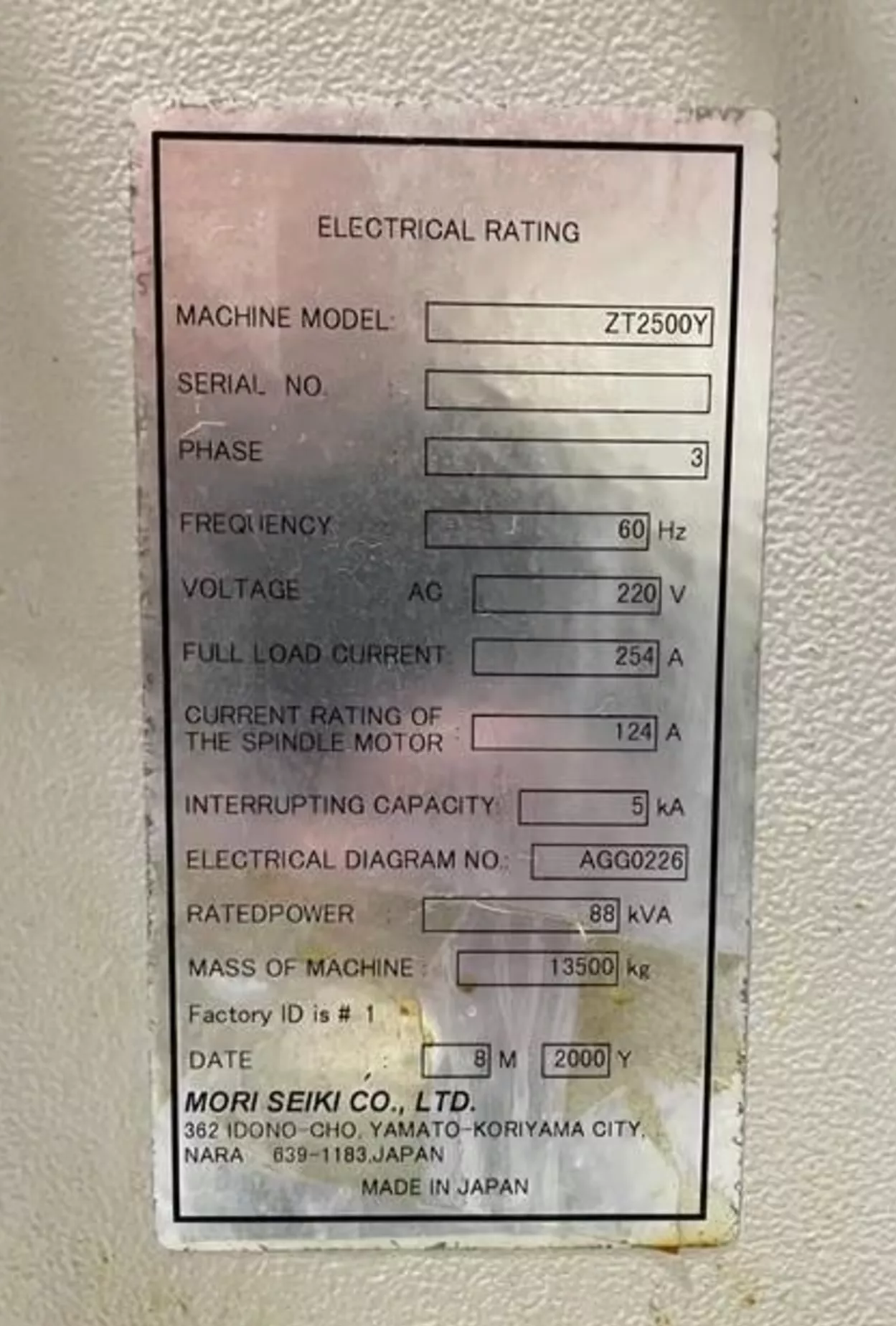

| Electrical: 220 Volt / 3 Phase / 60 Hz |
| Machine Dimensions (Approx.): 186″ × 114″ × 104″ |
| Machine Weight (Approx.): 29,000 lbs. |
