*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Muratec |
| Model No.: | MJ60 |
| Year of Manufacture: | 2015 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| Country of Origin: | Japan |
| Equipped With: |
|---|

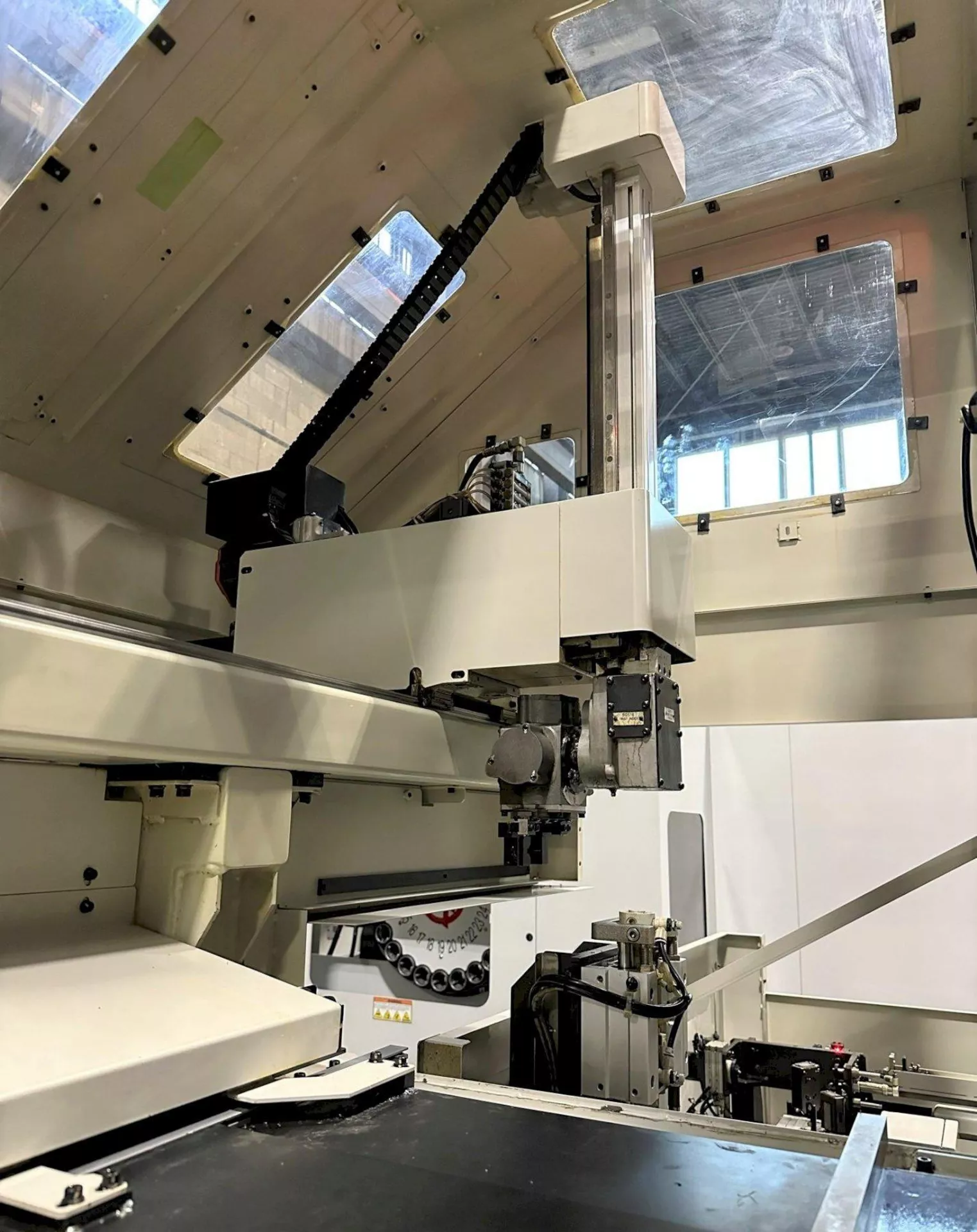

| Integrated Gantry Loader System |
| Automatic Workpiece Handling |

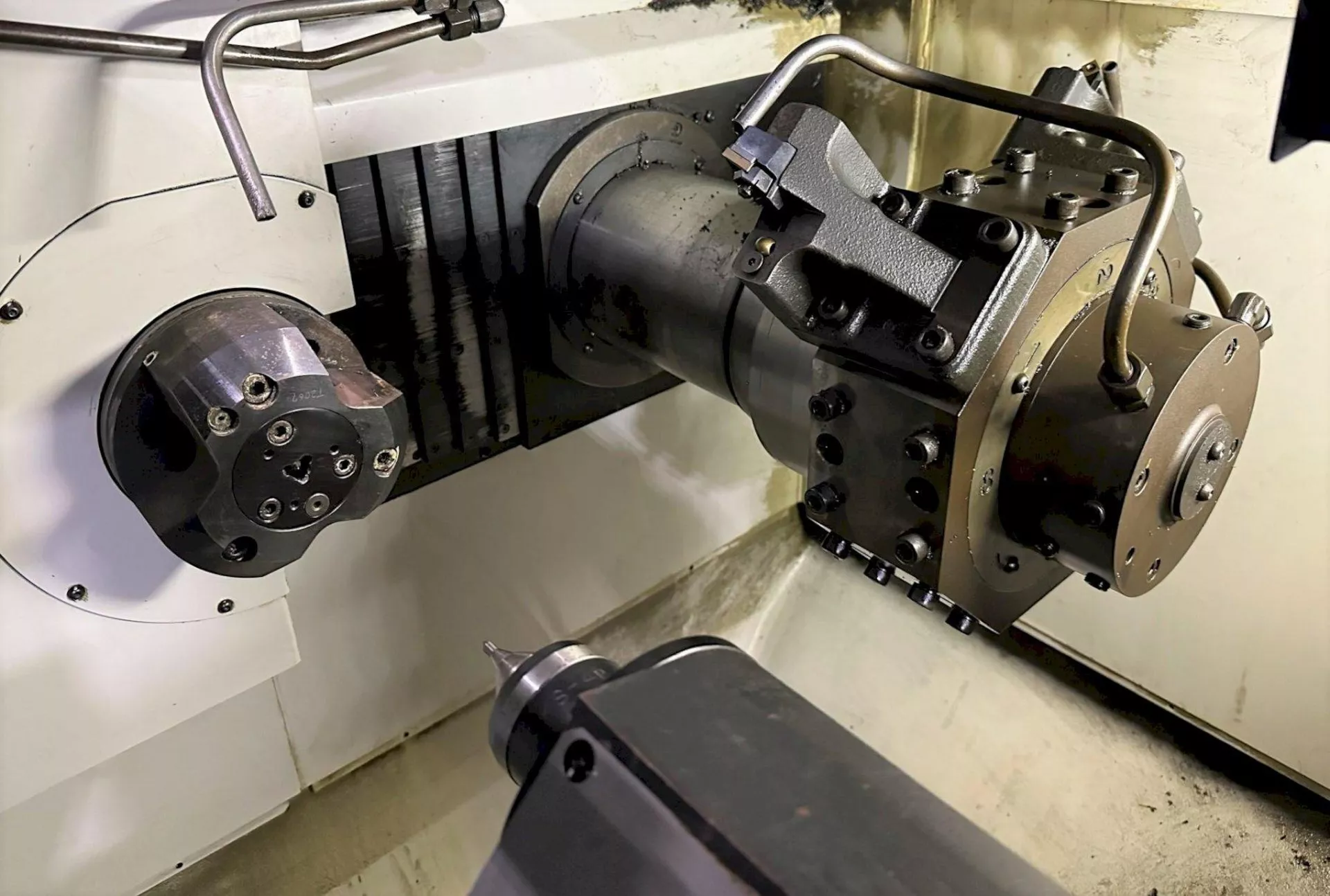

| 8-Station Tool Turret |
| Hydraulic Tailstock (MT4) |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Max Part Length: 5.7″ |
| Workpiece Capacity (Gantry): 1.18″ x 5.7″ |
| Max Workpiece Weight: 2.2 lbs |
| Travels & Feed Rates: |
|---|
| X-Axis Rapid Feed Rate: 945 IPM |
| Z-Axis Rapid Feed Rate: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: JIS A2-5 |
| Max Spindle Speed: 4,500 RPM |
| Spindle Motor: 14.75 HP |
| Tooling: |
|---|
| Number of Turrets: 1 |
| Tool Positions: 8 |
| General: |
|---|

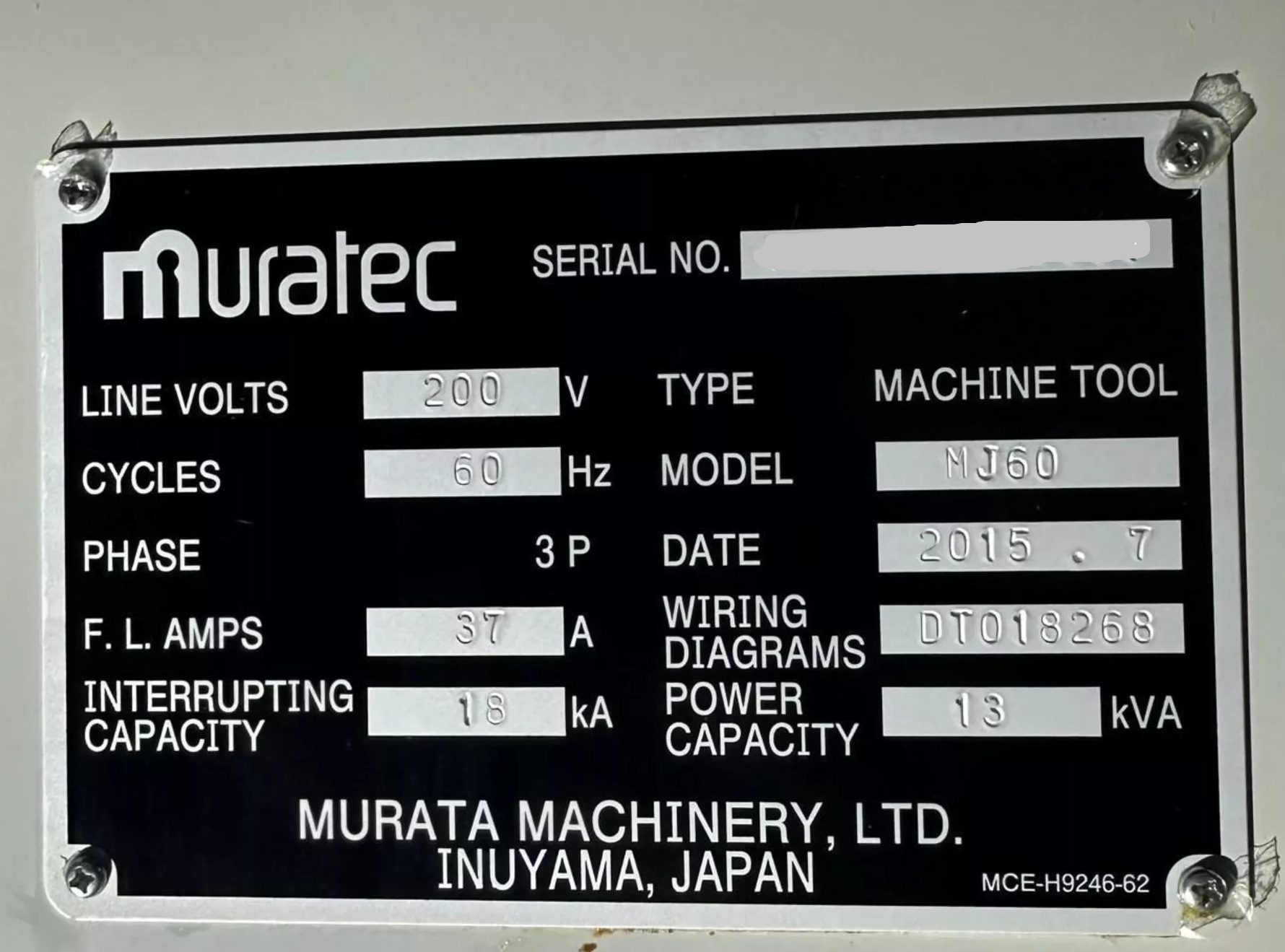

| Power Supply: 460V / 3 Phase / 60 Hz |
| Machine Dimensions: 114″ x 86″ |
| Machine Height: 110″ |
| Machine Weight: 8,500 lbs |
| Cutting Hours: 6,860 hrs |
