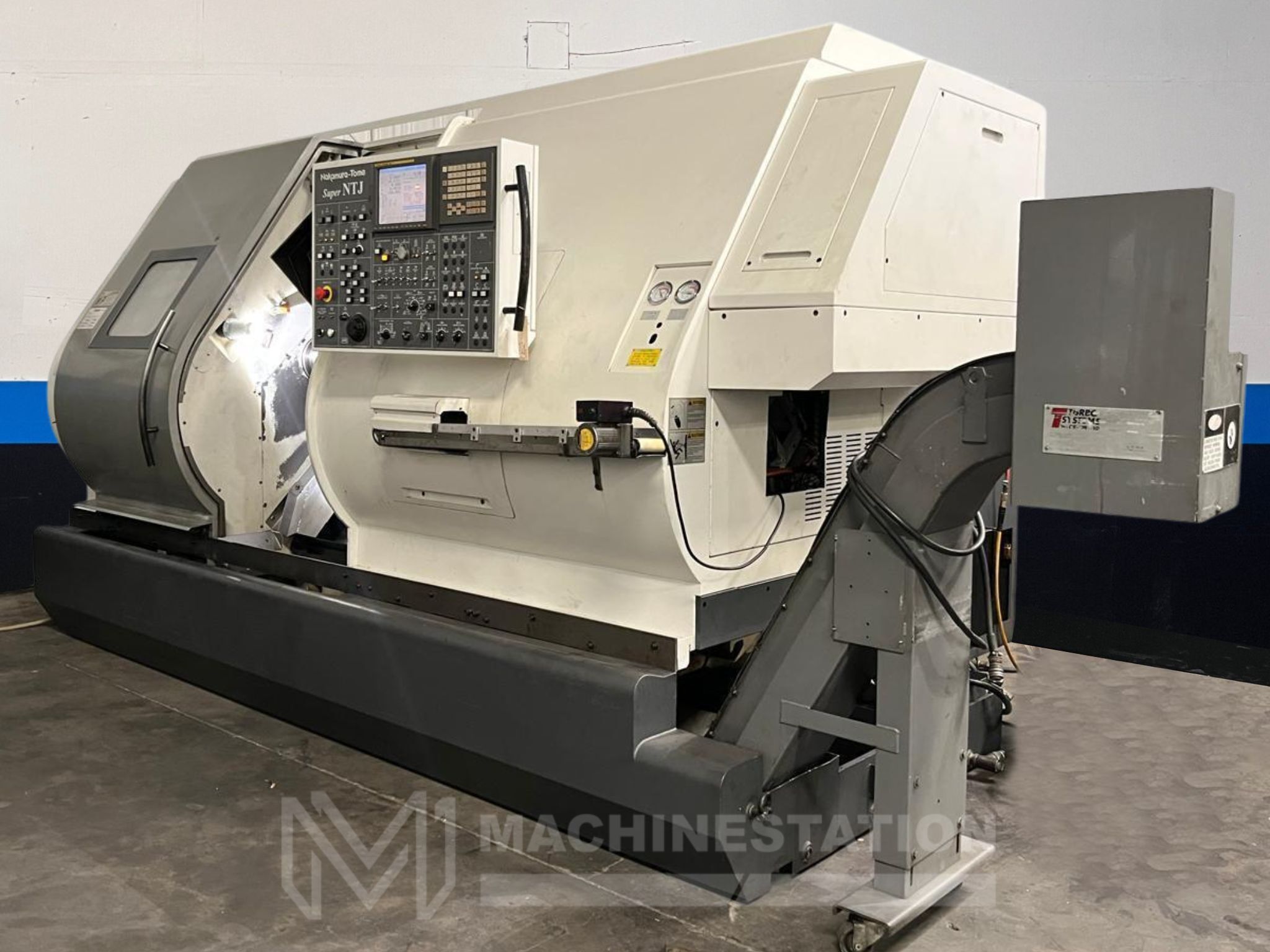

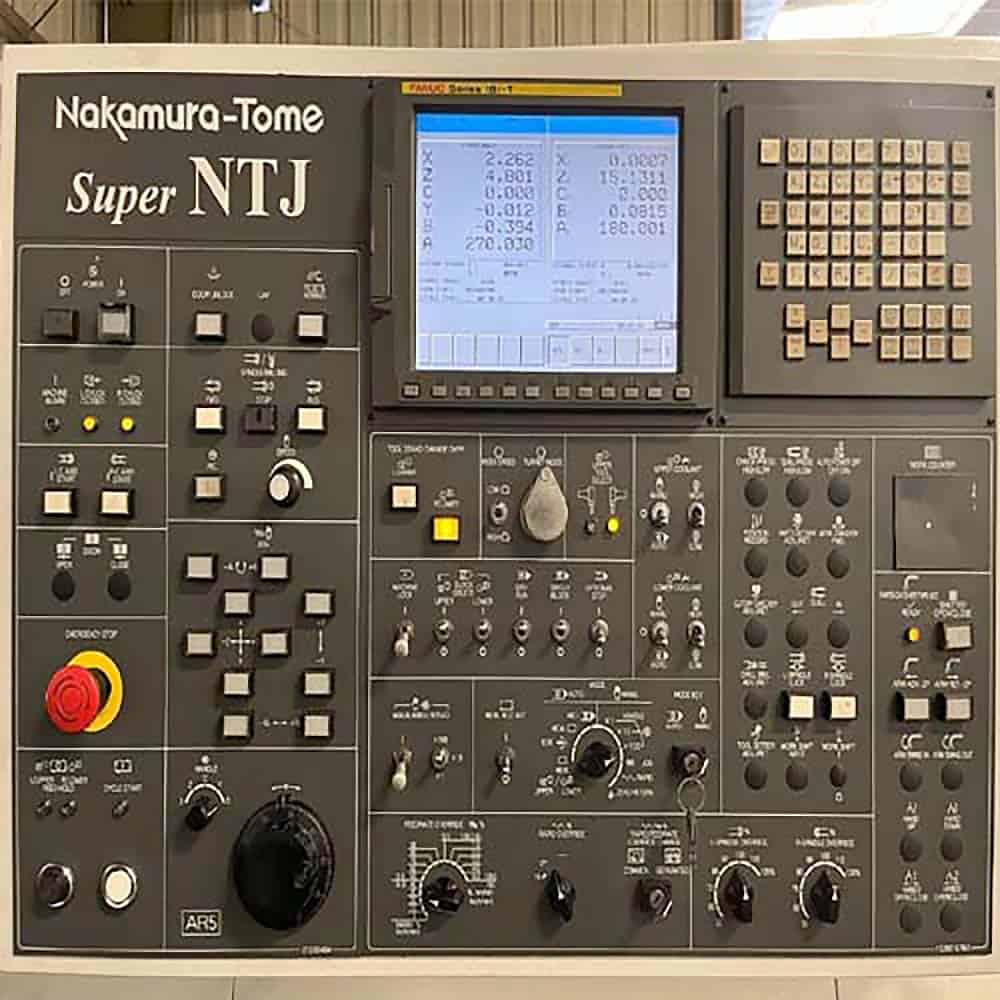

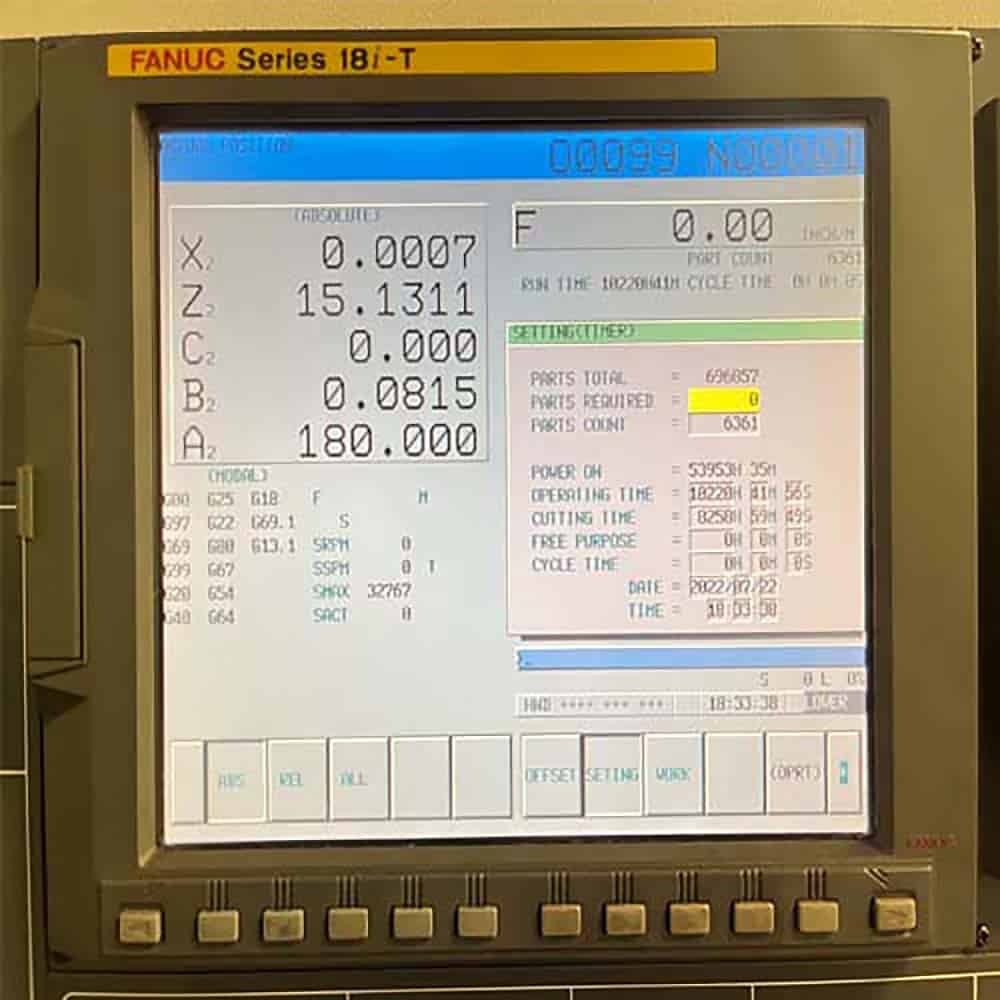

| SKU: | 113011 |
| Make: | Nakamura Tome |
| Model: | Super NTJ |
| Condition: | Used – Good |
| Features: |
|---|
| Fanuc 18i-T CNC Control |
| Collet Chuck on Main Spindle (Capable 6″ Chuck) |
| Collet Chuck on Sub Spindle (Capable 6″ Chuck) |
| Servo Controlled Full C-Axis on Both Spindles |

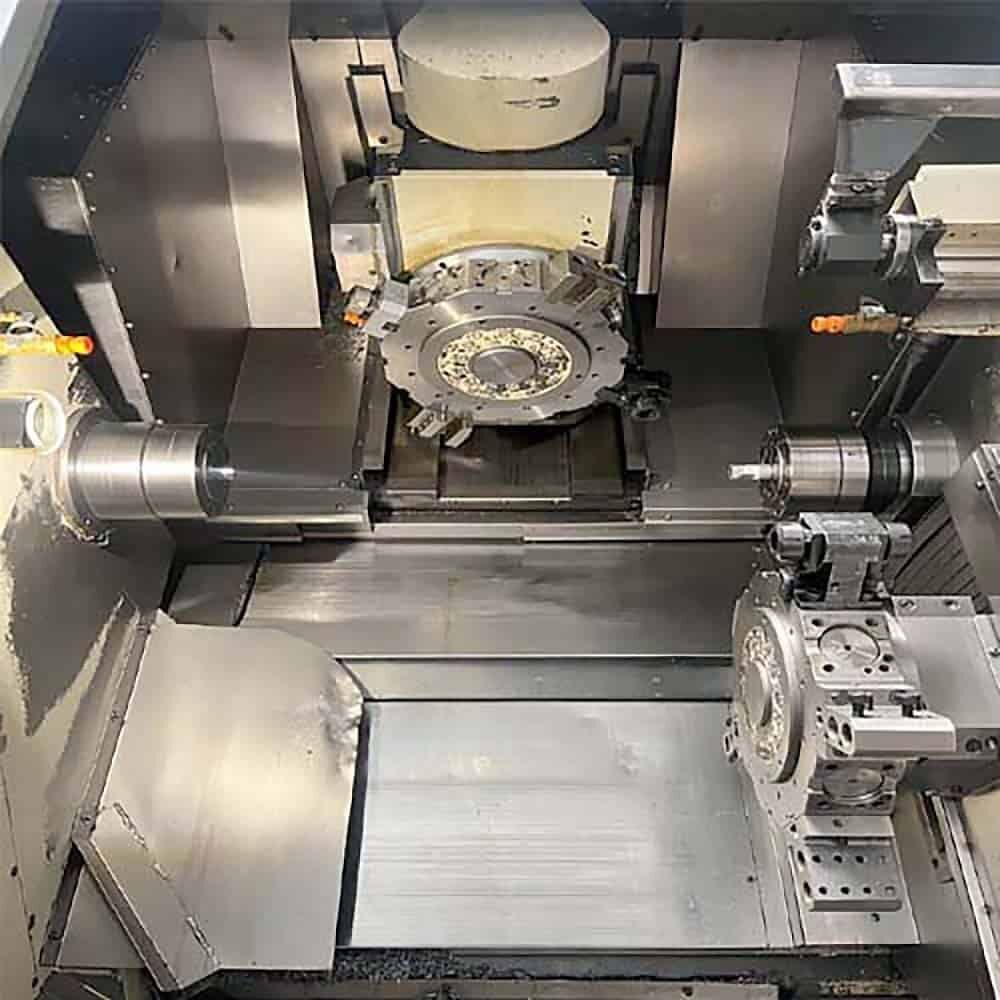

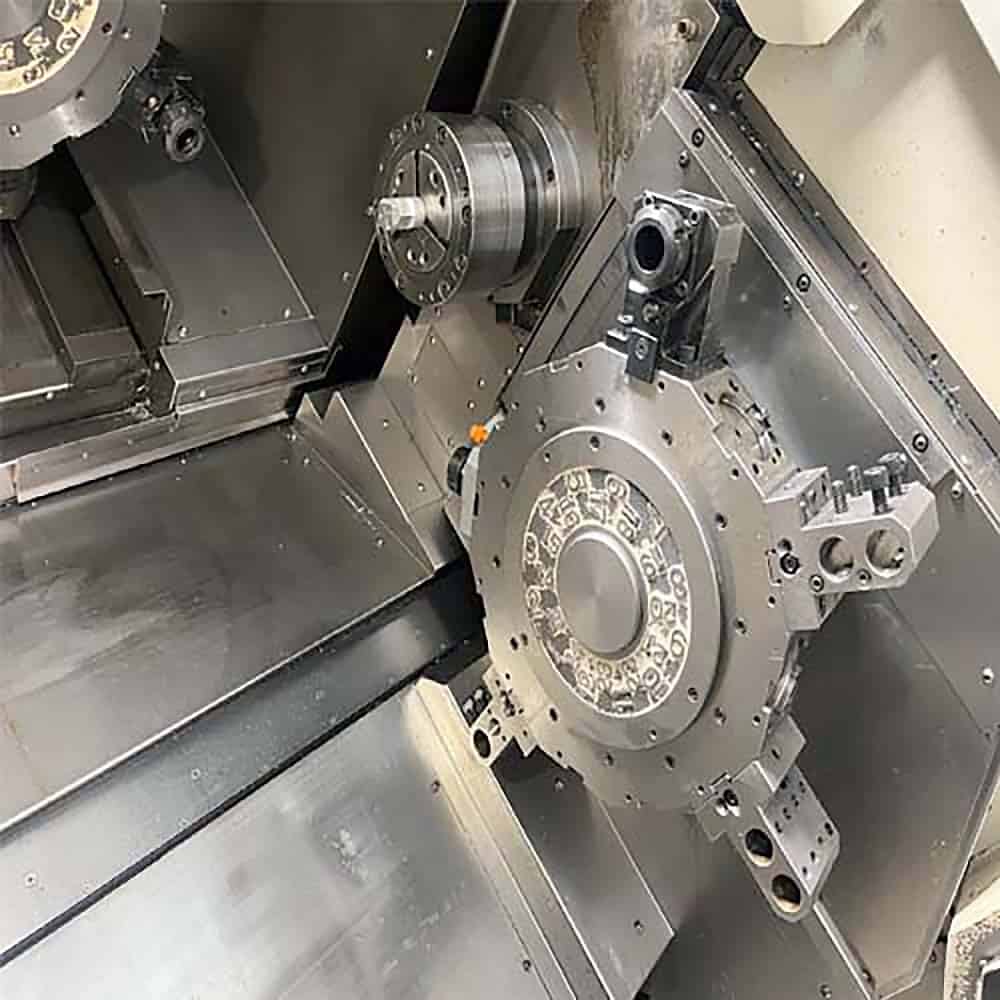

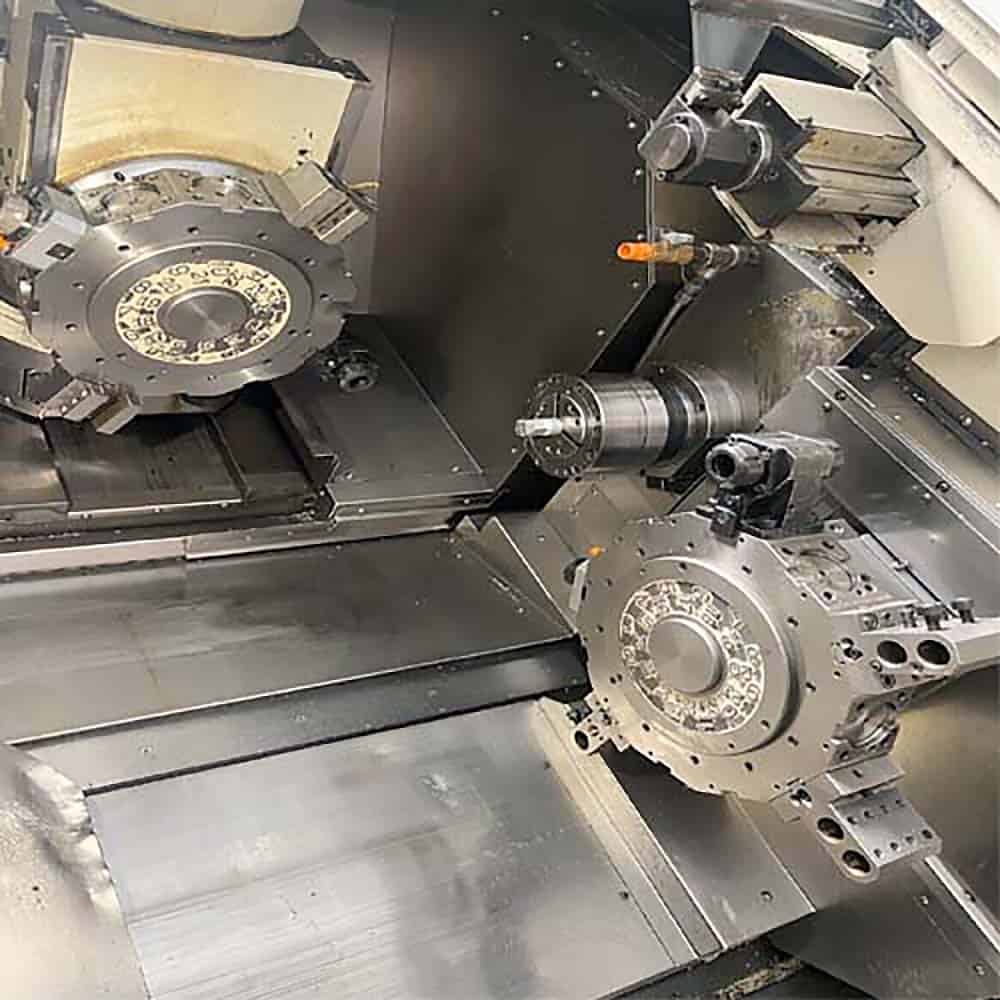

| Twin Turrets with Live Tools |
| Radial and Axial Live Tooling on Both Turrets |

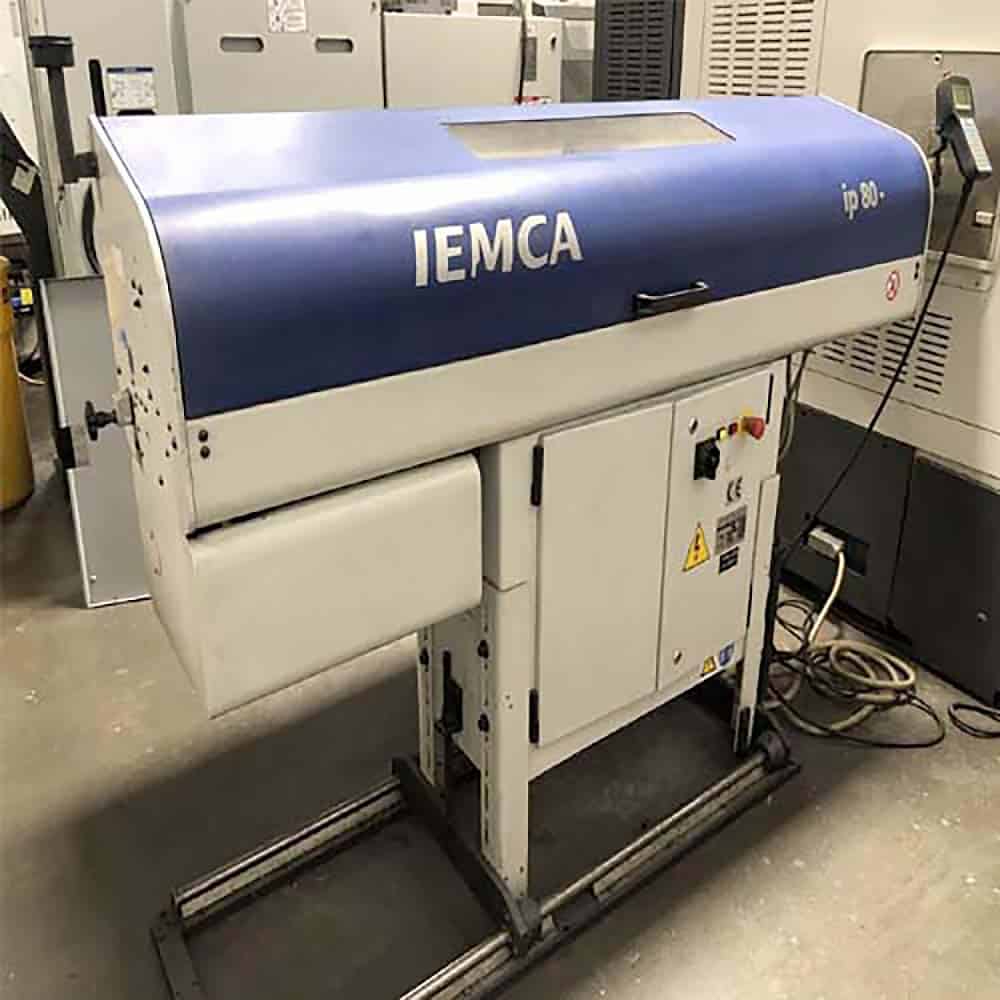

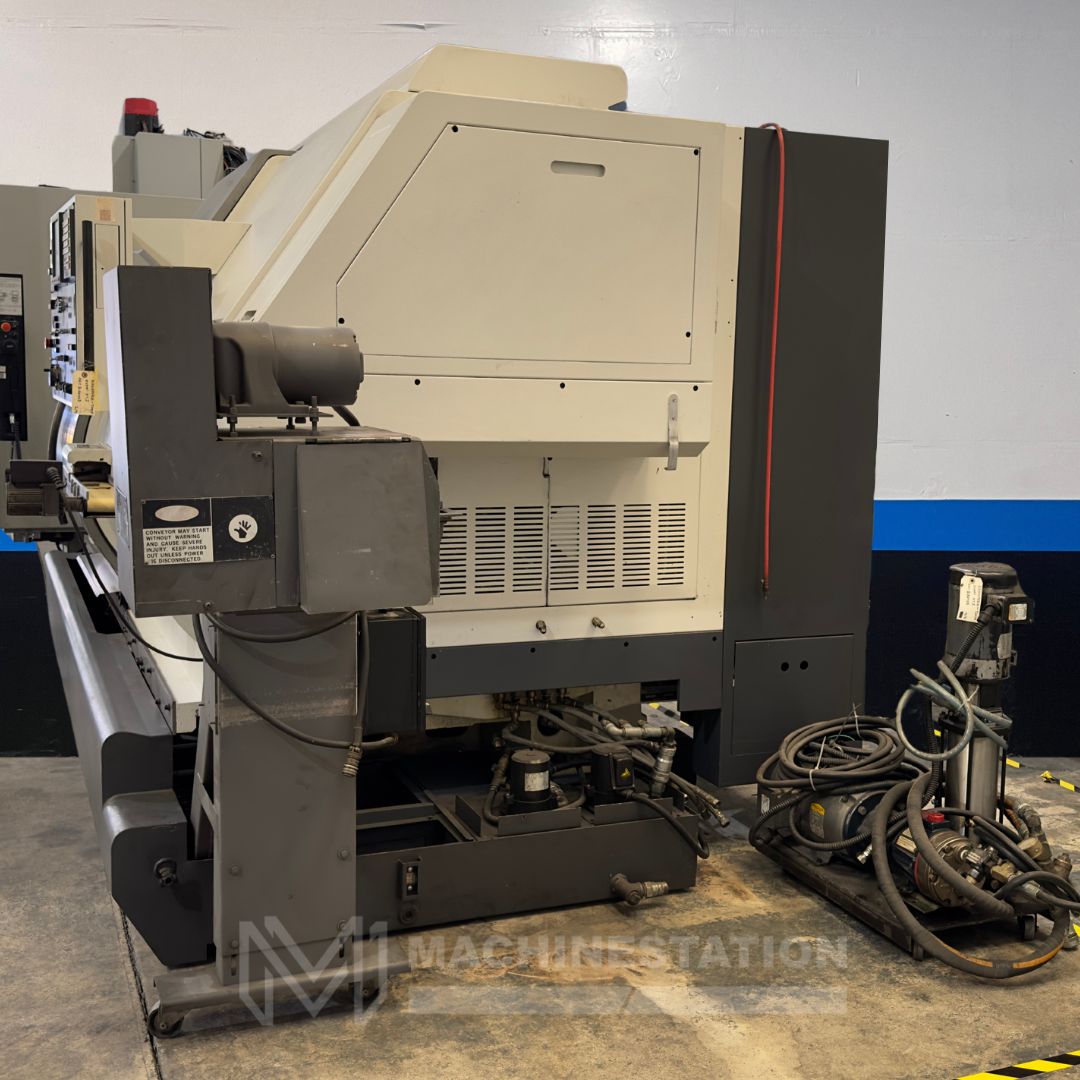

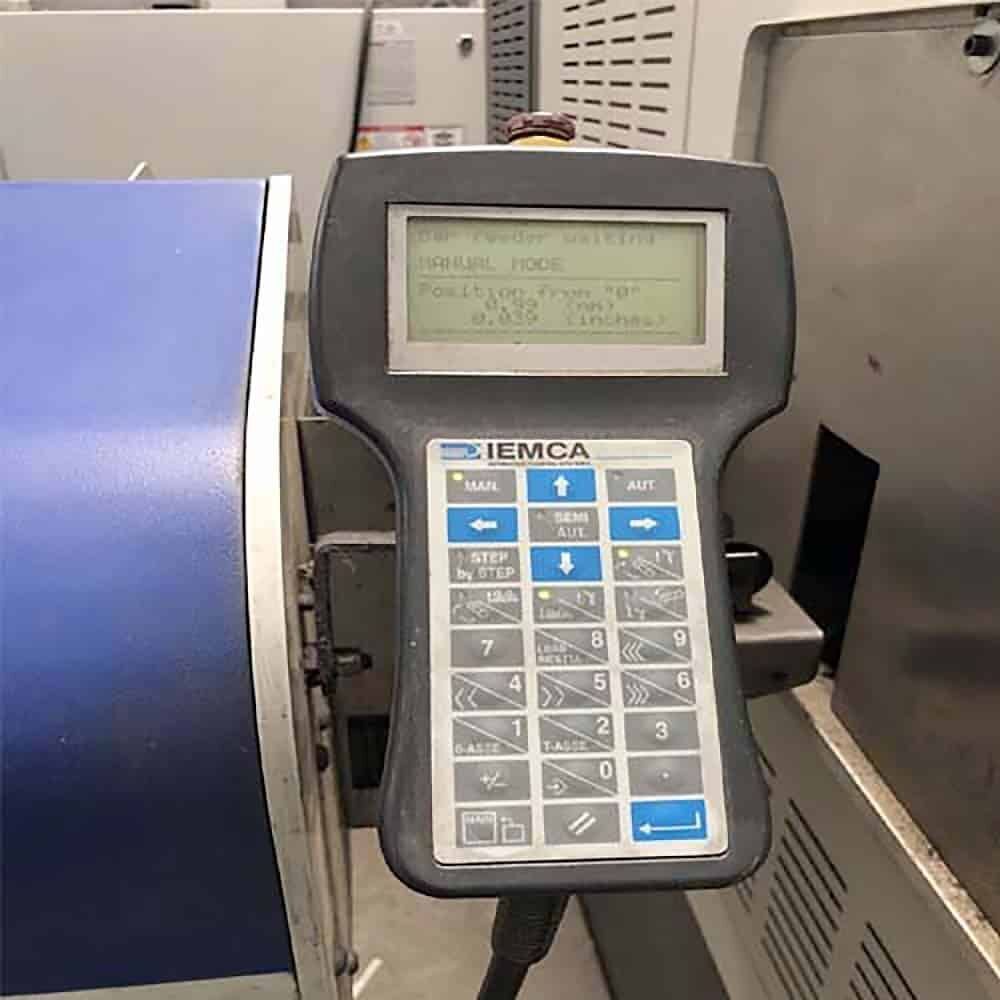

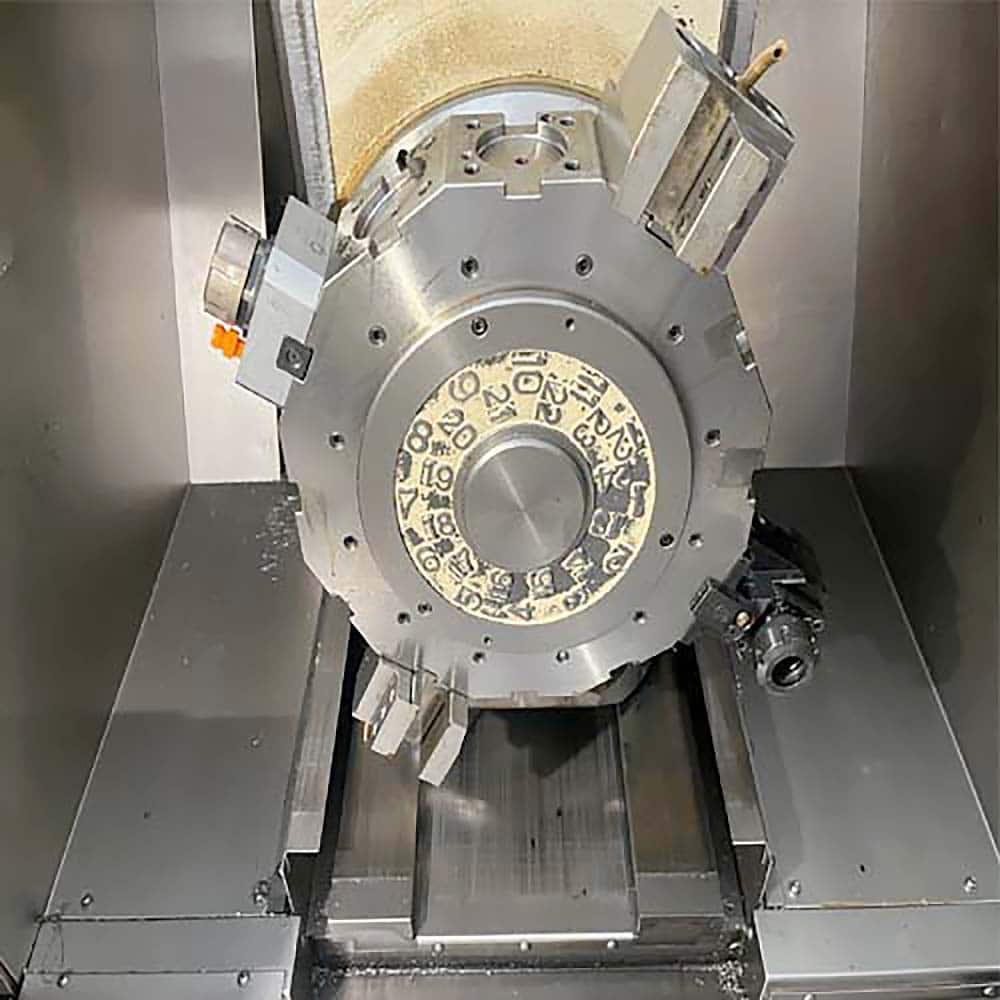

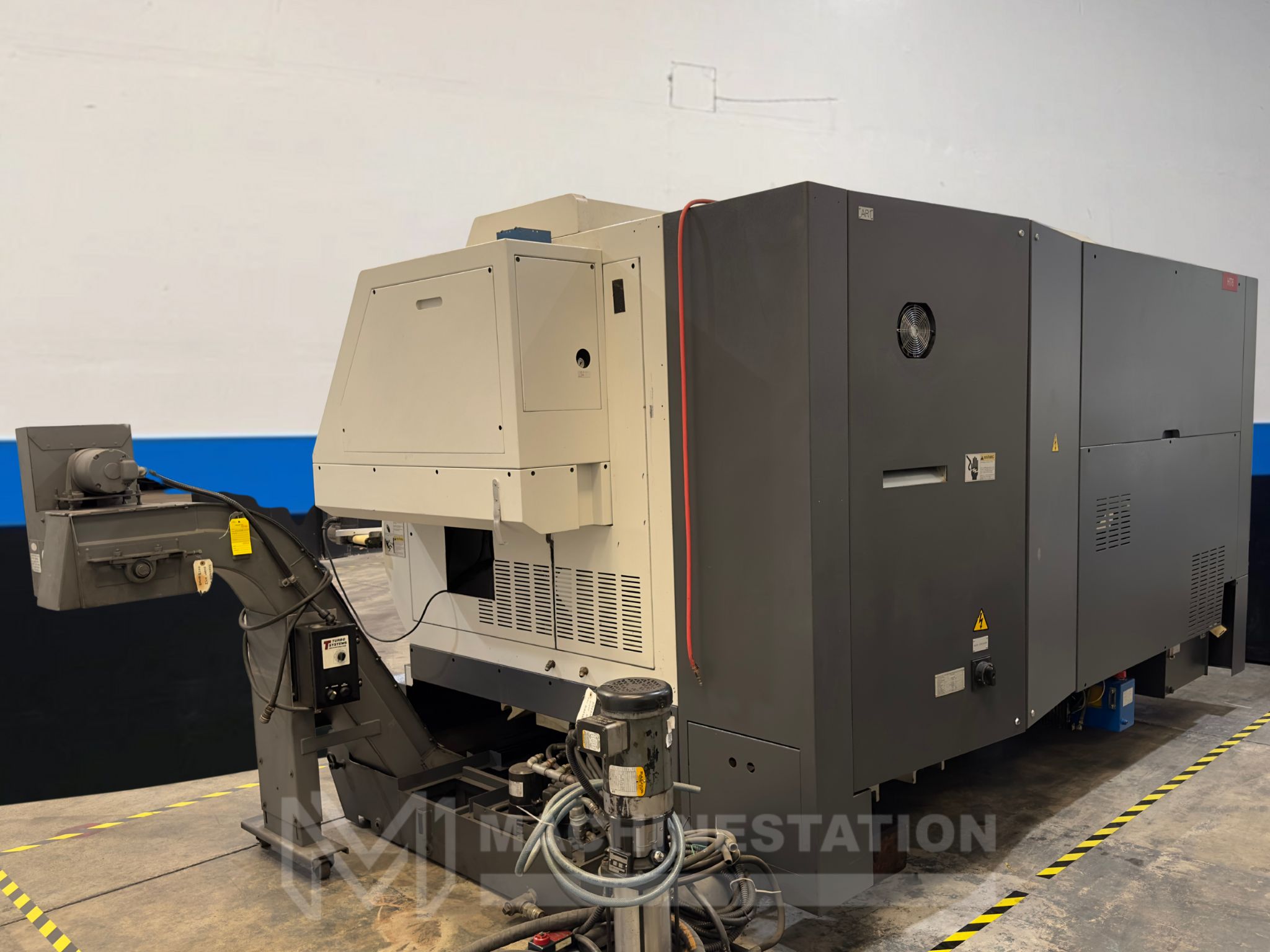

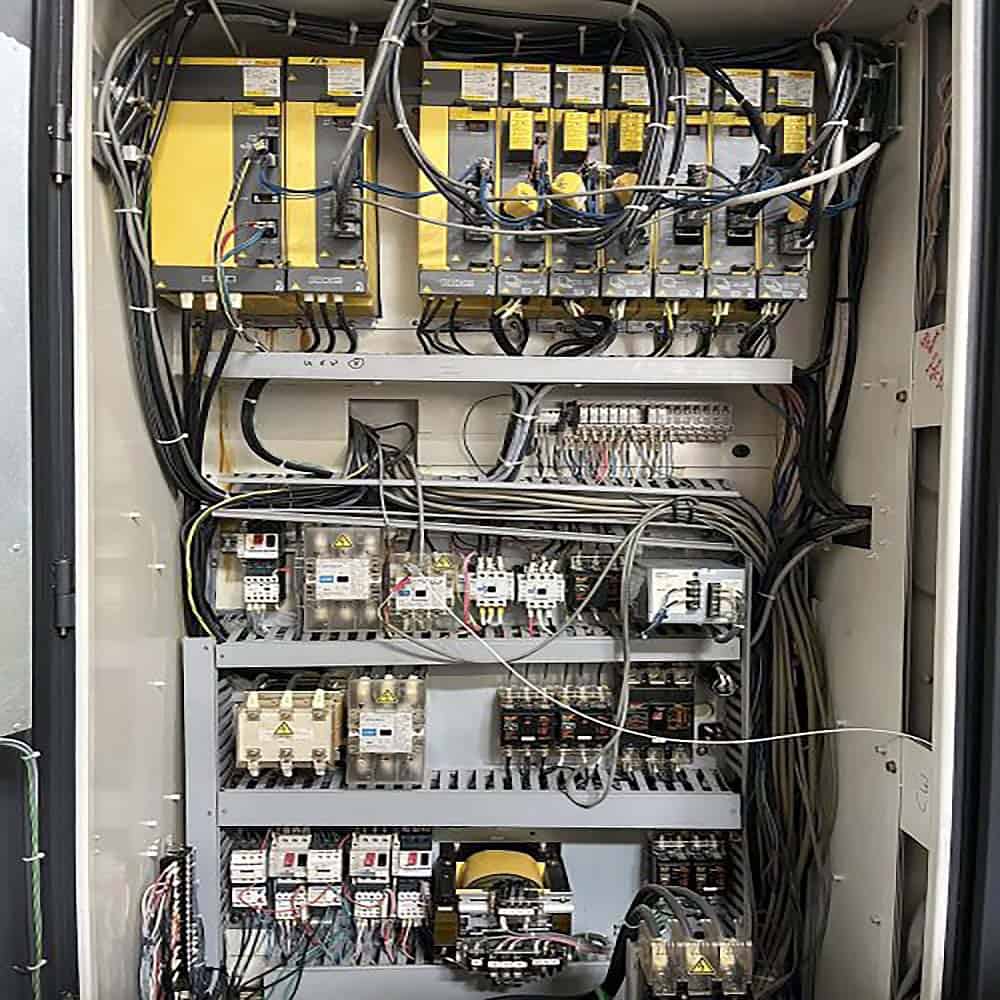

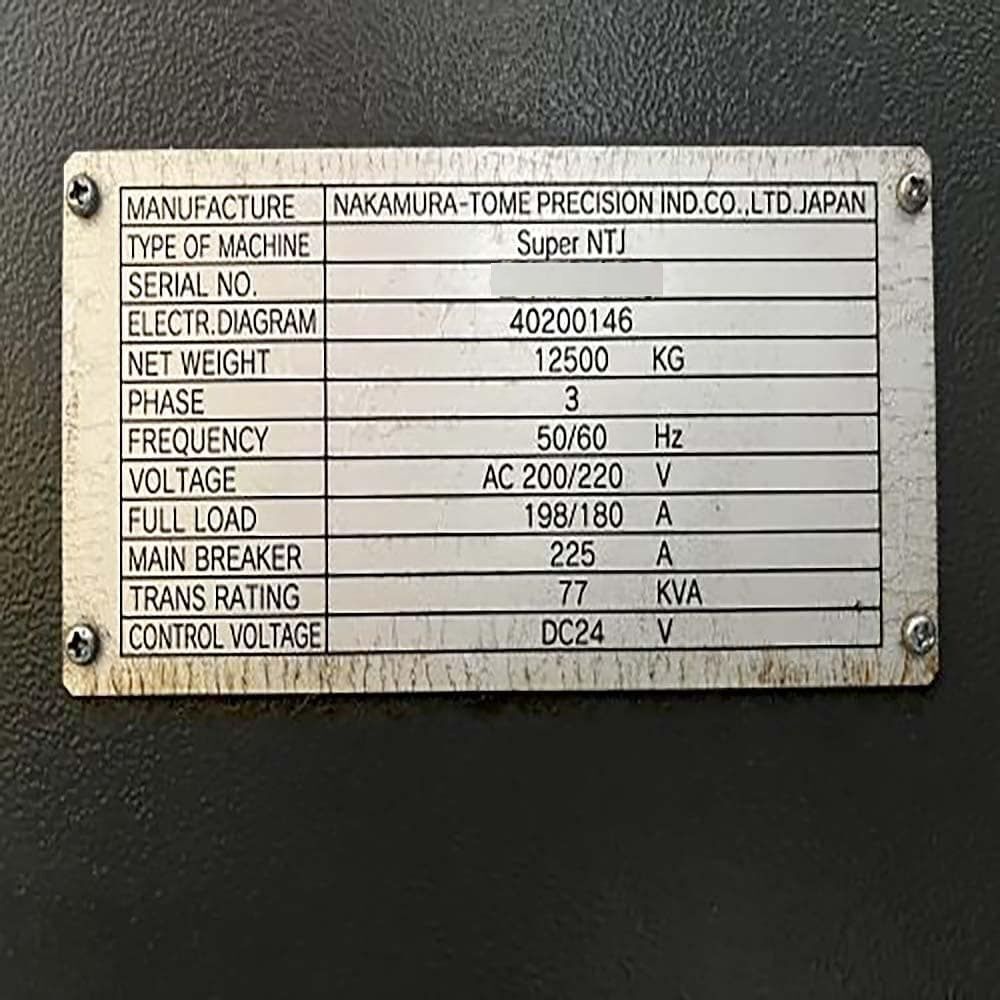

| Comes with IEMCA VIP-80E Bar Feeder |
| 12 Station Upper Turret – 24 Positions |
| 12 Station Lower Turret – 24 Positions |
| Y Axis Capability on Upper Turret |
| Both Spindle Synchronization |
| Auto Parts Catcher |
| High Pressure Coolant System |
| Foot Switches |
| Chip Conveyor |
| Parts Conveyor |
| Coolant Tank |
| Books and Manuals |
| Misc. Tool Holders (Mounted on Turrets as shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter Upper Turret : 7.48″ |
| Max Turning Diameter Lower Turret : 7.48″ |
| Max Swing : 26.0″ |
| Max Swing with Cross Slide: 7.48″ |
| Max Turning Length: 24.41″ |
| Max Bar Capacity Main Spindle : 2.56″ |
| Max Bar Capacity Sub Spindle : 2.00″ |
| Distance Between Spindle Centers: 8.27″ – 38.19″ |
| Travels: |
|---|
| X1 Axis Travel : 13.58″ |
| X2 Axis Travel : 6.59″ |
| Z1 Axis Travel : 48.82″ |
| Z2 Axis Travel : 26.97″ |
| Y Axis Travel: 3.54″( +/- 1.77″) |
| B1 Axis Indexing (Upper Turret): 182 Degree( +/- 91 Degree) |
| B2 Axis Travel (Sub Spindle) : 29.52″ |
| C Axis: 360° (0.001°) |
| Feedrate: Rapid Traverse |
| X Axis: 630 IPM Rapid Traverse |
| Y Axis: 236 IPM Rapid Traverse |
| Z Axis: 1575 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 3.15″ |
| Sub Spindle Bore: 2.48″ |
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-5 |
| Main Spindle Speed: 4500 RPM |
| Sub Spindle Speed: 5000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 15 HP |
| Turret: |
|---|
| Upper Turret Capacity: 12 Stations – – 24 Positions |
| Lower Turret Capacity: 12 Stations – – 24 Positions |
| Live Milling Speed: 6000 RPM |
| Live Milling Motor: 7.5 HP |
| Turret Index Time (Tool to Tool): 0.2 sec |
| Tool Holders Type: BMT |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Bar Feeder: 93″ X 48″ X 59″ Height |
| Chip Conveyor & Coolant Tank: 200″ X 63″ X 66″ Height |
| High Pressure Pump: 45″ X 24″ X 40″ |
| Machine Dimensions: 156″ x 94″ x 89″ Height |
| Machine Weight: 27,500 lbs Approx |
