*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | WT-100MMY |
| Year: | 2008 |
| Machine Type: | CNC Milling & Turning Center |

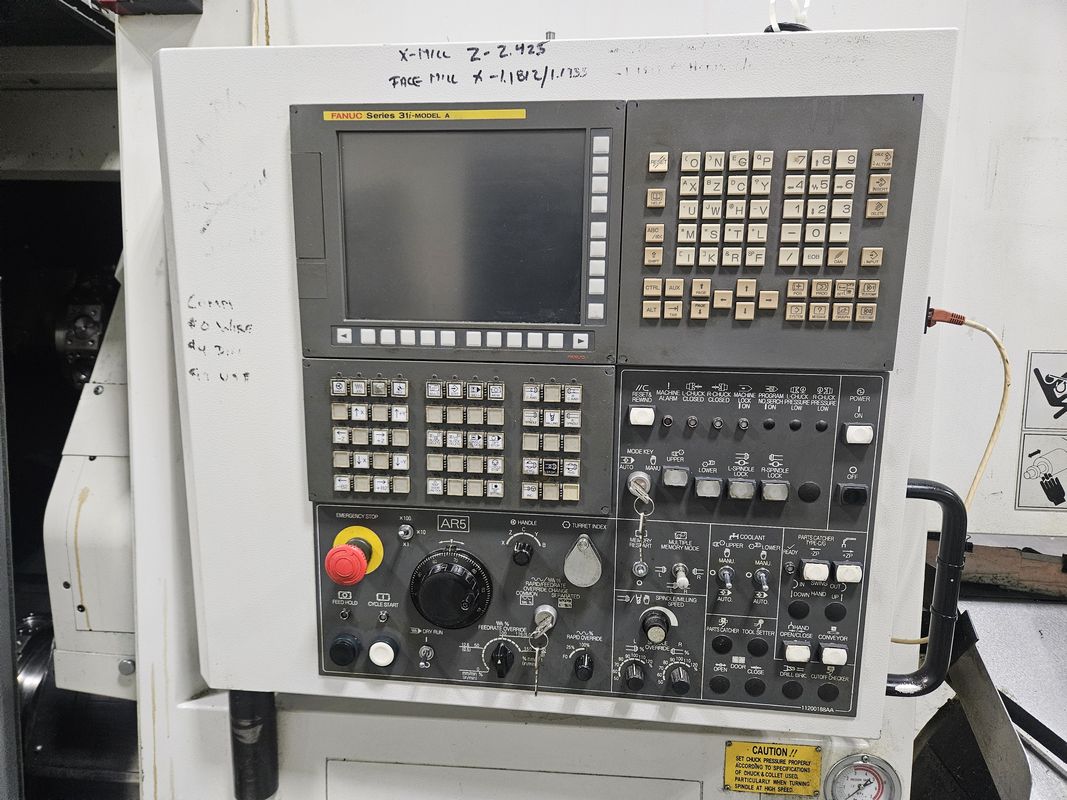

| CNC Control: | Fanuc 31i-A |
| Equipped With: |
|---|

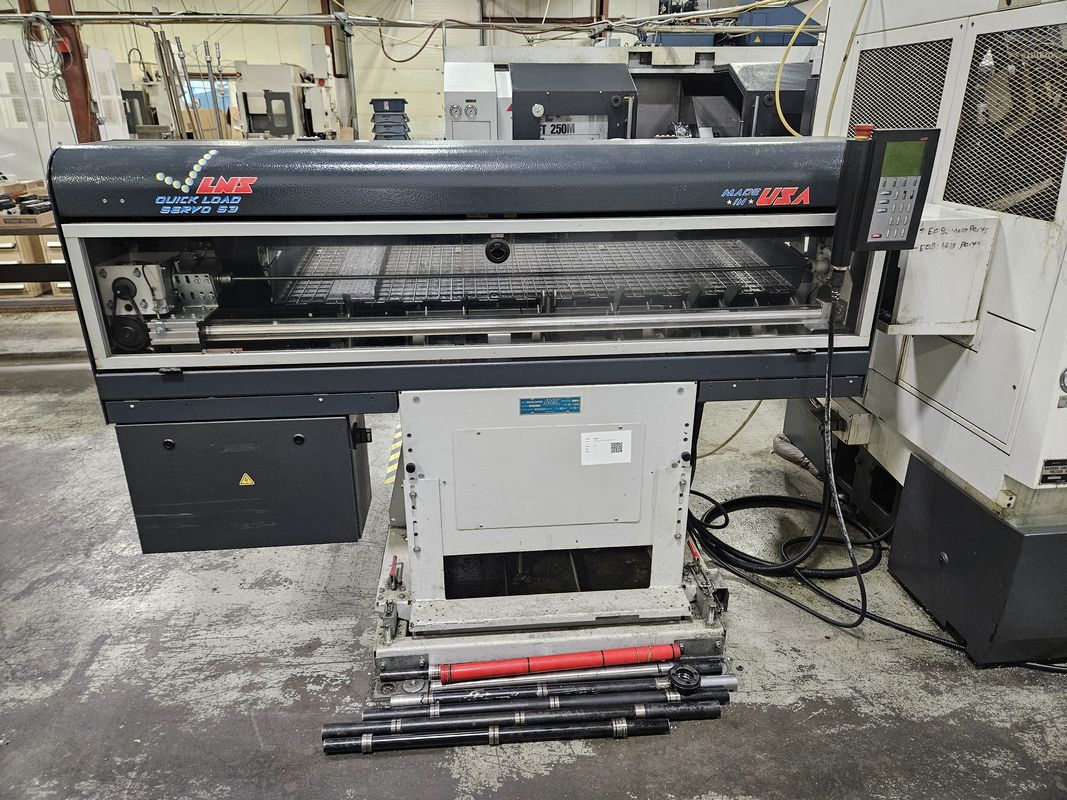

| Bar Feeder: LNS Quickload Servo S3 |
| High-Pressure Coolant: (2) 1,000 PSI High-Pressure Coolant Pumps |
| Chip Management: Chip Conveyor |
| Parts Handling: Parts Chute |
| Collet Chucks: (2) |
| Y-Axis: Included |
| Capacity: |
|---|
| Max. Turning Diameter: 7.48″ |
| Max. Turning Length: 19.80″ |
| Standard Turning Diameter: 6.69″ |
| Standard Chucking Diameter: 6″ |
| Max. Bar Capacity: 1.65″ |
| Distance Between Spindles: 8.27″ to 28.94″ |
| Travels: |
|---|
| X1/X2-Axis Travel: 5.31″ |
| Z1/Z2-Axis Travel: 19.80″ |
| Y-Axis Travel: ±1.22″ |
| Rapid Traverse – X1/X2: 630 IPM |
| Rapid Traverse – Z1/Z2: 1,575 IPM |
| Rapid Traverse – Y: 236 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Speed: 5,000 RPM |
| Spindle Motor: 15 HP |
| Number of Spindles: 2 |
| Turret: |
|---|
| Upper Turret Positions: 24 Stations |
| Lower Turret Positions: 24 Stations |
| Live Tool Positions: 12 per Turret |
| Upper & Lower Turret Milling Speed: 6,000 RPM |
| Number of Turrets: 2 |
| General: |
|---|
| Machine Weight (Approx.): 12,600 lbs. |
| Machine Dimensions (Approx.): 91″ L × 63″ W × 76″ H |
