*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | WT-150MMY |
| Year: | 2005 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Fanuc 18i-TB |
| Equipped With: |
|---|

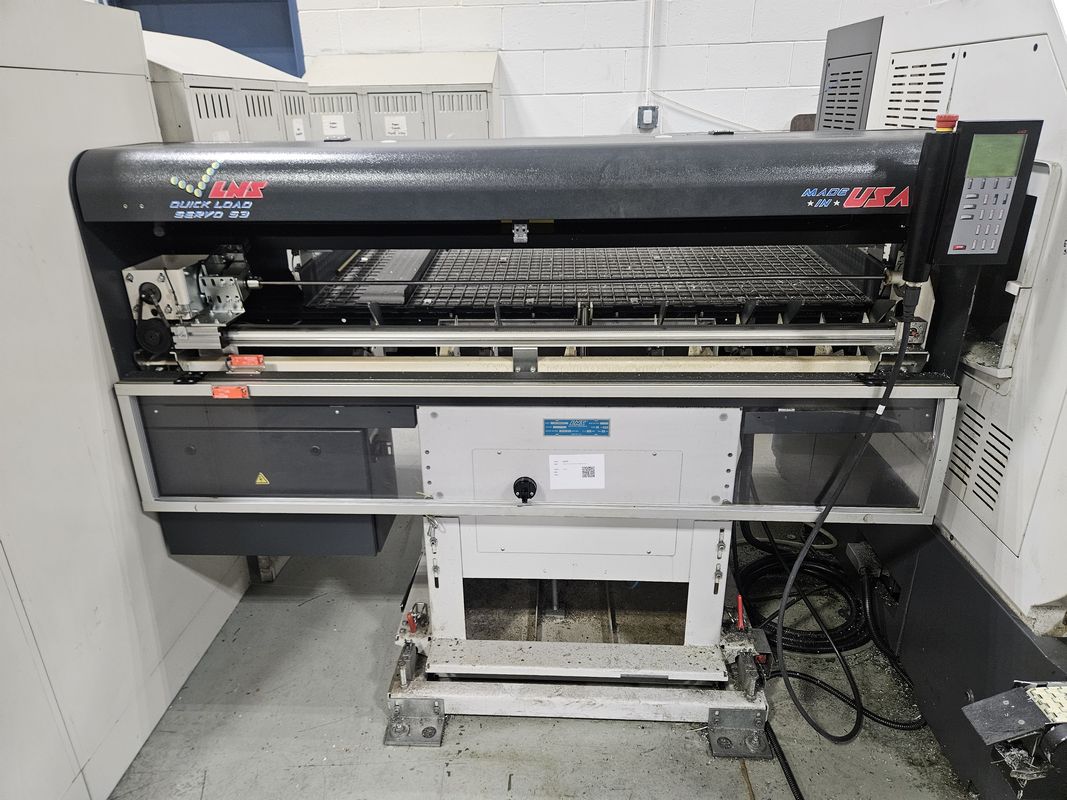

| Bar Feeder: LNS Quickload Servo S3 |
| High-Pressure Coolant: (2) 1,000 PSI Coolant Pumps |
| Chip Management: Chip Conveyor |
| Parts Handling: Parts Chute & Conveyor |
| Collet Chucks: (2) |
| Capacity: |
|---|
| Max. Turning Diameter: 7.48″ |
| Max. Turning Length: 19.80″ |
| Standard Turning Diameter: 6.692″ |
| Distance Between Centers: 7.87″ to 29.52″ |
| Max. Bar Capacity: 2.00″ |
| Hole Through Spindle: 2.48″ |
| Travels: |
|---|
| X1-Axis Travel: 6.20″ |
| X2-Axis Travel: 6.59″ |
| Z1 & Z2-Axis Travel: 18.30″ |
| Y-Axis Travel: ±1.377″ |
| B-Axis Travel: 21.65″ |
| Rapid Traverse – X: 630 IPM |
| Rapid Traverse – Z: 1,575 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Speed: 5,000 RPM |
| Spindle Motor – Main: 15 HP |
| Spindle Motor – Sub: 11 HP |
| Number of Spindles: 2 |

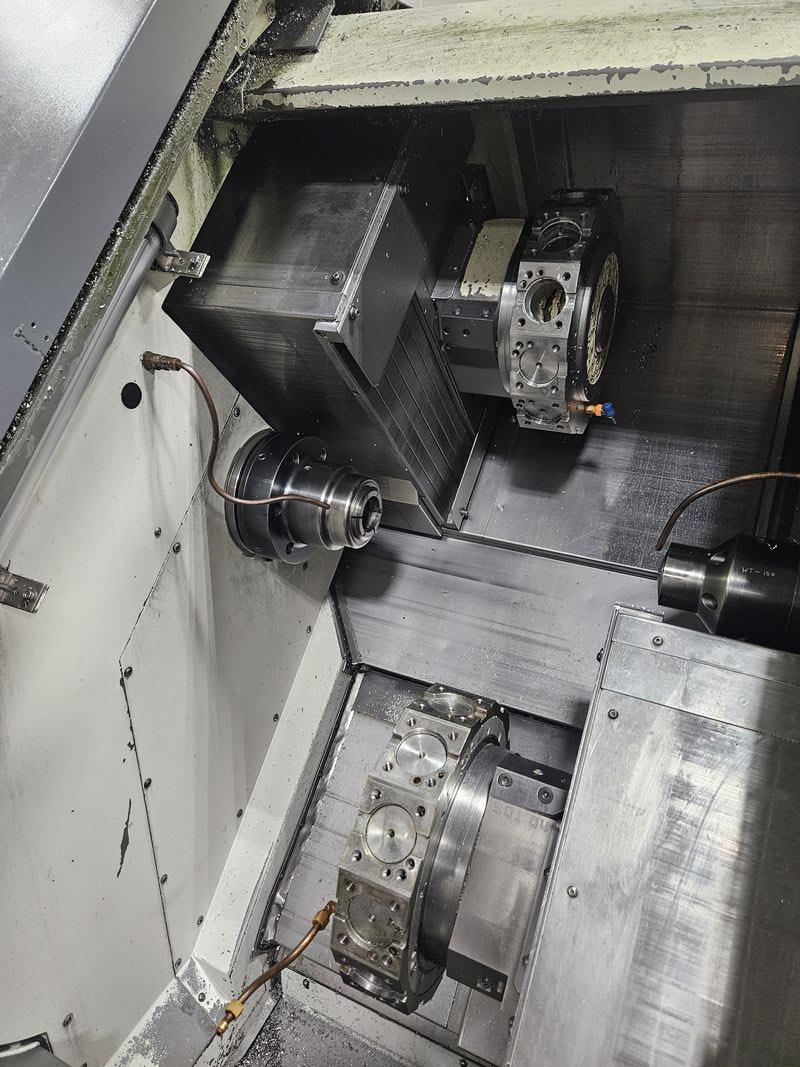

| Turret: |
|---|
| Upper Turret Positions: 24 Stations |
| Lower Turret Positions: 24 Stations |
| Live Tool Positions: 12 per Turret |
| Upper & Lower Turret Milling Speed: 6,000 RPM |
| Number of Turrets: 2 |
| General: |
|---|
| Cutting Time: 13,305 Hours |
| Machine Weight (Approx.): 19,600 lbs. |
| Machine Dimensions (Approx.): 142″ L × 78″ W × 73″ H |
