*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

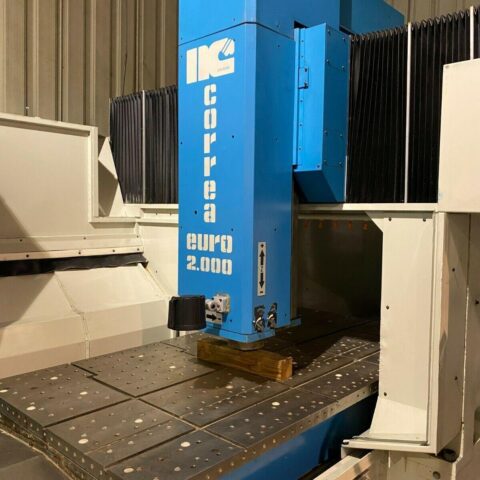

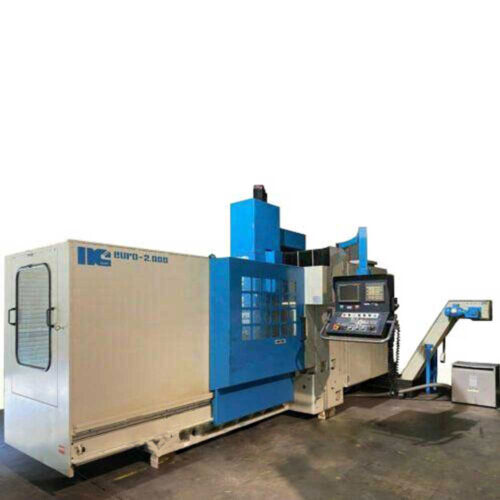

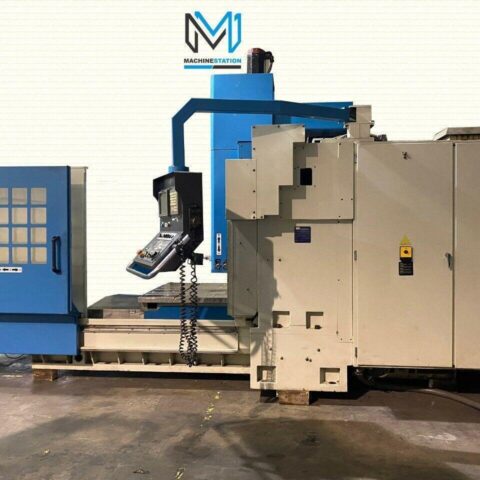

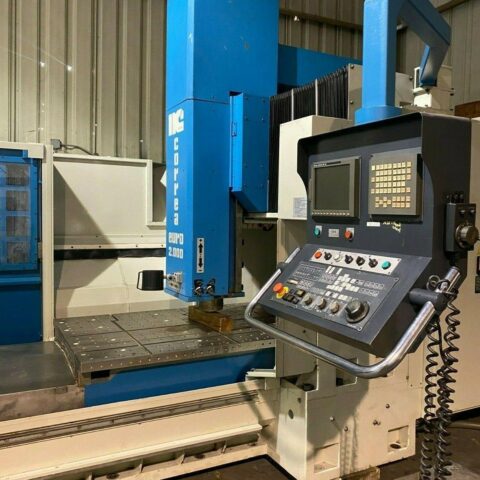

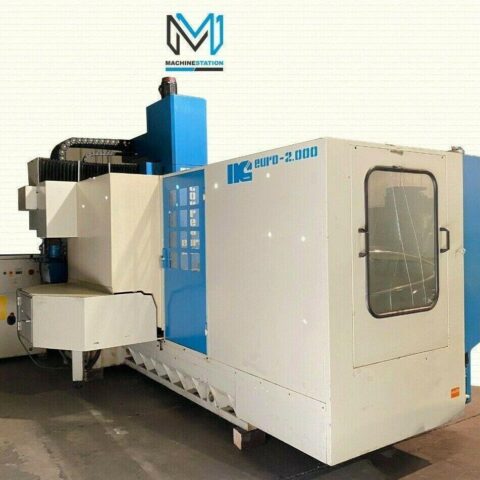

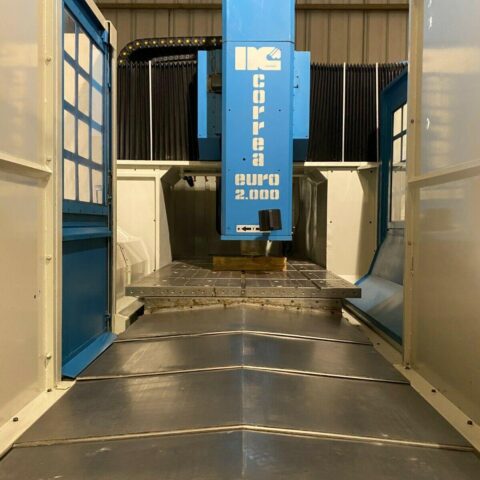

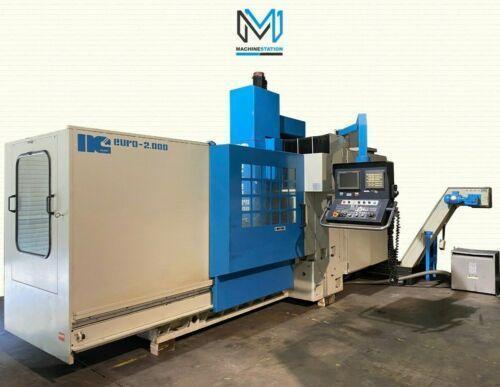

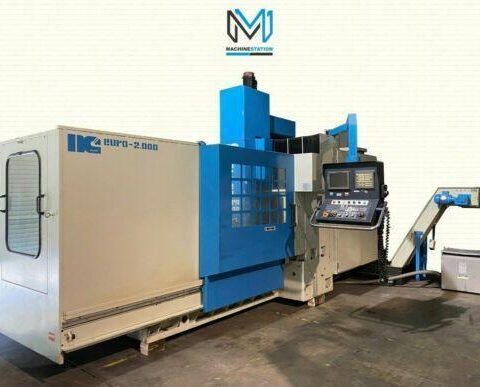

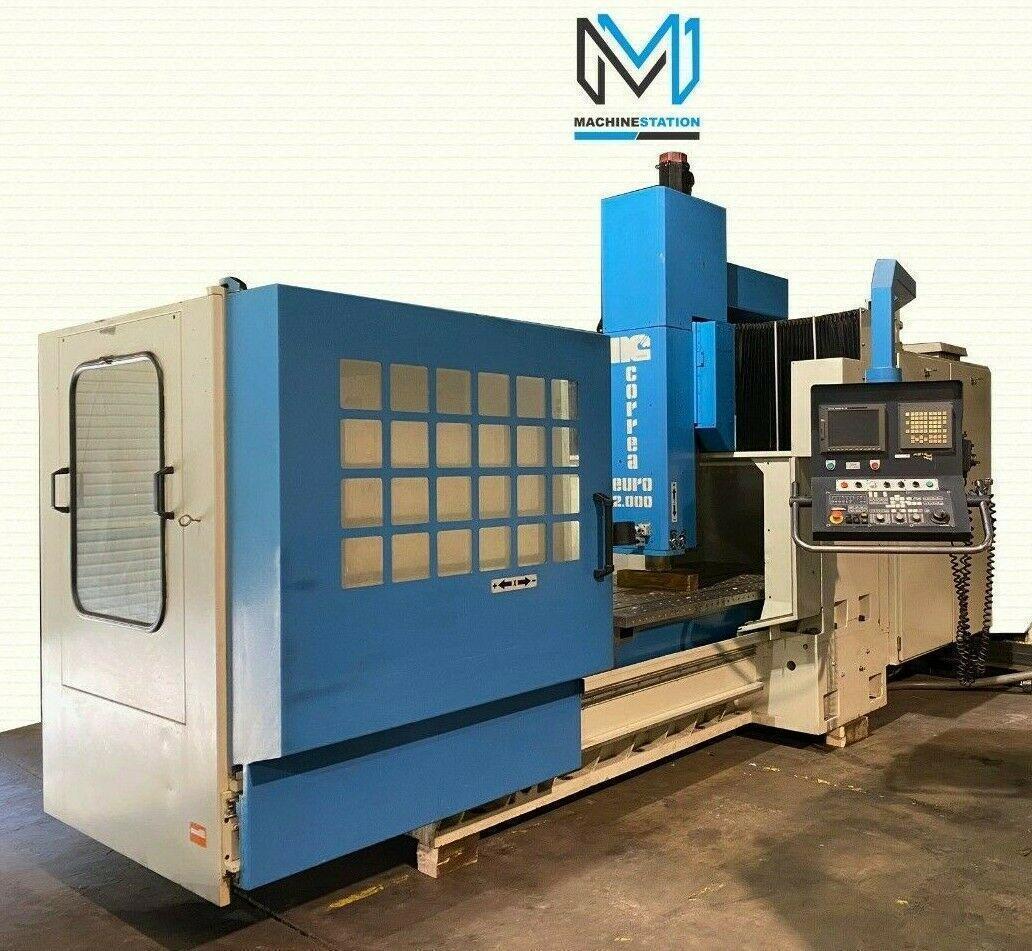

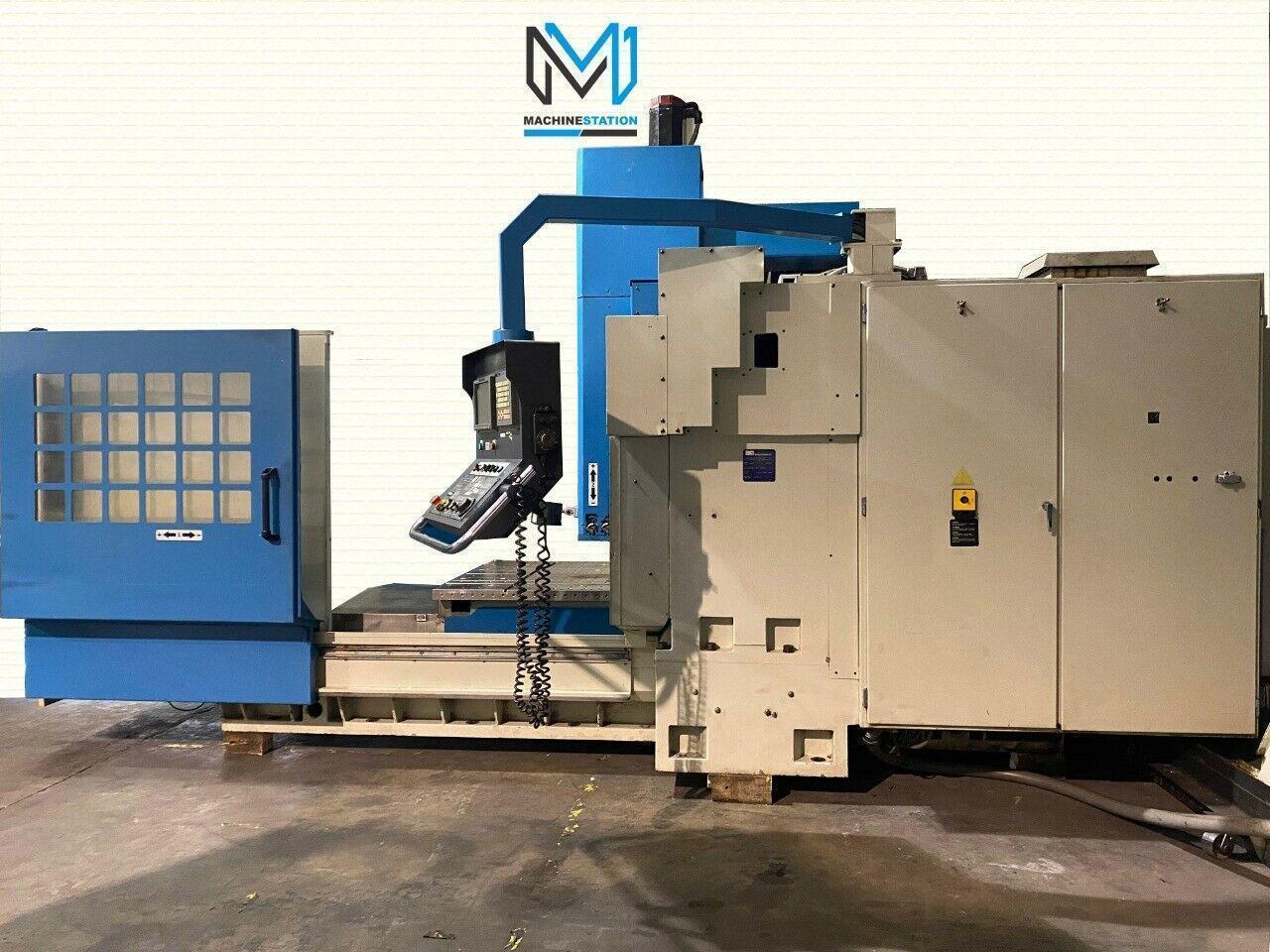

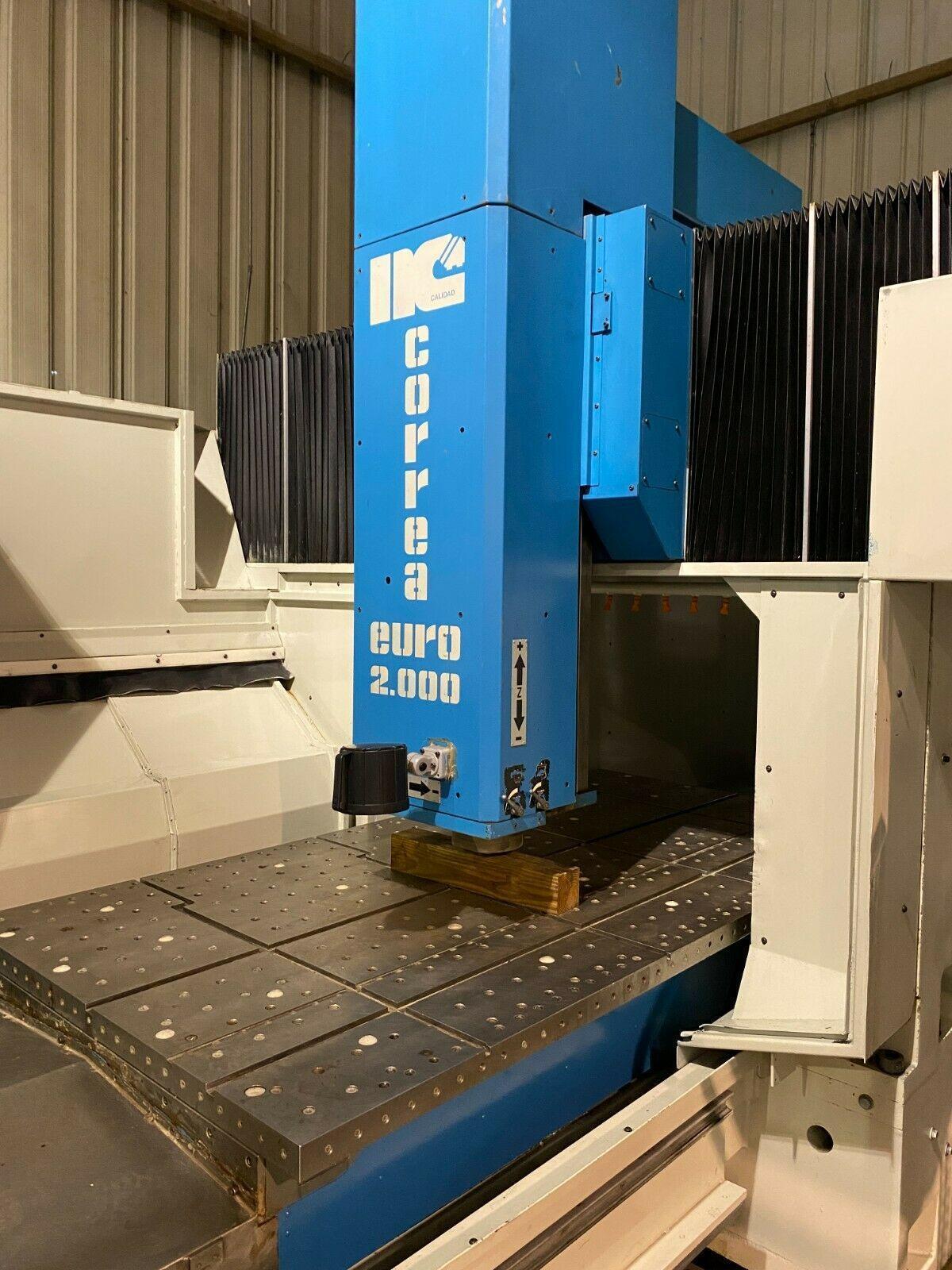

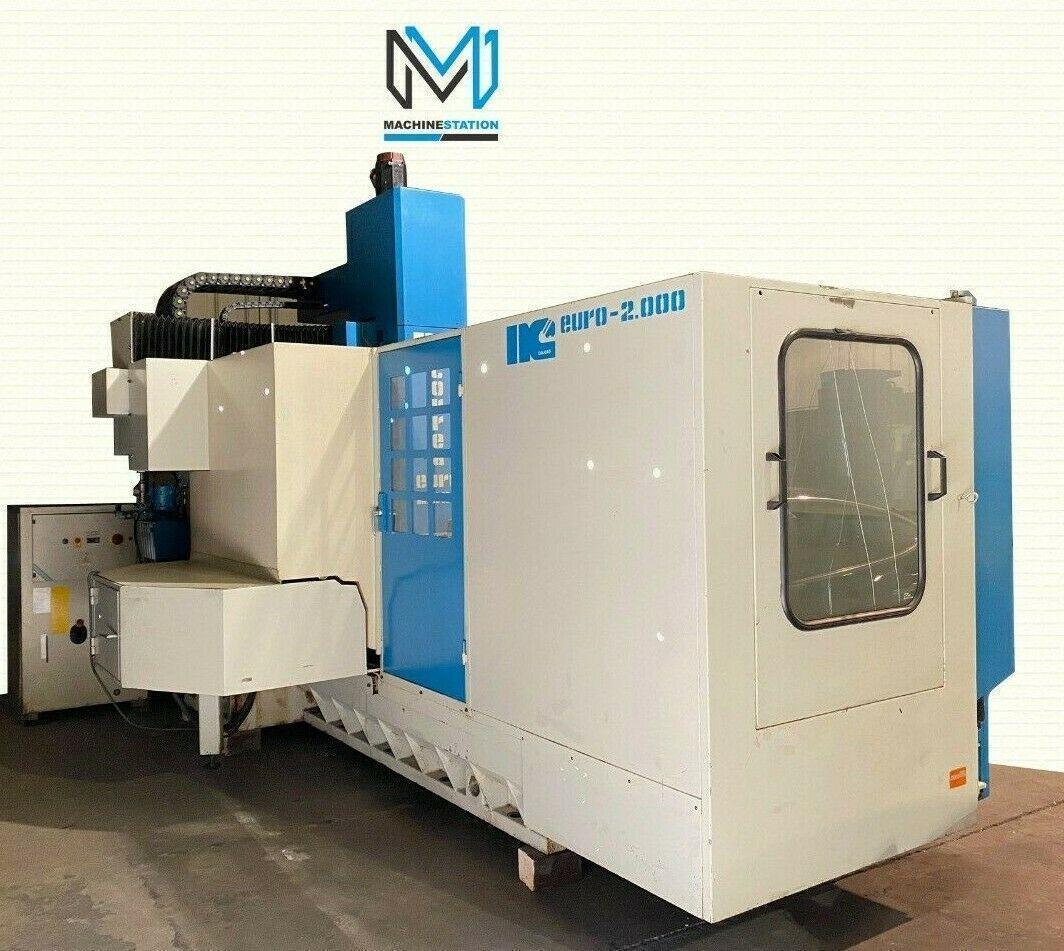

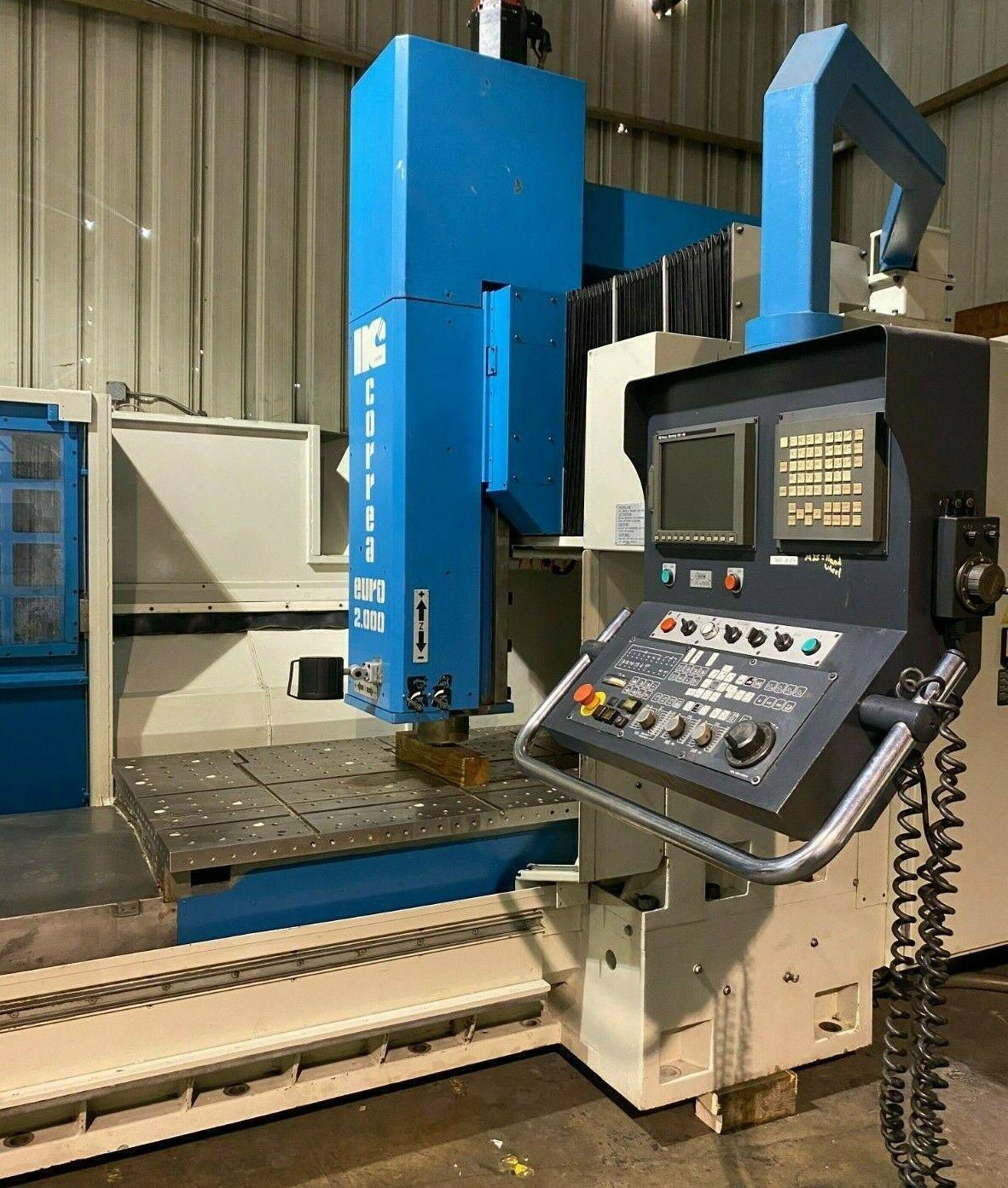

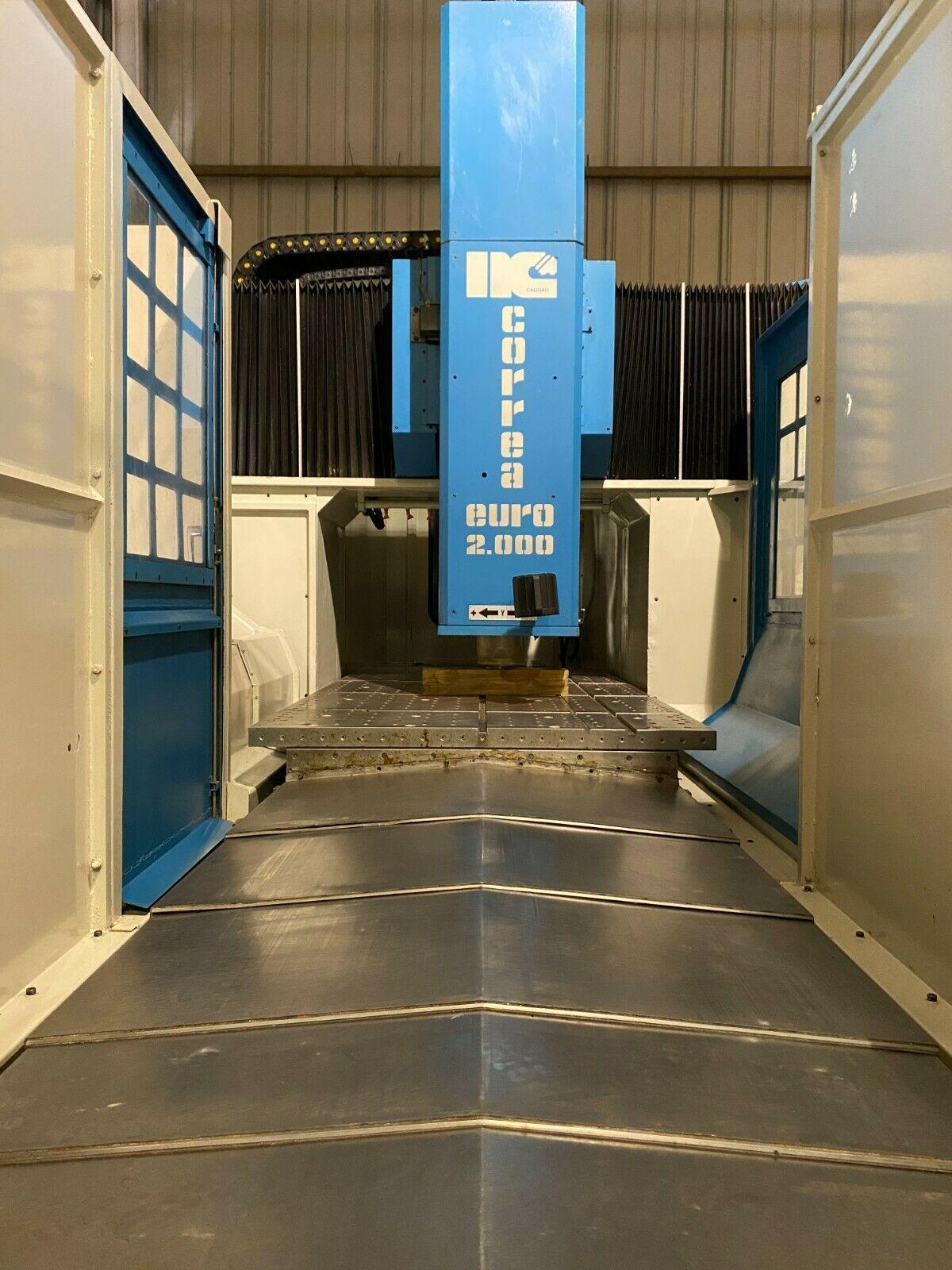

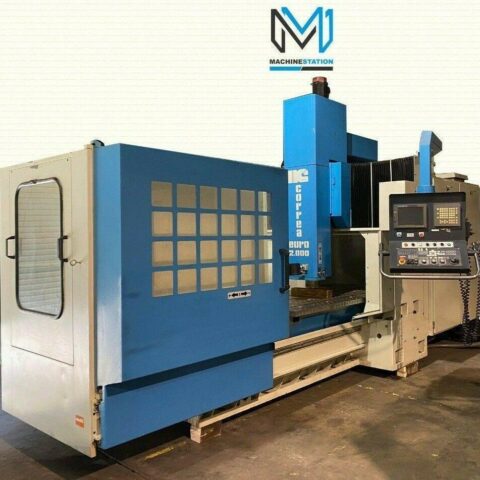

| Make: | NICOLAS CORREA |
| Model: | EURO2000 |
| Year: | 2000 |
| NICOLAS CORREA EURO-2000 Equipped With: |
|---|

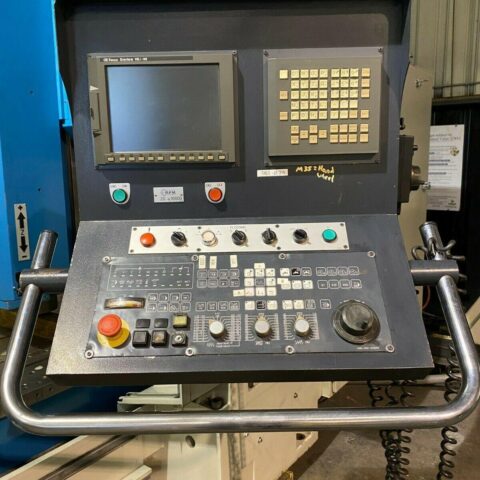

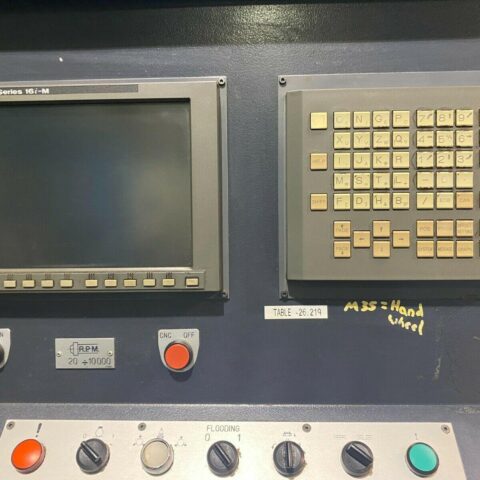

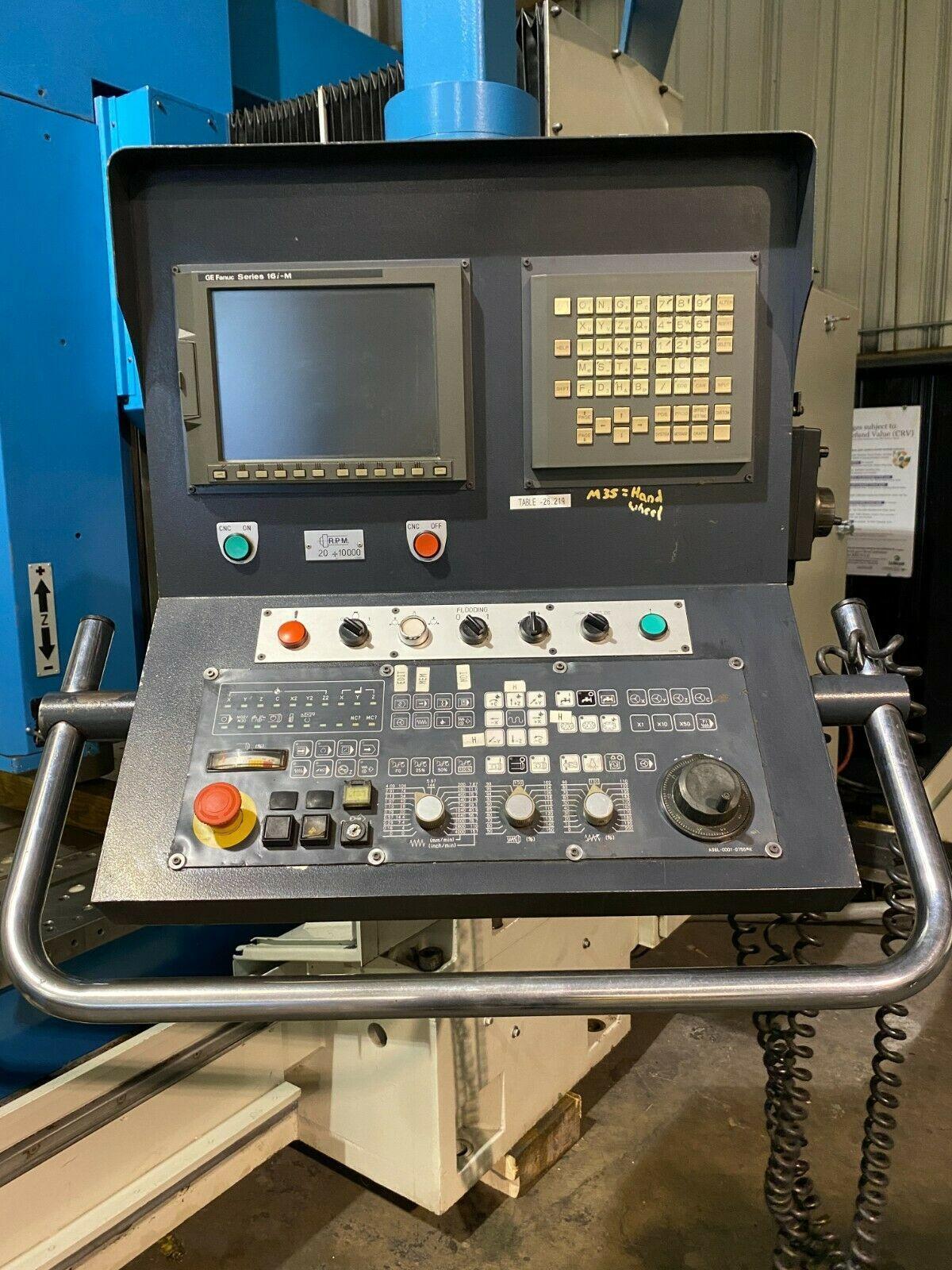

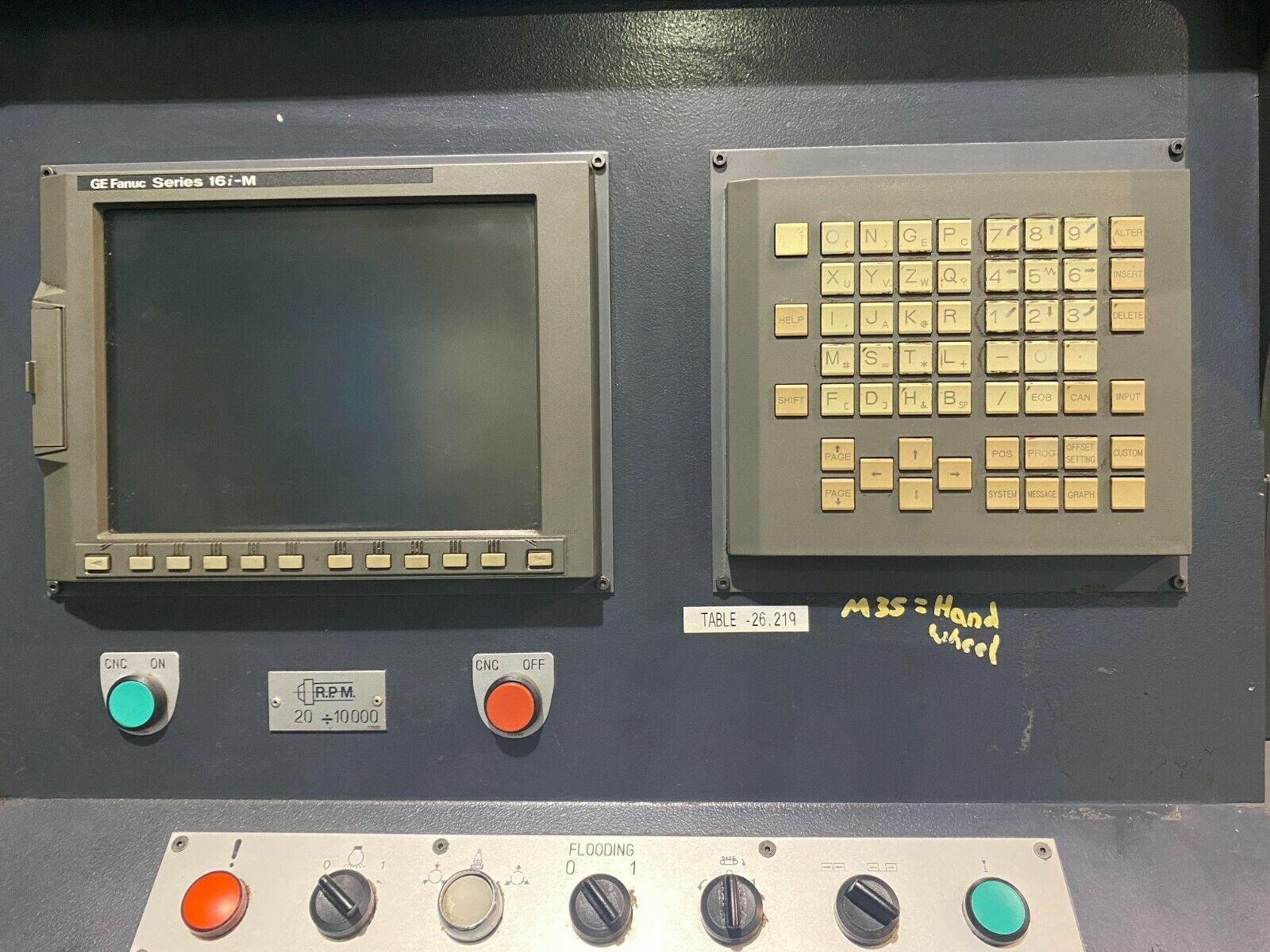

| Fanuc 16-iM CNC Control |
| Thru Spindle Coolant |
| 24 Station Side Mount Tool Changer |
| 10000 RPM Precision Spindle |

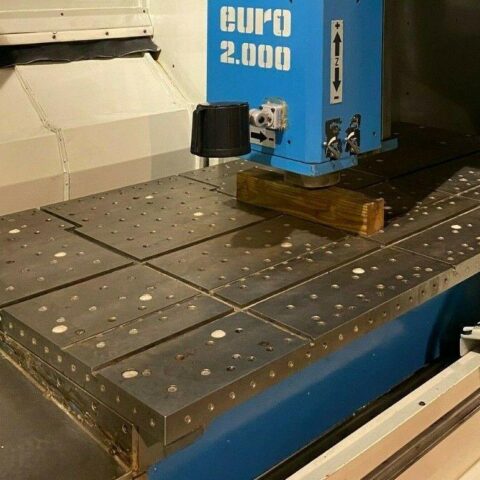

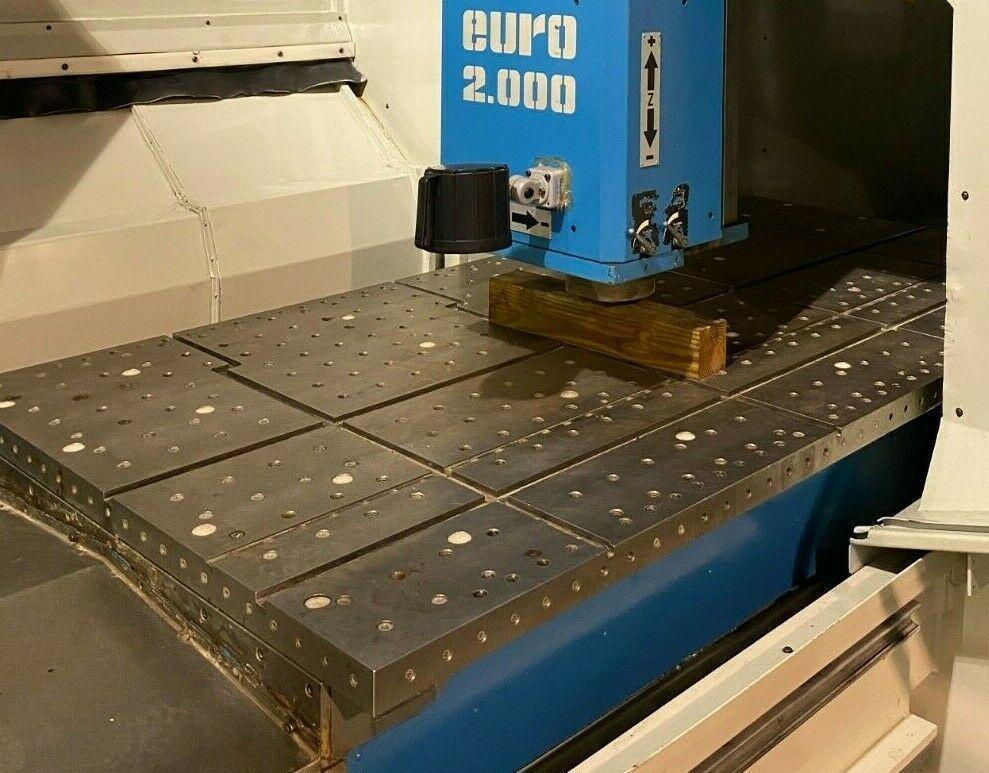

| 80″ X 42″ Heavy Duty Jig Table |
| MPG Control |
| PCMCIA Card |

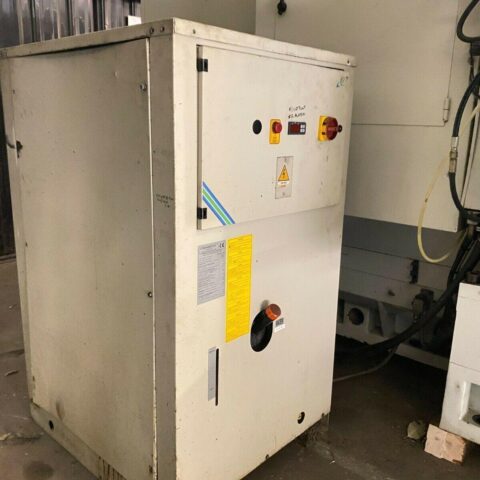

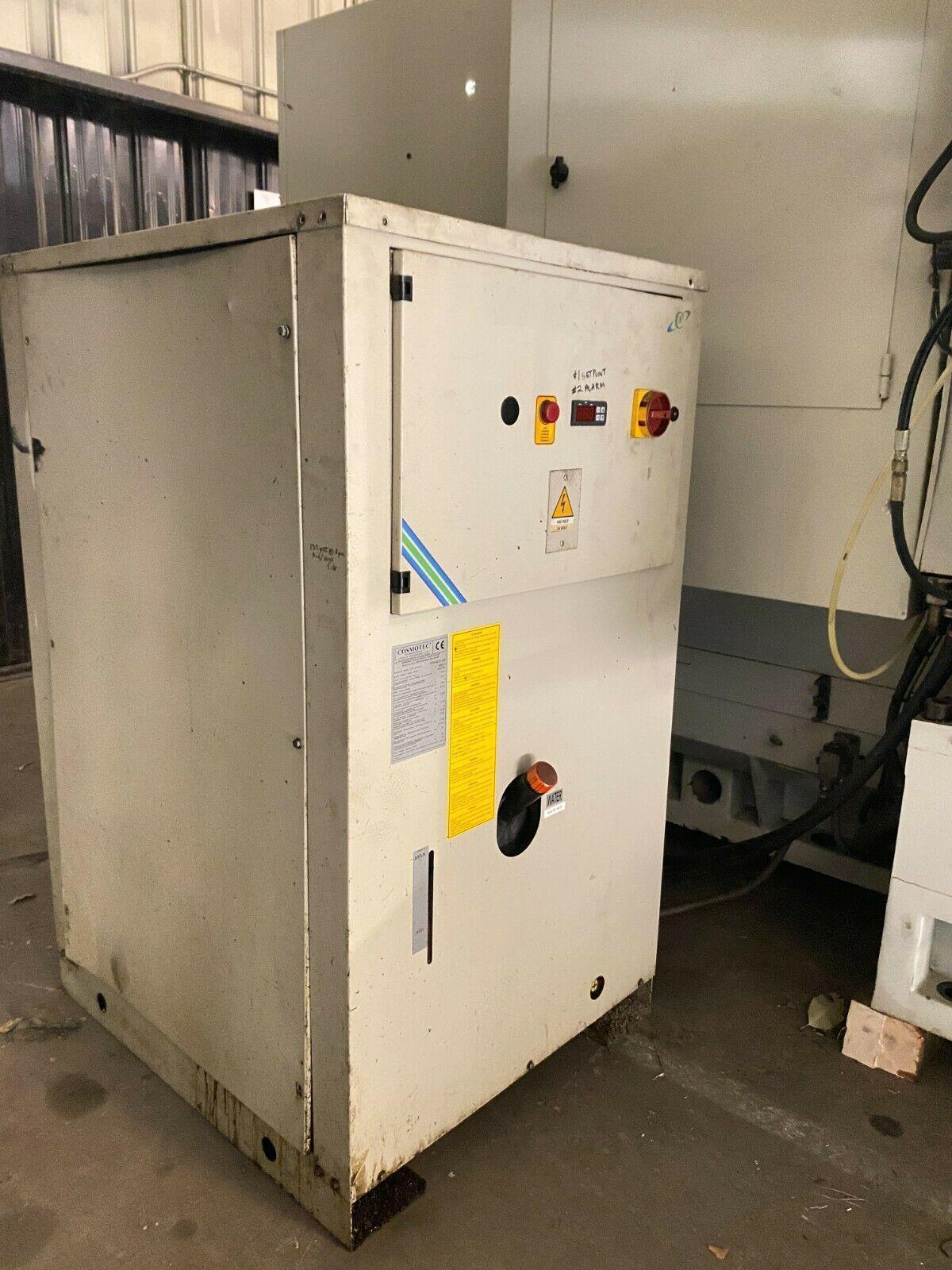

| Liquid Chiller Unit |
| Chip Conveyor |
| Electrical Transformer |
| NICOLAS CORREA EURO-2000 Specifications: |
| Travels: |
|---|
| X-Axis: 78.7″ |
| Y-Axis: 49.2″ |
| Z-Axis: 25.6″ |
| Distance Between Columns: ″ |
| Spindle Nose to Table (Min.- Max.): ″- ″ |
| Table: |
|---|
| Length: 78.7″ |
| Width: 39.4″ |
| T-Slot: 8 |
| Max Weight on Table: 11000 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10000 RPM |
| Spindle Power: 40 HP |
| Automatic Tool Changer: 24 |
| Feed rates: |
|---|
| Rapid X Y & Z: 787 inch/Per Min. |
| Cutting Feedrate: 630 inch/Per Min. |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 400v / 66FLA / 3-Phase 40 Kva |
| Overall Dimensions: 250″ x 154″ x 140″ High |
| Weight: 27500 lbs. |
| “No Charges for loading at list Price” |
