Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
| Equipped With: |
|---|

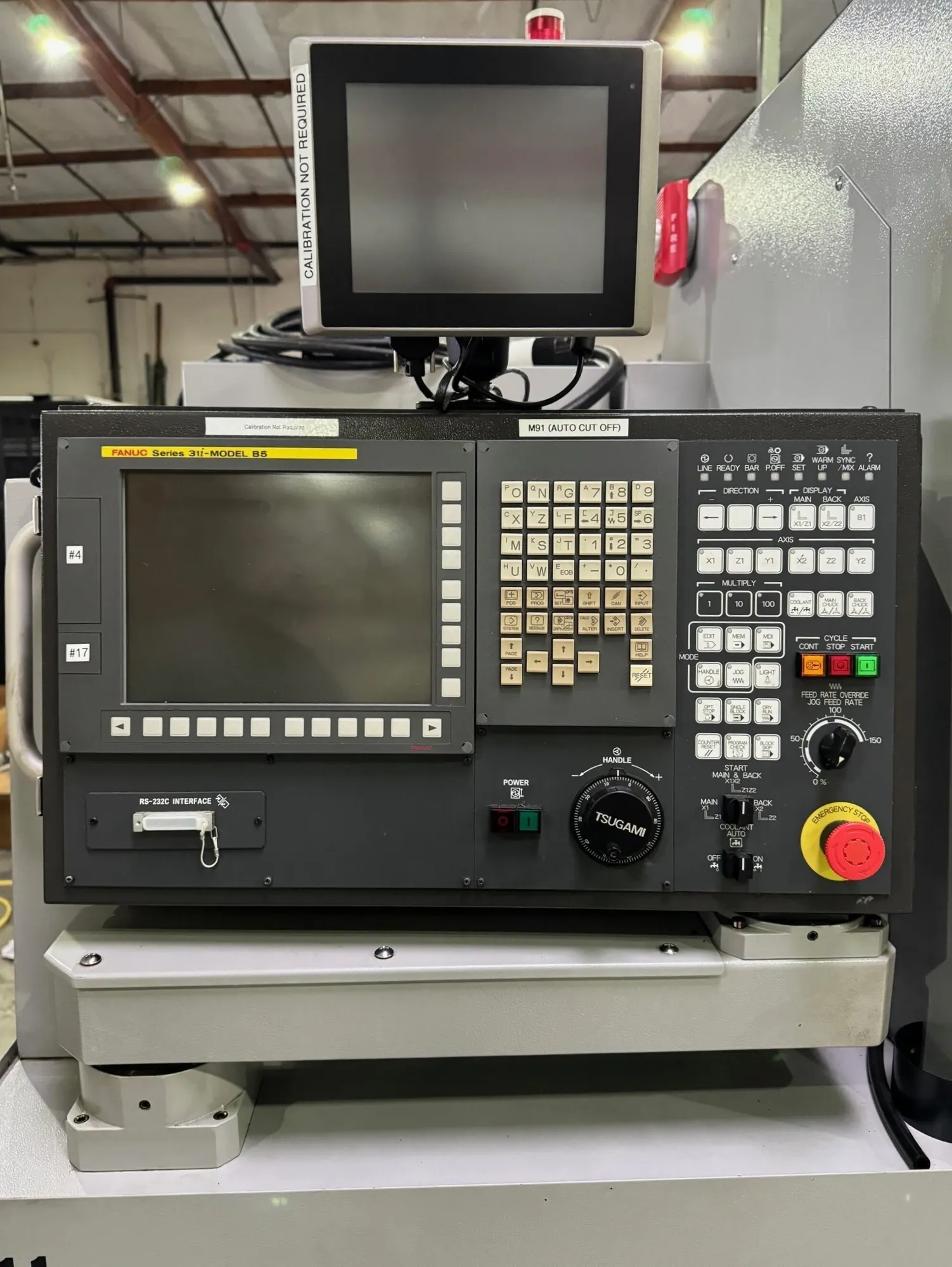

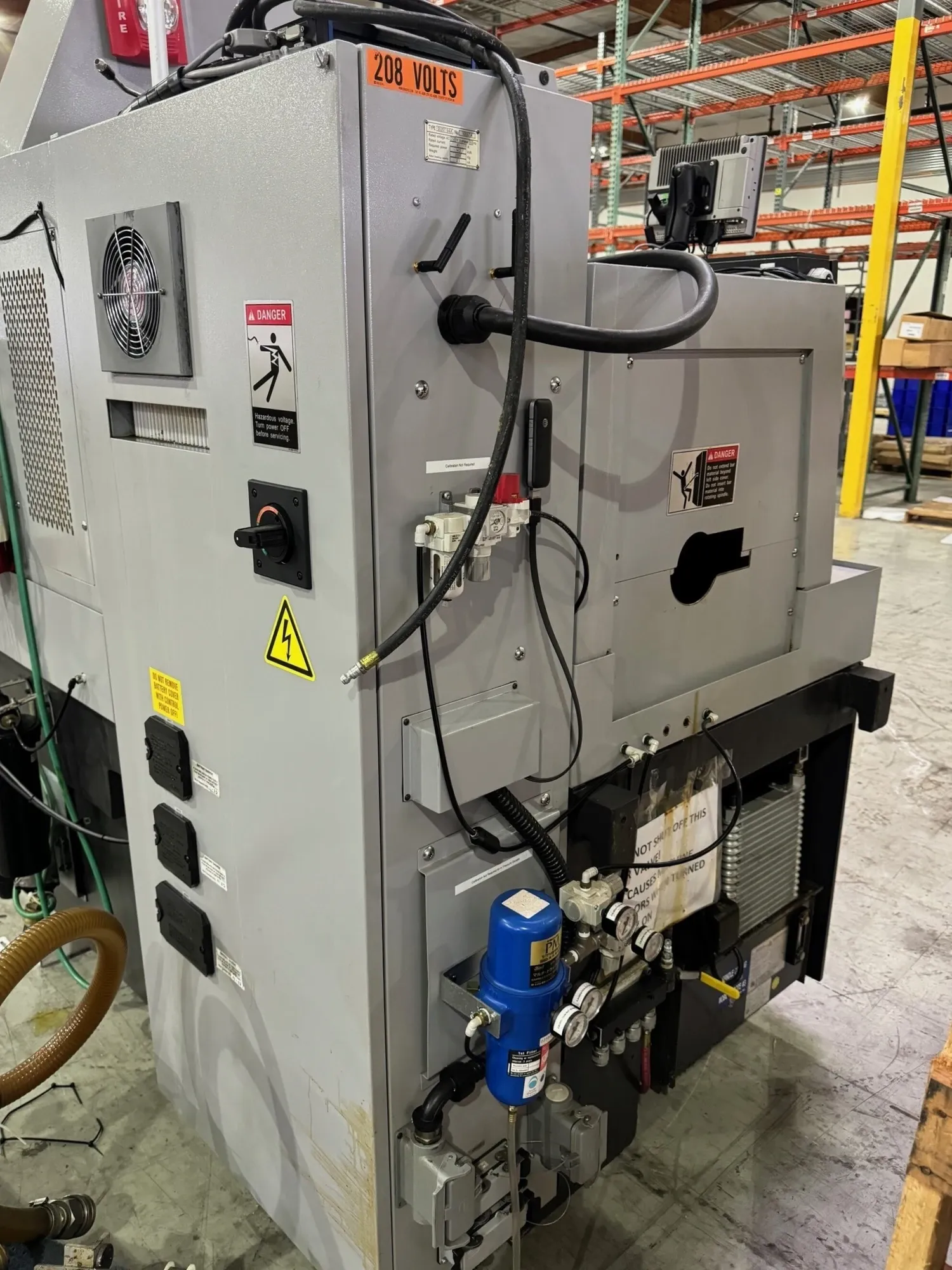

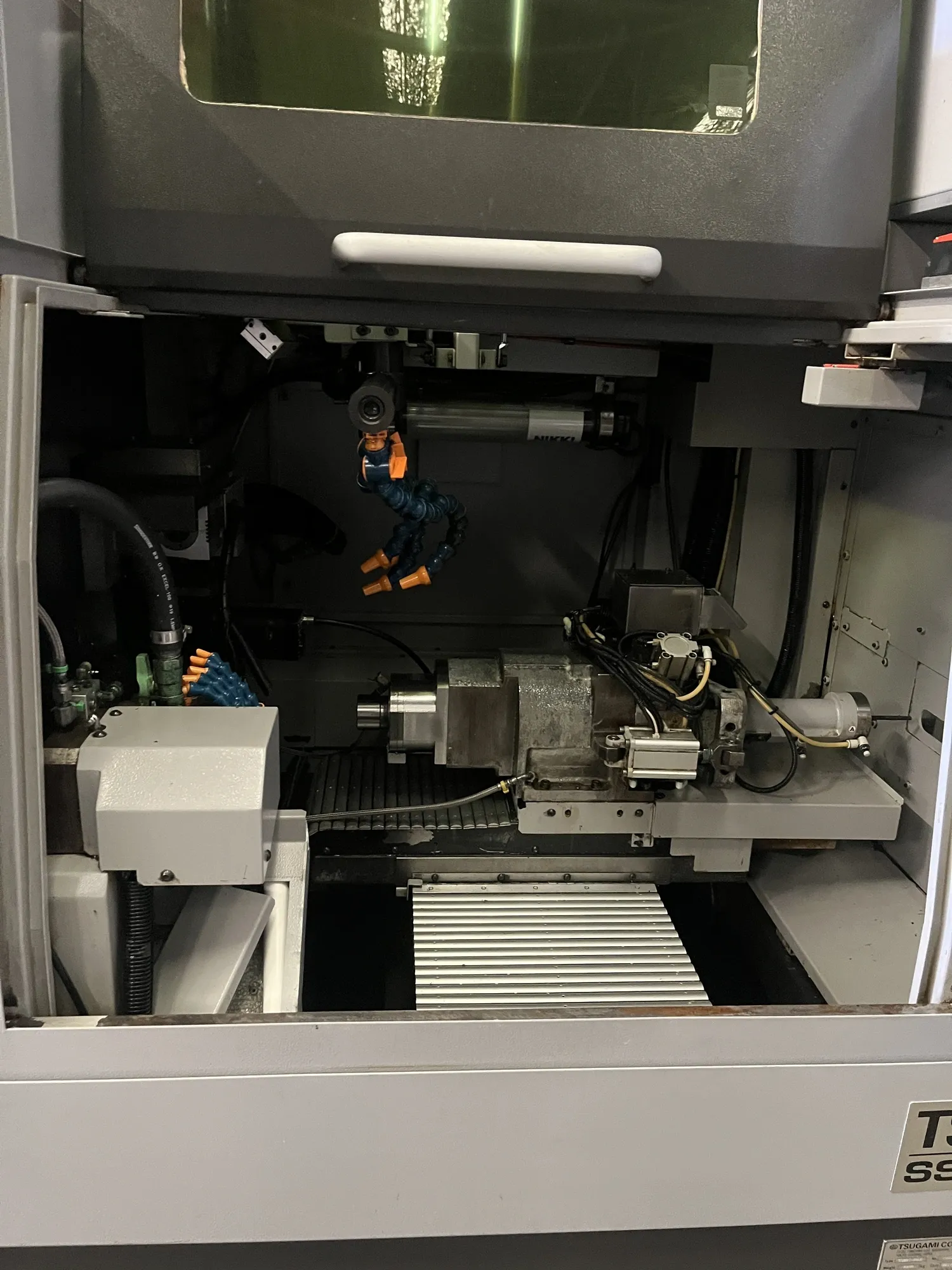

| Fanuc 31i-MB5 CNC Control with 10.4″ LCD |
| Simultaneous All Axes Control |
| 250 Watt SPI Fiber Laser System |
| Parts Catcher with Exit Conveyor & Basket |
| 40 Gallon Cutting Oil Tank with Coolant Level Detector |
| Main Spindle Collet Chuck Unit (S&M TF25) |
| Back Spindle Collet Chuck Unit (S&M TF25) |
| Integral Motor-Driven Guide Bushing Unit |
| Spindle Cooling for Main, Sub & Guide Bushing Motors |
| Air/Oil Pressurized Driven Tool Gearbox Units |
| Air Pressurized Guide Bushing Unit |
| Main Spindle C-Axis with Brake |
| Sub Spindle C-Axis with Brake |
| Sub Spindle Air Blast |
| Door Interlock with Safety Switches |
| Centralized Lubrication System with Oil Level Detector |
| AC Servo Axes Control |
| Leveling Bolts & Pads |
| Machine Test Report |
| Parameter List |
| Hand Tools Included |
| One Complete Set of Manuals |
| (8) 1/2″ Square Turning Tool Positions (Main Spindle) |
| (3) Driven Tool Positions (Main Spindle, Cartridge Type) |
| (8) ID Tool Positions (Main or Sub Spindle) |
| (4) Static Back Working Stations (ID or Turning) |
| (2) Main Spindle Deep Hole Drill Positions (Max. 100 mm) |
| Up to 38 Tool Positions |
| Capacity: |
|---|
| Maximum Machining Diameter: 0.787″ |
| Maximum Machining Length: 8.26″ (Chucking) |
| Main Spindle Speed: 200 – 10,000 RPM |
| Rotary Tool Spindle Speed: 200 – 8,000 RPM |
| Back Spindle Maximum Diameter: 0.787″ |
| Back Spindle Front Ejection Length: 3.2″ |
| Back Spindle Speed: 200 – 10,000 RPM |
| Rapid Traverse Rate: 32 m/min |
| Motors: |
|---|
| Main Spindle: 3 / 5 HP |
| Back Spindle: 2 / 3 HP |
| Rotary Tool: 1 HP |
| Coolant Pump: 0.5 HP |

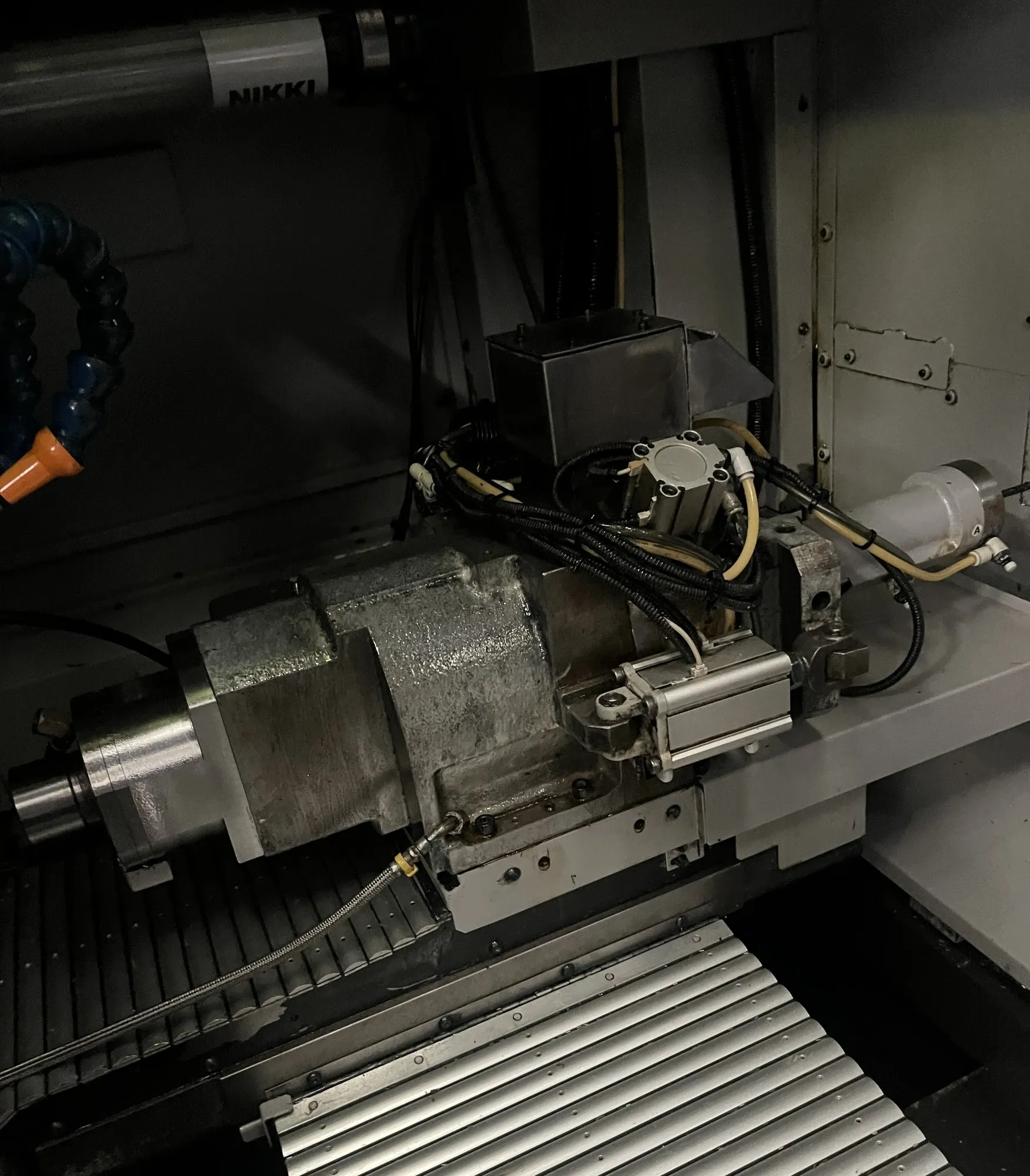

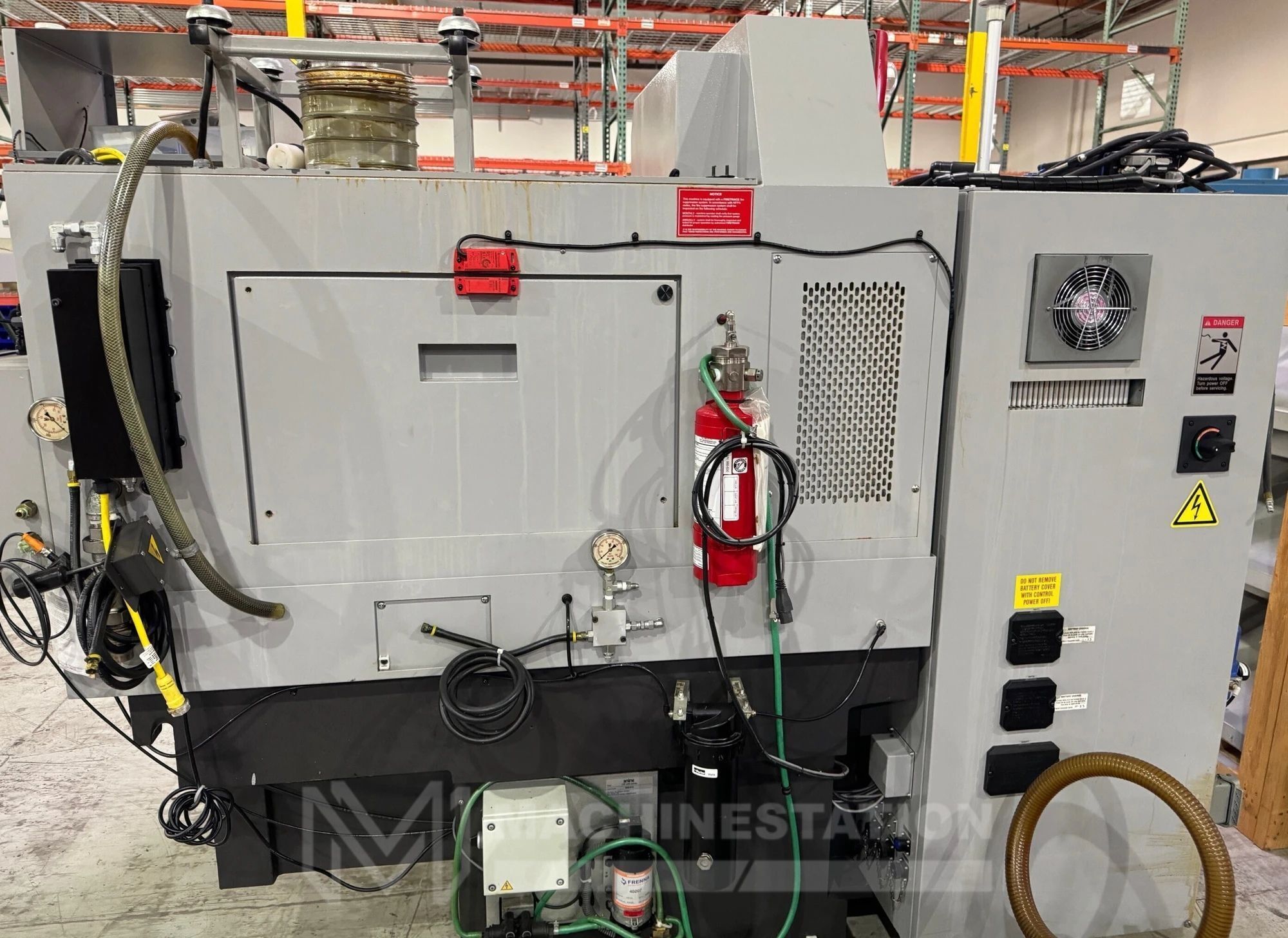

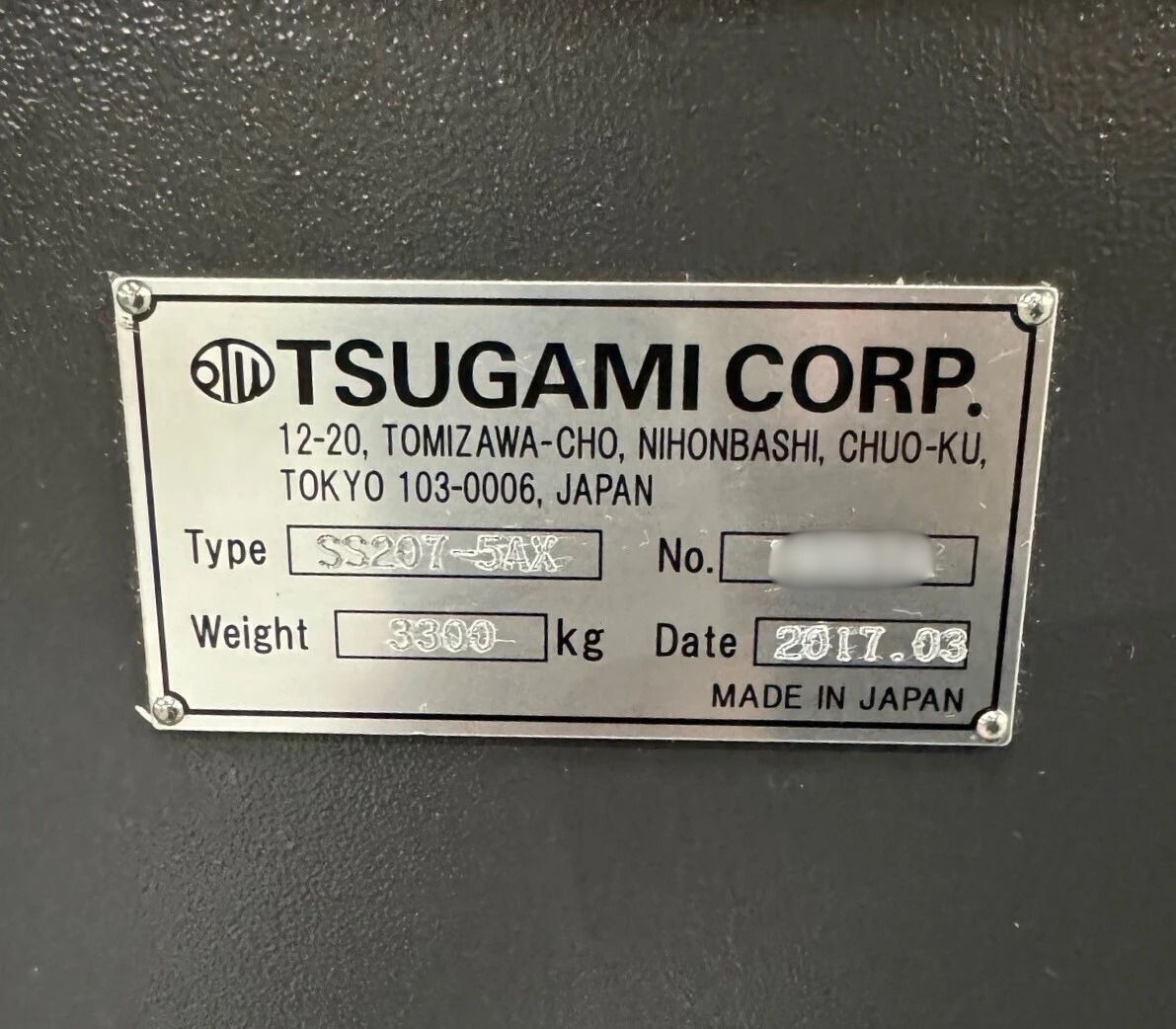

| B1 Axis Tool Spindle: |
|---|
| Positioning Angle: 0° – 110° |
| Positioning Method: Servo Controlled |
| Number of Tool Positions: 6 (3 Main / 3 Sub) |
| Rotary Tool Speed: 5,000 RPM |
| Main Spindle Tool Collet: ER16 |
| Sub Spindle Tool Collet: ER11 |
| 250W Fiber Laser: |
|---|
| Cooling System: Water Cooled |
| Laser Enclosure Classification: Class 1 |
| Maximum Cutting Speed: 19.685″/sec |
| Wavelength: 1070 ± 10 nm |
| Frequency: 2 – 20 kHz |
| Pulse Width: 0 – CW |
| Laser Power: 25 – 250 W |
| Nozzle Standoff Adjustment: NC Controlled |
| Variable Gas Pressure: 5 – 350 psi |
| Number of Gas Connections: 2 |
| Through Workpiece Coolant Pressure: 246 psi |
| Front-Fed Coolant Pressure: 1,000 psi |
| Tube Size Constraints: |
|---|
| Maximum Wall Thickness: 0.039″ |
| Minimum Outside Diameter: 0.080″ |
| Maximum Outside Diameter: 0.787″ |
| Minimum OD to ID Ratio: 3:1 |
| Optic Specifications: |
|---|
| Focal Length: f = 100 mm |
| Beam Reduction (Optional): 0.5 / 0.7 |
| Beam Expansion (Optional): 1.4 / 2.0 / 2.8 |
| Exchangeable Protection Glass: Yes |
| Cutting Nozzle Diameter: 1 mm – 3 mm |
| General: |
|---|
| Input Power: 6 kVA |
| Center Height: 39.37″ |
| Machine Dimensions: 83.07″ × 47.24″ × 74.21″ High |
| Machine Weight: 7,260 lbs |
