Nomura DS NN32YB2 CNC Swiss Type Automatic Lathe – 2016, Dual Spindle, B-Axis
Out of stock
| SKU: | 11196 |
| Make/Model: | Nomura DS NN32YB2 |
| Year: | 2026 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nomura DS |
| Model No.: | NN32YB2 |
| Year of Manufacture: | 2016 |
| Condition: | Used – Good |
| Machine Type: | CNC Swiss-Type Automatic Lathe |
| CNC Control: | Mitsubishi M70 CNC Control |
| Equipped With: |
|---|
| Mitsubishi M70 / M70V CNC Control |
| Swiss-Type Sliding Headstock |

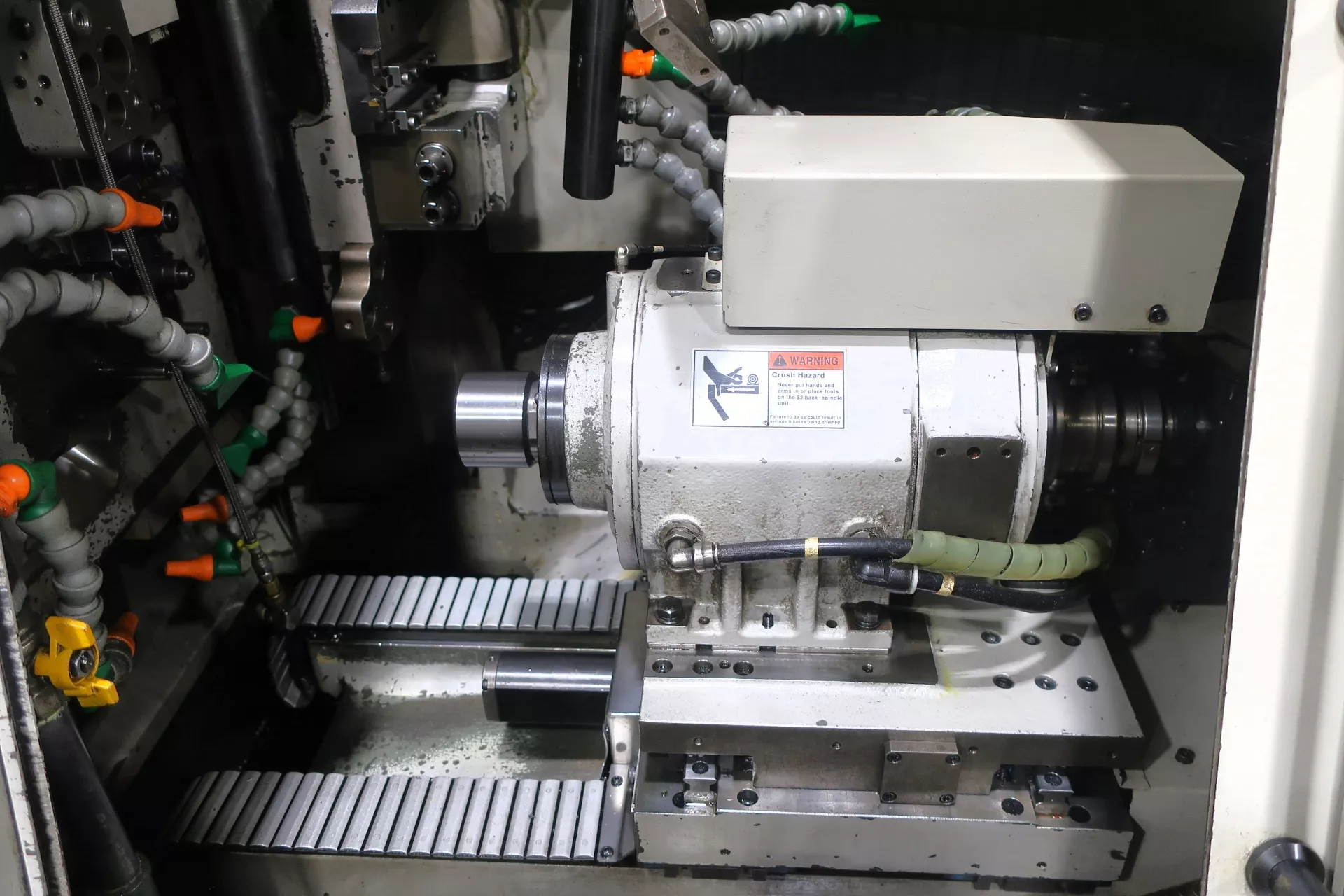

| Sub-Spindle (Back Working) |
| C-Axis (Main & Sub Spindle) |
| Y-Axis Capability (Front & Back) |
| Live Tooling System |
| Guide Bushing System (Convertible to non-guide) |
| Parts Catcher & Parts Conveyor |
| Coolant System |
| Automatic Lubrication |

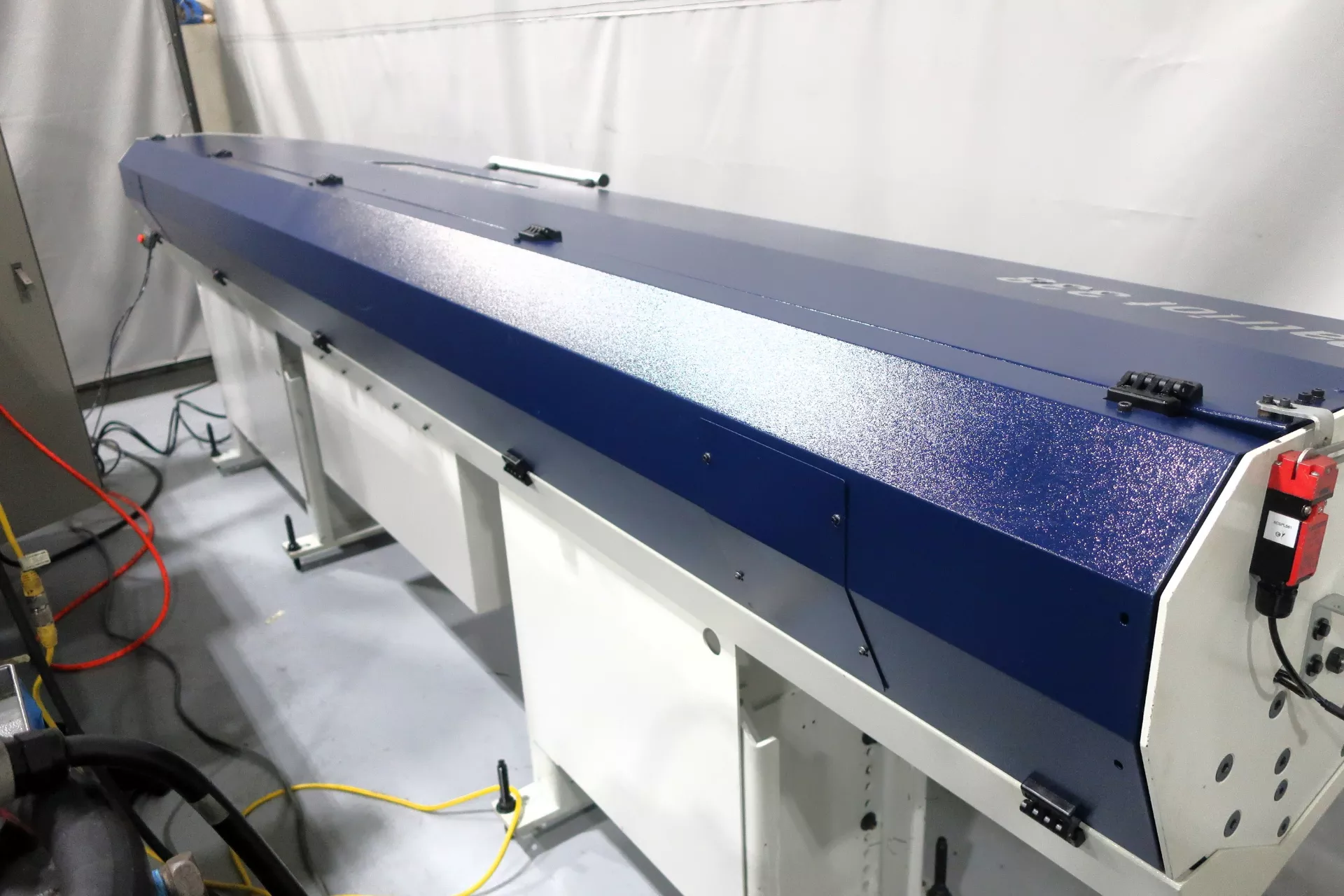

| Bar Feeder Interface |
| Capacity: |
|---|
| Maximum Turning Diameter: Ø32 mm (1.26″) |
| Maximum Turning Length: 190 mm (7.5″) |
| Parts Pick-Off Length: ≈93 mm |
| Spindle: |
|---|
| Main Spindle Speed: Up to 8,000 RPM |
| Sub-Spindle Speed: Up to 8,000 RPM |
| Main Spindle Motor: 3.7 / 5.5 kW |
| Sub-Spindle Motor: 1.5 / 3.7 kW |
| Tooling: |
|---|
| Maximum Tool Positions: Up to 33 Tools |
| OD Tools: Up to 6 Stations |
| ID Tools: ER16 / ER20 Combination |
| Live Tool Speed: Up to 6,000 RPM |
| Axis Configuration: |
|---|
| X1, Y1, Z1 (Main Spindle Side) |
| X2, Y2, Z2 (Sub-Spindle Side) |
| C-Axis (Main & Sub) |
| Optional B-Axis (±135°) for complex machining |
| Feed Rates: |
|---|
| Rapid Traverse: |
| X1: 20 m/min |
| Z/Y Axes: Up to 28 m/min |
| General: |
|---|
| Machine Size: ≈2275 × 1185 × 1825 mm |
| Machine Weight: ≈3,000 kg (6,600 lbs) |
| Power Requirement: ≈15–25 kVA |
| Features: |
|---|
| High rigidity casting structure for precision machining |
| Up to 33 tools for complex part production |
| Dual spindle + sub-spindle enables complete part machining |
| The optional B-axis allows angular milling operations |
| The tool preset system reduces setup time significantly |
| Ideal for medical, aerospace, automotive & precision turned parts |
| Designed for high productivity + multi-process machining |
| Categories | Swiss Type Lathe |
|---|---|
