*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

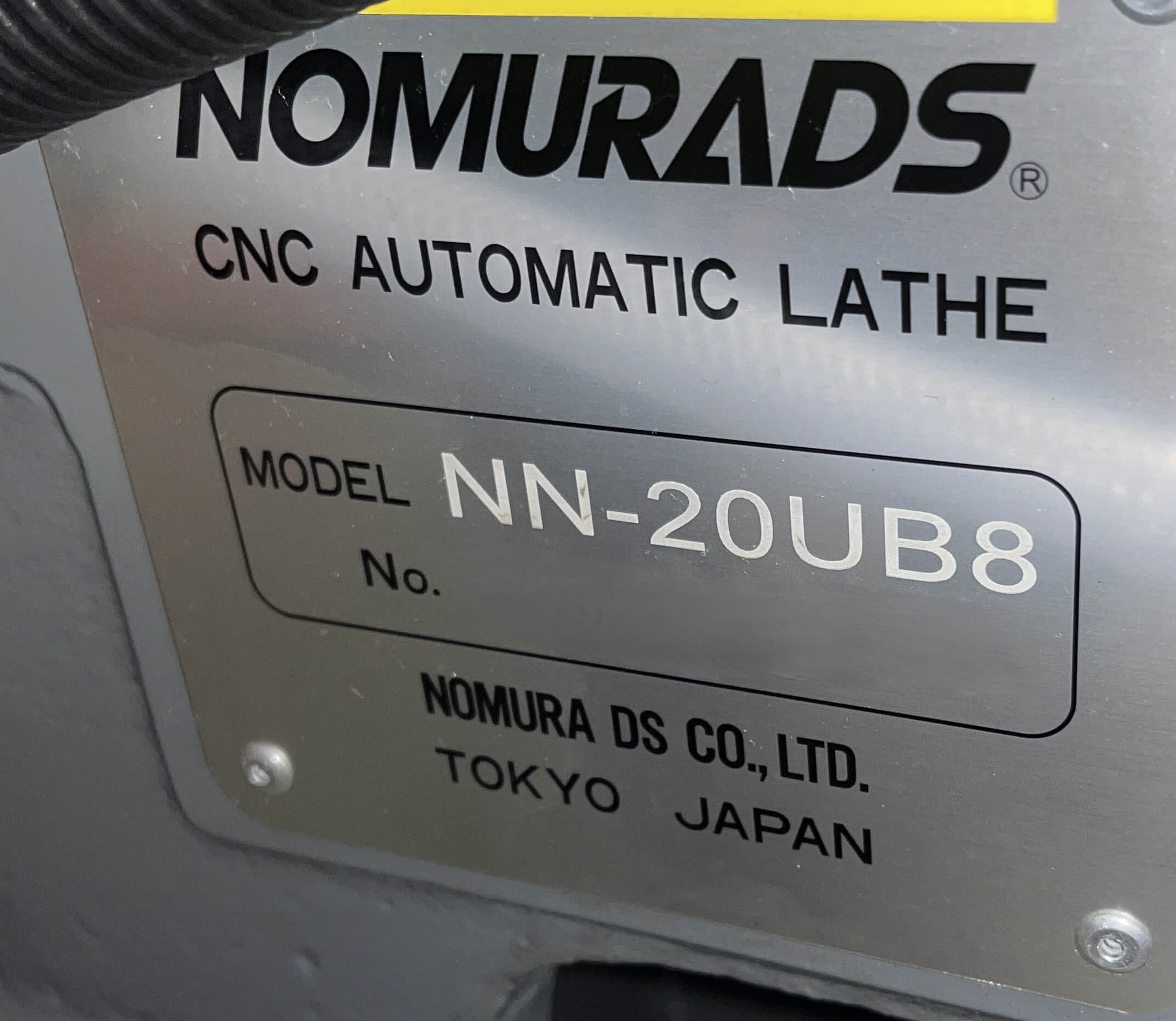

| Make: | Nomura DS |
| Model: | NN-20UB8 |
| Year: | 2016 |
| Machine Type: | CNC Swiss-Type Automatic Lathe |
| CNC Control: | Mitsubishi M70 CNC |
| Features: |
|---|
| Mitsubishi M70 CNC Control |
| 17-Tool Capacity |

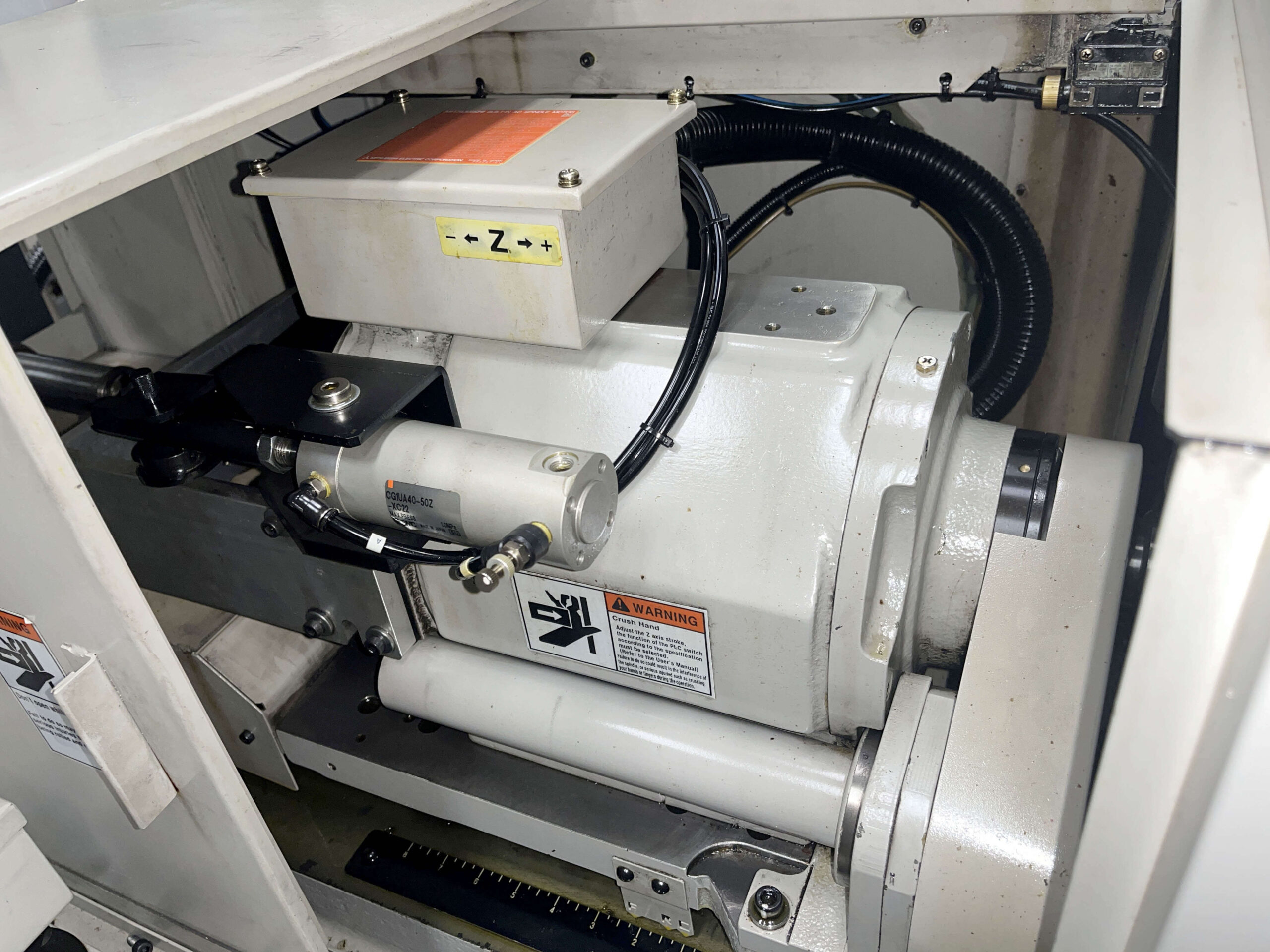

| Main Spindle C-Axis |
| Live Tooling |
| Parts Catcher |
| Parts Offloader / Linear Robot |
| Parts Stacking Table |
| 2016 LNS Alpha ST320 S2 Barfeeder |
| Trimist 850 G2 Mist Collector |
| Fully Enclosed Machining Area |
| Automatic Bar Feeding System |
| Coolant System |
| Chip Collection System |
| Capacity: |
|---|
| Maximum Machining Diameter: 0.79″ |
| Maximum Machining Length: 7.87″ |
| Maximum Part Unload Length: 4.13″ |
| Spindle Hole Diameter: 0.79″ |
| Main Spindle Through-Hole: 0.95″ |
| Maximum Axial Drill Diameter: 0.39″ |
| Maximum Driven Tool Drill Diameter: 0.31″ |
| Main Spindle: |
|---|
| Maximum Spindle Speed: 10,000 RPM |
| Main Spindle Motor: 2.2 HP |
| Live Tooling: |
|---|
| Number of Tools: 17 |
| Live Tool Positions: 4 |
| Live Tool Spindle Maximum Speed: 6,000 RPM |
| Live Tool Interface: ER16 |
| Front/End Working Tool Positions: 4 |
| OD Tool Positions: 5 |
| General: |
|---|
| Power Source: 200–480V / 3-Phase / 50/60 Hz |
| Overall Dimensions (Approx.): 120″ L × 70″ W × 75″ H |
| Machine Weight (Approx.): 5,500–6,500 lbs. |
