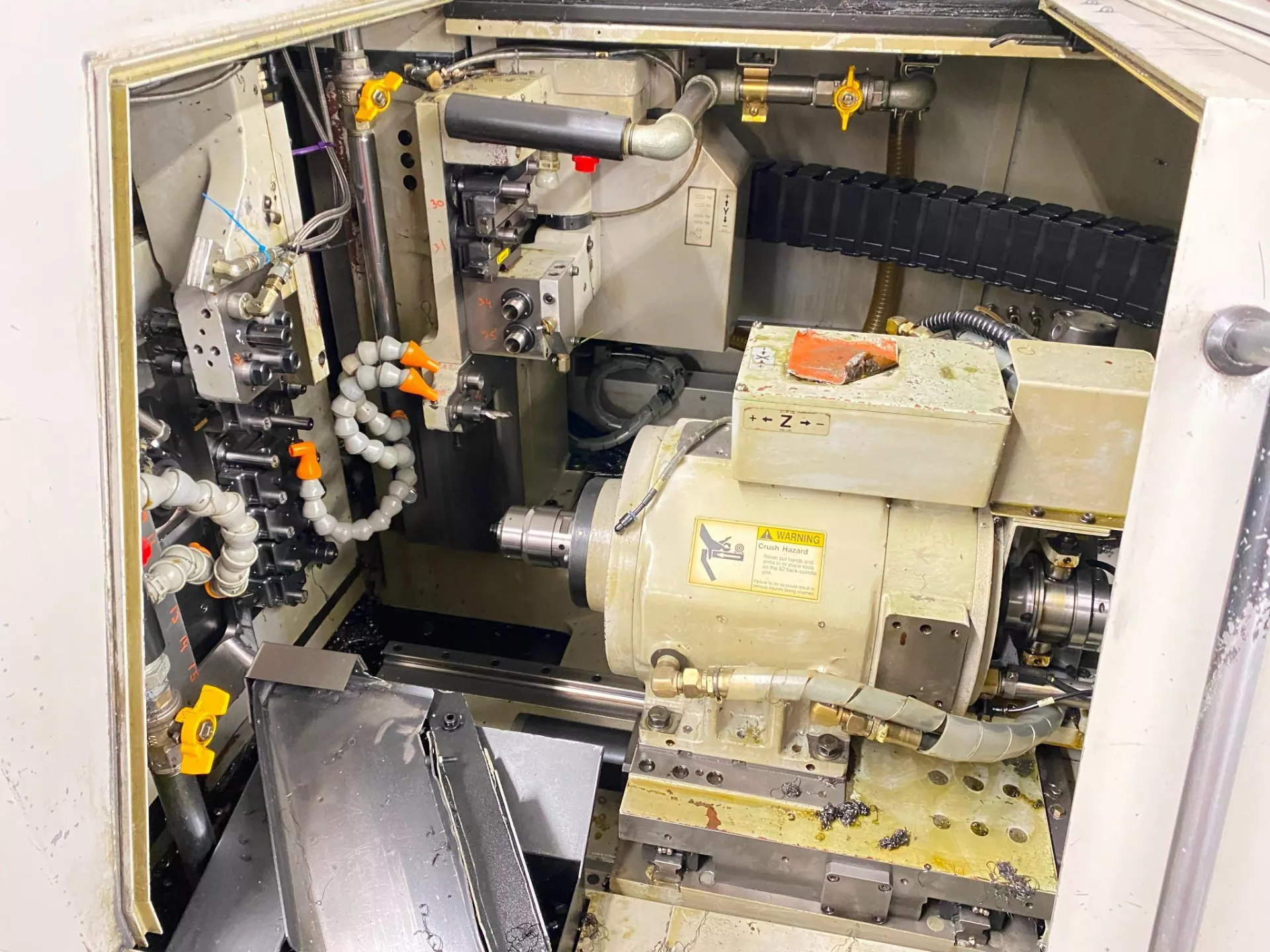

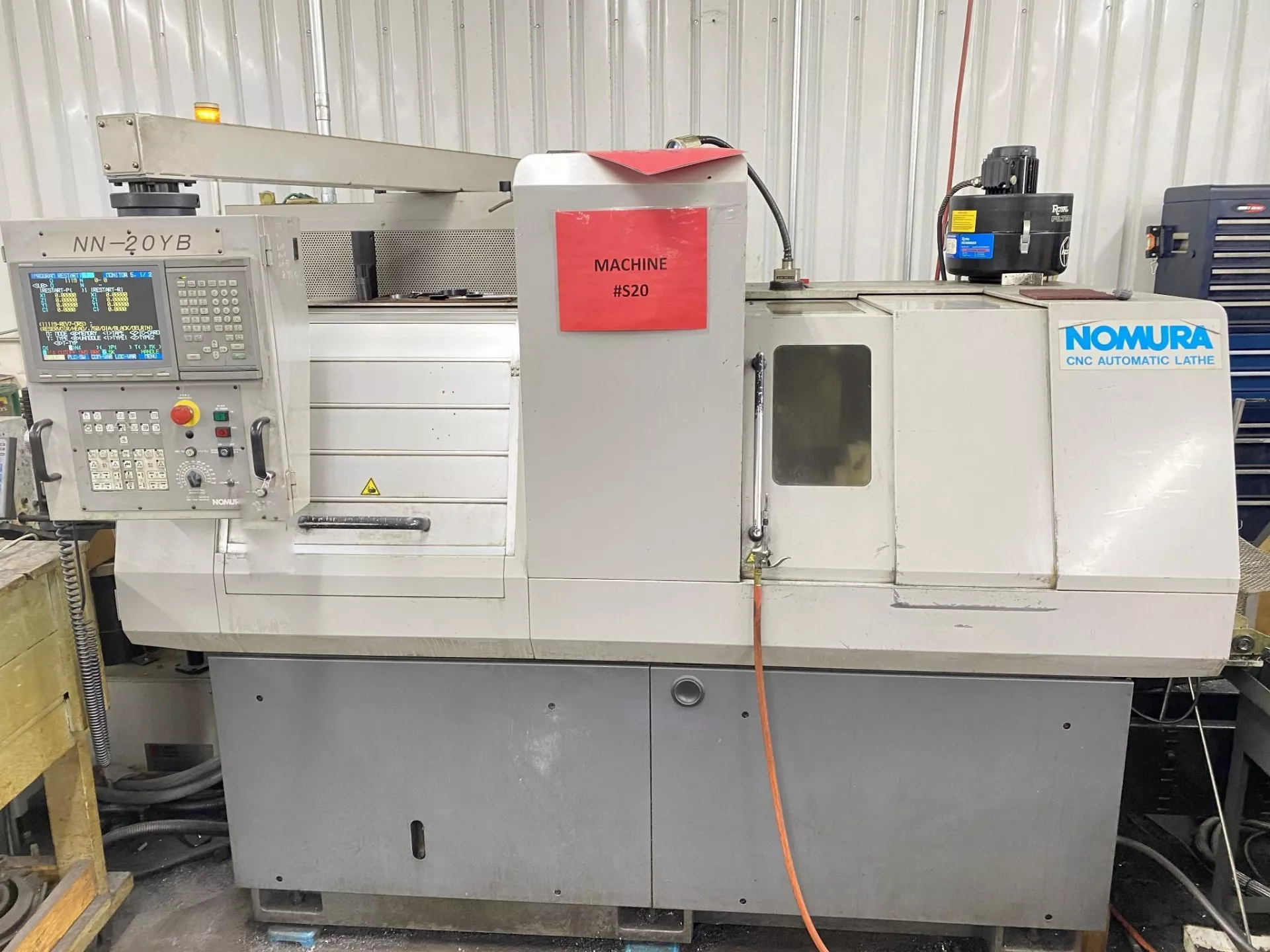

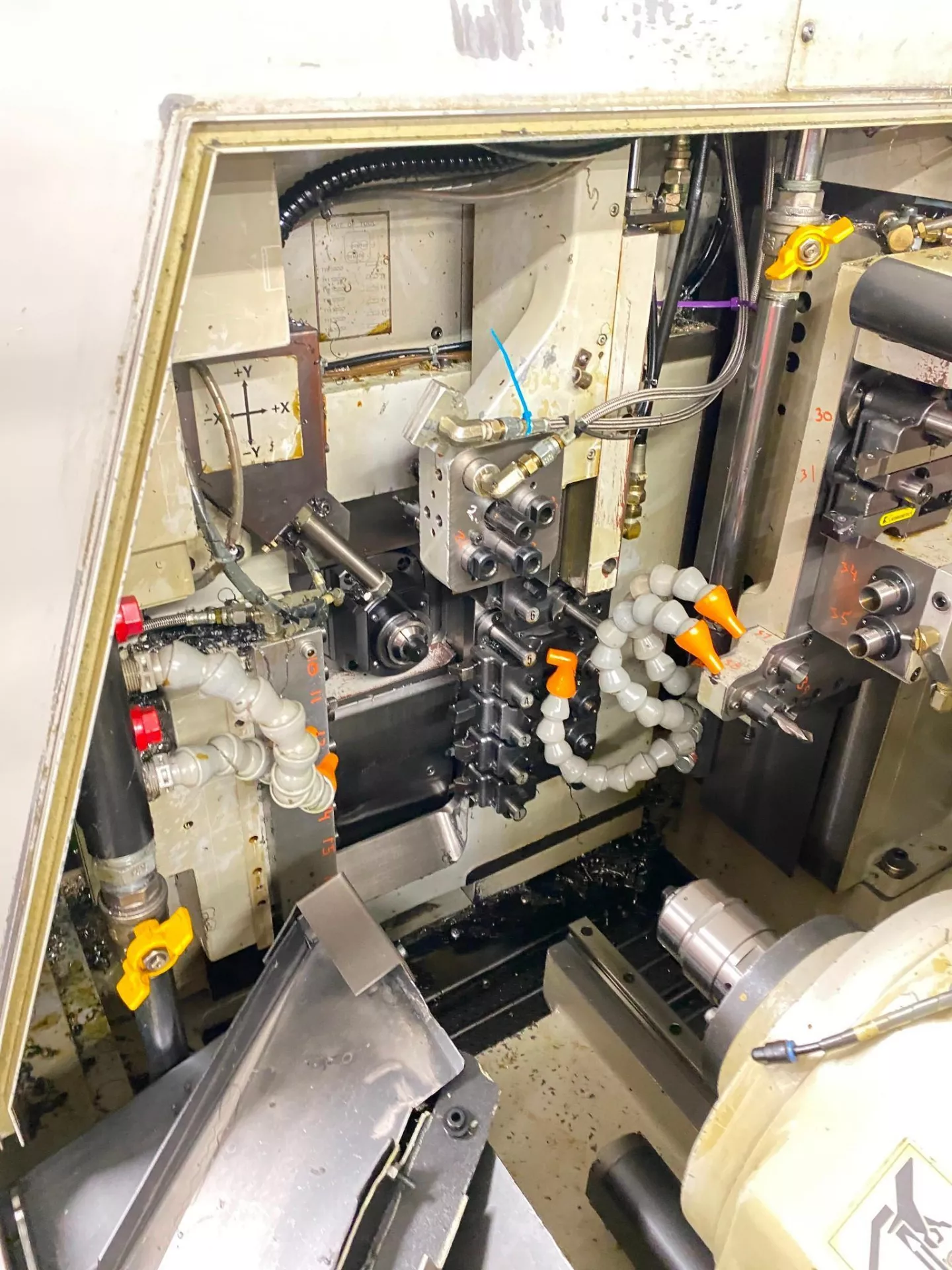

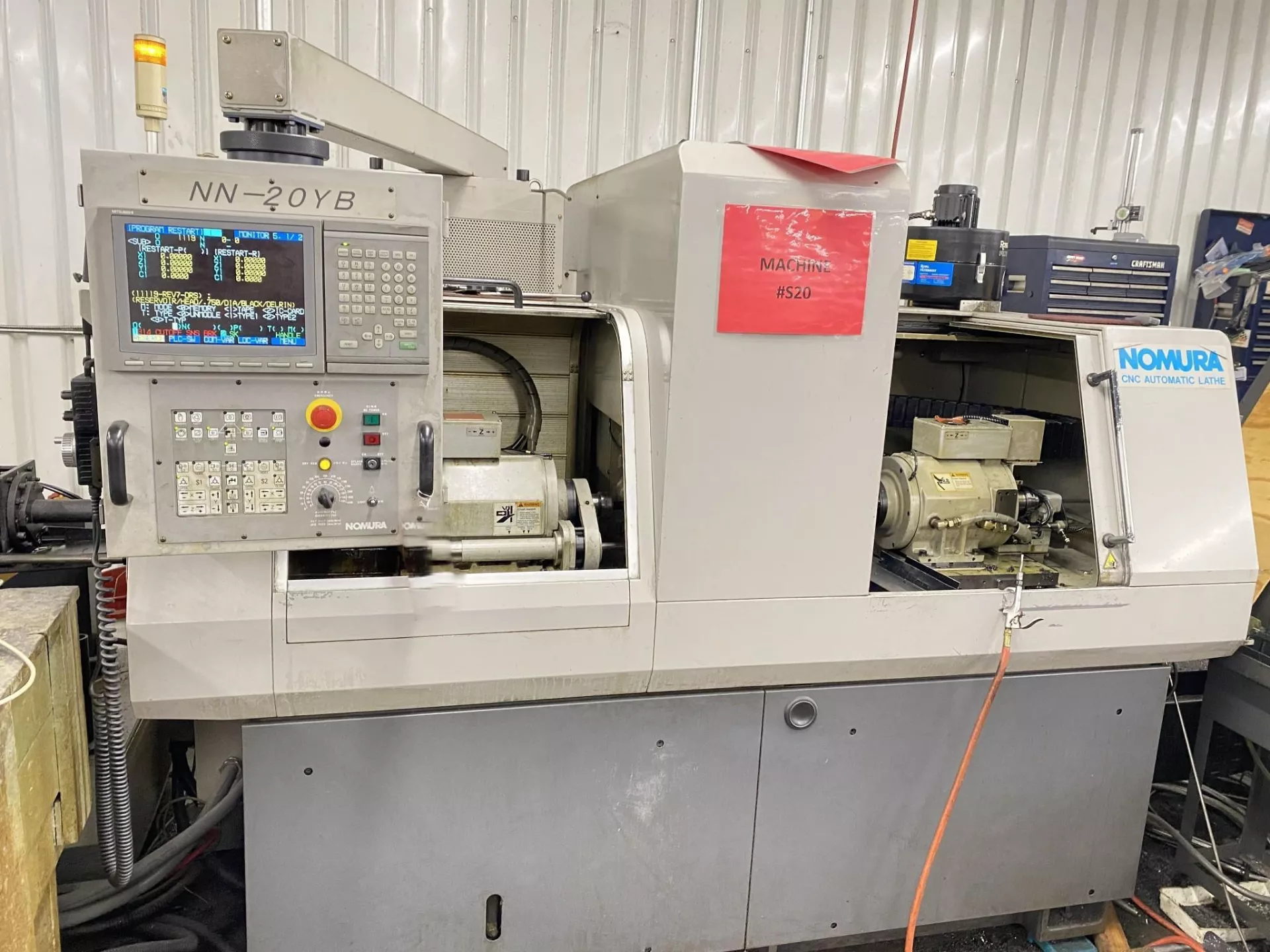

Nomura NN-20YB CNC Swiss Screw Machine (2008) – 20mm Capacity, Live Tooling

SKU 11315
Make/Model Nomura NN-20YB
Year 2008
Video On Request
Out of stock
SKU: 11315
Make/Model: Nomura NN-20YB
Year: 2008
Video: On Request
SKU: 11315

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Nomura
Model No.: NN-20YB
Year of Manufacture: 2008
Machine Type: CNC Swiss-Type Screw Machine

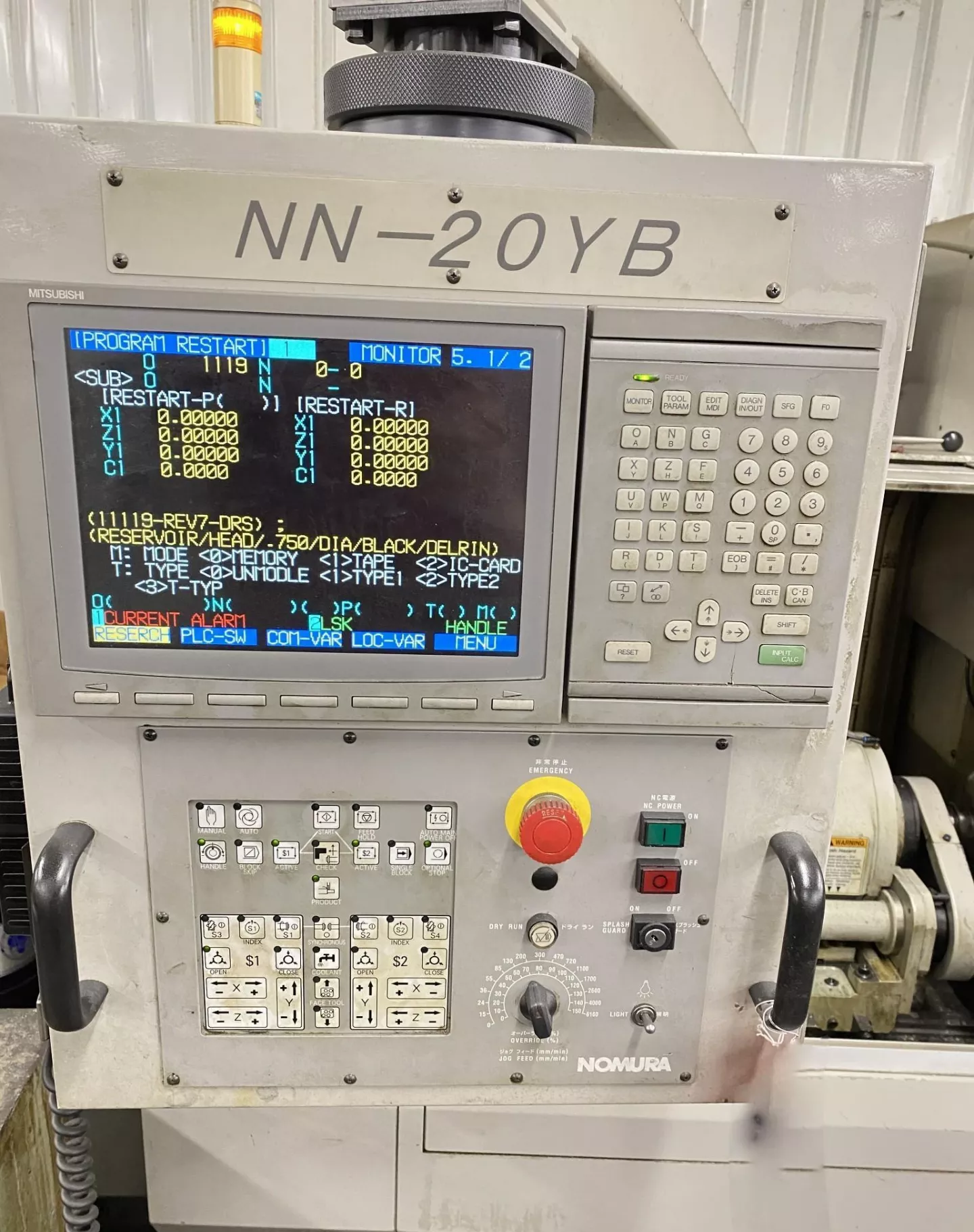

CNC Control: Mitsubishi M70 CNC Control
Country of Origin: Japan
Equipped With:
Mitsubishi M70 CNC Control
Turbo Systems Chip Conveyor
Live Tooling Capability
Sliding Headstock Design
Guide Bushing Type Operation
Multiple Tool Stations
Coolant System
Full Enclosure
Capacity:
Max Turning Diameter: 0.787″ (20 mm)
Max Turning Length: 7.870″ (200 mm)
Bar Capacity: 0.787″ (20 mm)
Spindle Bore: 0.940″ (23.88 mm)
Spindle:
Spindle Speed: 300 – 10,000 RPM
Spindle Motor: 5 HP
Spindle Nose: Nomura Specification
Speed Ranges: 1
Tooling:
Primary Tool Carrier: Slide Type
Max Turning Tools: 6
Rotary Tools: 7
Tool Shank Size: 0.500″ Square
Live Tool Spindle Speed: Up to 6,000 RPM
Live Tool Power: 2 HP
Electrical:
Power Requirement: 220V / 3 Phase
Spindle Motor: 5 HP
General:
Overall Dimensions: 90″ L x 50″ W x 72″ H
Weight: 6,624 lbs
Equipped With:
Mitsubishi M70 CNC Control
Turbo Systems Chip Conveyor
Live Tooling Capability
Sliding Headstock Design
Guide Bushing Type Operation
Multiple Tool Stations
Coolant System
Full Enclosure
Capacity:
Max Turning Diameter: 20 mm (20 mm)
Max Turning Length: 200 mm (200 mm)
Bar Capacity: 20 mm (20 mm)
Spindle Bore: 24 mm (23.88 mm)
Spindle:
Spindle Speed: 300 – 10,000 RPM
Spindle Motor: 5 HP
Spindle Nose: Nomura Specification
Speed Ranges: 1
Tooling:
Primary Tool Carrier: Slide Type
Max Turning Tools: 6
Rotary Tools: 7
Tool Shank Size: 13 mm Square
Live Tool Spindle Speed: Up to 6,000 RPM
Live Tool Power: 2 HP
Electrical:
Power Requirement: 220V / 3 Phase
Spindle Motor: 5 HP
General:
Overall Dimensions: 2,286 mm L x 1,270 mm W x 1,829 mm H
Weight: 6,624 lbs
CategoriesSwiss Type Lathe
MakeNomura DS
ModelNN-20YB
NOMURA NN-20YB-1NOMURA NN-20YB-2NOMURA NN-20YB-3NOMURA NN-20YB-4
