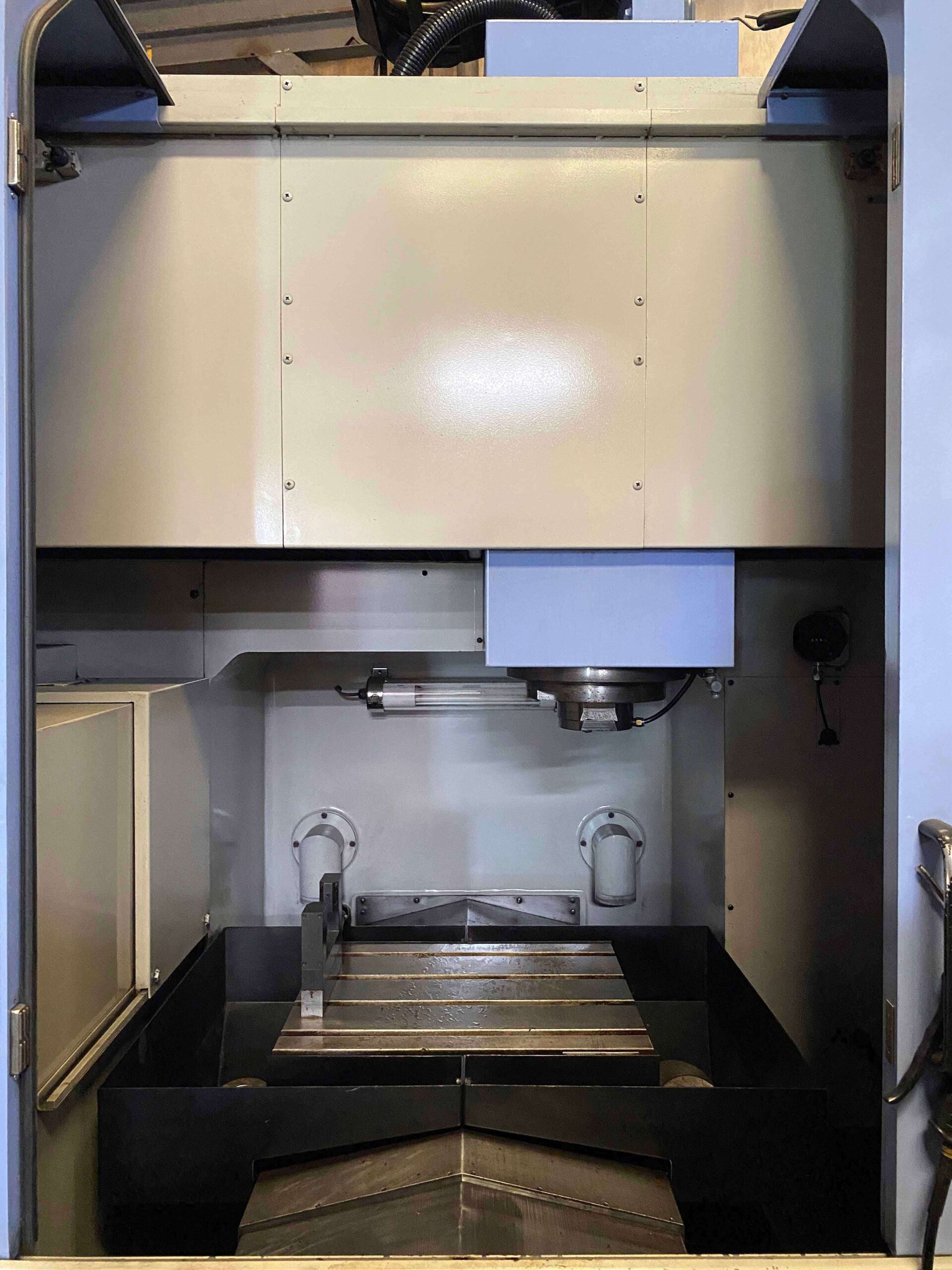

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | OKADA |
| Model: | GM544 |
| Year: | 2010 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Fanuc 150i-M CNC Control |
| Features: |
|---|
| Fanuc 150i-M CNC Control |
| Laser |
| Oilmatic Cooler |
| Spindle Chiller |
| Rigid Tapping |
| MPG Control |
| Telescopic Way Covers |
| Automatic Tool Changer |
| High-Speed Spindle |
| Capacity: |
|---|
| Table Size: 23.6″ × 19.7″ |
| Maximum Table Load: 600 lbs. |
| Number of T-Slots: 3 |
| T-Slot Width: 0.79″ |
| Travels: |
|---|
| X-Axis Travel: 19.7″ |
| Y-Axis Travel: 15.7″ |
| Z-Axis Travel: 15.7″ |
| Spindle Nose to Table: 5.9″ – 22.05″ |
| Rapid Traverse Rate: 1,890 IPM |
| Cutting Feed Rate: 945 IPM |
| Spindle: |
|---|
| Spindle Taper: BT-30 |
| Spindle Speed: 30,000 RPM |
| Spindle Type: Integral Drive |
| Spindle Motor: 10 HP |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 32 Positions |
| Tool Type: BT-30 |
| Maximum Tool Weight: 11.6 lbs. |
| Maximum Tool Diameter: 3.54″ |
| Maximum Tool Length: 7.8″ |
| Tool Change Time: 4.5 sec. |
| General: |
|---|
| Power: 220V / 35 kVA / 3-Phase |
| Air Requirement: 80 PSI / 4 SCFM |
| Machine Dimensions (Approx.): 80″ L × 90″ W × 100″ H |
| Machine Weight (Approx.): 10,000 lbs. |
