*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*
| Make: | Okamoto |
| Model: | PSG-205 |
| Machine Type: | 3-Axis Automatic Hydraulic Surface Grinder |
| Equipped With: |
|---|
| 3-Axis Automatic Surface Grinding |
| Hydraulic Over-the-Wheel Dresser |
| Electromagnetic Chuck with Controls |

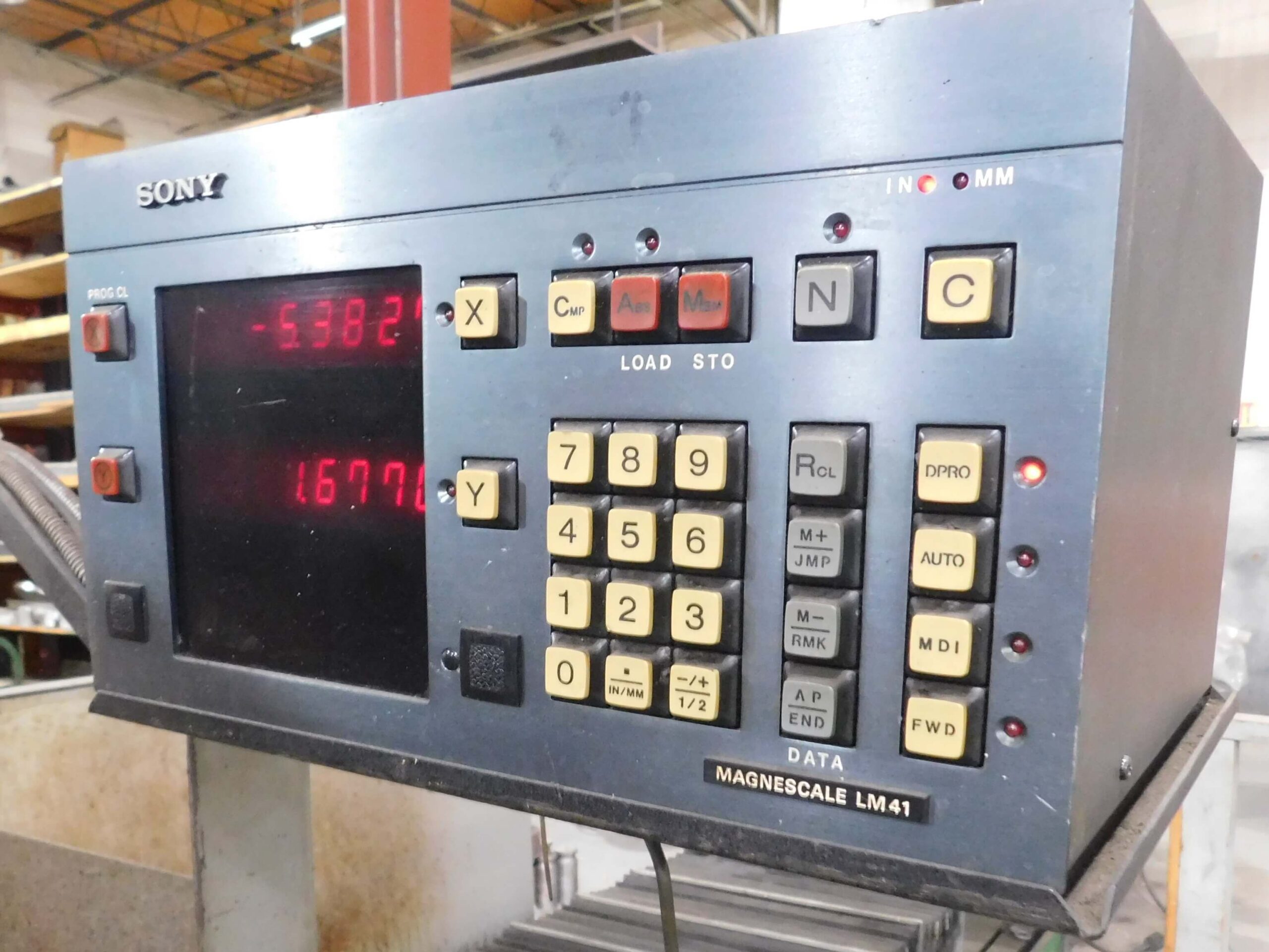

| Sony Magnescale LM41 D.R.O. |
| Coolant System with Magnetic Separator |
| Automatic Incremental Downfeed |
| Automatic Cross Feed |
| Automatic Feed per Column Reversal |
| New Stainless Steel Drain Trough |
| Okamoto Wheel Balancing Stand with Case |
| (3) Extra Grinding Wheels with Hubs |
| (2) 1″ Hubs |
| (1) 4″ Hub |
| Capacity: |
|---|
| Table Working Surface: 80.71″ × 19.7″ |
| Maximum Table Longitudinal Travel: 84.64″ |
| Maximum Column Cross Travel: 20.8″ |
| Maximum Distance Spindle/Wheel to Table: 23.4″ under 20″ wheel |
| Electromagnetic Chuck: 80″ × 20″ |
| Machine Capacity: 20″ × 80″ |
| Spindle: |
|---|
| Maximum Wheel Size: 20″ × 2″ × 5″ |
| Wheel Speed: 1,100 RPM |
| Spindle Drive: 10 HP |
| Feedrates: |
|---|
| Automatic Longitudinal Feed: 1–100 FPM |
| Cross Feed Automatic Increment: 0.20″–1.37″ |
| Continuous Cross Feed: 1–16.4 FPM |
| Vertical Rapid Feed: 12 FPM |
| General: |
|---|
| Power Source: 230–460V / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 275″ L × 109″ W × 88″ H |
| Machine Weight (Approx.): 19,300 lbs. |
