*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

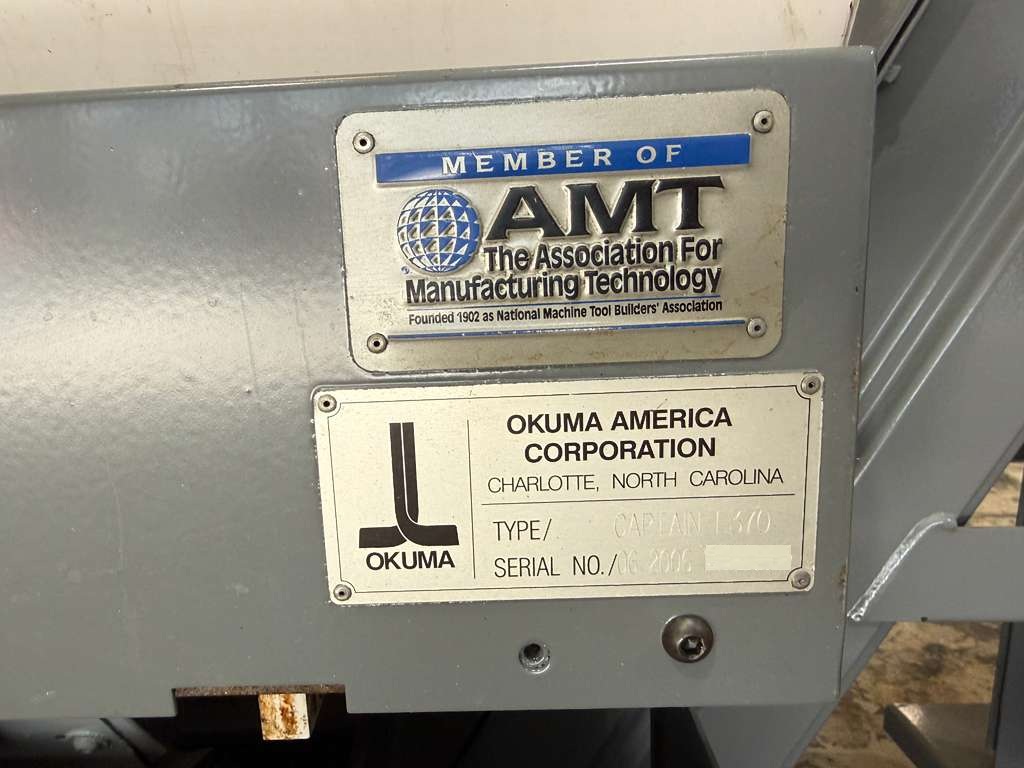

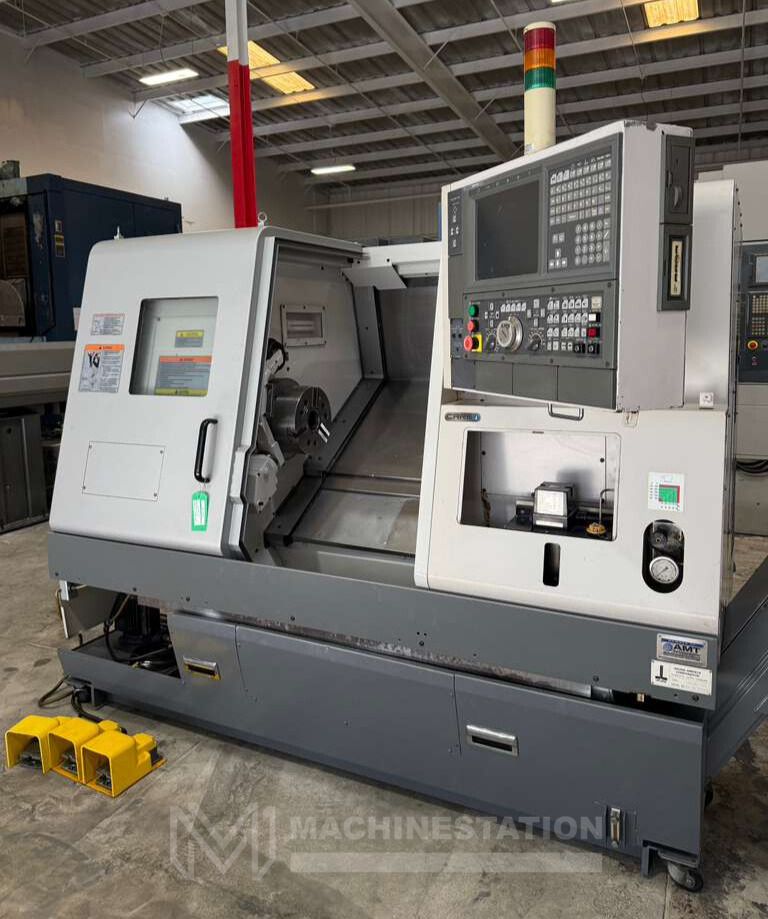

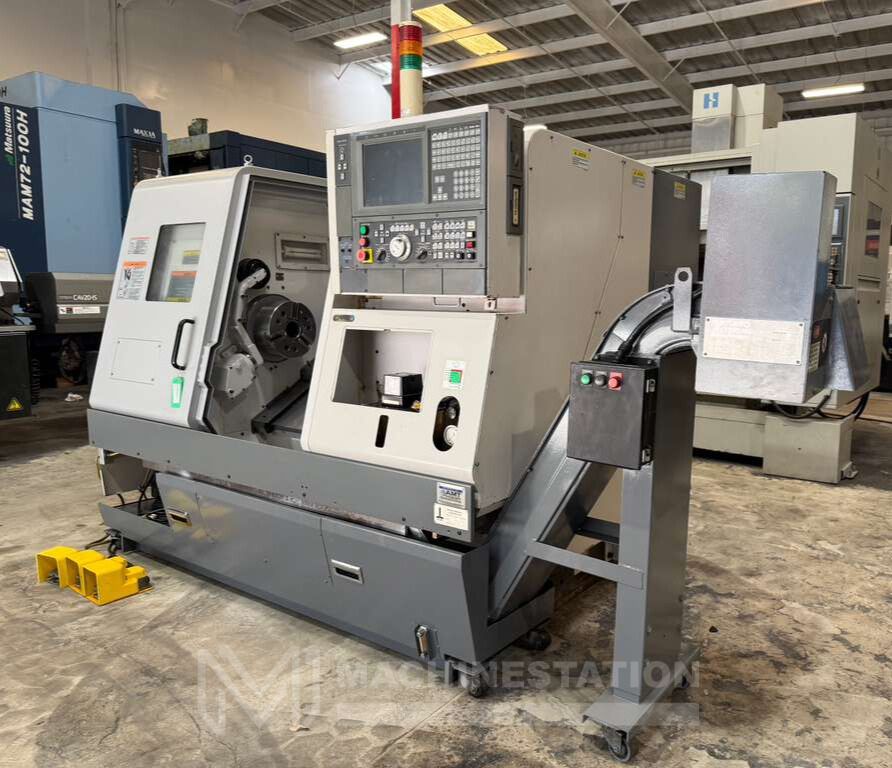

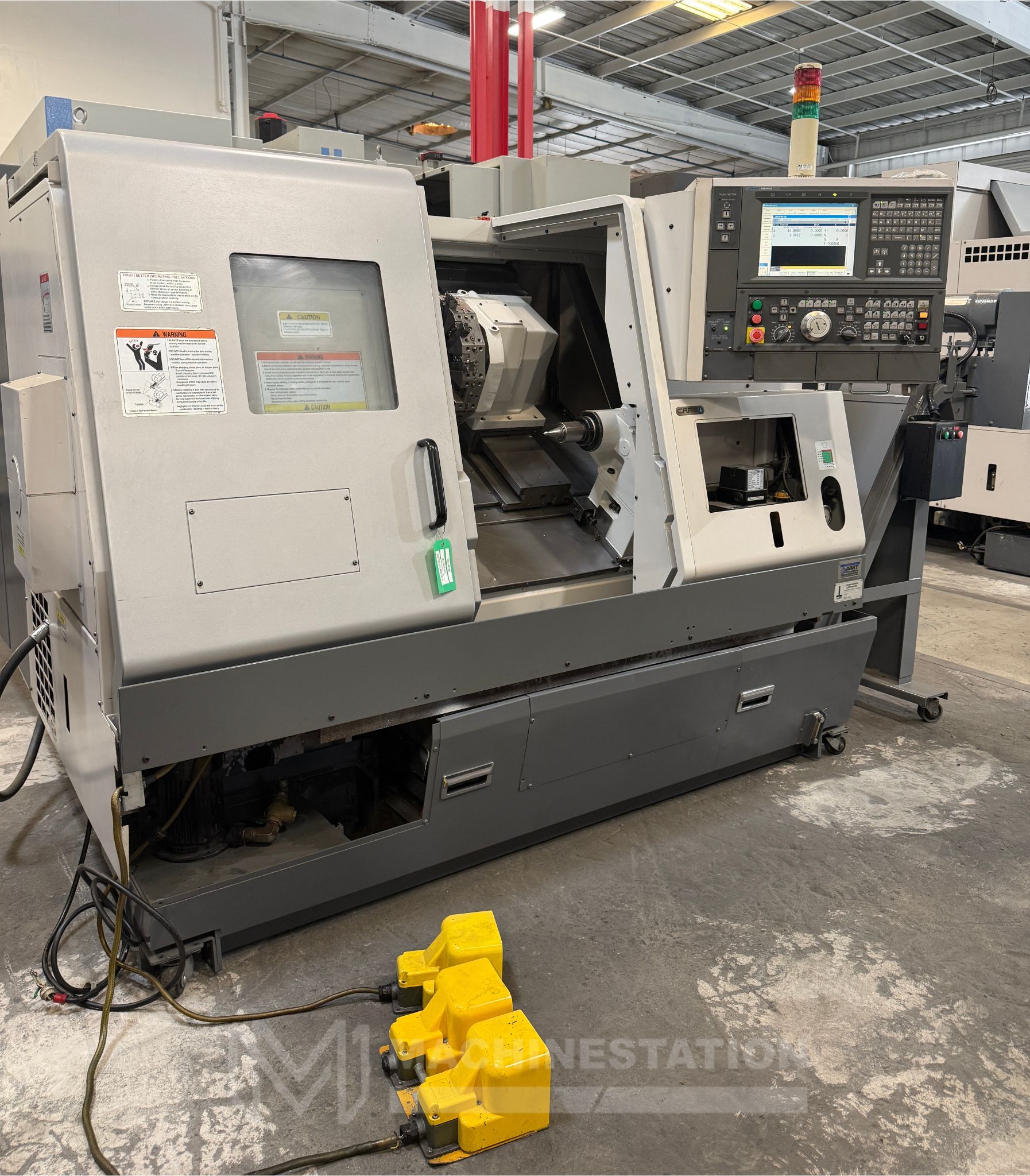

| Make: | Okuma |
| Model: | Captain L-370 |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

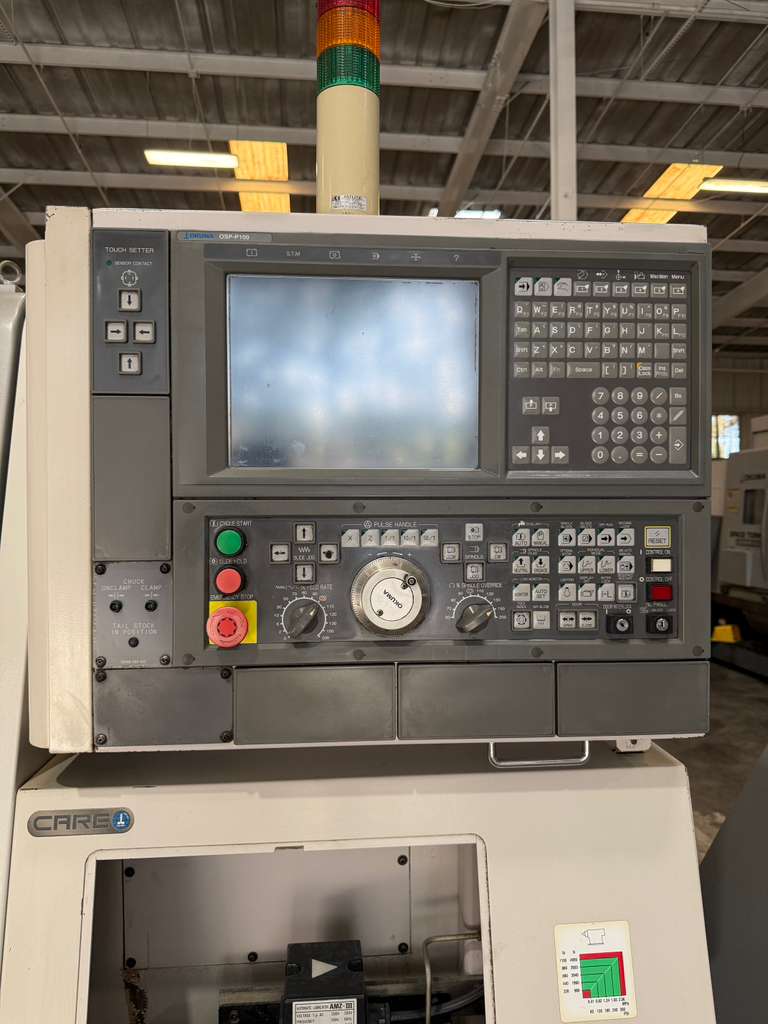

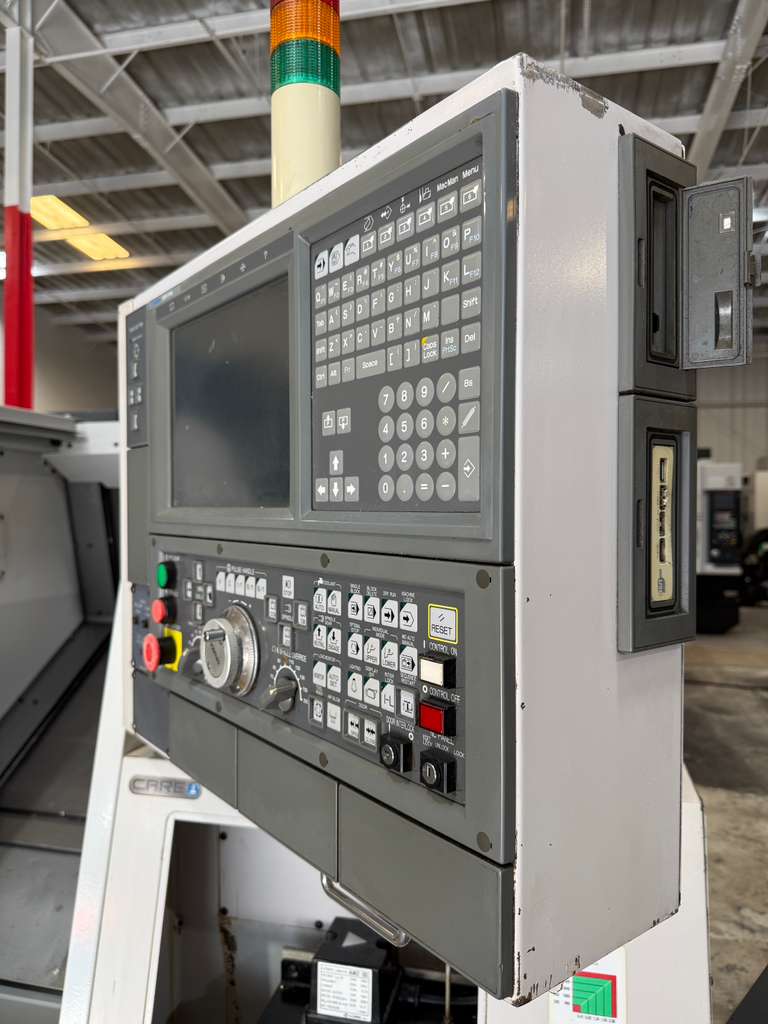

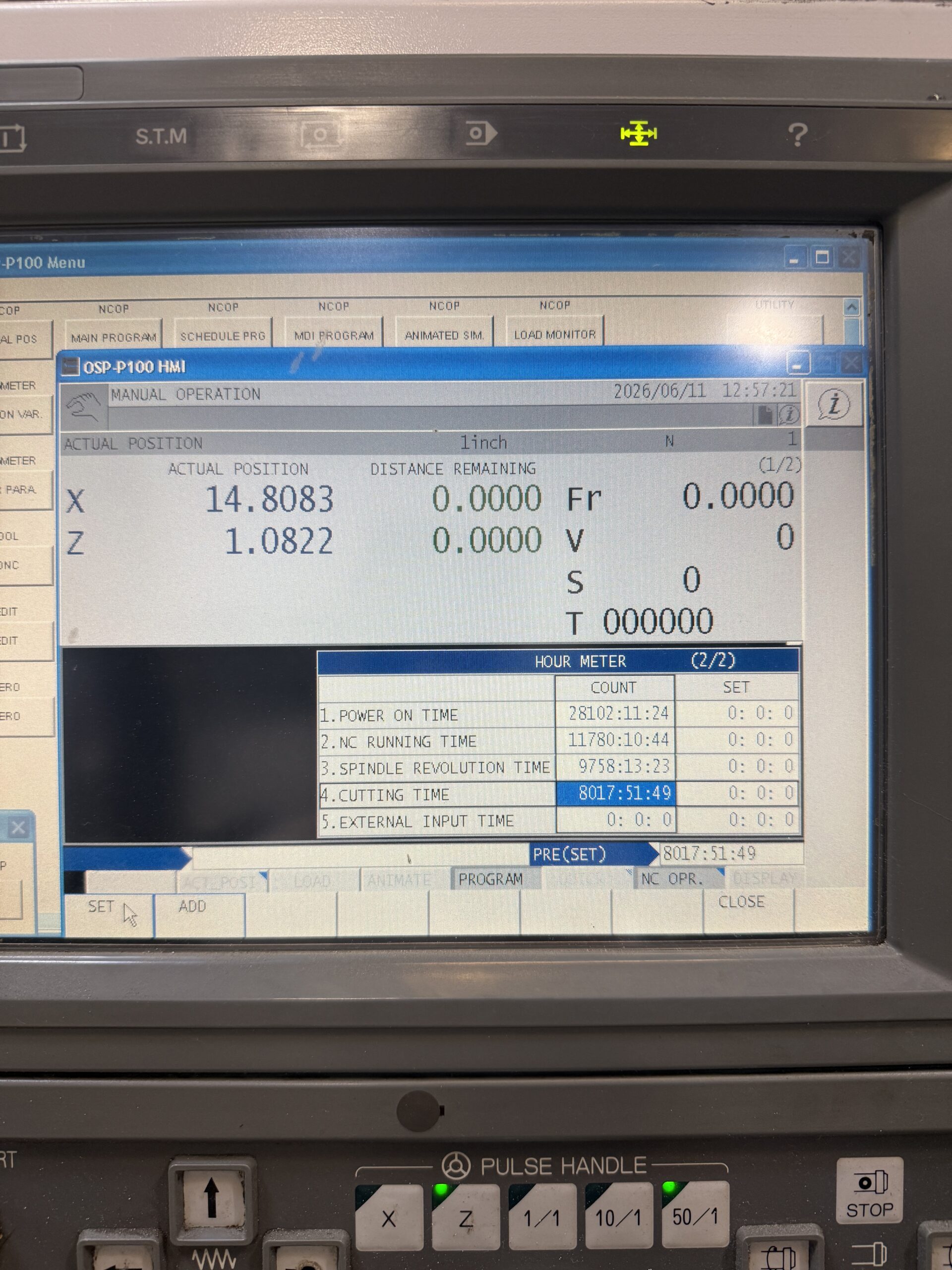

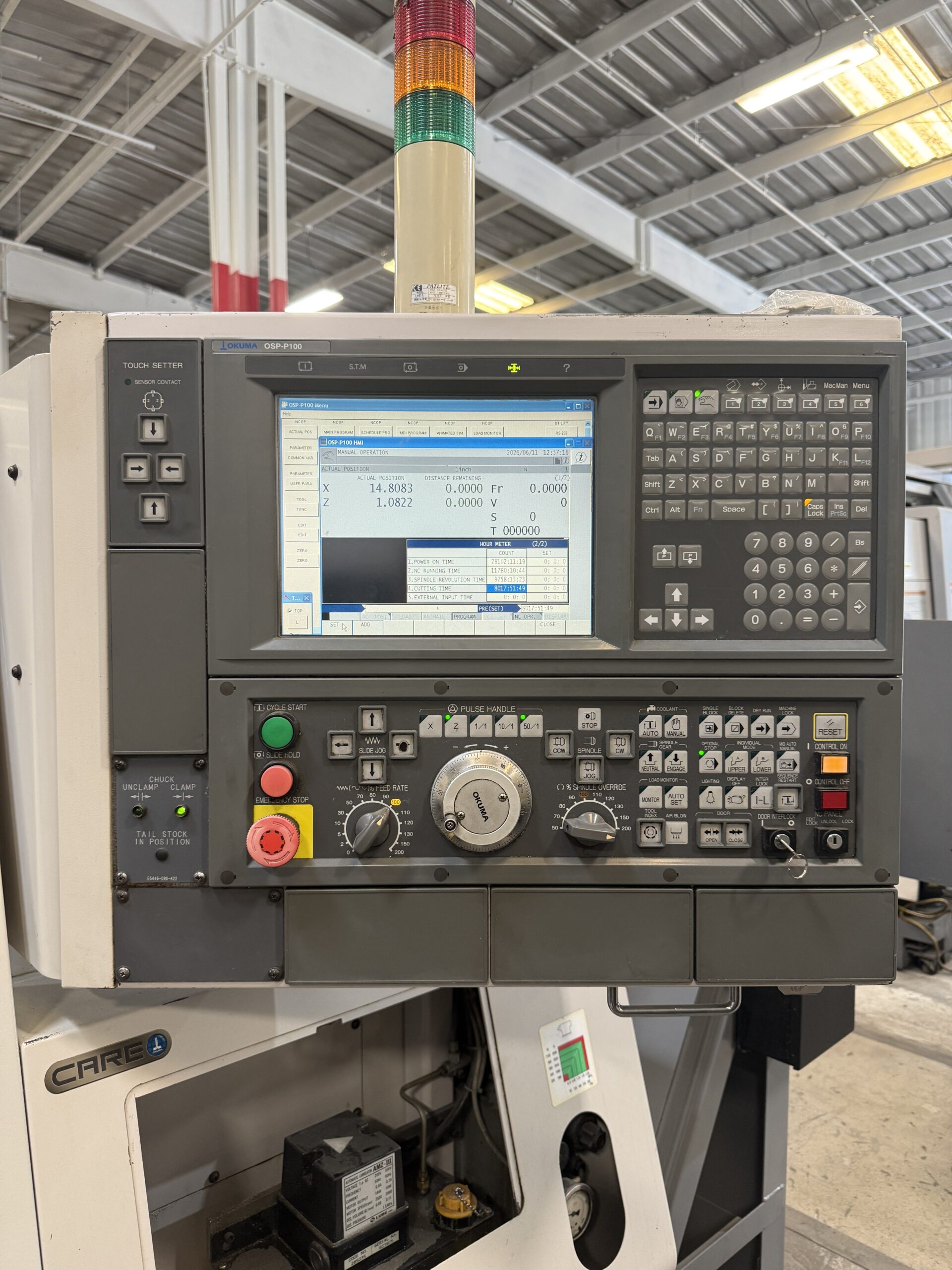

| OSP-P100 CNC Control |

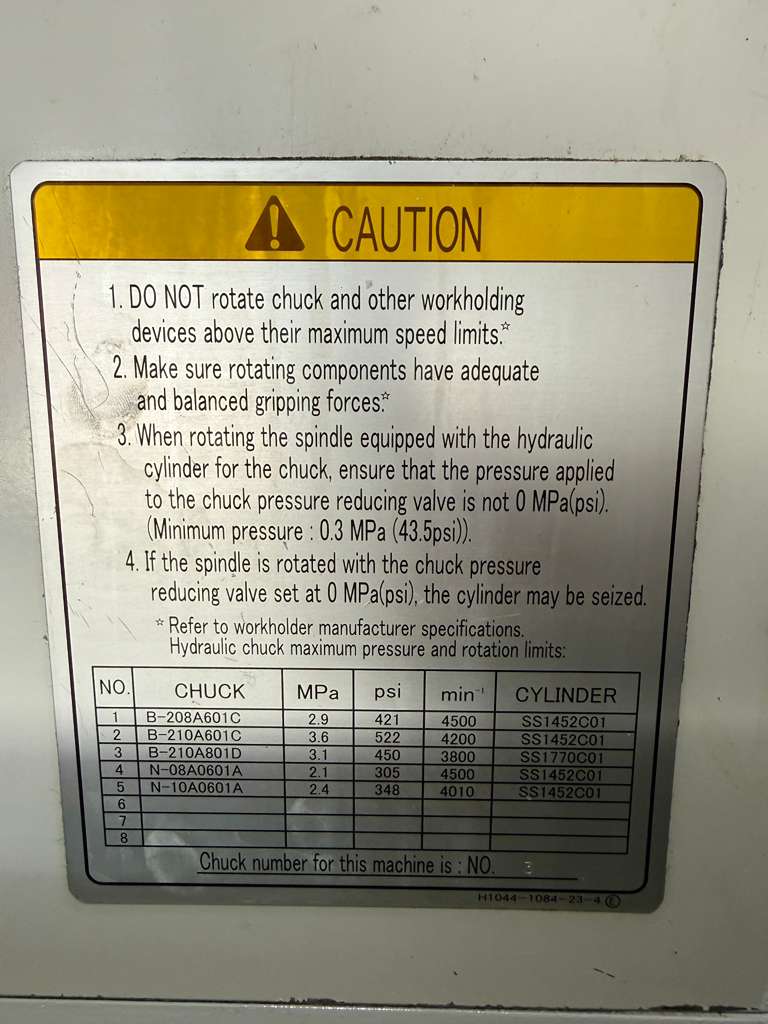

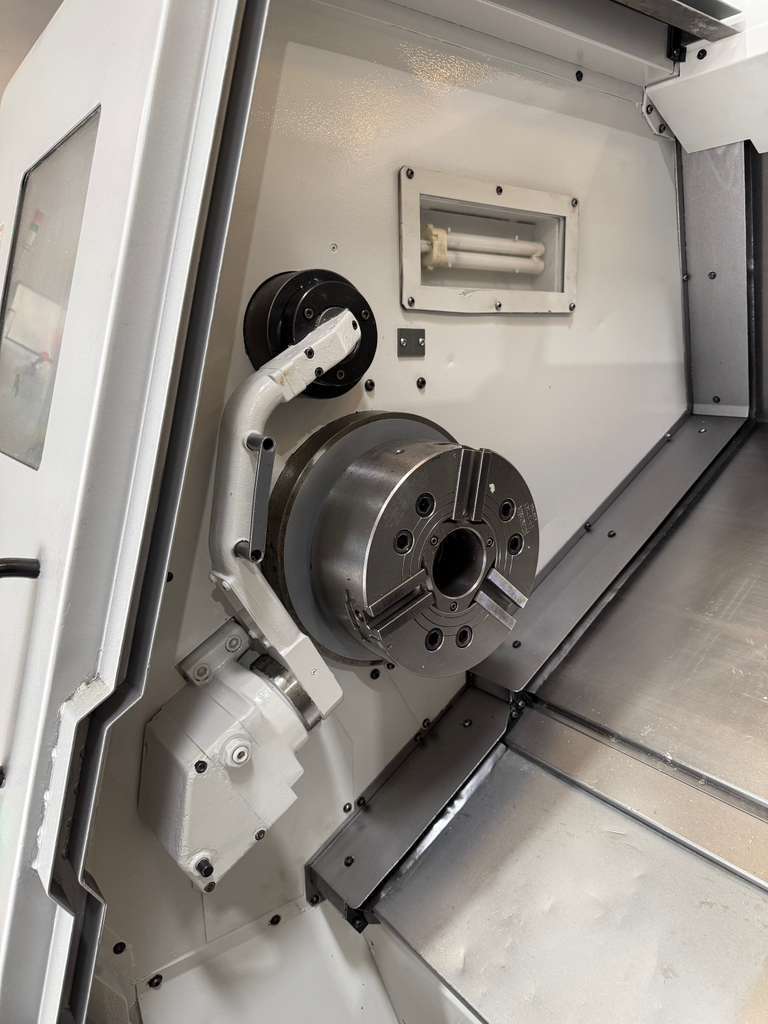

| 10″ 3-Jaw Kitagawa B-210 Hydraulic Chuck |

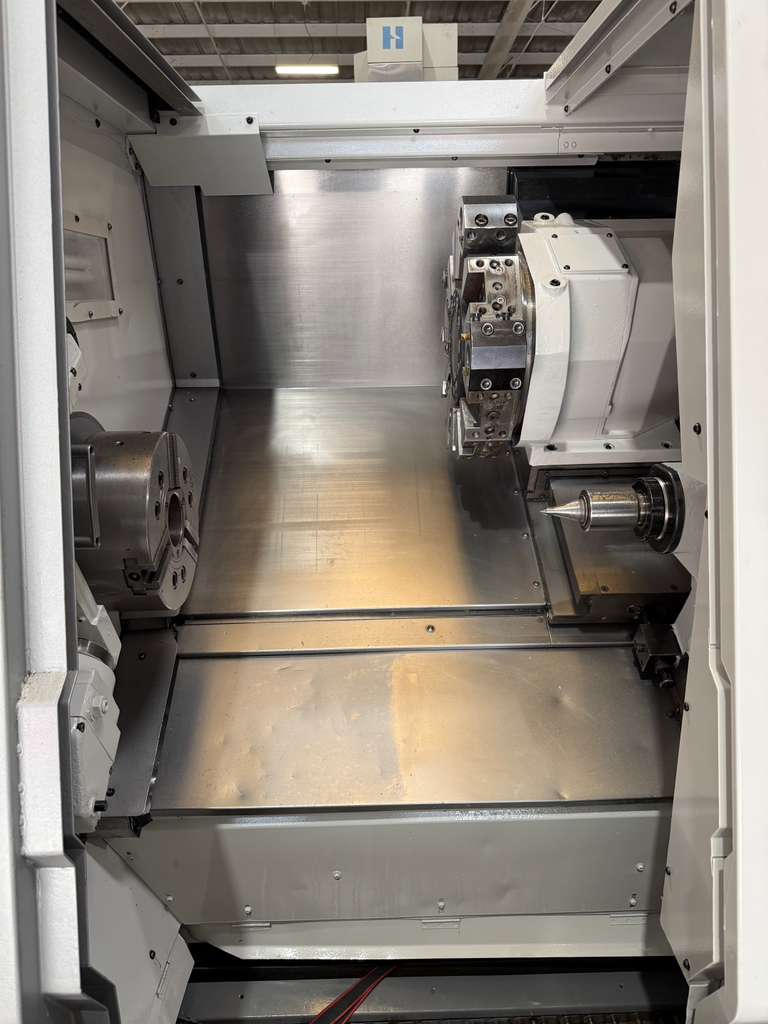

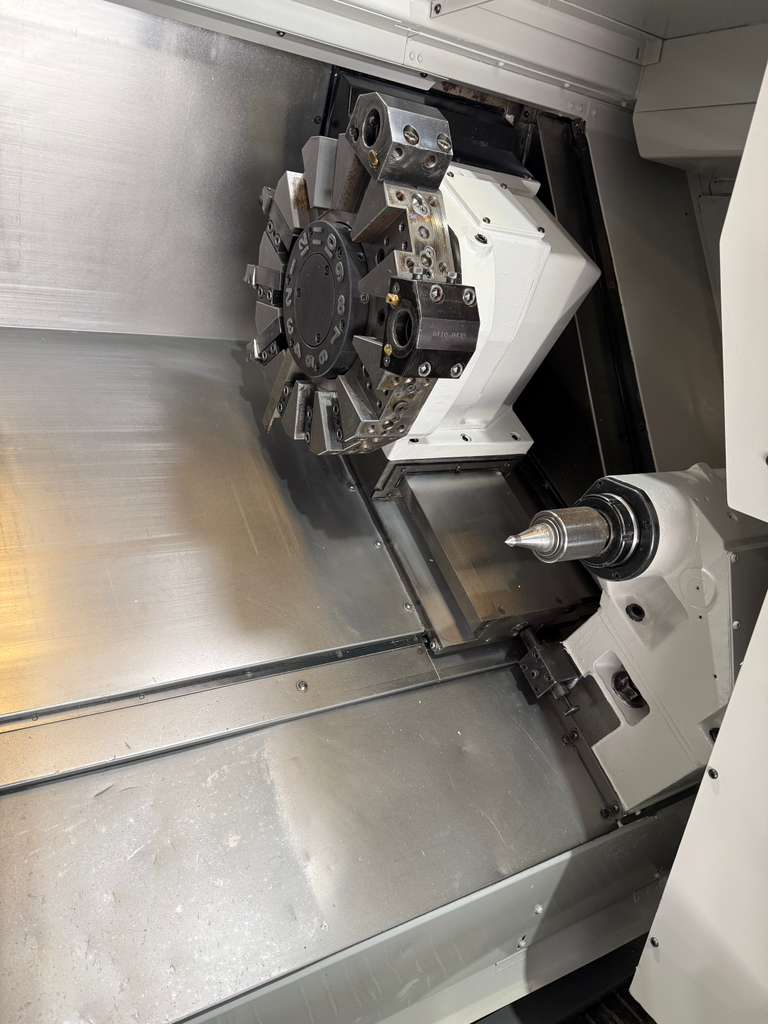

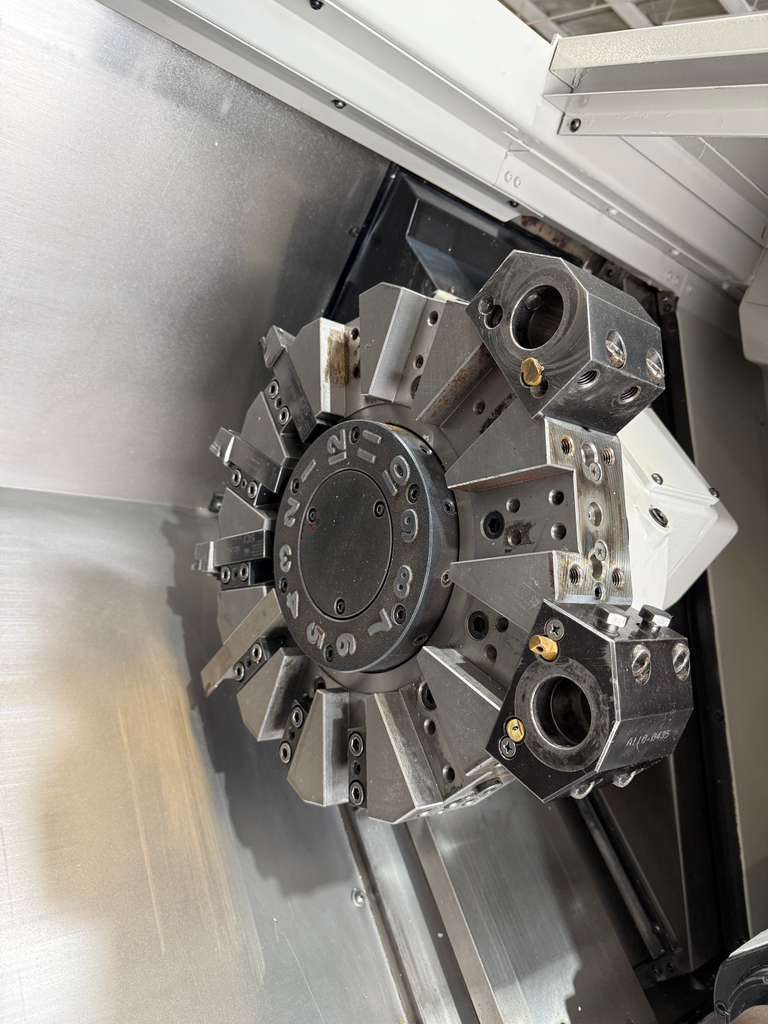

| 12-Station Automatic Turret |

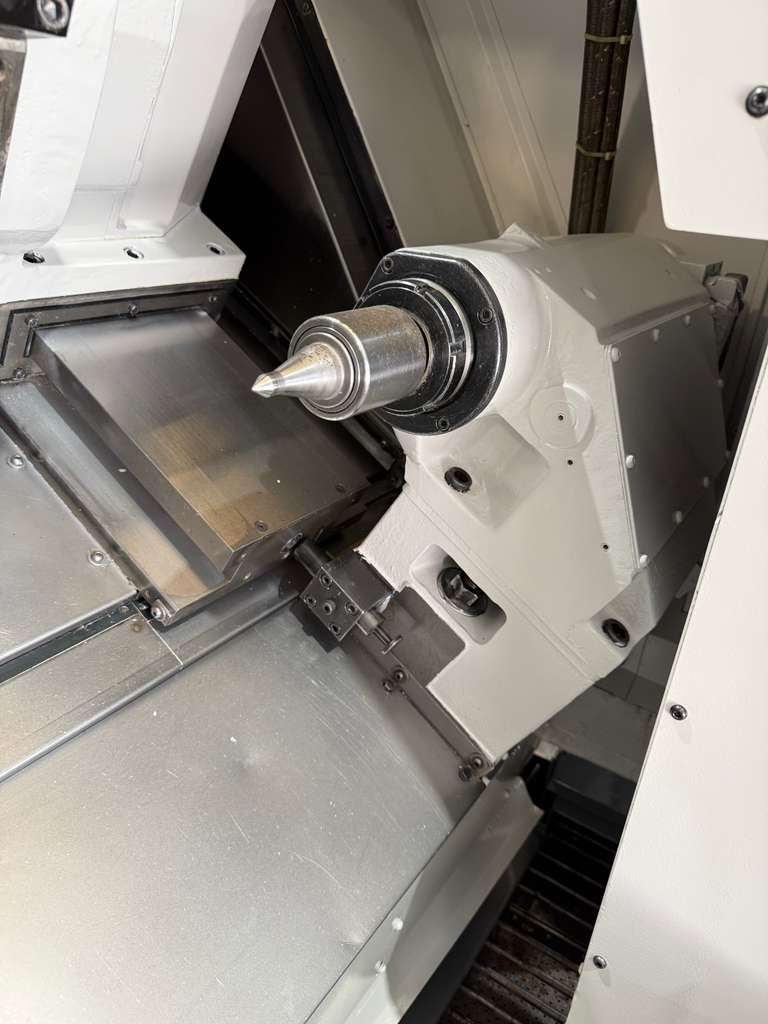

| Hydraulic Tailstock with Power Quill |
| Tool Presetter |
| USB Ports |
| Floppy Drive |
| Automatic Lubrication system |
| Coolant System |

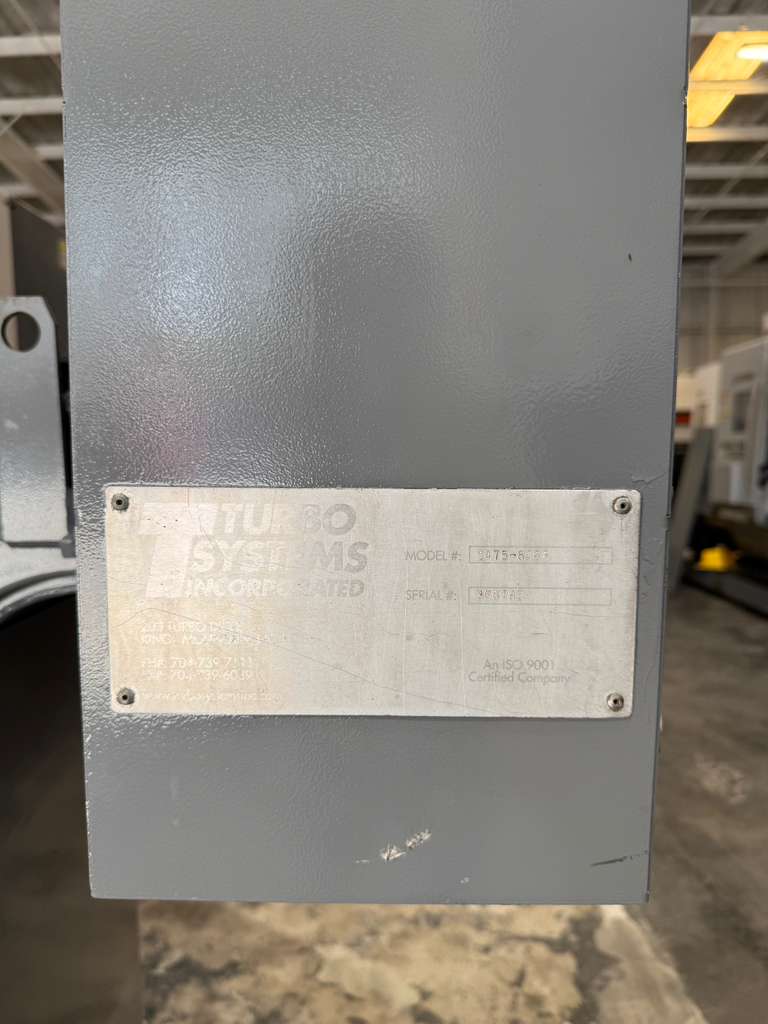

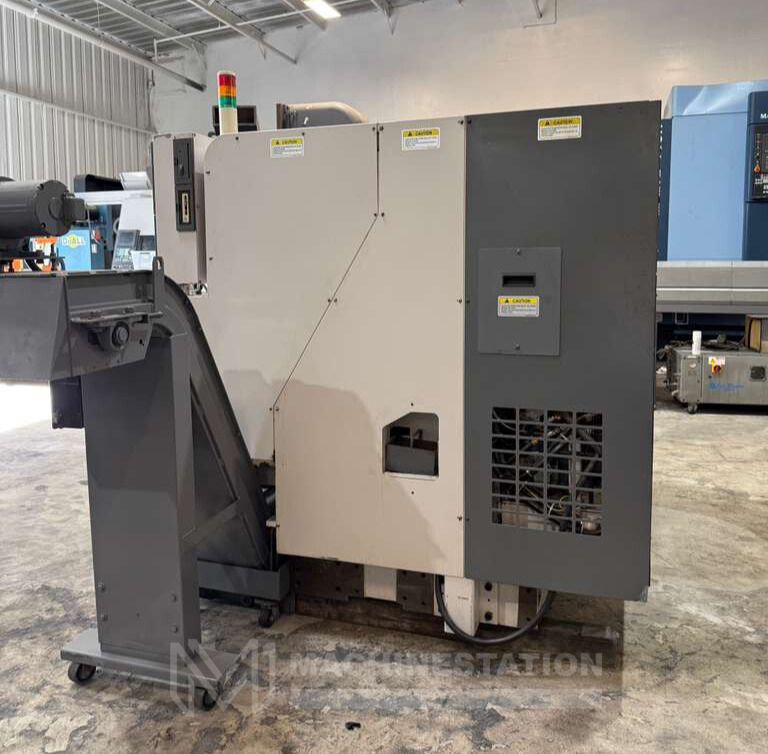

| Turbo System Chip Conveyor |

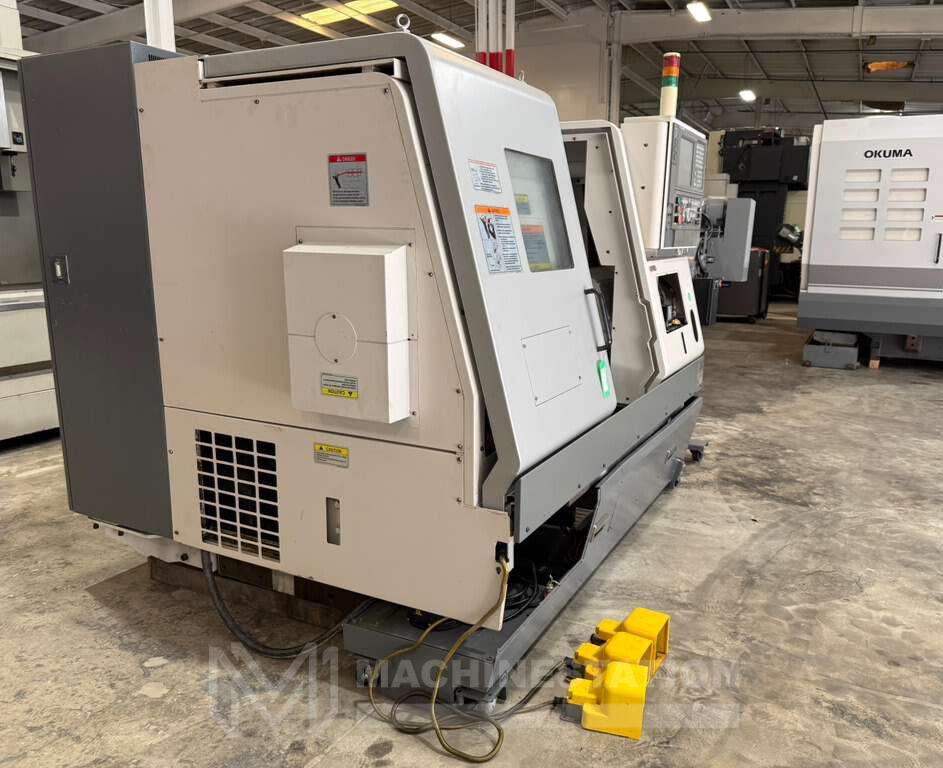

| Foot Operated Control for Chuck and Tailstock |
| (2) Boring Tool Holders Equipped on Turret (As Shown in the Images) |
| Capacity: |
|---|
| Max Turning Diameter : 14.57″ |
| Max Swing Over Bed : 20.86″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity : 2.54″ |
| Distance Between Center: 20.0″ |
| Travels: |
|---|
| X Axis Travel : 10.23″ |
| Z1 Axis Travel : 20.47″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.15″ |
| Spindle Speed: 3800 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Taper: MT-5 |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Travel: 3.93″ |
| General: |
|---|

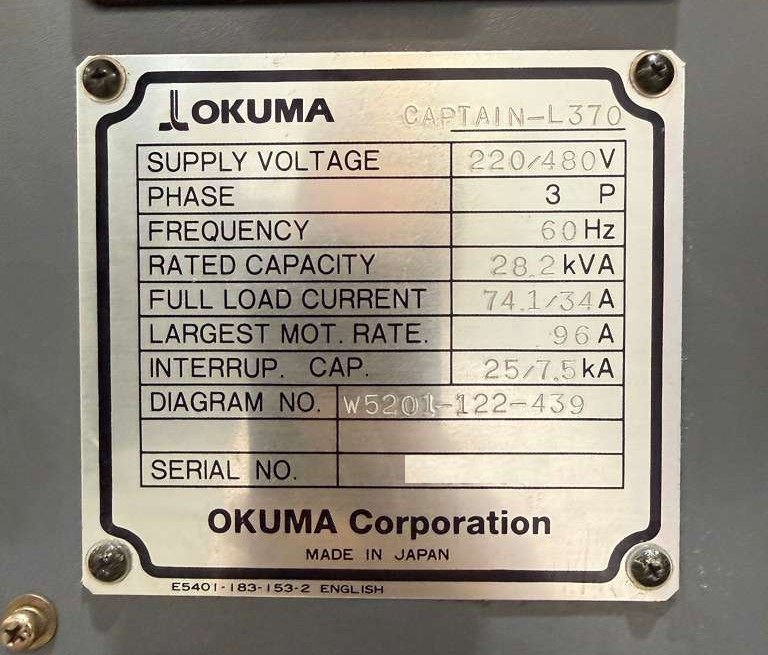

| Power Source: AC 220v/480v / 3-Phase / 60 Hz |
| Power Requirement: 28.2 kva |
| Machine Dimensions: 88″ x 68″ x 70″ High |
| Machine Weight: 9,500 lbs Approx. |
