Sold

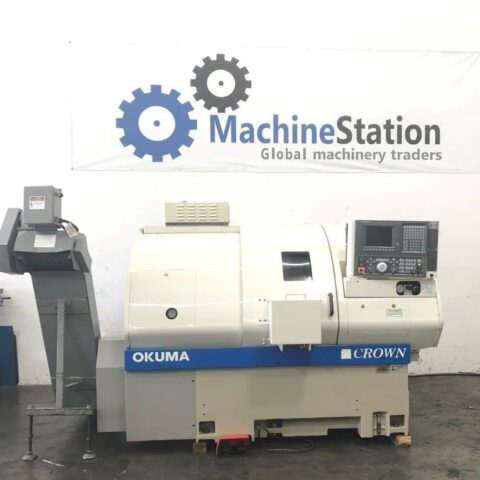

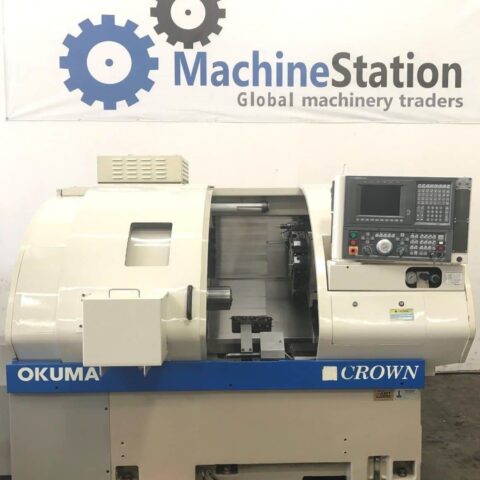

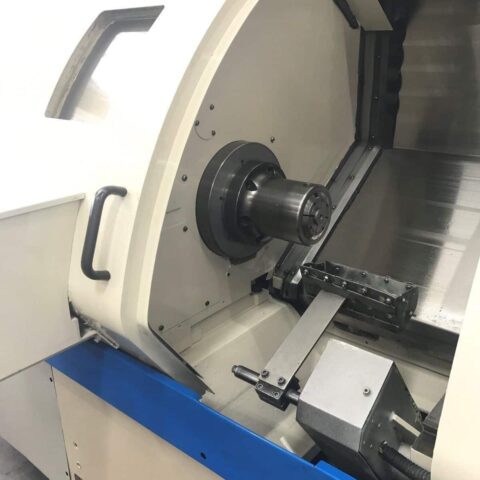

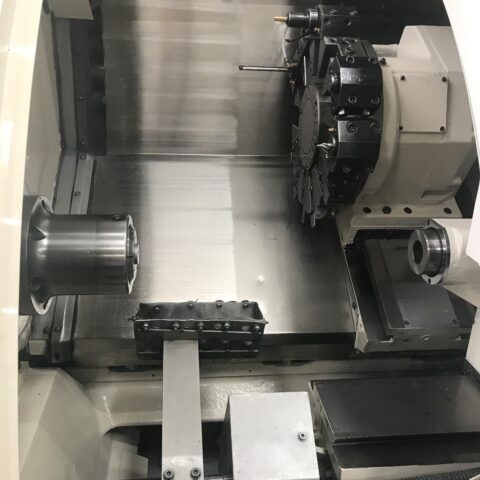

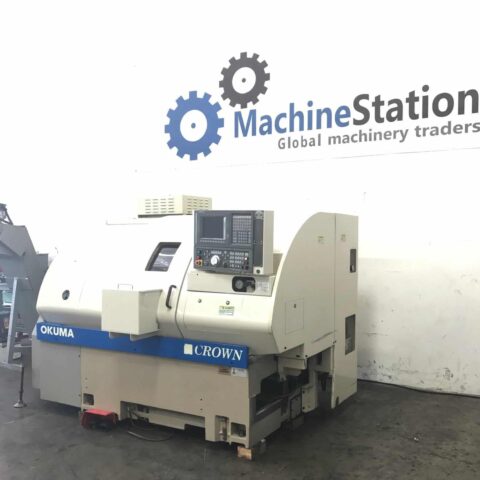

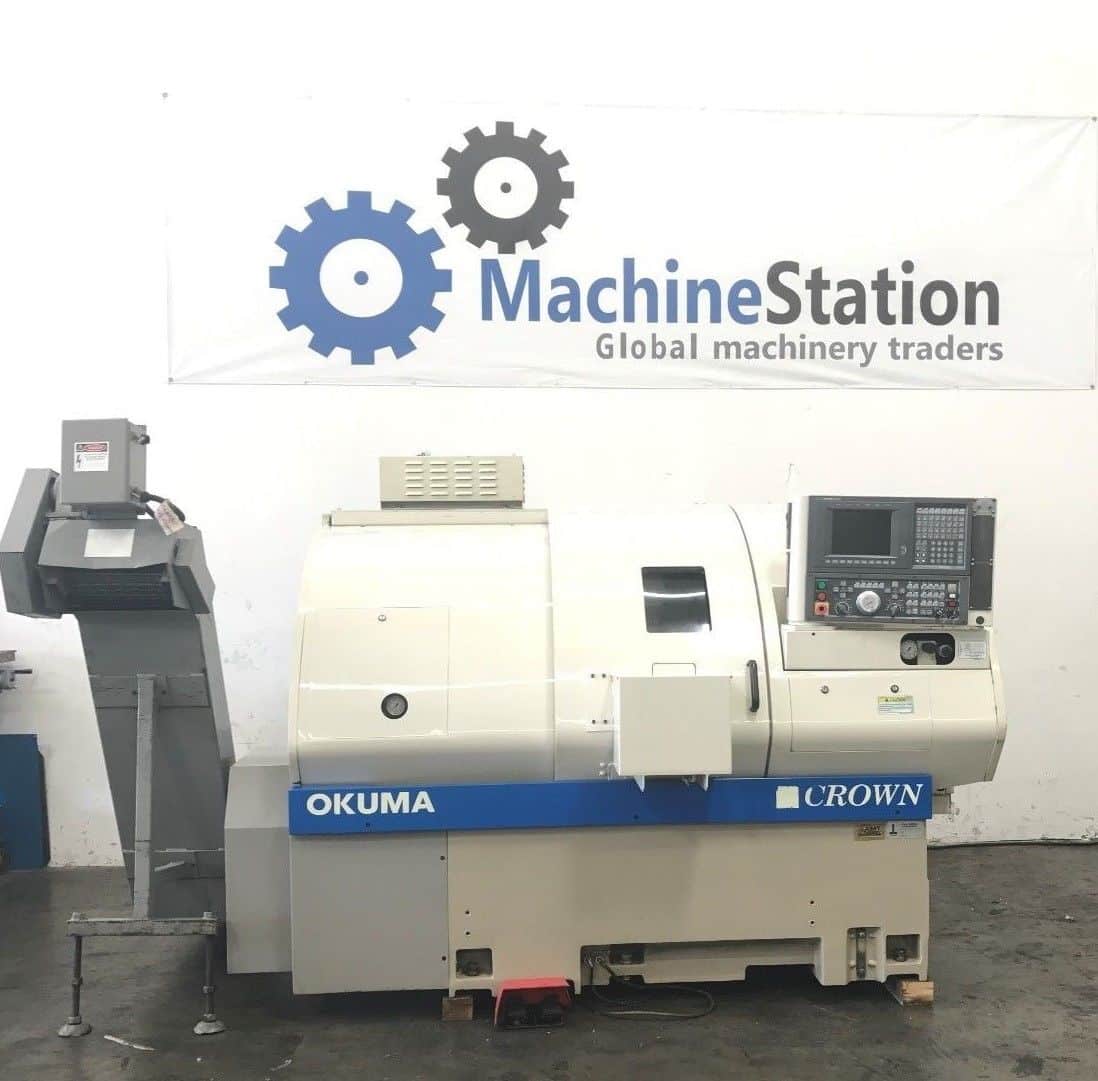

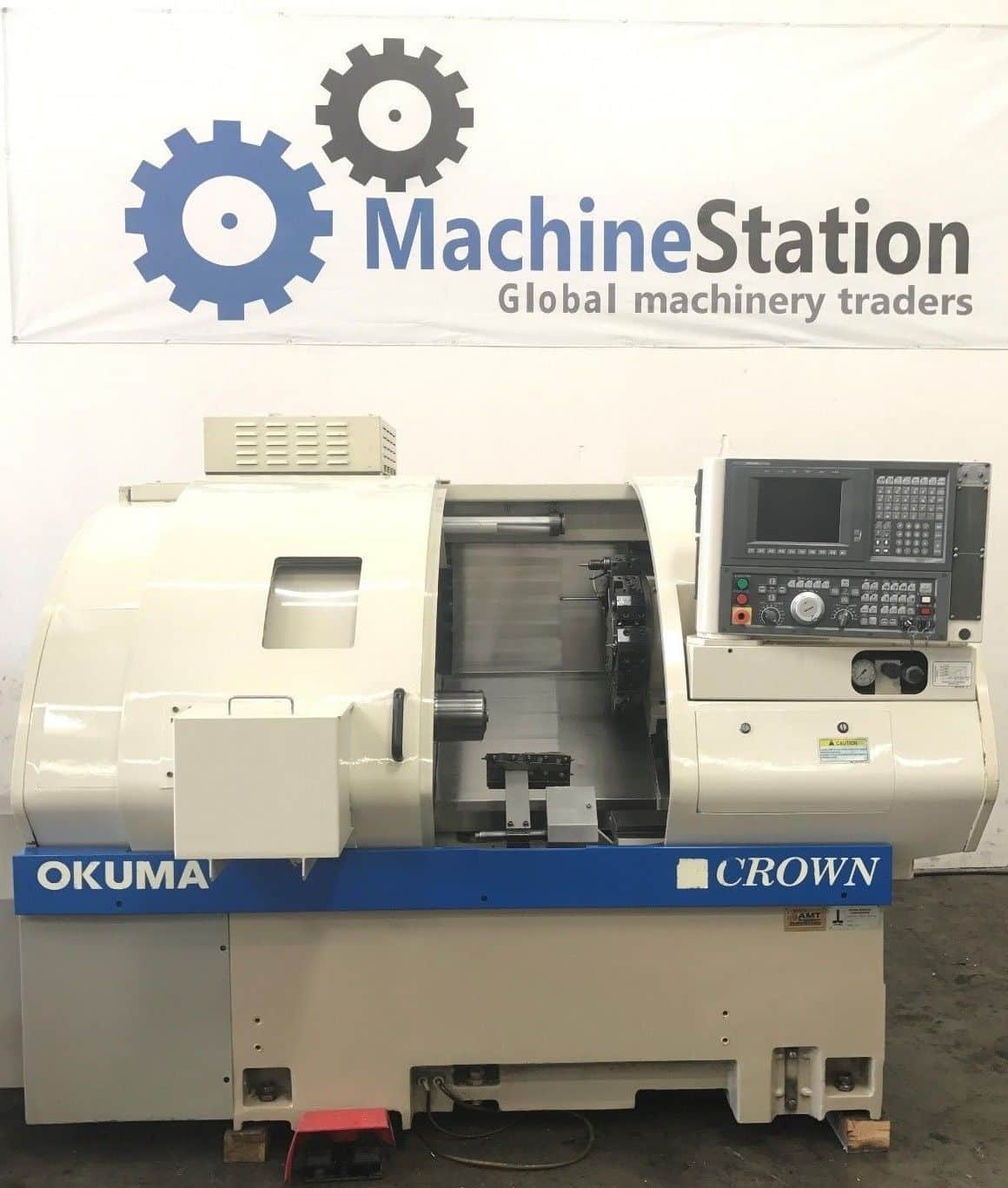

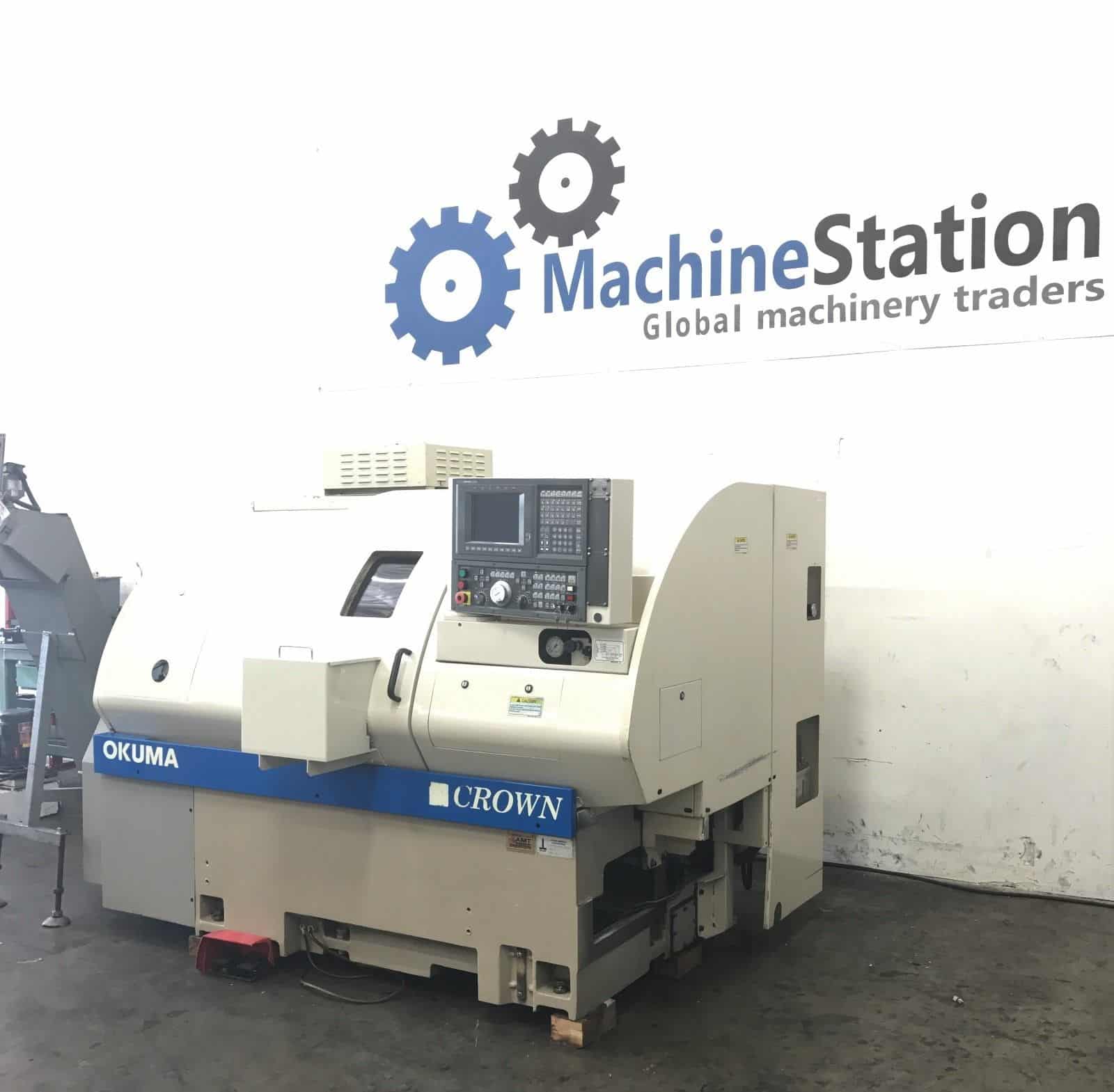

Okuma Crown 762S-BB CNC Turning Center
Out of stock
| Make |
Okuma |
| Model No. |
Crown 762S-BB |
| Country of Origin: |
Japan |

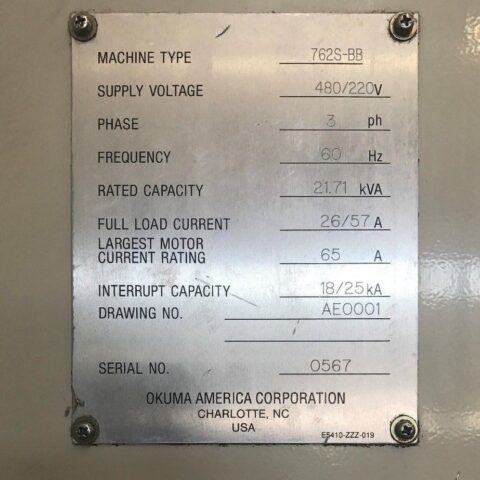

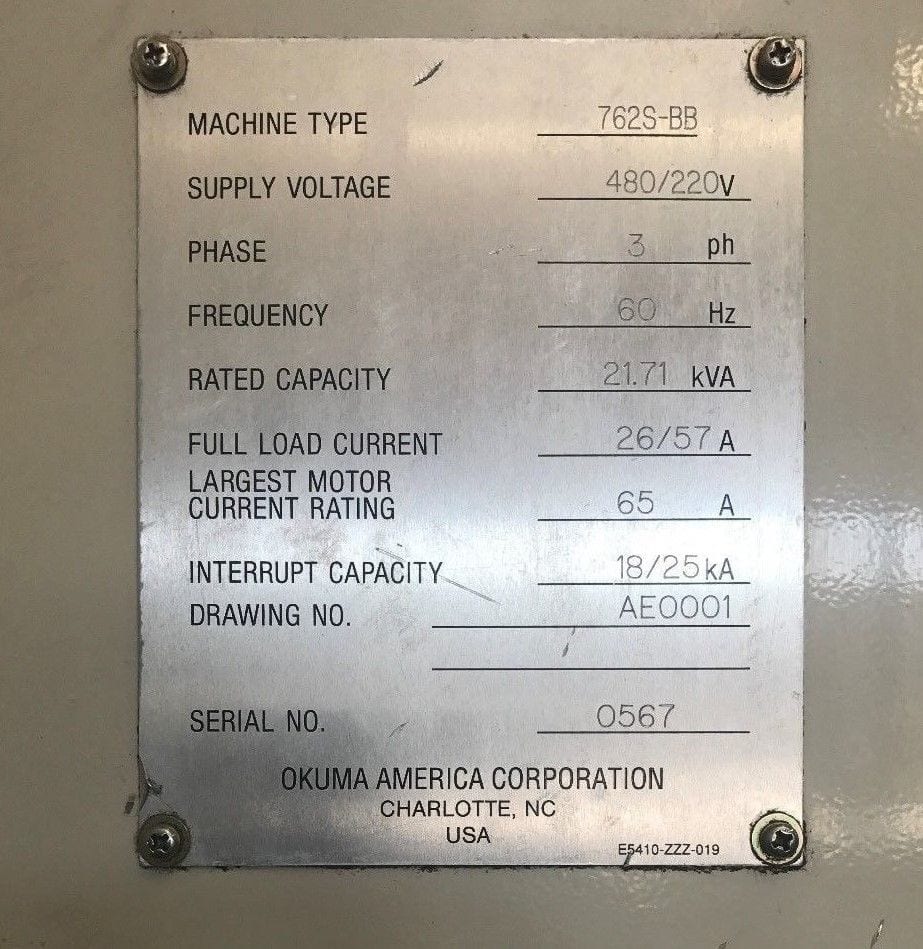

| Serial # |
0567 |
| Condition |
Very Good |
-
OKUMA CROWN 762S-BB Equipped With:

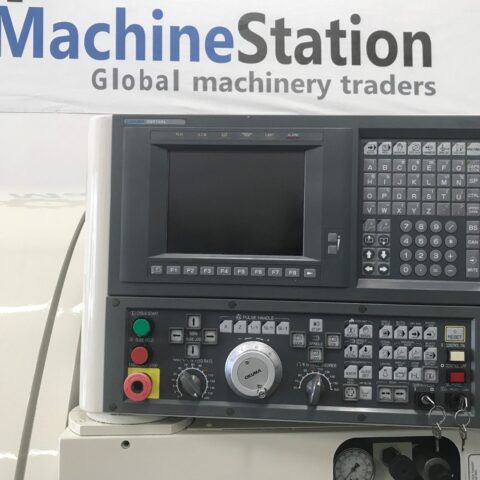

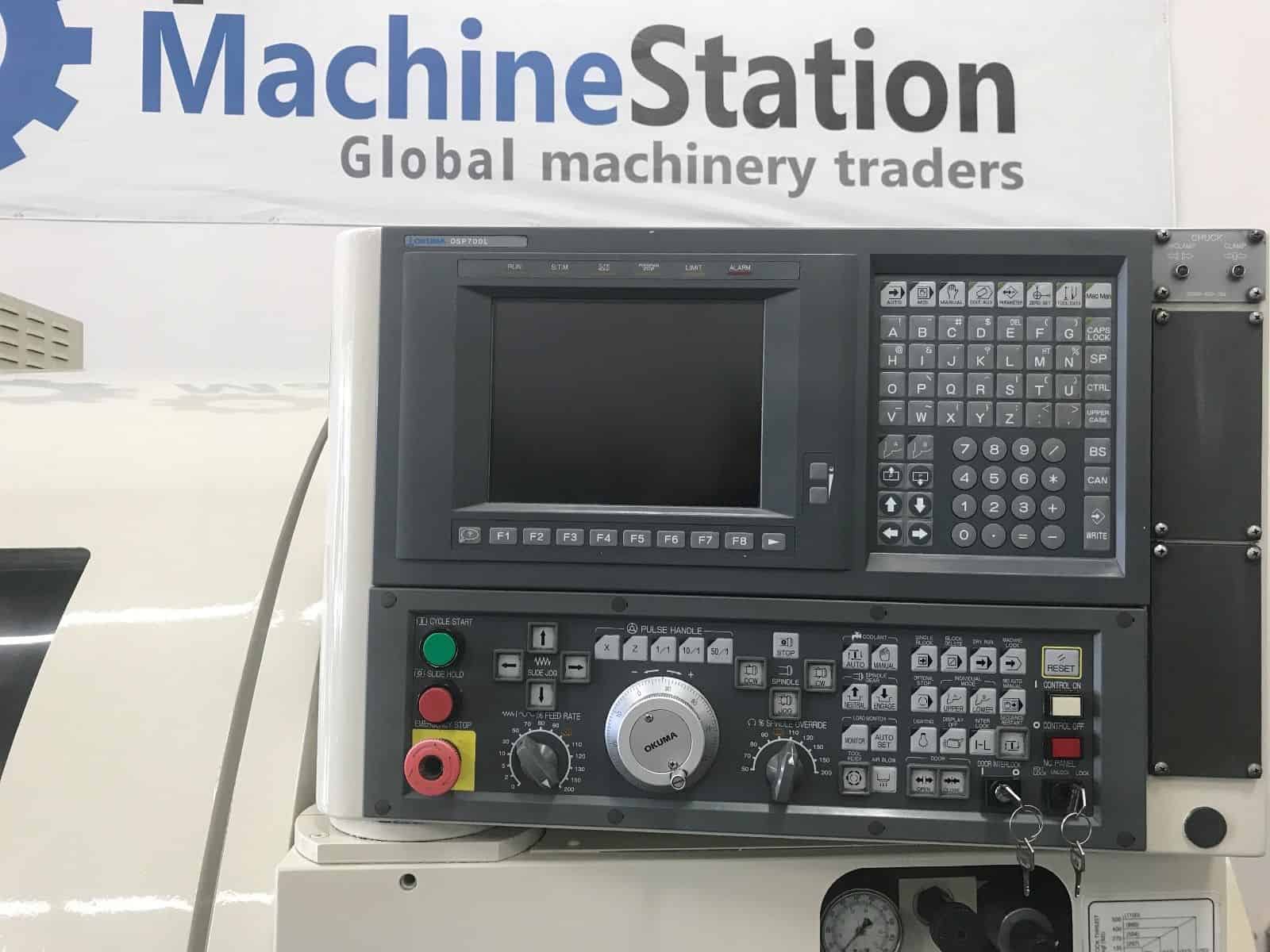

- Okuma OSP700L CNC Control

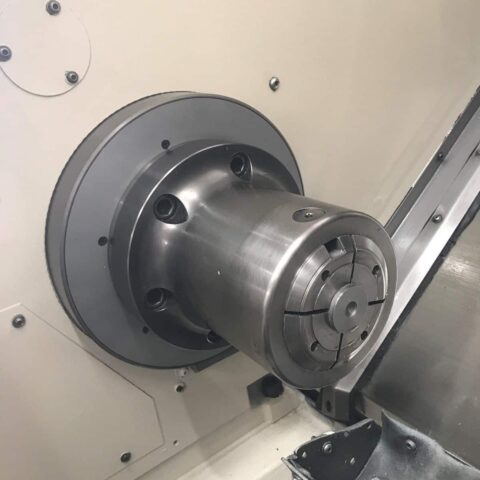

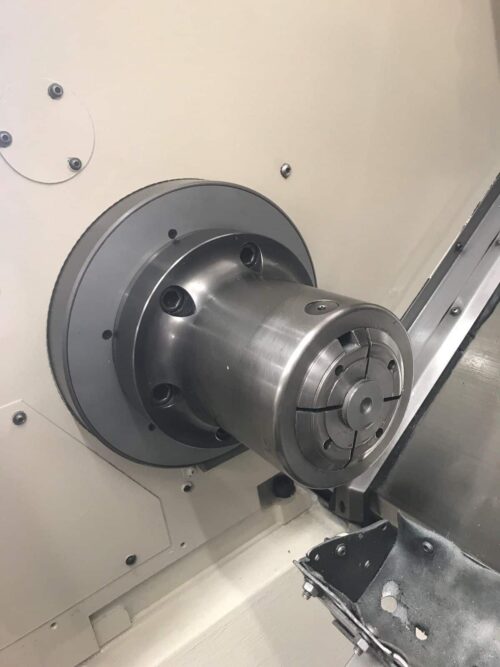

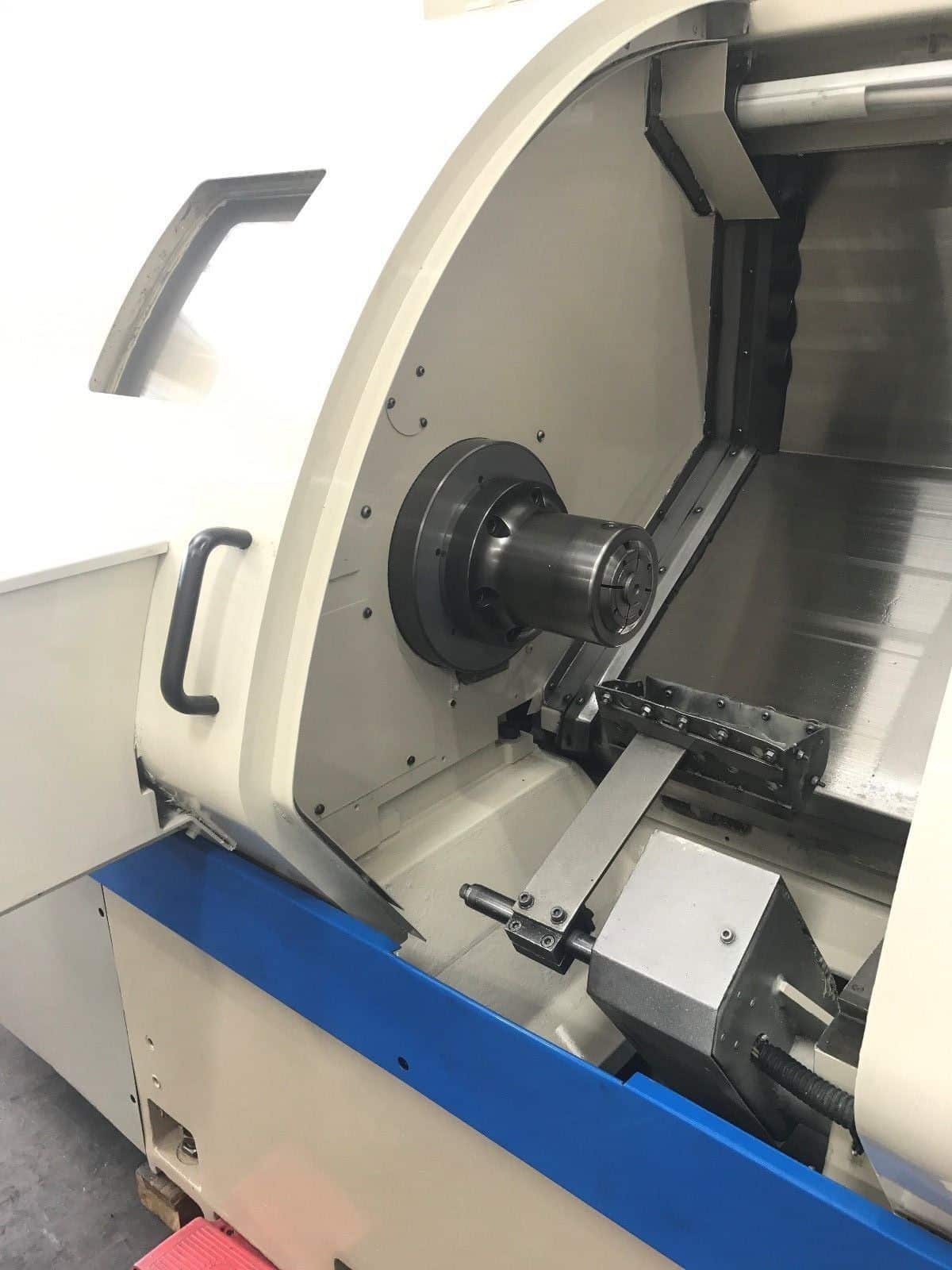

- ATS Collet Chuck
- Floppy Disk Drive
- Hydraulic Tailstock with Programmable Quill

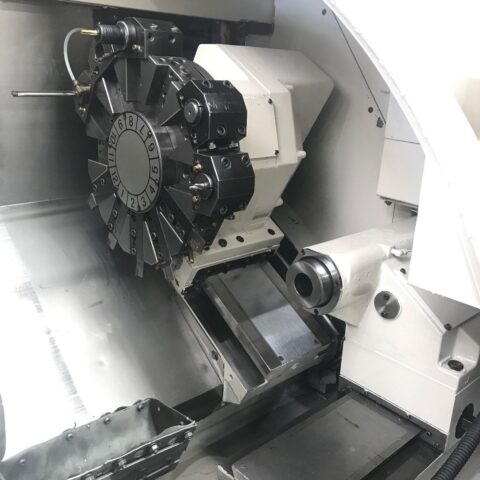

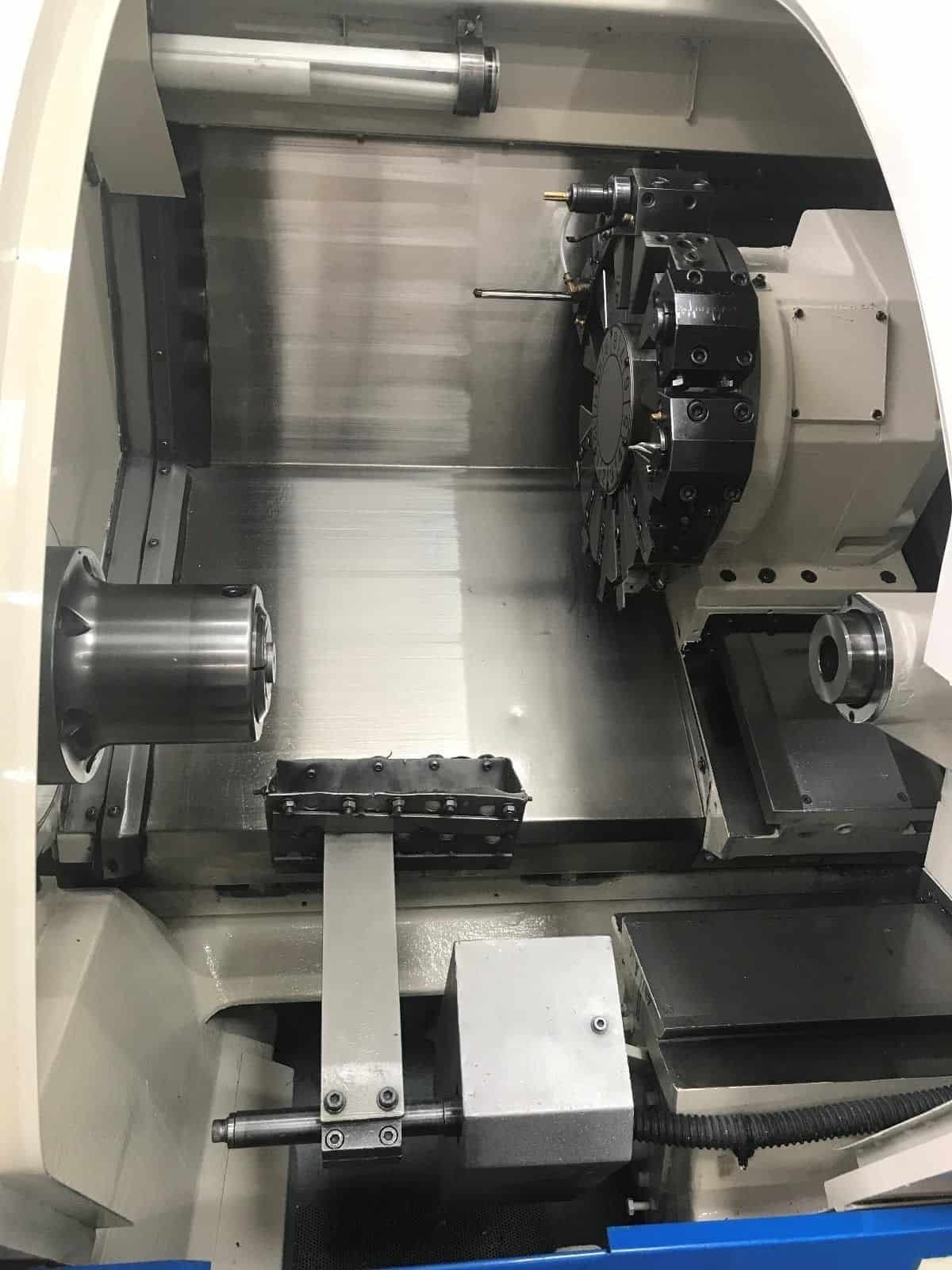

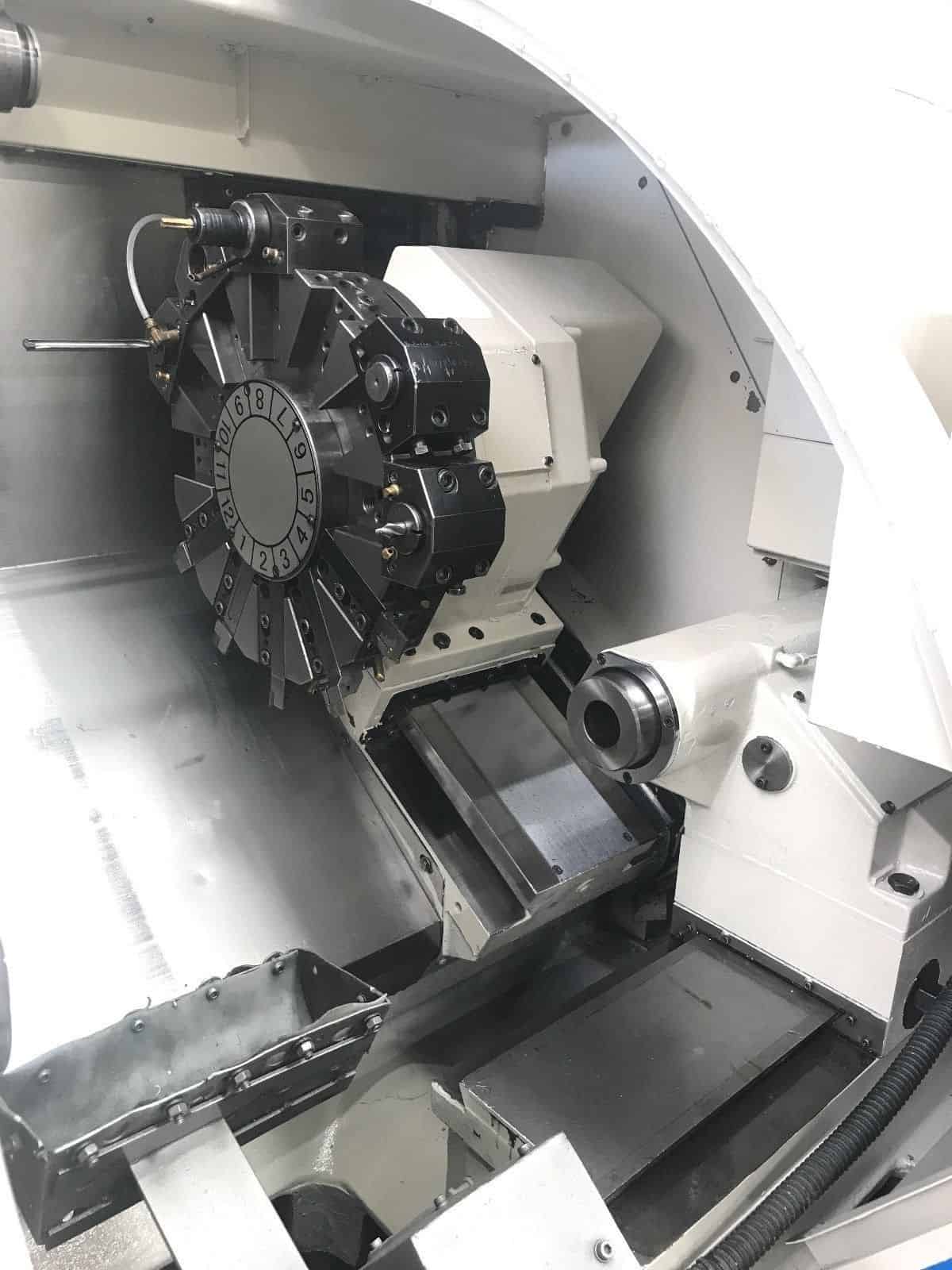

- 12 Station Automatic Turret
- Coolant System & Tank
- Barfeed Interface
- RS-232 Interface
- Chip Conveyor
- Comes with Chip Conveyor, Levelling Pads, Manuals & Floppy Disks .
-
OKUMA CROWN 762S-BB Specifications:
- Capacity:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Distance Between Centers: 22.29″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 21.65″
- Swing Over Cross Slide: 15.75″
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.15″
- Spindle Diameter: 4.72″
- Spindle Speed: 65 – 3500 RPM
- Spindle Motor: 22 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Travel: 4.72″
-
General:
- Power: 220v / 3-Phase
- Overall Dimensions: 104″ x 74″ x 72″ High
- Weight: 10,000 lbs
