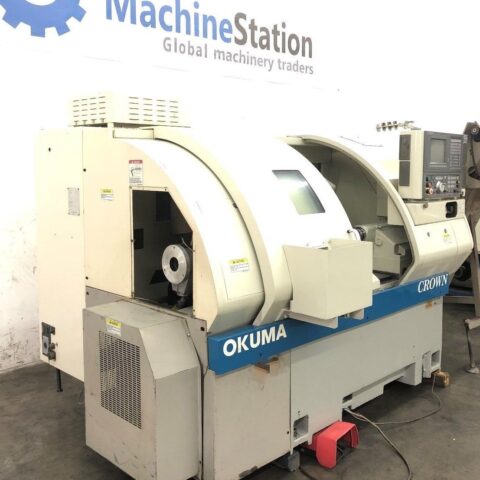

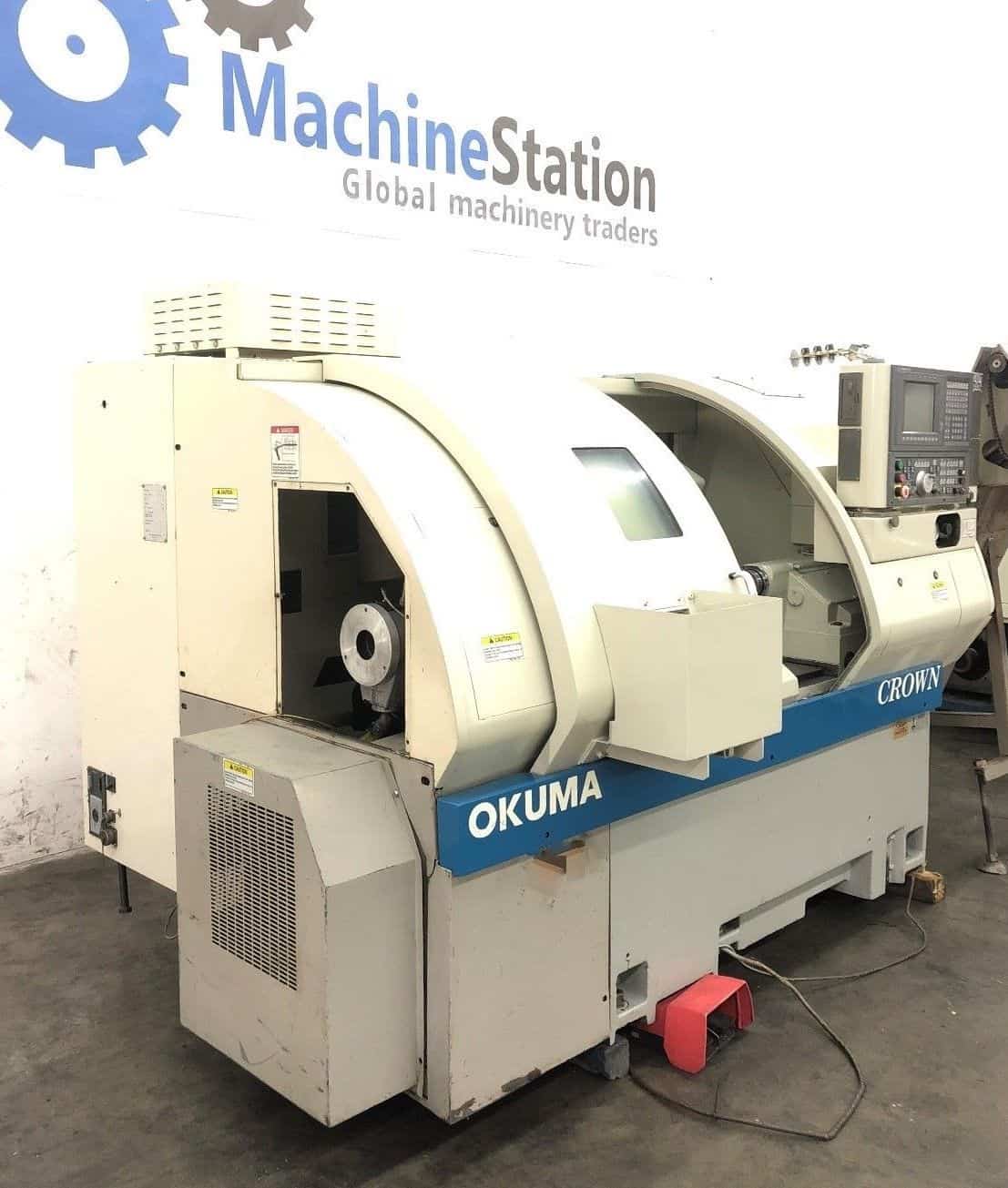

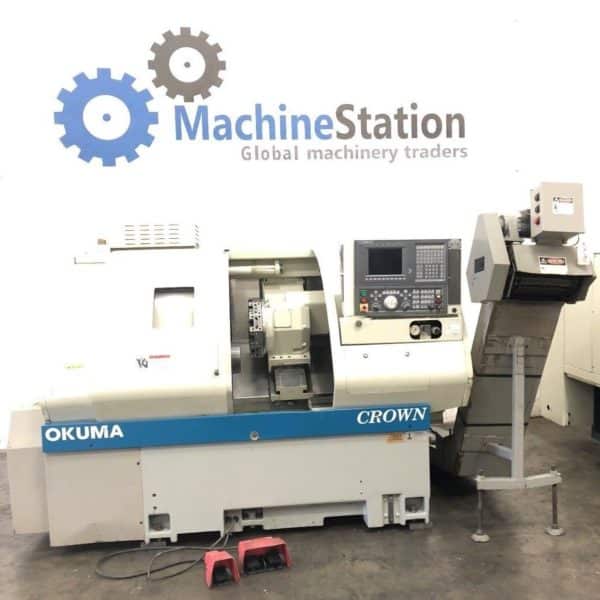

Okuma Crown 762S-BB CNC Turning Center
Out of stock
| SKU: | 1575 |
| Make/Model: | Okuma Crown 762S-BB |
| OKUMA CROWN 762S-BB CNC TURNING CENTER | |
|---|---|
| Make | Okuma |
| Model No. | Crown 762S-BB |
| Country of Origin: | Japan |

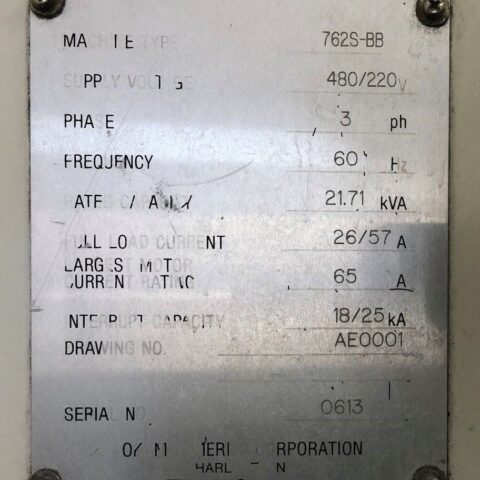

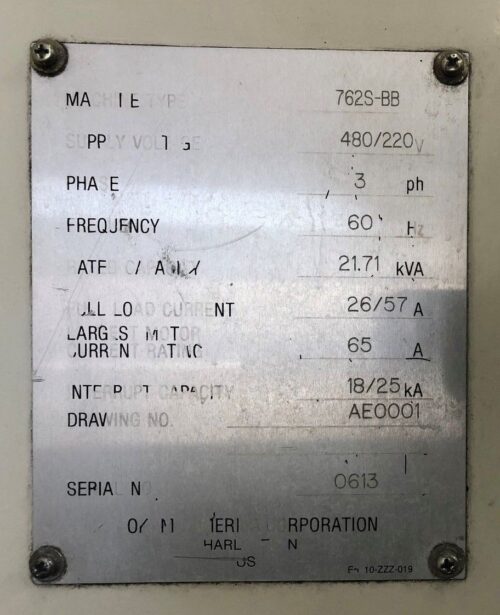

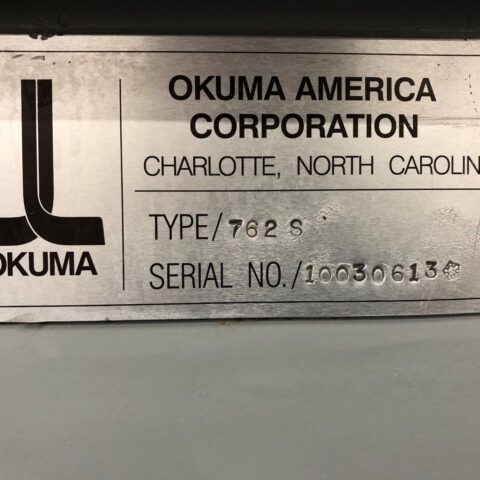

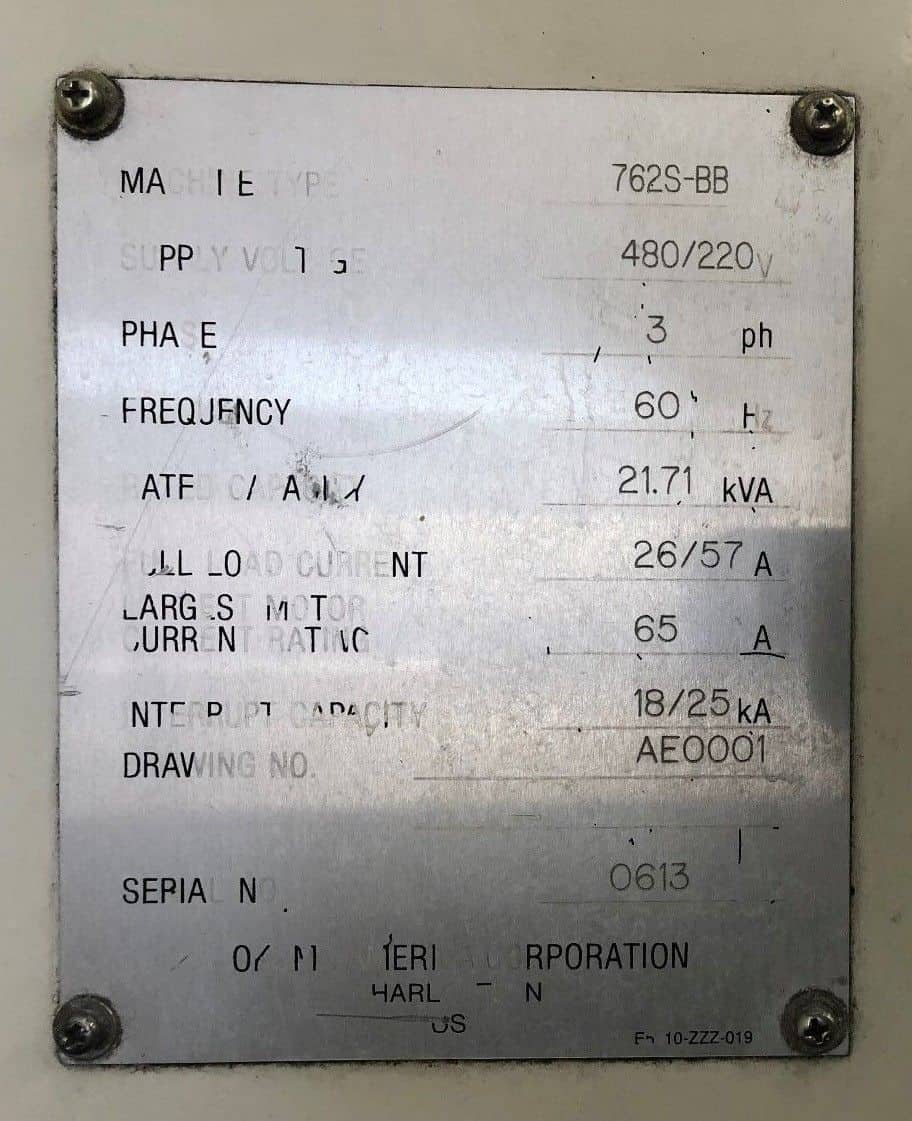

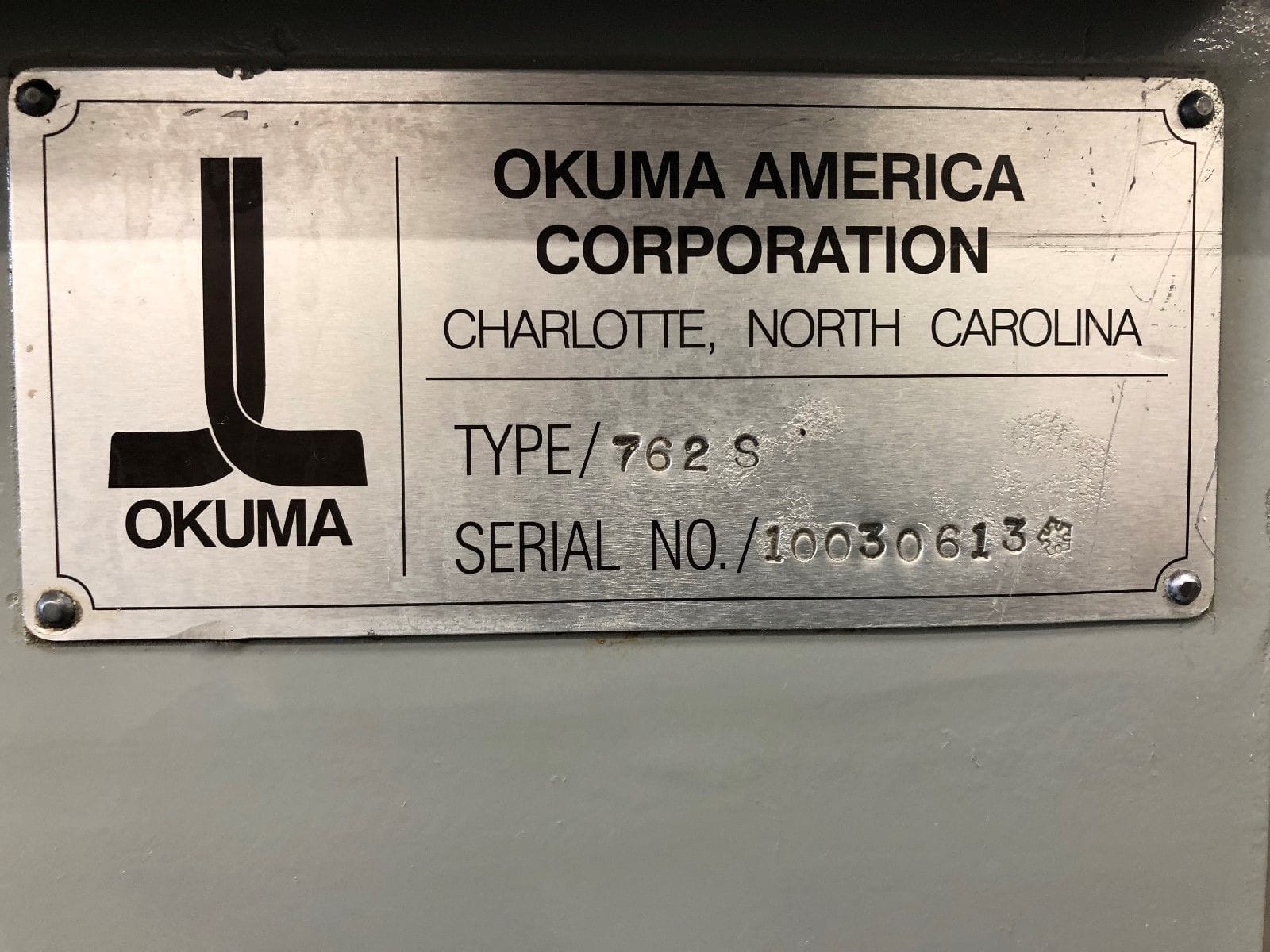

| Serial # | 0613 |
| Condition | Very Good |
- Okuma Crown 762S-BB Equipped With:

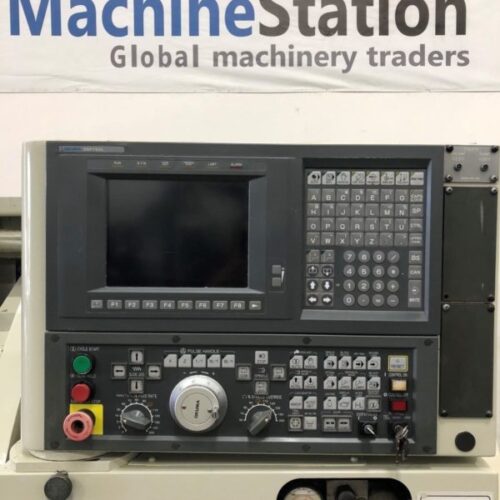

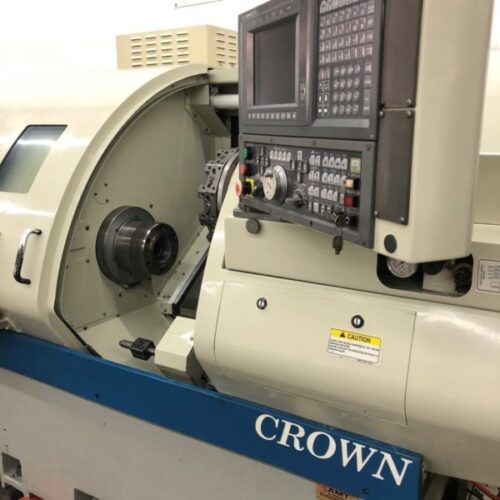

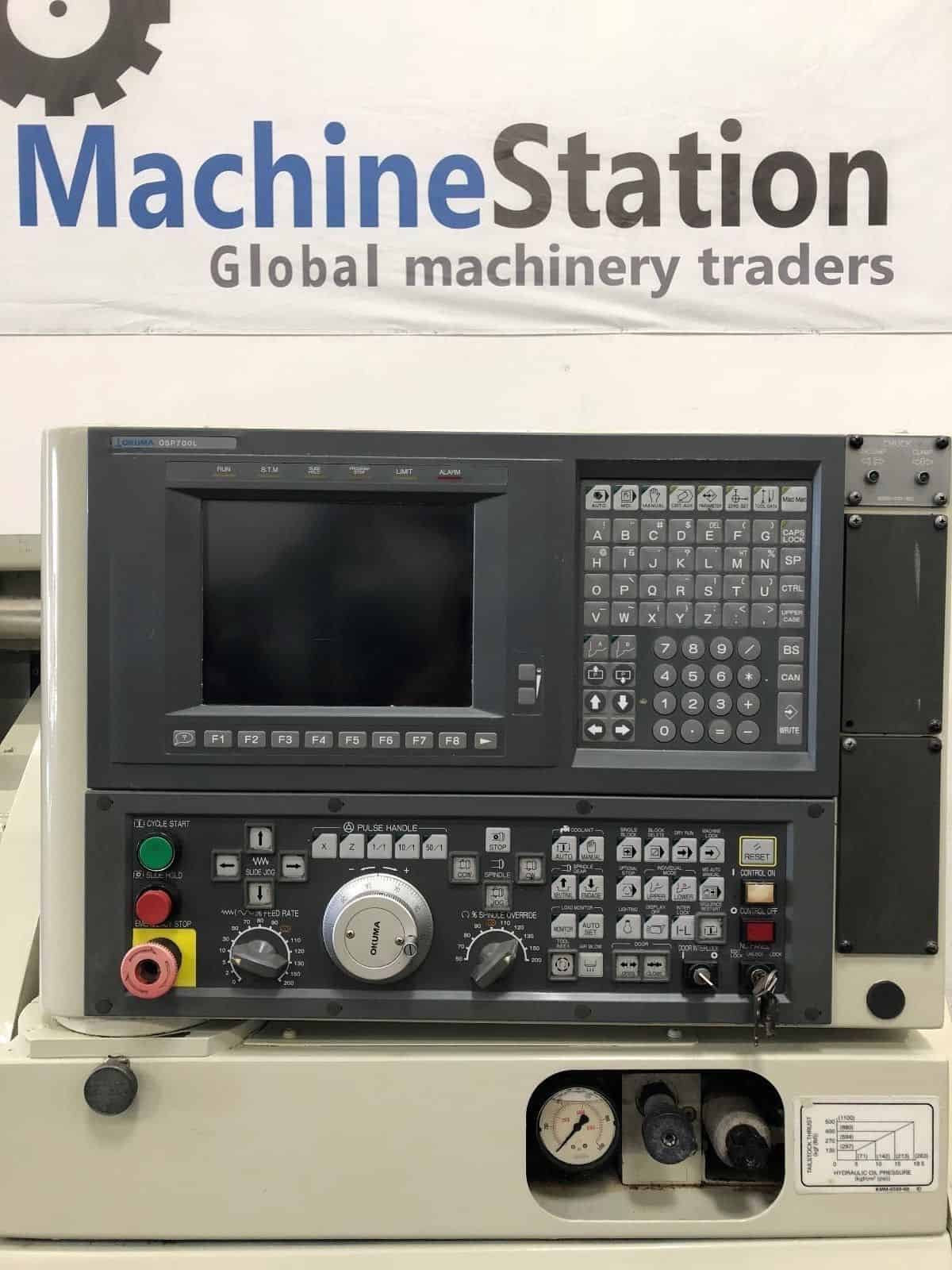

- Okuma OSP-700L CNC Control
- IGF – Interactive Graphic Function
- Microcentric CB65-D Hydraulic Collet Chuck

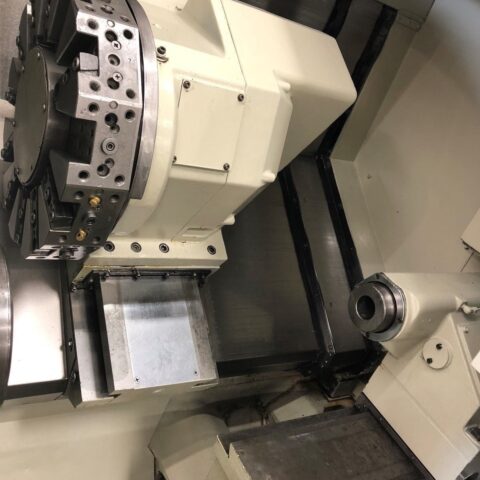

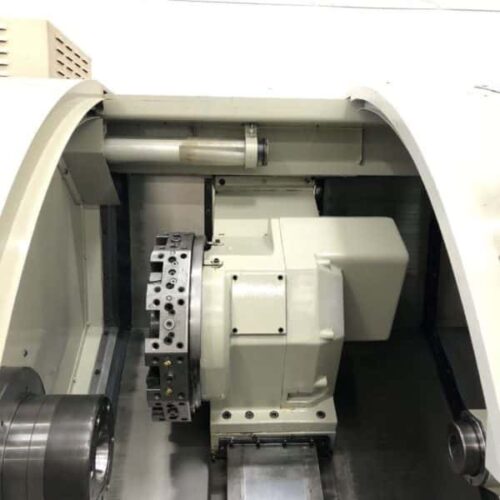

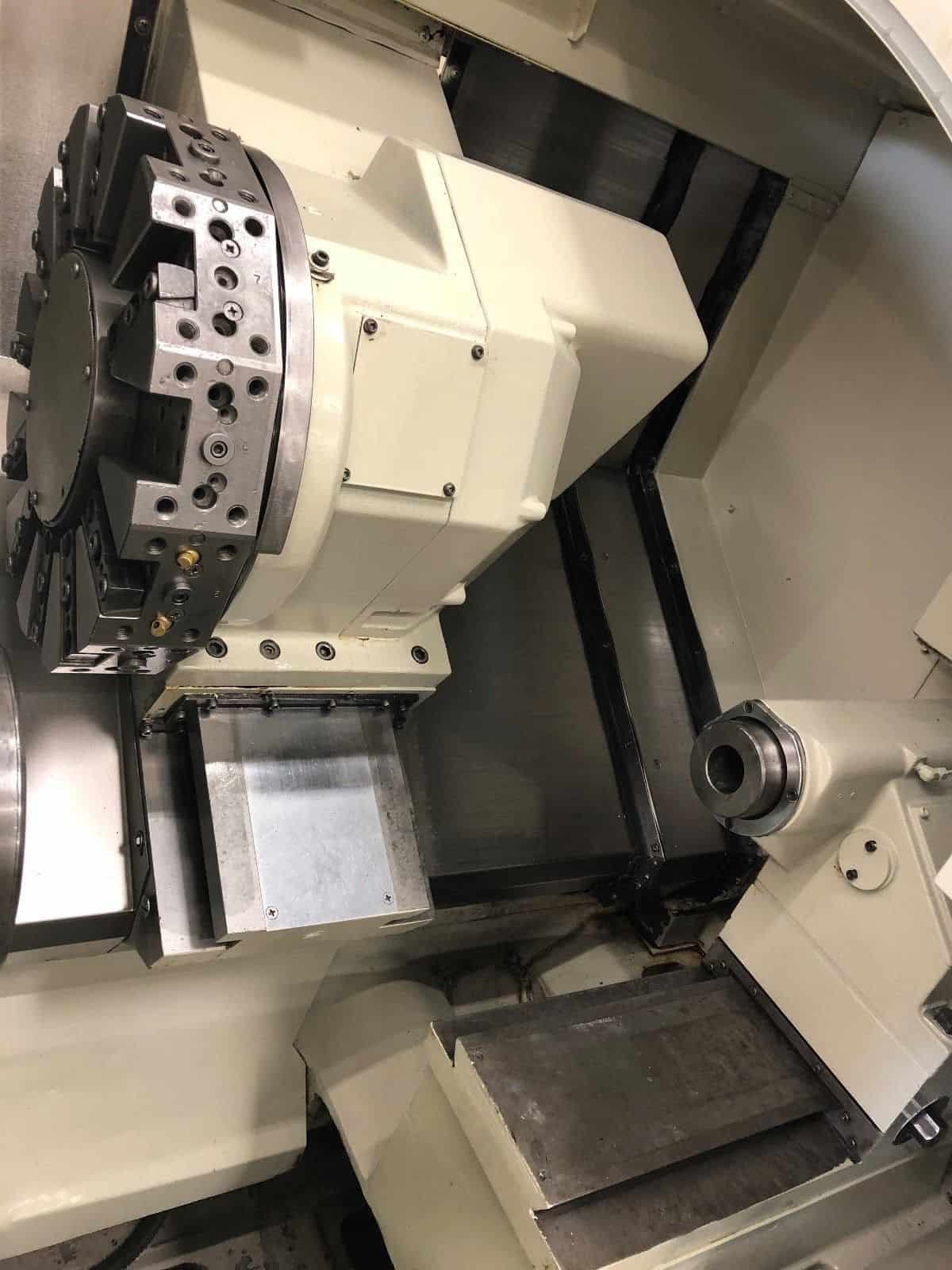

- 12-Station Turret
- Hydraulic Tailstock with Quill
- Floppy Drive
- Slant Bed Rigid Box Way Machine
- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck & Tailstock
- Coolant Tank
- Comes with Chuck, Chip Conveyor, Levelling Pads, Manuals and Floppies.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 104″ x 76″ x 72″ High
- Overall Dimensions: 142″ x 76″ x 80″ High W/Chip Conveyor
- Weight : 9900 lbs Approx.
- Okuma Crown 762S-BB Specifications:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Max Bar Capacity: 3.05″
- Swing Over Bed: 21.65″
- Distance Between Centers: 22.29″
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.15″
- Spindle Speed: 65-3500 RPM
- Spindle Motor: 22 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5
