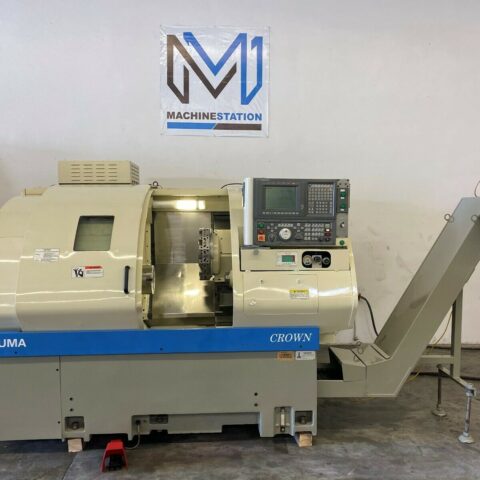

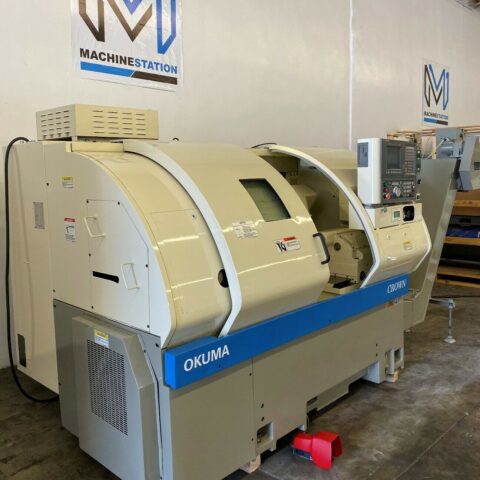

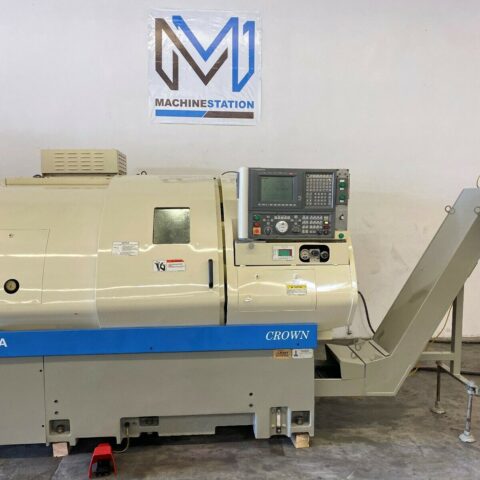

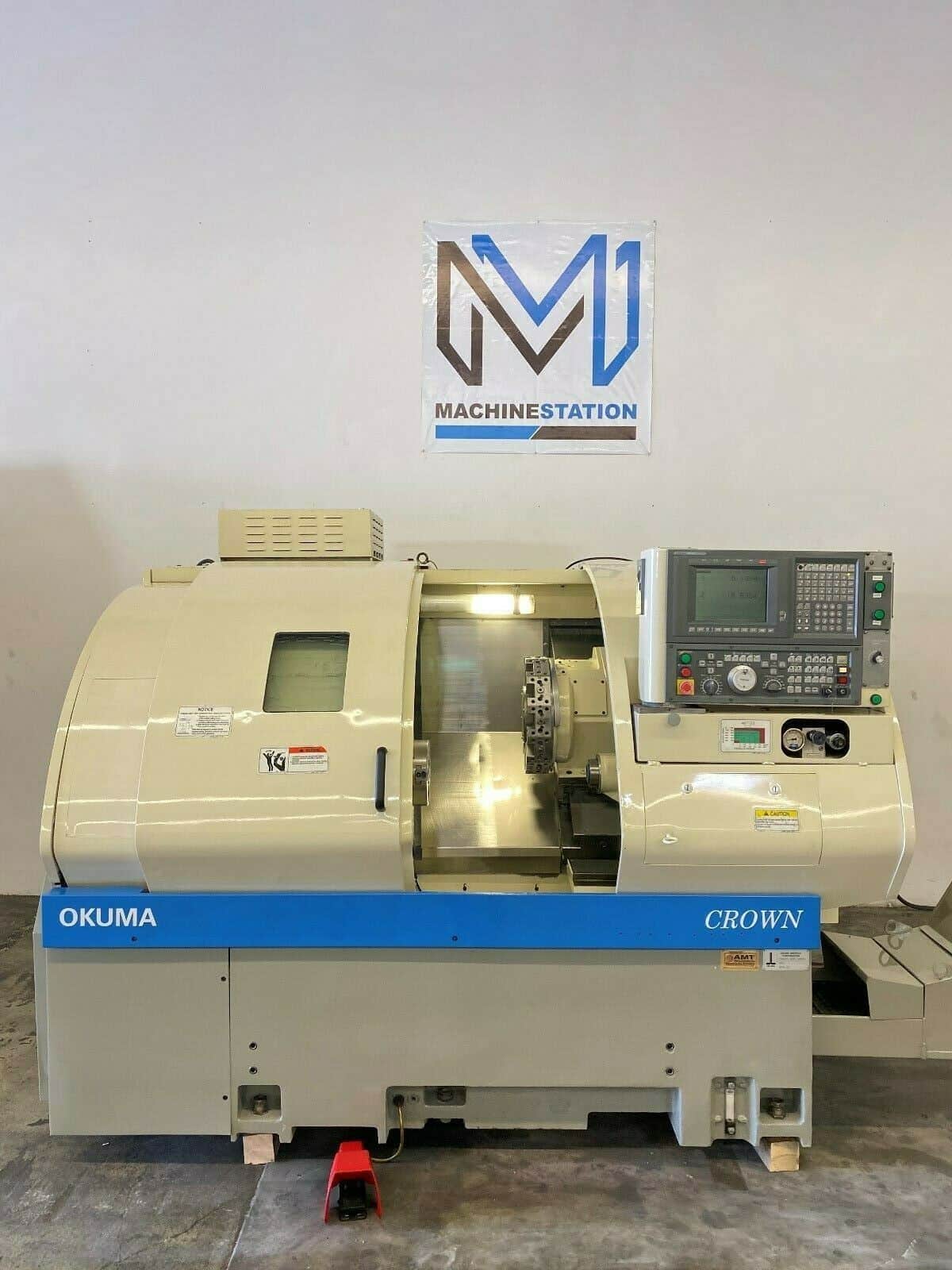

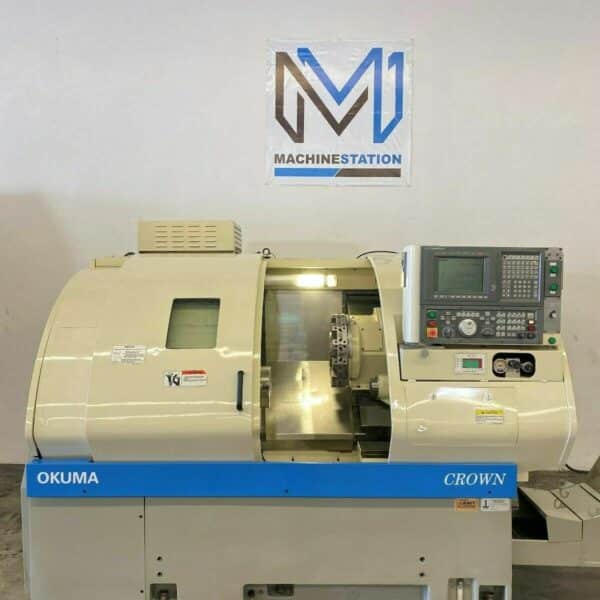

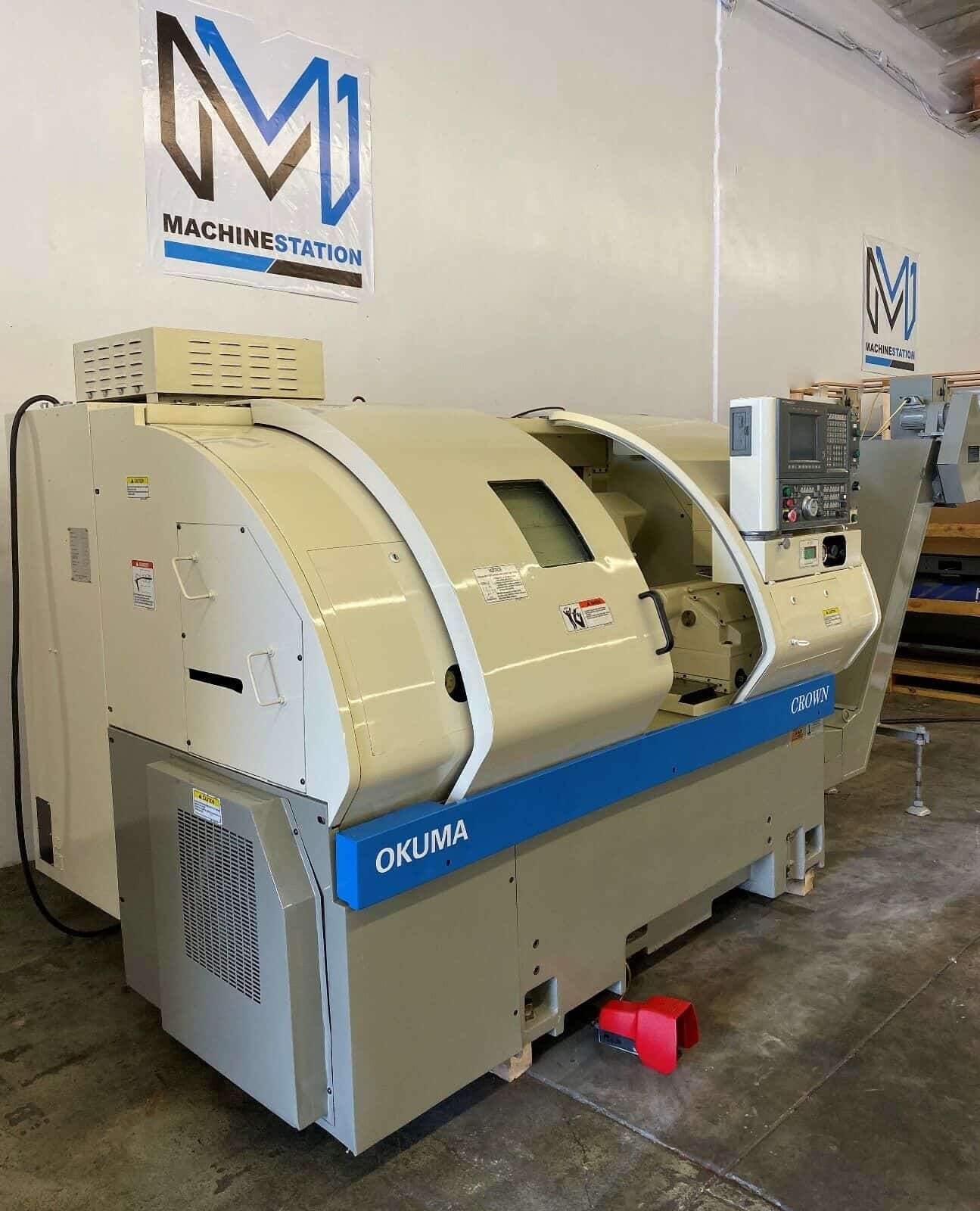

Okuma Crown 762S CNC Turning Center
Out of stock
| SKU: |
1847 |
| Make/Model: |
Okuma Crown 762S-SB |
| Make |
Okuma |
| Model No. |
Crown 762S-SB |
| Year |
2000 |

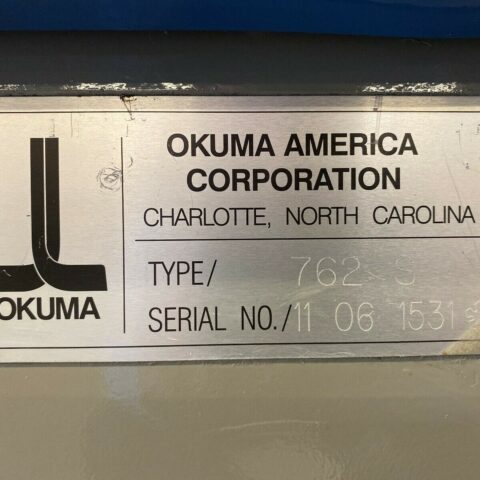

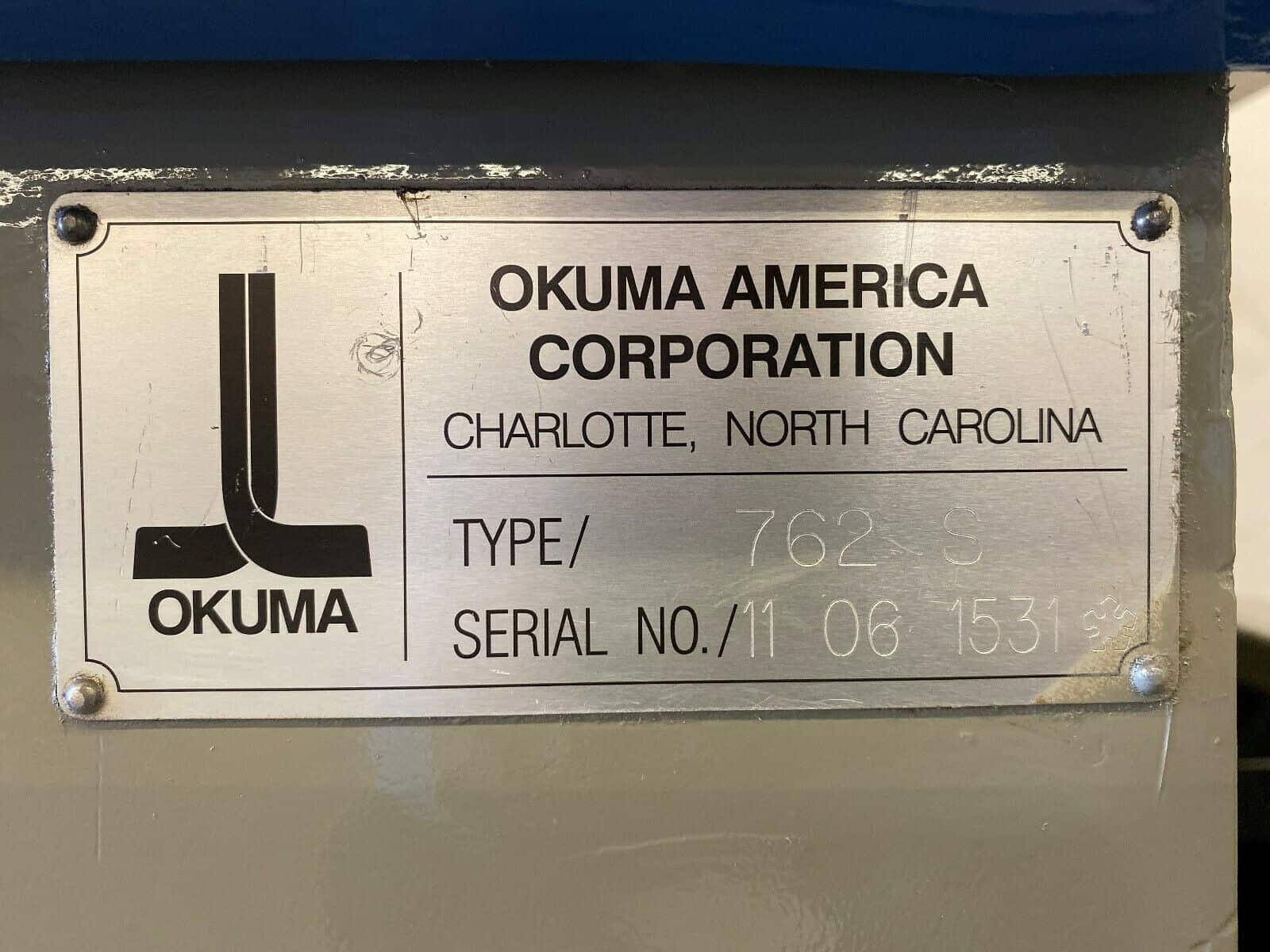

| Serial # |
1531 |
| Condition |
Very Good |
| Okuma Crown 762S Equipped With: |

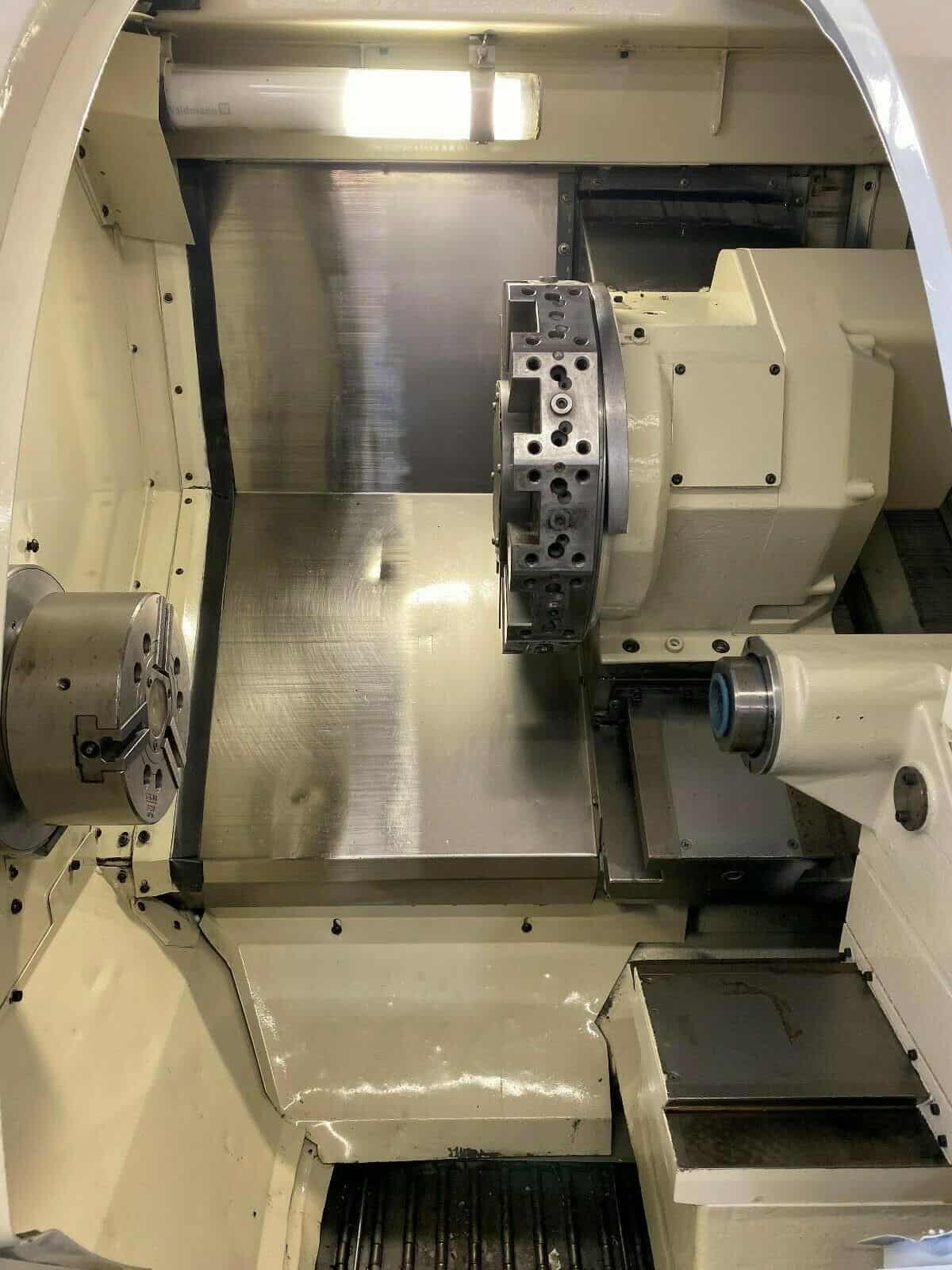

| 12-Station Turret |

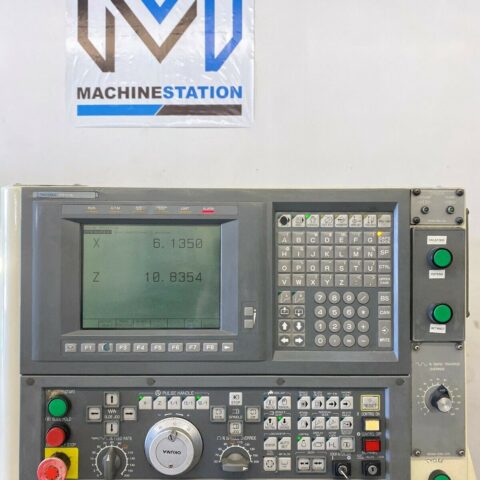

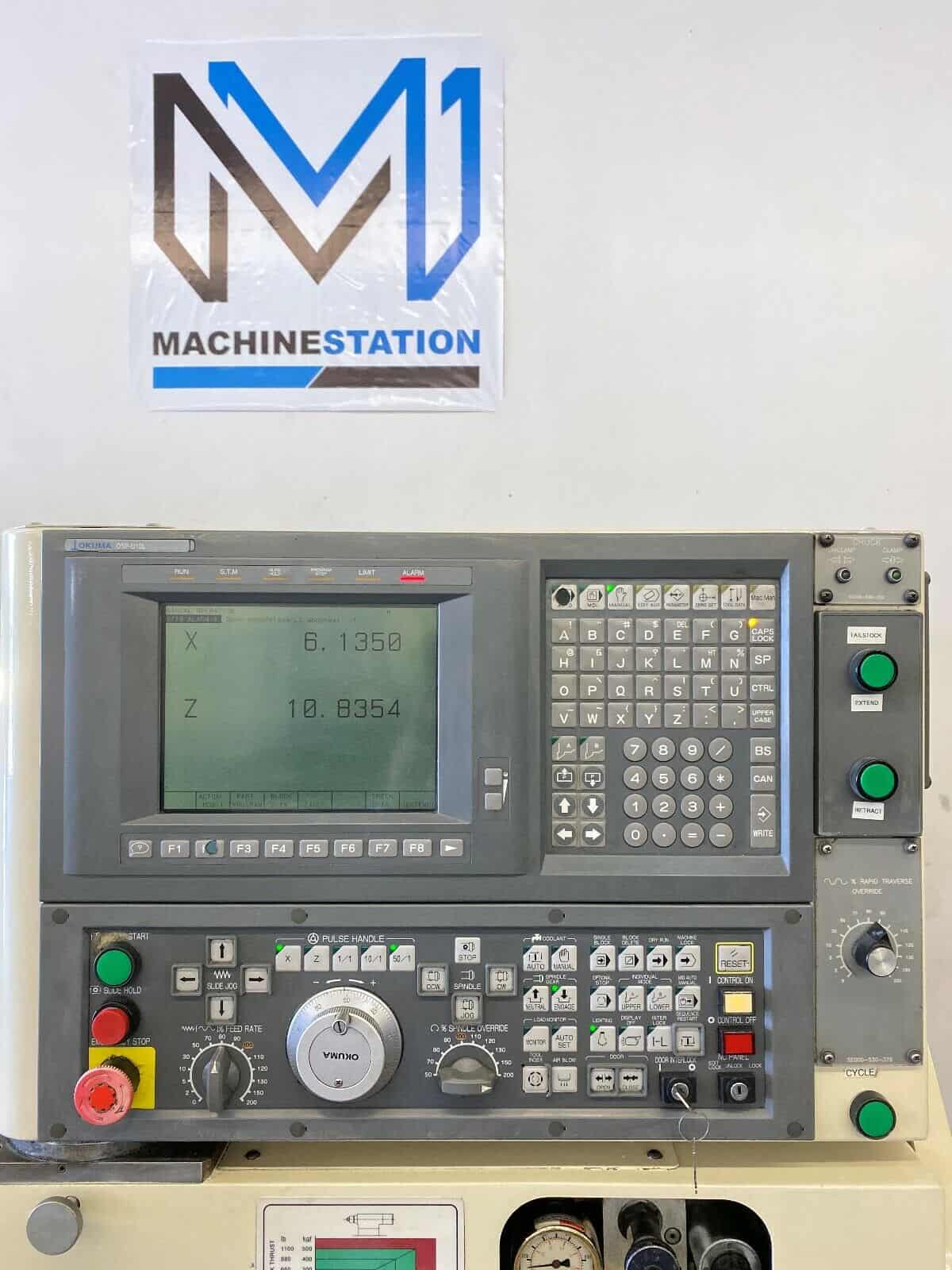

| OSP-U10L CNC Control |
| One Touch IGF Programming |
| Floppy Drive |

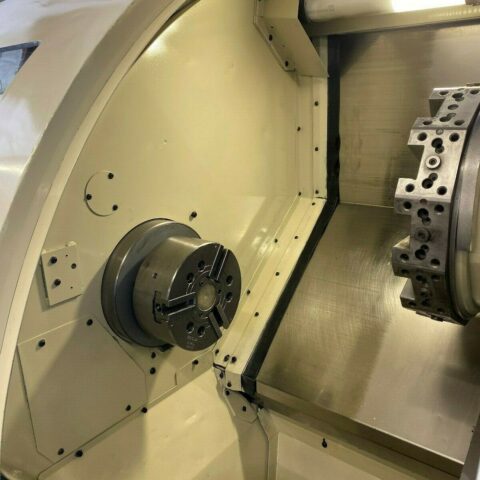

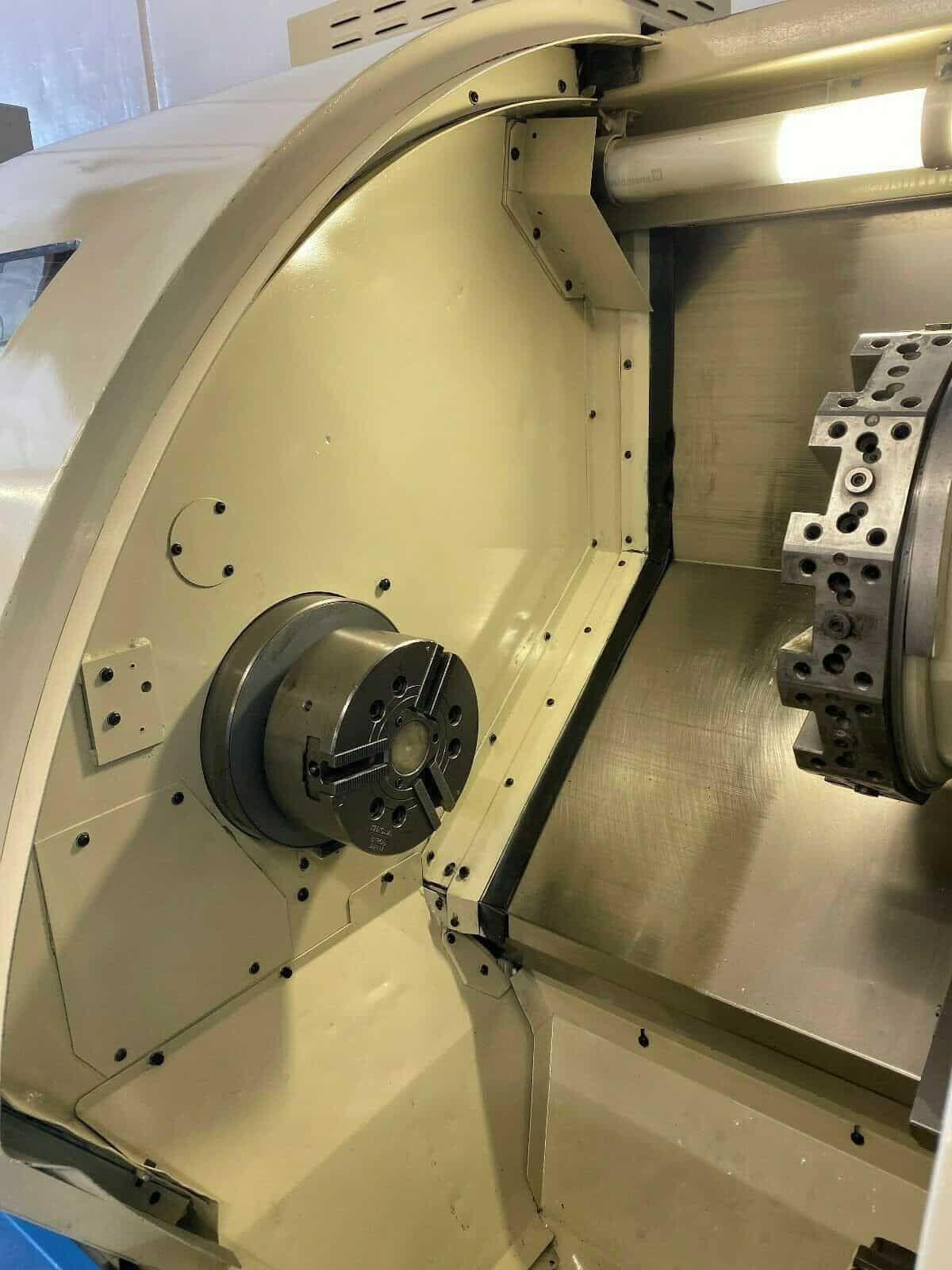

| 8″ Hydraulic Chuck ( 10″ Capable ) |

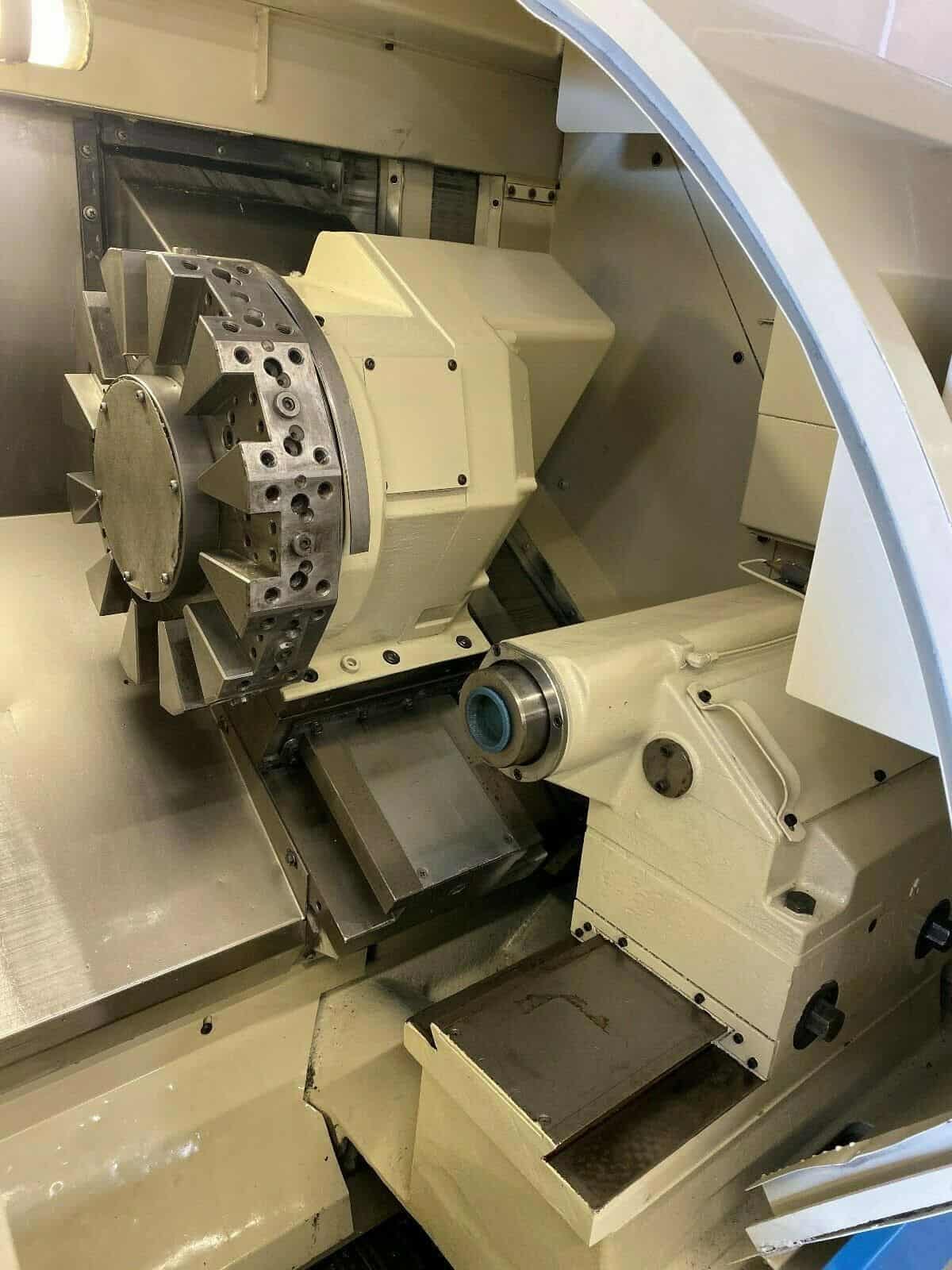

| Hydraulic Tailstock with Power Quill |

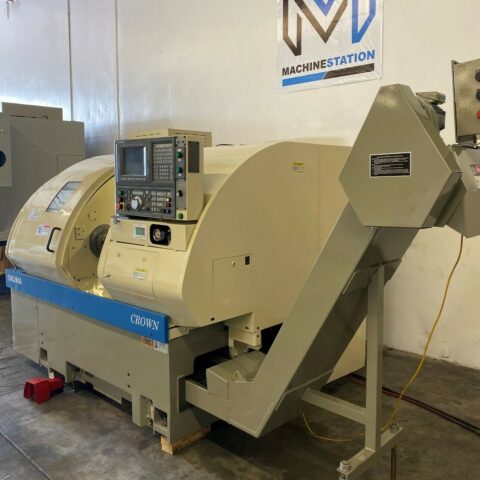

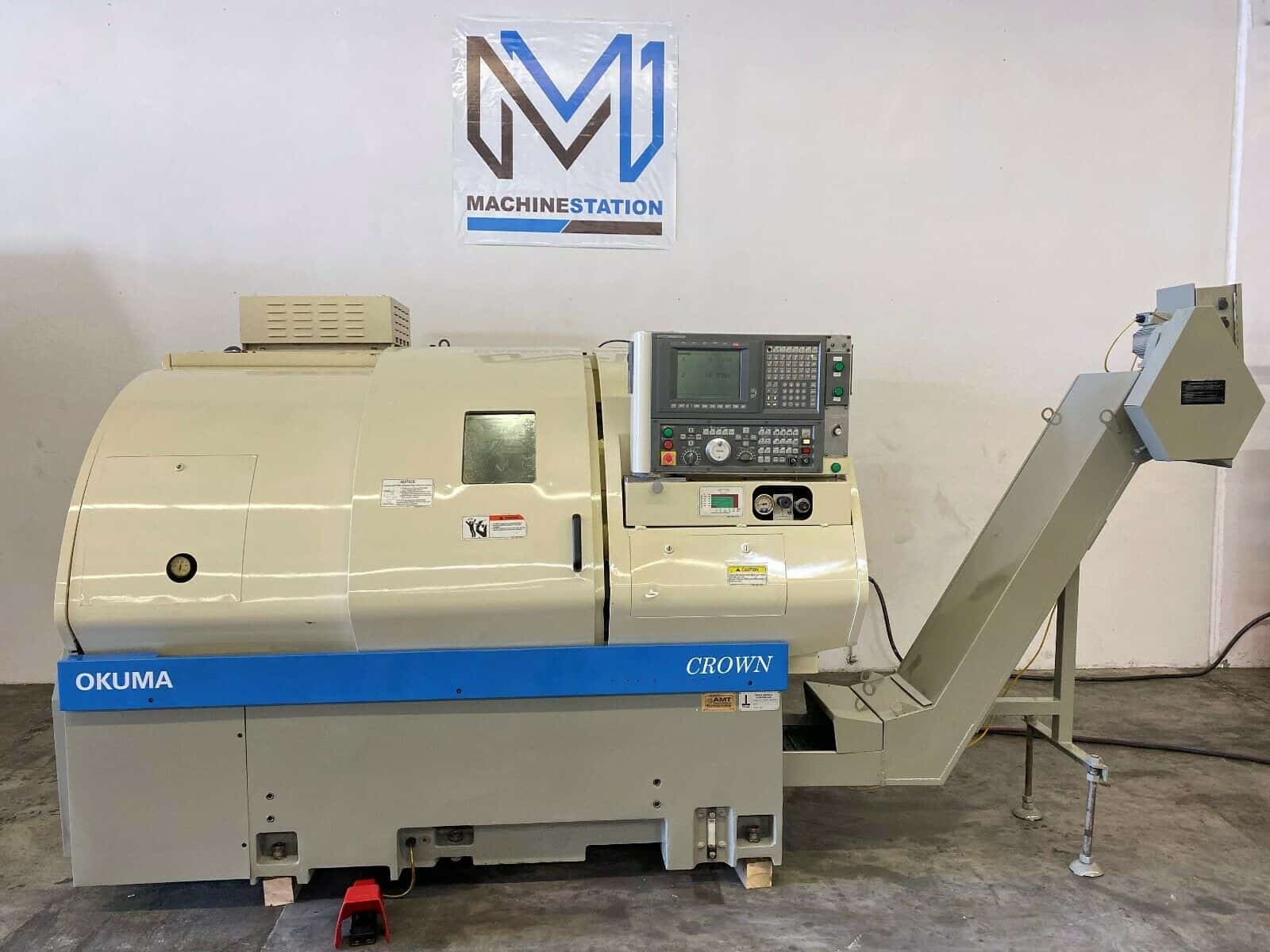

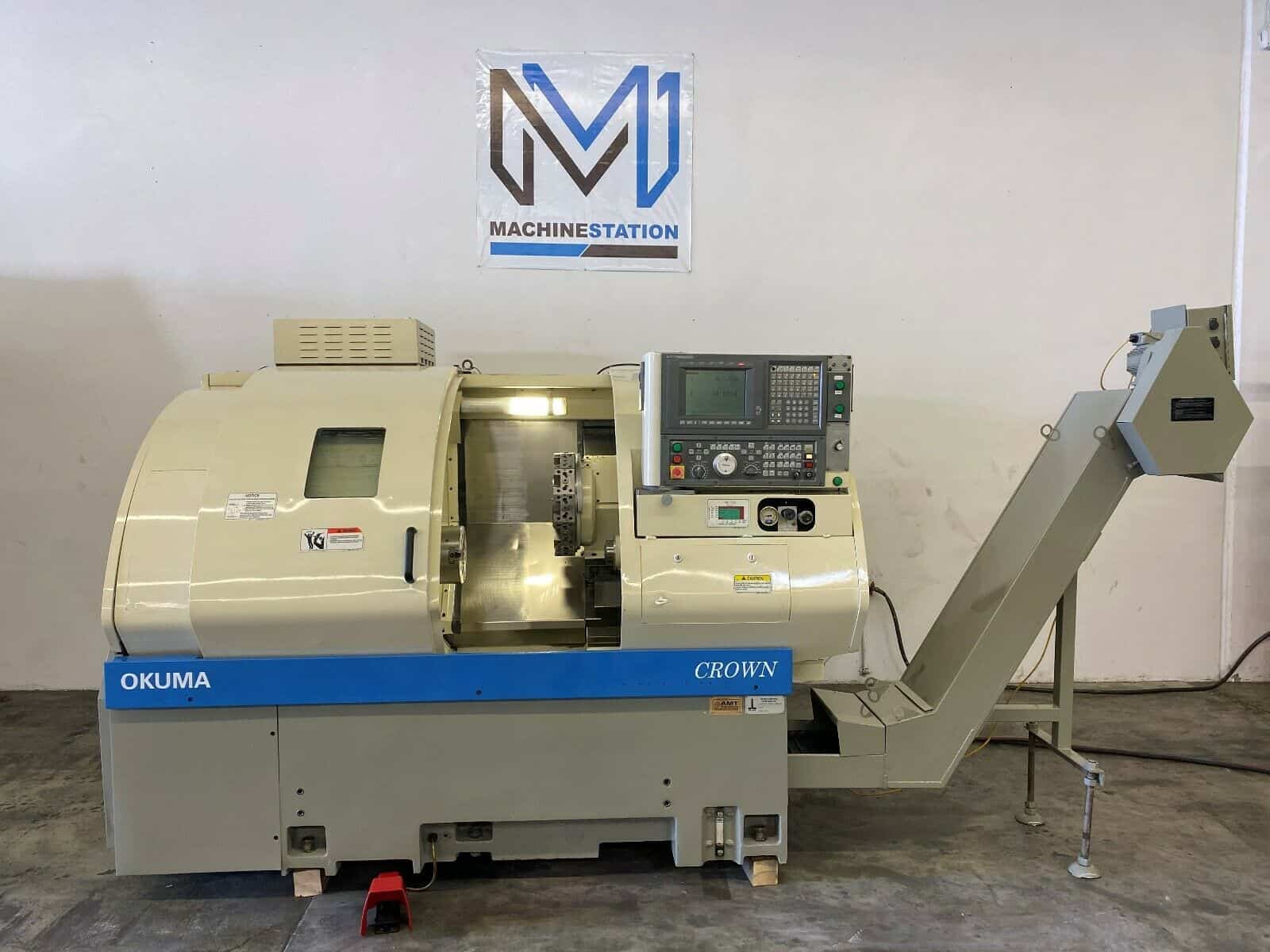

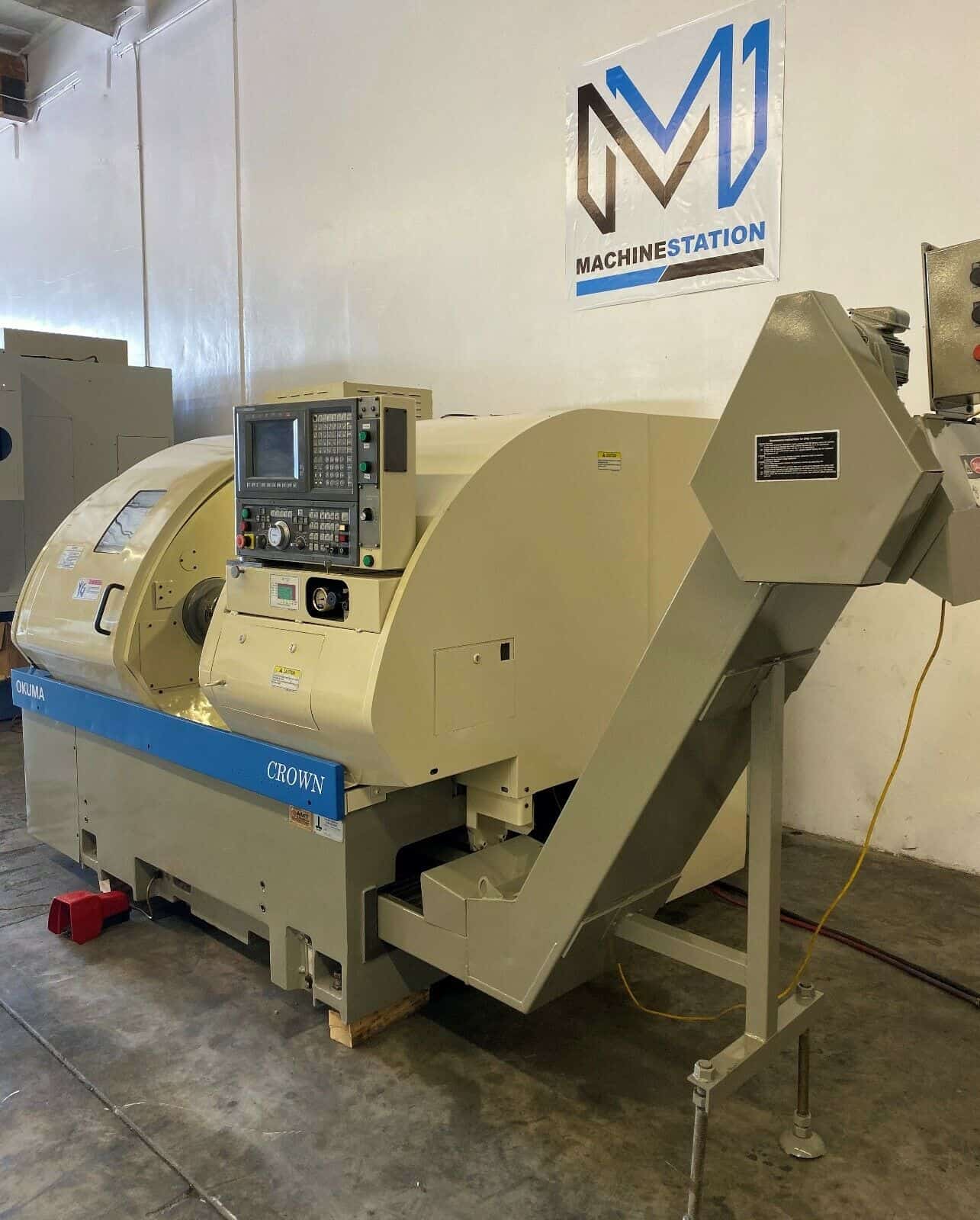

| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Okuma Crown 762S Specifications: |
| Max Turning Diameter: 10.63″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity: 2.05″ |
| Swing Over Slide: 15.78″ |
| Swing Over Bed: 21.65″ |
| Distance Between Centers: 22.29″ |
| Travel: |
| X Axis Travel: 7.28″ |
| Z Axis Travel: 20.47″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 4200 RPM |
| Spindle Motor: 20 HP |

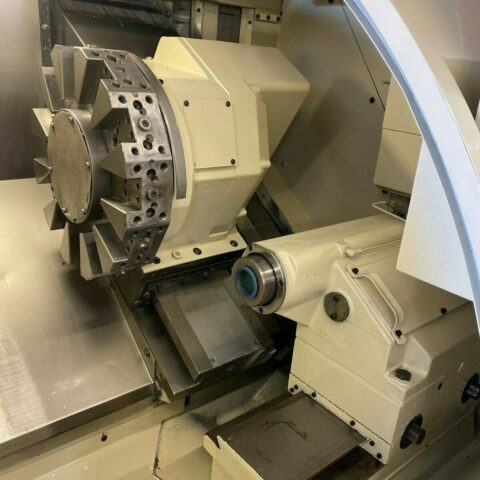

| Turret: |
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-45 |
| General: |
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 8500 lbs Approx. |
