Sold

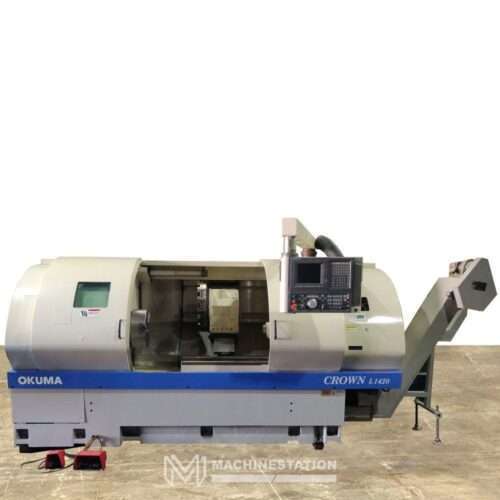

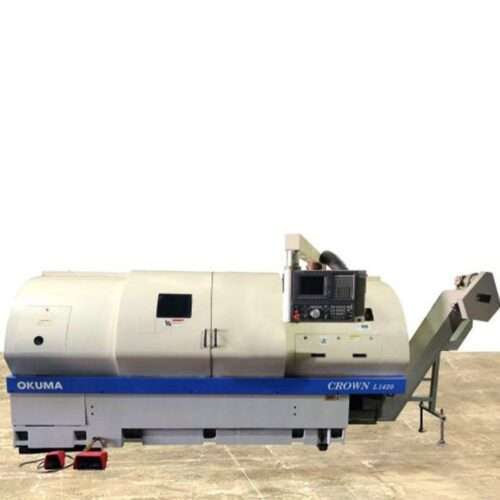

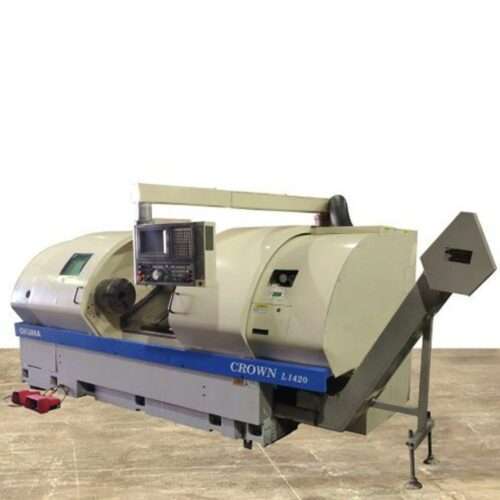

Okuma Crown L1420/1250 CNC Turning Center
Out of stock
| Location: |
Houston, TX |
| SKU: |
2421 |
| Make/Model: |
Okuma Crown L1420/1250 |
| Video: |
No Video |
| SKU: |
2421 |
| Make: |
Okuma |
| Model: |
Crown 769 L1410/1250 |
| Year: |
2000 |
| Condition: |
Good |
| Cutting Hours: |
Only |
| Equipped With: |

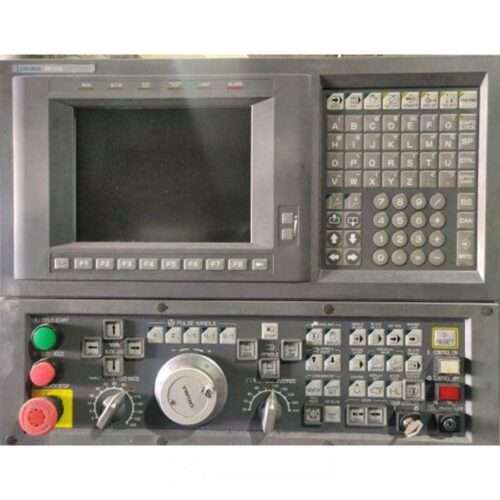

| OSP-U10L CNC Control |
| Long Bed Box Way Machine |

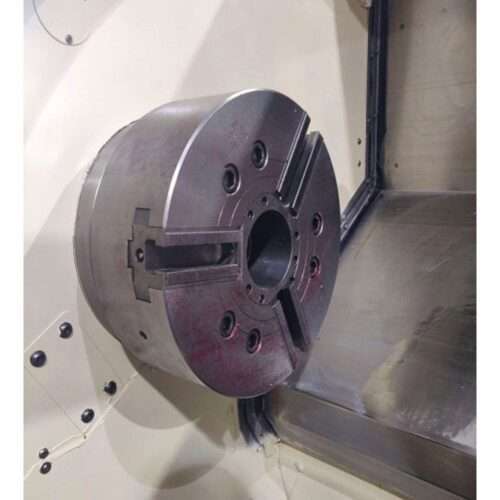

| 15″ 3 Jaw Kitagawa Power Chuck |

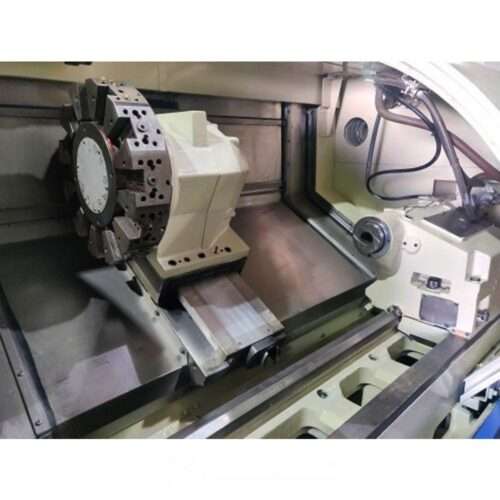

| 12 Station Turret |
| One Touch IGF Programming |
| A2-8 Spindle |
| 30 HP High Torque Spindle |
| Hydraulic Tailstock with Power Quill |
| Floppy Drive |
| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |

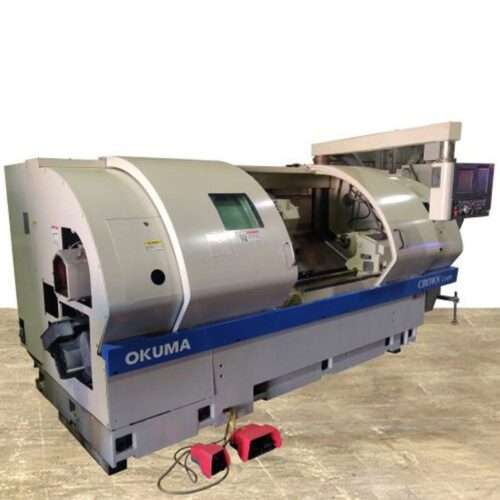

| Foot Operated Control for Chuck and Tailstock |
| Books and Manuals |
| Specifications: |
| Max Turning Diameter: 14.17″ |
| Max Turning Length: 49.21″ |
| Max Bar Capacity: 3.15″ |
| Swing Over Bed: 24.41″ |
| Swing Over Slide: 15.78″ |
| Distance Between Centers: 50.4″ |
| Travel: |
| X Axis Travel: 9.1″ |
| Z Axis Travel: 50.01″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Turret: |

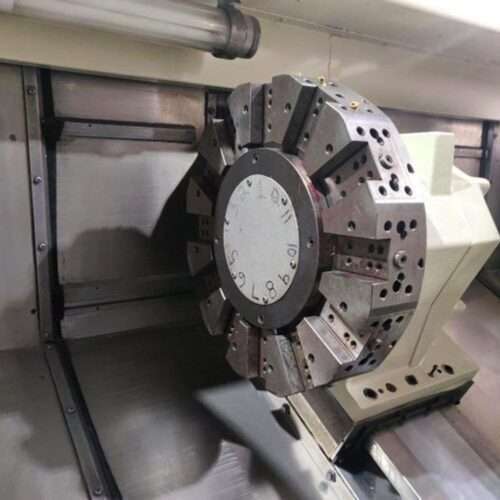

| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Spindle: |
| Spindle Nose: A2-8 |
| Spindle Bore: 3.54″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 HP |

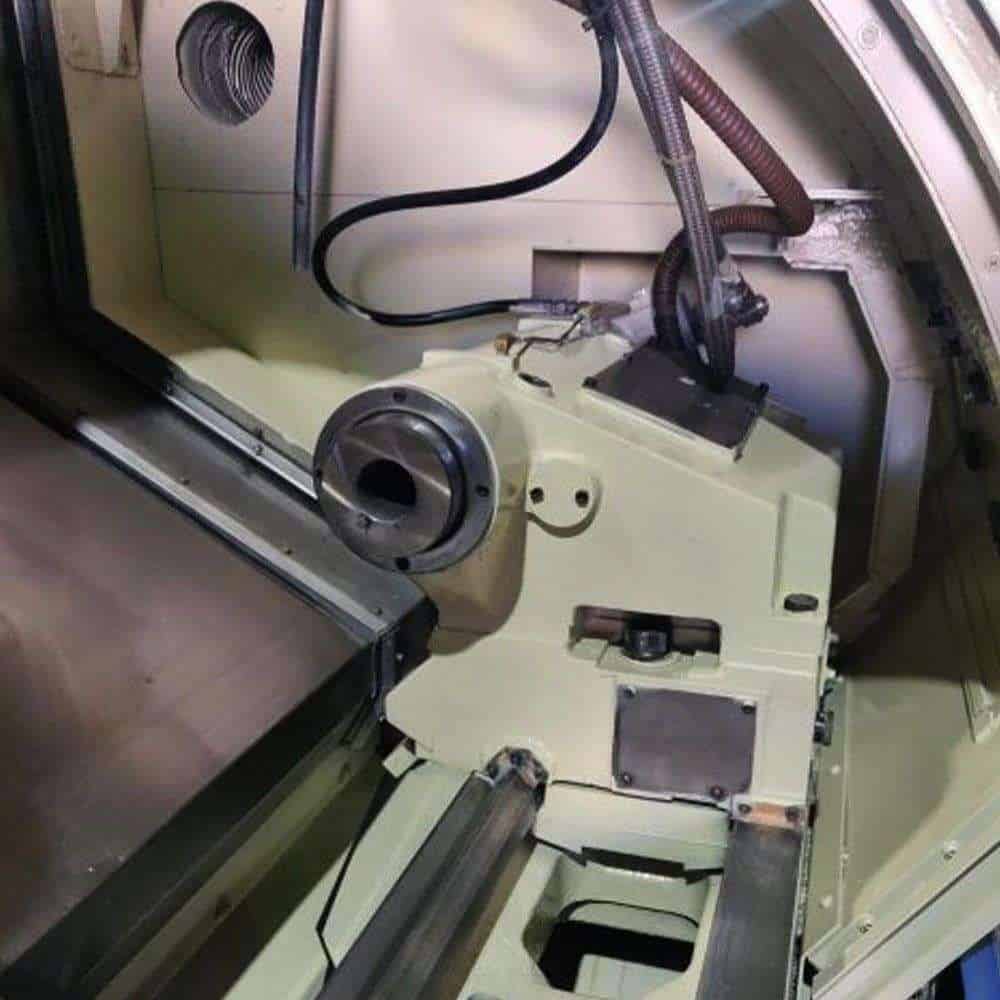

| Tailstock: |
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 34.3″ |
| Tailstock Quill Dia.: 4.94″ |
| Tailstock Quill Travel: 4.72″ |
| General: |

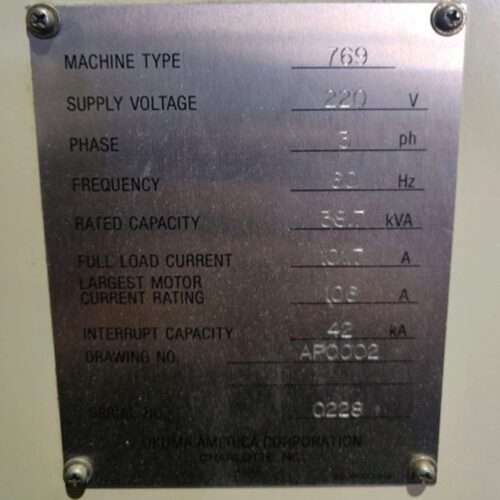

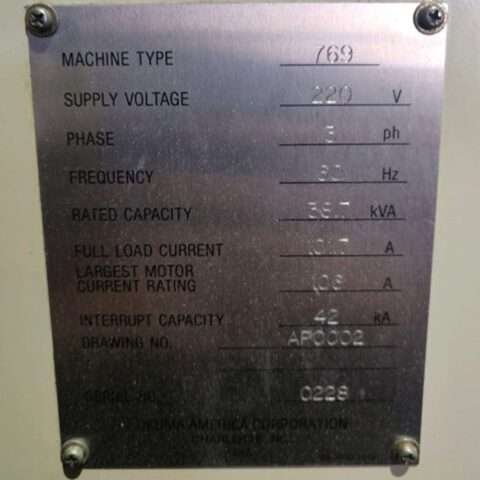

| Power: 220v / 38.5 kva / 3-Phase |
| Overall Dimensions: 140″ x 76″ x 80″ High |
| Overall Dimensions: 160″ x 76″ x 80″ High with Chip Conveyor |
| Weight: 13,500 lbs Approx. |
