*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Okuma |
| Model: | GENOS L250E |
| Condition: | Used |
| Equipped With: |
|---|

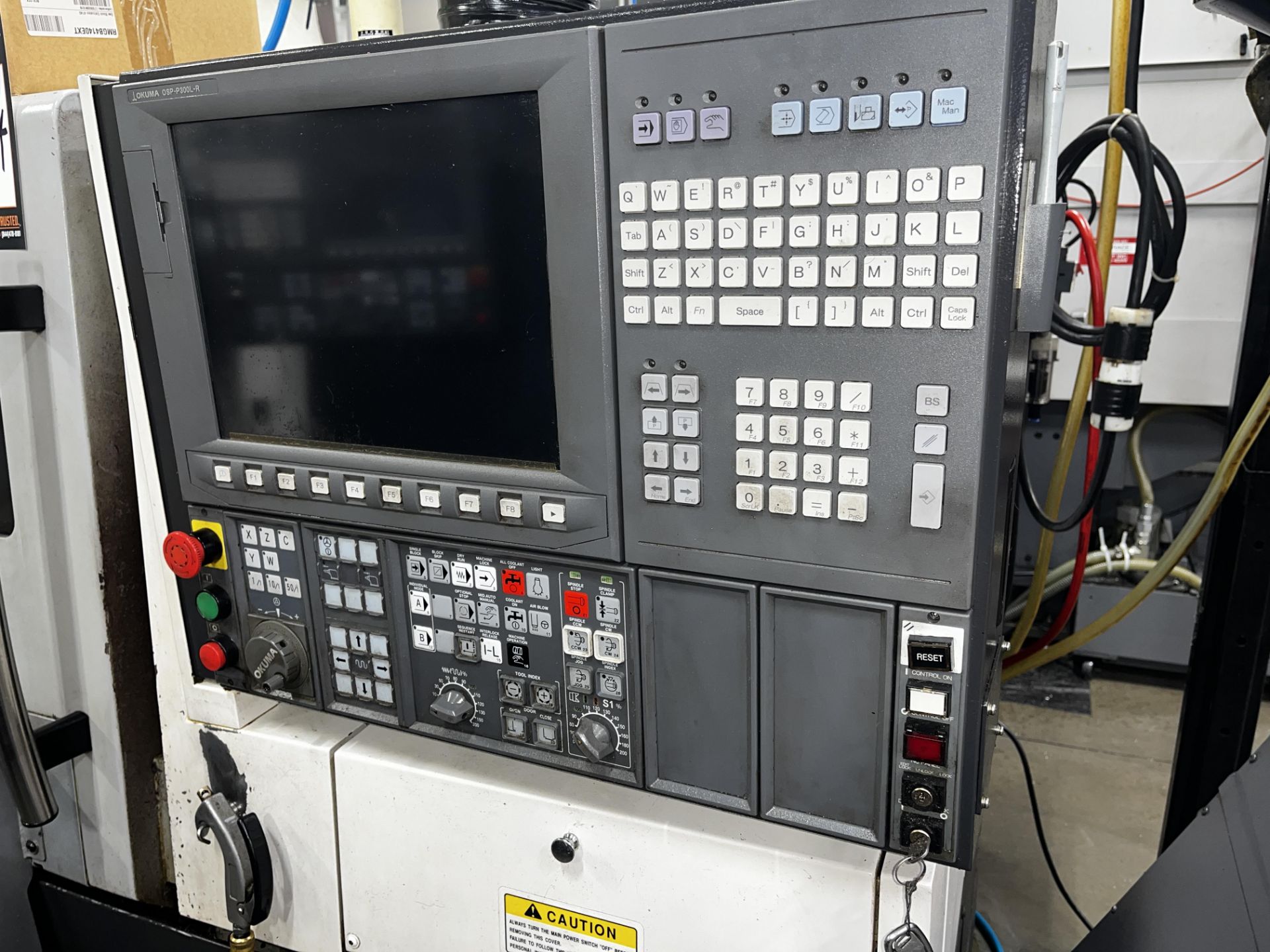

- Okuma OSP-P300L-R CNC Control
- Royal S-20 A2-6 Collet Chuck
- 12-Position Turret
- (4) Boring Toolholders
- Foot Pedal Control
- Coolant System
|
| Capacity: |
|---|
- Max Turning Diameter: 7.88″
- Max Turning Length: 19.69″
- Swing Over Bed: 17.78″
- Bar Capacity: 2.60″
|
| Travels: |
|---|
- X-Axis Travel: 6.30″
- Z-Axis Travel: 20.74″
|
| Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Speed: 3,000 RPM
- Spindle Motor: 10 HP
|
| Turret: |
|---|
- Turret Capacity: 12 Positions
- Boring Toolholders Included: 4
|
| Factory Options: |
|---|
- Tool Presetter
- Chip Conveyor
- Parts Catcher
- Cycle End Lamp
- Royal Filtermist Mist Collector
- Tailstock
|
| General: |
|---|
- Electrical: 220V / 3-Phase / 50–60 Hz
- Amperage: 44.7 Amps
- Approx. Dimensions: 110″ × 62″ × 62″
- Approx. Weight: 8,400 lbs
|
