*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

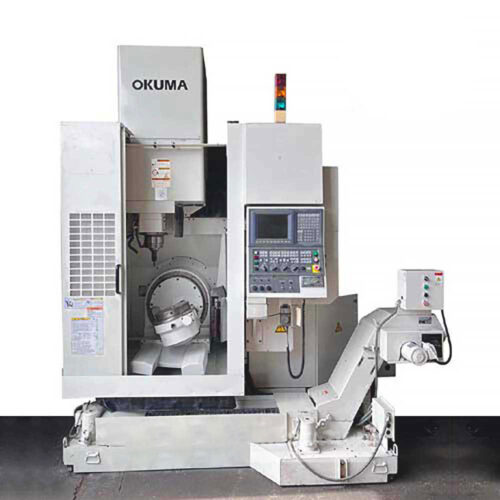

| Make: | OKUMA |
| Model: | VH40 |
| Year: | 2000 |

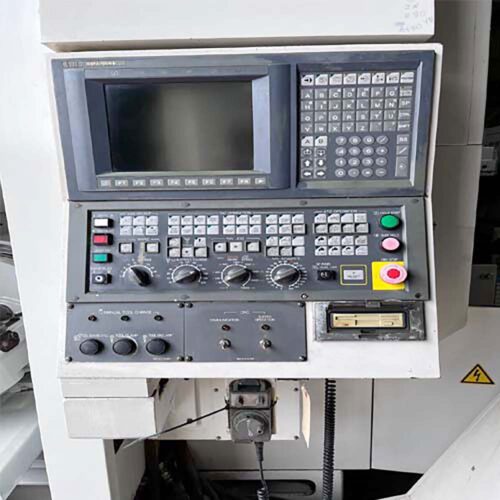

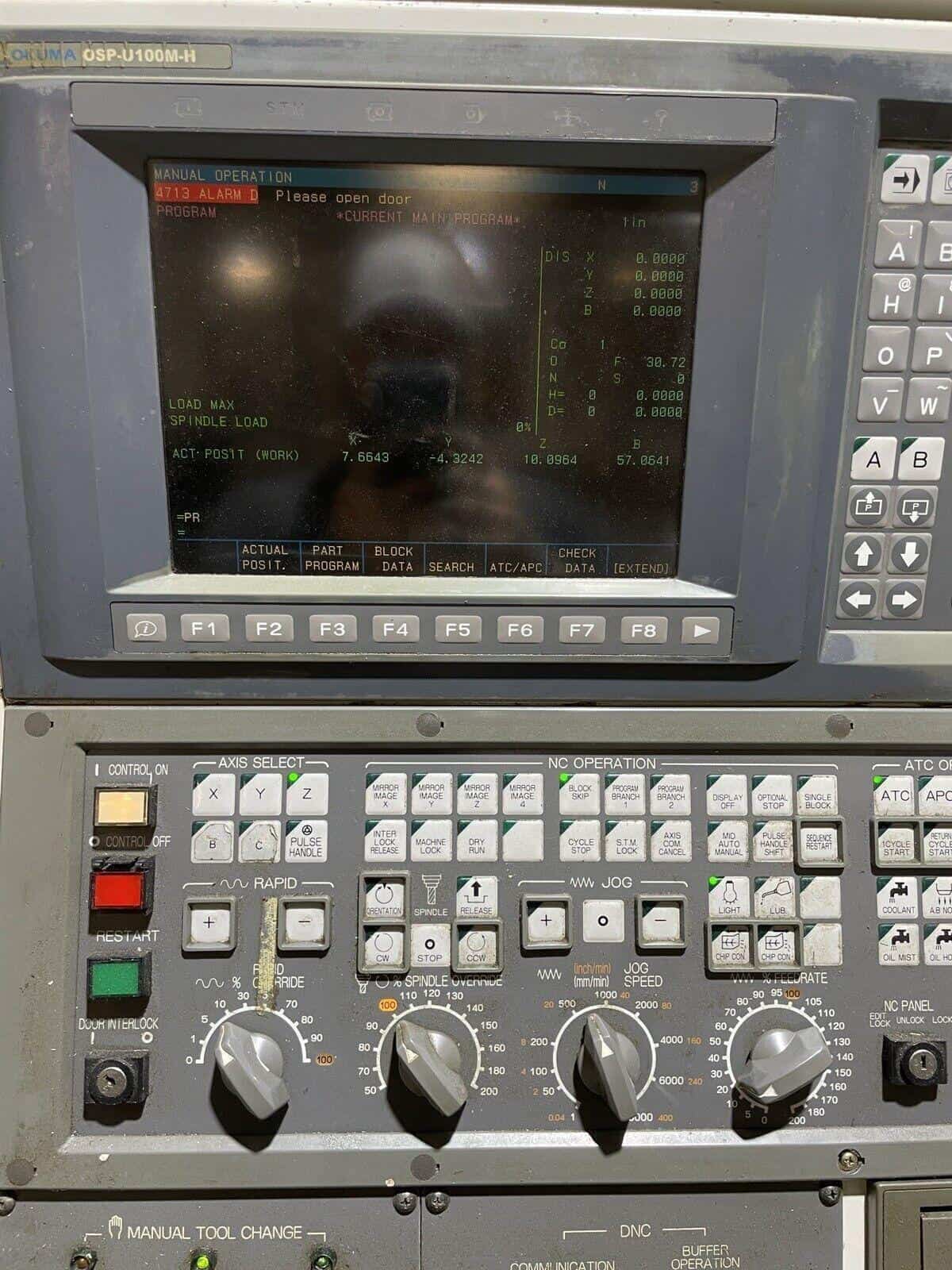

| Okuma OSP-U100M-H Series CNC Control |
|---|
| Simultaneous 5 Axis Cutting |

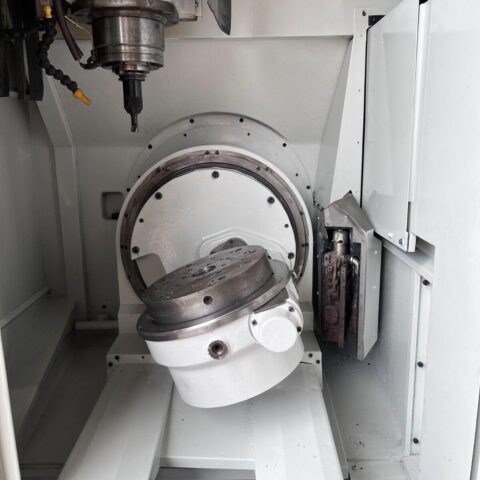

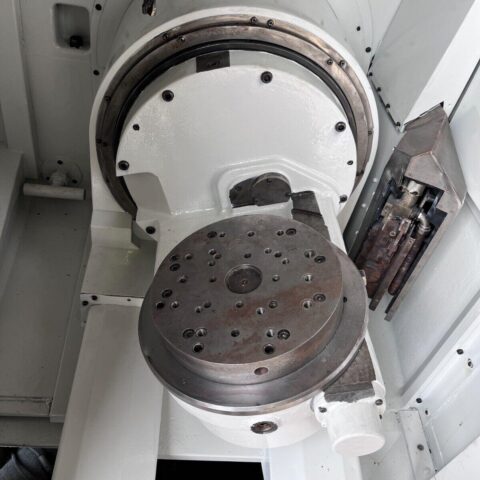

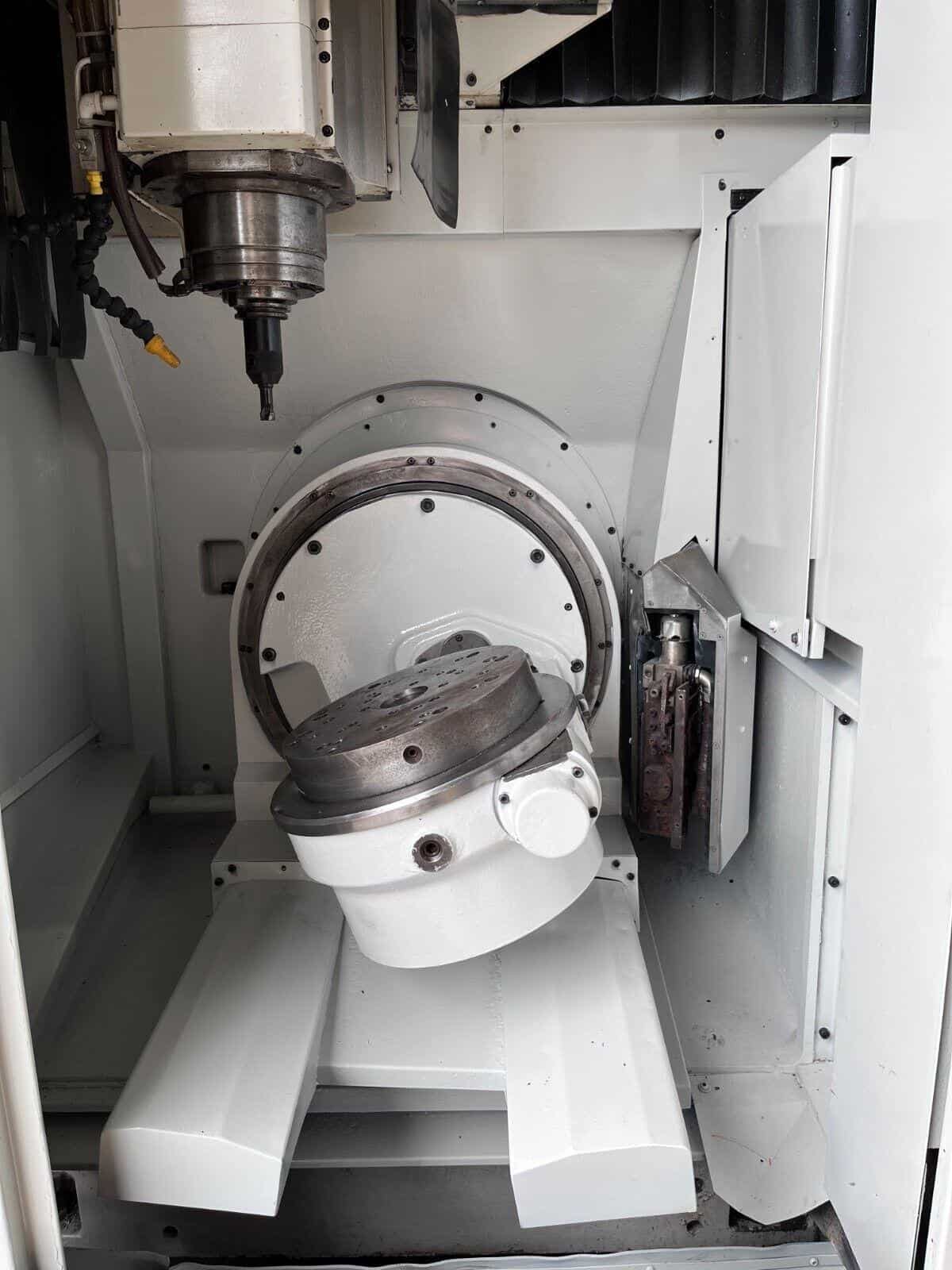

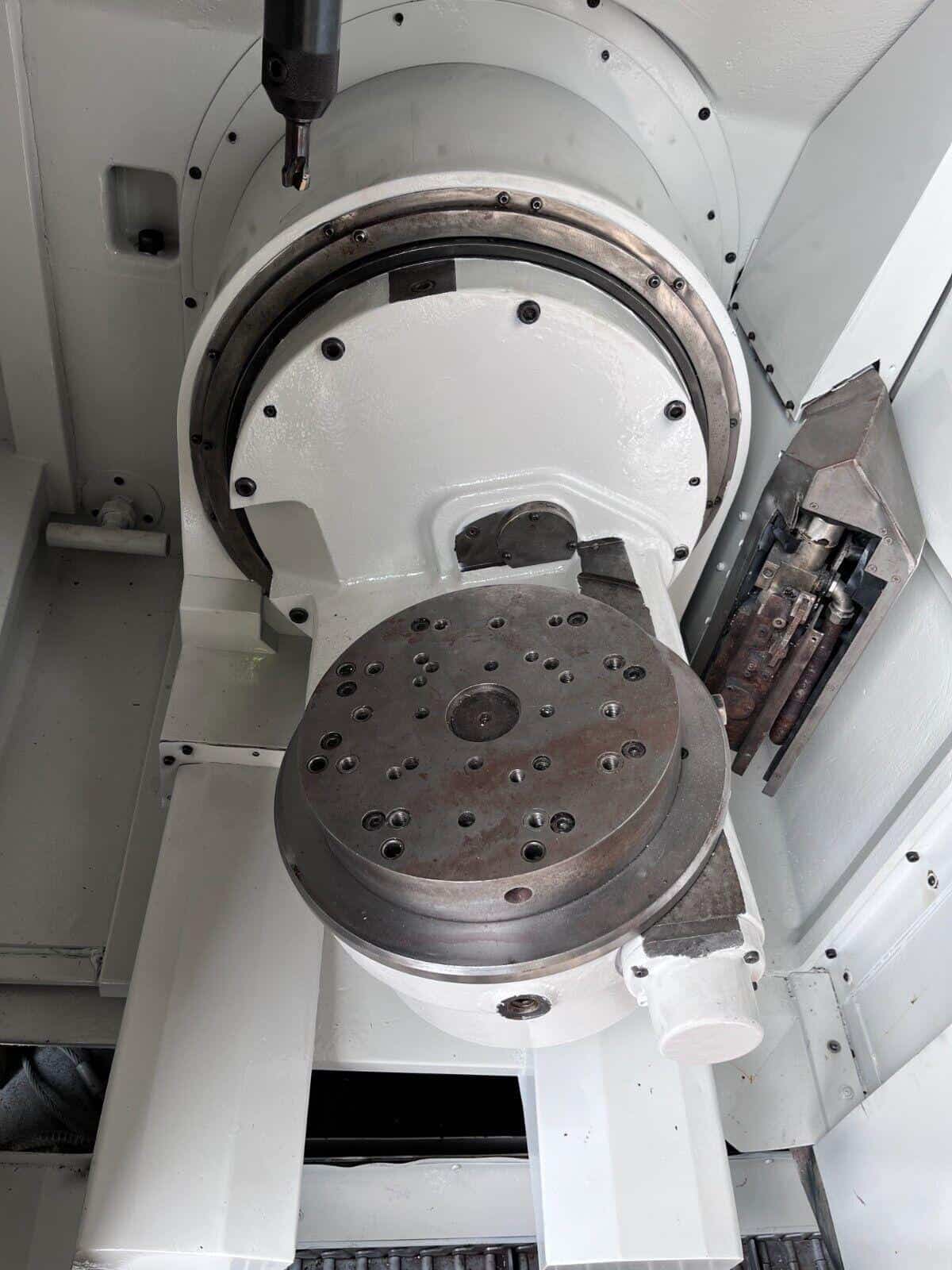

| NC Programmable Swiveling Trunnion Table 12” Diameter |

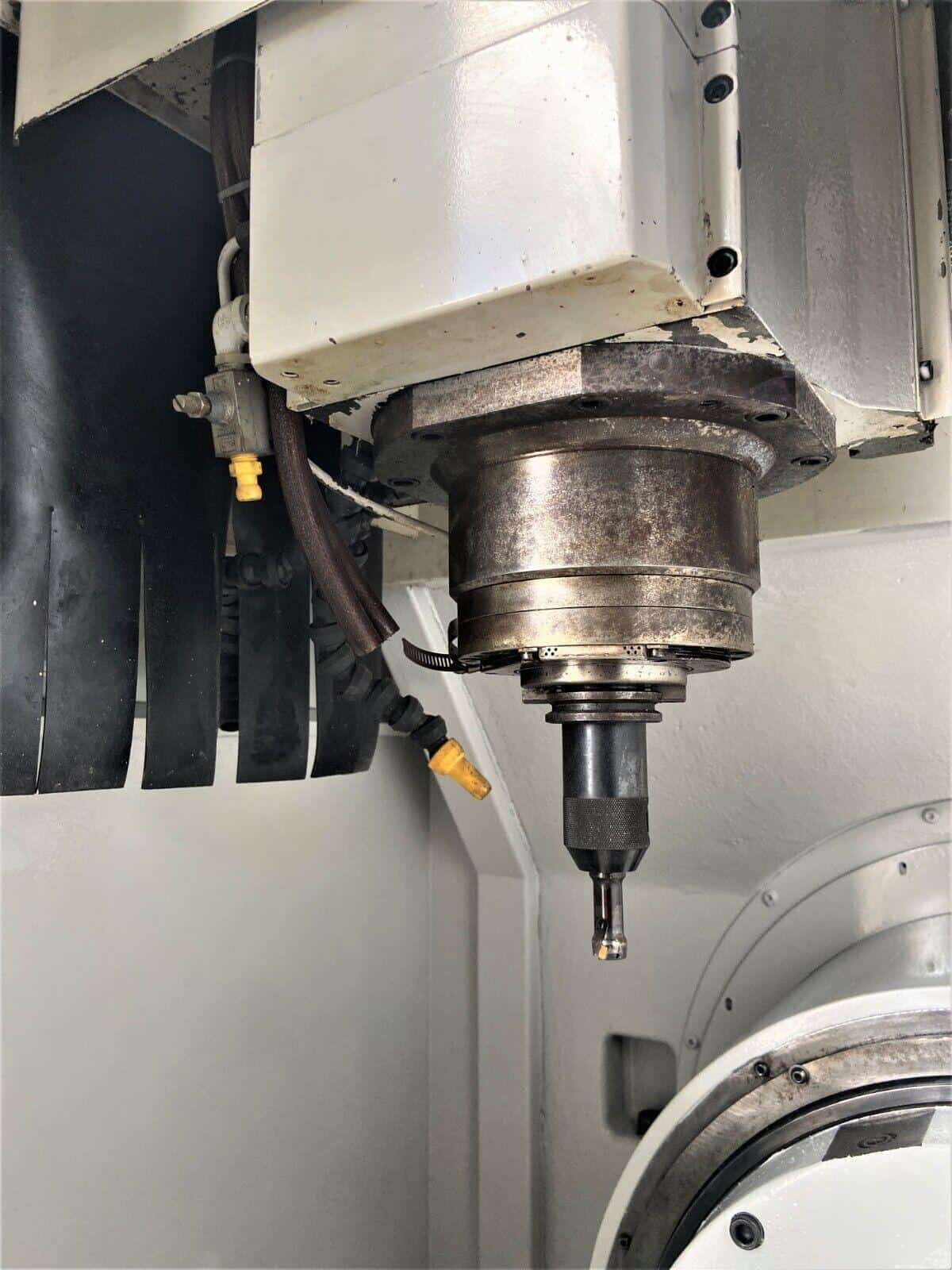

| 8000 RPM High Precision Spindle |
| 24 Station Automatic Tool Changer |
| Hand Wheel MPG Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Coolant Tank |
| Chip Conveyor |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 22.05″ |
| Y Axis: 17.72″ |
| Z Axis: 17.72″ |
| B Axis: 180° (+90˚/ -90˚) (Table Tilt) |
| C Axis: 360° (Table Rotate) |
| Min. Increment: 0.001° |
| Table: |
|---|
| Table Diameter: 12″ |
| Max Weight on Table: 551 lbs |

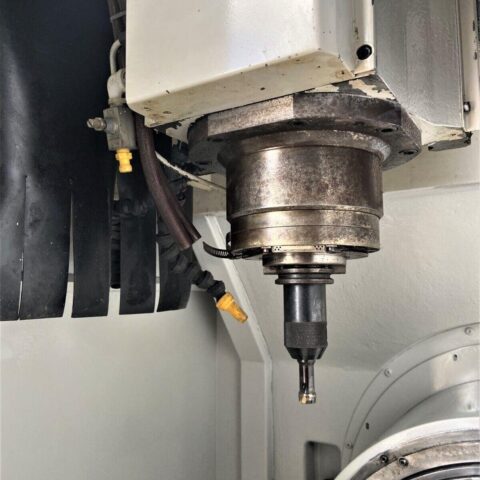

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 15 HP |
| Feed rates: |
|---|
| Rapid X Y Z Axis: 1181 IPM |
| Rapid B: 33.3 RPM |
| Rapid C: 33.3 RPM |
| Cutting Feed rate: 394 IPM |
| Tool changer: |
|---|
| Capacity: 24 Tools |
| Taper: CAT-40 |
| Max Tool Size: 4.92” x 12” |
| Max Tool Weight: 17.63 lbs. |
| Tool Change Time: 5.5 Second |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

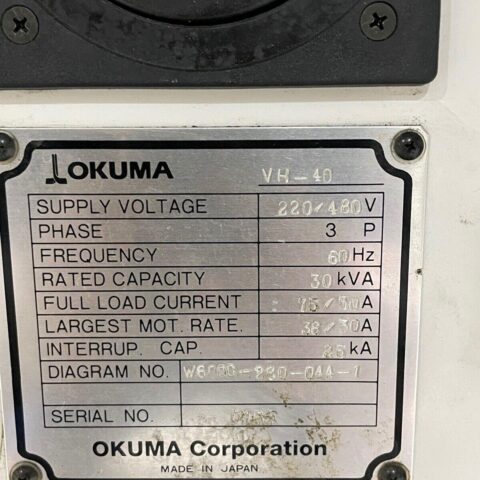

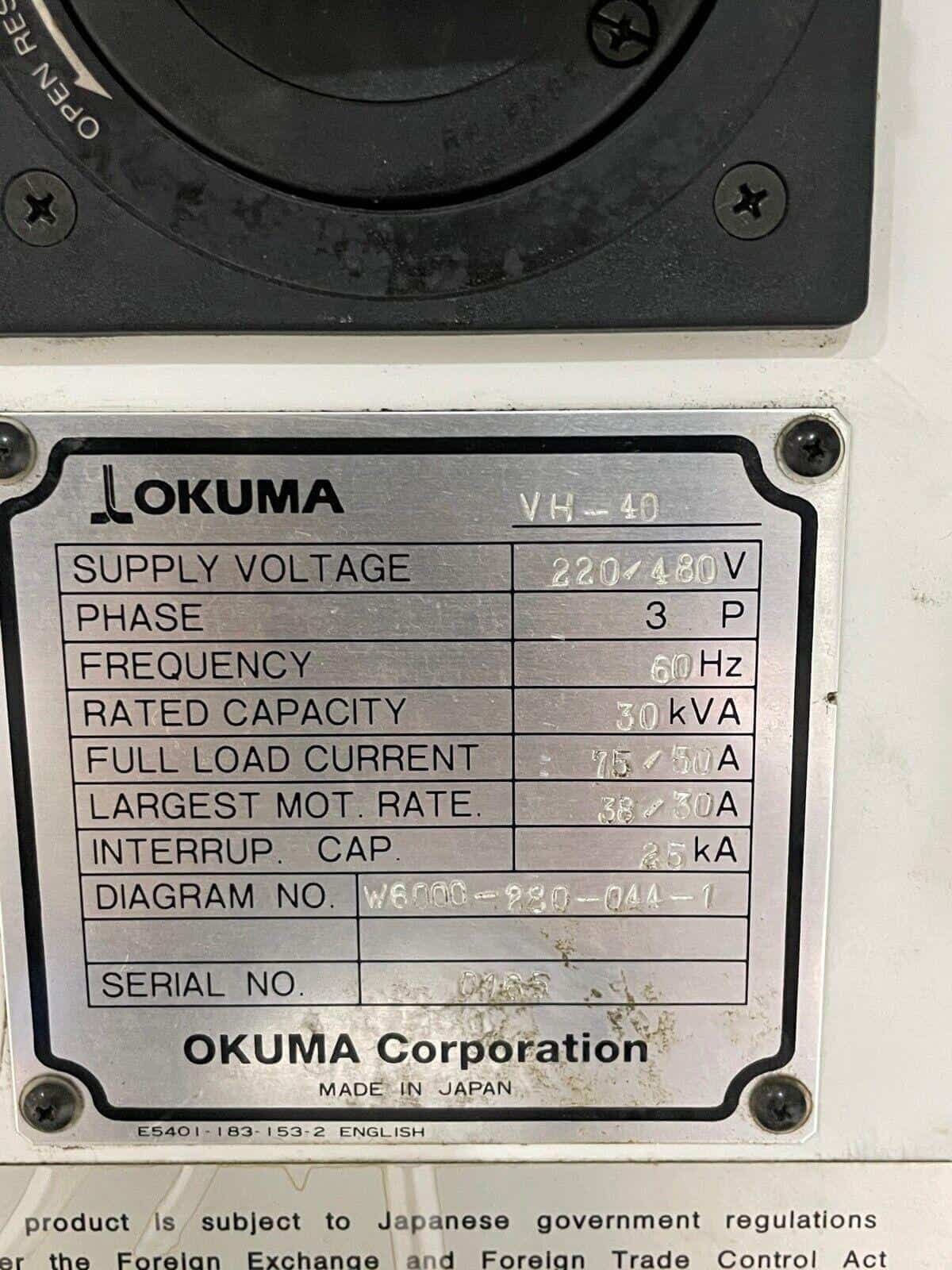

| Power: 30kva / 220-480v / 3-Phase |
| Overall Dimensions: 105” x 80” x 103″ High |
| Weight: 12125 lbs. Approx. |
