*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

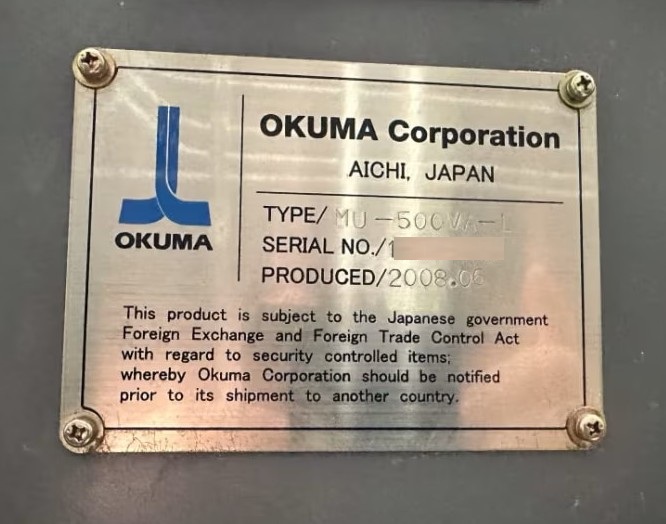

| Make: | Okuma |

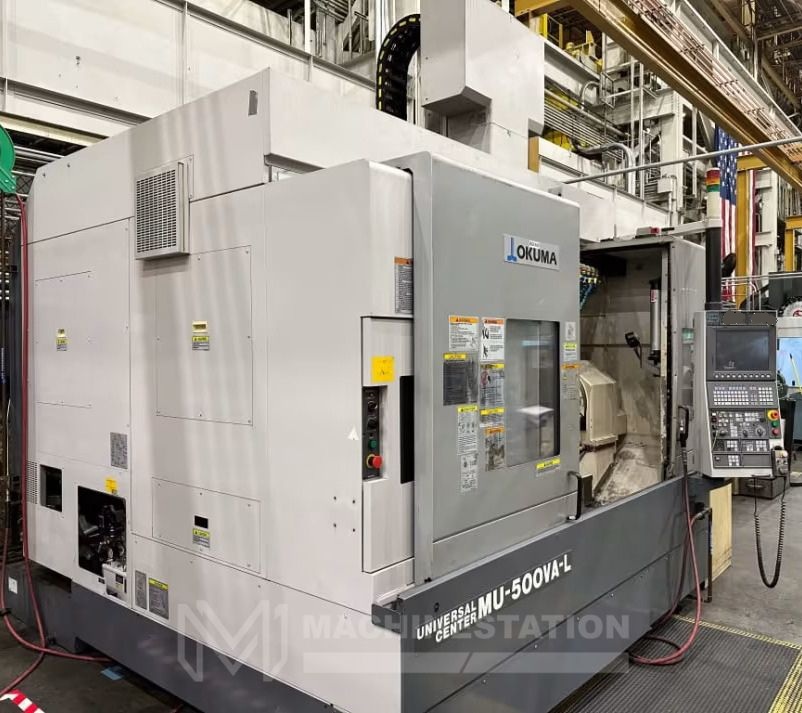

| Model: | MU-500VA-L |
| Year: | 2008 |
| Condition: | Used – Good |
| Features |
|---|

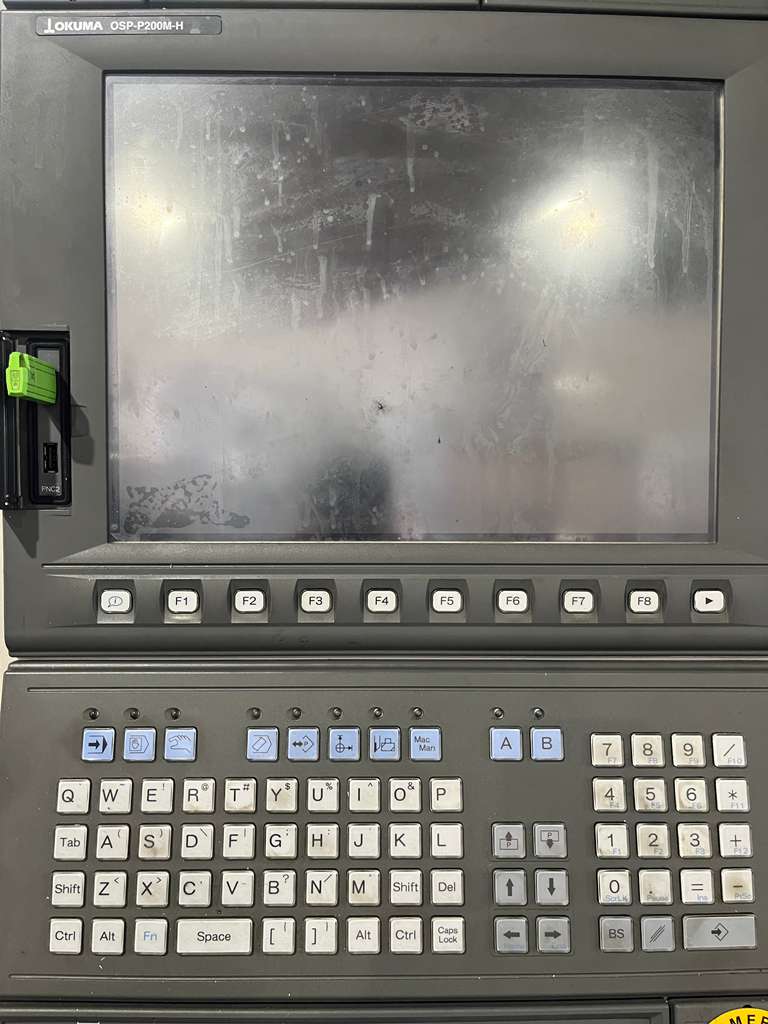

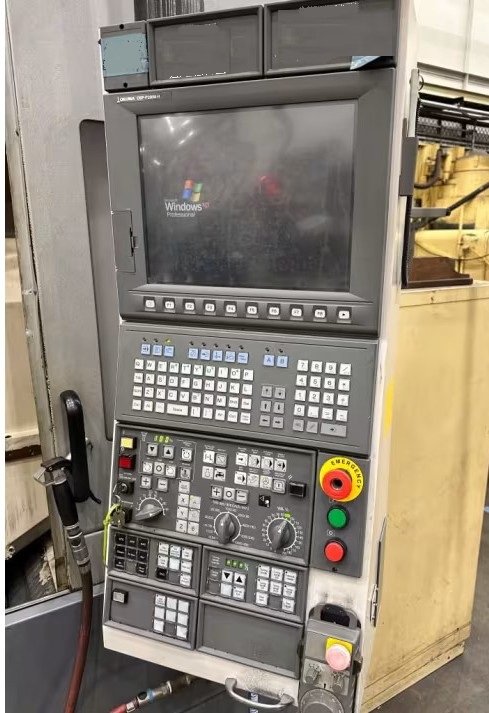

| Okuma OSP-P200M-H Series CNC Control |
| Simultaneous 5 Axis Cutting |

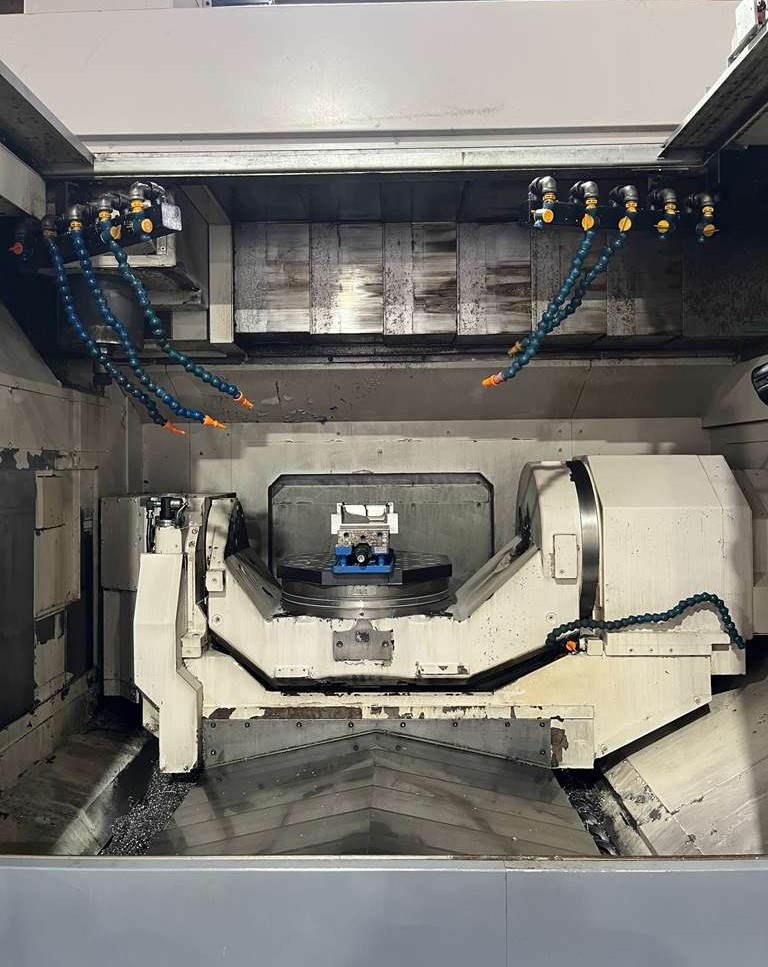

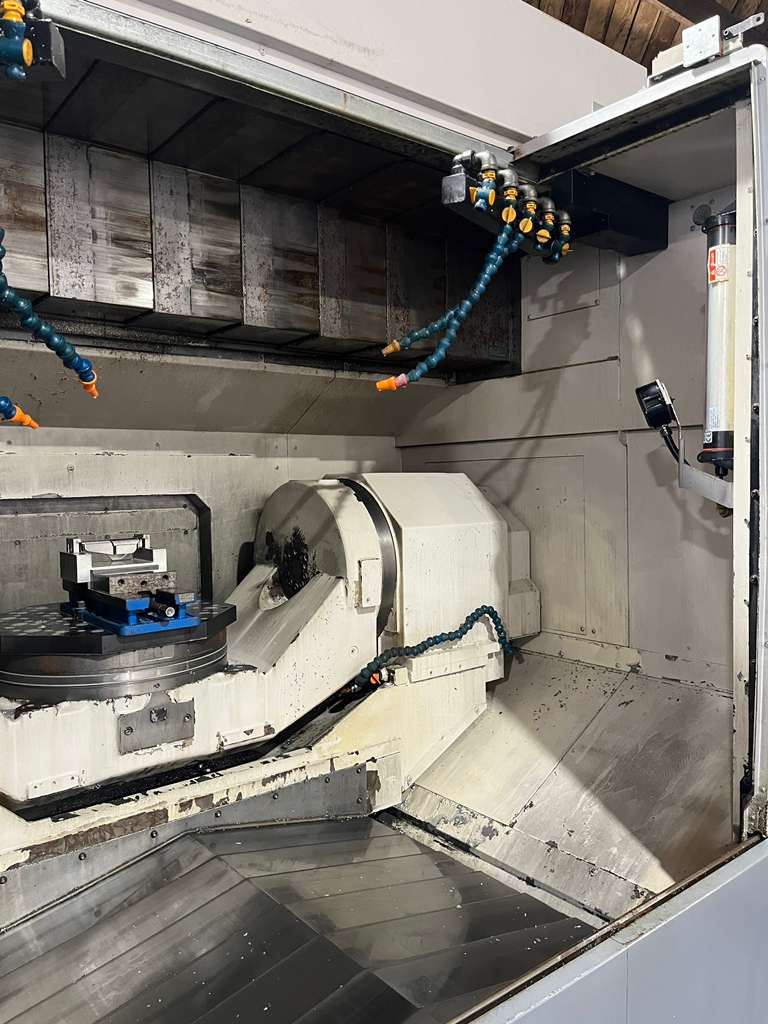

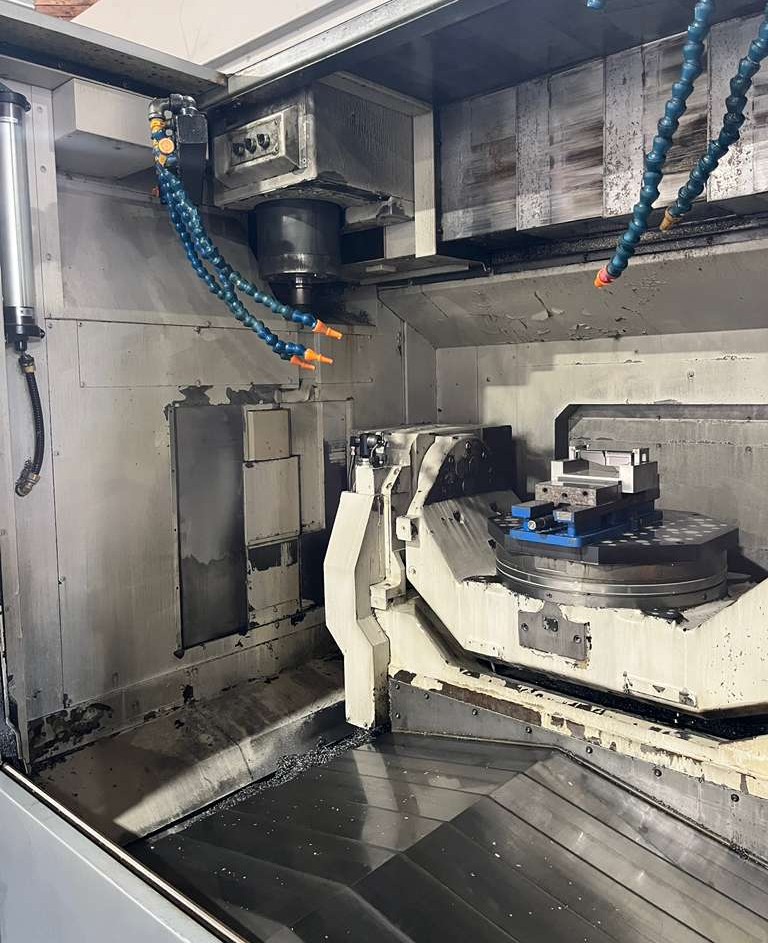

| 19.69″ Diameter Trunnion Table |
| 32 Station Automatic Tool Changer |
| Renishaw Reciever Installed |
| Tool Presetter |
| Through Spindle Coolant |
| MPG Hand Wheel Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |

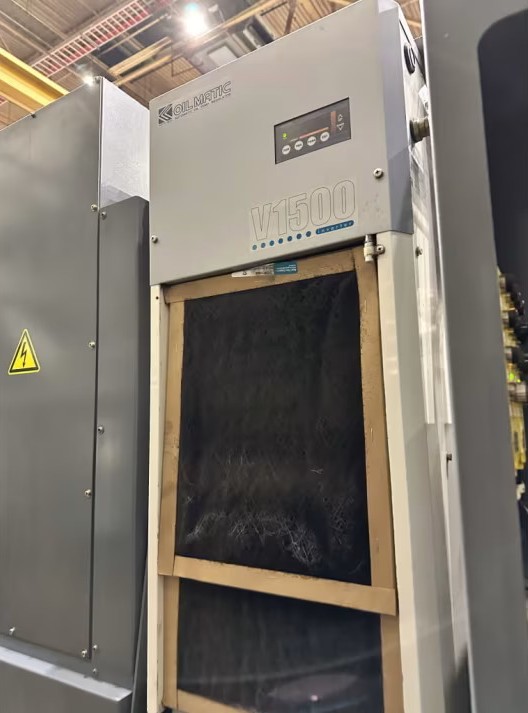

| Spindle Chiller Unit |
| Coolant System |
| Chip Conveyor |
| Travels: |
|---|
| X Axis: 49.21″ |
| Y Axis: 25.98″ |
| Z Axis: 21.26″ |
| B Axis: 180° (+20˚/ -110˚) (Table Tilt) |
| C Axis: 360° (Table Rotate) |
| Min. Increment: 0.001° |
| Table: |
|---|

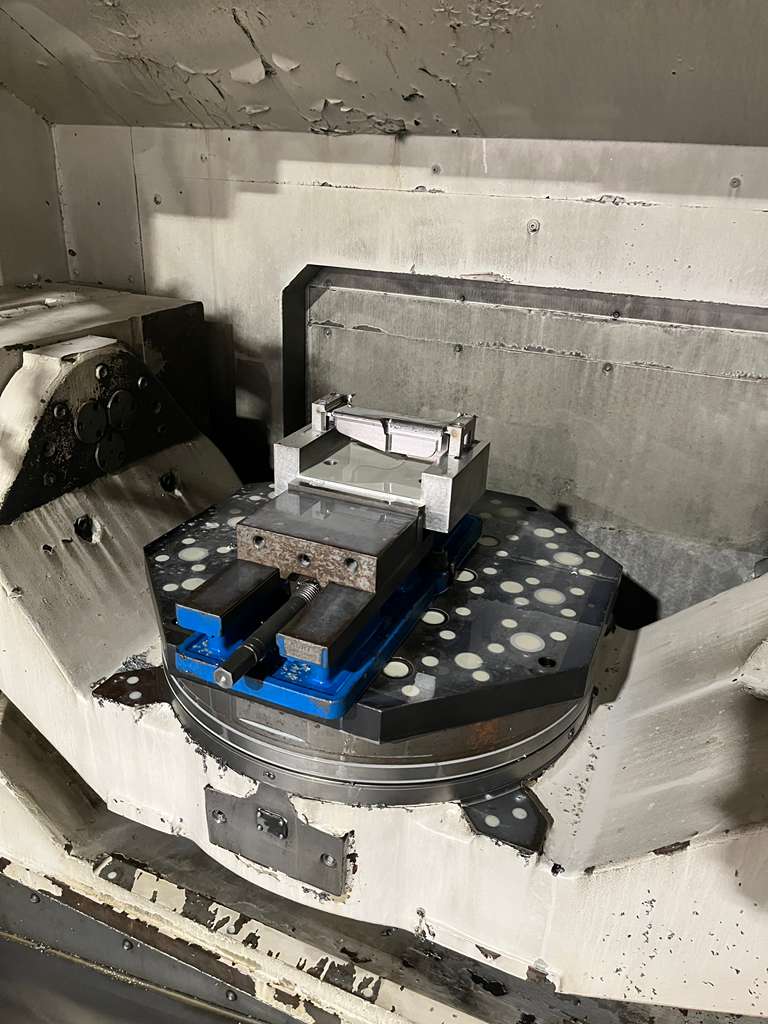

| Table Diameter: 19.69″ |
| Max Weight on Table: 1100 lbs |

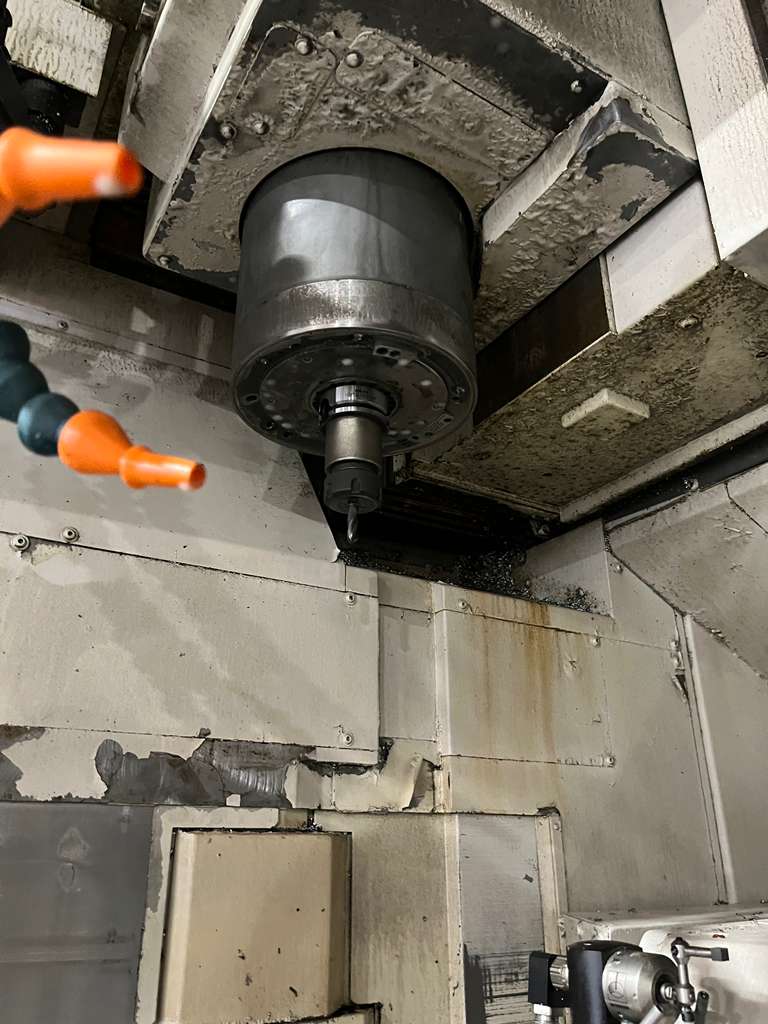

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |
| Feed rates: |
|---|
| Rapid X Y Axis: 1575 IPM |
| Rapid Z Axis: 1260 IPM |
| Cutting Feed rate: 1260 IPM |
| Tool changer: |
|---|
| Capacity: 32 Tools |
| Taper: 40 |
| Max Tool Size: 3.54” x 15.75” |
| Max Tool Weight: 18 lbs. |
| General: |
|---|

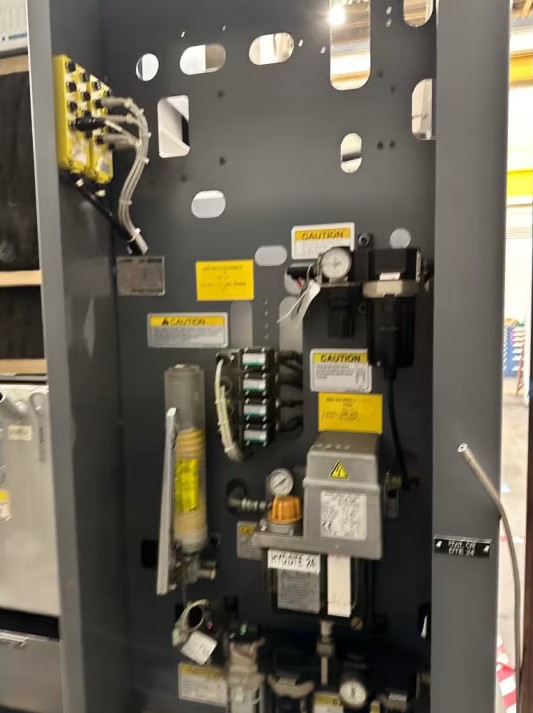

| Air Required: 80 psi 4 scfm |

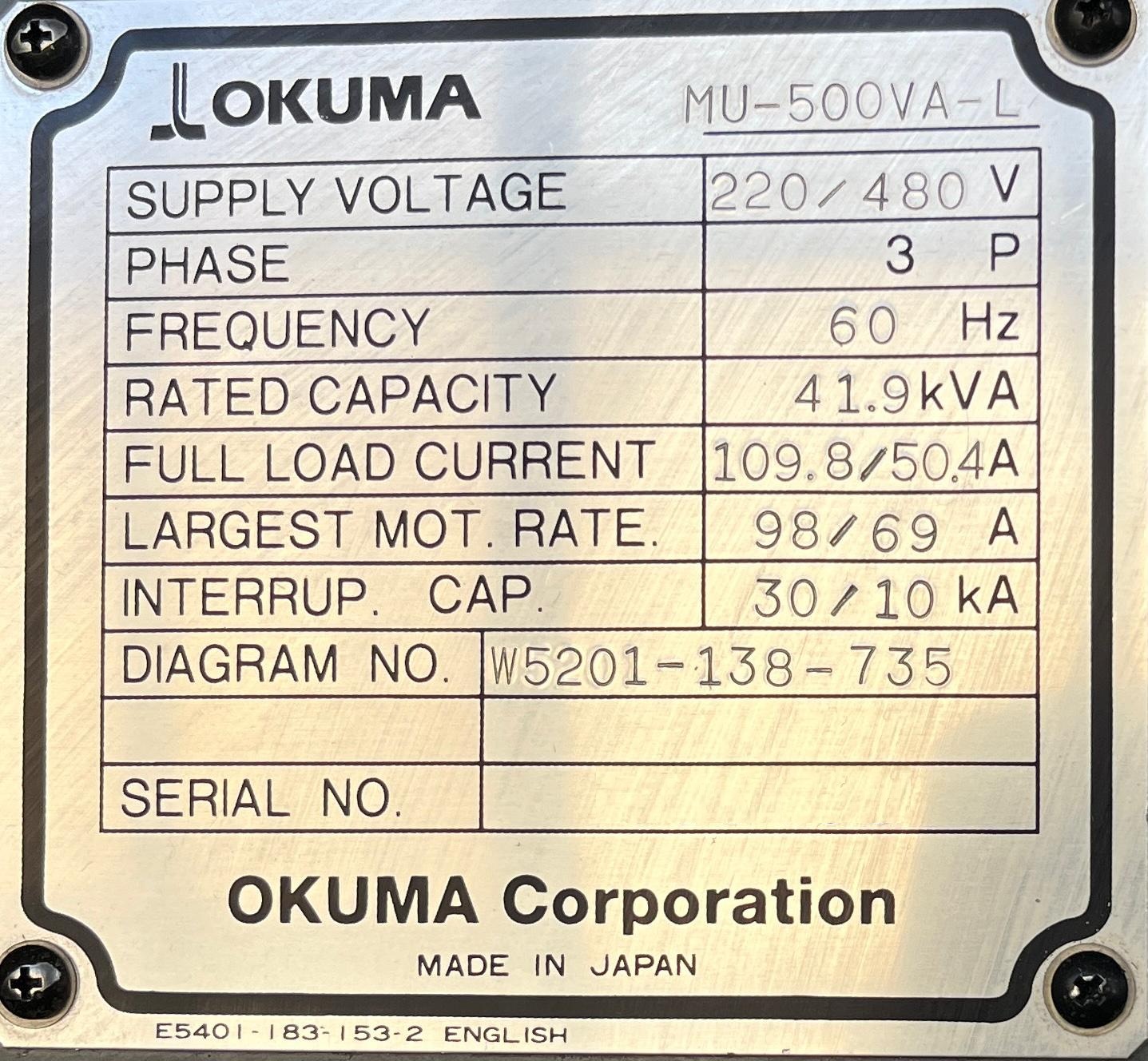

| Power: 41.9 kva / 220-480v / 3-Phase |
| Overall Dimensions: 116” x 133” x 139″ High |
| Weight: 28,600 lbs. Approx. |
