*All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

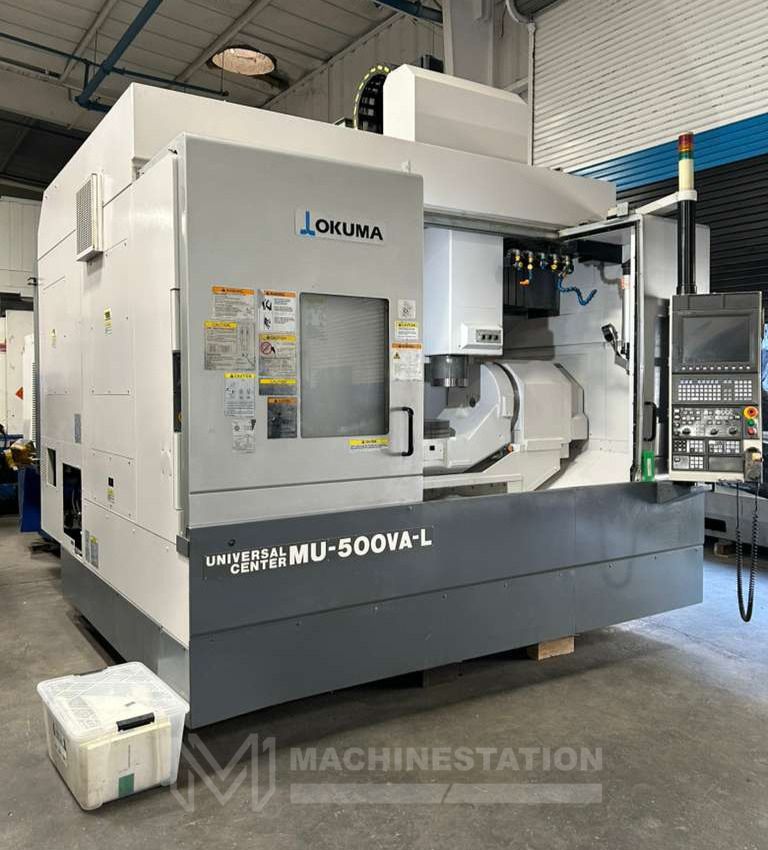

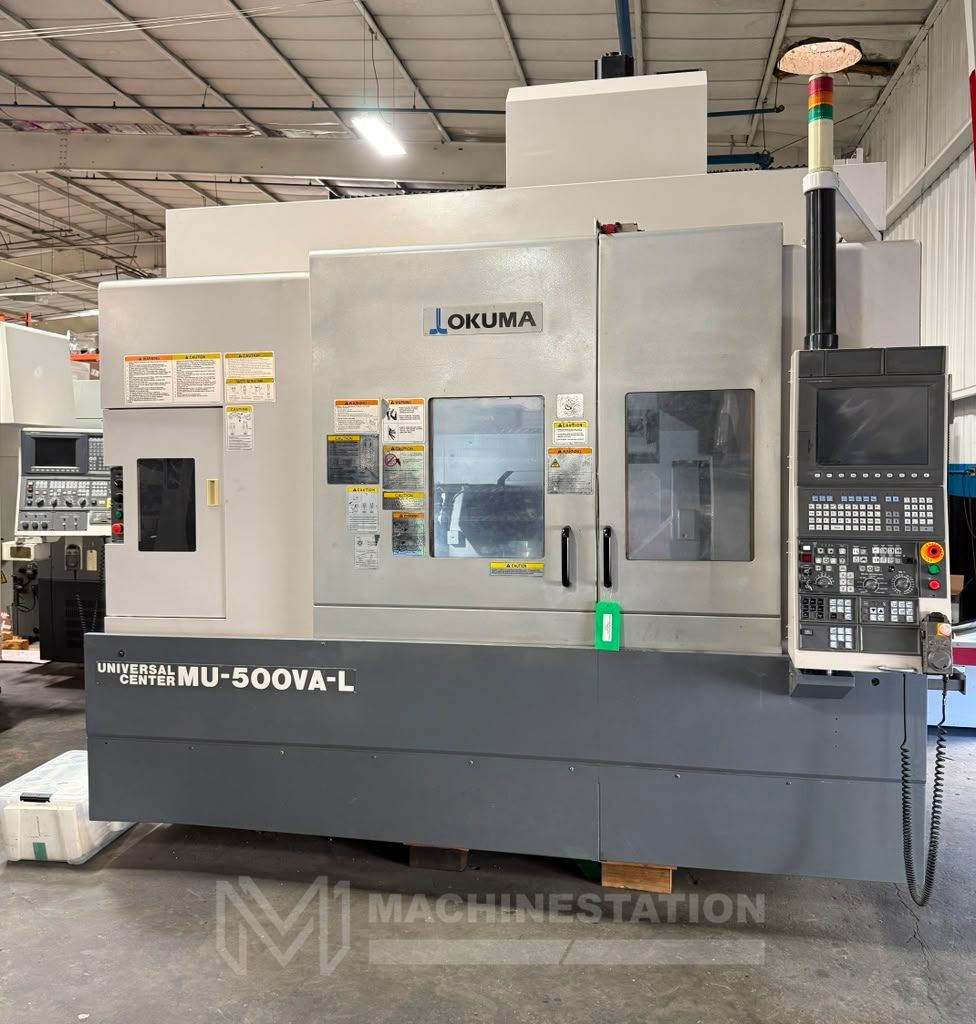

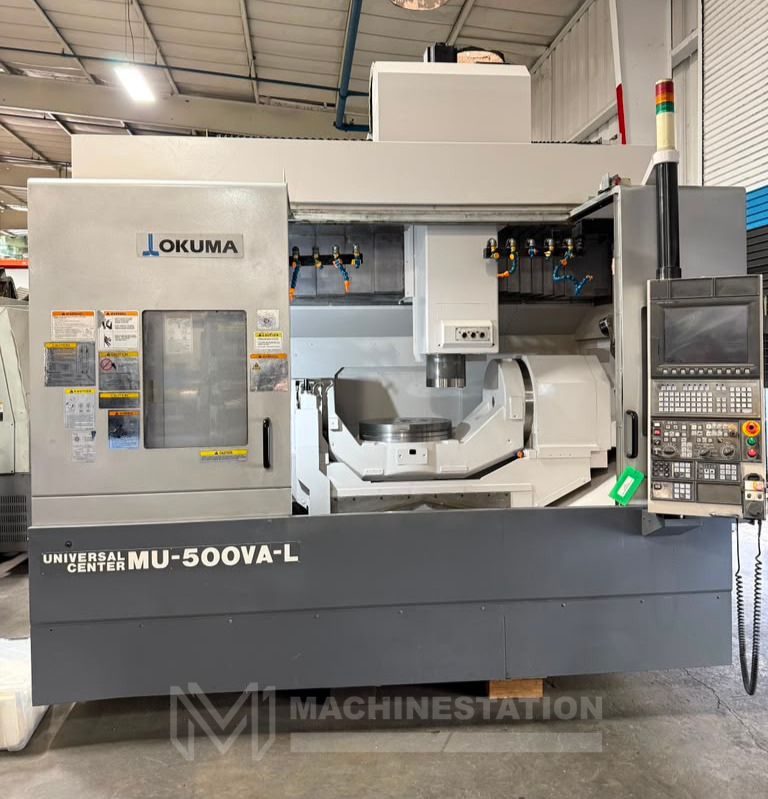

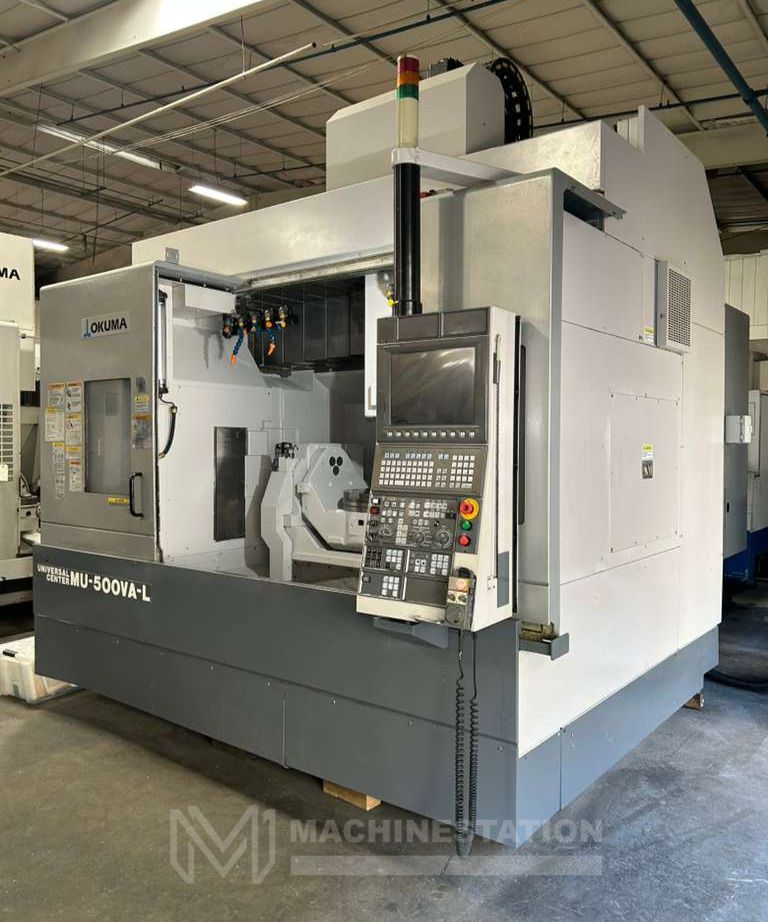

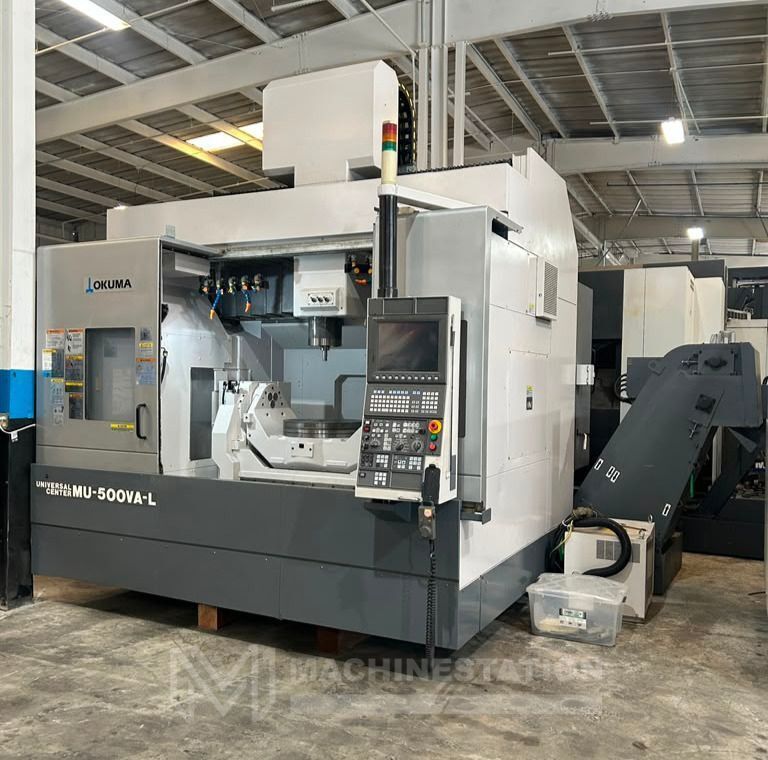

| Make: | Okuma |
| Model No.: | MU-500VA-L |
| Year: | 2008 |
| Equipped With: |
|---|

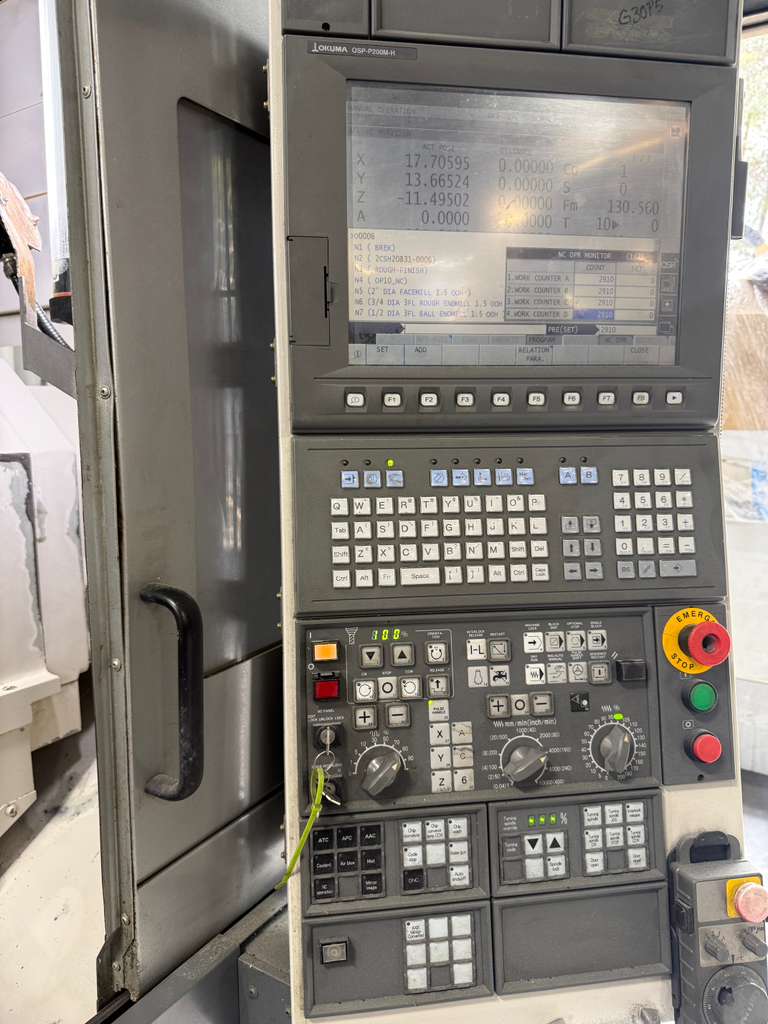

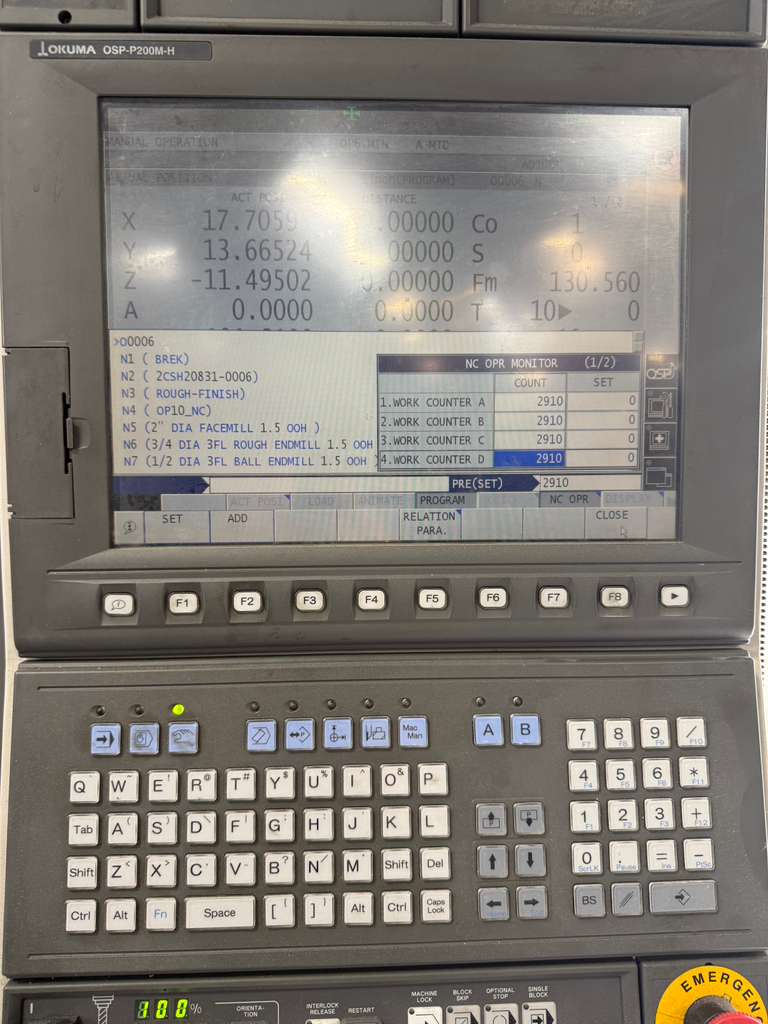

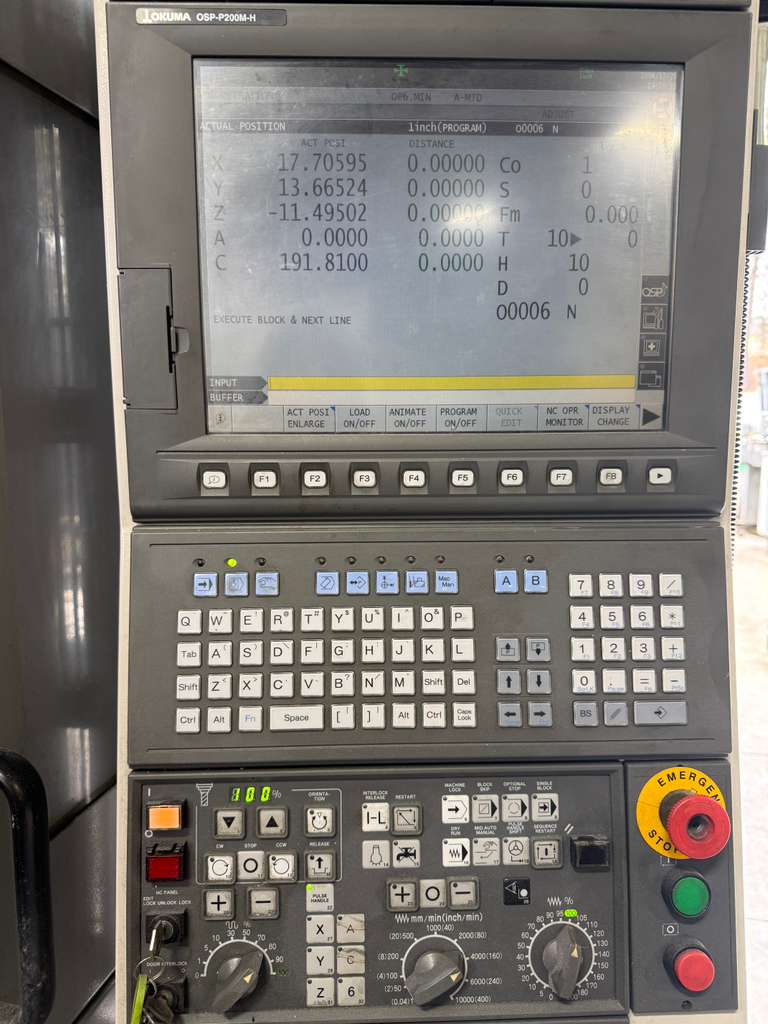

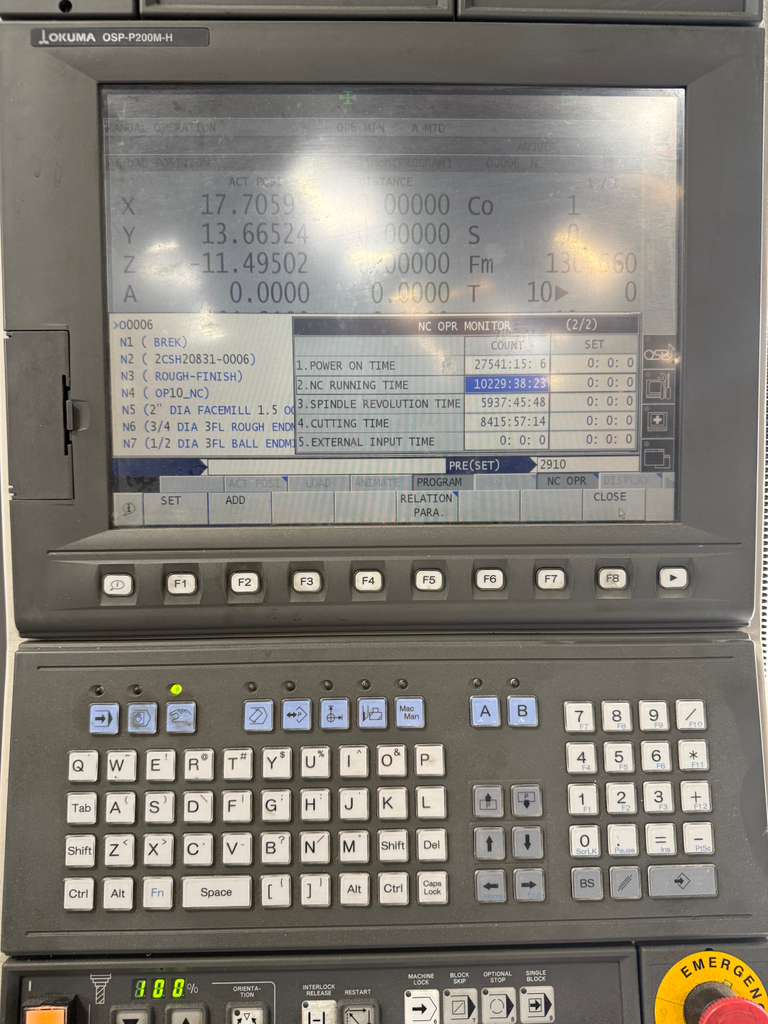

| Okuma OSP-P200M-H Series CNC Control |
| Simultaneous 5 Axis Cutting |

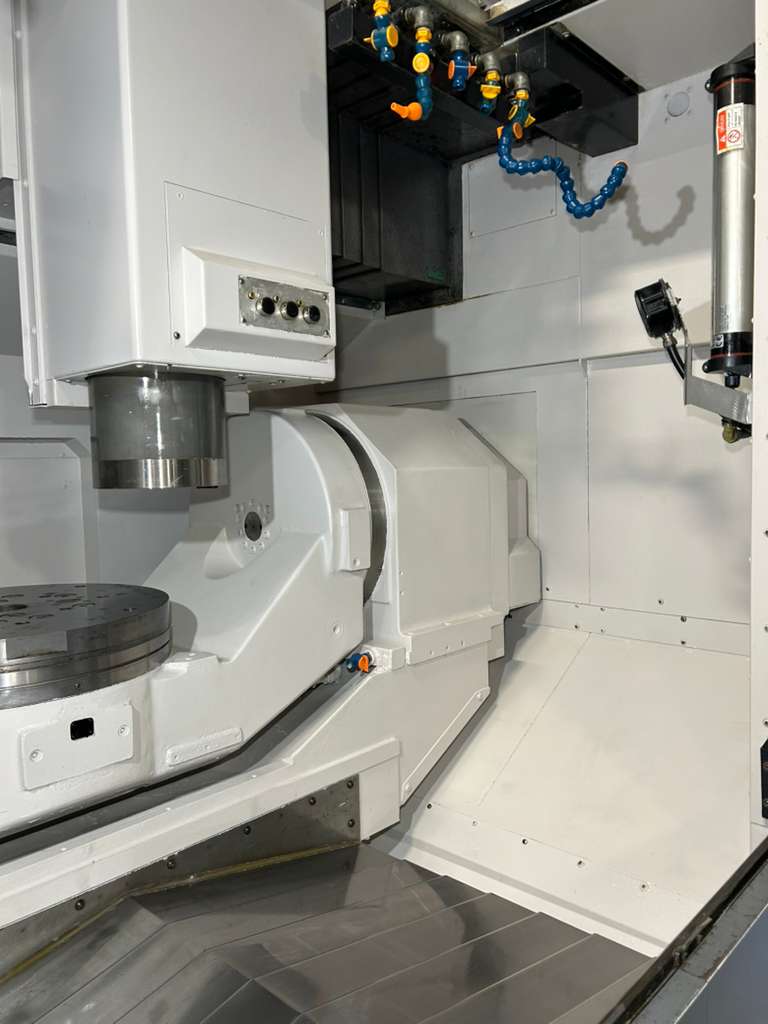

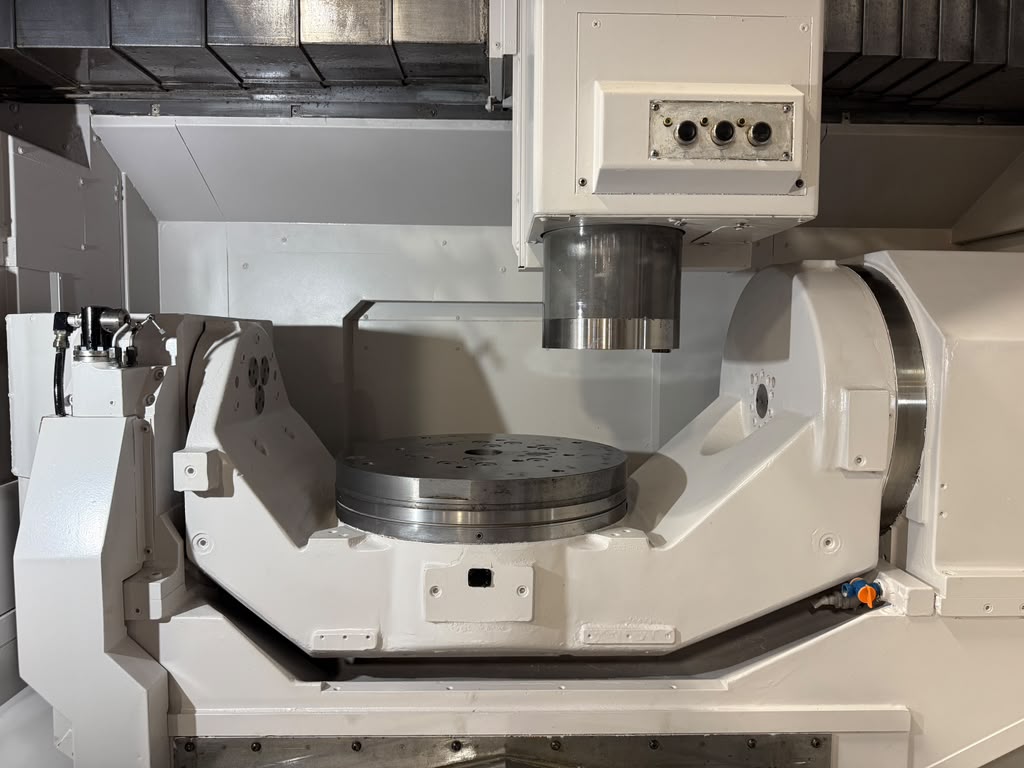

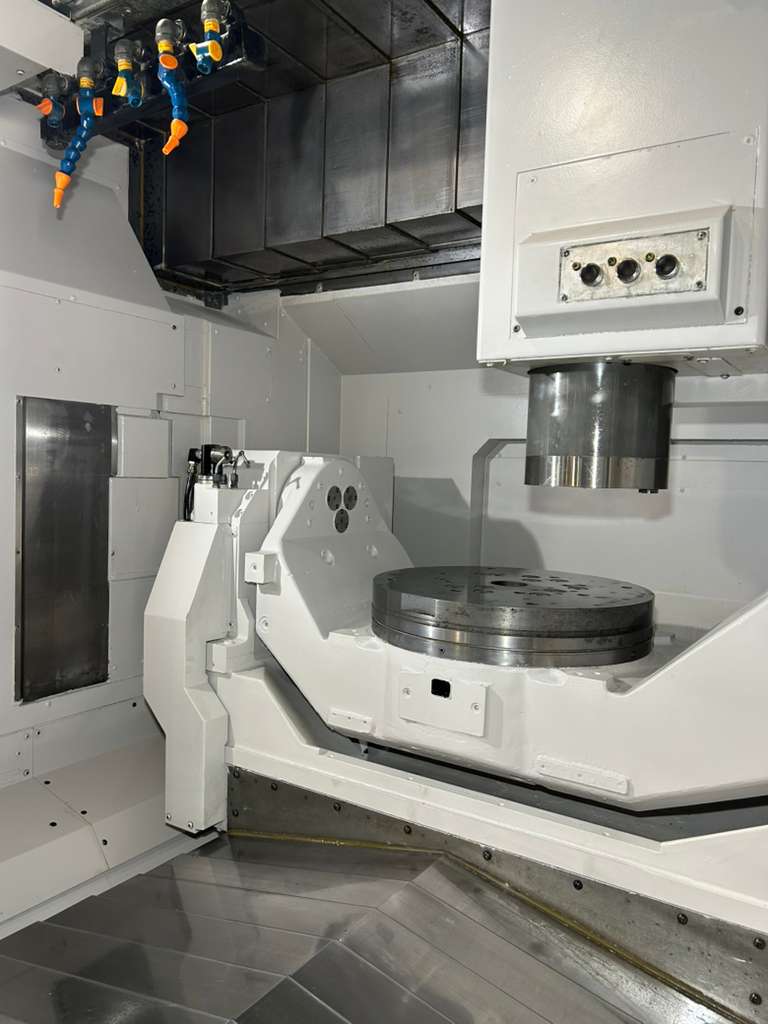

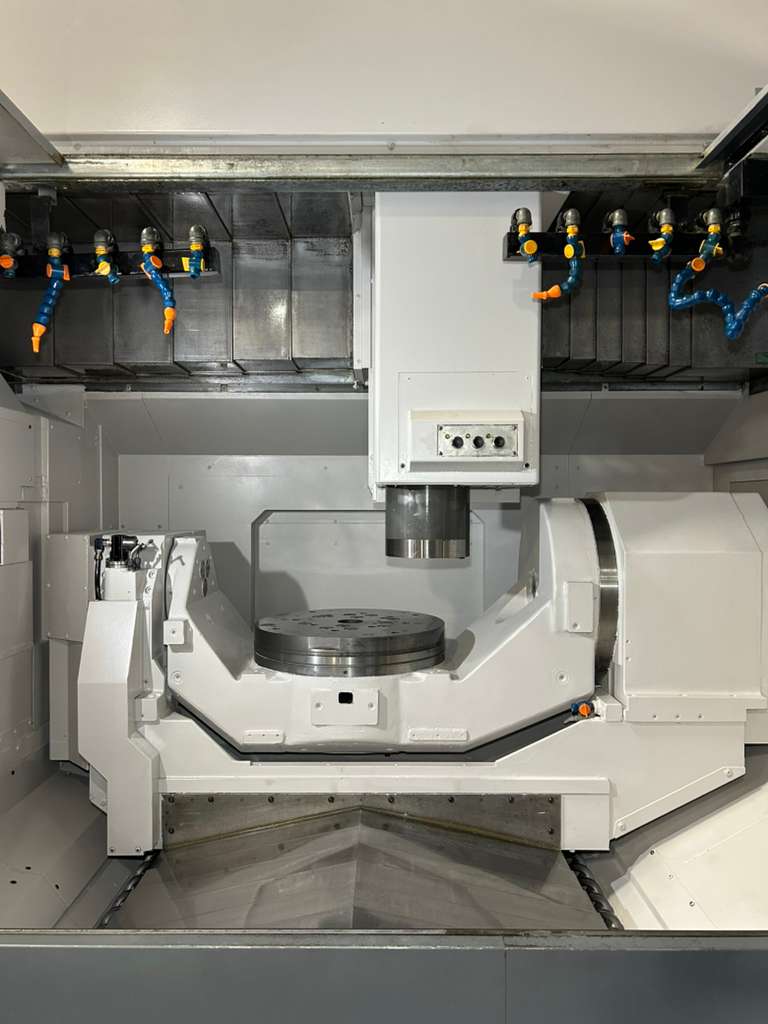

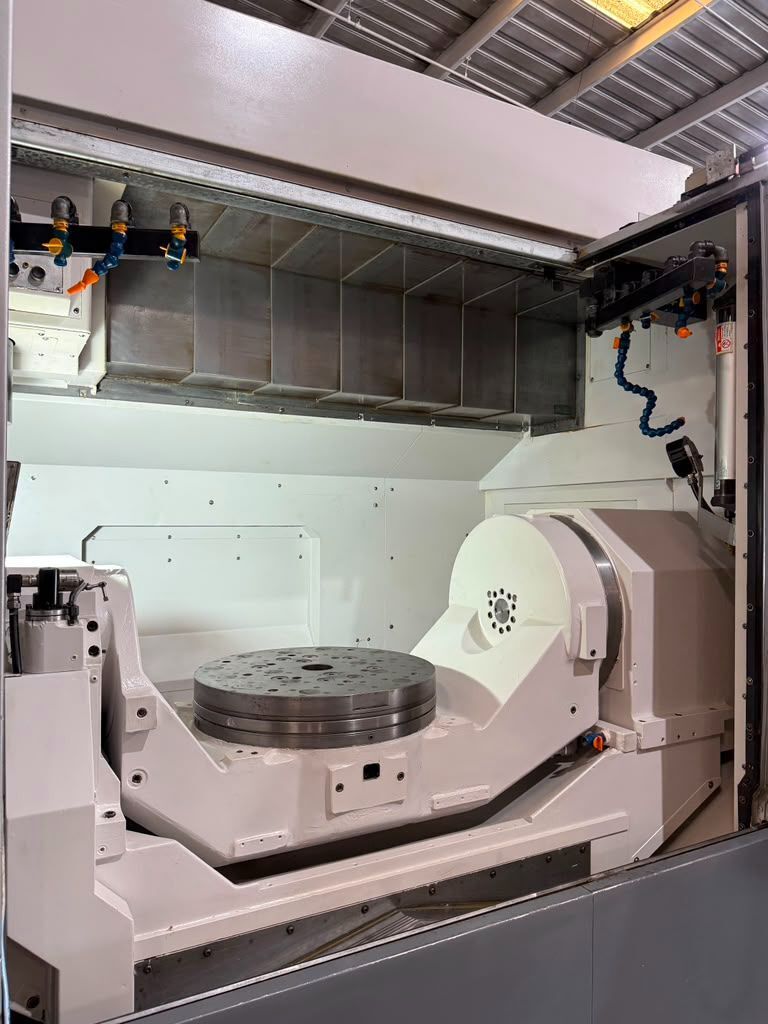

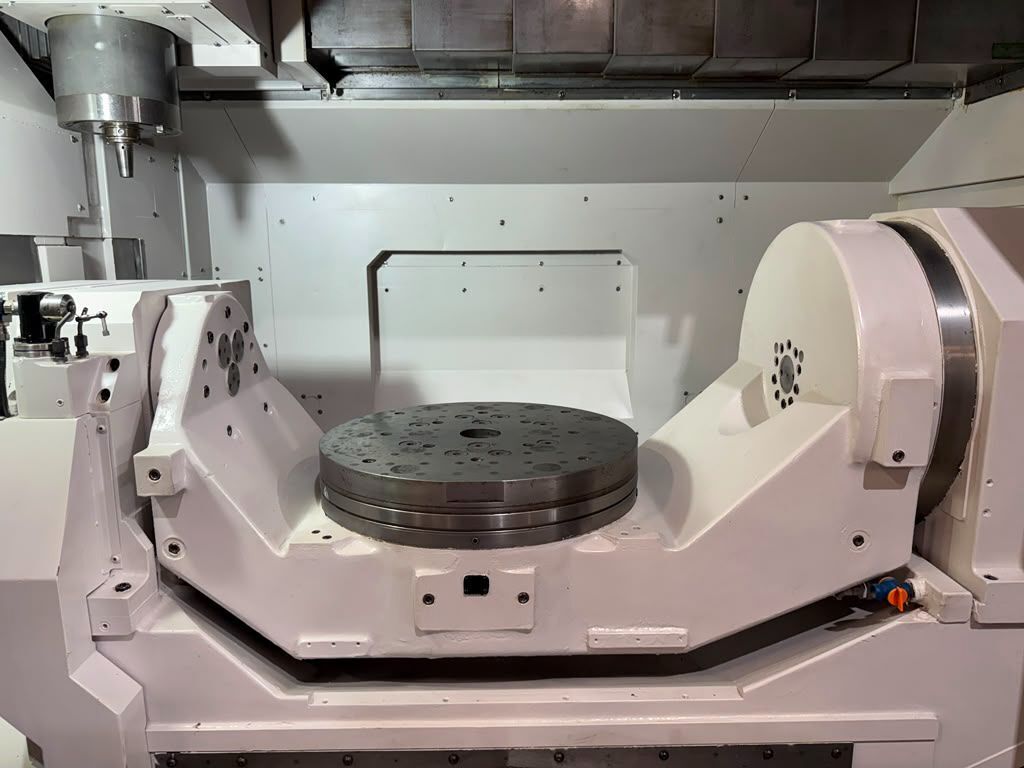

| 19.69″ Diameter Trunnion Table |

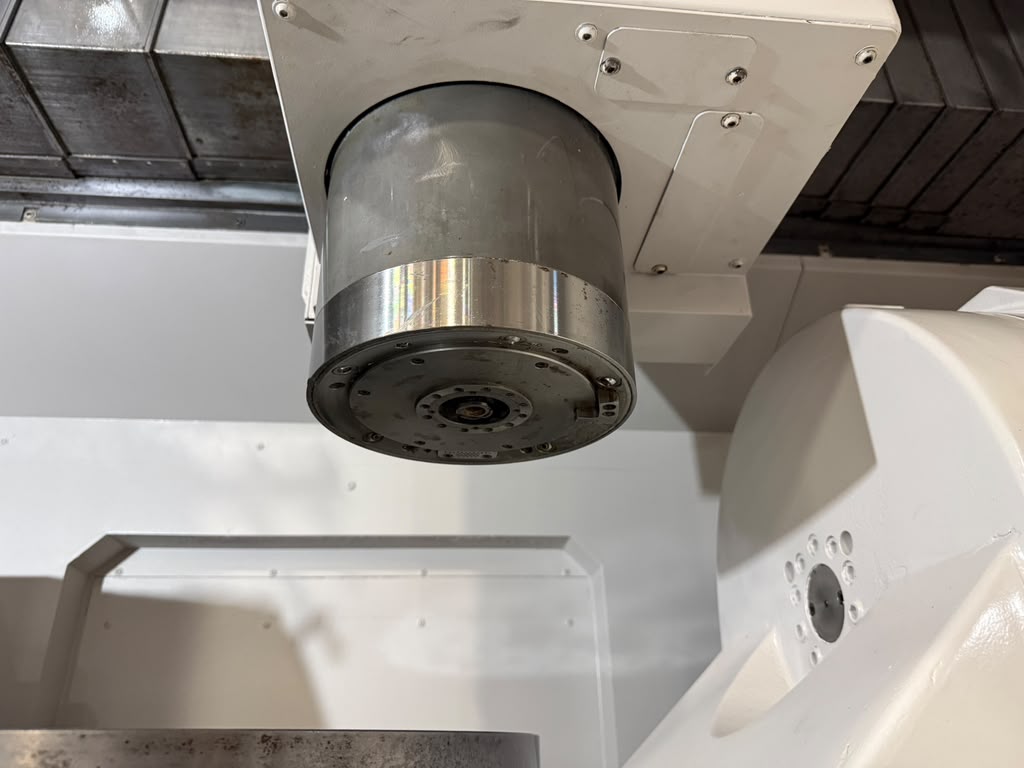

| 15,000 RPM High Speed Spindle |

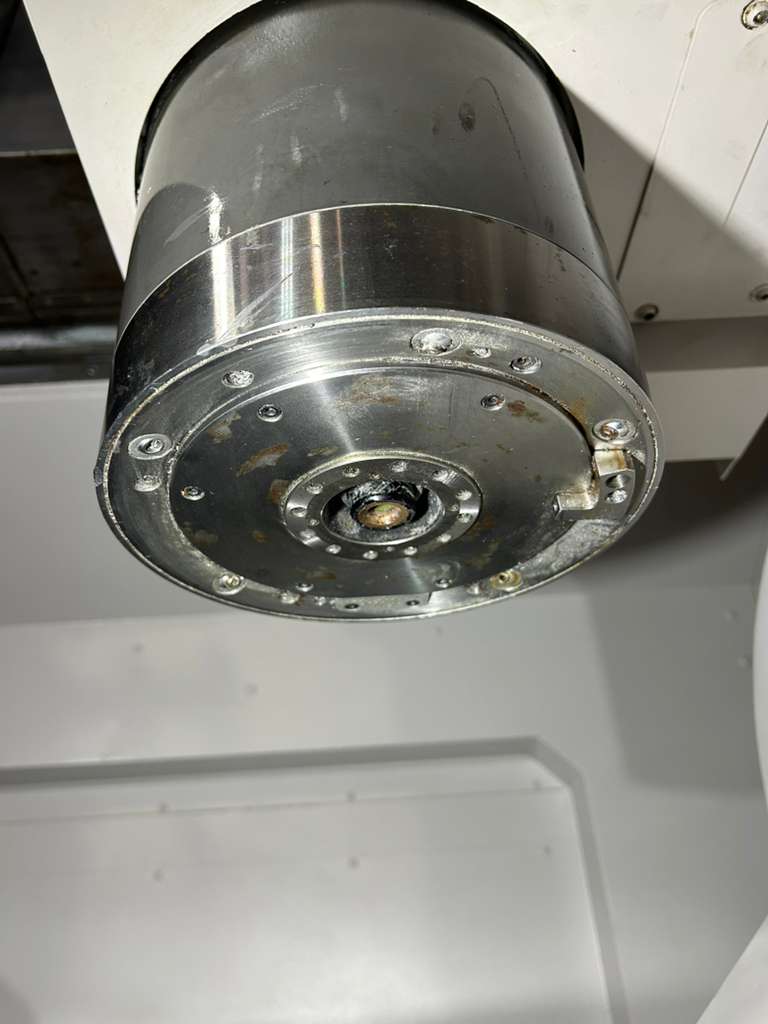

| HSK-A63 Spindle Taper |
| Built-In Turning Function for Complete Mill-Turn Machining at 1,000 RPM Table Speed |

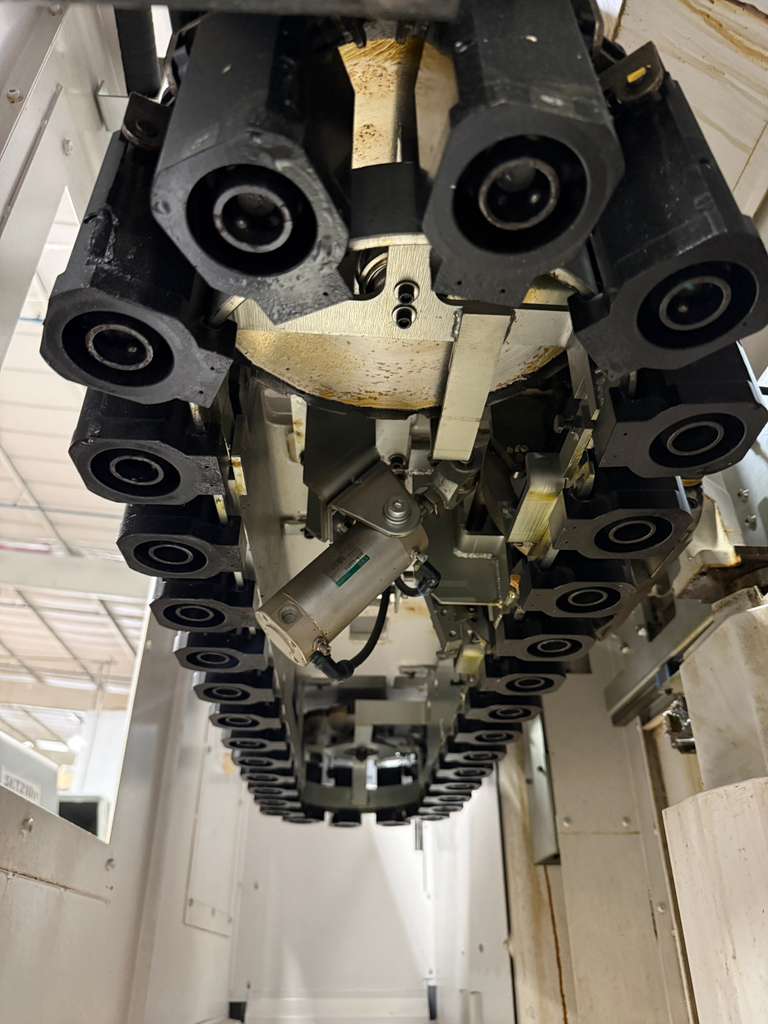

| 32 Station Automatic Tool Changer |

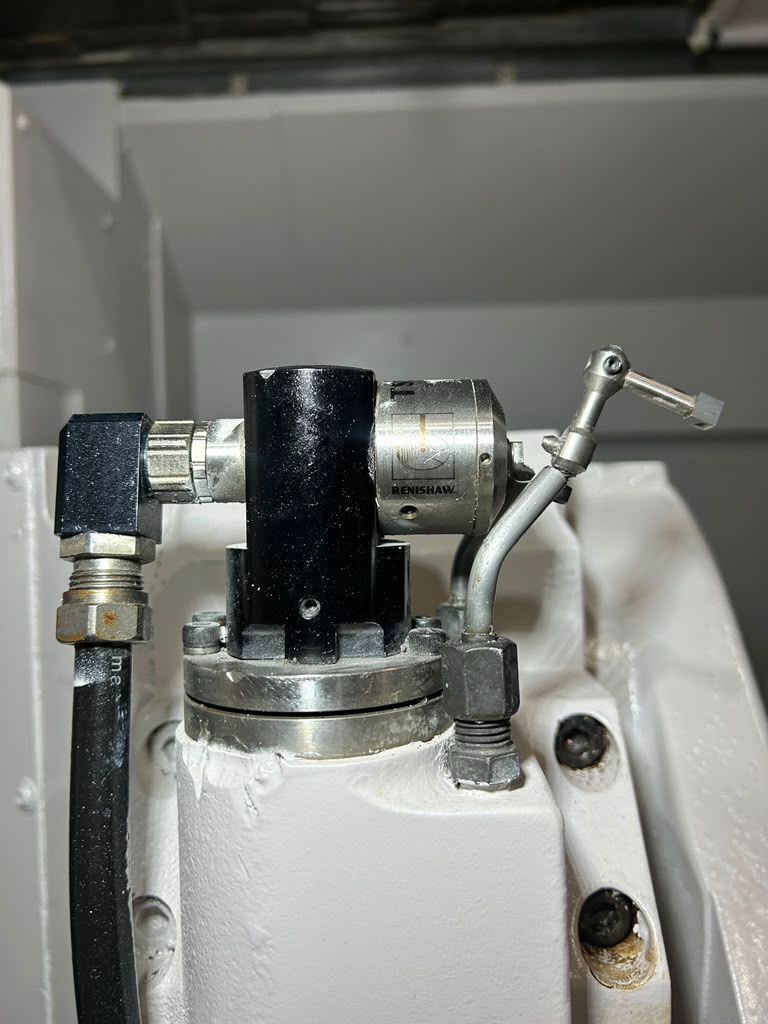

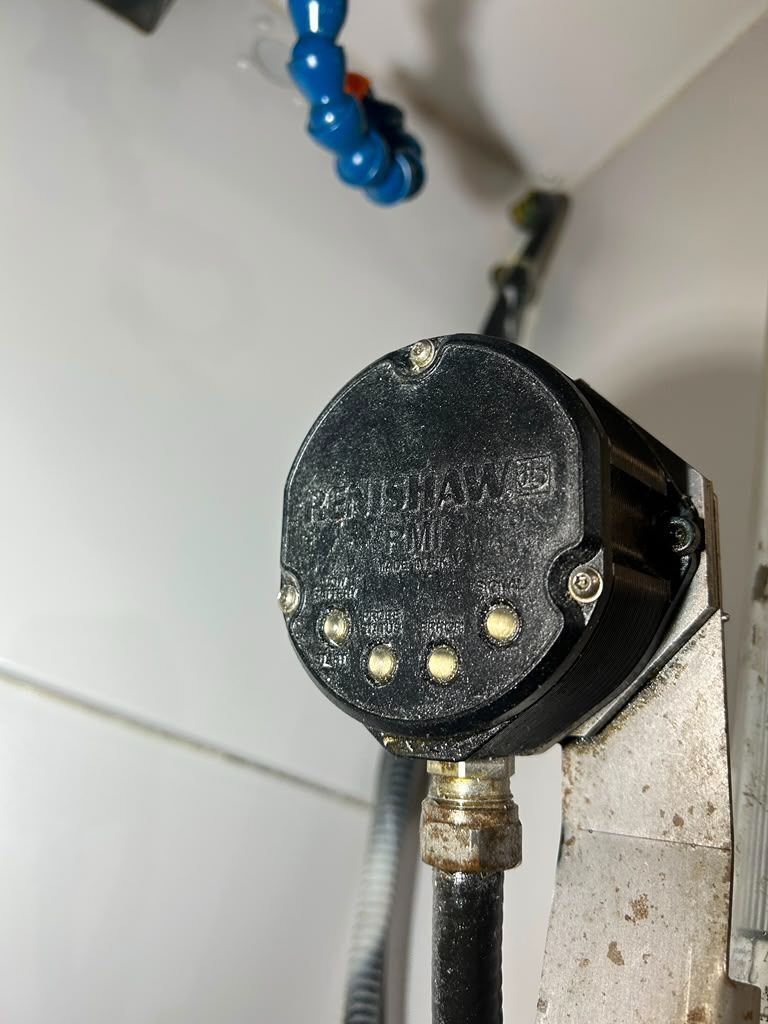

| Renishaw Receiver Installed |
| Tool Presetter |
| Through Spindle Coolant |
| MPG Hand Wheel Control |
| Spindle Chiller Unit |
| Spindle Orientation |
| Rigid Tapping |
| Coolant Tank |

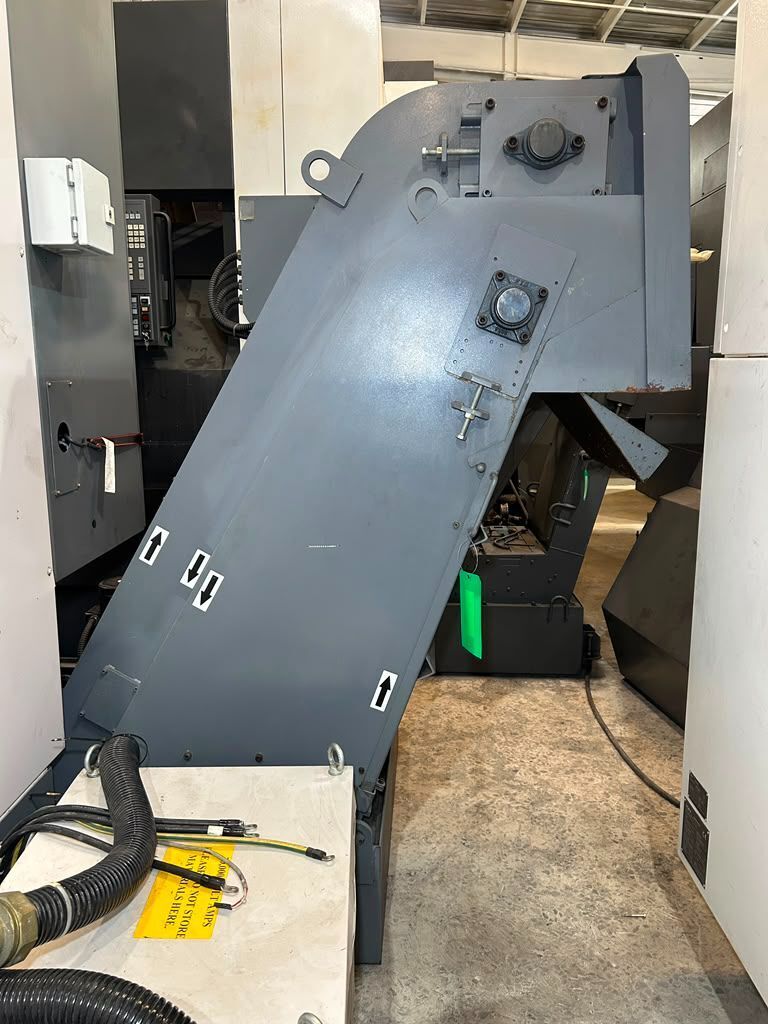

| Chip Conveyor |

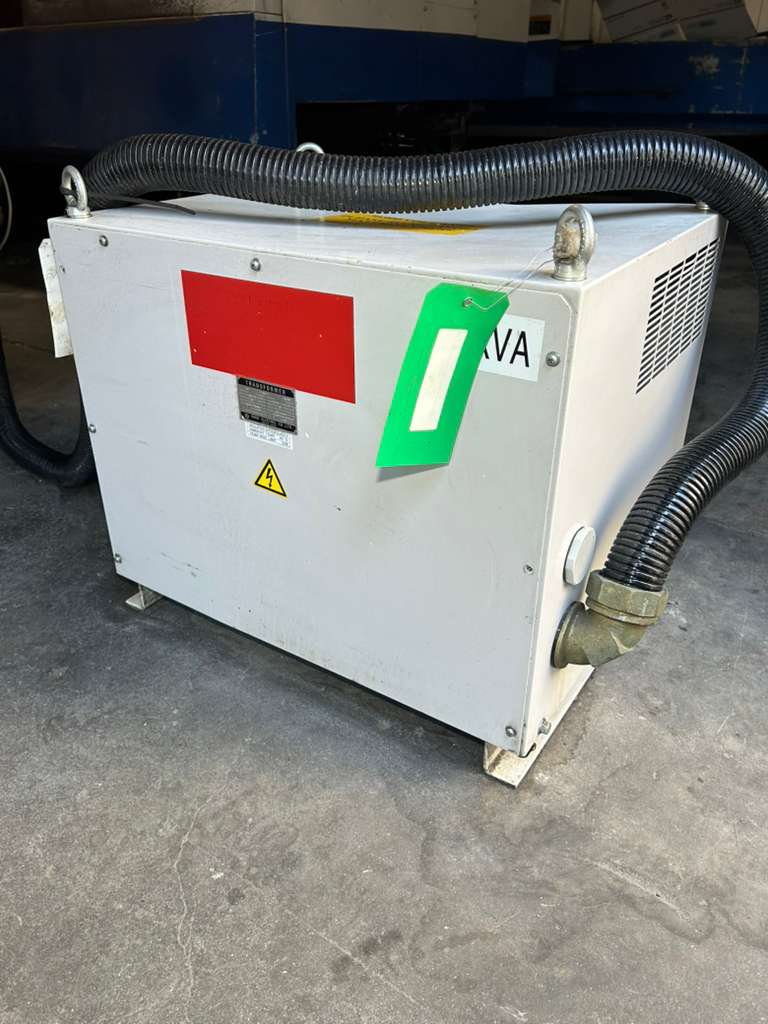

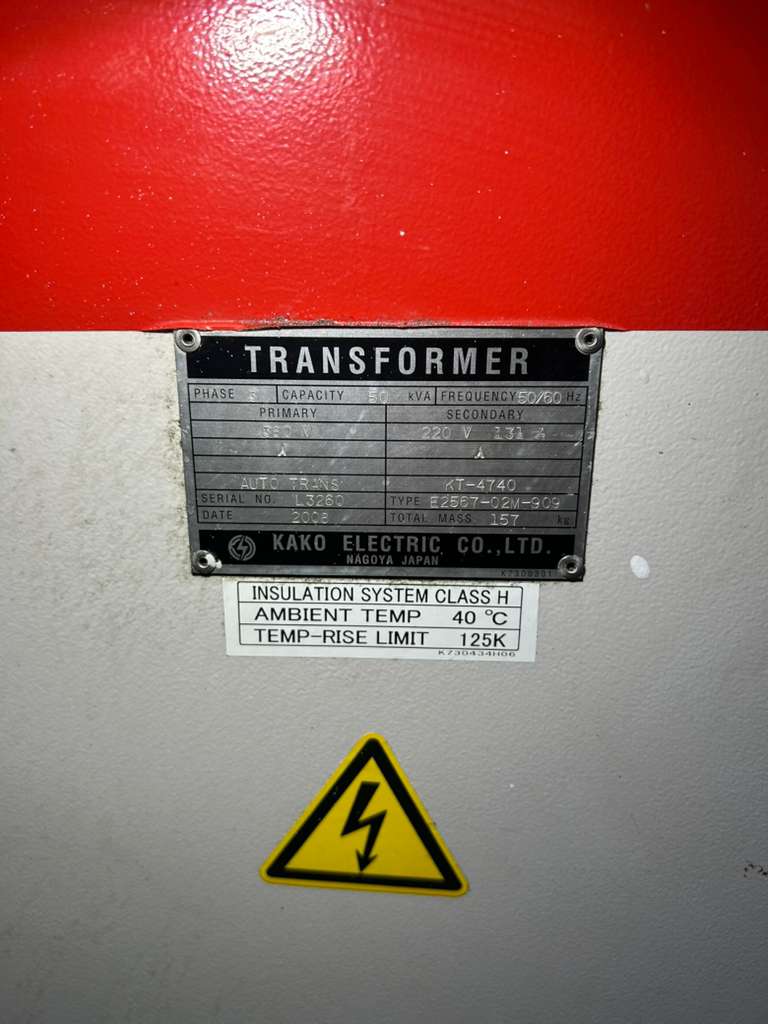

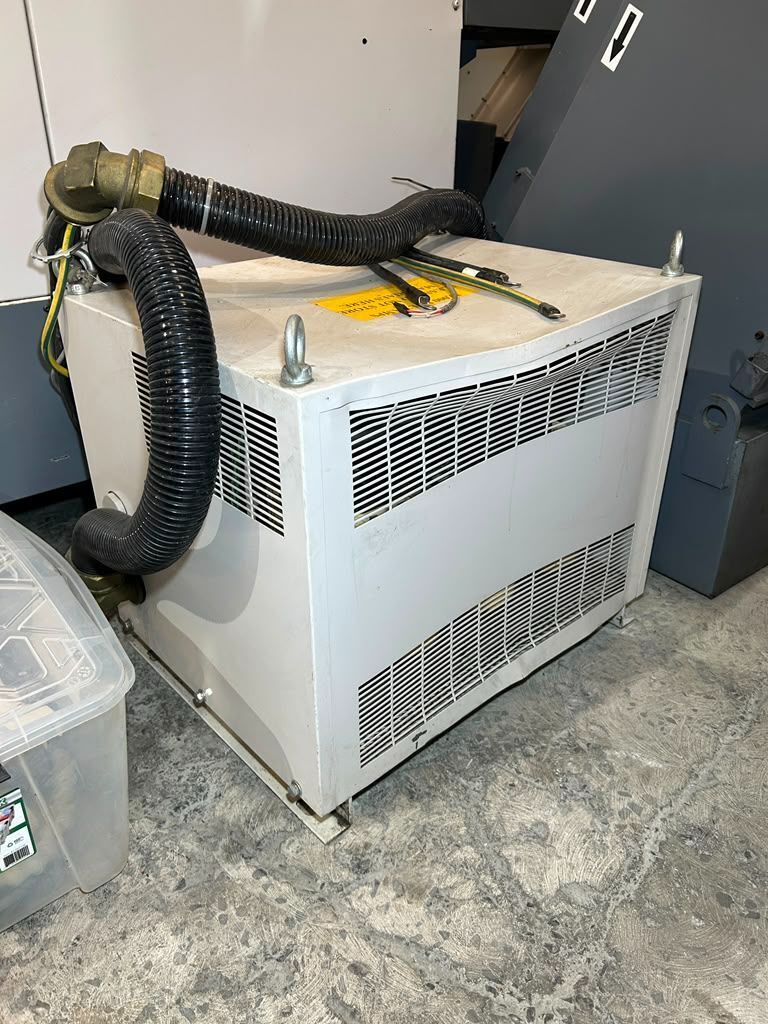

| Transformer |

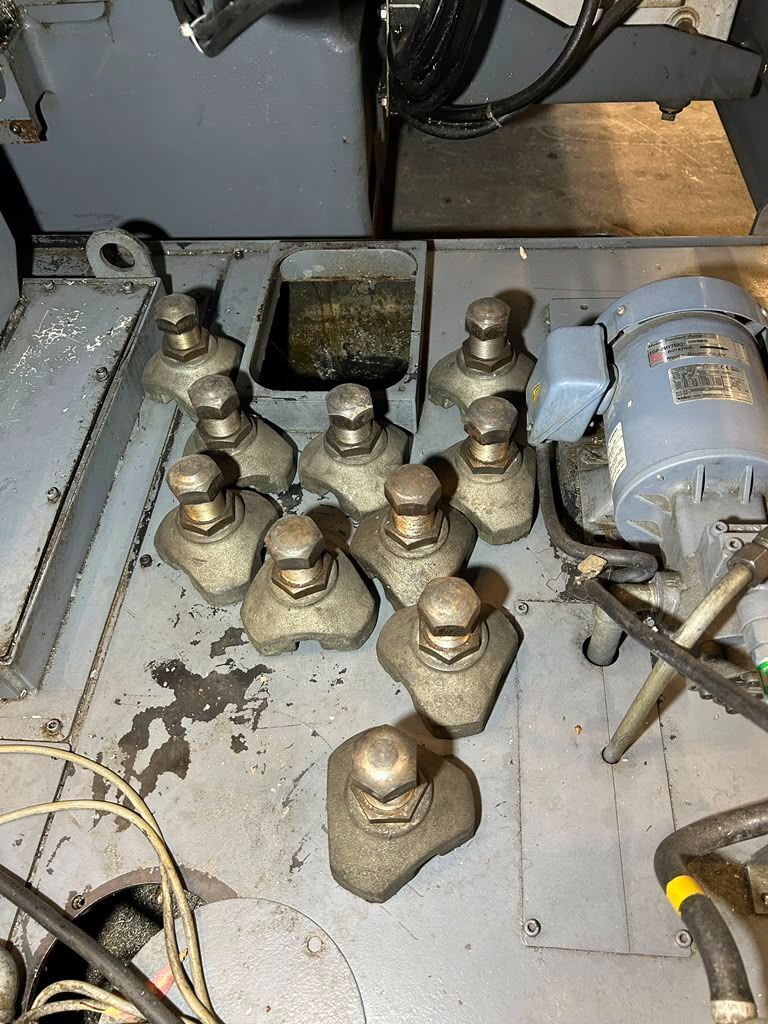

| Levelling Pads |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 49.21″ |
| Y Axis: 25.98″ |
| Z Axis: 21.26″ |
| B Axis: +20˚ / -110˚ Table Tilt |
| C Axis: 360° Table Rotate |
| Min. Increment: 0.001° |

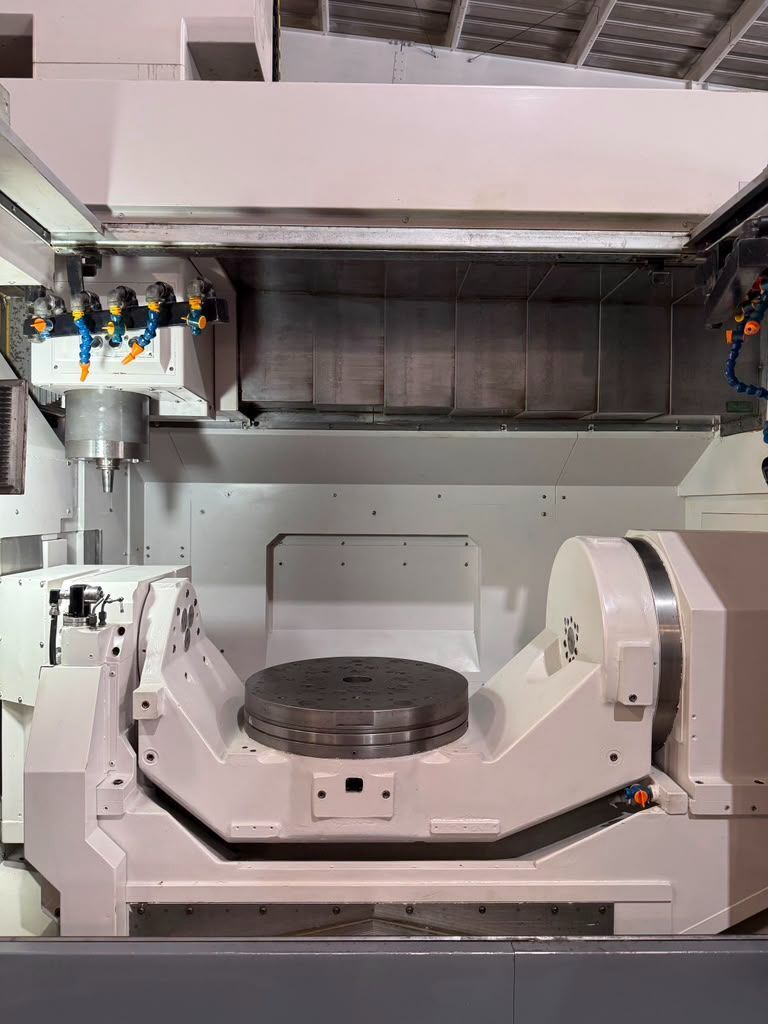

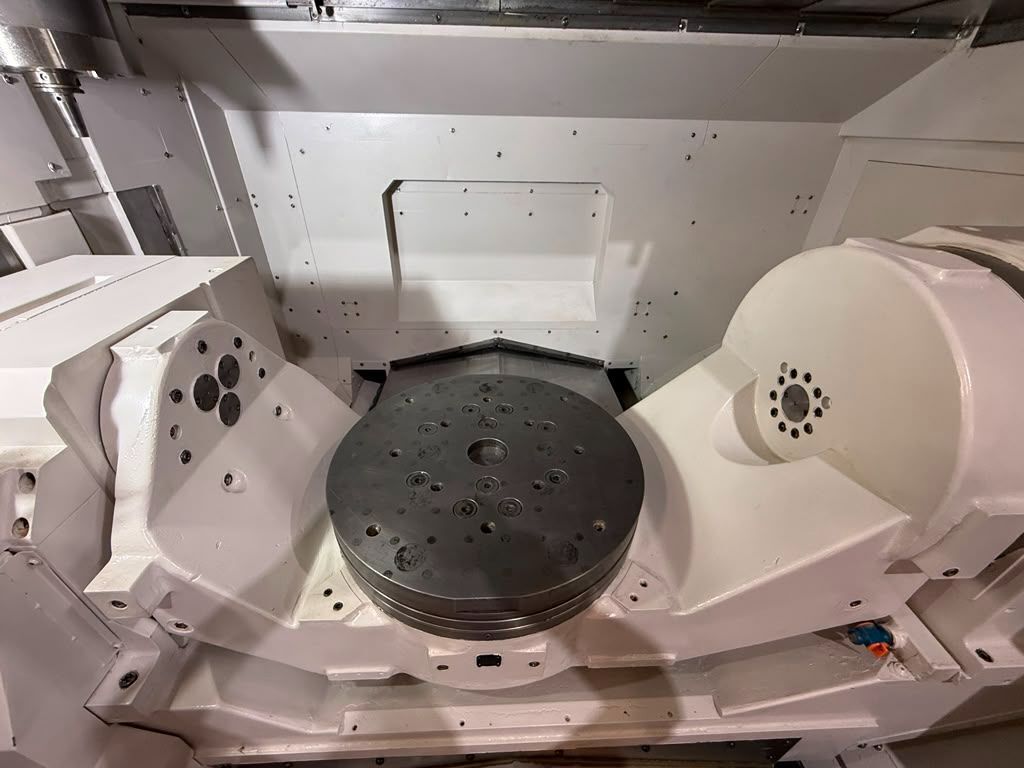

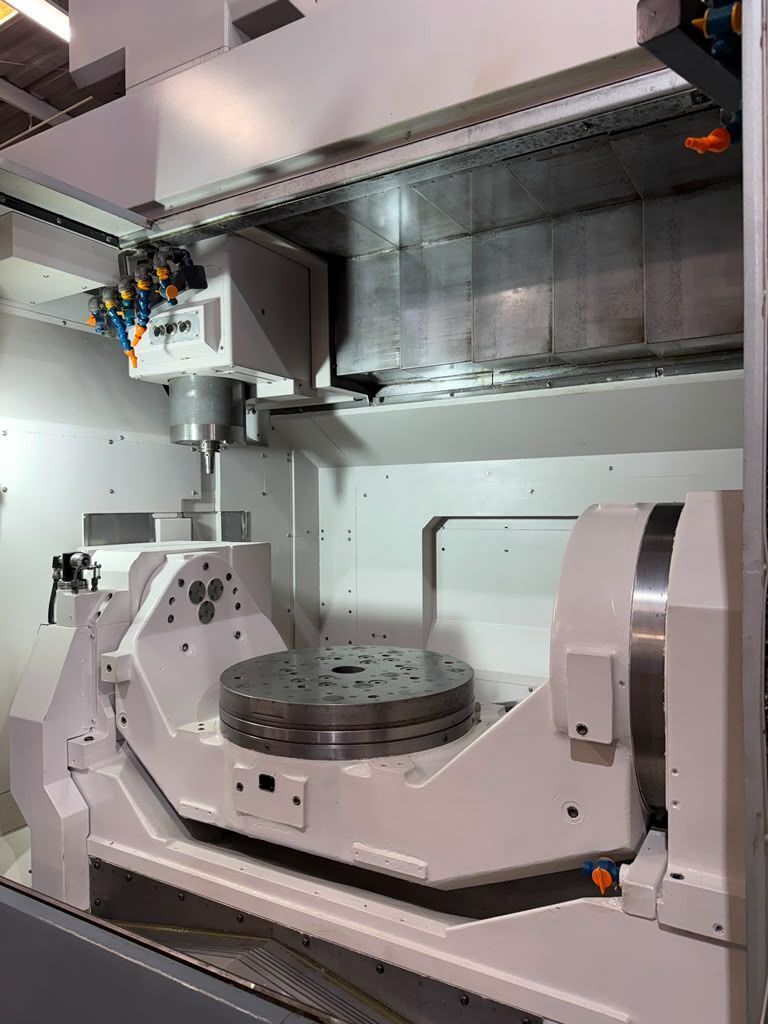

| Table: |
|---|

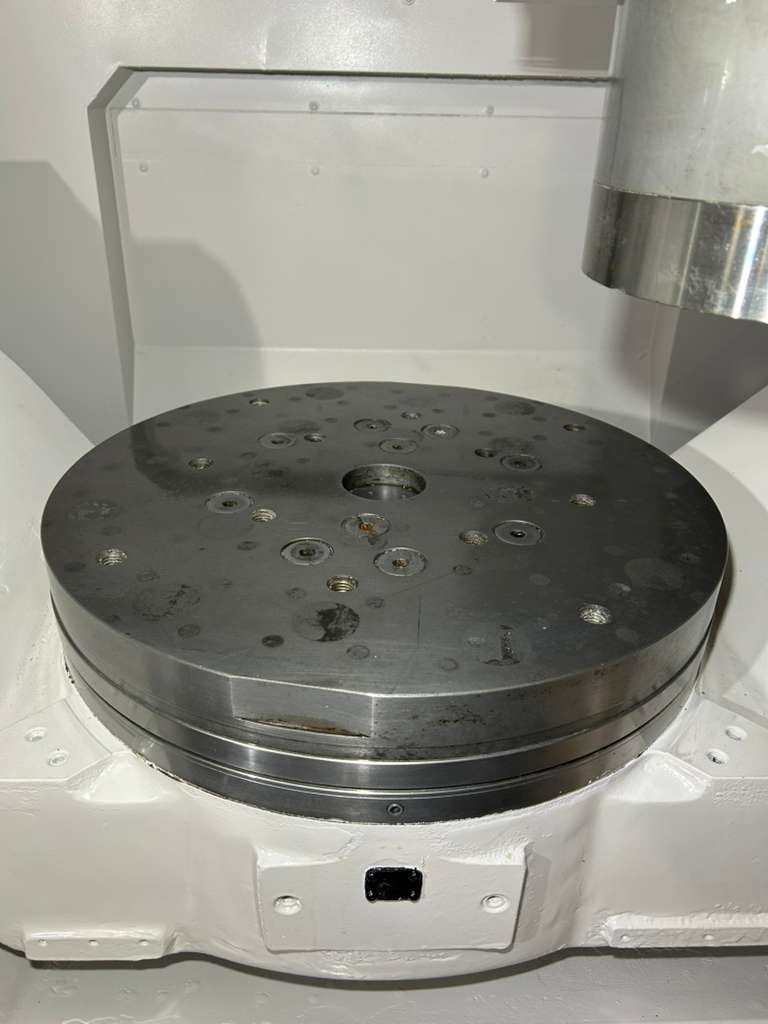

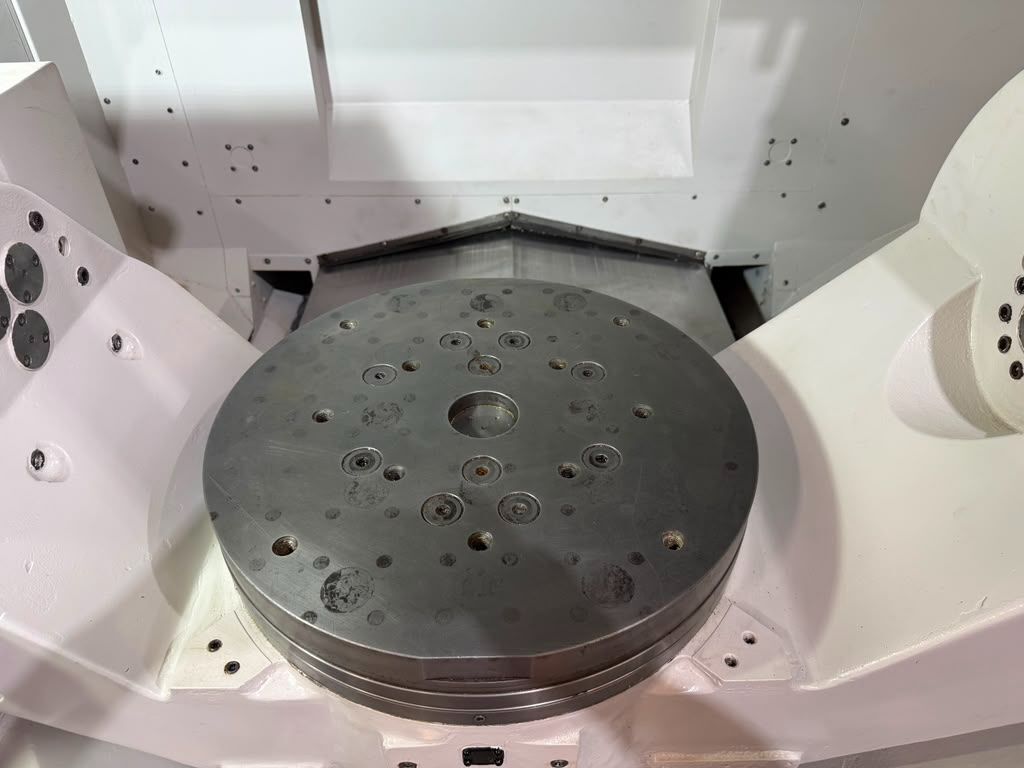

| Table Diameter: 19.69″ |
| Max Workpiece Size: ø27.56″ × H19.69″ |
| Max Weight On Table: 1,100 lbs |
| Turning Spindle Speed: 1,000 RPM |

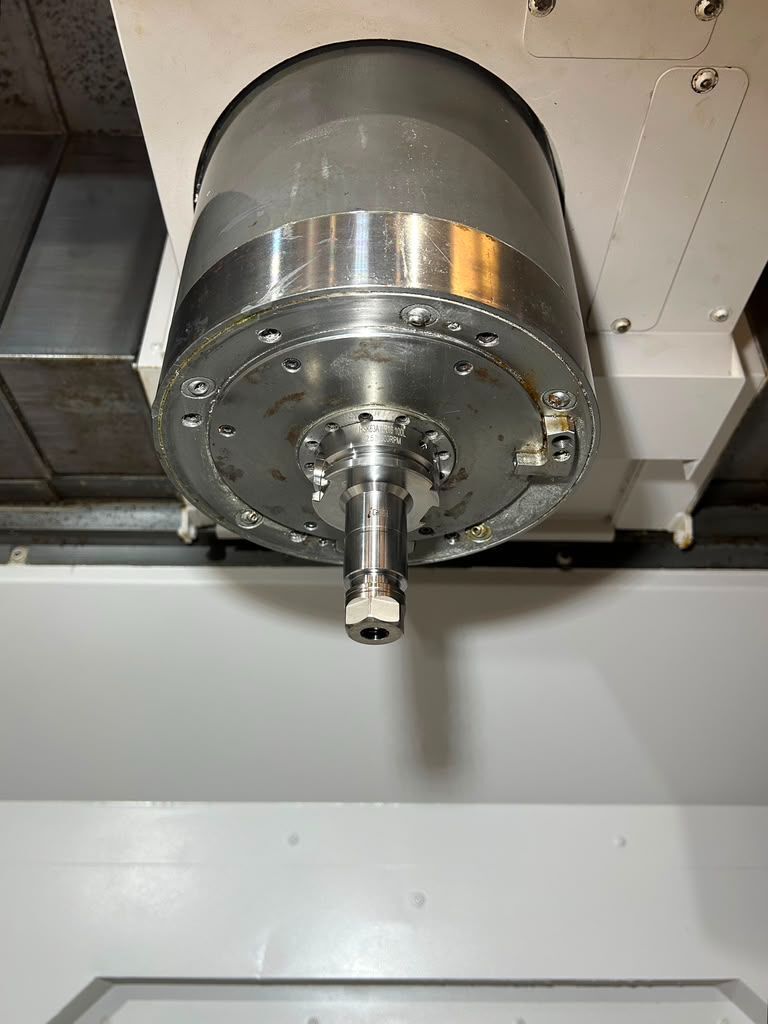

| Spindle: |
|---|
| Taper Size: HSK-A63 |
| Speed Range: 15,000 RPM |
| Spindle Power: 30 HP |
| Feed Rates: |
|---|
| Rapid X, Y, Z Axis: 1,969 IPM |
| Cutting Feed Rate: 1,969 IPM |
| Tool Changer: |
|---|
| Capacity: 32 Tools |
| Taper: HSK-A63 |
| Max Tool Size: 3.54″ x 15.75″ |
| Max Tool Weight: 18 lbs |
| General: |
|---|
| Air Required: 80 PSI, 4 SCFM |

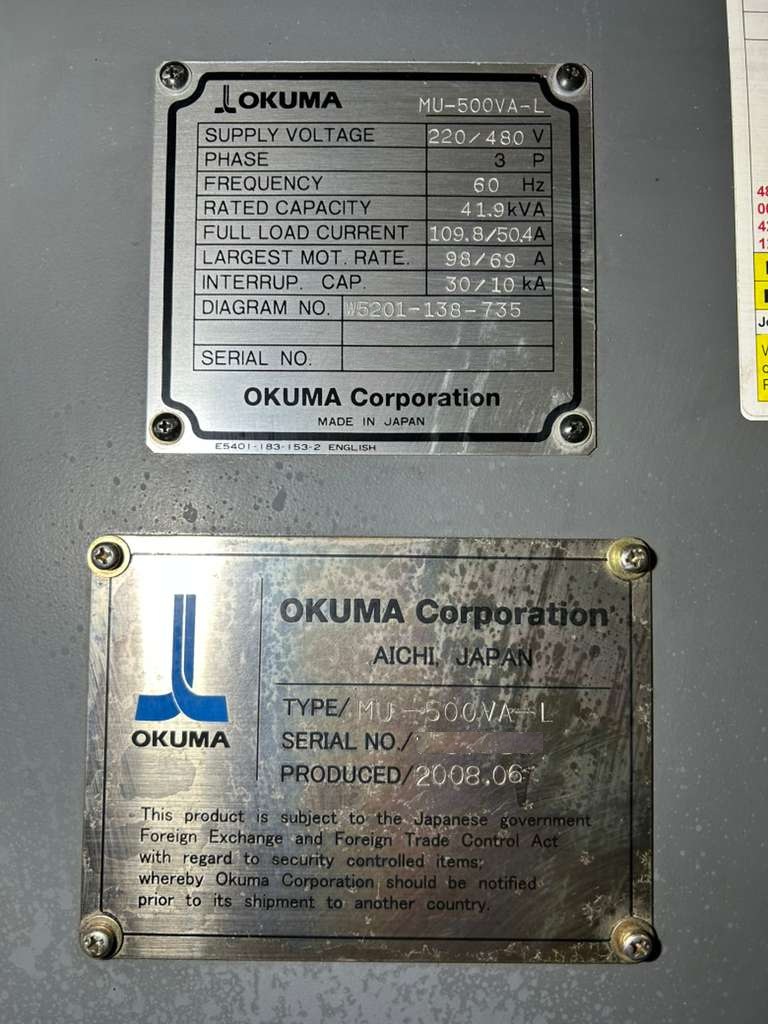

| Power: 41.9 kVA / 220/480V / 3-Phase |
| Overall Dimensions: 157″ x 108″ x 135″ High Approx. |
| Weight: 33,880 lbs Approx. |
