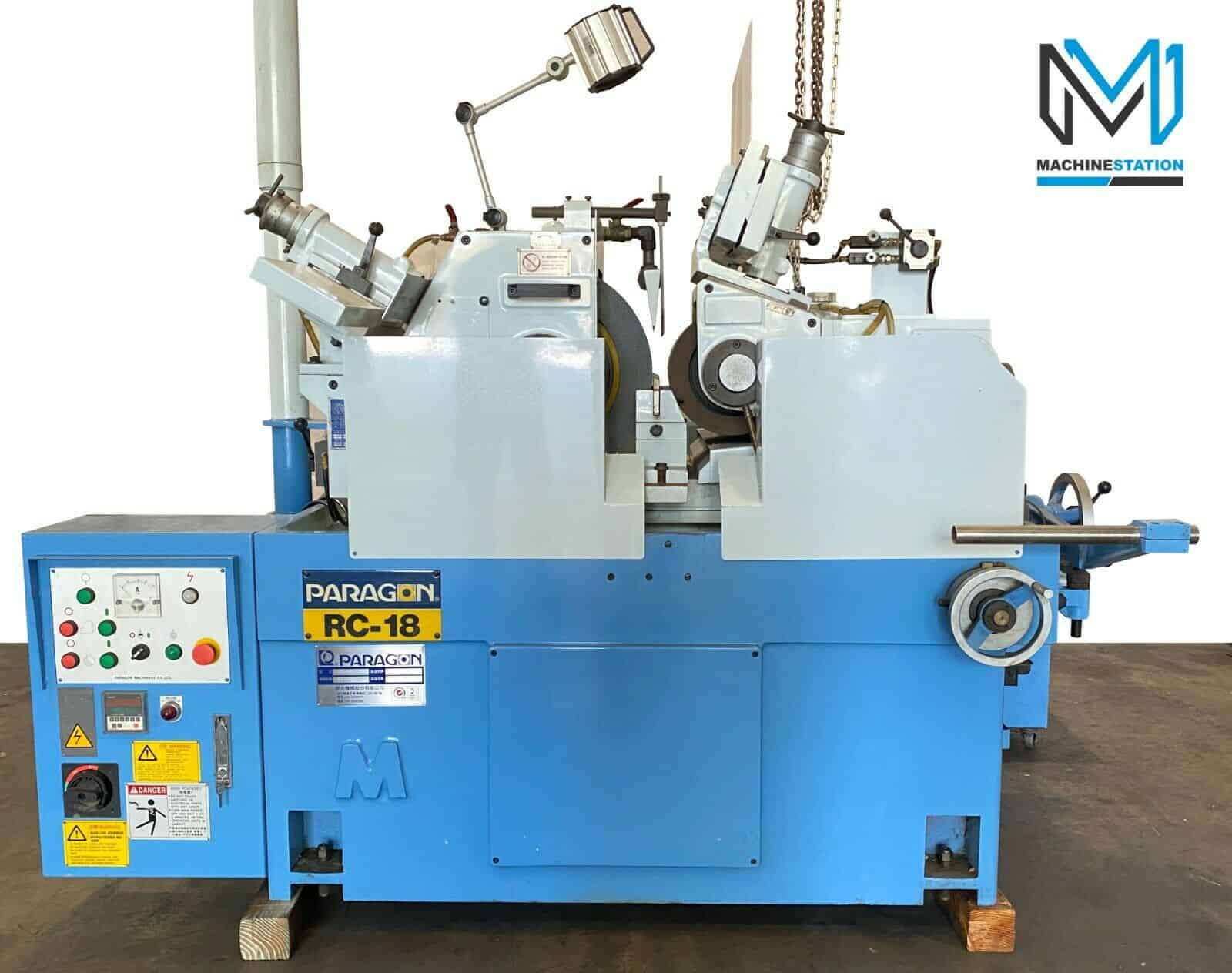

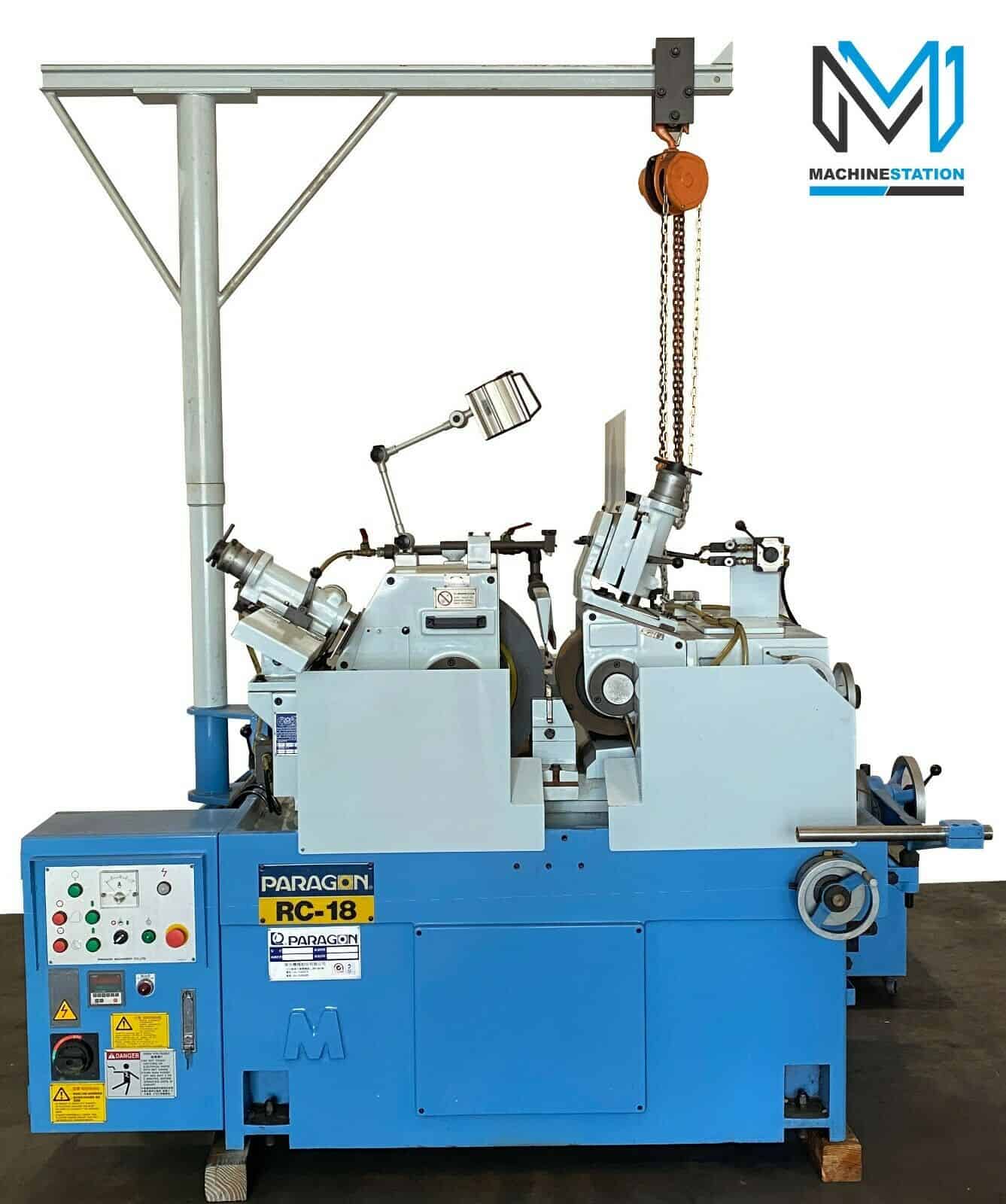

Paragon RC-18 Centerless grinder Auto Dresser

5.00 out of 5 based on 1 customer rating
(1 customer review)

Out of stock

SKU:
2186
Categories: , , ,

Product Description

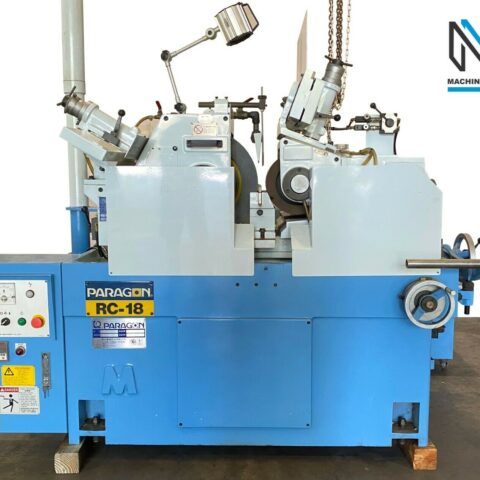

PARAGON RC-18 CENTERLESS GRINDER AUTO DRESSER

SKU # 2186

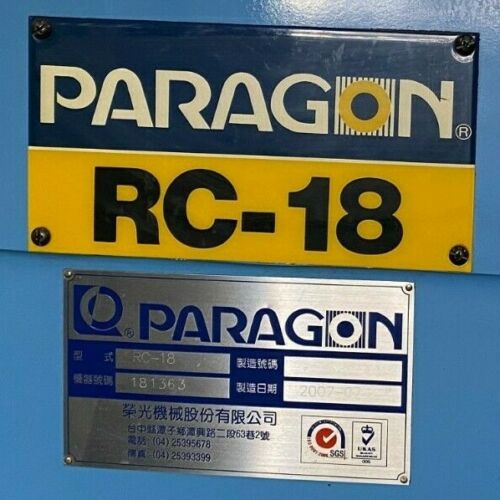

Make: PARAGON
Model #: RC-18
Serial #: 181363
Year: 2008
Condition: Very Good

All specifications are approximations, and are subject to verification.

Paragon RC-18 Centerless grinder Equipped With:
Fanuc 21-GA
Absolute/Incremental Combined Programming
4 x Subprograms
Swivelable Table
MPG Control
2 X Steady Rests
Inch / Metric Conversion
Stored Stroke Check
Auto Reference Point Return
Automatic Acceleration & Deceleration

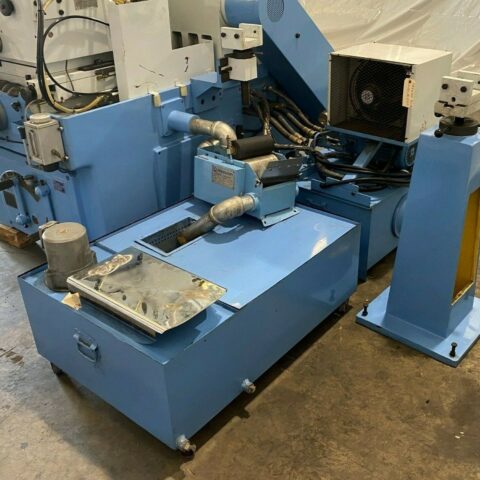

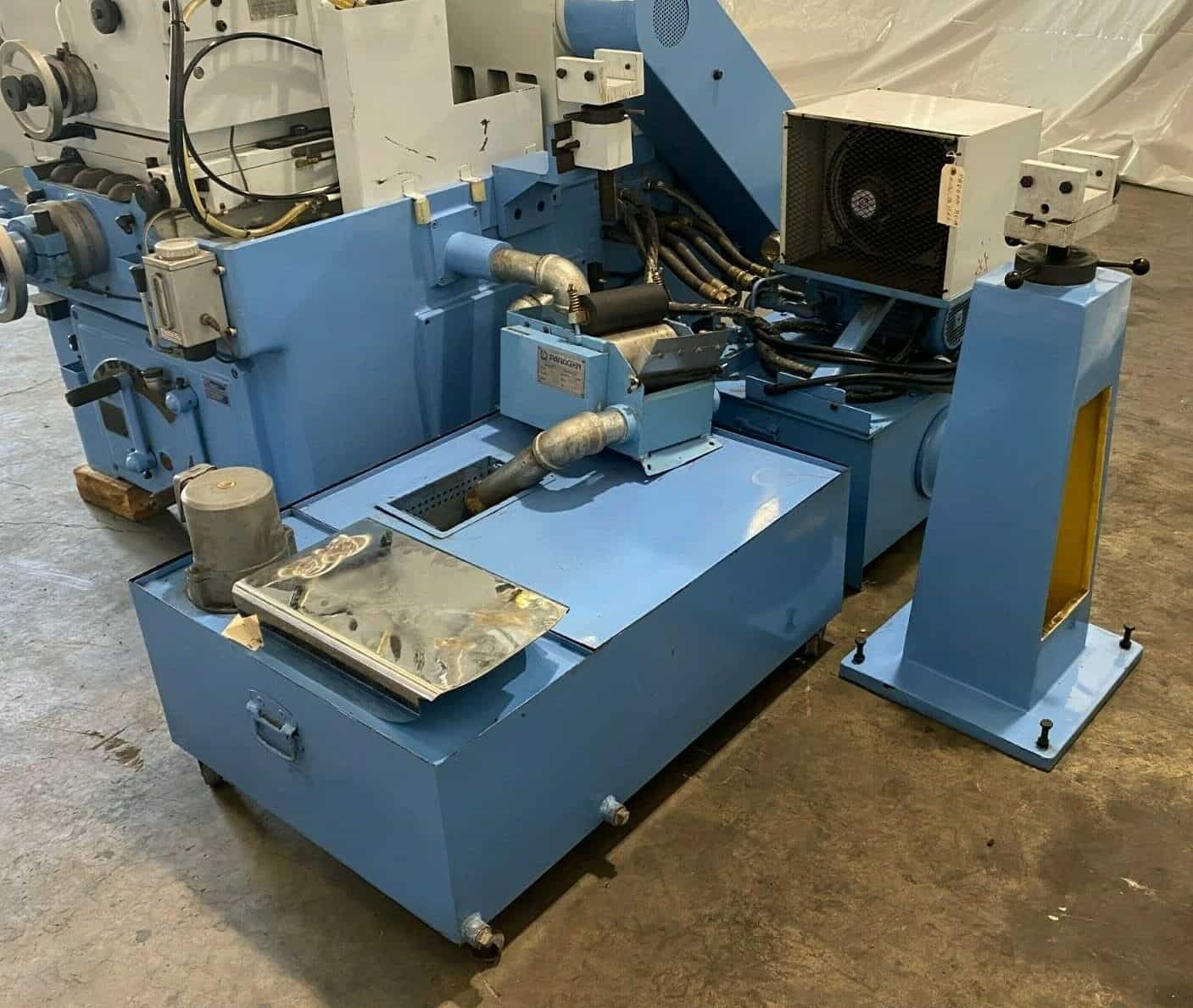

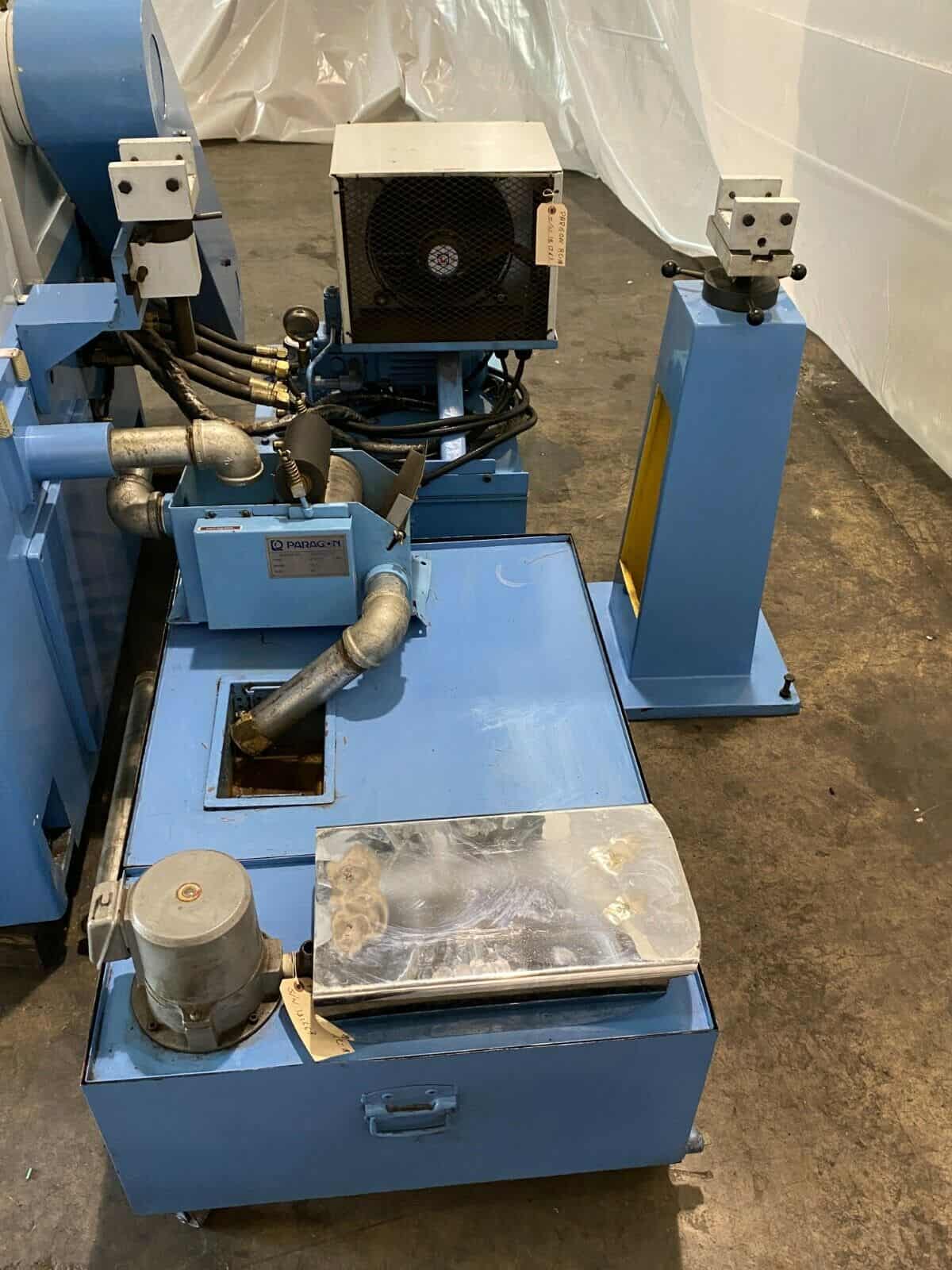

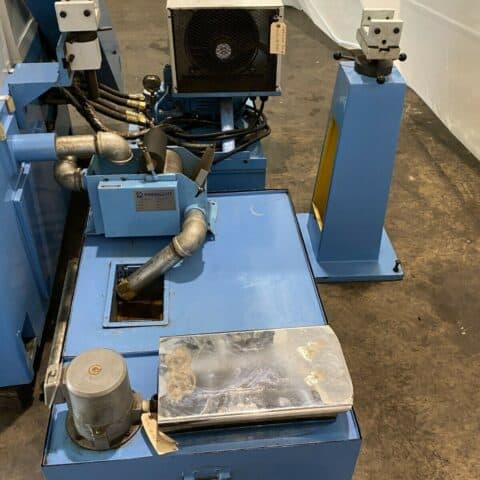

Coolant System
Automatic Lubrication system
Manuals

Paragon RC-18 Centerless grinder Specifications:
Max Grinding Diameter: 11.81″
Max Grinding Length: 62.99″
Max load Capacity: 330 lbs
Swing Over Table: 12.59″
Distance Between Centers: 63.0″

Grinding Wheel:
Speed: 1742 RPM
wheel Size: 16″ X 2″ X 5″

Wheelhead:
X Axis, Infeed Travel: 11.81″
Handfeed Travel: 7.9”
Least Travel Increment: 0.0001”
Rapid Feed Rate: 158″
Cont. Feed Rate: 0.0001″ to 158″
Motor: 7.5 HP

Workhead:
Center Taper: MT-4
Spindle Bore Dia.: 0.68″
Speed: 10-500 RPM
Motor: 1 HP

Table:
Z Axis Travel: 68.89″
Swivel Angle: +2 /- 6°
Least Tavel Increment: 0.0001”
Rapid Feed Rate: 393″
Cont. Feed Rate: 0.0001″ to 393″

Tailstock:
Tailstock Quill Stroke: 1.18″
Tailstock Taper: MT-4

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 20 kva
Overall Dimensions: 245″ x 75″ x 66″ High
Weight : 11200 lbs Approx.

“No Charges for loading at list Price”
