*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

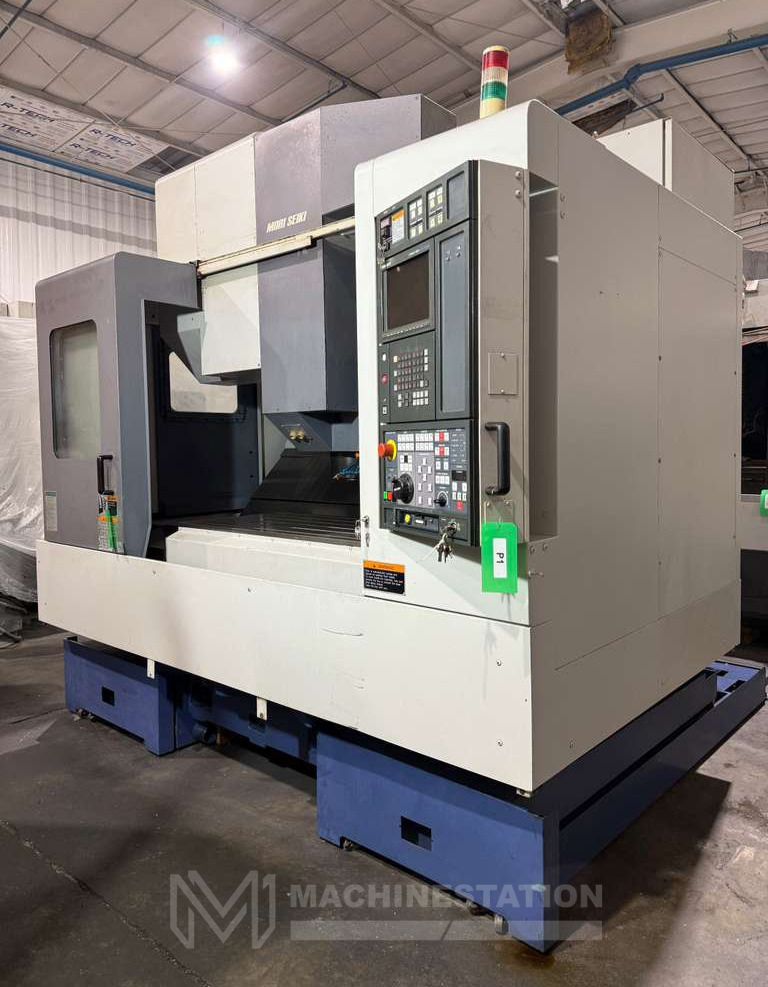

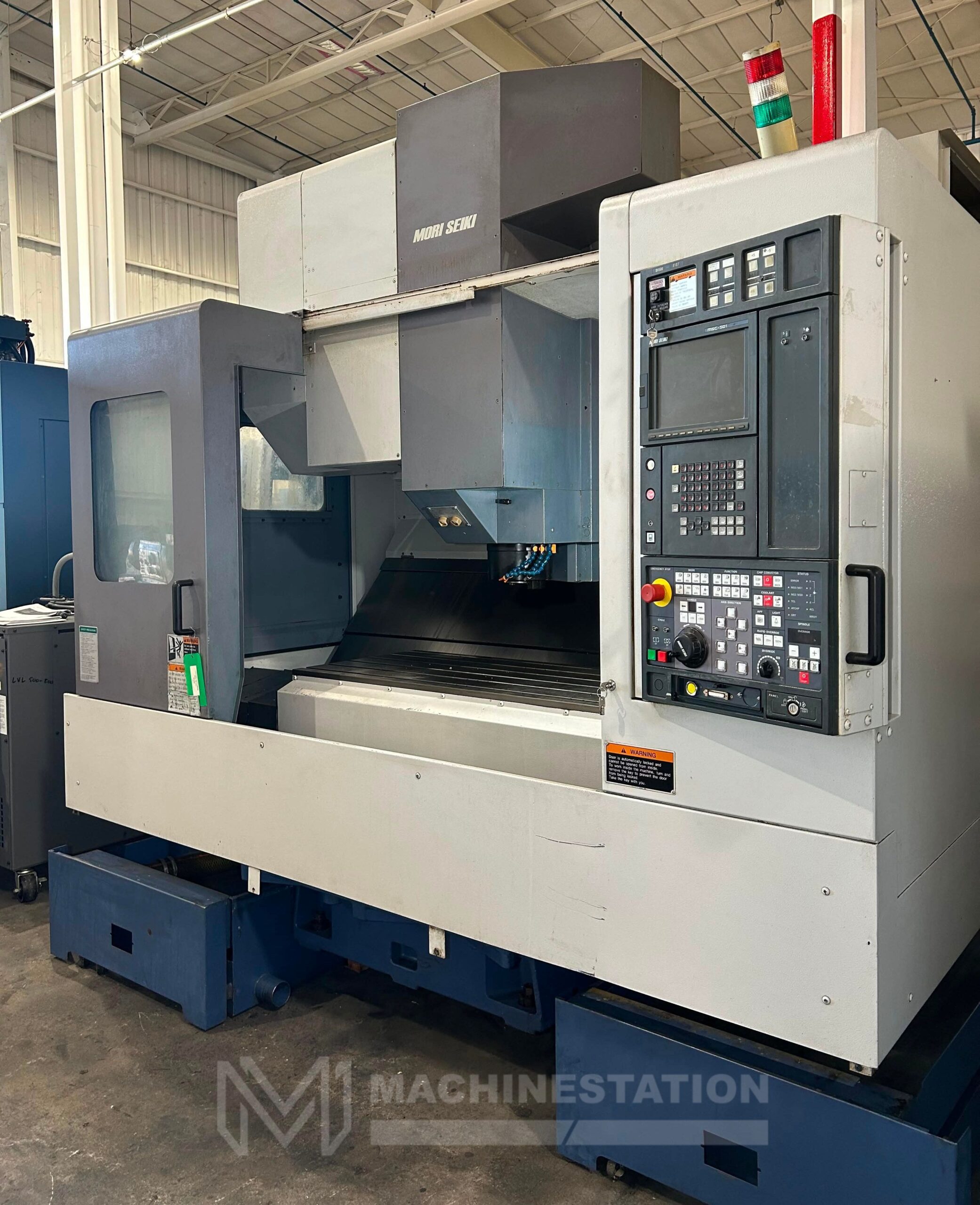

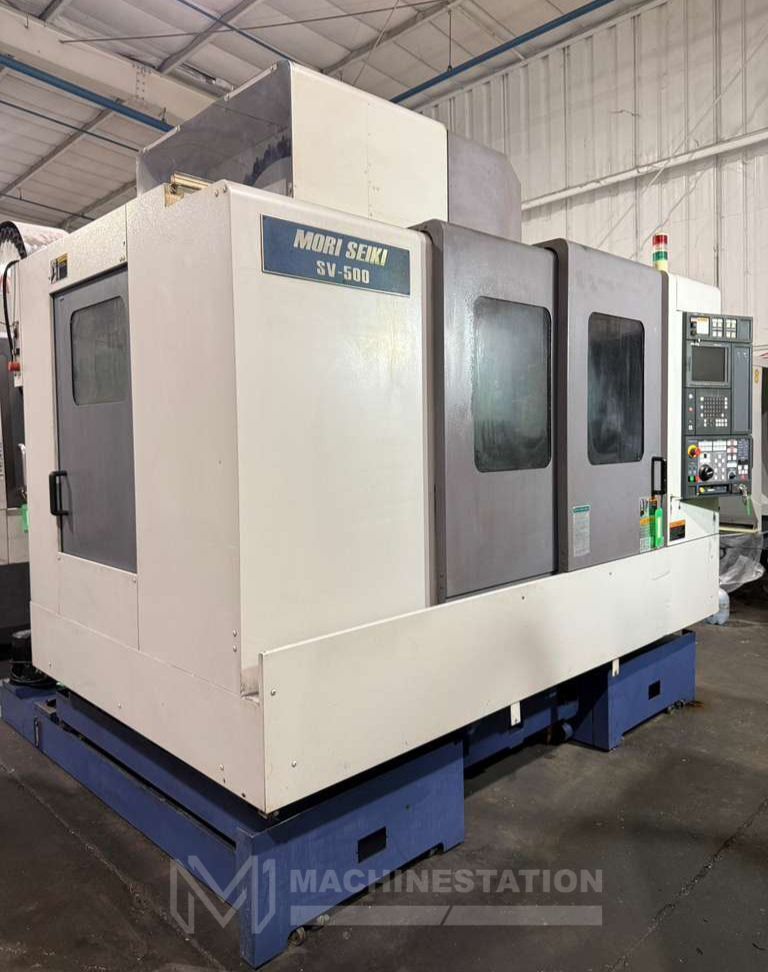

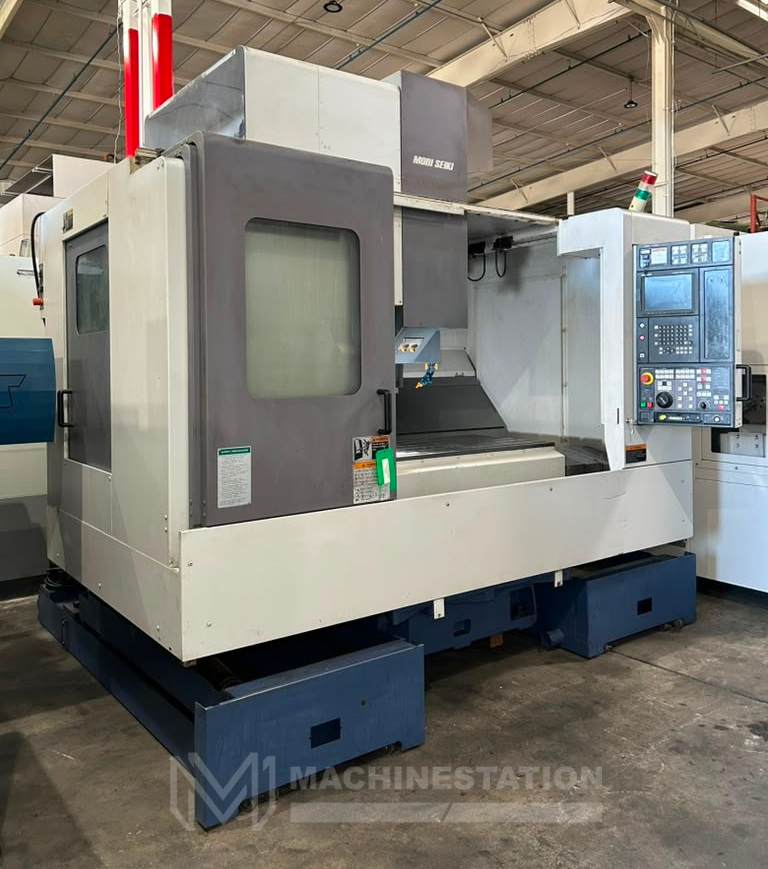

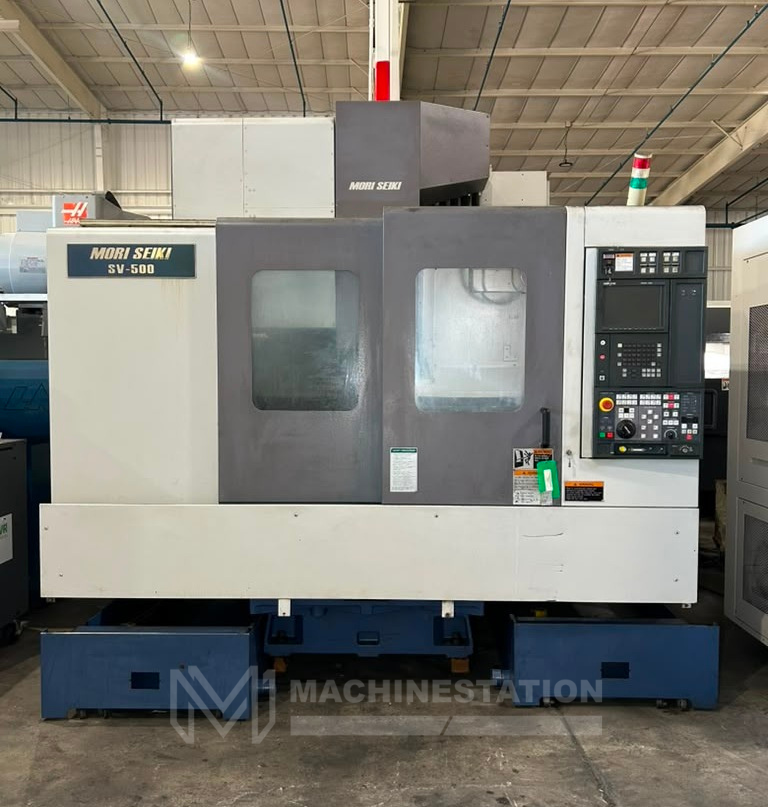

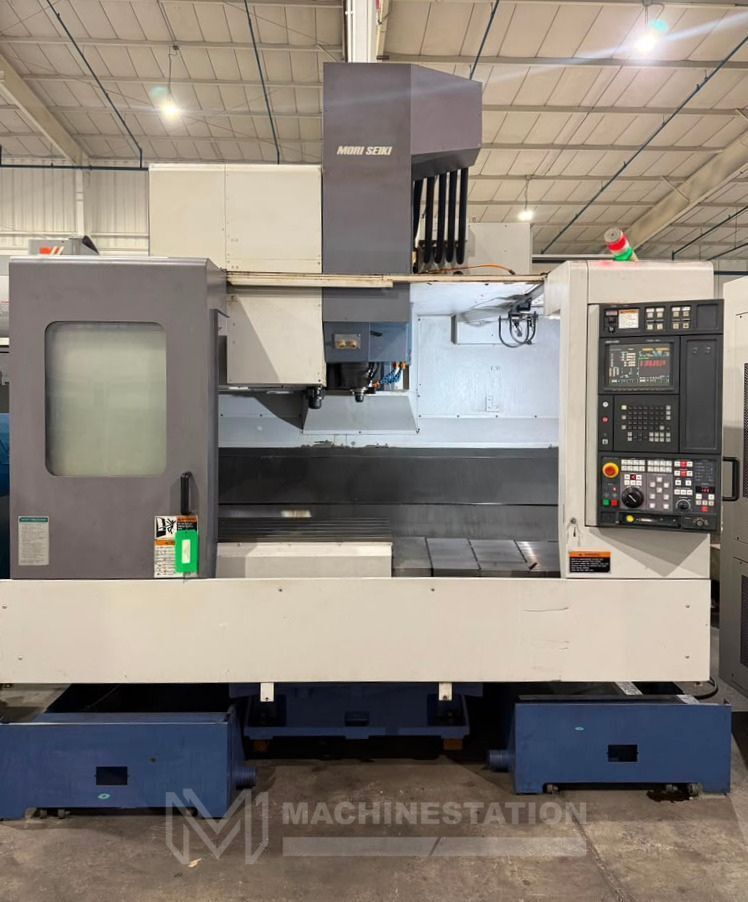

| Make: | Mori Seiki |
| Model: | SV-500B/40 |
| Year: | 1999 |
| Condition: | Used – Good |
| Equipped With: |
|---|

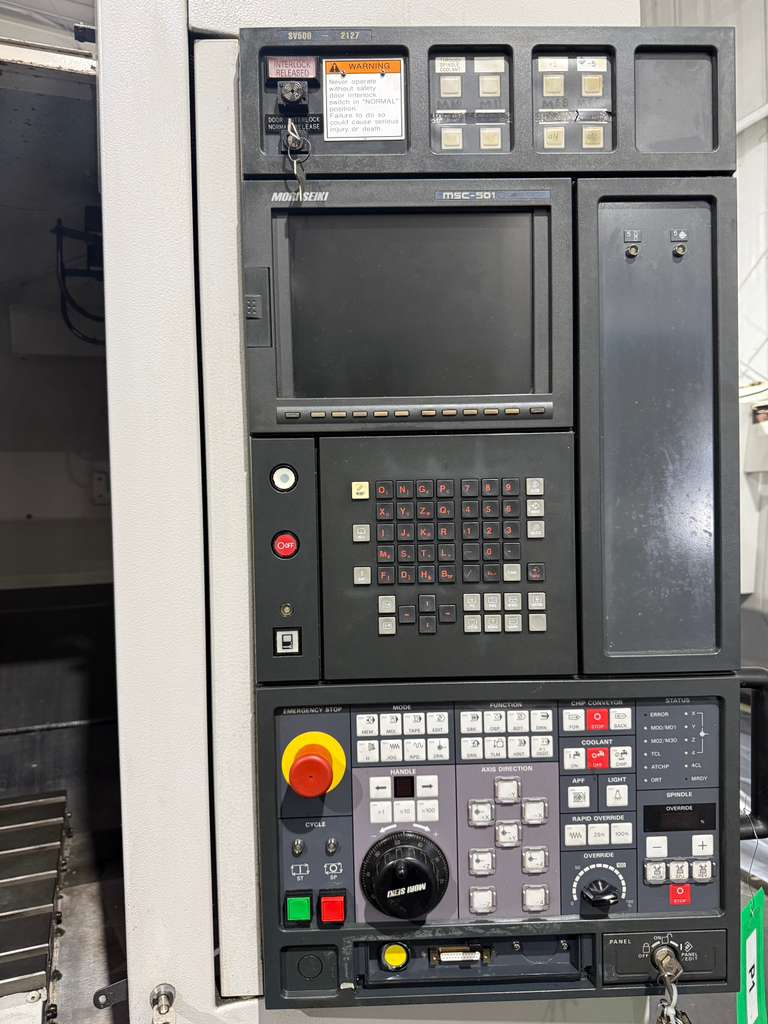

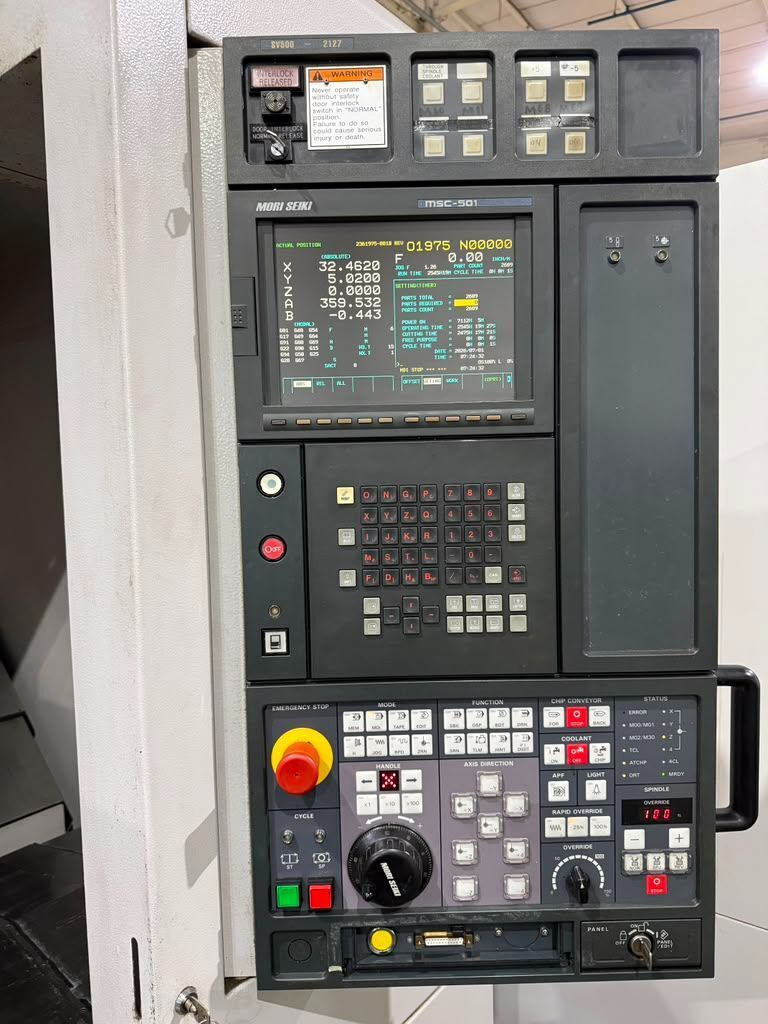

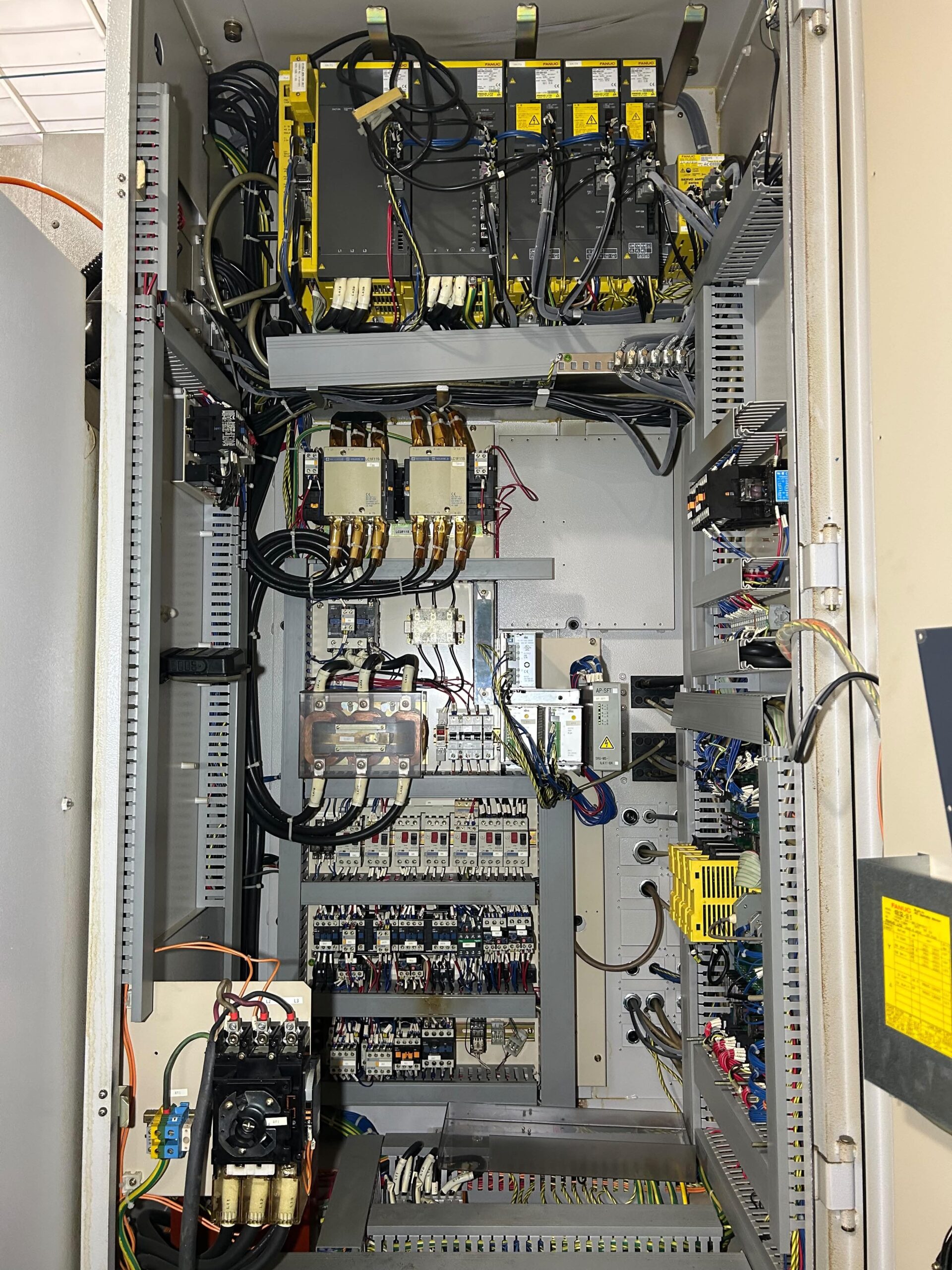

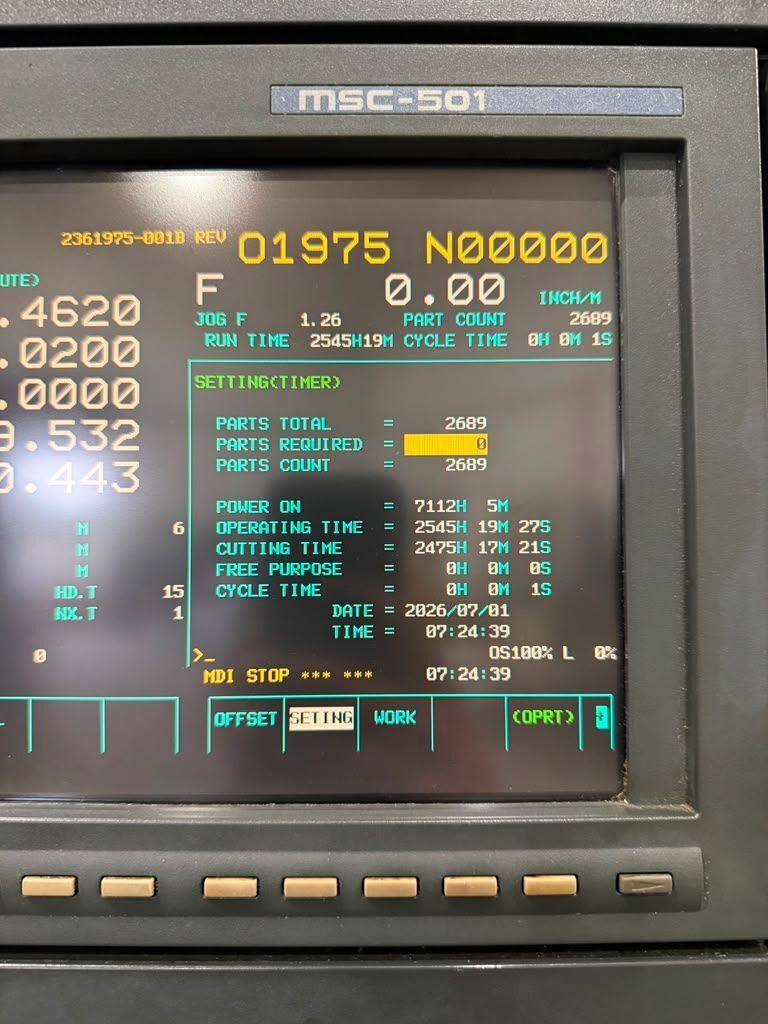

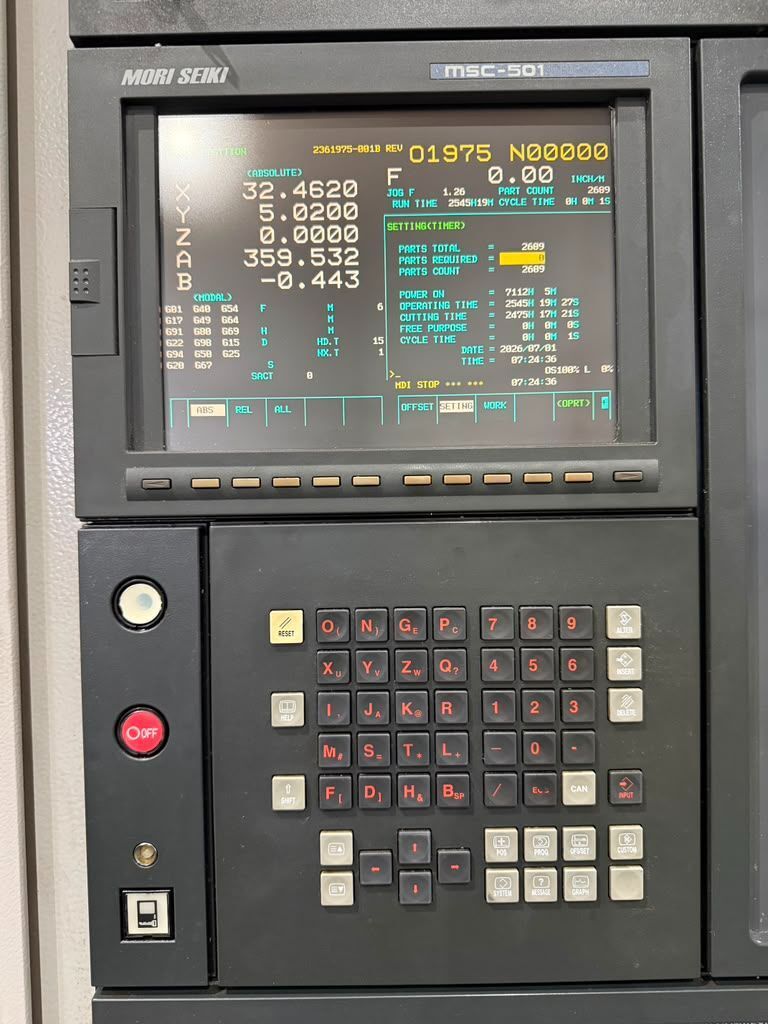

| MSC 501 ( Fanuc ) CNC Control |

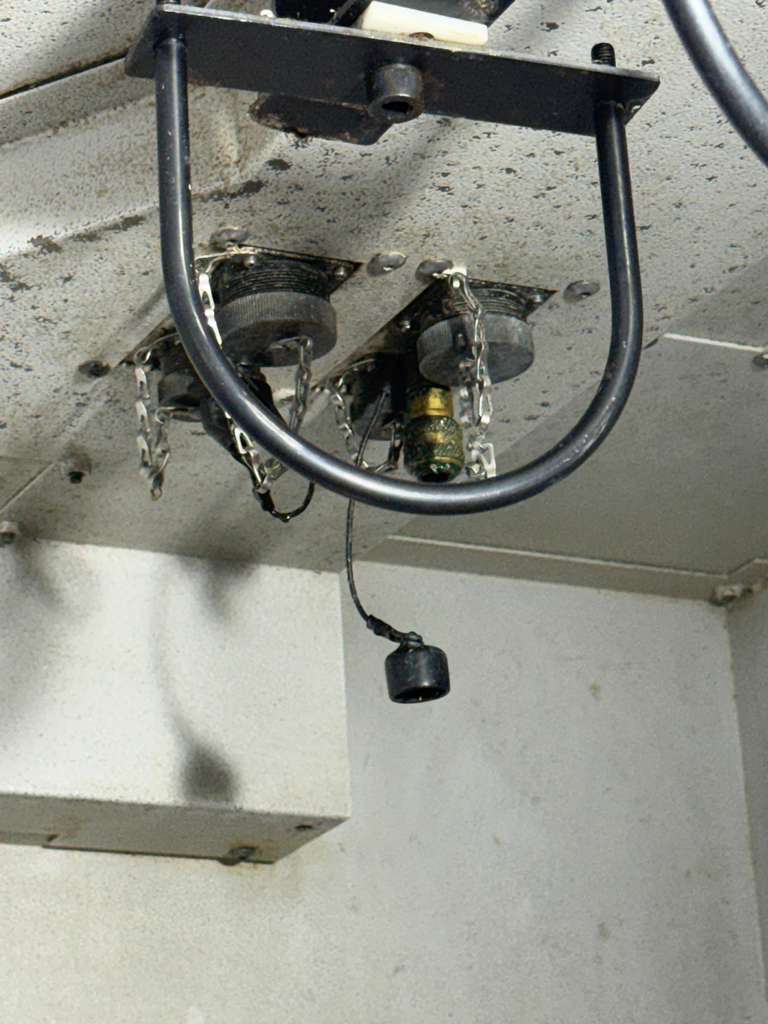

| 4th & 5th Axis Ready |
| CAT-40 Taper 12,000 RPM Spindle |
| 30 Station Automatic Tool Changer |
| Powerful 30 HP high torque Spindle Motor |
| Spindle Orientation |
| Rigid Tapping |
| Spindle Chiller Unit |
| Automatic Lubrication System |

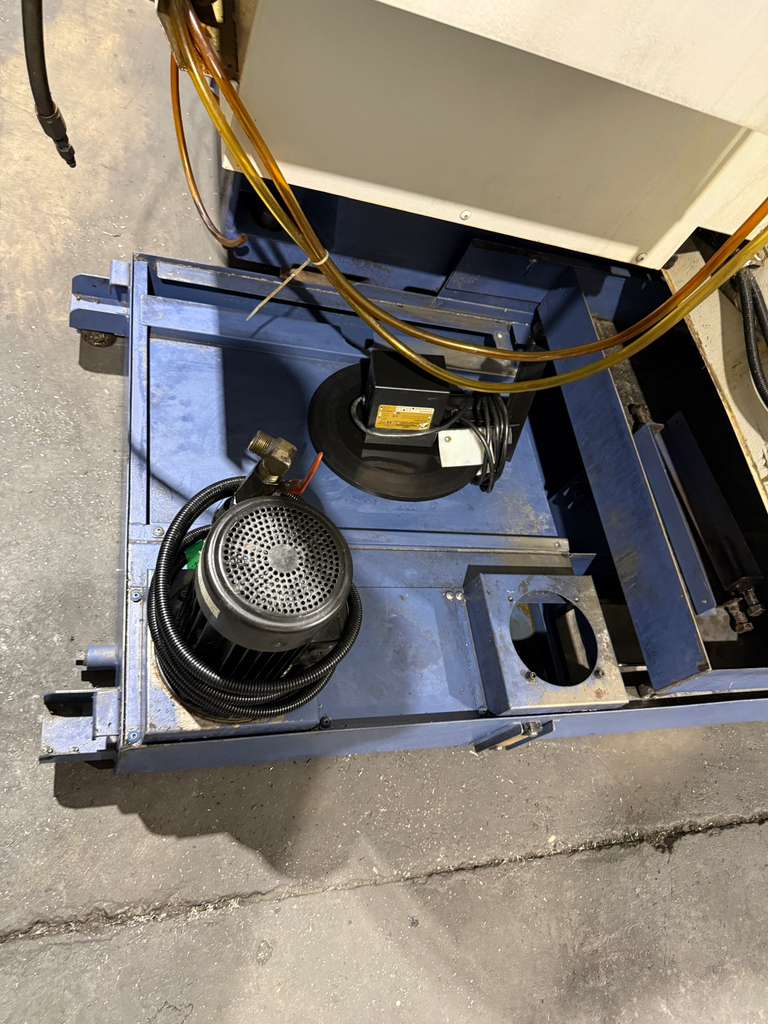

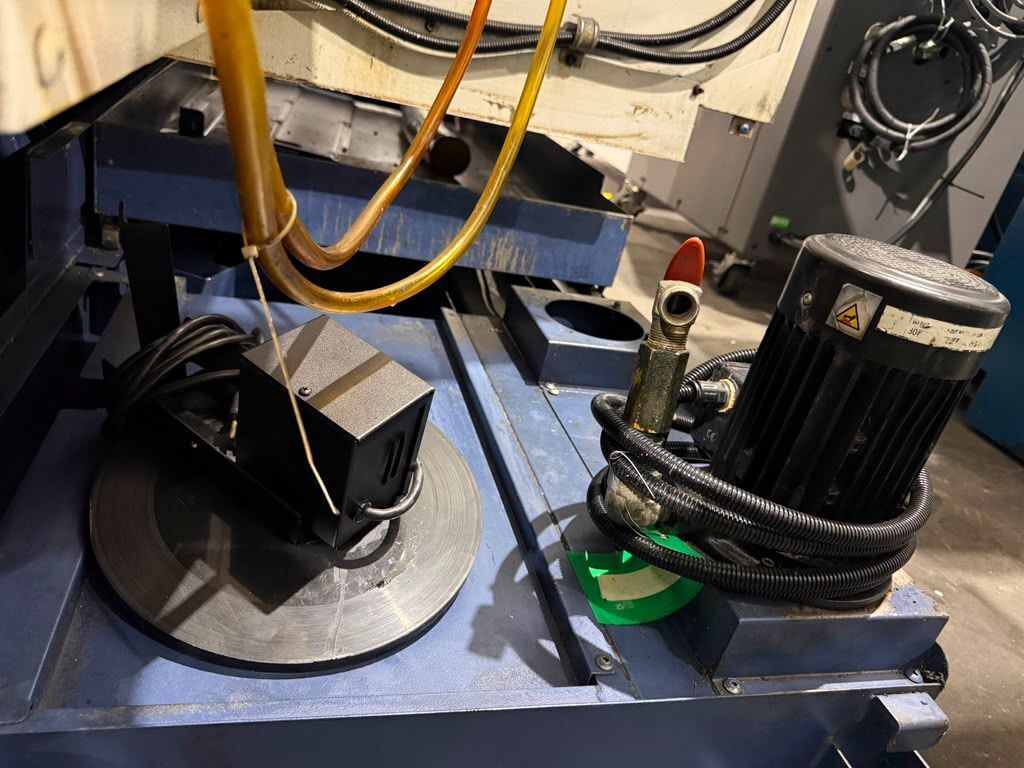

| Coolant System |
| Travels: |
|---|
| X-Axis: 40.15″ |
| Y-Axis: 20.07″ |
| Z-Axis: 20.07″ |
| Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″ |

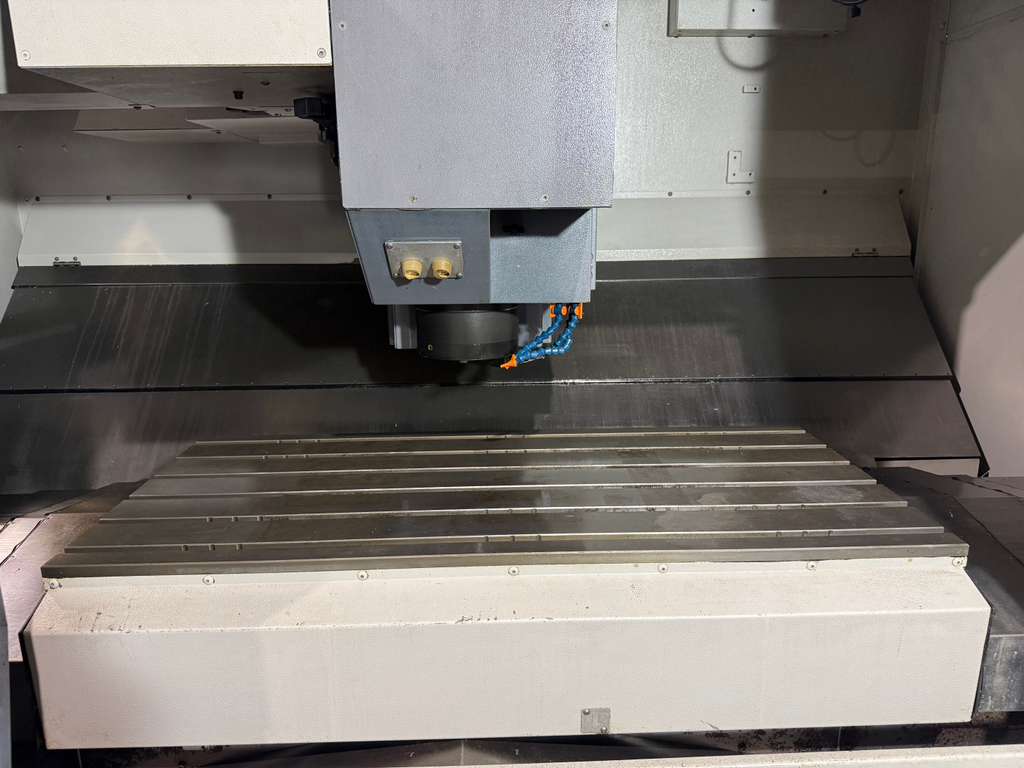

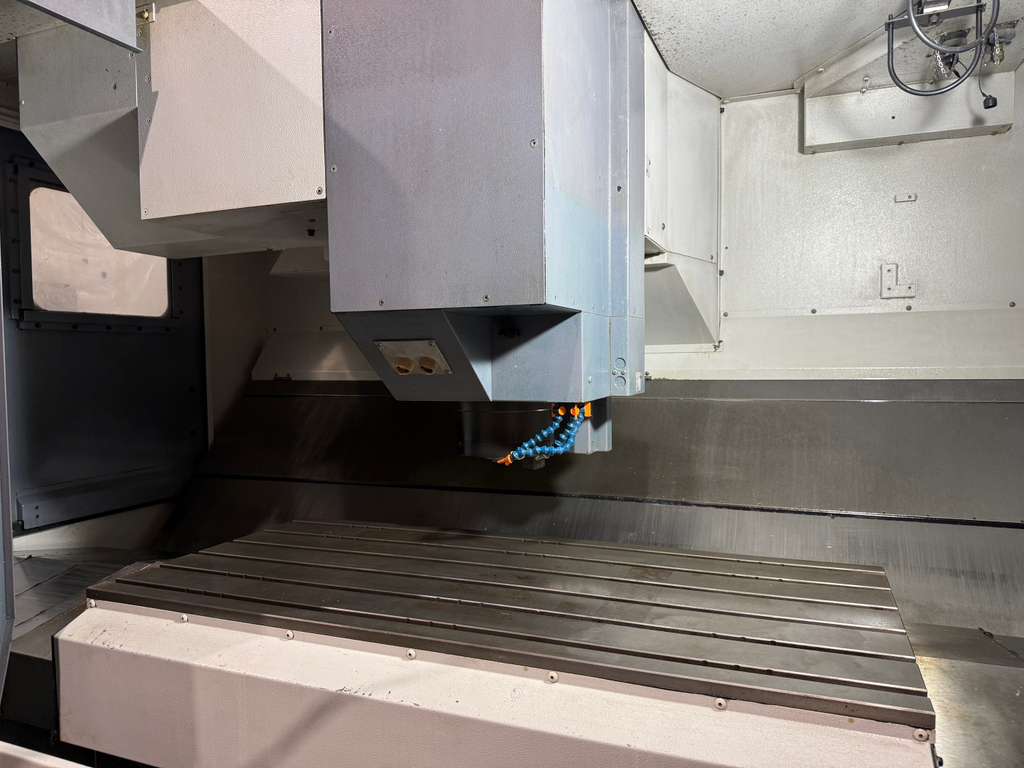

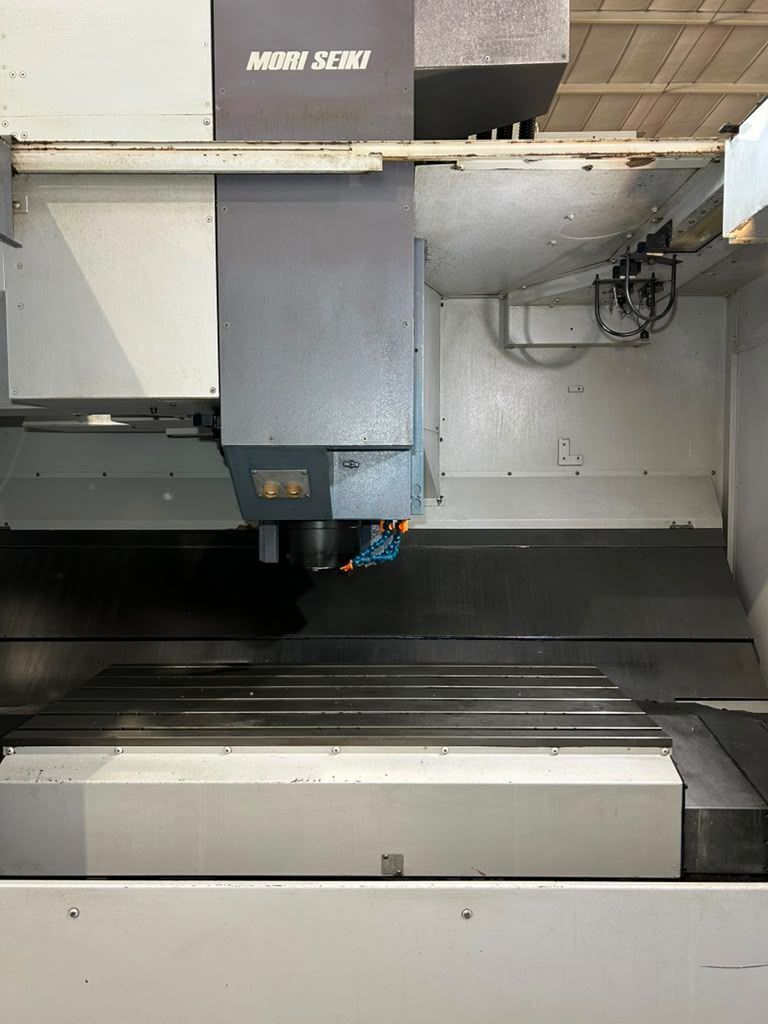

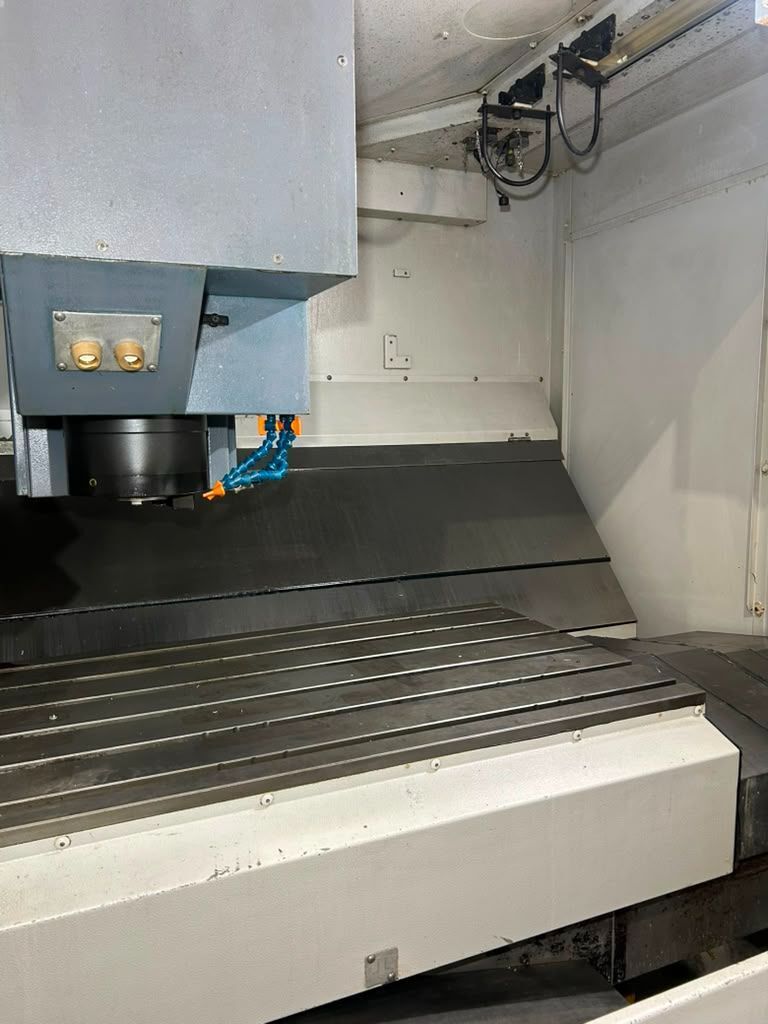

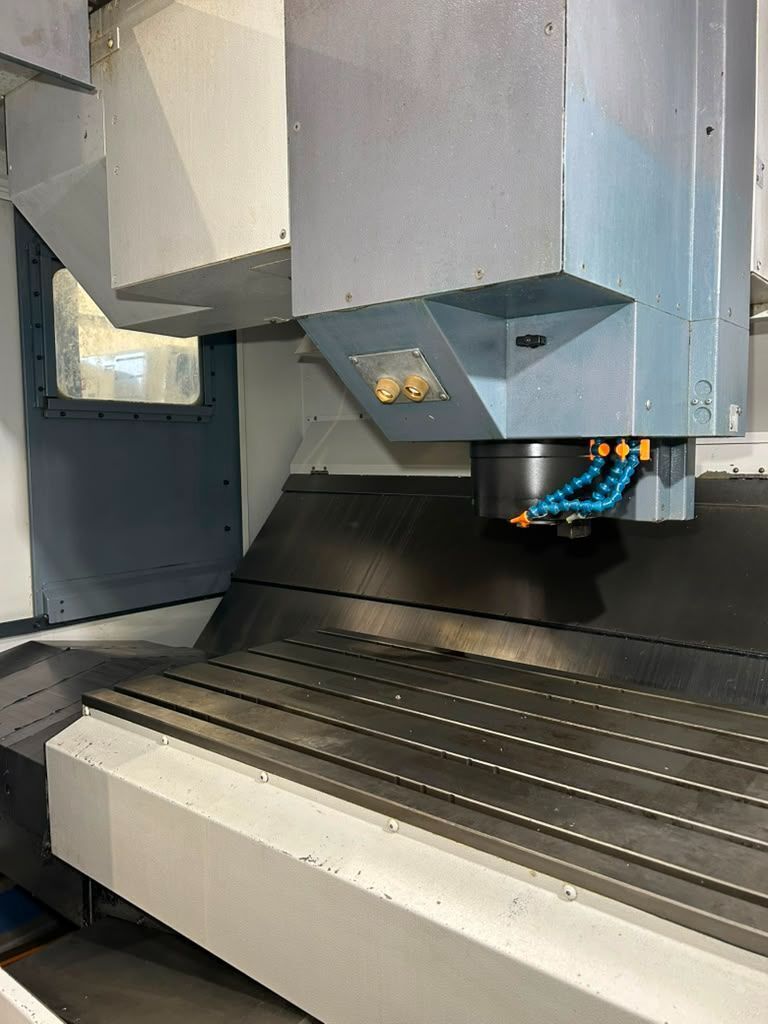

| Table: |
|---|
| Length: 51.96″ |
| Width: 23.62″ |
| Max Weight on Table: 2645 lbs |

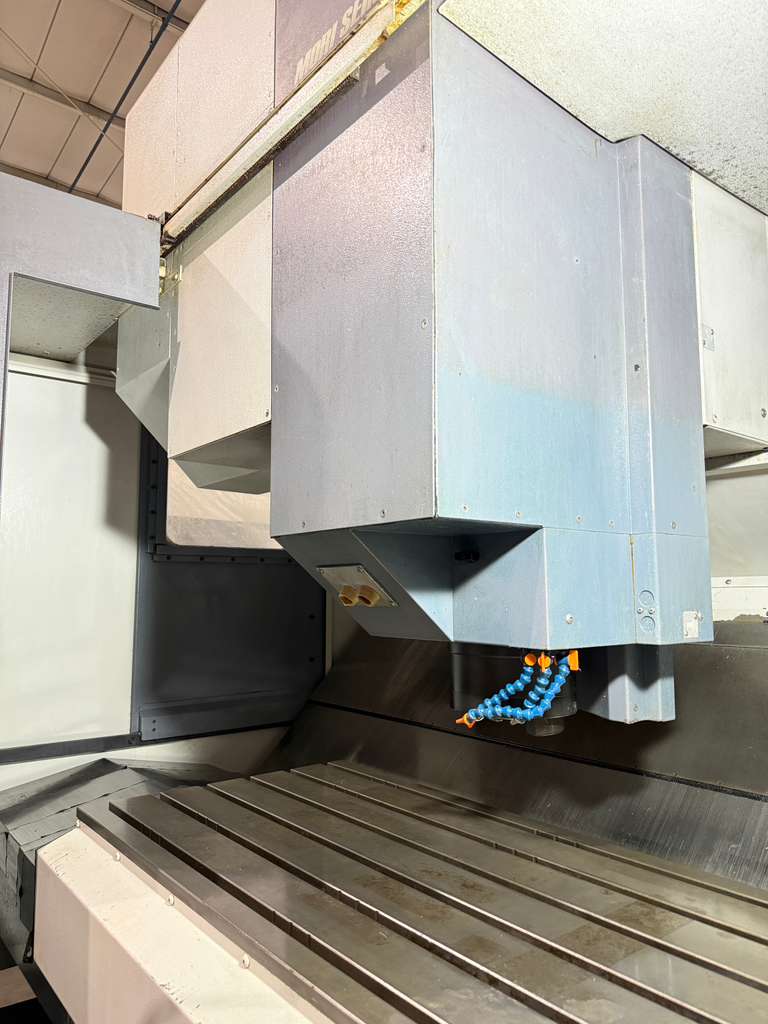

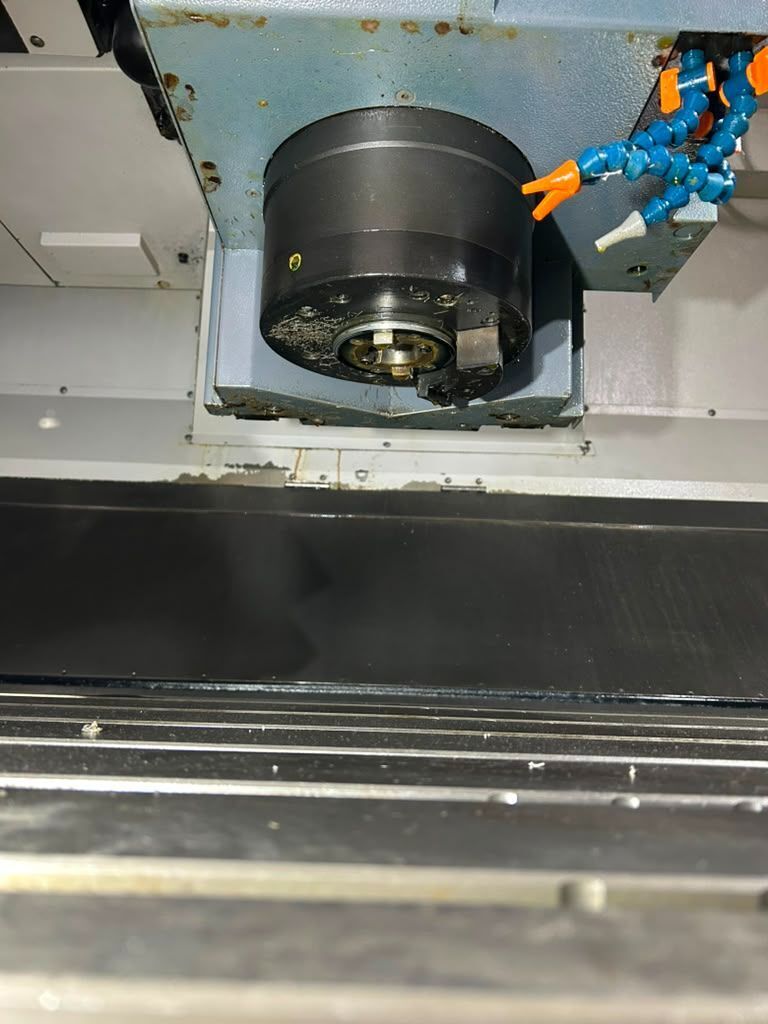

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Feed Rate: |
|---|
| Rapid X Y & Z: 1260 inch/PM |
| Cutting Feed rate: 630 inch/PM |

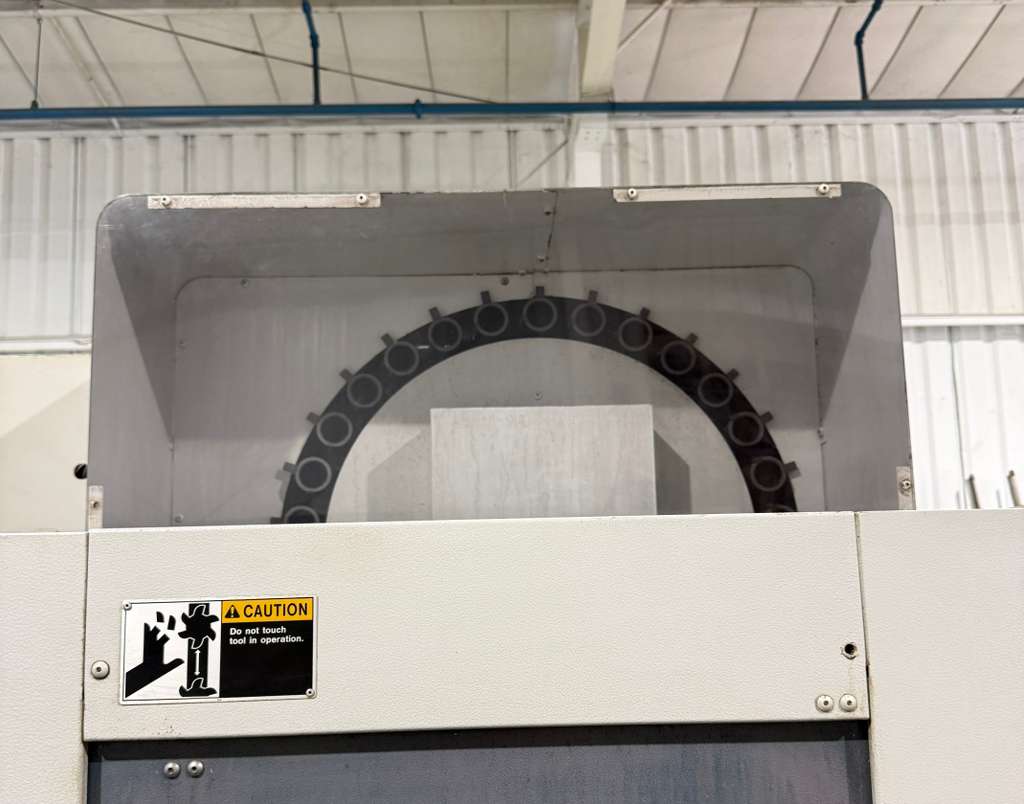

| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 17.63 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.9″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

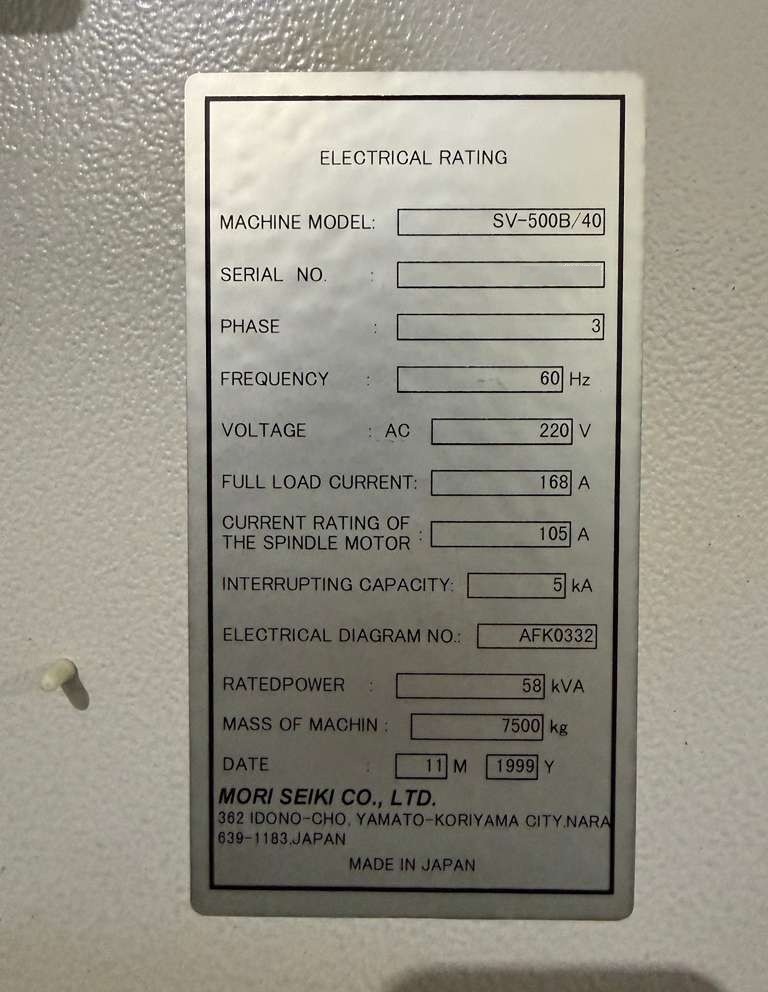

| Power: 220v / 60 Hz / 3-Phase / 58 kva |
| Overall Dimensions: 113″ L X 104″ W X 112″ High Approx. |
| Weight: 16,500 lbs Approx. |
