*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

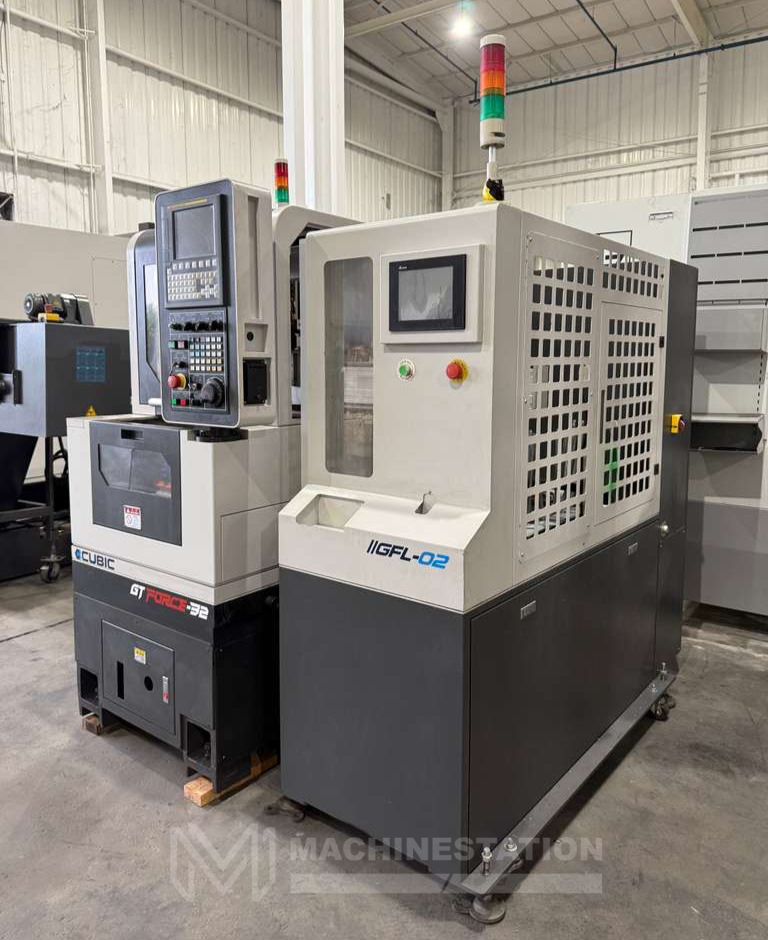

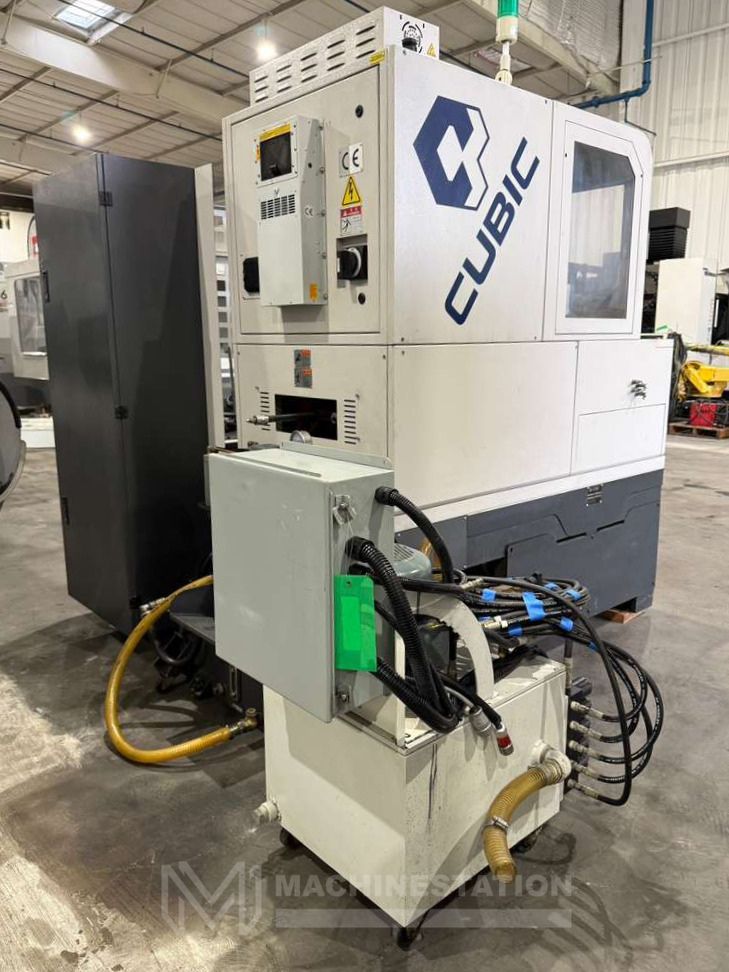

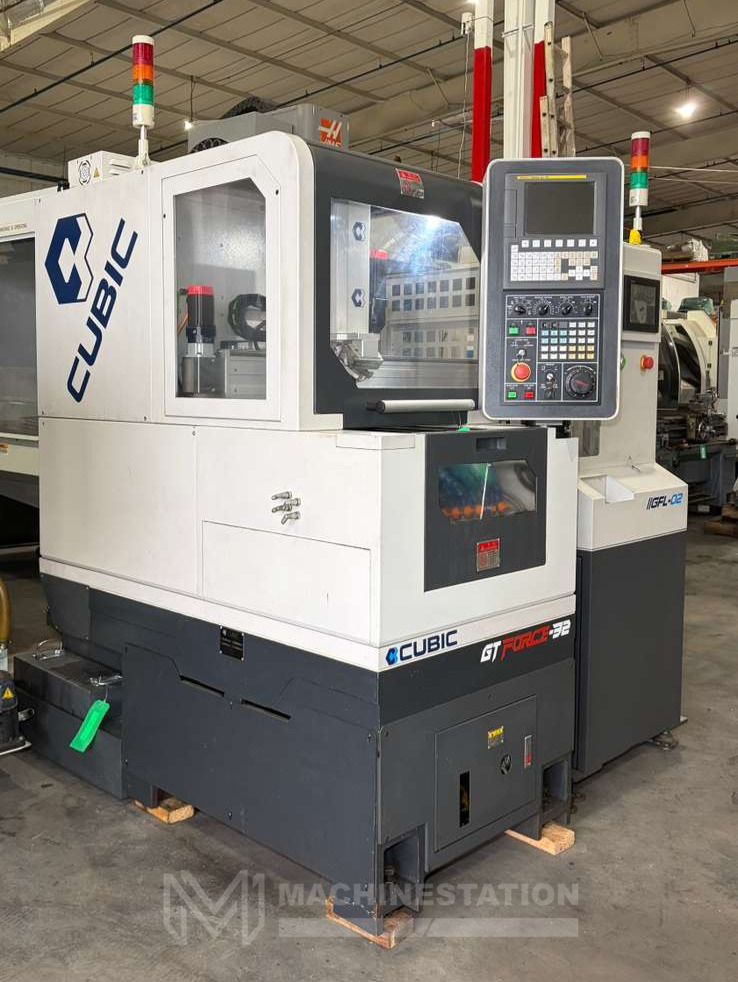

| Make: | Cubic |
| Model: | GT Force-32 |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

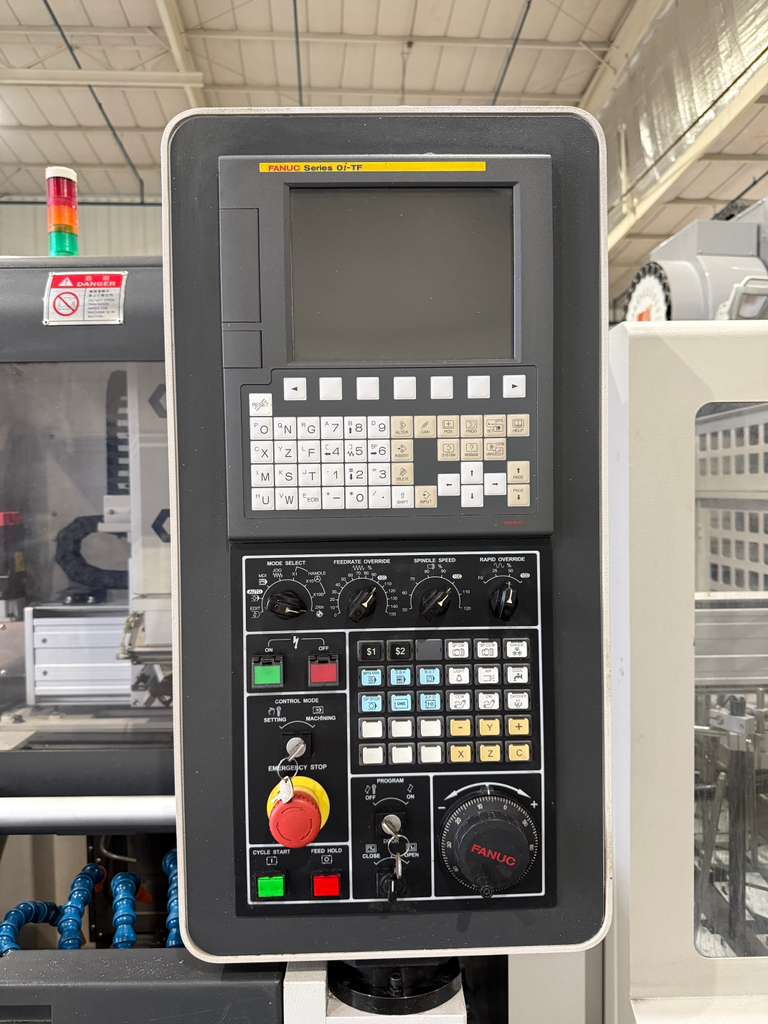

| Fanuc Oi-TF series CNC Control |
| Collet Chuck |

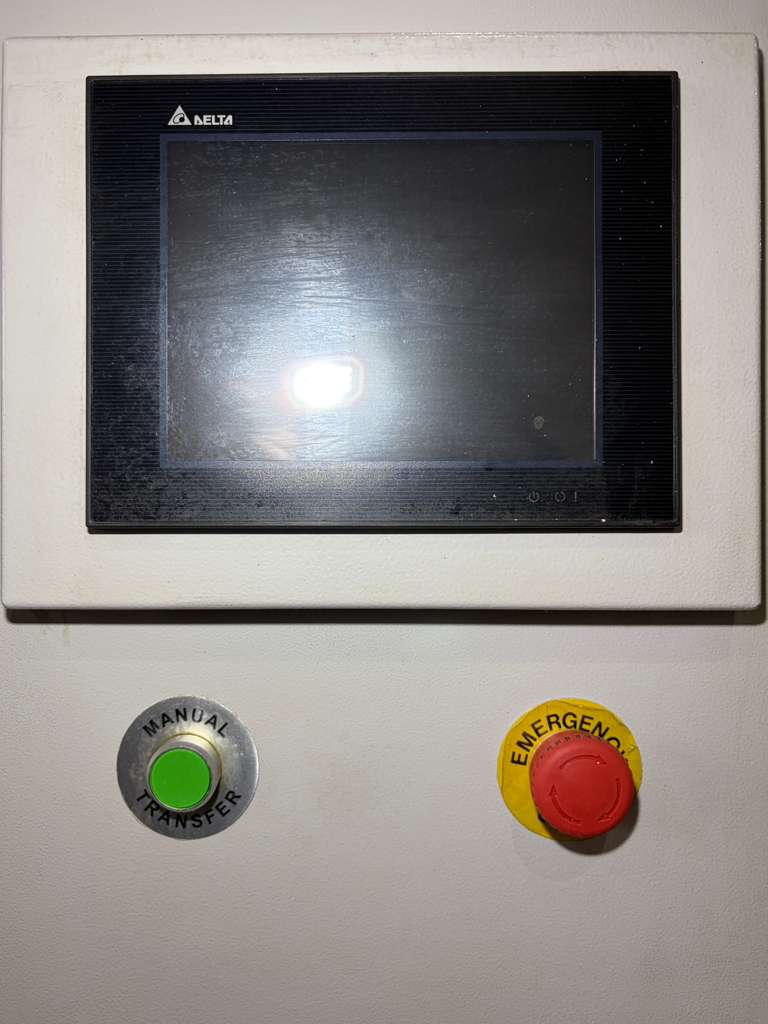

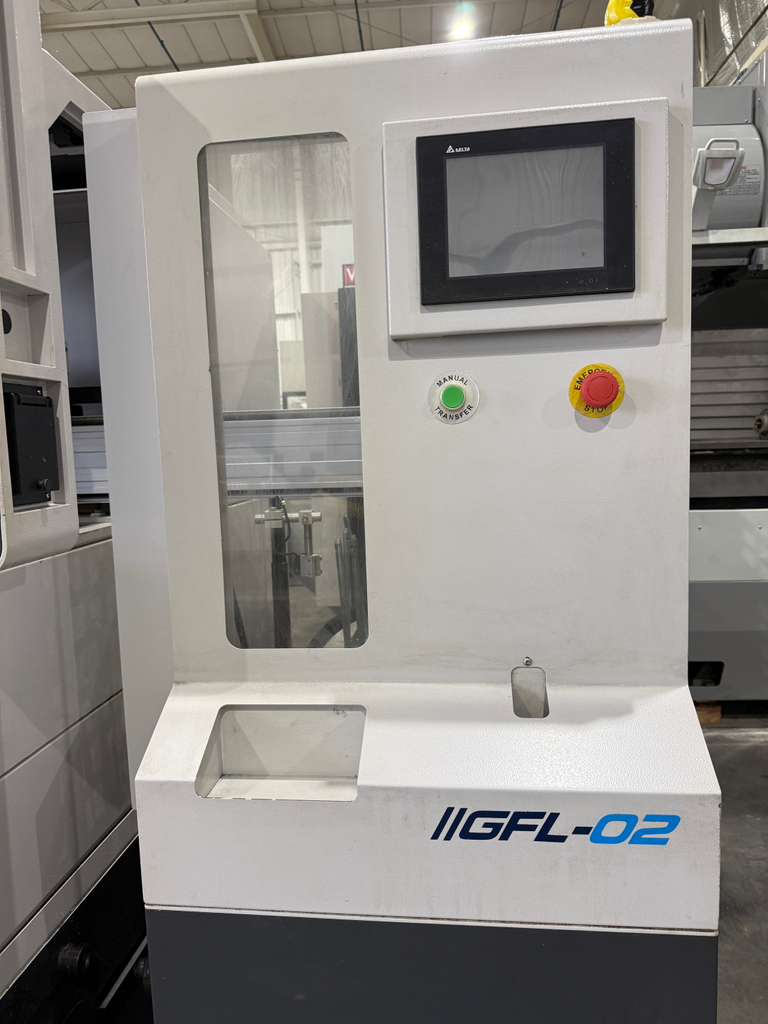

| Auto Parts Loading System |

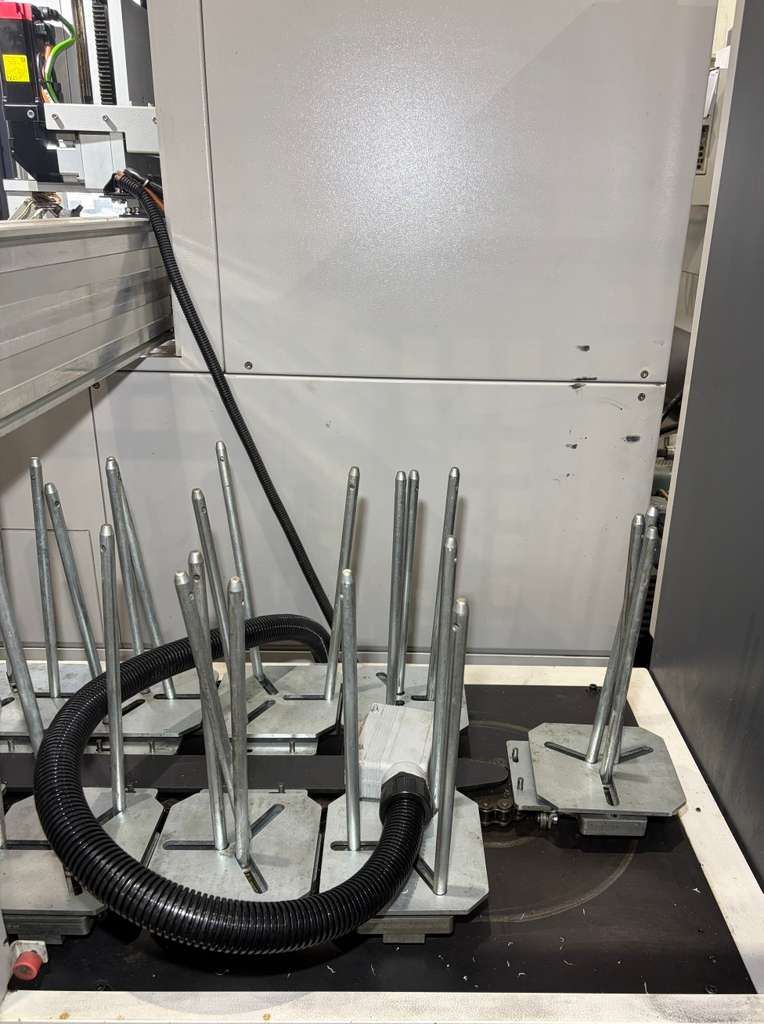

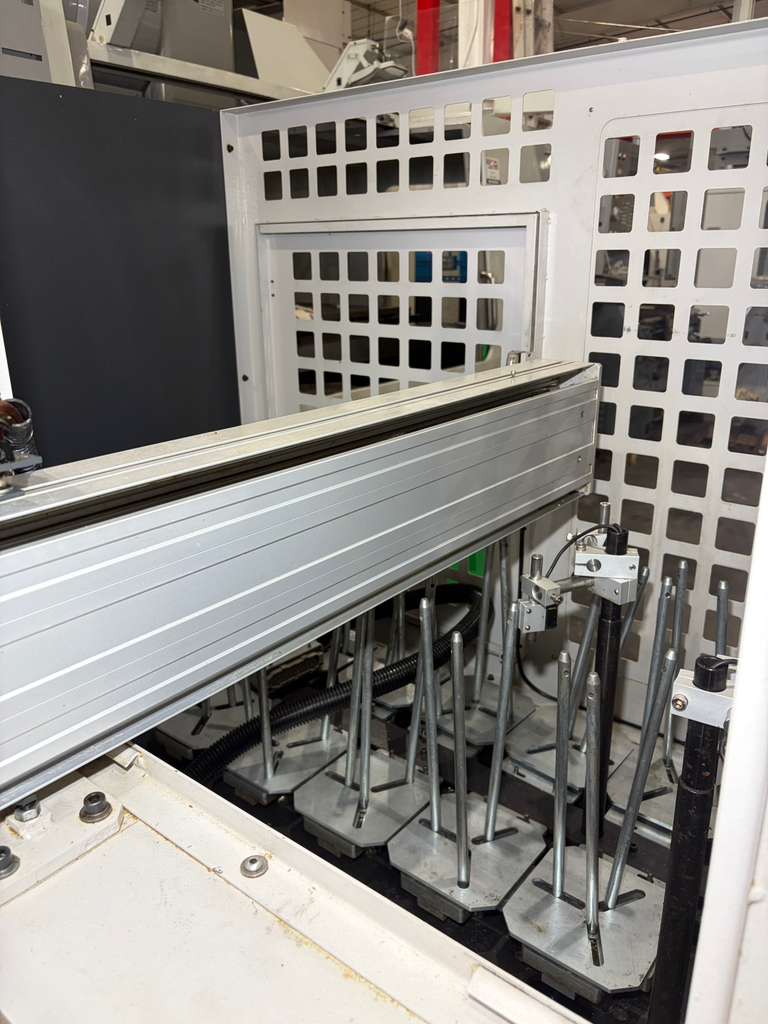

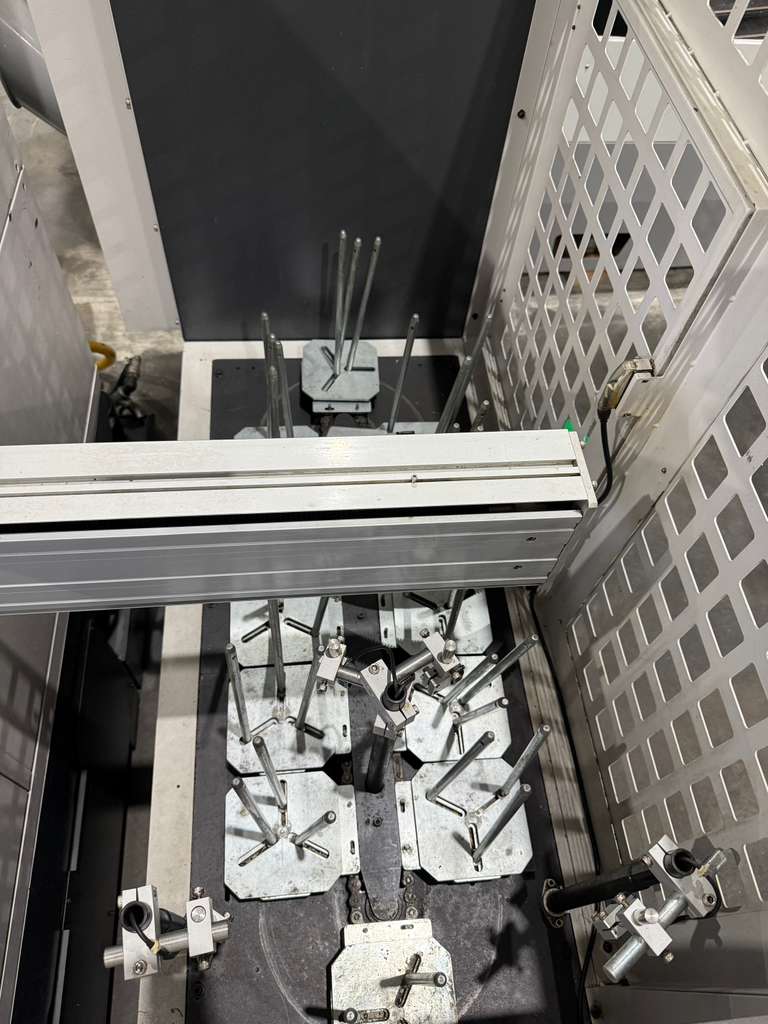

| 12 Station Rotary Stacker |

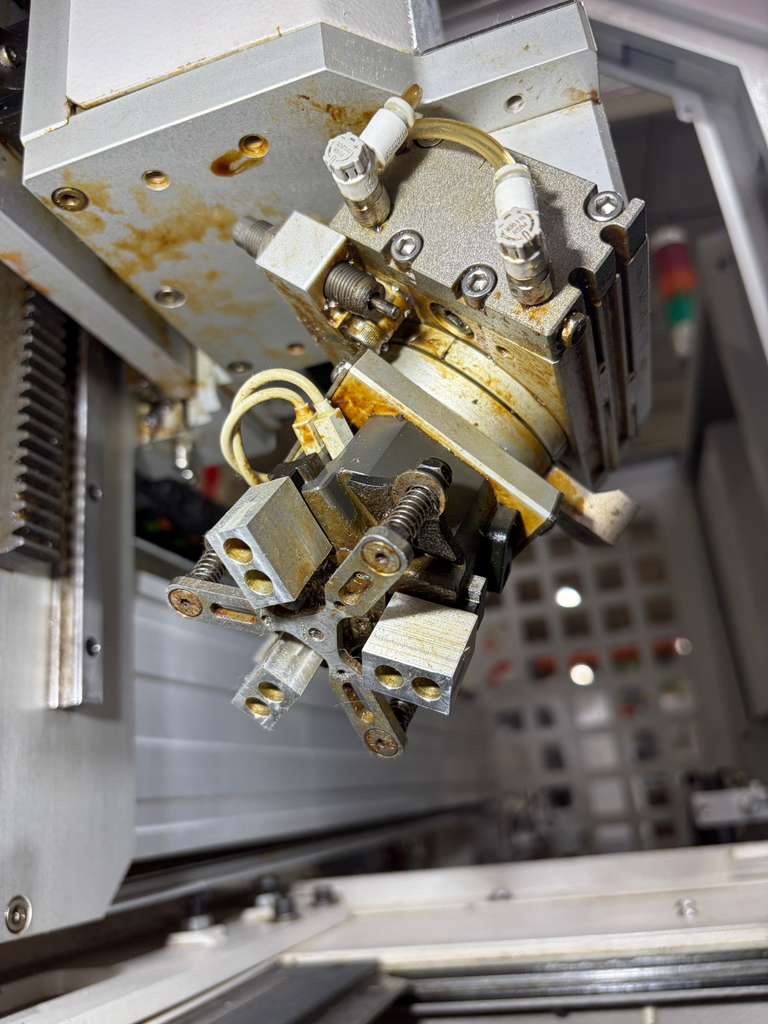

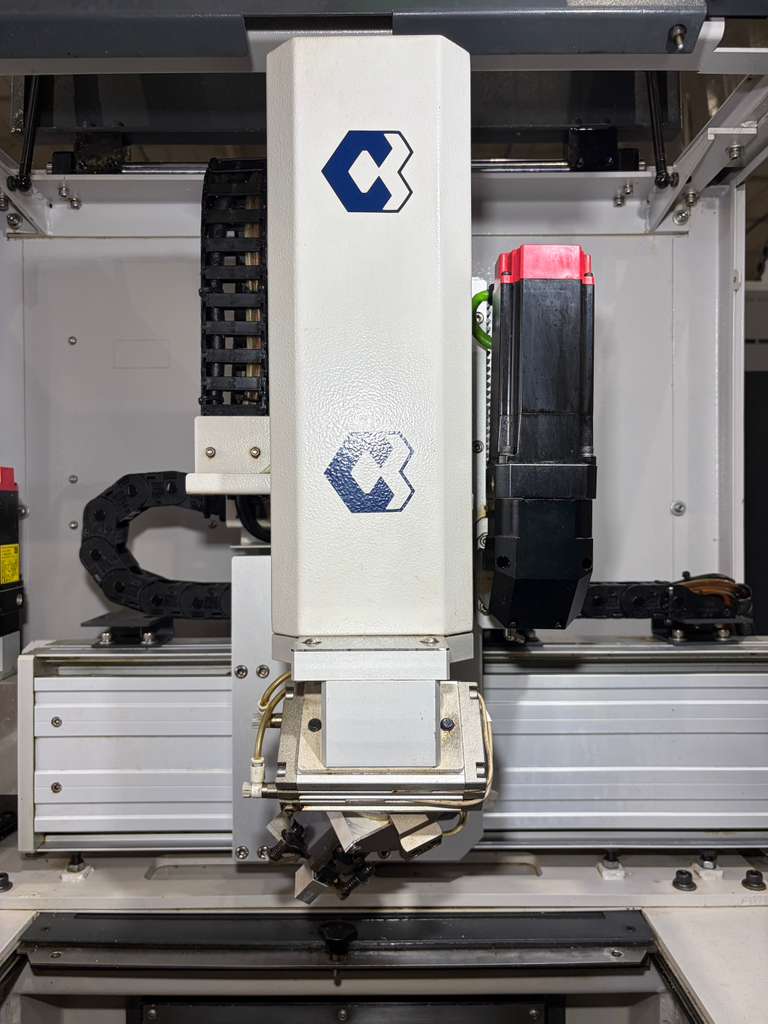

| Integrated Gantry Robot |

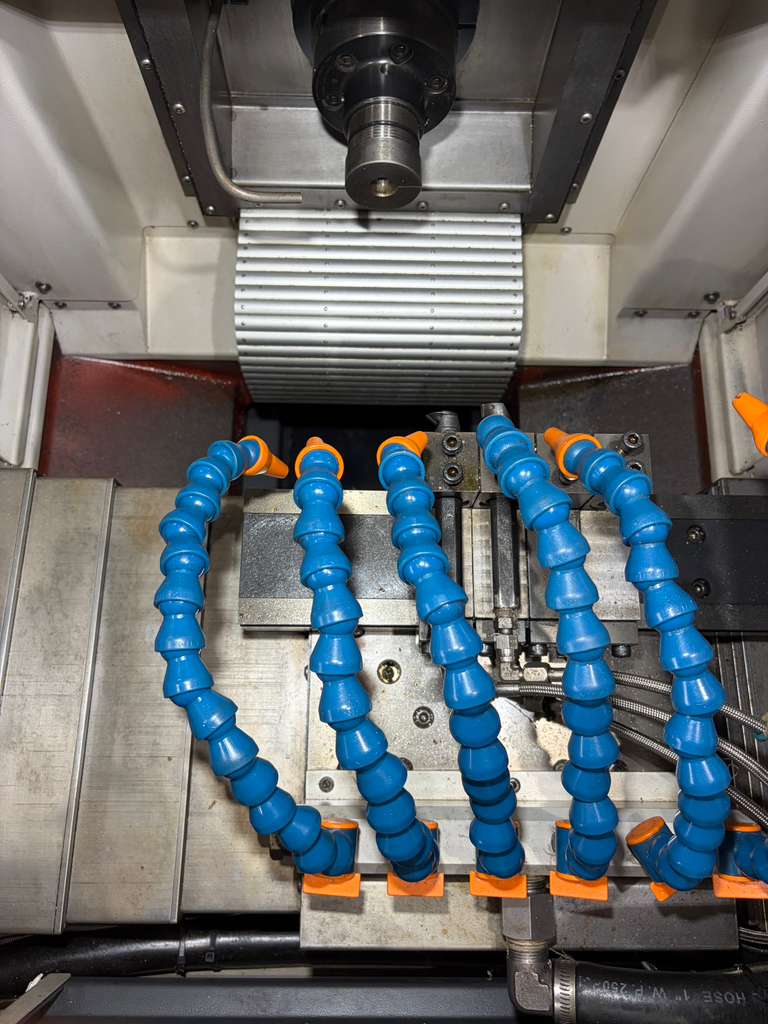

| 6-Gang Tool Setup |
| Auto Door |
| Coolant Tank |
| Chip Pan |

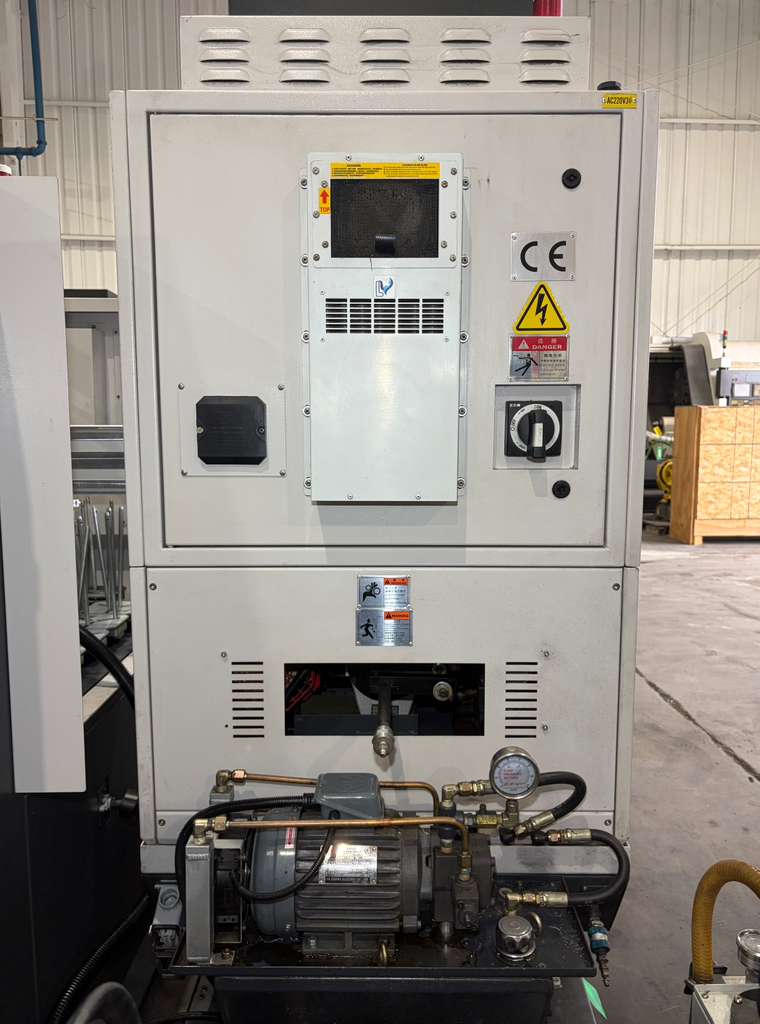

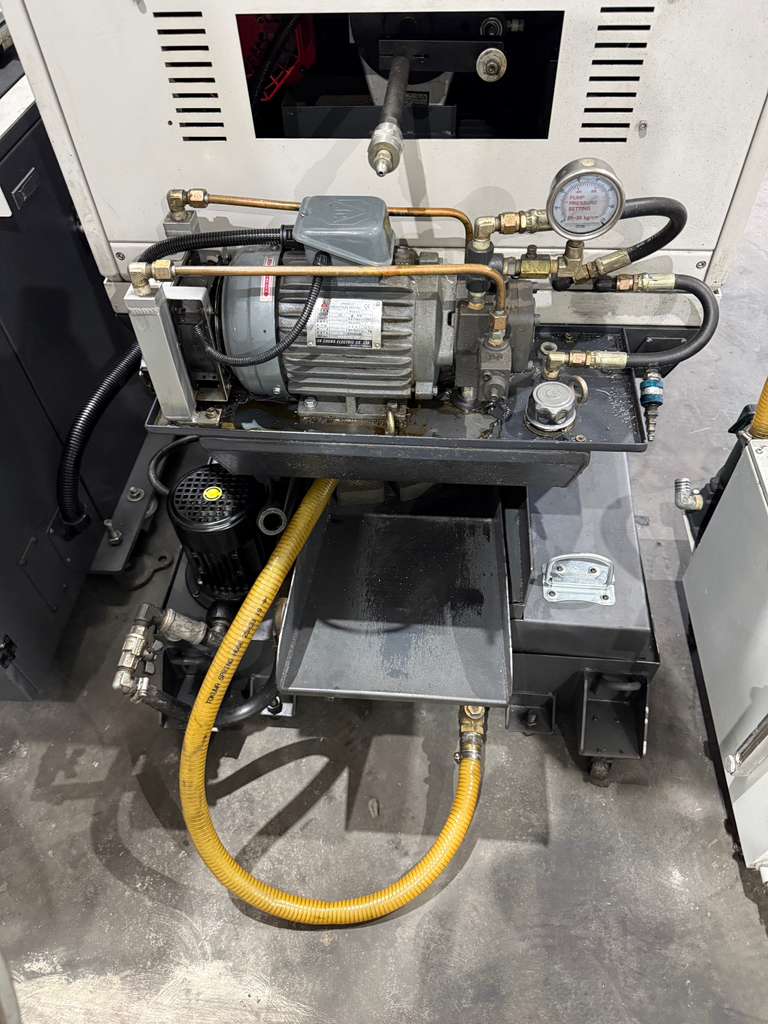

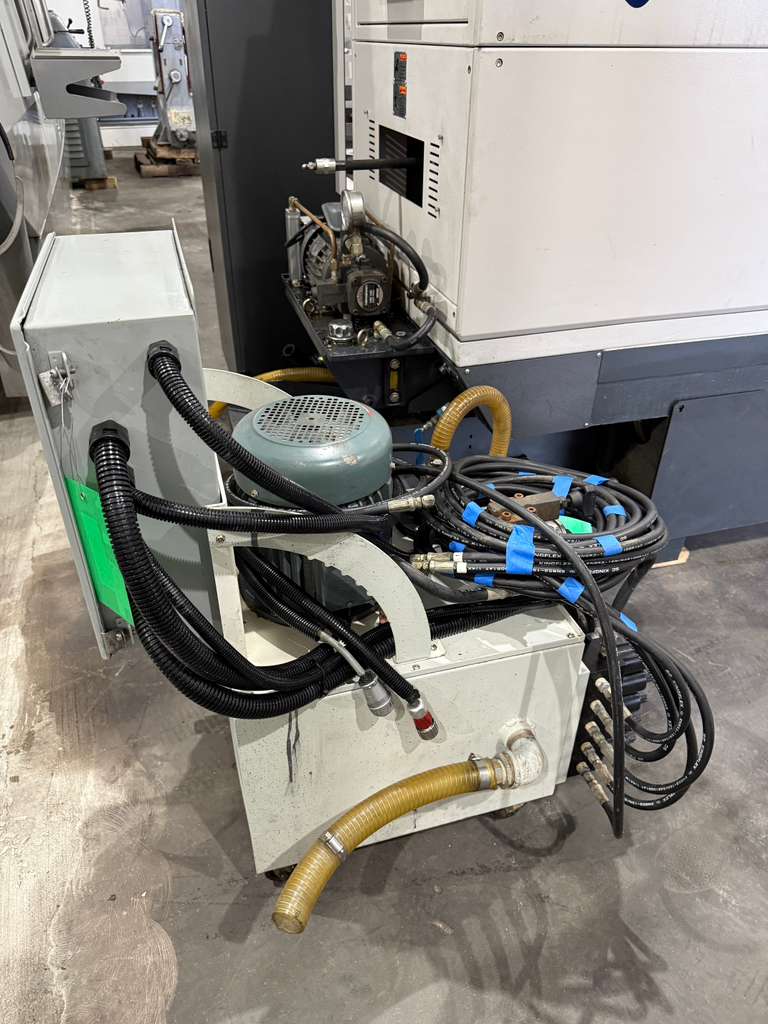

| Hydrualic Unit |
| Capacity: |
|---|
| Max Turning Diameter: 1-3/16″ (30 mm) |
| Max Turning Length: 2.36″ (60 mm) |
| Max Spindle Bore: 1.77″ (45 mm) |
| Travels: |
|---|
| X Axis Travel: 8.27″ (210 mm) |
| Z Axis Travel: 7.87″ (210 mm) |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Bore: 1.77″ (45 mm) |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 7.5 HP |
| Gang-Tool: |
|---|
| Number of Tools: 6 ( 2 OD and 4 ID ) |
| Turning Tool: 0.63″ (16 mm) |
| Drill Shank: 3/4″ (20 mm) |
| General: |
|---|

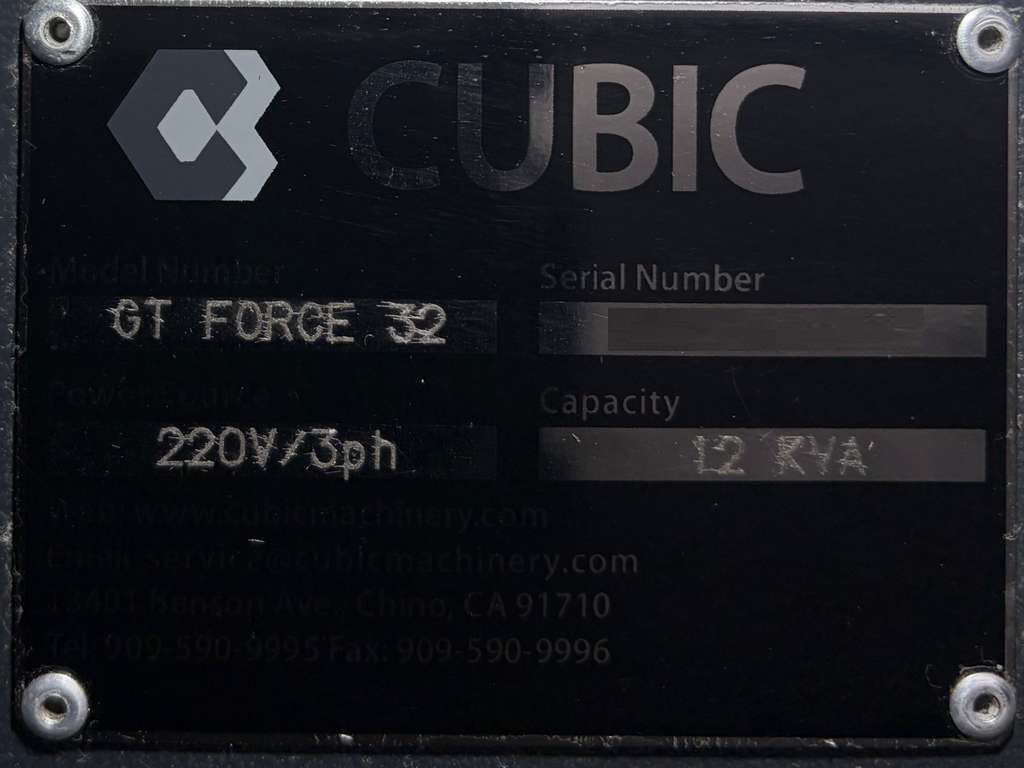

| Power: 220v / 3-Phase |
| Overall Dimensions: 31.5″ x 66″ x 71″ High Approx. |
| Weight: 3792 lbs. Approx. |
