*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | PO LY GIM |
| Model: | DIAMOND 20CSB II |
| Year: | 2011 |
| Condition: | Used – Good |

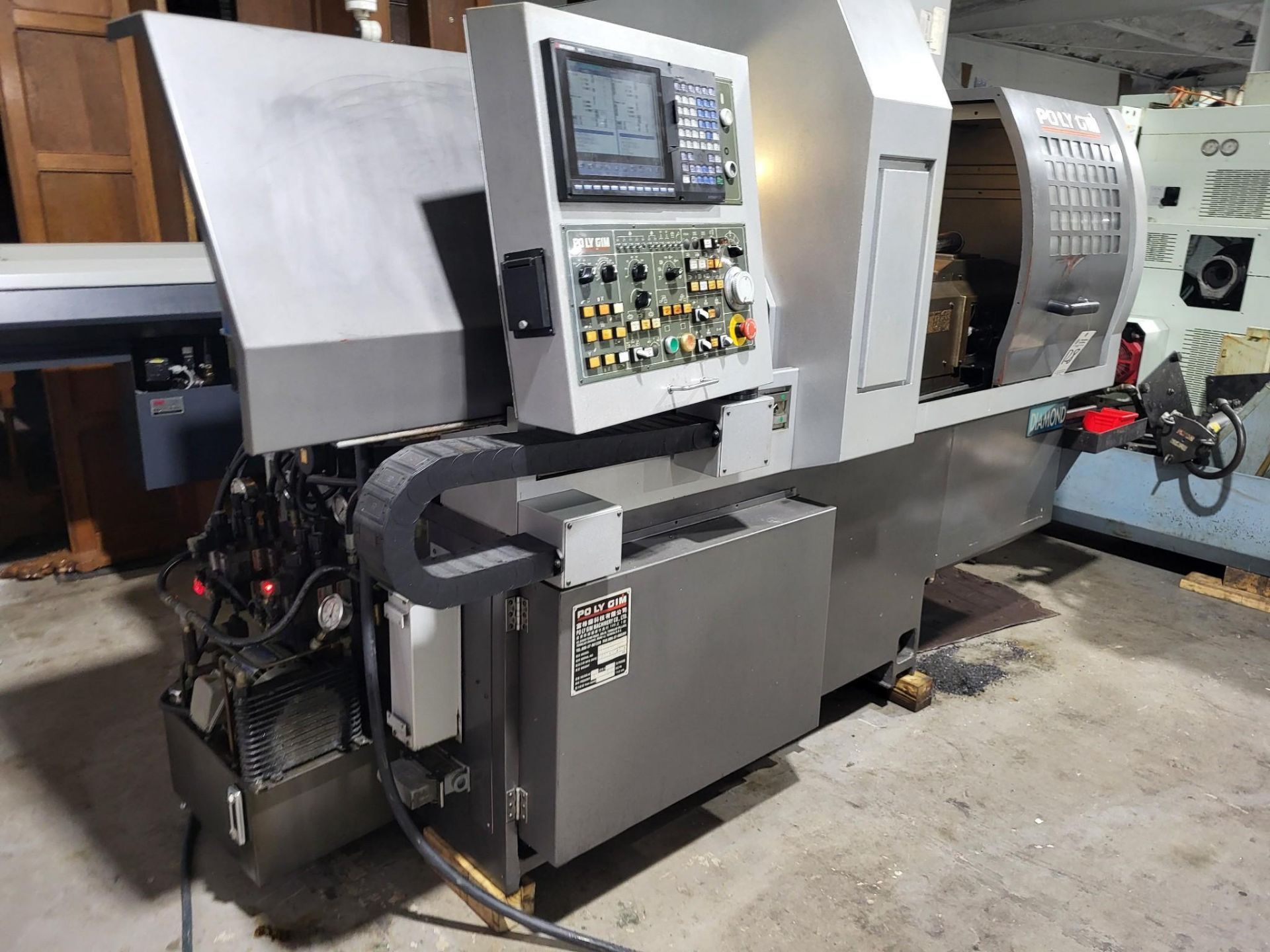

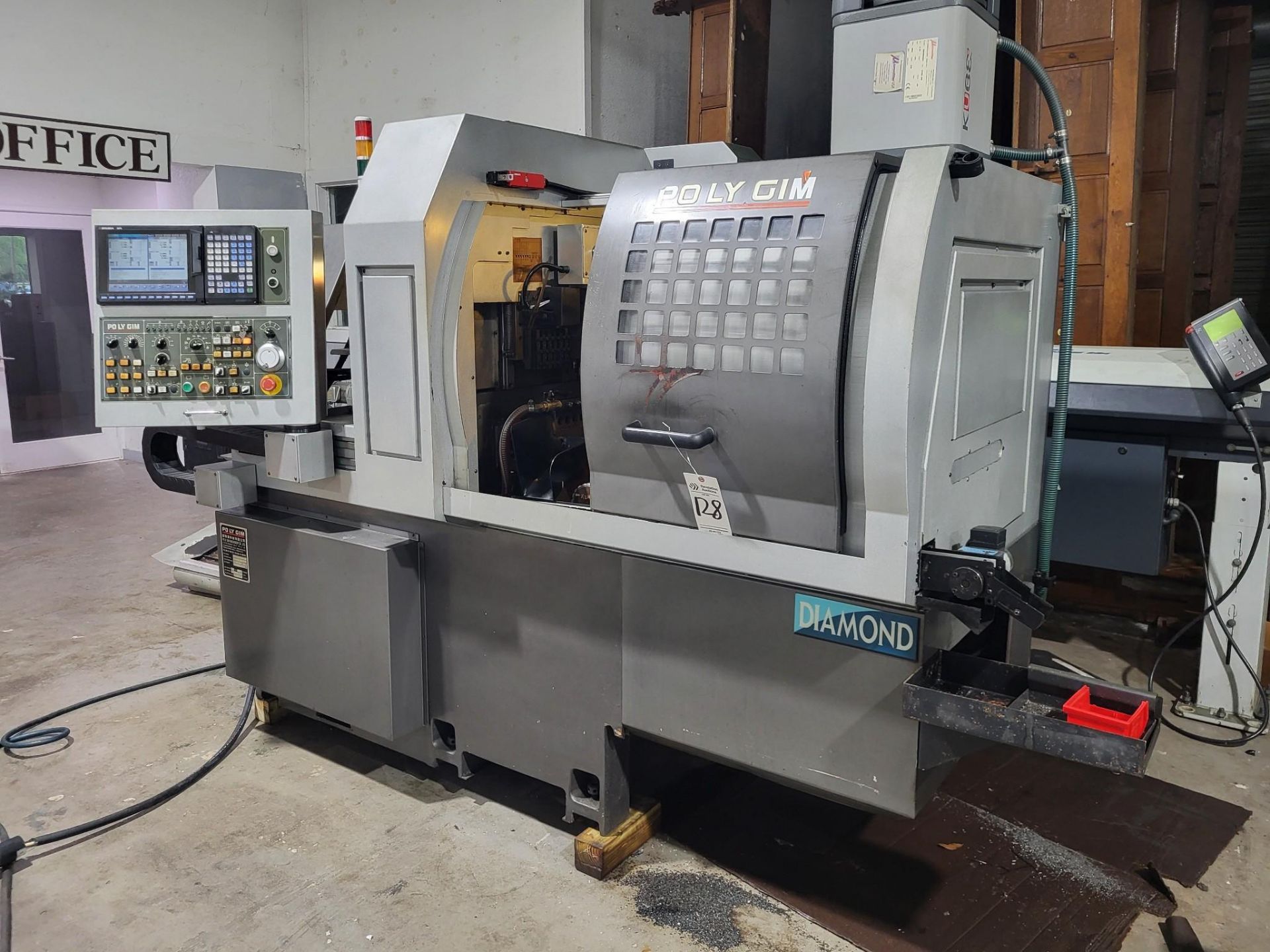

| Machine Type: | CNC Turning Center |
| Country of Origin: | Taiwan |
| Features: |
|---|
- High-Rigidity Slant Bed CNC Lathe
- Built-In Spindle Motor
- Servo-Driven Turret
- Rigid Tapping Capability
- Thermally Stable Machine Design
- Automatic Central Lubrication System
- Fully Enclosed Machining Area
- Designed for Precision & Production Turning
|
| Travels: |
|---|
- X-Axis Travel: 8.3″
- Z-Axis Travel: 20.5″
|
| Capacity: |
|---|
- Chuck Size: 8″
- Max Turning Diameter: 12.6″
- Max Turning Length: 20.5″
- Bar Capacity: 2.0″
|
| Spindle: |
|---|
- Spindle Nose: A2-6
- Spindle Speed: 4,000 RPM
- Spindle Motor Power: 15 HP
- High-Torque Built-In Spindle
|
| Feedrates & Dynamics: |
|---|
- Rapid Traverse (X / Z): 945 IPM
- High-Torque AC Servo Drives
- Precision Ground Ballscrews
|

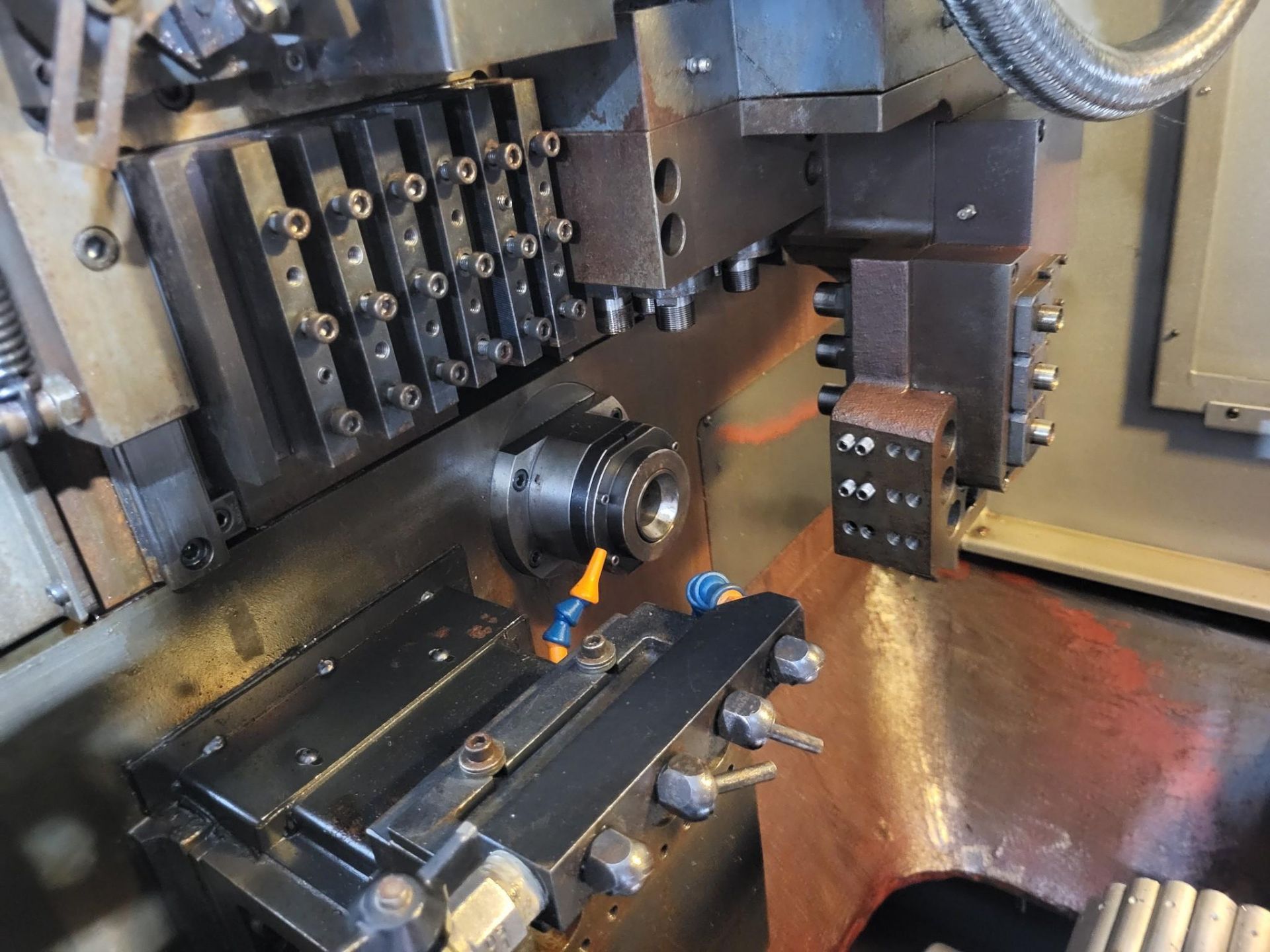

| Turret: |
|---|
- Turret Type: Servo Turret
- Tool Stations: 12 Stations
- Tool Size: 0.75″ Square / Ø1.5″ Boring
|
| Coolant System: |
|---|
- Flood Coolant System
- Coolant Tank Capacity: Approx. 80 Gallons
- Coolant Gun
|
| Chip Management: |
|---|
- Rear Chip Discharge
- Chip Conveyor (Optional)
|
| CNC Control: |
|---|
- FANUC CNC Control (Typical Configuration)
- Color LCD Display
- EIA / ISO Programming
- RS-232 & USB Connectivity
|

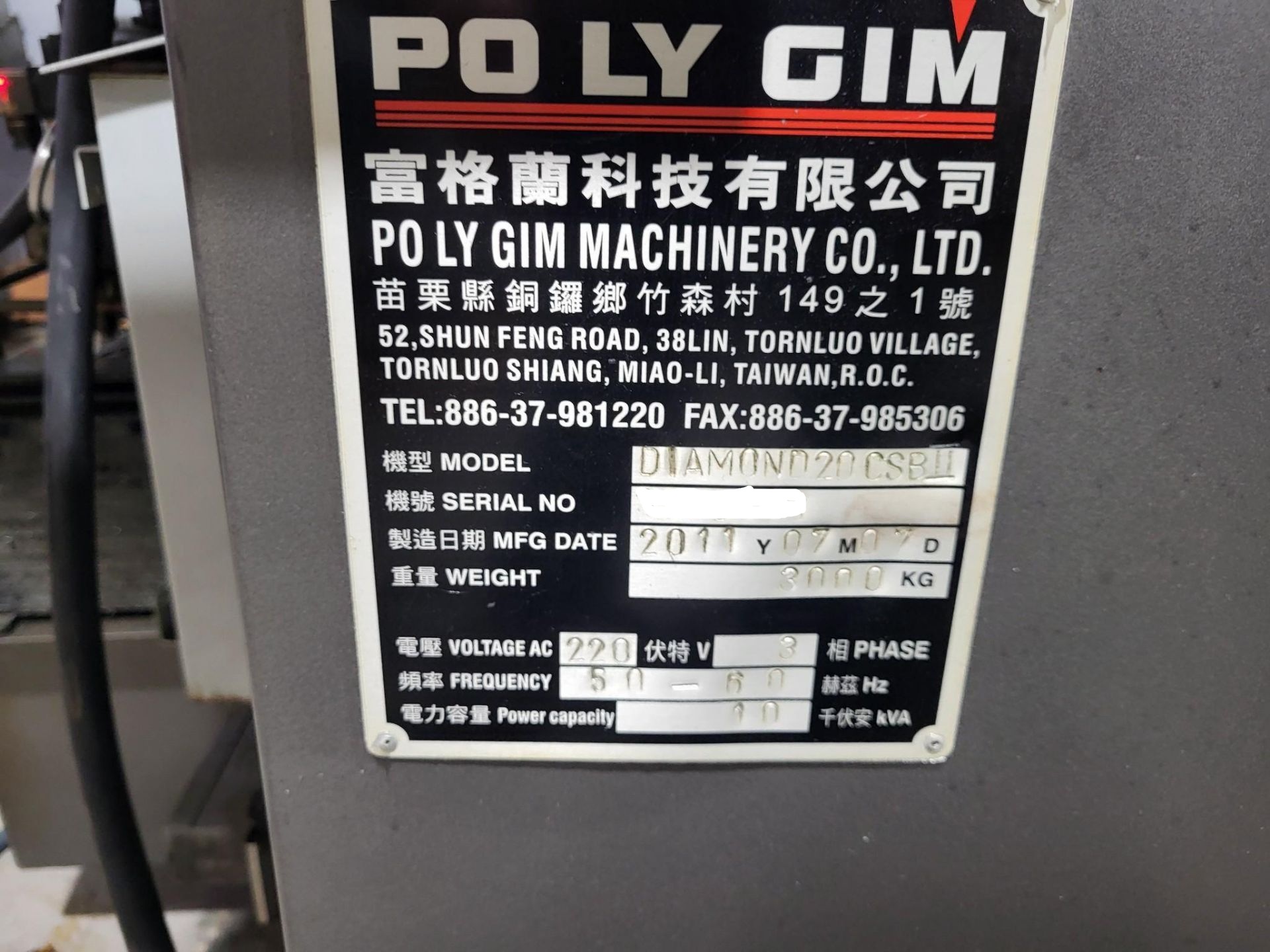

| Electrical & General: |
|---|
- Power Supply: AC 220V / 3-Phase / 50–60 Hz
- Power Capacity: 10 kVA
- Machine Weight: Approx. 6,614 lbs
|
