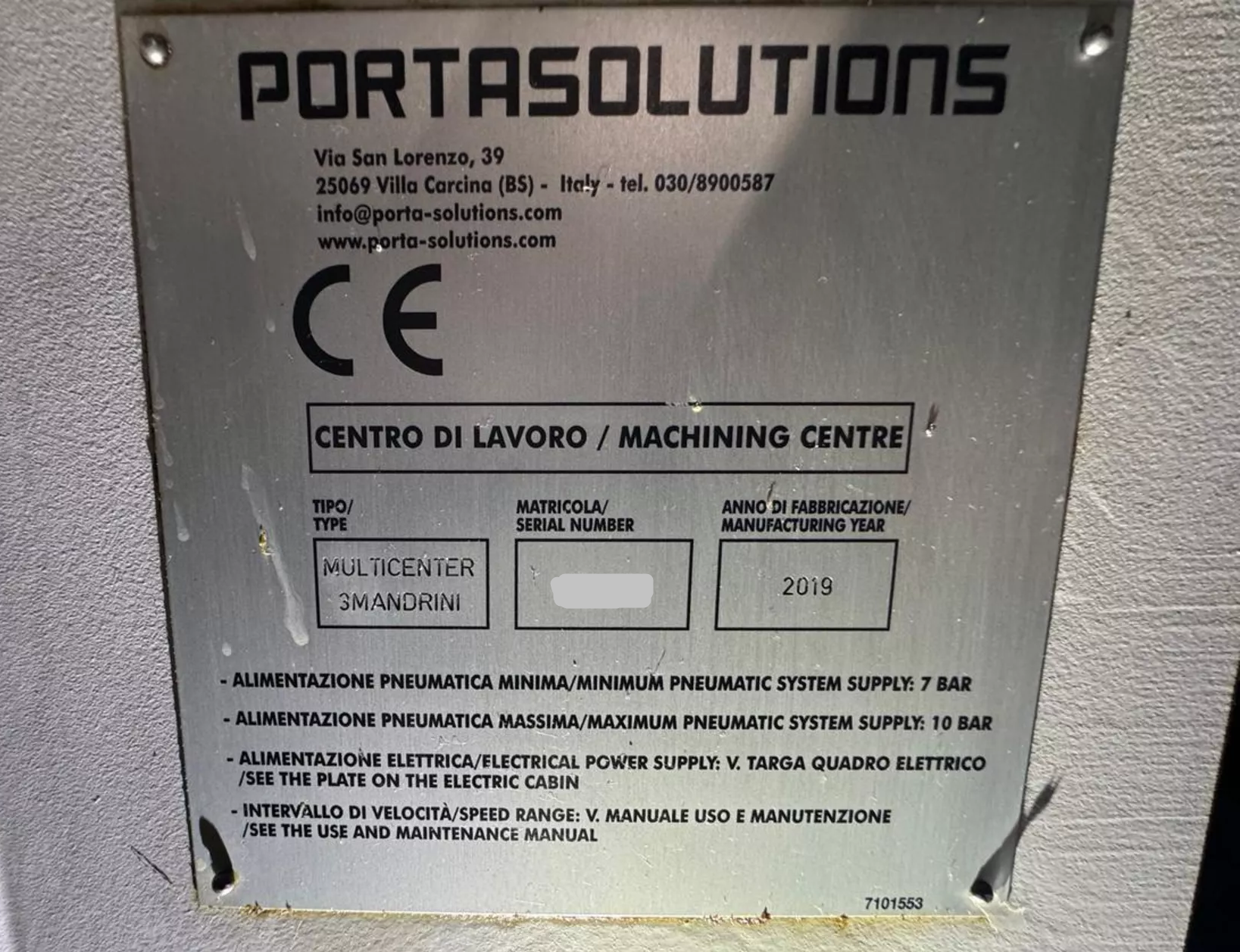

| Make: | Porta Solutions |
| Model No.: | Multicenter 3Mandrini |
| Year of Manufacture: | 2019 |
| Condition: | Used – Good |
| Machine Type: | Multi-Spindle CNC Machining Center |
| Equipped With: |
|---|

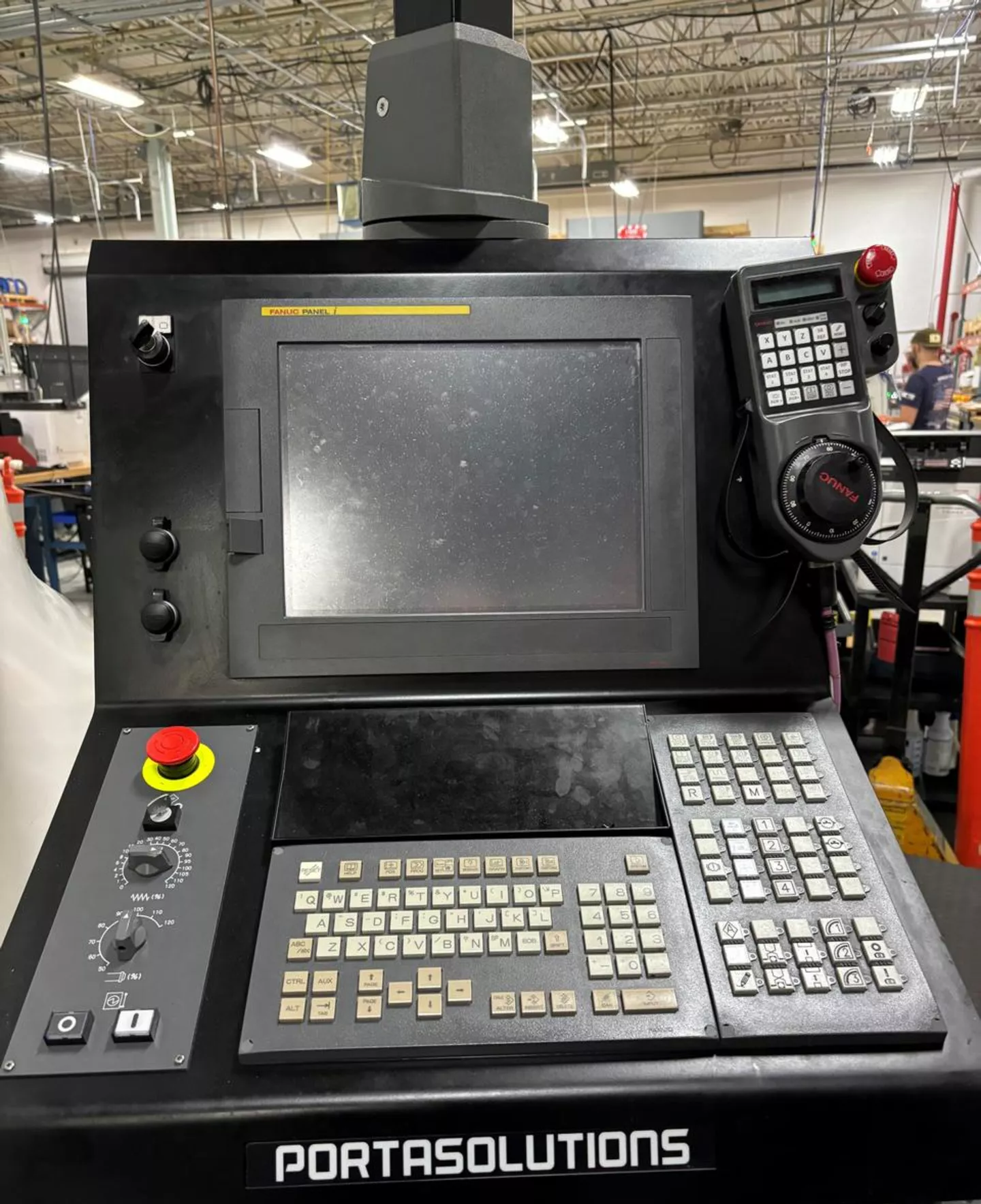

| Fanuc CNC Control |
| 3 Independent Horizontal Machining Units |
| 4-Station Rotary Pallet Table |
| Automatic Tool Changers – 24 Tools per Spindle |
| ISO 40 Spindle Taper |
| Through-Spindle Coolant System |
| Coolant Filtration System |
| Chip / Swarf Conveyor |
| Hydraulic Clamping System |
| Pneumatic System |
| Hydraulic Control Unit |
| Electrical Cabinet |

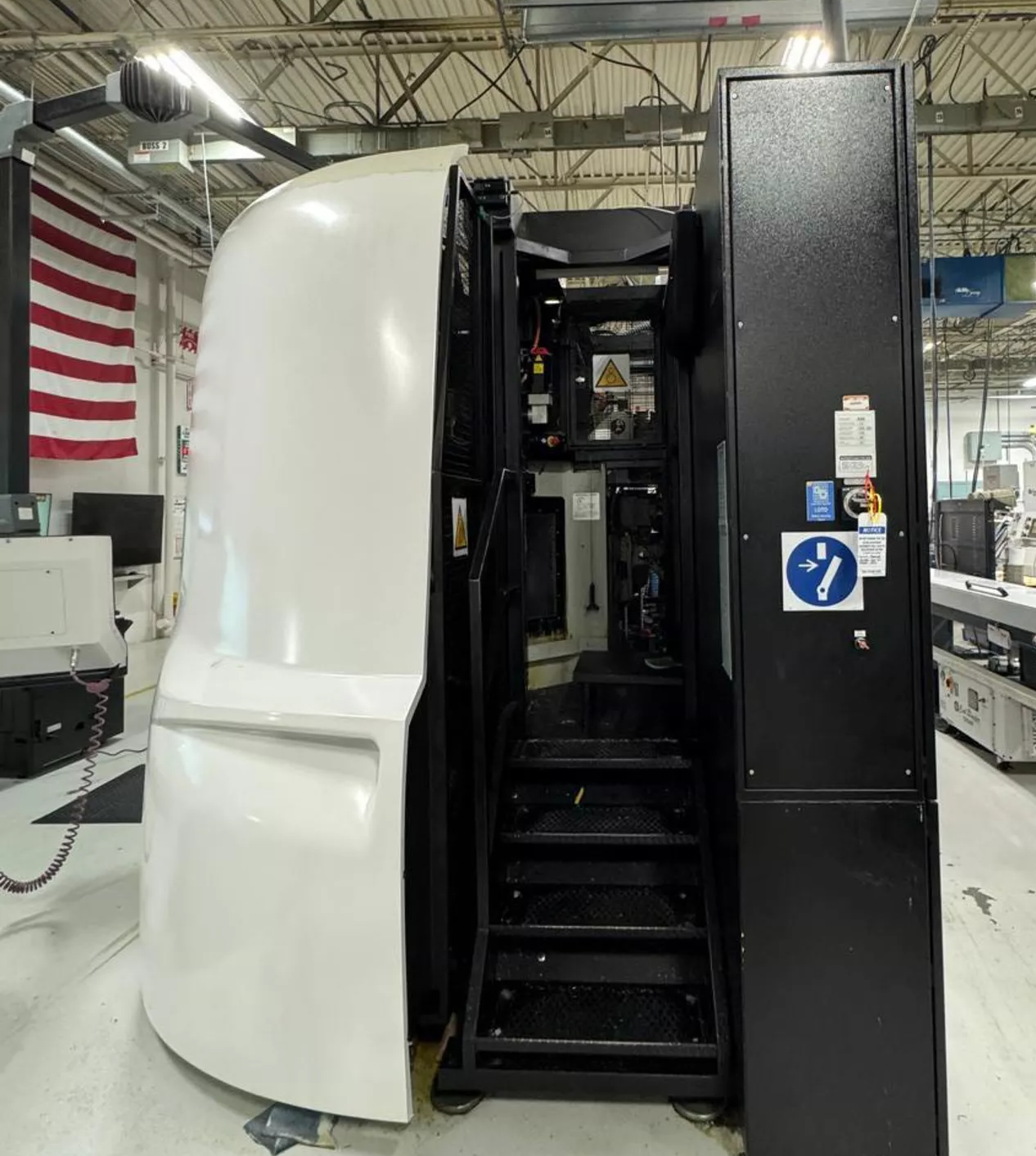

| Safety Enclosure |
| Manual Loading Station |
| Robot Automation Ready |
| Capacity: |
|---|
| Number of Satellite Tables: 4 |
| Rotary Table Rotation: 360° |
| Table Index Increment: 90° |
| Satellite Table Rotation Resolution: 0.1° |
| Stations / Operating Units: 4 Stations / 3 Machining Units |
| Loading / Unloading Mode: Manual (Robot Ready) |
| Travels (Per Machining Unit): |
|---|
| X-Axis Travel: ±125 mm (4.92″) |
| Y-Axis Travel: −100 / +225 mm (12.8″) |
| Z-Axis Travel: 200 mm (7.9″) |
| Spindle: |
|---|
| Number of Spindles: 3 |
| Spindle Speed: 0 – 6,000 RPM |
| Spindle Motor Power: 7.5 kW per Spindle |
| Spindle Taper: ISO 40 (DIN 69871) |
| Quill Diameter: 110 mm |
| Max Tool Feed Stroke: 200 mm |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools per Spindle |
| Total Tool Capacity: 72 Tools |
| Tool Holder Type: ISO 40 Quick Release |
| Feedrates: |
|---|
| Rapid Traverse (X-Axis): 24 m/min |
| Rapid Traverse (Y-Axis): 24 m/min |
| Rapid Traverse (Z-Axis): 20 m/min |
| Coolant System: |
|---|
| Frame Washing Coolant System |
| Flow Rate: 320 L/min |
| Head Pressure: Approx. 20 m |
| Filtration: Rotary Filter with Metallic Net (50 µm) |
| Through-Spindle Coolant Flow Rate: 3500 L/min |
| Head Pressure: Approx. 400 m |
| Filtration: Cartridge Filters (40 µm) |
| Coolant Type: Blaser Emulsified (10% Water Mix) |
| Electrical: |
|---|
| Main Voltage: 480 V AC |
| Auxiliary Voltage: 24 V DC / 110 V AC |
| Frequency: 60 Hz |
| Phases: 3 |
| Maximum Current: 125 A |
| Maximum Installed Power: 80 kW |
| Pneumatic System: |
|---|
| Working Pressure: 6 Bar |
| Minimum Pneumatic Supply: 7 Bar |
| Maximum Pneumatic Supply: 10 Bar |
| Compressed Air Consumption: 25 L/s |
| Air Requirement: Dry, Oil-Free Air |
| Hydraulic System: |
|---|
| Tank Capacity: 150 Liters |
| Hydraulic Oil: HM 46 |
| Working Pressure: 130 Bar |
| Hydraulic Motor Power: 4 kW |
| General: |
|---|
| Machine Weight (Body + Electrical Cabinet + Hydraulic Unit): Approx. 39,683 lbs (18,000 kg) |
| Coolant Tank / Chip Conveyor System Weight: Approx. 3,968 lbs (1,800 kg) |
| Operating Temperature: +5°C to +40°C |
| Maximum Relative Humidity: 80% |
| Maximum Continuous Production Time: Approx. 21.6 Hours |
| Features: |
|---|
| 3-Spindle Simultaneous Machining Capability |
| 4-Station Pallet System for Continuous Production |
| Heavy Duty Cast Iron Machining Modules |
| ISO Standard CNC Programming Compatibility |
| High Productivity Multi-Part Machining System |
| Compact Footprint Compared to Multiple Machining Centers |
| Designed for High-Volume Production Environments |
| Robot Automation Ready for Loading / Unloading |
| Reduced Cycle Time with Parallel Machining Operations |
