*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | PRECO |
| Model: | HS-TH65 |
| Year: | 2018 |
| Machine Type: | CNC Fiber Tube & Pipe Laser Cutting System |
| Condition: | Used – Good |
| Machine Overview: |
|---|

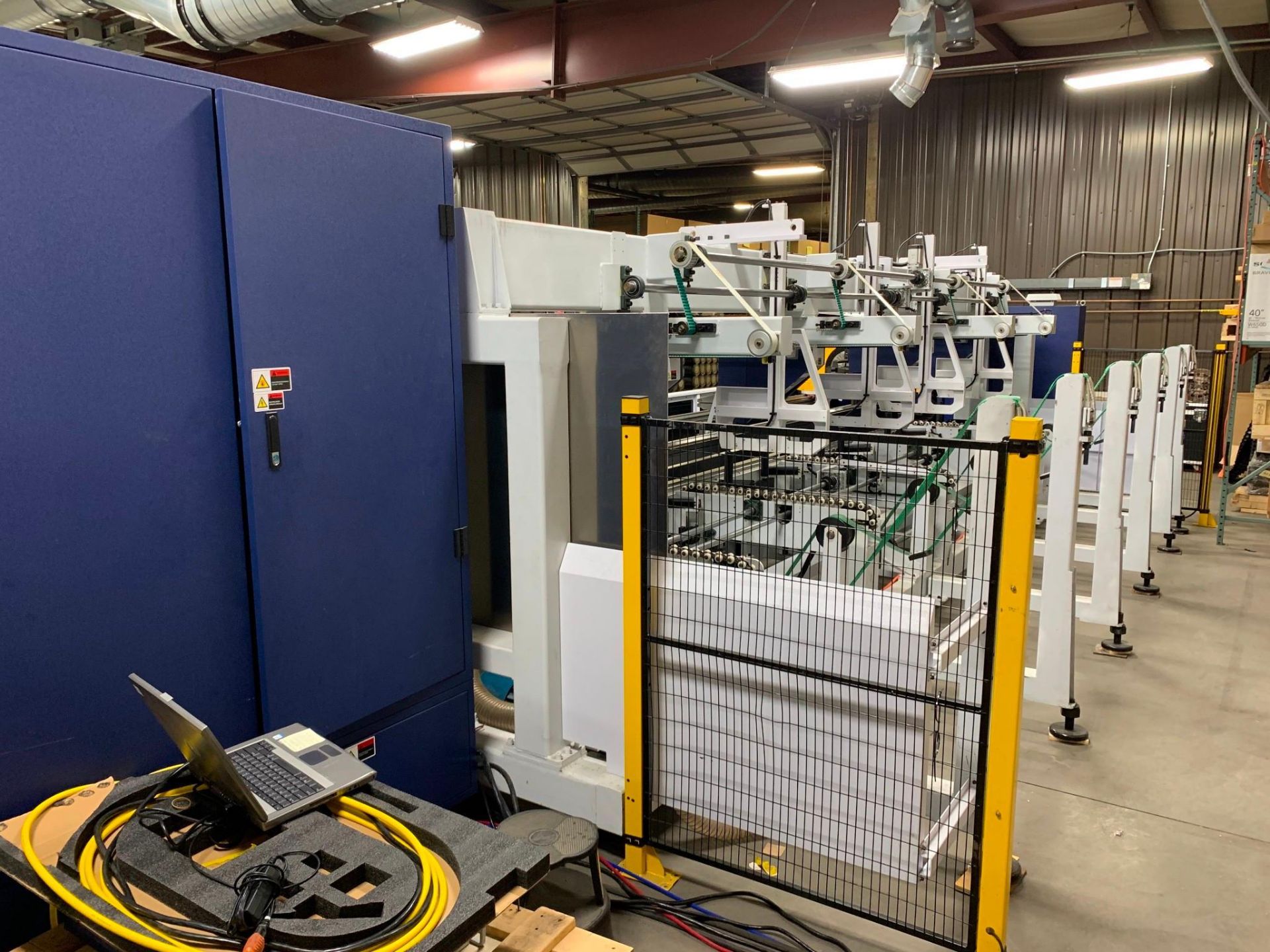

- Fully Enclosed CNC Fiber Tube & Pipe Laser
- Designed for High-Speed, High-Accuracy Tube Cutting
- Supports Manual & Automatic Loading
- Suitable for Continuous Production Environments
|
| Laser System: |
|---|
- Laser Type: Fiber Laser
- Laser Source: IPG Fiber Laser
- Laser Power: 1,000 Watts (1 kW)
- Cutting Head: Precitec ProCutter
- Safety Enclosure: Class 1 Fully Enclosed
|
| Tube & Pipe Capacity: |
|---|
- Round Tube Diameter: 0.5″ – 10″
- Square Tube Size: 0.5″ – 7″
- Wall Thickness Range: 0.019″ – 0.394″
|
| Material Cutting Capacity: |
|---|
- Stainless Steel (Nitrogen): Up to 0.315″
- Carbon Steel (Oxygen): Up to 0.394″
- Aluminum: Up to 0.315″
|
| Feedrates, Speed & Accuracy: |
|---|
- Max Movement Speed (X/Y): 394 ft/min
- Max Tube Feed Speed: 328 ft/min
- Maximum Acceleration: 1.2 G
- Positioning Accuracy (X/Y): ±0.0012″
- Repeatability (X/Y): ±0.0012″
|

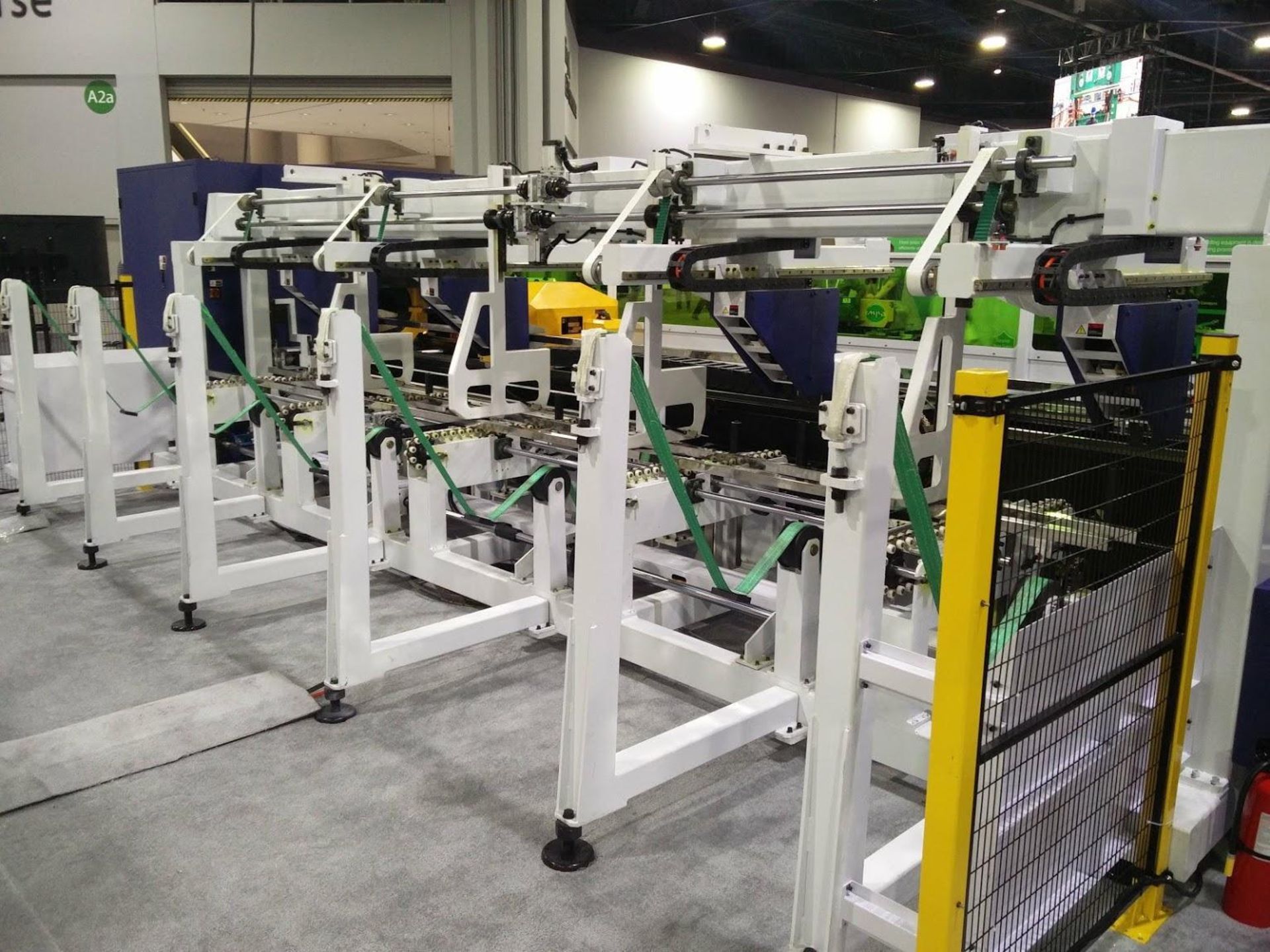

| Material Handling: |
|---|
- Max Raw Material Length: 21.3 ft
- Max Single Tube Weight (Manual Load): 440 lbs
- Max Single Tube Weight (Automatic Load): 286 lbs
- Max Bundle Weight: 6,000 lbs
|
| Controls & Software: |
|---|
- CNC Controls: Omron / Schneider
- Operator Interface: CNC Touch-Screen Control Panel
- Nesting Software: SigmaNEST
- Programming Functions: Tube Profiling, Slotting, Contouring, Piercing
|
| Electrical: |
|---|
- Power Supply: 480V / 3-Phase / 60 Hz
|
| General: |
|---|
- Overall Dimensions (Approx.): 468″ L × 138″ W × 108″ H
- Machine Weight (Approx.): 26,455 lbs
|
| Standard Features: |
|---|
- IPG Fiber Laser Source
- Precitec ProCutter Cutting Head
- Fully Enclosed Class 1 Safety System
- Automated Tube Feeding System
- High-Precision Servo Drives
- Bundle Loading Capability
- Industrial Fume Extraction Interface
|
| Typical Applications: |
|---|
- Structural Tubing
- Automotive Components
- Furniture Frames
- Fitness Equipment
- Agricultural Equipment
- Architectural Metal Fabrication
- HVAC & Mechanical Tubing
|
