*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

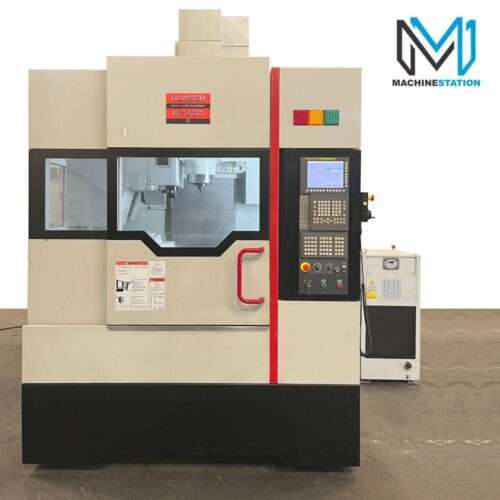

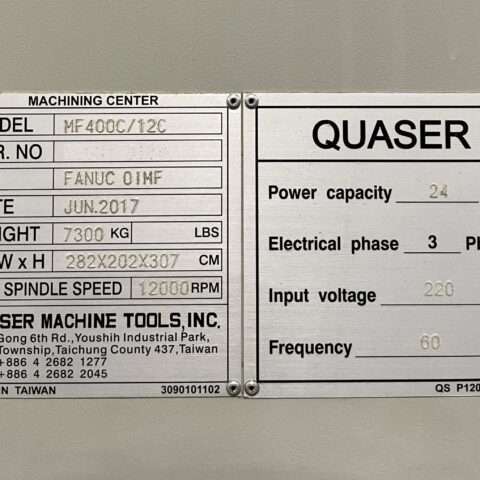

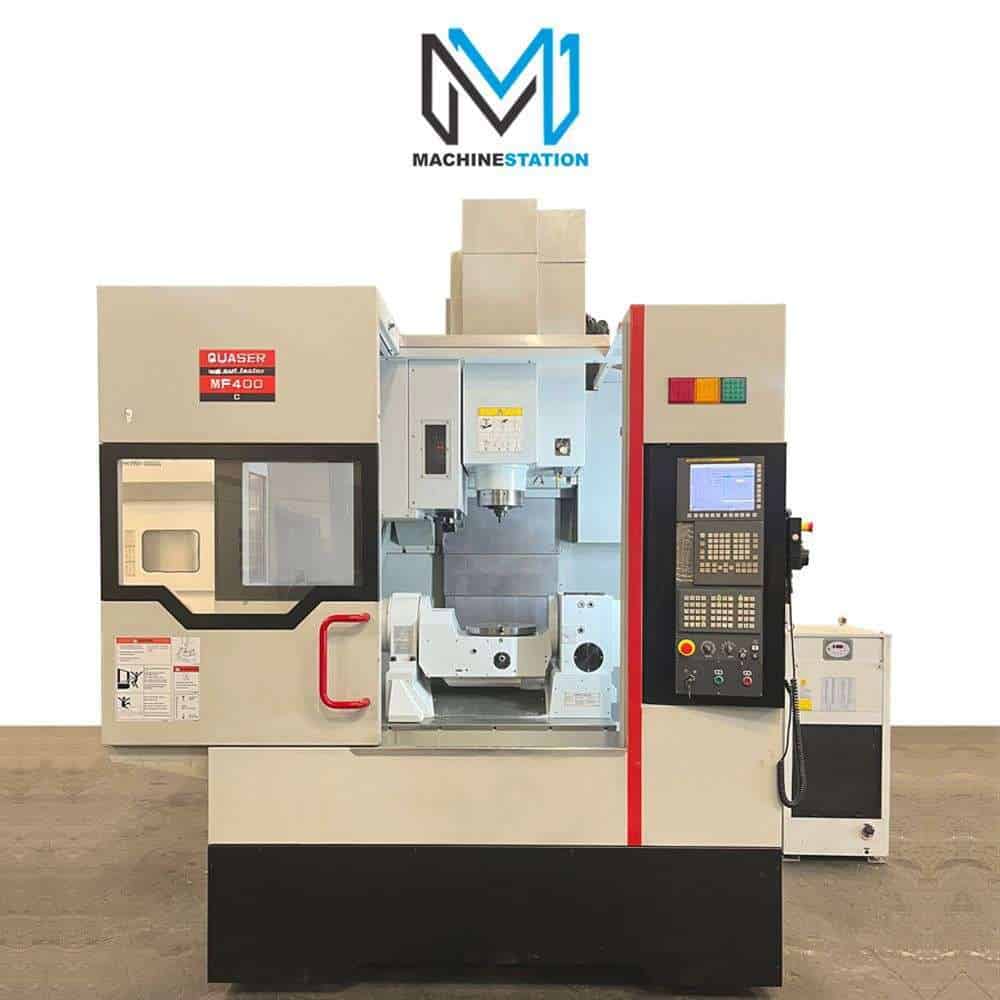

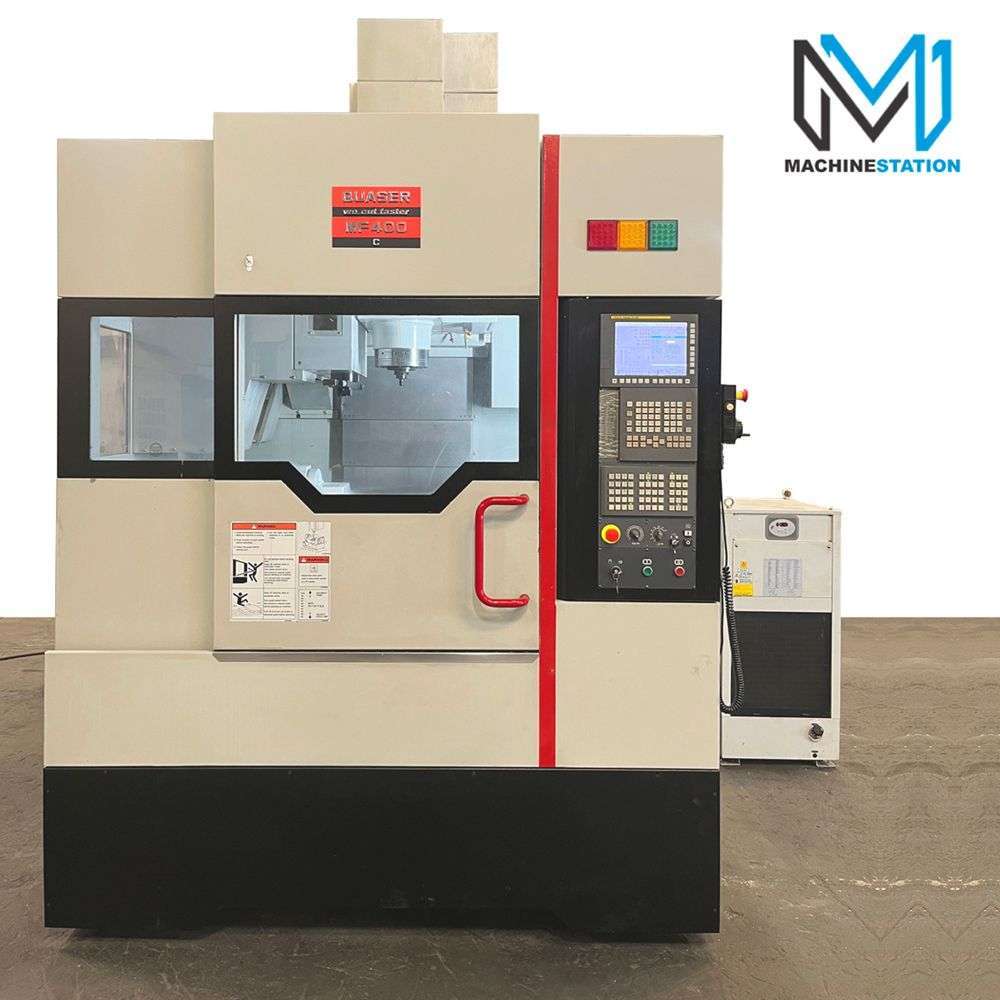

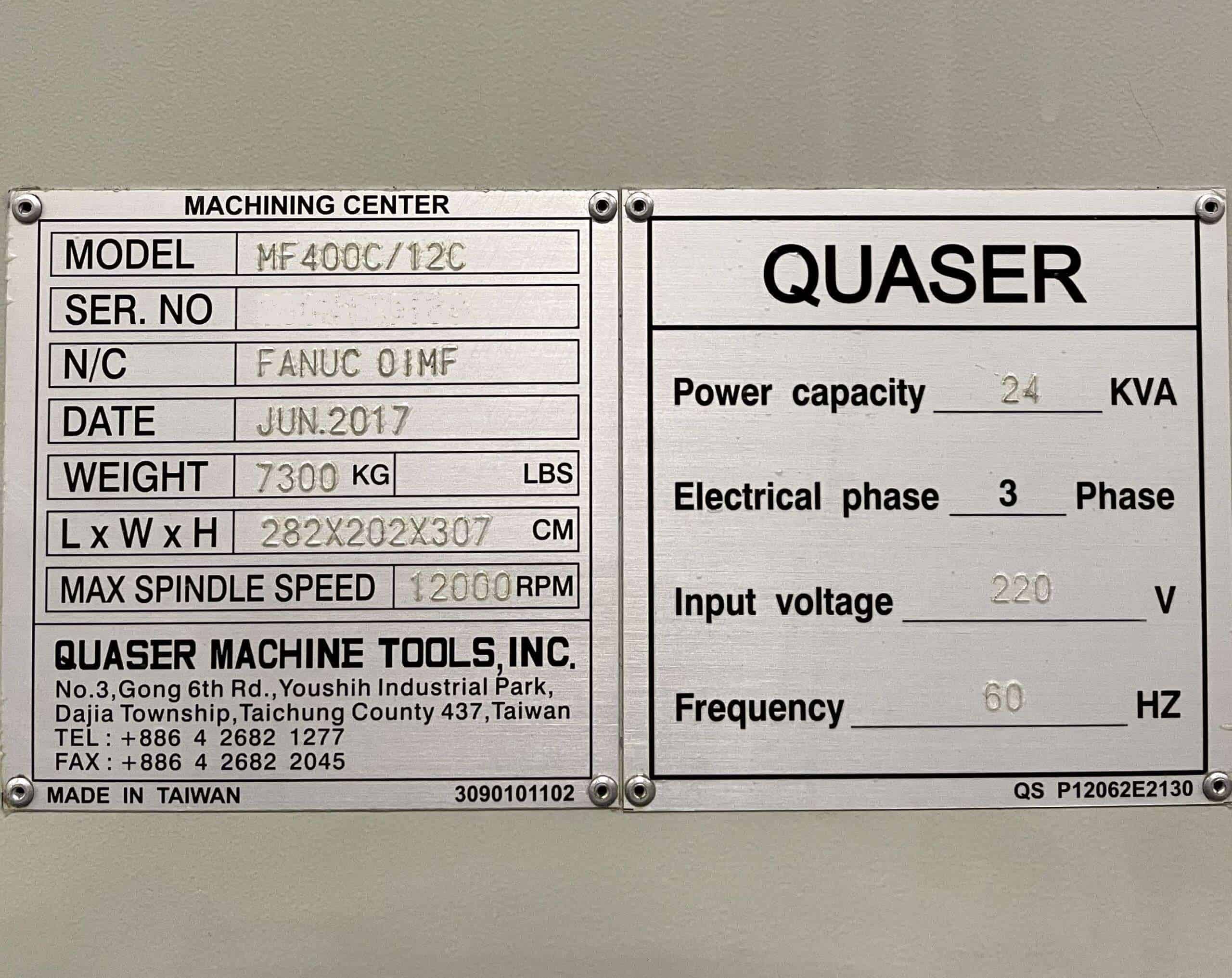

| Make: | Quaser |
| Model: | MF-400C/12C |
| SKU | 2456 |
| Year: | 2017 |
| Condition: | Excellent |
| Features: |
|---|

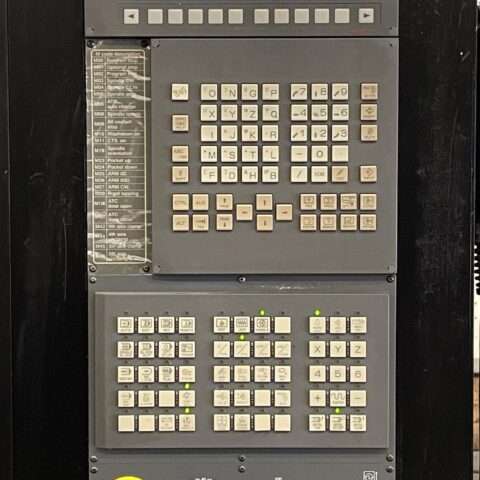

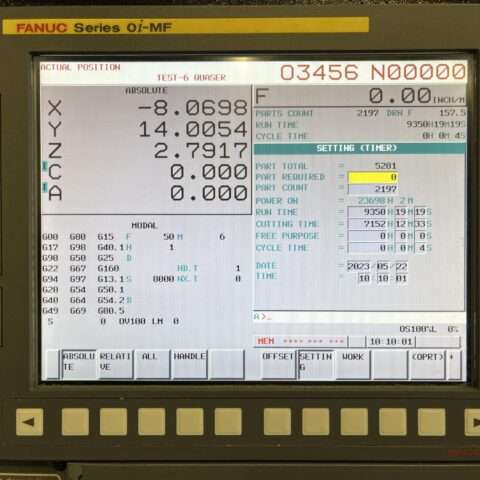

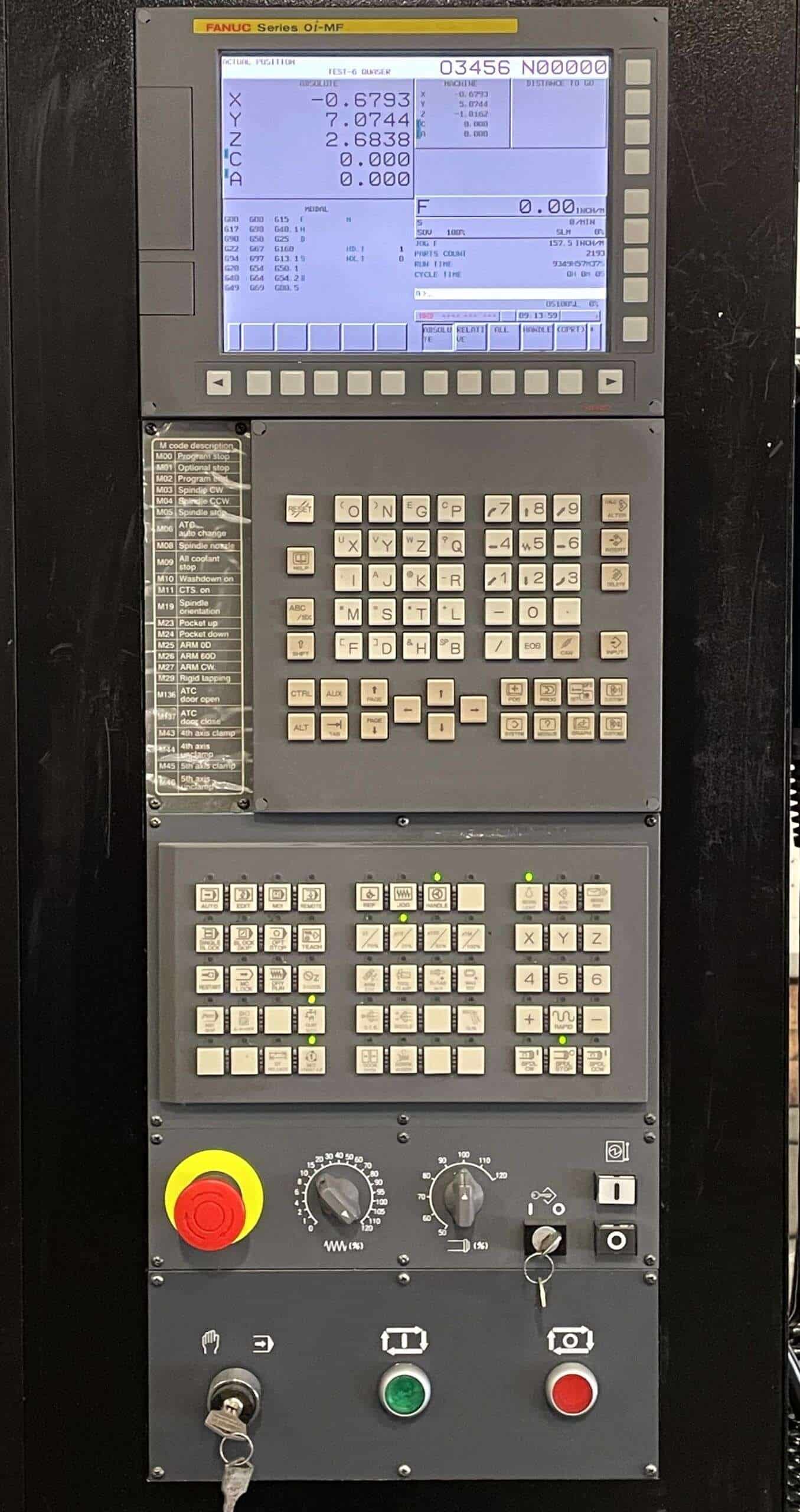

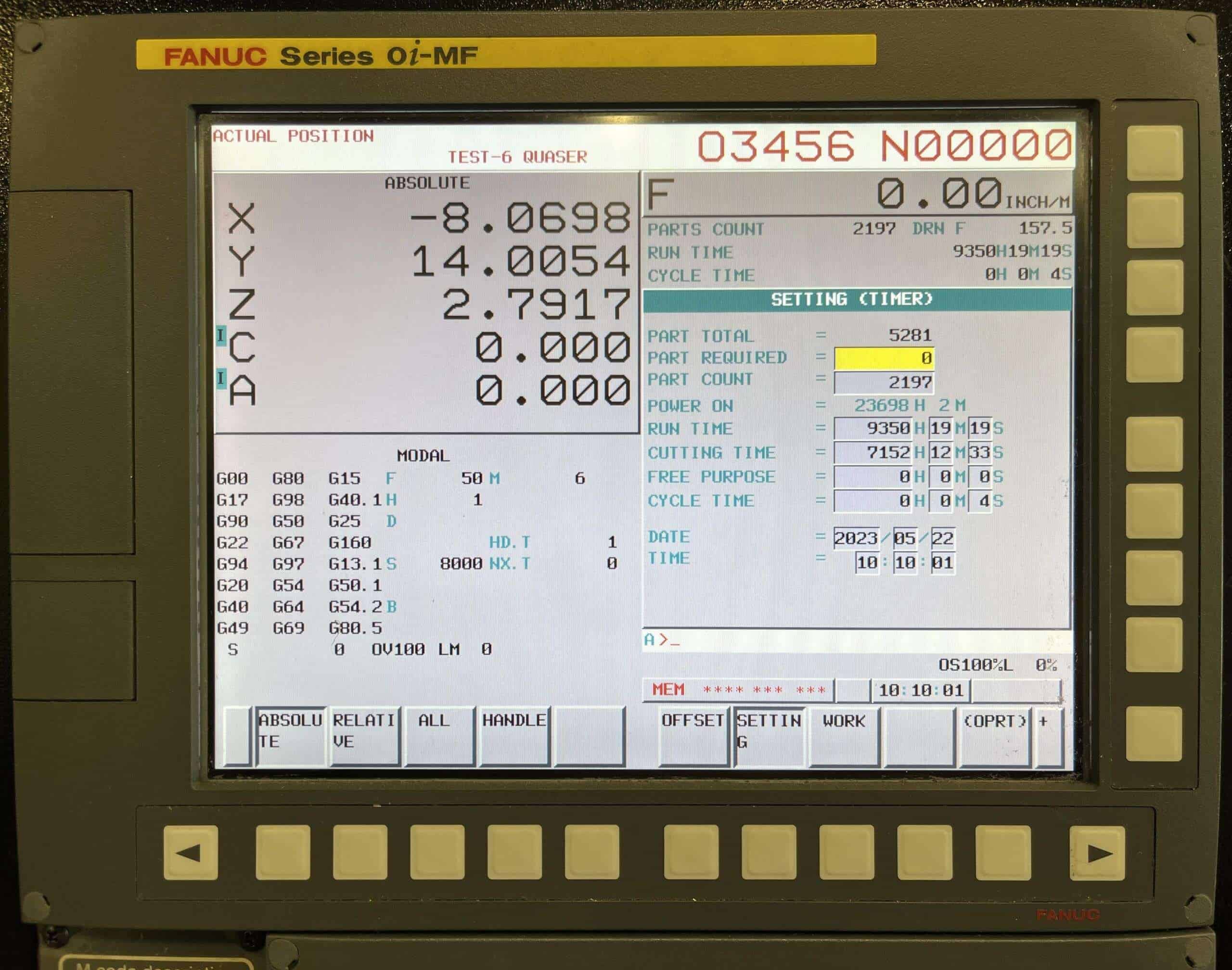

| Fanuc 0i-MF CNC Control |

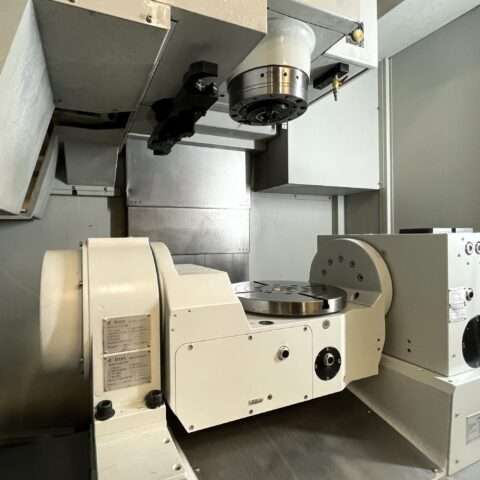

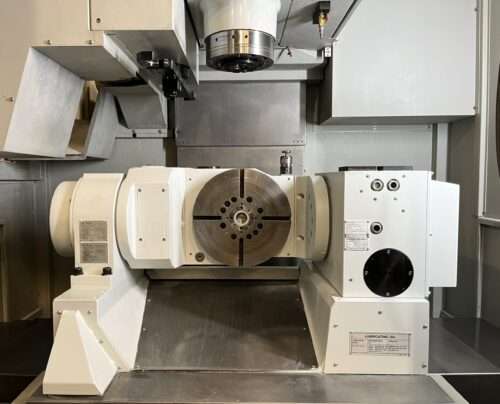

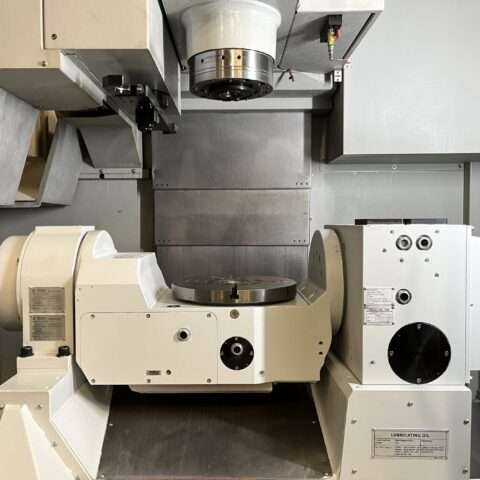

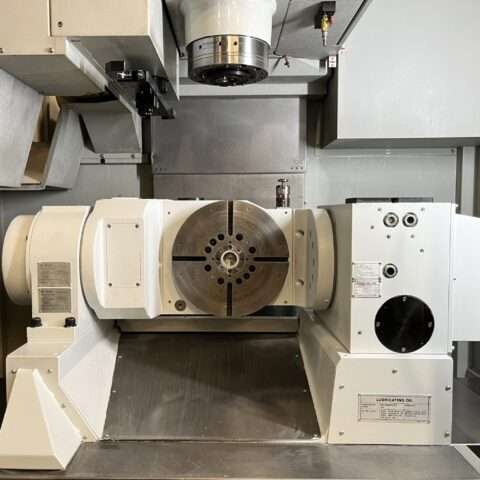

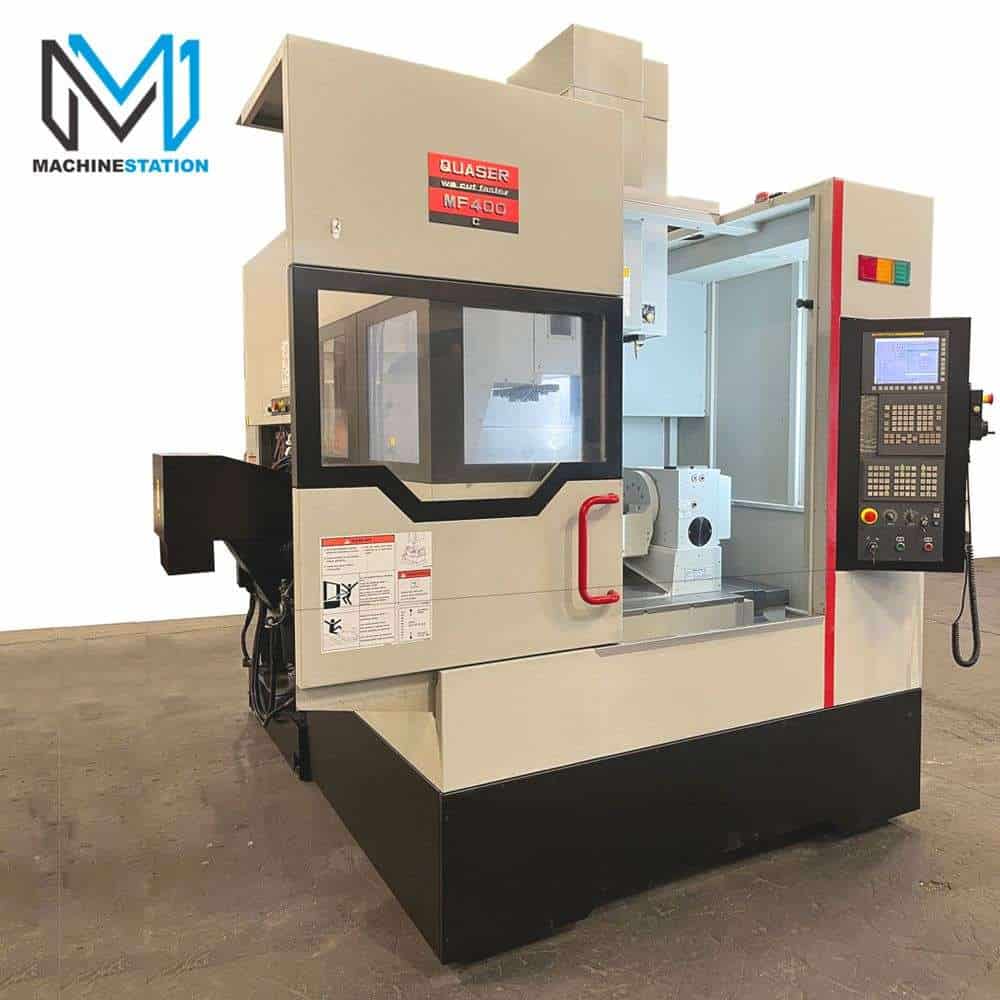

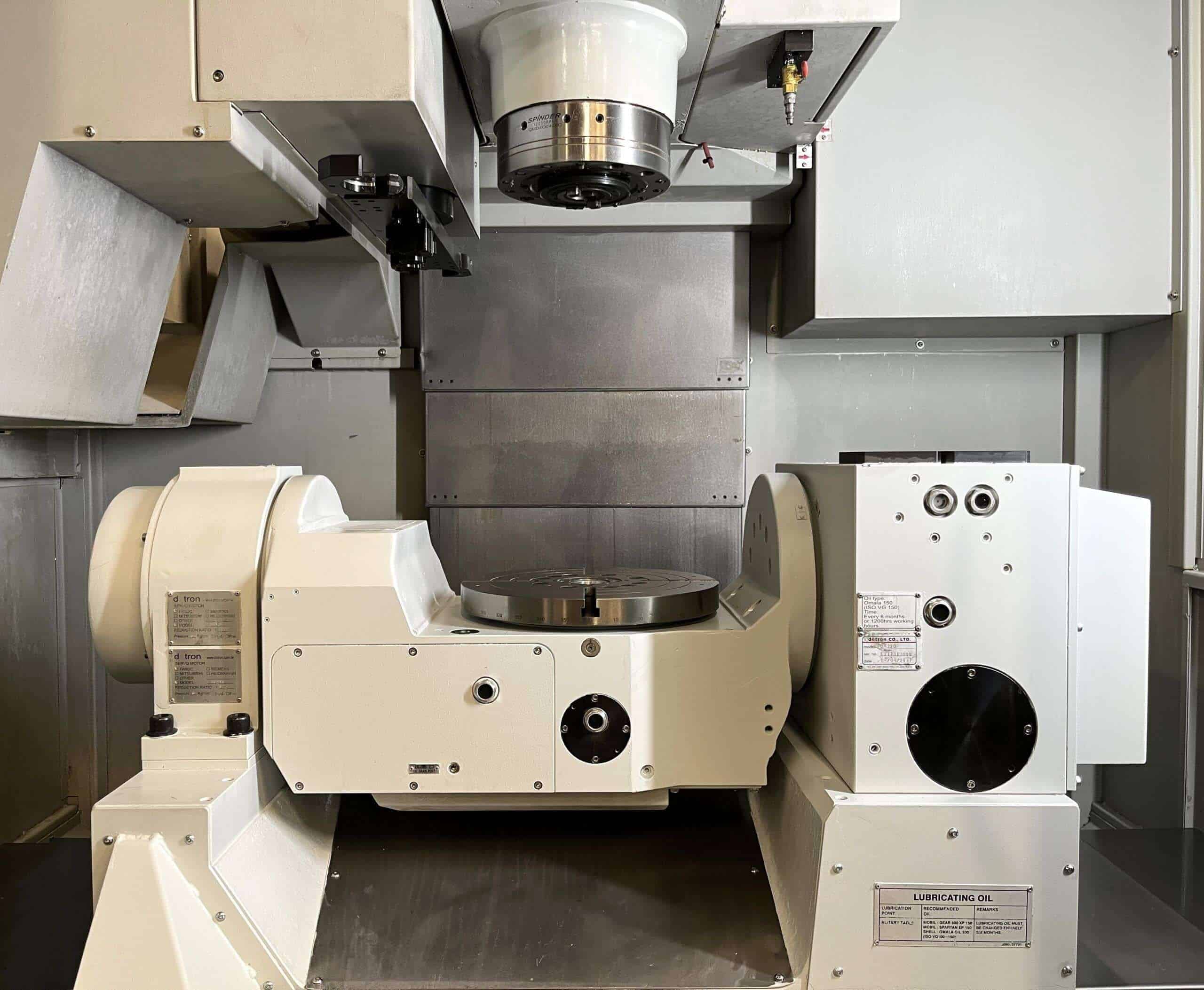

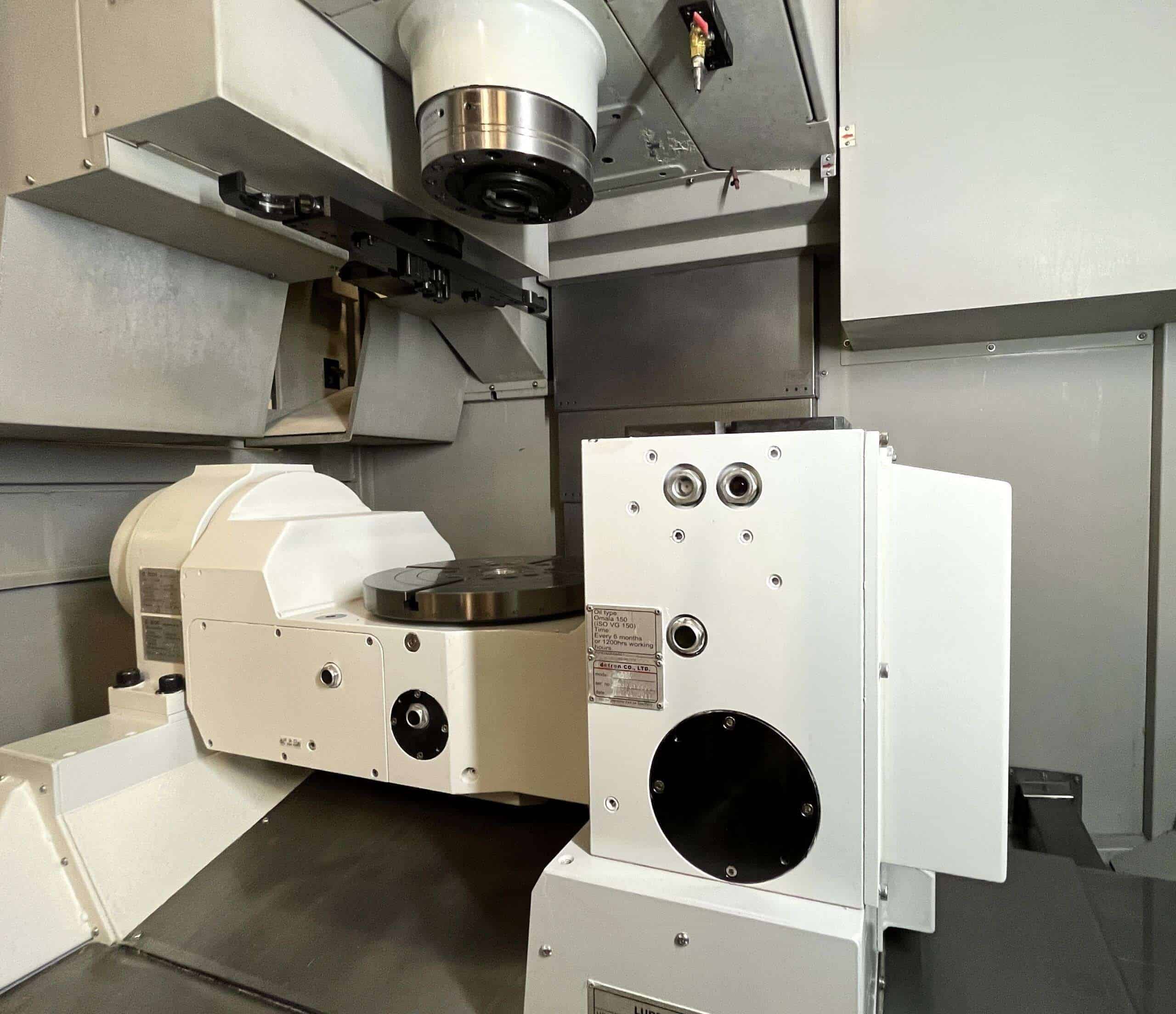

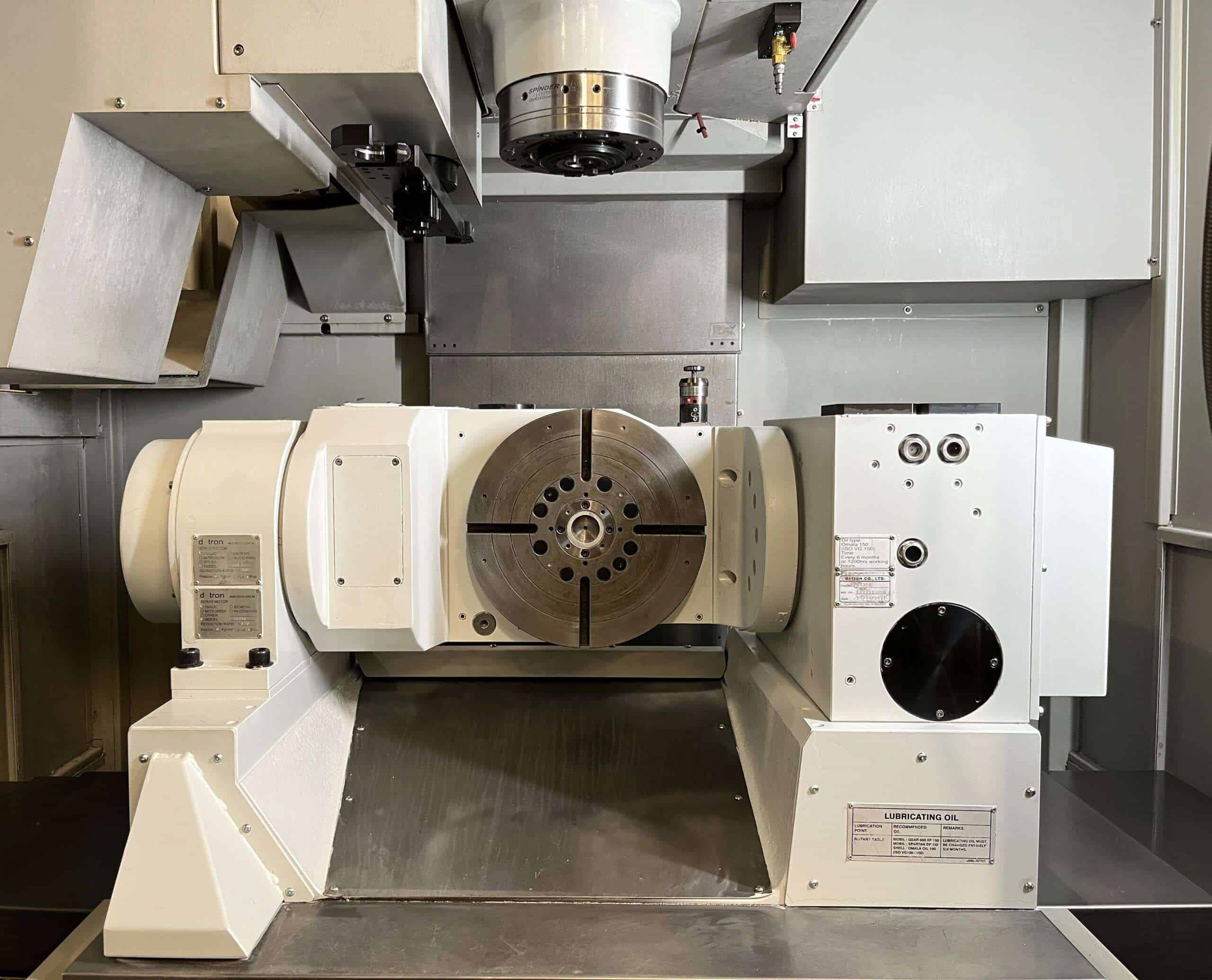

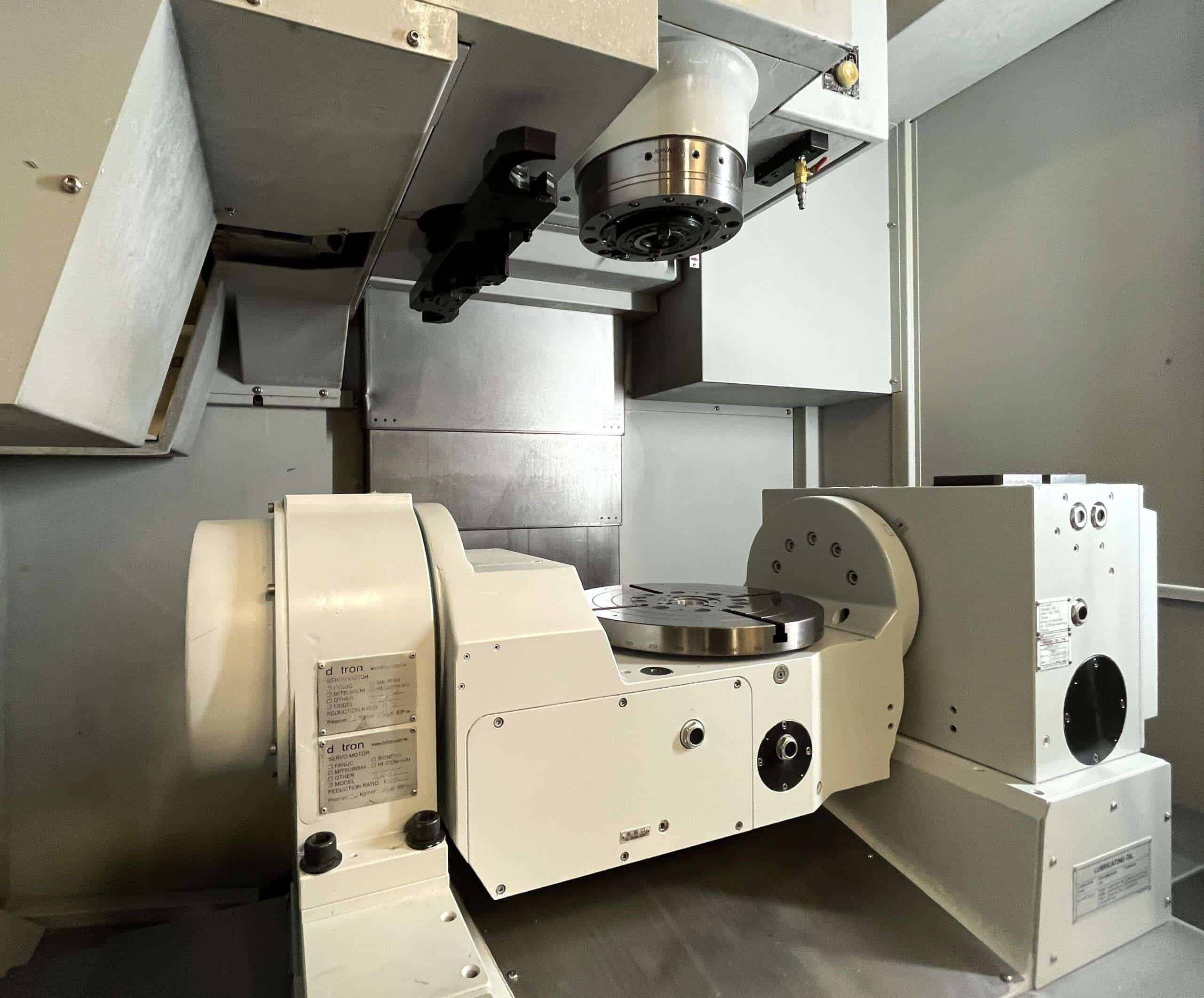

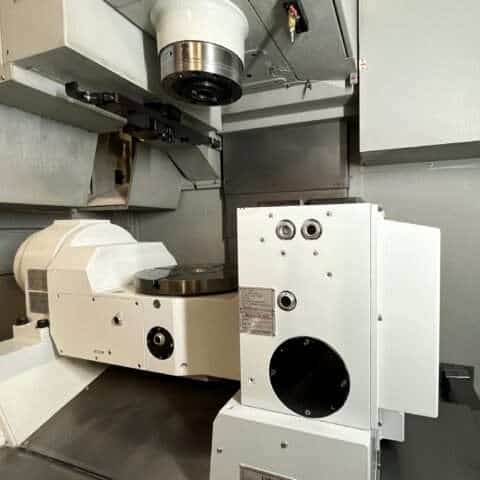

| 12.59″ Programmable Swiveling Trunnion Table |
| 12,000 RPM High Precision Spindle |

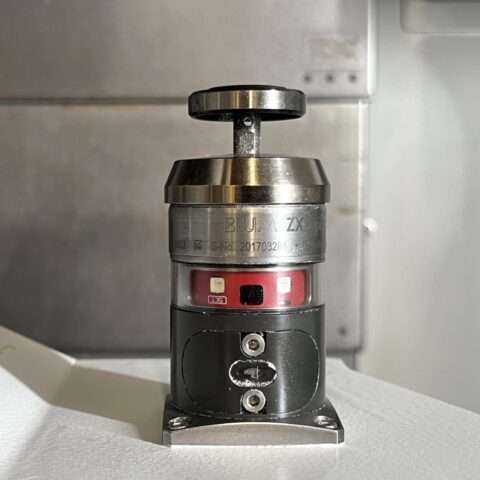

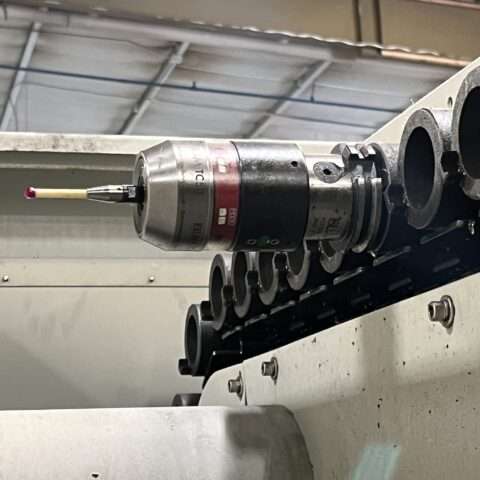

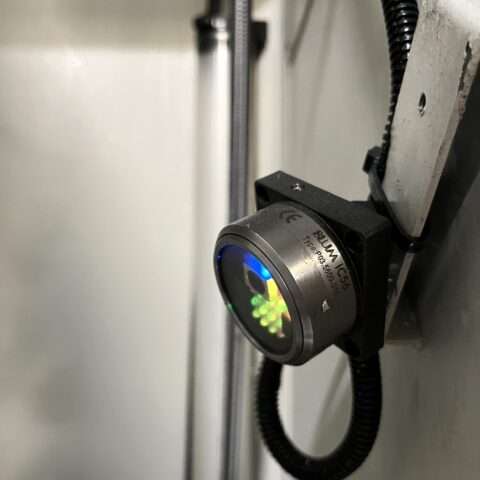

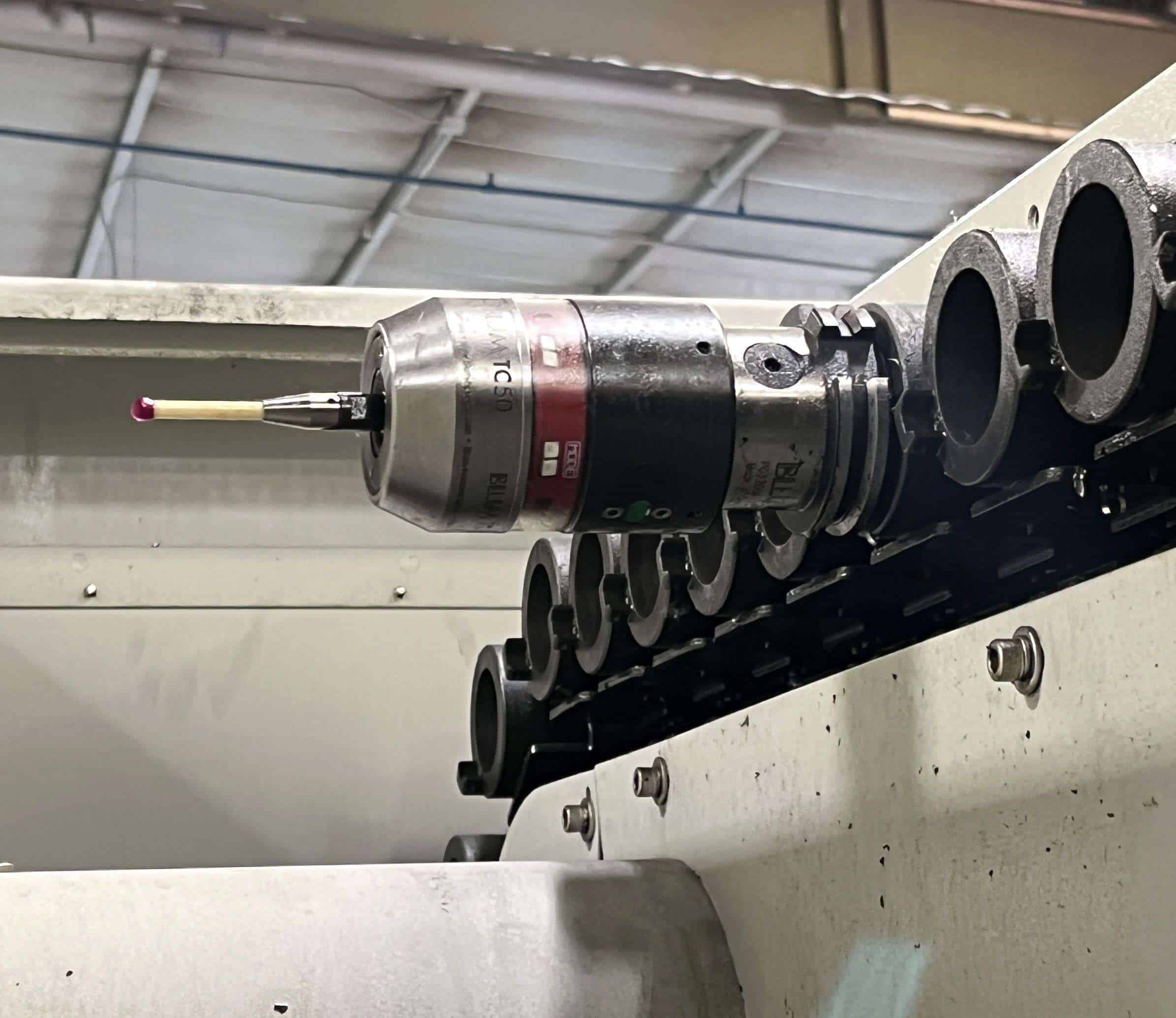

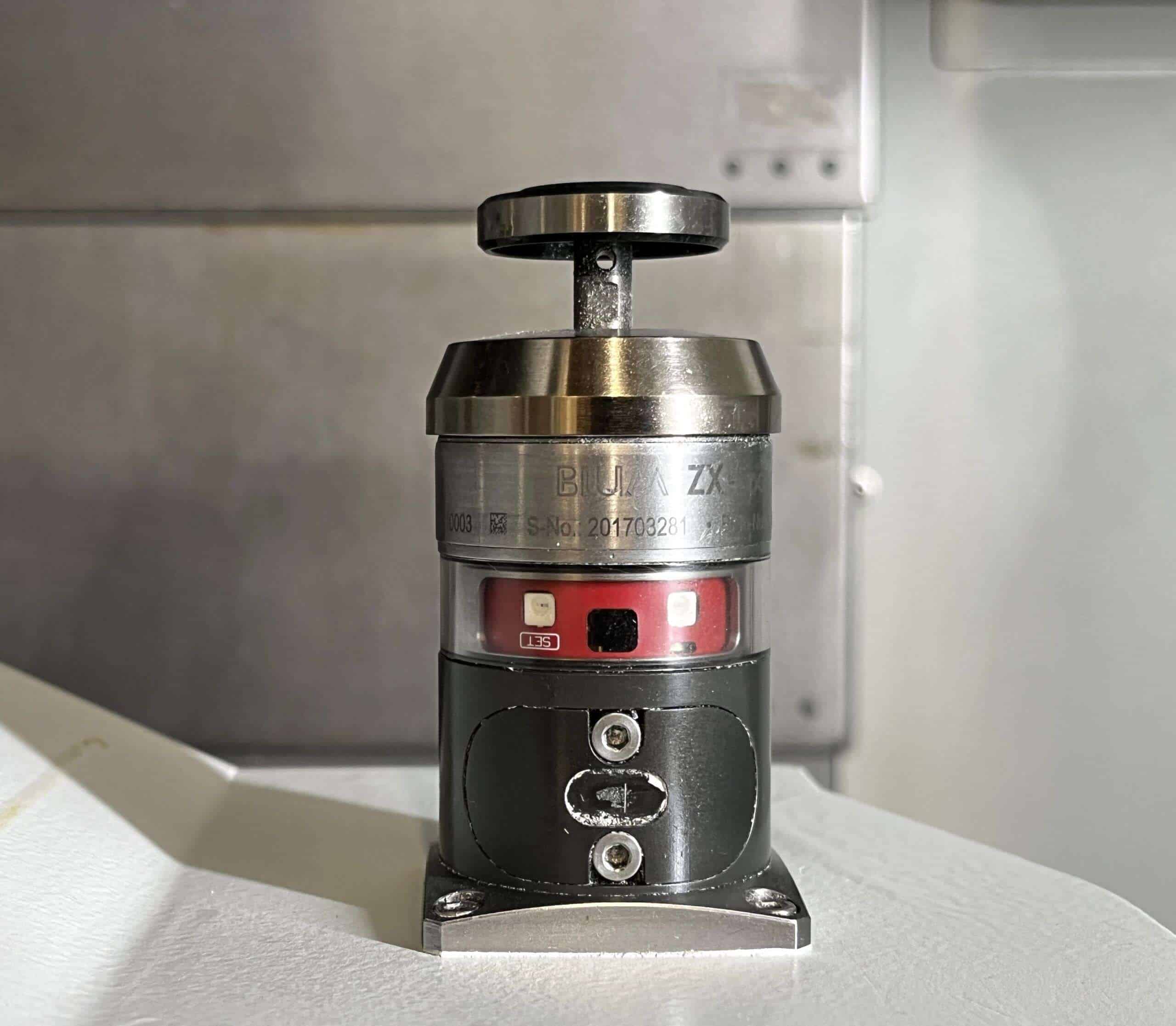

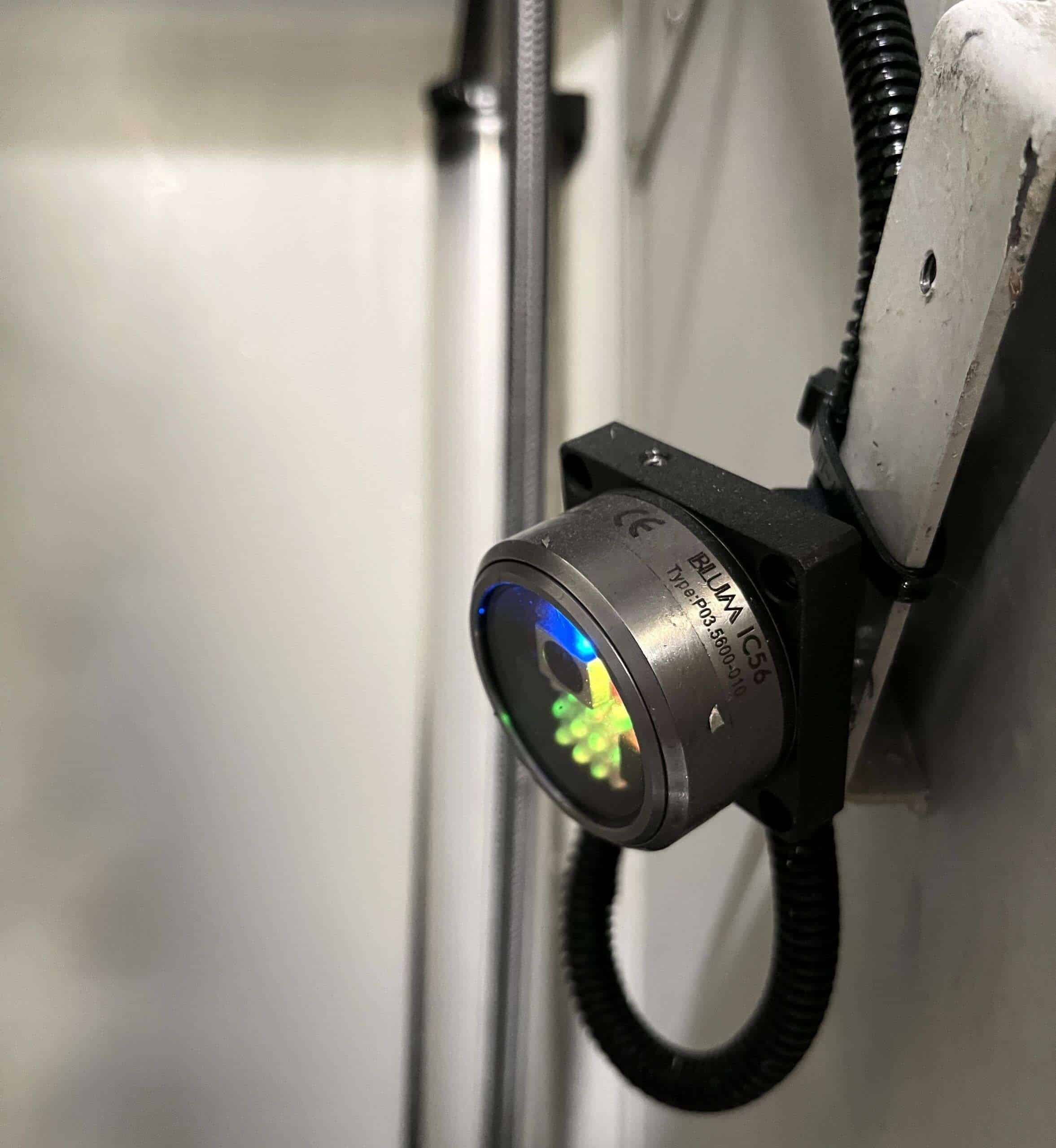

| Probing System |
| Coolant through Spindle |
| 30 Tools High Speed Tool Changer |

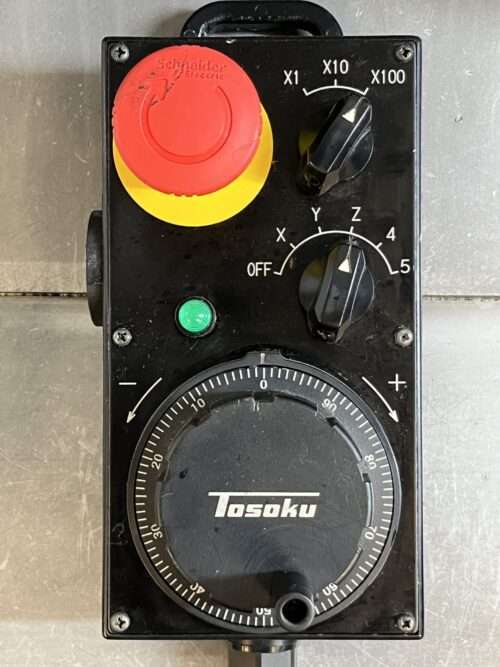

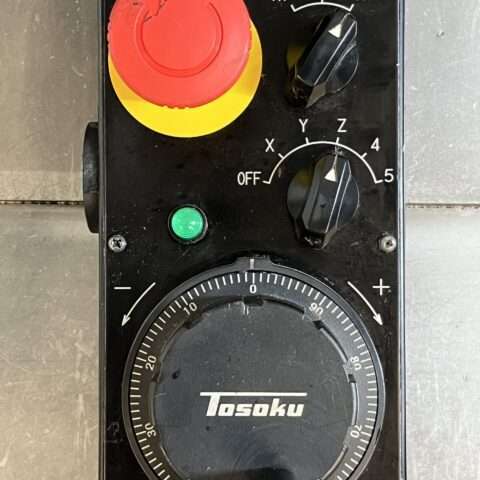

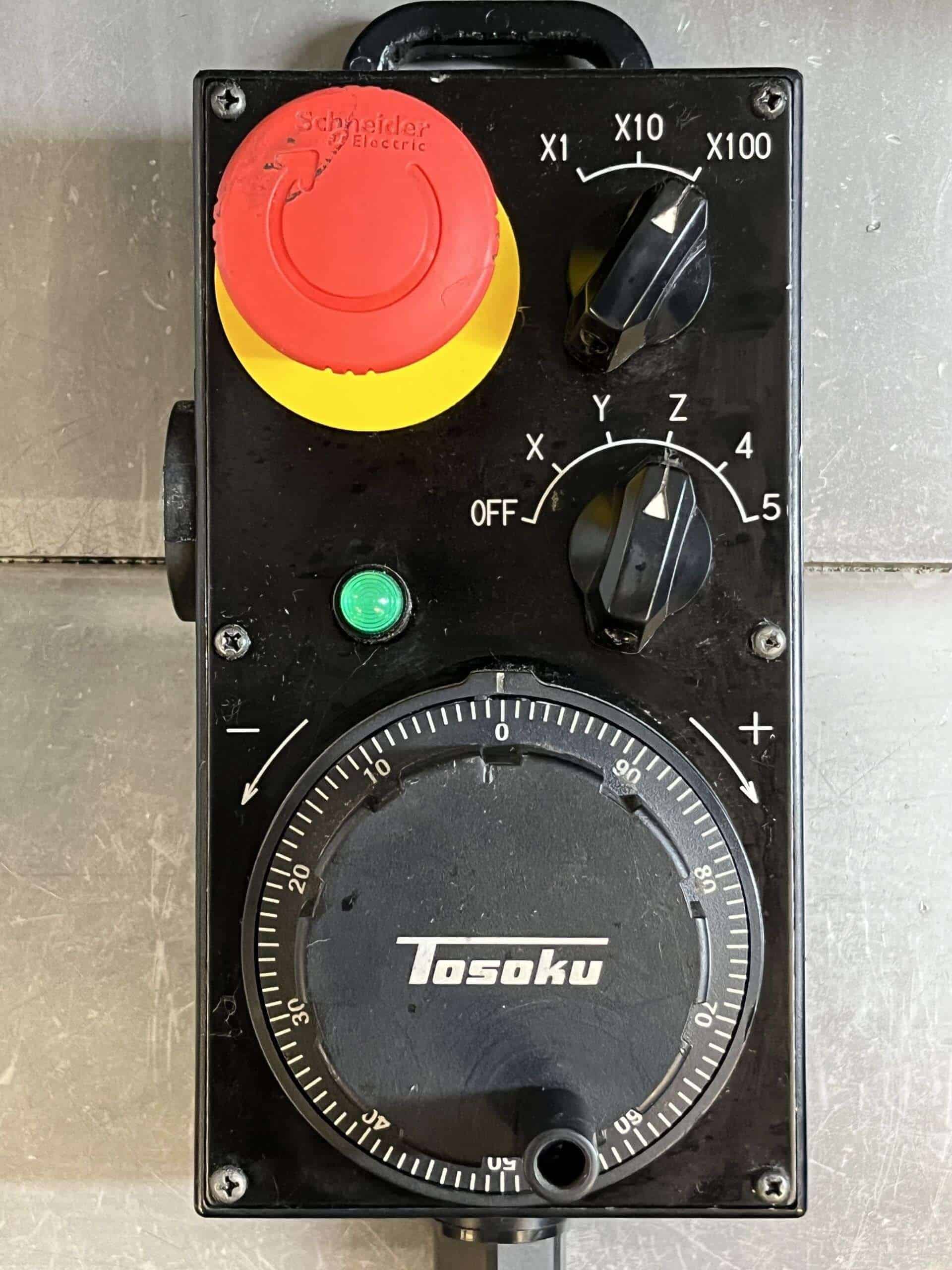

| MPG Control |
| PCMCIA Card Slot |

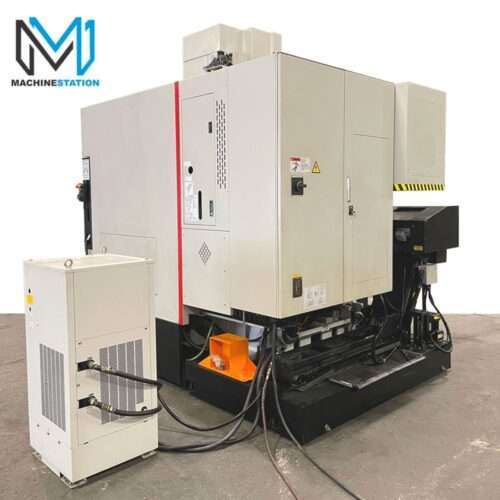

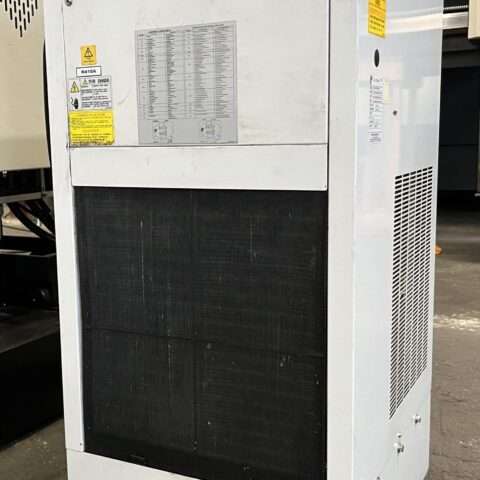

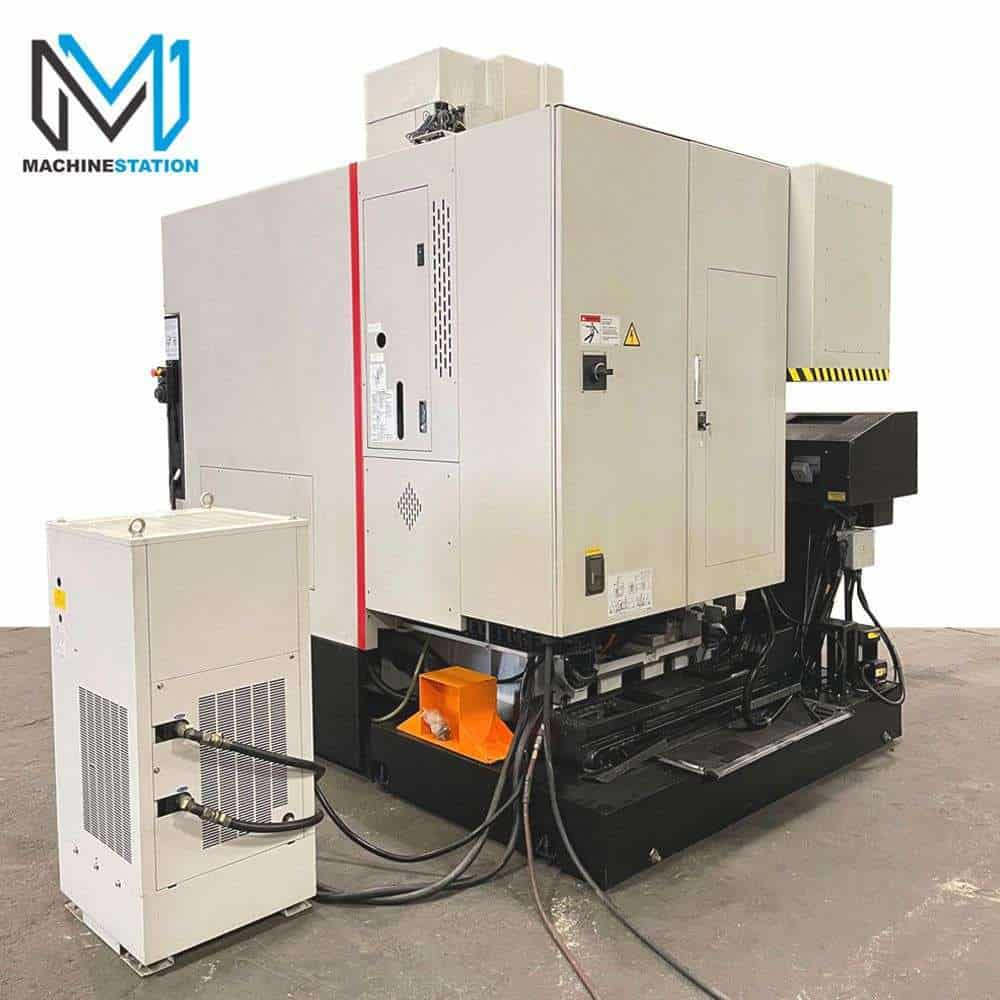

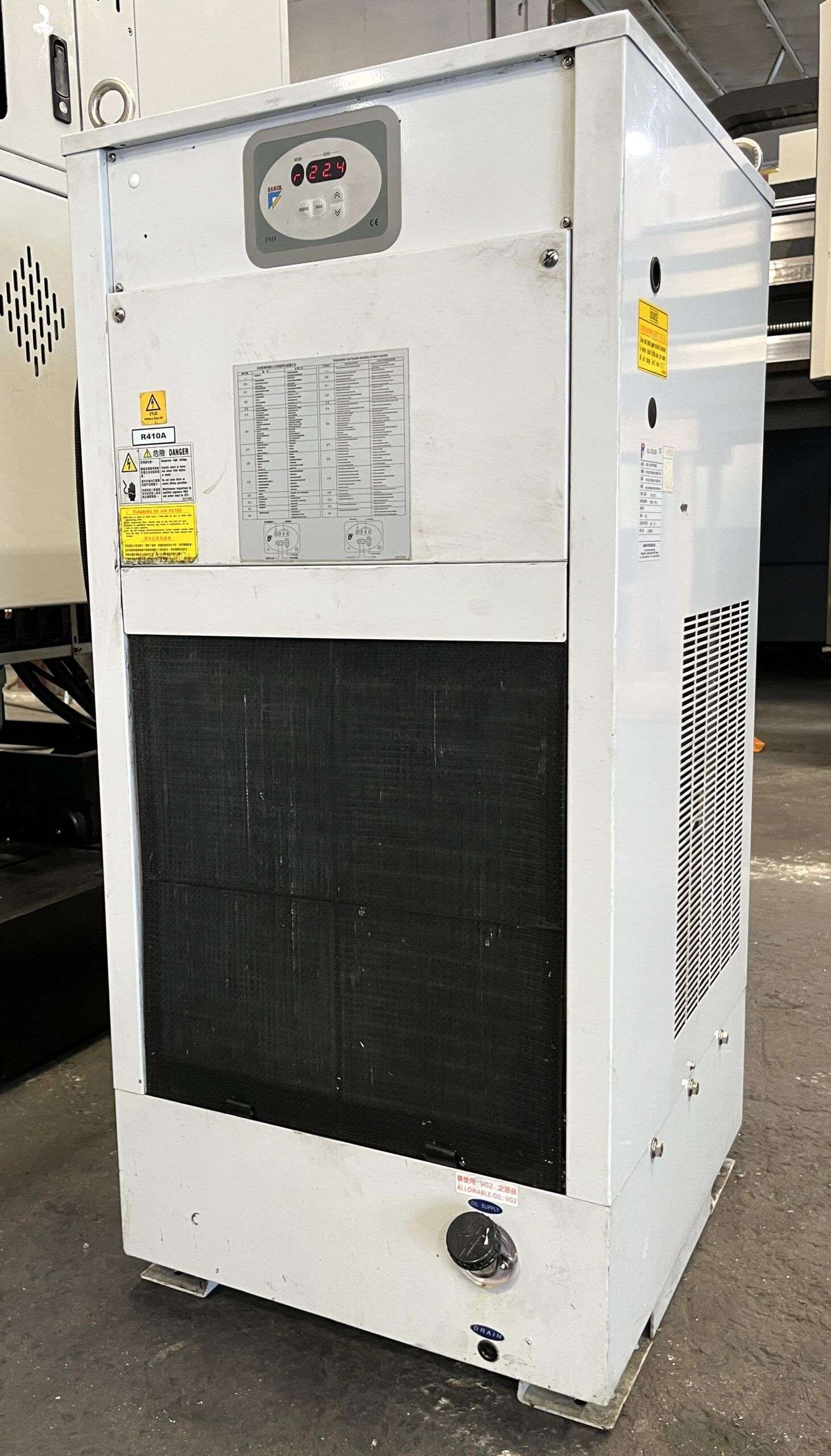

| Spindle Chiller |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |

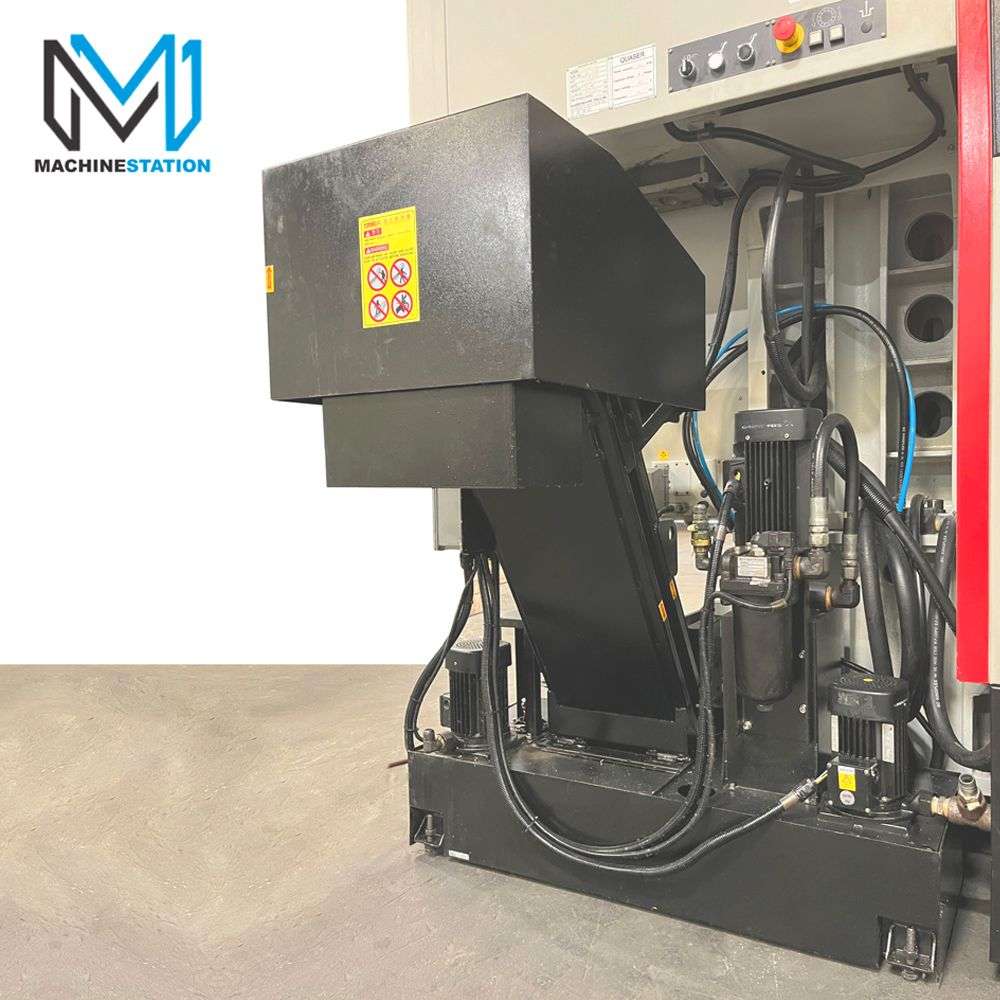

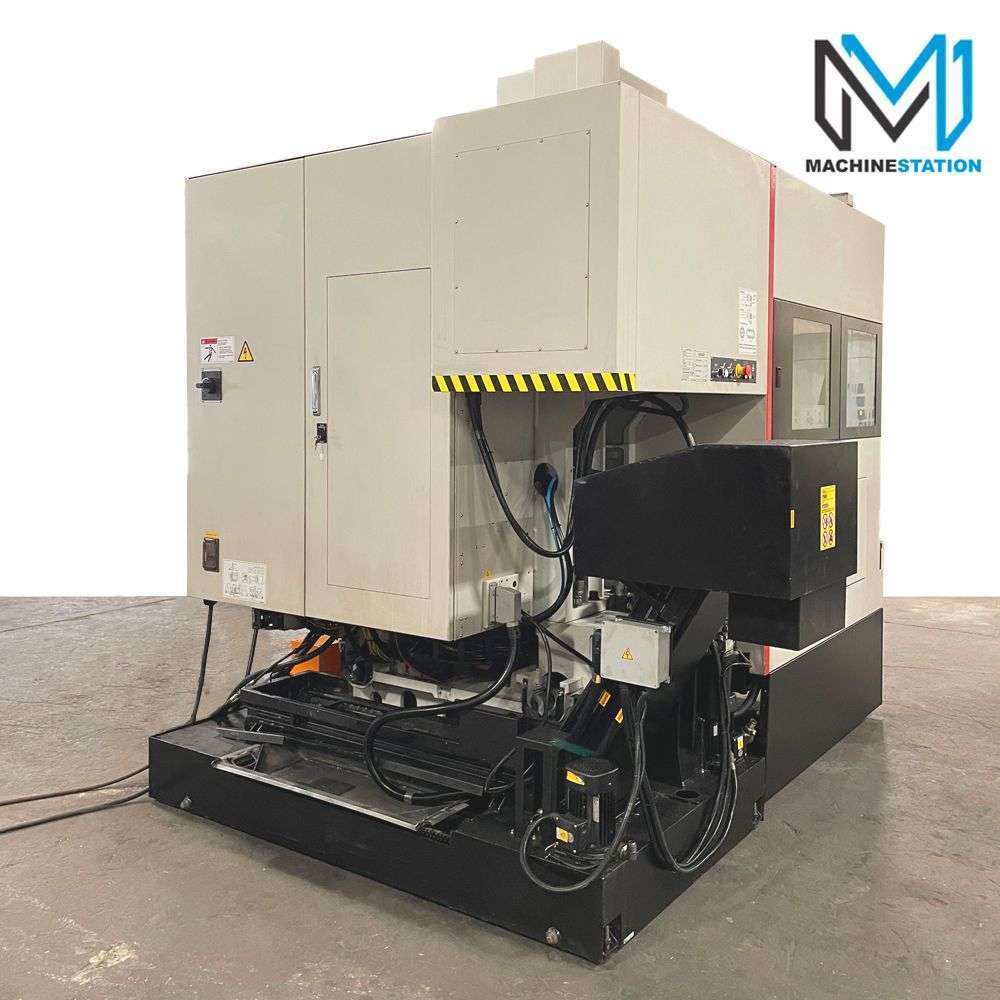

| Chip Conveyor |
| Work light |

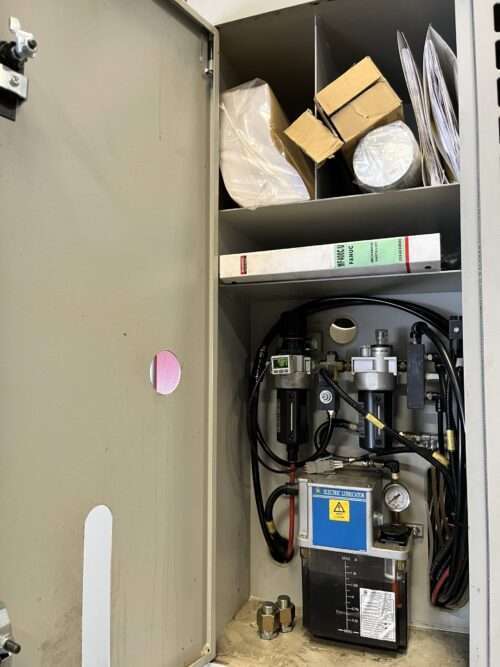

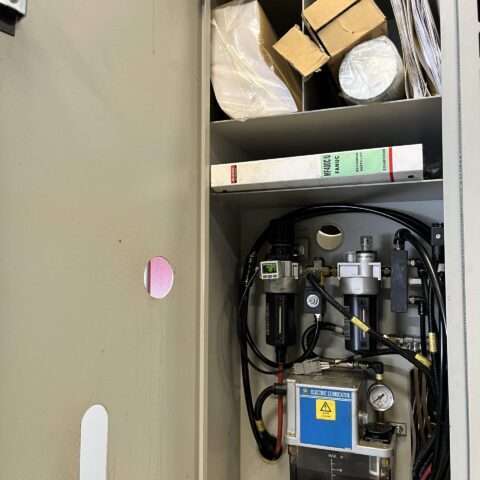

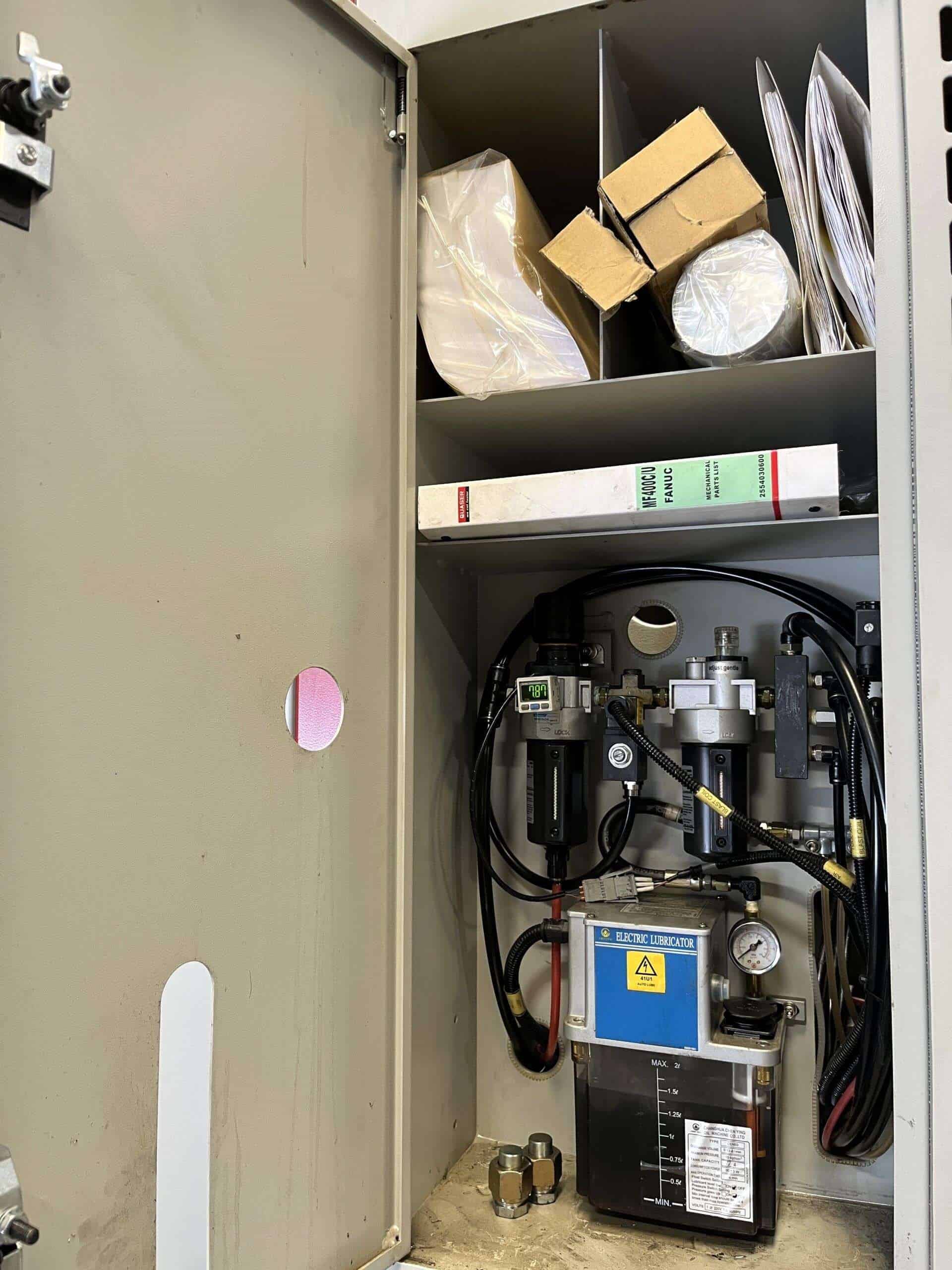

| Books and Manuals |
| Specifications: |
|---|
| Table: |
| Table size: 12.59″ |
| Max. Swing: 16.1″ |
| Max. Workpiece: 15.75″ X 11.81″ |
| Max Weight on Table: 250 lbs |
| Table to Spindle Nose: 0.78″ – 20.87″ |
| Travels: |
|---|
| X Axis: 16.1″ |
| Y Axis: 24.1″ |
| Z Axis: 20.7″ |
| A Axis: +30° – 130° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 20 – 12,000 RPM |
| Spindle Power: 20 HP |
| Feed Rates: |
|---|
| Rapid X & Y : 1417 Inch Per Minute |
| Rapid Z : 984 Inch Per Minute |
| Rapid A : 2000° Per Minute |
| Rapid C : 6000° Per Minute |

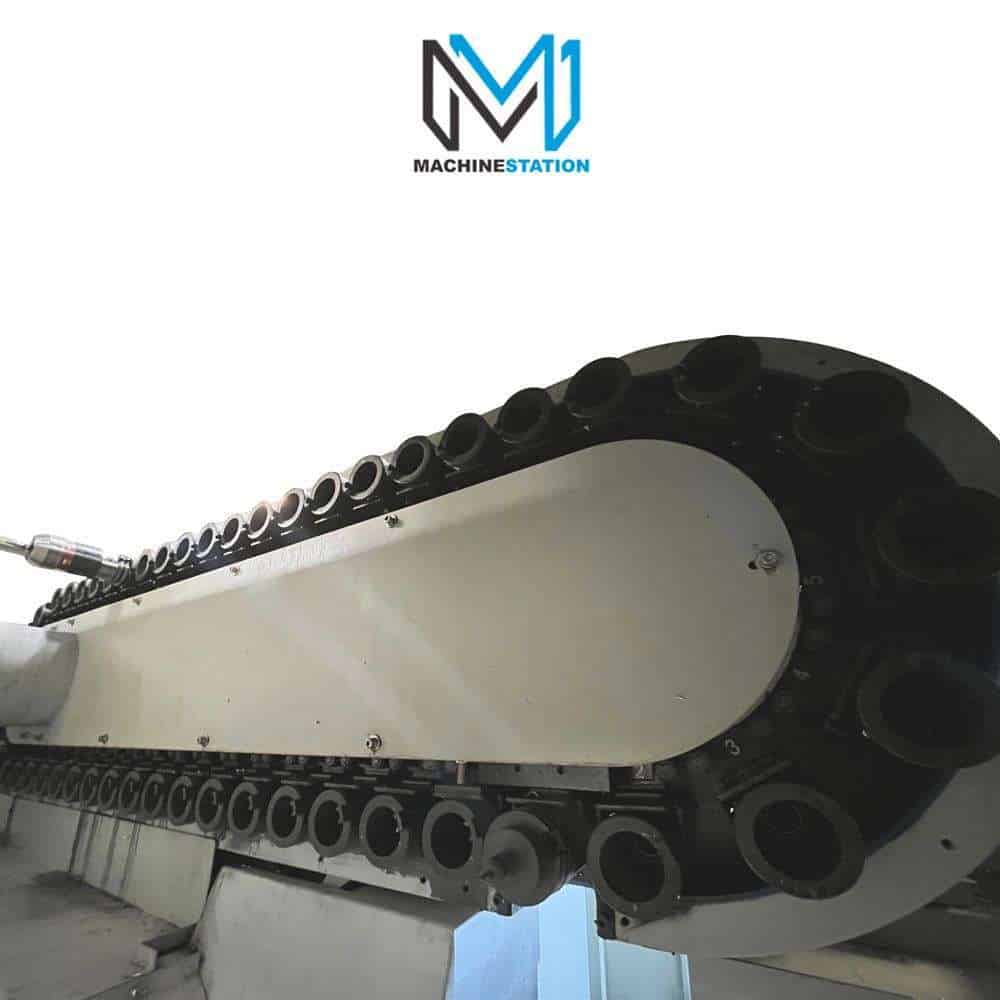

| Tool changer: |
|---|
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Size: 4.9″ X 11.08″ |
| Max Tool Weight: 15 lbs. |
| Tool Change Time: 2.7 Second |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

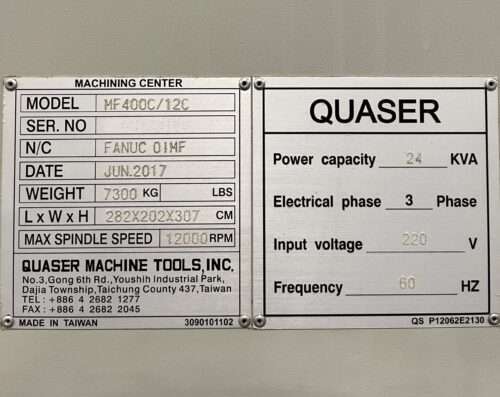

| Power: 24kva / 220v / 3-Phase |
| Overall Dimensions: 111″ x 79″ x 120″ High |
| Weight: 16,000 lbs |
