*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Quaser |
| Model No.: |

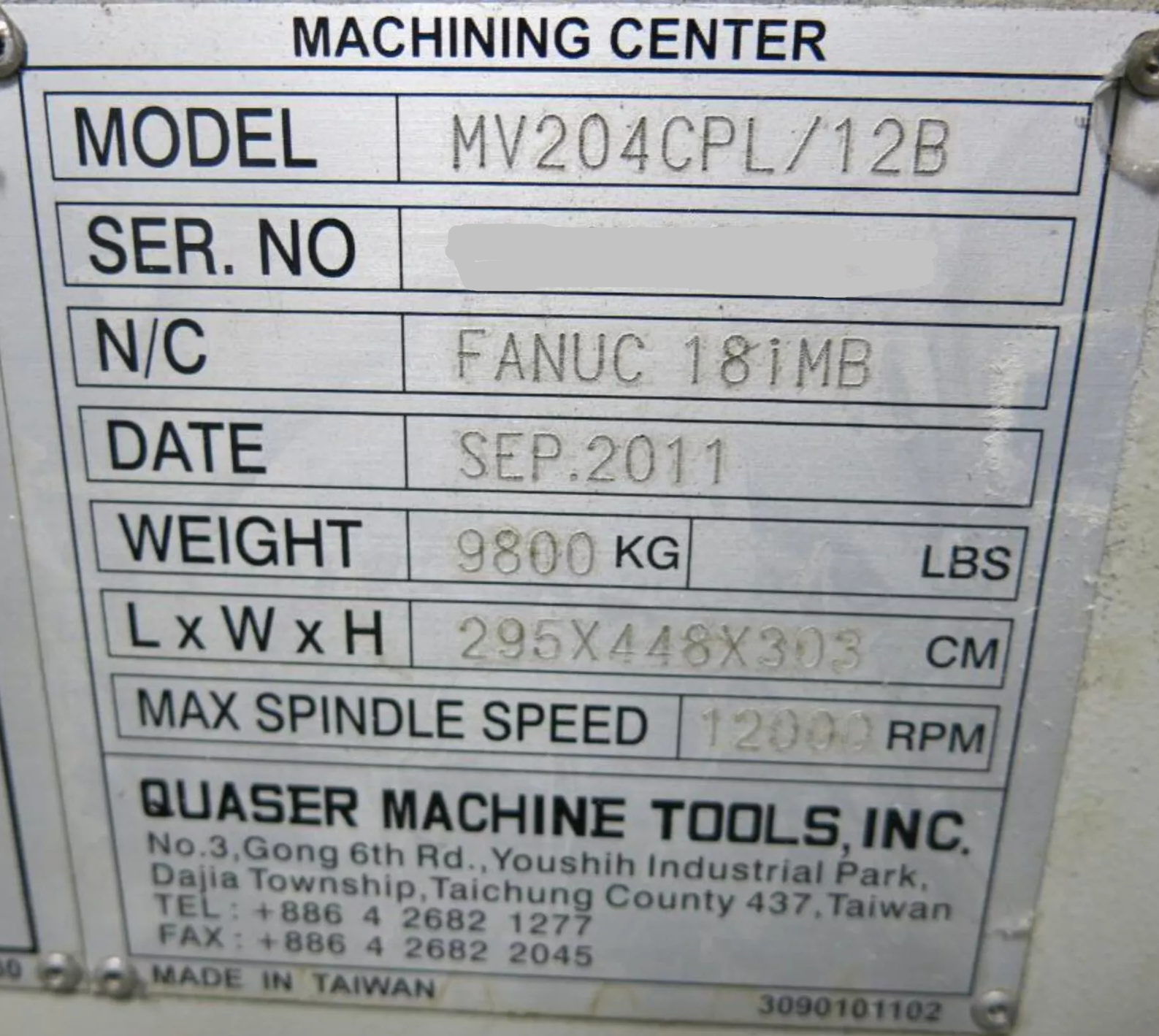

MV-204CPL/12B |
| Year of Manufacture: |
2011 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |

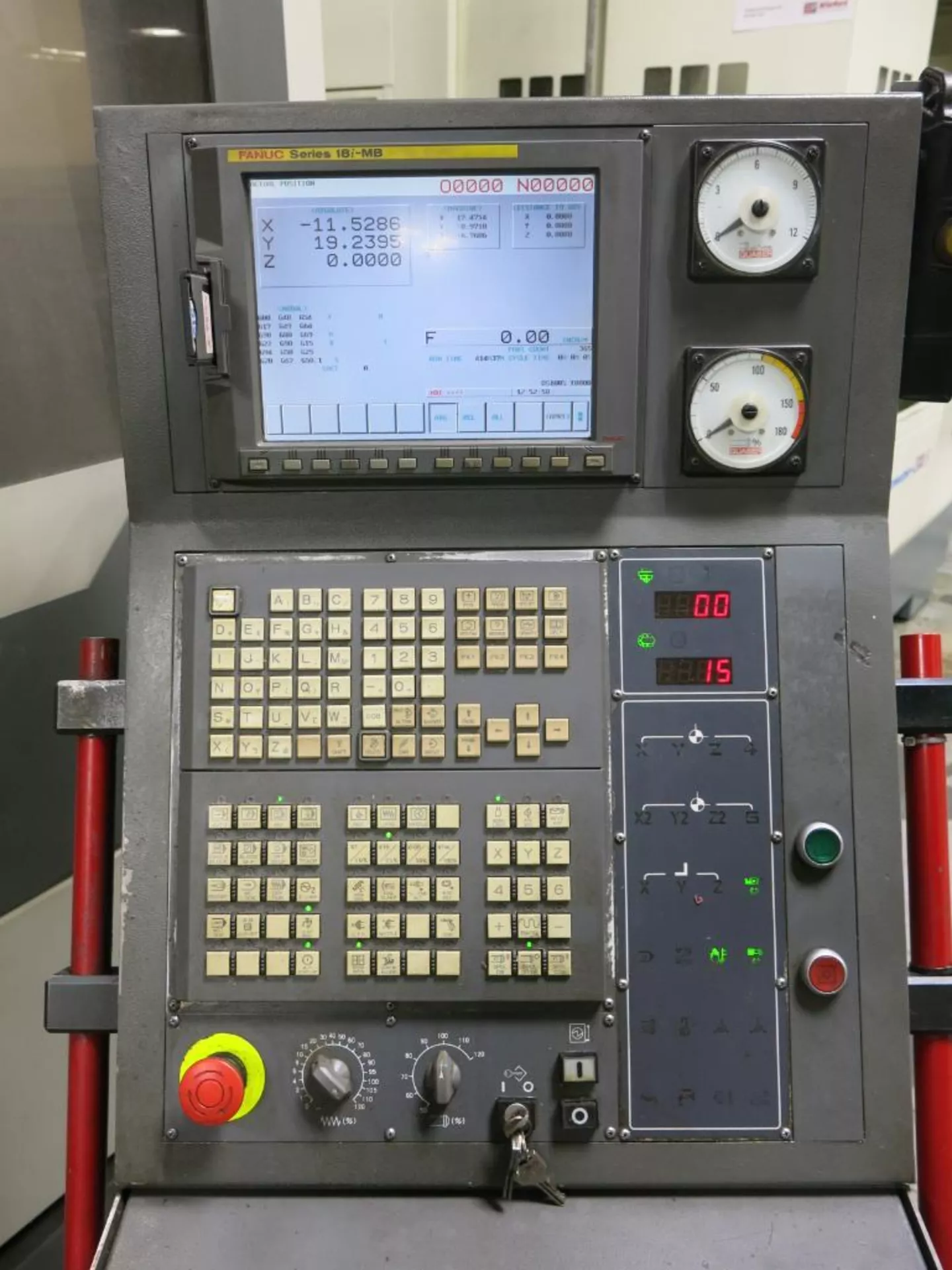

Fanuc 18i-MB |
| Country of Origin: |
Taiwan |
| Equipped With: |
| Fanuc 18i-MB CNC Control |
| 48-Station Automatic Tool Changer |
| BT40 Big Plus Spindle |
| Through-Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Full Enclosure |
| 4th Axis Ready |
| Capacity: |

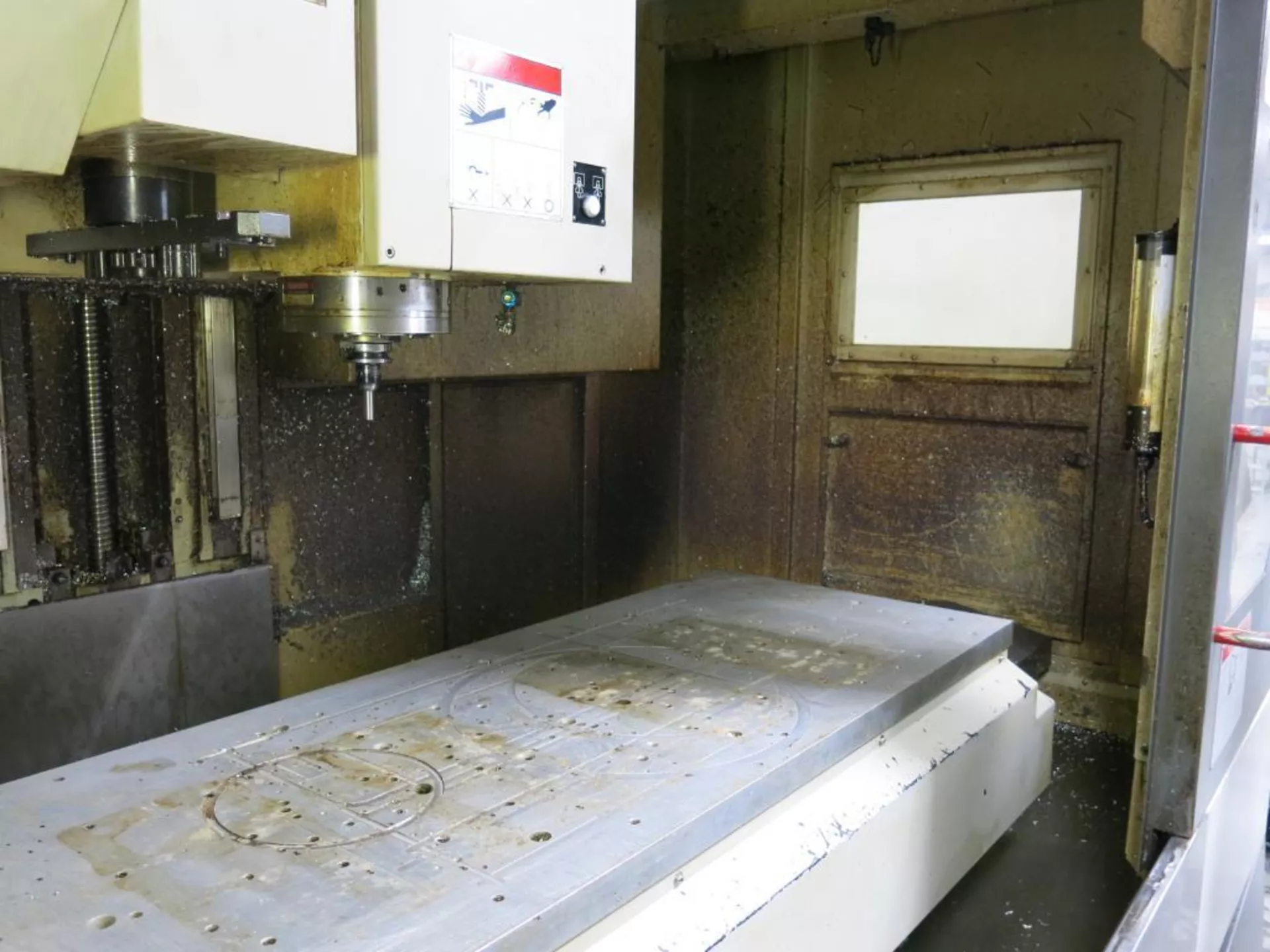

| Table Size: 67″ × 27.5″ (1,700 × 700 mm) |
| Table Load Capacity: 2,000 kg (~4,400 lbs) |
| Travels: |
| X-Axis Travel: 60″ (1,524 mm) |
| Y-Axis Travel: 27.5″ (700 mm) |
| Z-Axis Travel: 24″ (610 mm) |
| Rapid Traverse (X/Y/Z): ~36 m/min (~1,400 IPM) |
| Spindle: |
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 / ISO 40 |
| Spindle Motor: ~30 kW (≈40 HP) |
| Tooling System: |
| Tool Capacity: 48 Tools |
| Type: Random / Chain Type ATC |
| Fast Tool Change for High Productivity |
| General: |
| Axis: 3-Axis (4th Axis Ready) |
| Machine Dimensions: ~4.5 × 2.9 × 3.08 m |
| Machine Weight: ~9,500 – 10,100 kg |
| Power Requirement: ~35–45 kVA |
| Features: |
| Heavy-duty box guideways for rigidity |
| Large work envelope (50″+ X travel class) |
| 48-tool ATC for complex machining |
| High torque BT40 spindle |
| Through-spindle coolant for deep drilling |
| Fanuc 18i control – proven industrial reliability |
| Ideal for mold, die & heavy machining |
