*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

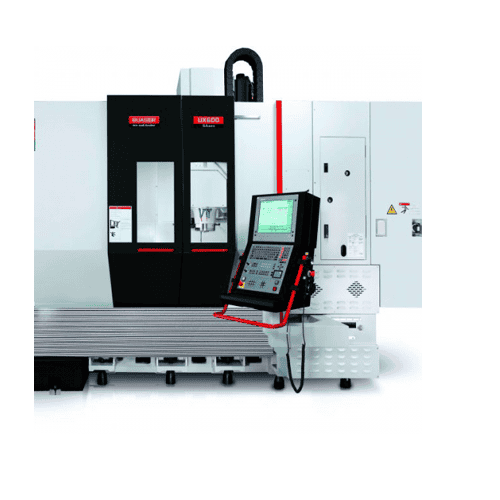

| Make: | Quaser |
| Model: | UX600P |
| Condition: | Brand New |
| Specification: |
|---|
| Table size (mm) : Φ600 X W500 |
| Max. swing (mm) : Φ600 |
| Max. work piece size (mm): Φ600 x 430 |
| Travel X (mm) : 885 |
| Travel Y (mm) : 800 |
| Travel Z (mm) : 500 |
| Table load capacity (kg) : 300 |
| Main Spindle: |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed : 9k ~ 15K |
| Tool Changer: |
|---|
| Magazine positions : 48 (std.) 60 (opt.) |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm): 125 |
| Max. tool length (mm) : 280 |
