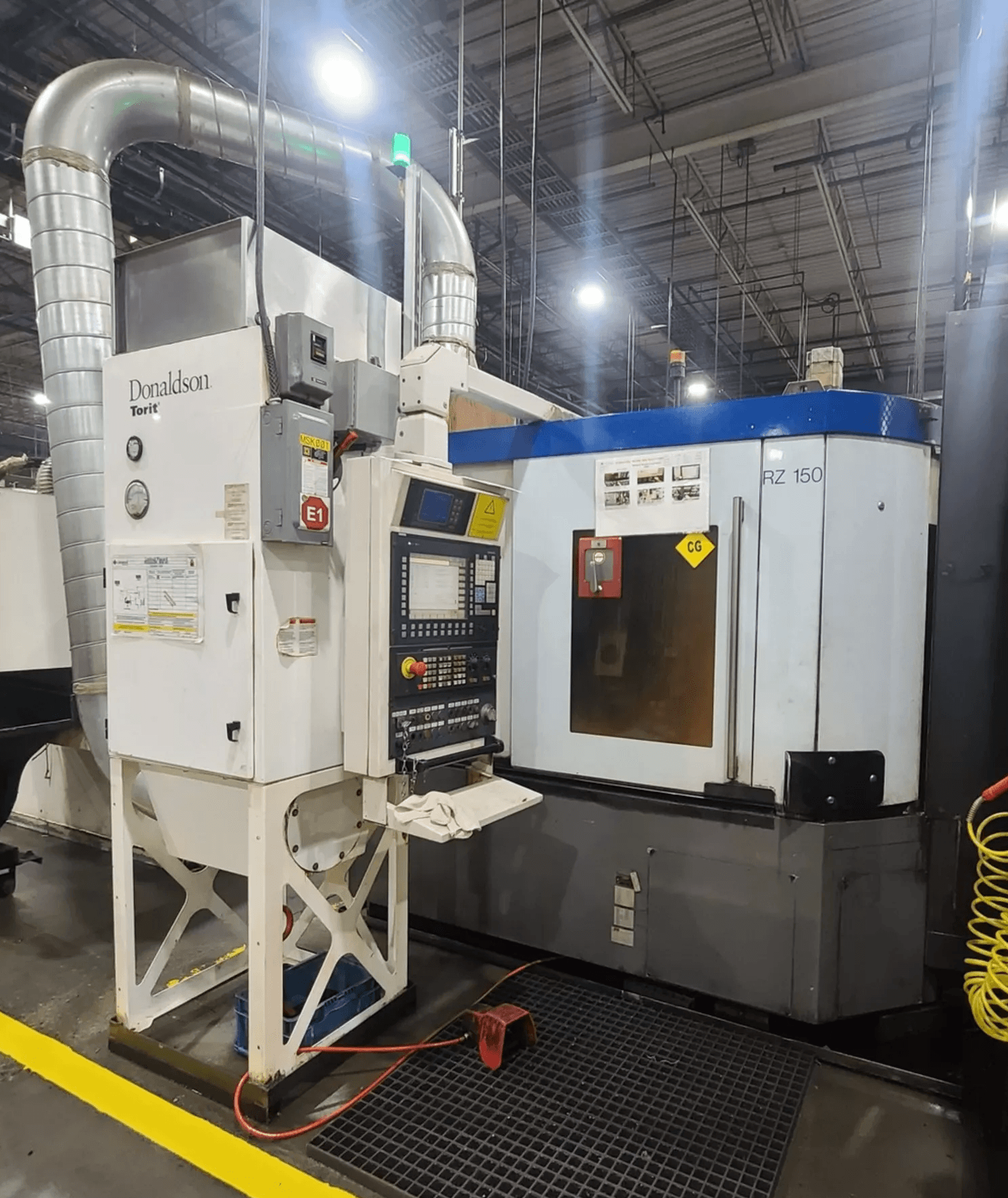

Reishauer RZ 150 CNC Gear Grinder, Siemens Control, High Precision – 2006
SKU
11365
Make/Model
Reishauer RZ 150
Year
2006
Video
On Request
Out of stock
| SKU: | 11365 |
| Make/Model: | Reishauer RZ 150 |
| Year: | 2006 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Reishauer |
| Model No.: | RZ 150 |
| Year of Manufacture: | 2006 |
| Machine Type: | CNC Gear Grinding Machine |
| CNC Control: | Siemens SINUMERIK |
| Country of Origin: | Switzerland |
| Equipped With: |
|---|
| Siemens SINUMERIK CNC Control |
| Integrated Gear Grinding System |
| High Precision Grinding Capability |
| Automatic Grinding Cycles |
| Balance System (VM24RZ) |
| Coolant & Filtration System |
| Enclosed Grinding Cabin |
| Dust/Mist Extraction System |
| Capacity: |
|---|
| Max Gear Diameter: Approx. 150 mm (5.9″) |
| Max Module: Approx. 3 |
| Max Face Width: Approx. 150 mm |
| Spindle: |
|---|
| Grinding Spindle Speed: High-Speed Precision Grinding |

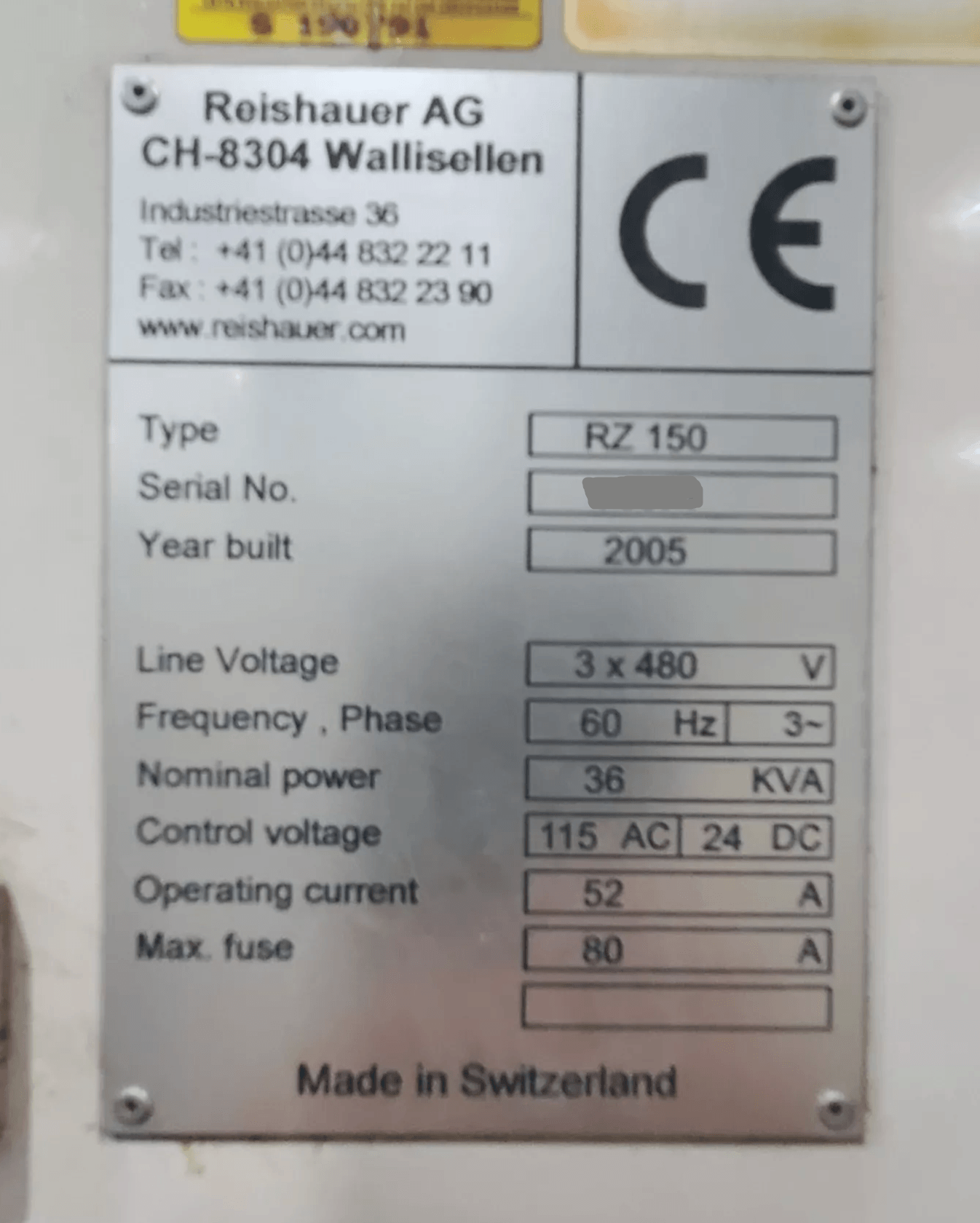

| Electrical: |
|---|
| Nominal Power: 36 kVA |
| Operating Current: 52 Amps |
| Max Fuse: 80 Amps |
| General: |
|---|
| Power: 480V, 3-Phase, 60 Hz |
| Overall Dimensions: Approx. 120″ x 90″ x 95″ High |
| Weight: Approx. 18,000 lbs |
| Equipped With: |
|---|
| Siemens SINUMERIK CNC Control |
| Integrated Gear Grinding System |
| High Precision Grinding Capability |
| Automatic Grinding Cycles |
| Balance System (VM24RZ) |
| Coolant & Filtration System |
| Enclosed Grinding Cabin |
| Dust/Mist Extraction System |
| Capacity: |
|---|
| Max Gear Diameter: Approx. 150 mm (150 mm) |
| Max Module: Approx. 3 |
| Max Face Width: Approx. 150 mm |
| Spindle: |
|---|
| Grinding Spindle Speed: High-Speed Precision Grinding |
| Electrical: |
|---|
| Nominal Power: 36 kVA |
| Operating Current: 52 Amps |
| Max Fuse: 80 Amps |
| General: |
|---|
| Power: 480V, 3-Phase, 60 Hz |
| Overall Dimensions: Approx. 3,048 mm x 2,286 mm x 2,413 mm High |
| Weight: Approx. 18,000 lbs |
| Categories | CNC Grinders |
|---|---|
| Make | Reishauer |
| Model | RZ 150 |
