*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Schiess |
| Model: | 20DSC 160 |
| Year: | 1993 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Turning Center |

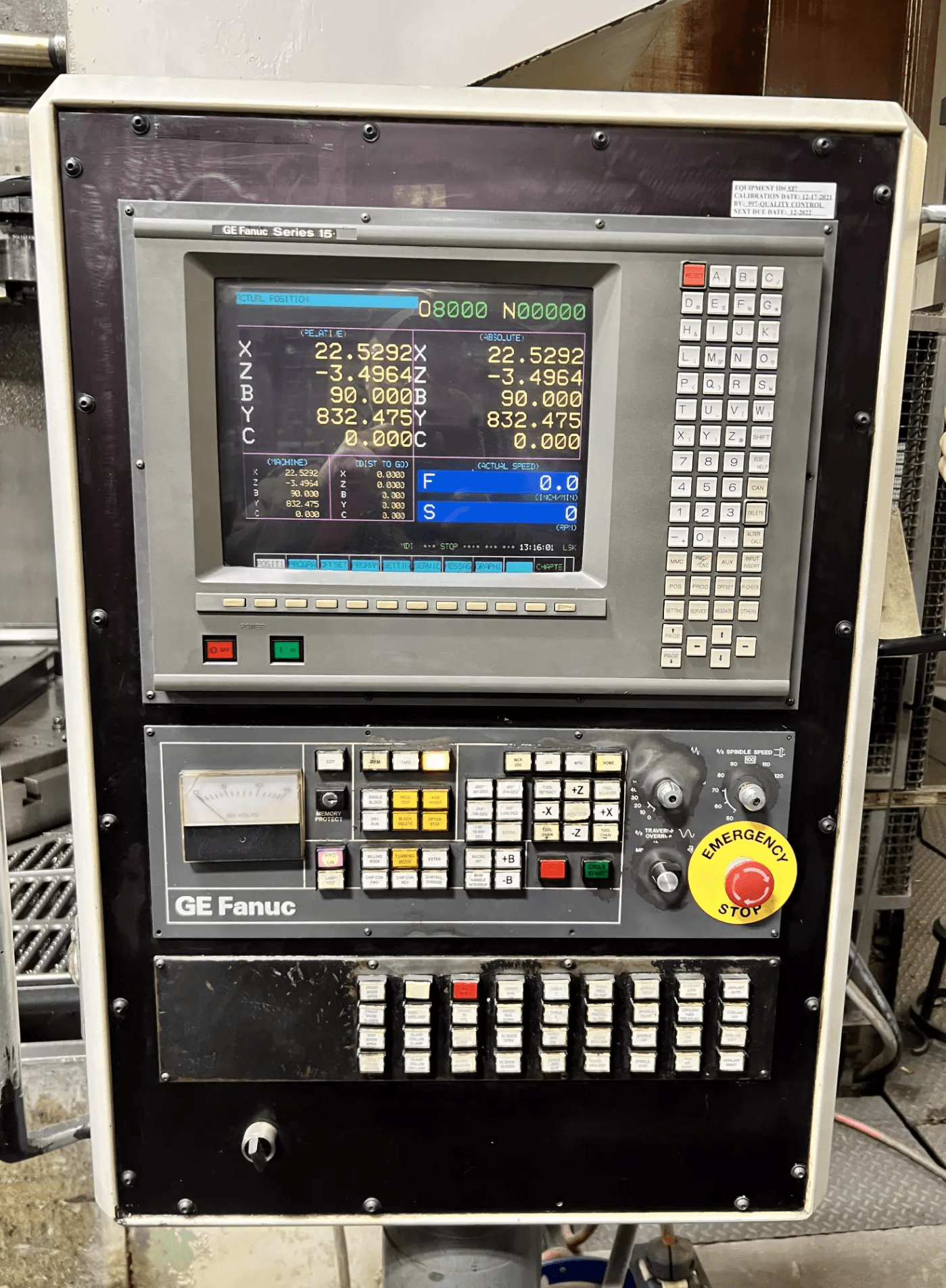

| Control: | Fanuc Series 15-M CNC Control |
| Country of Origin: | Germany |
| Equipped With: |
|---|
| Fanuc Series 15-M CNC Control |
| 63” 4-Jaw Chuck |
| Live Milling Capability |
| C-Axis Table |
| 40-Position Automatic Tool Changer |
| Through Spindle Coolant |
| Right Angle Milling Head |
| Assorted Tooling |
| Miscellaneous Tool Holders |
| Heavy-Duty Enclosure |
| Capacity: |
|---|
| Chuck Size: 63″ |
| Max Swing Diameter: 78″ |
| Max Turning Height: 76″ |
| Max Workpiece Weight: Approx. 22,000 – 33,000 LBS |

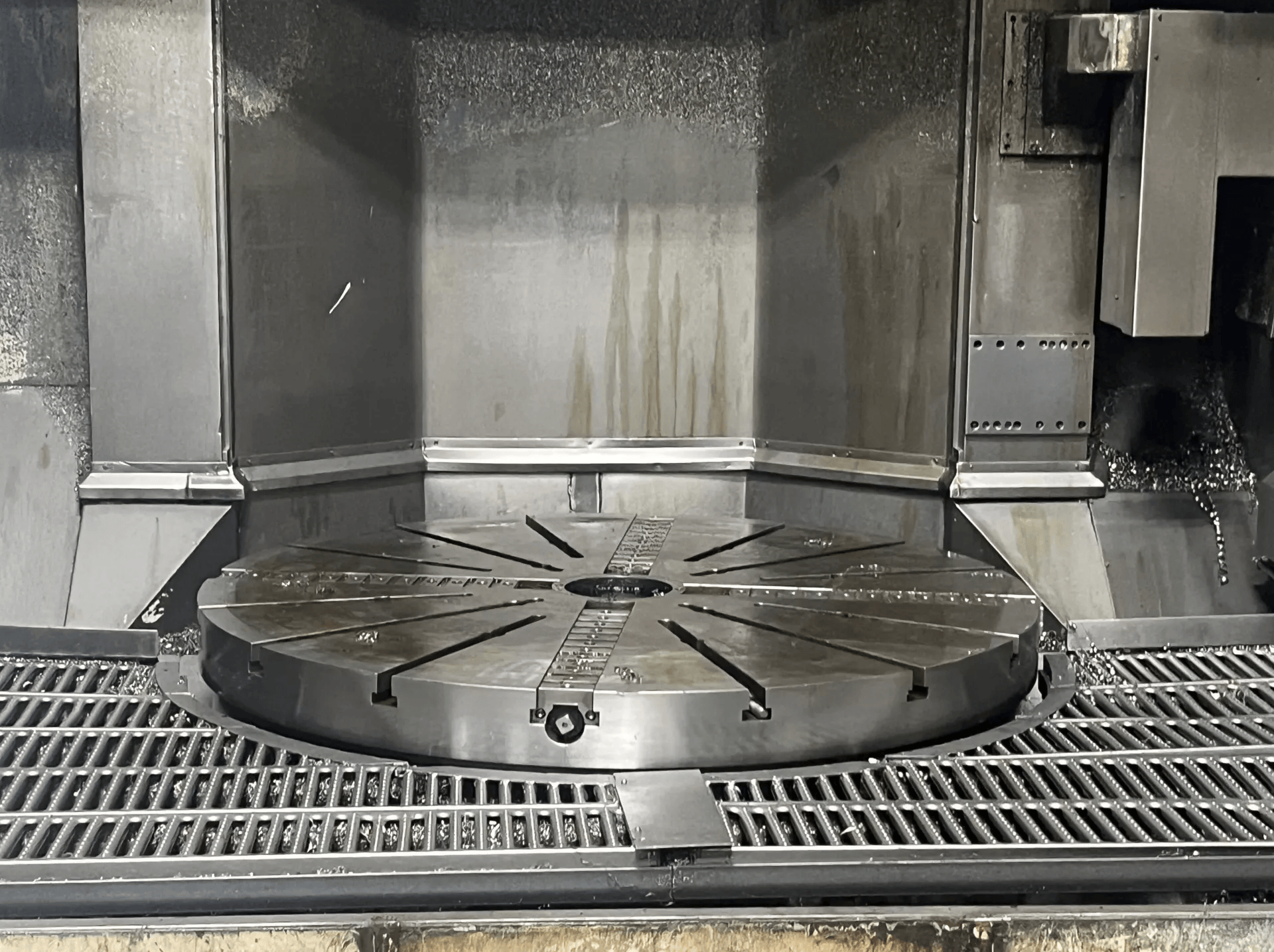

| Table & Spindle: |
|---|
| Table Speed Range: 1 – 315 RPM |
| C-Axis Positioning: Yes |
| Main Table Drive: Heavy-Duty Servo Driven |
| Table Type: Precision 4-Jaw Chuck Table |

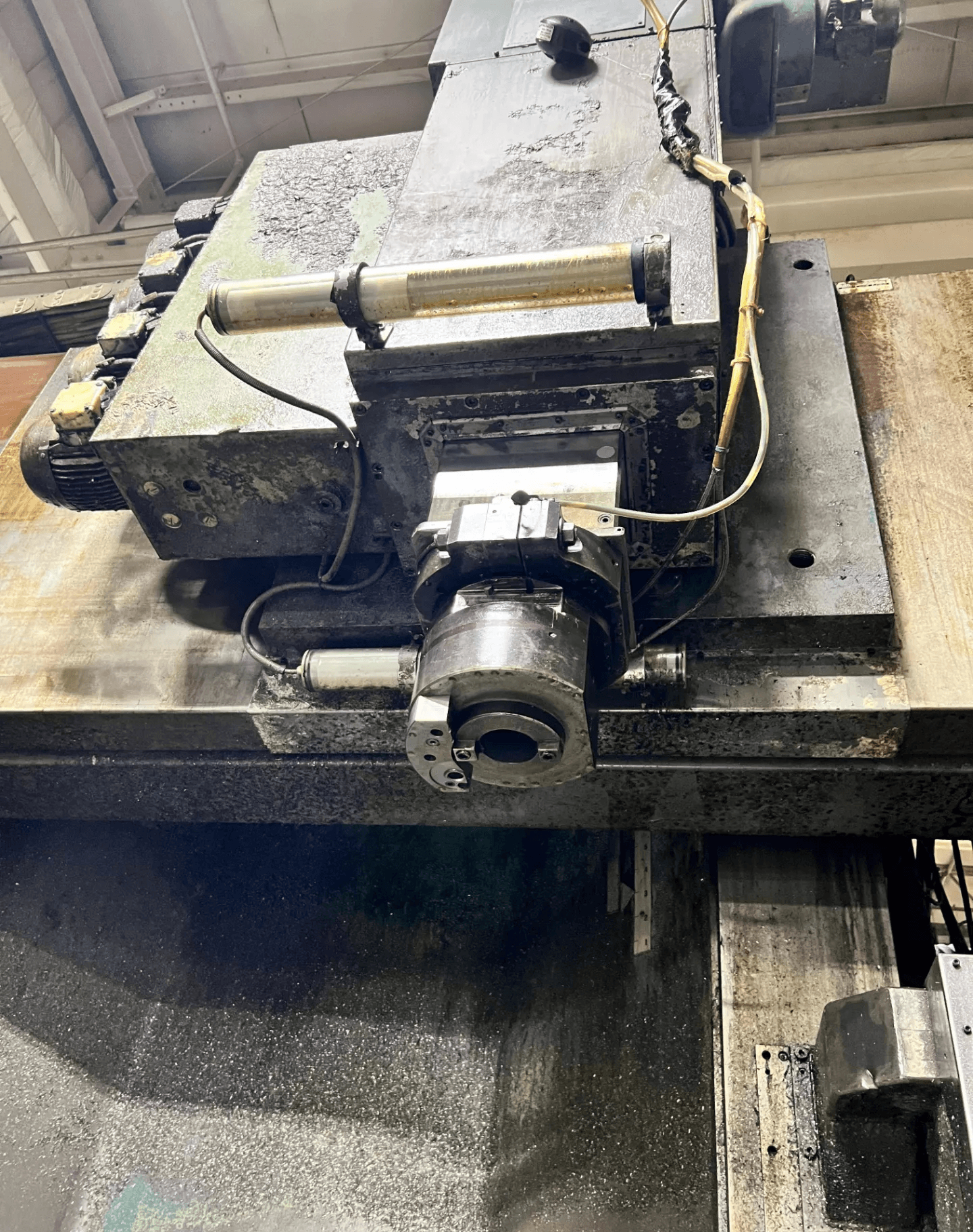

| Milling Head: |
|---|
| Live Milling Speed Range: 1 – 1600 RPM |
| Milling Capability: Yes |
| Right Angle Head: Included |
| Coolant Thru Spindle: Yes |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 40 Positions |
| Tool Change Type: Automatic |
| Tool Holders Included: Yes |
| Assorted Tooling Included: Yes |
| Travels: |
|---|
| X-Axis Travel: Approx. 63″ |
| Z-Axis Travel: Approx. 55″ |
| Ram Type: Heavy-Duty Vertical Ram |
| Cross Rail: Programmable |

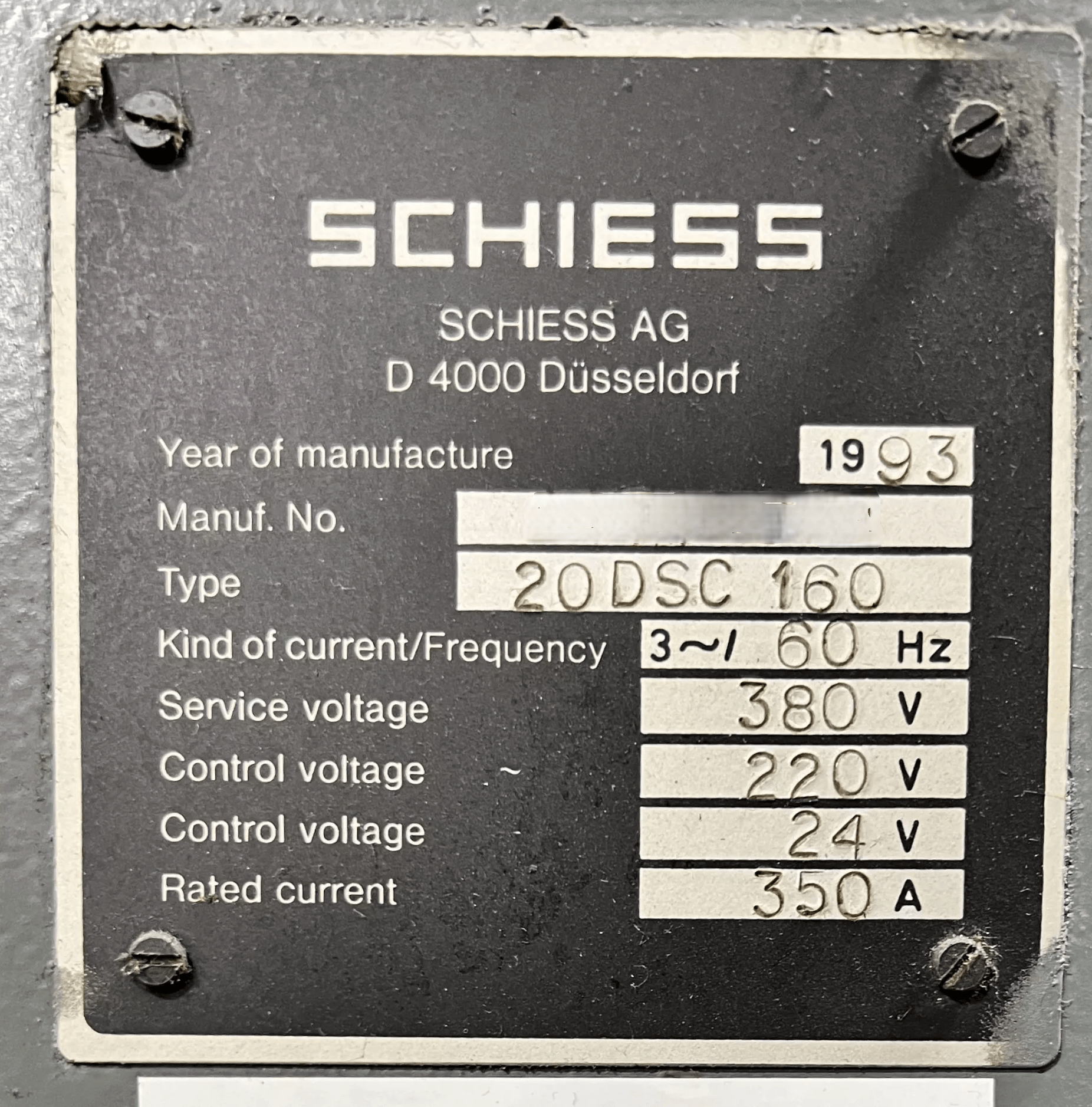

| Electrical: |
|---|
| Input Voltage: 380V |
| Input Frequency: 60 Hz |
| Phase: 3-Phase |
| Rated Current: 350A |
| General: |
|---|
| Machine Weight: Approx. 75,000 LBS |
| Machine Dimensions: Approx. 300″ x 260″ x 300″ |
