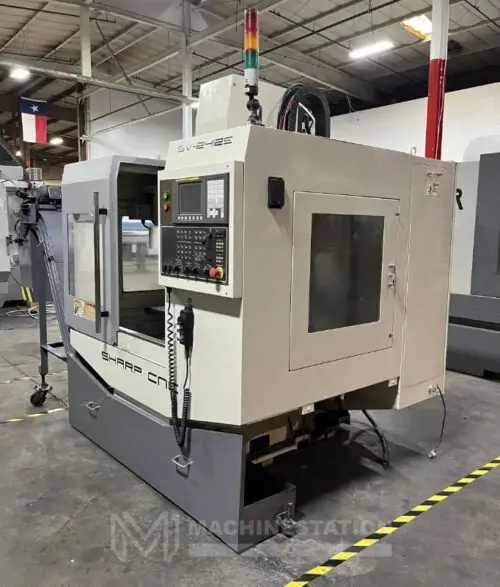

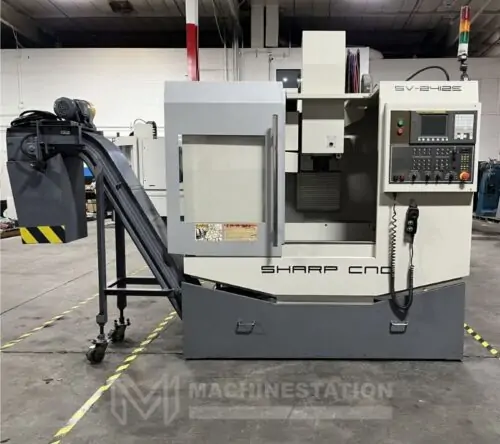

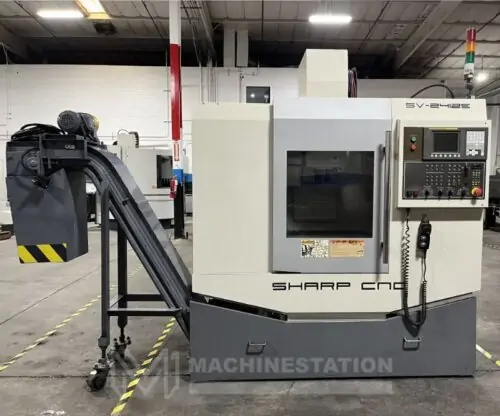

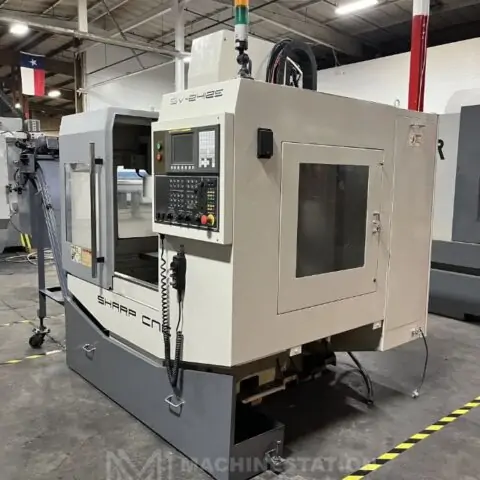

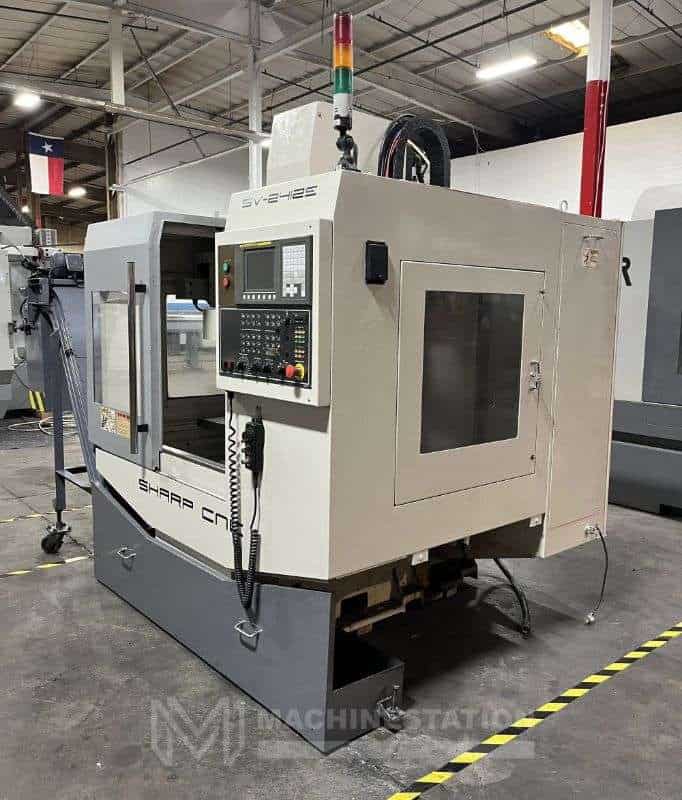

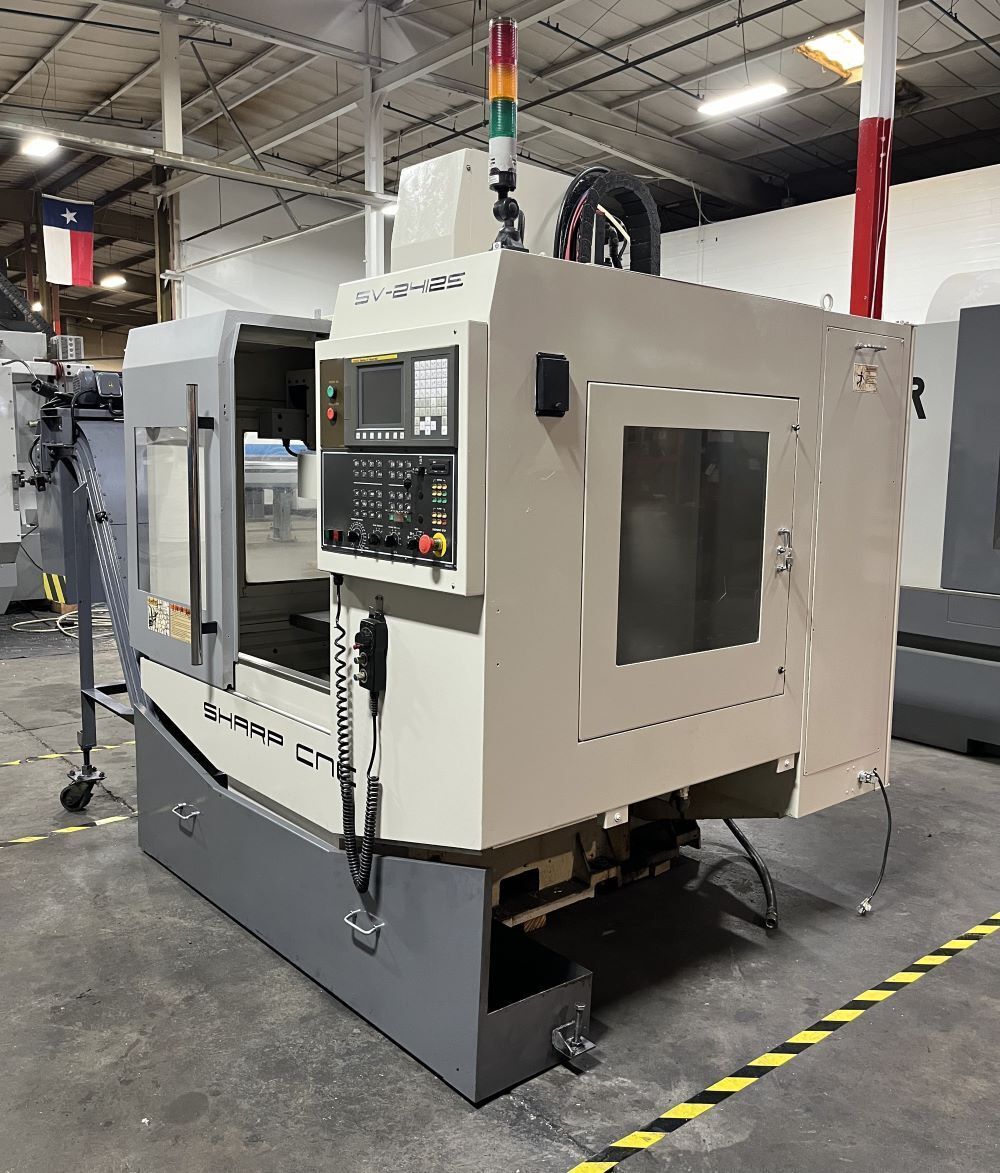

Sharp SV-2412S CNC Vertical Machining Center – Mill

$383.00

In stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

Used Sharp SV-2412S CNC Vertical Machining Center for Sale.

Location: Lake Elsinore, CA
SKU: 2547
Make/Model: Sharp SV-2412S

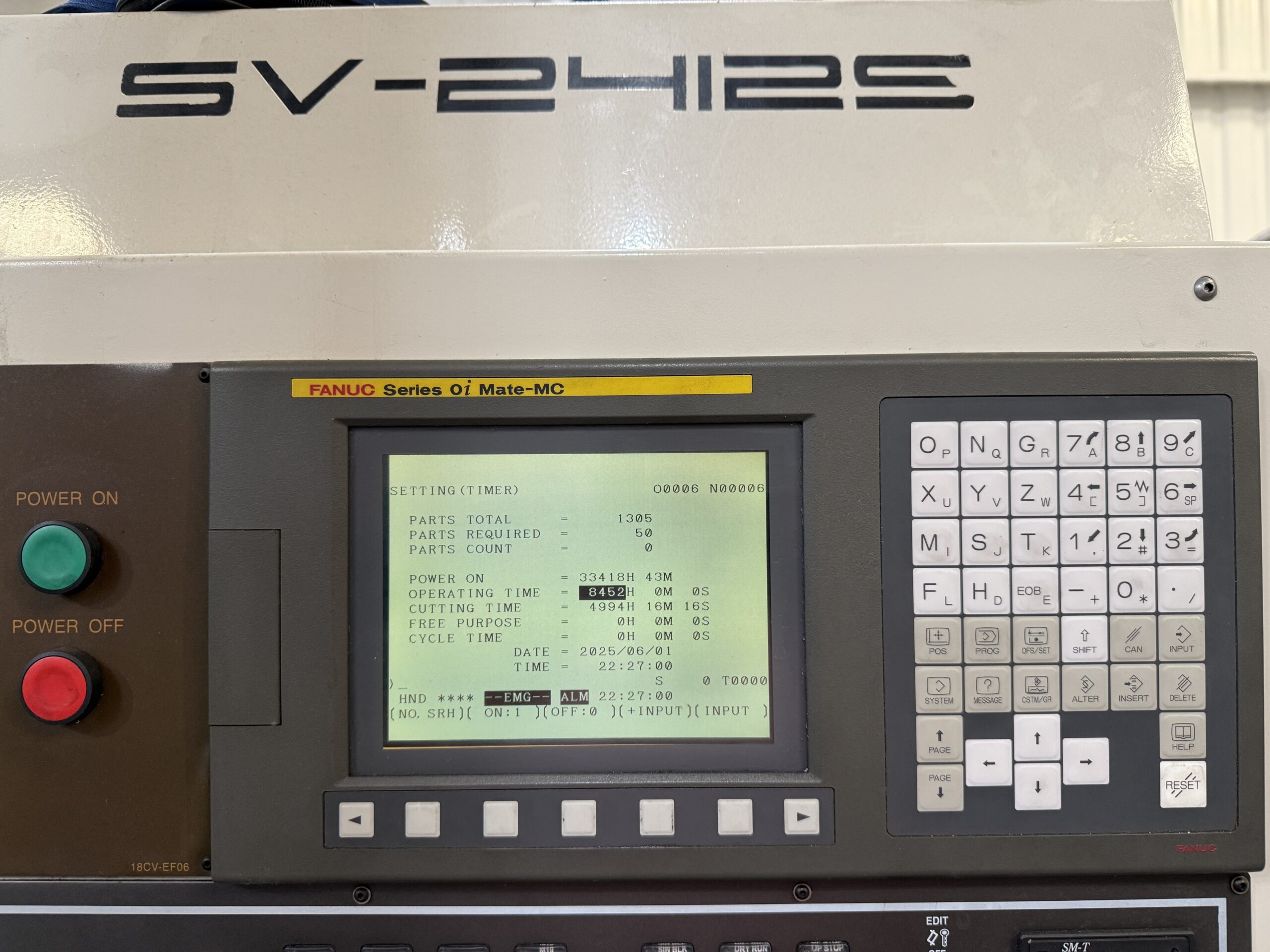

Cutting Time: 26,680 Hours
Video: No Video



SKU: 2547

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

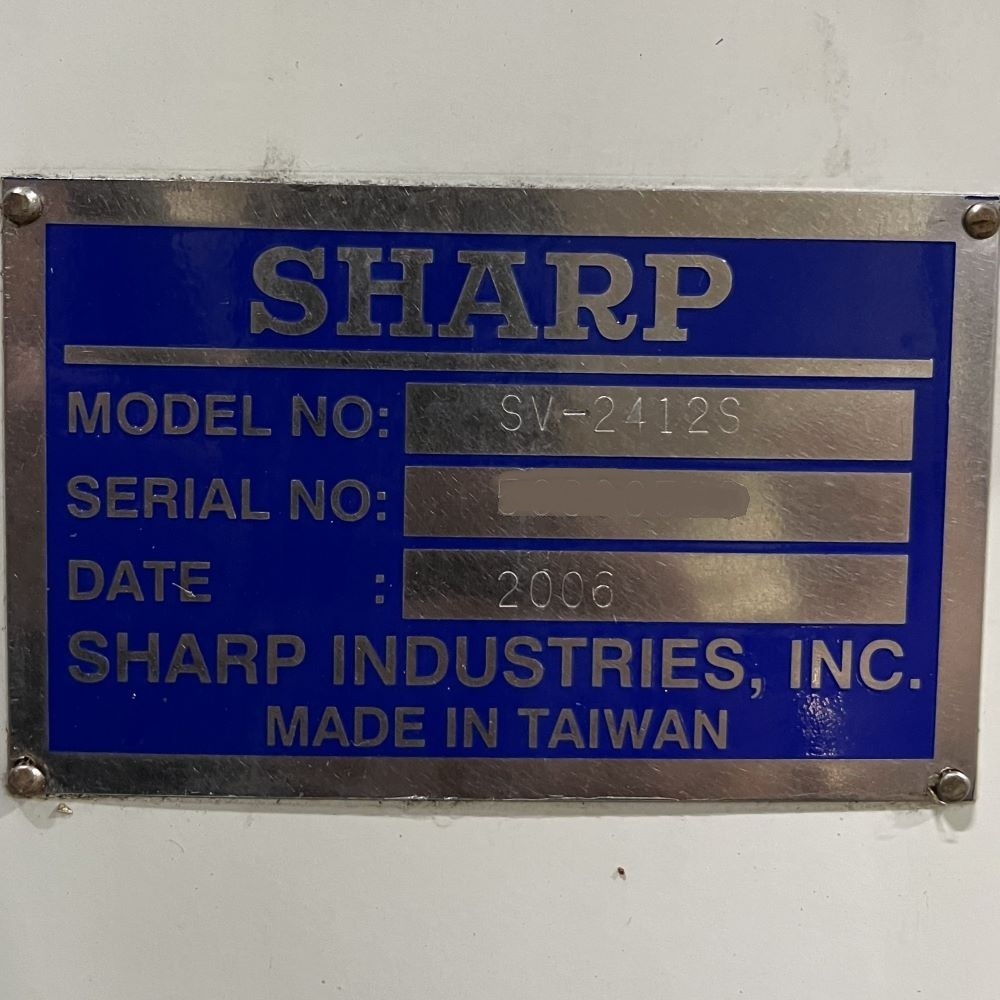

Make: Sharp
Model: SV-2412S
Year: 2006
Condition: Used-Good



Features:

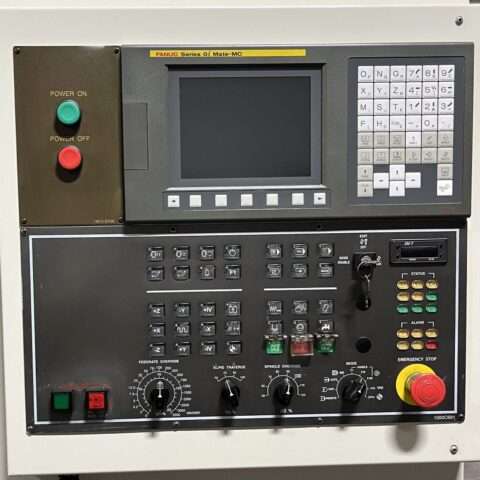

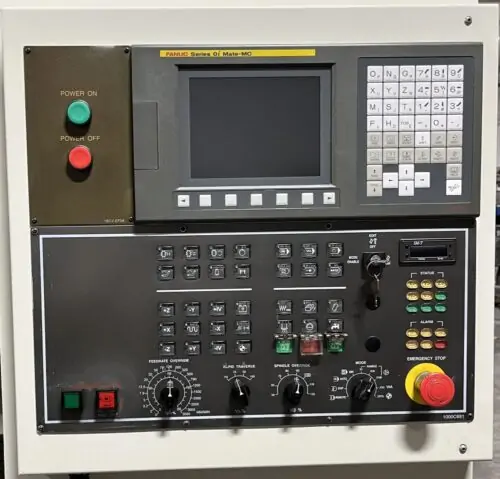

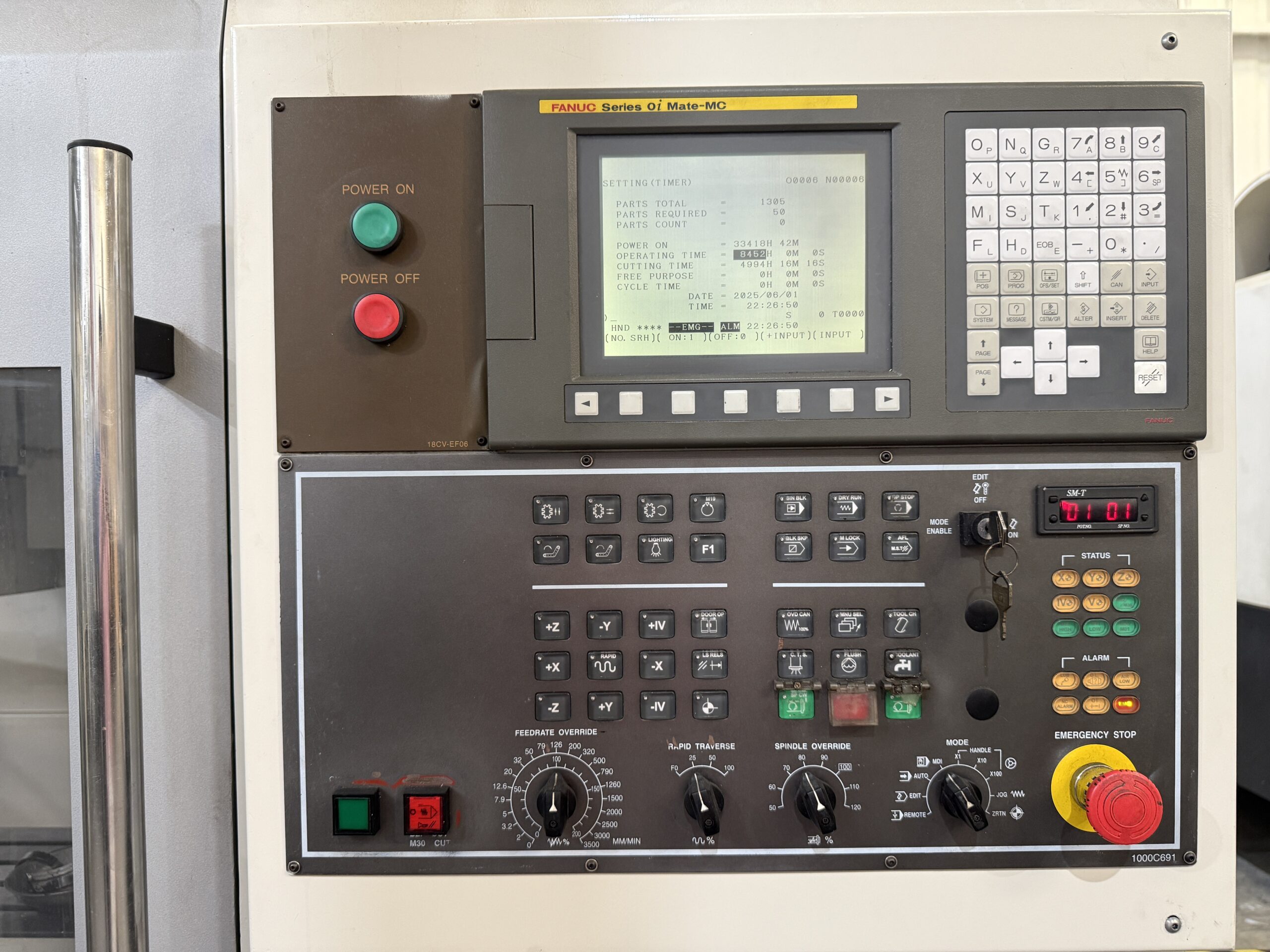

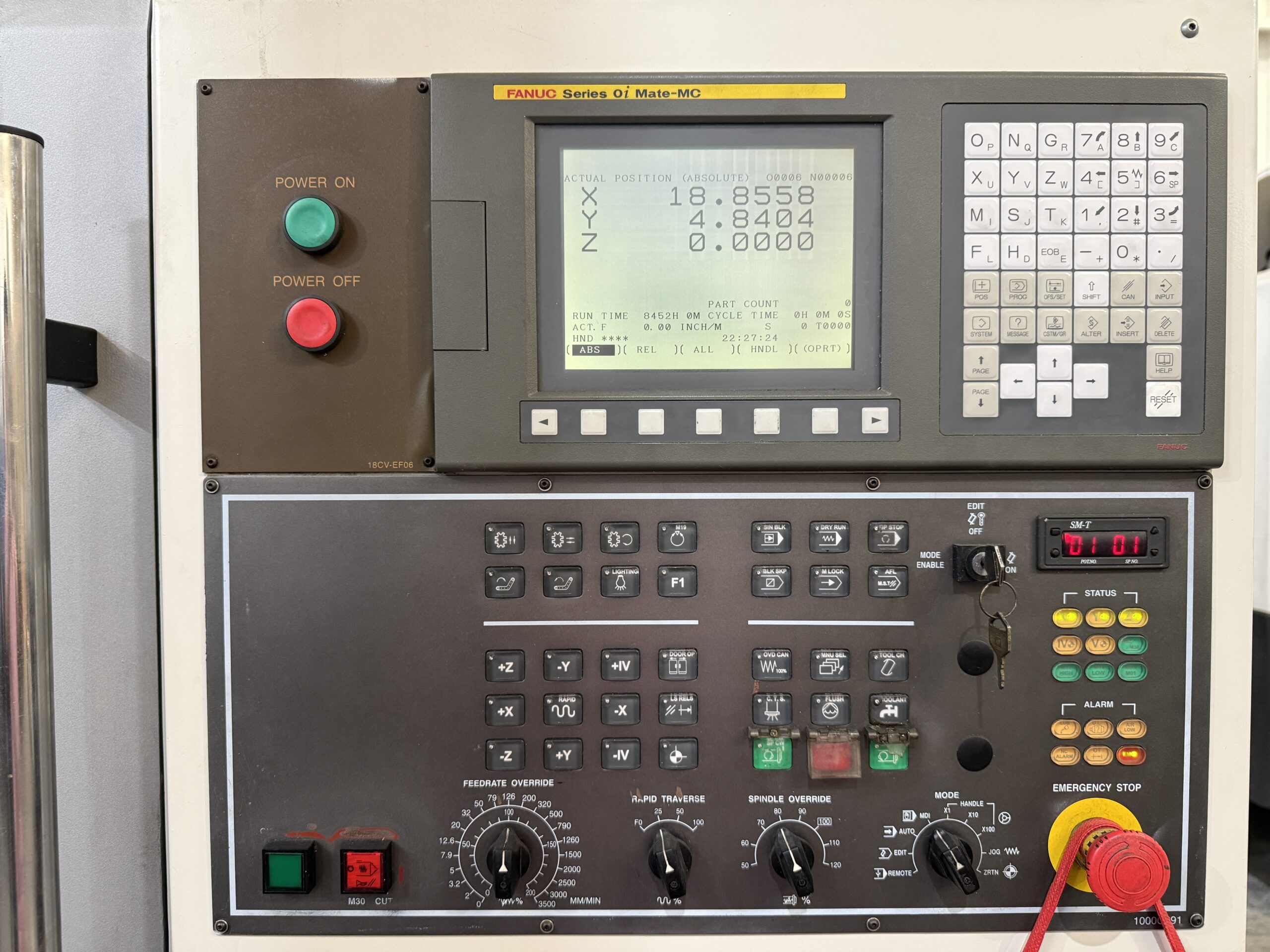

Fanuc 0i-MC CNC Control
Box Way Construction All Axis

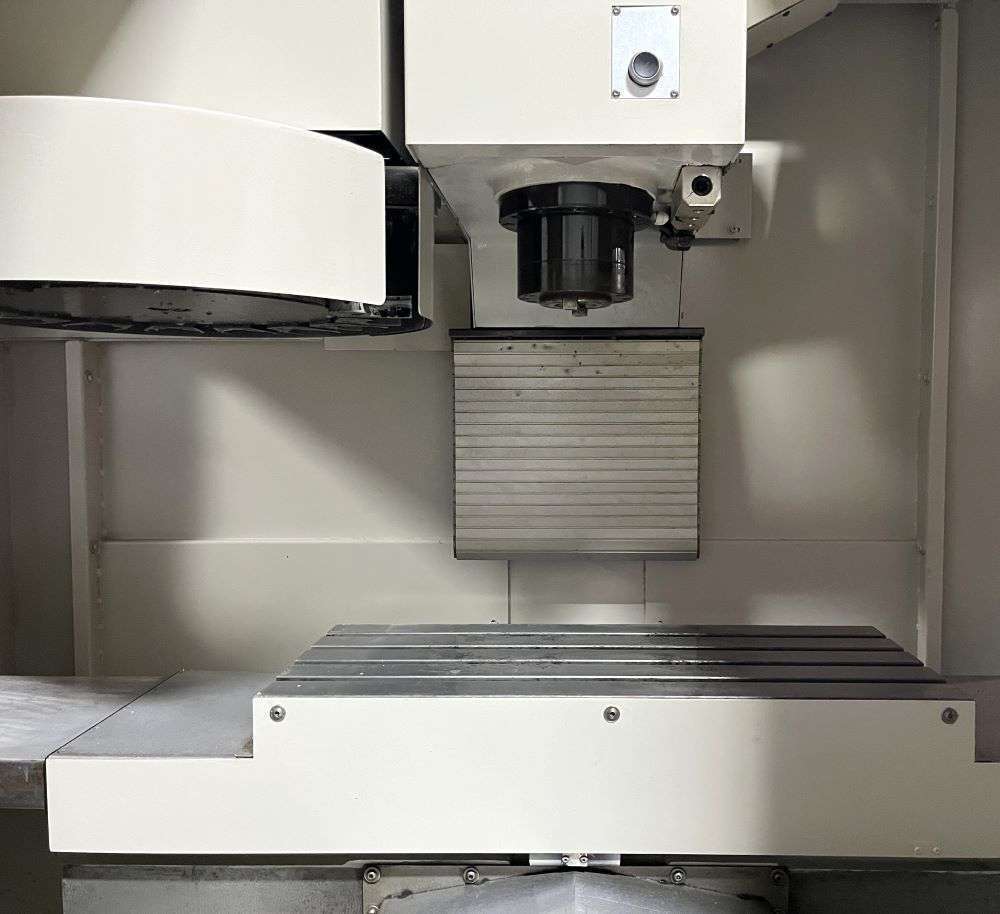

10,000 RPM High Precision Spindle

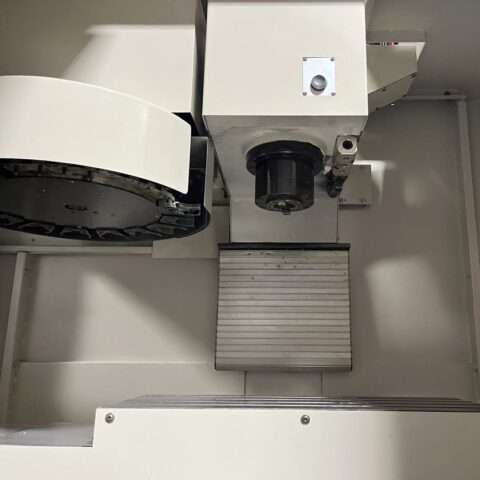

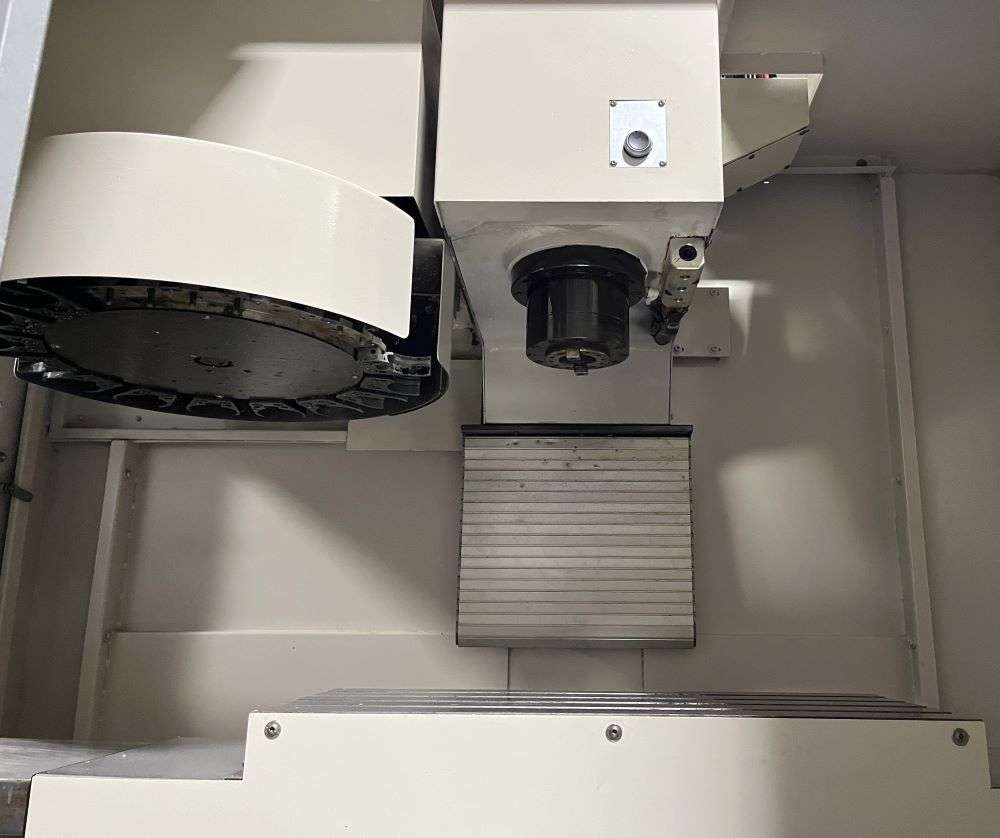

16 Station Automatic tool changer
40 Taper Spindle
10 HP  Spindle Motor
Spindle Orientation
Rigid Tapping
RS-232 Port
PCMCIA Card Slot
MPG Handwheel Control
Coolant System

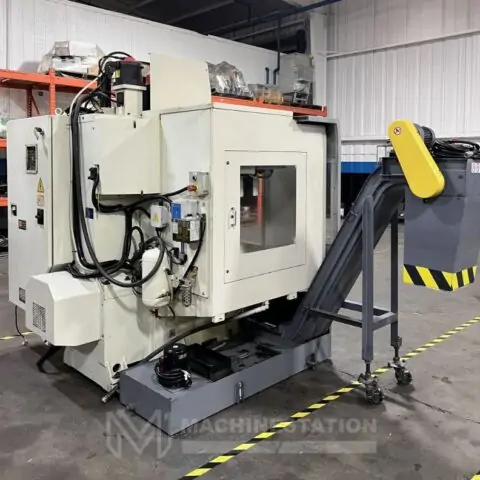

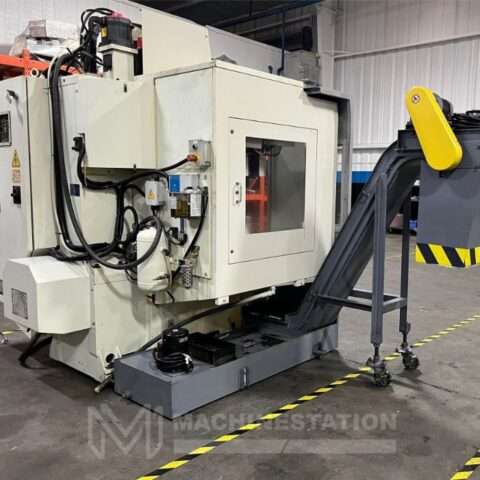

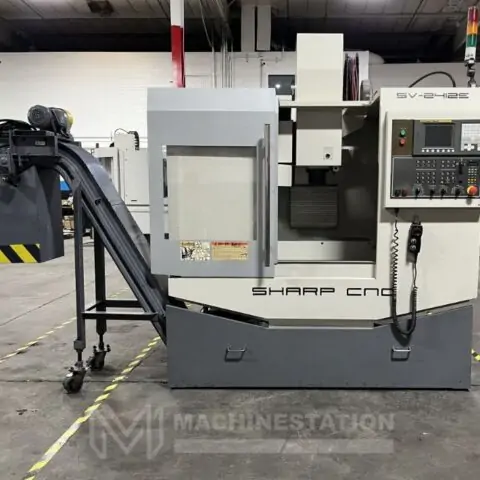

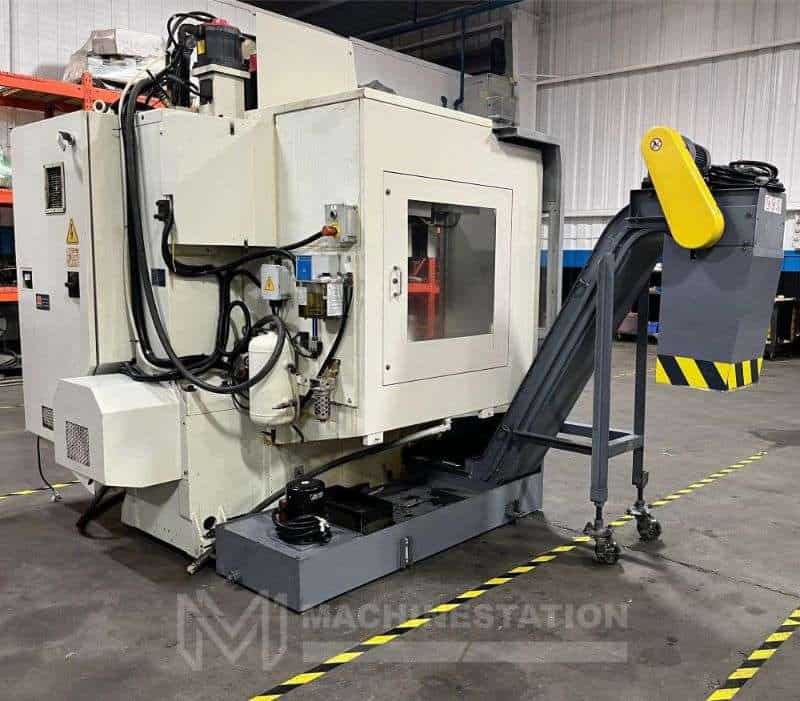

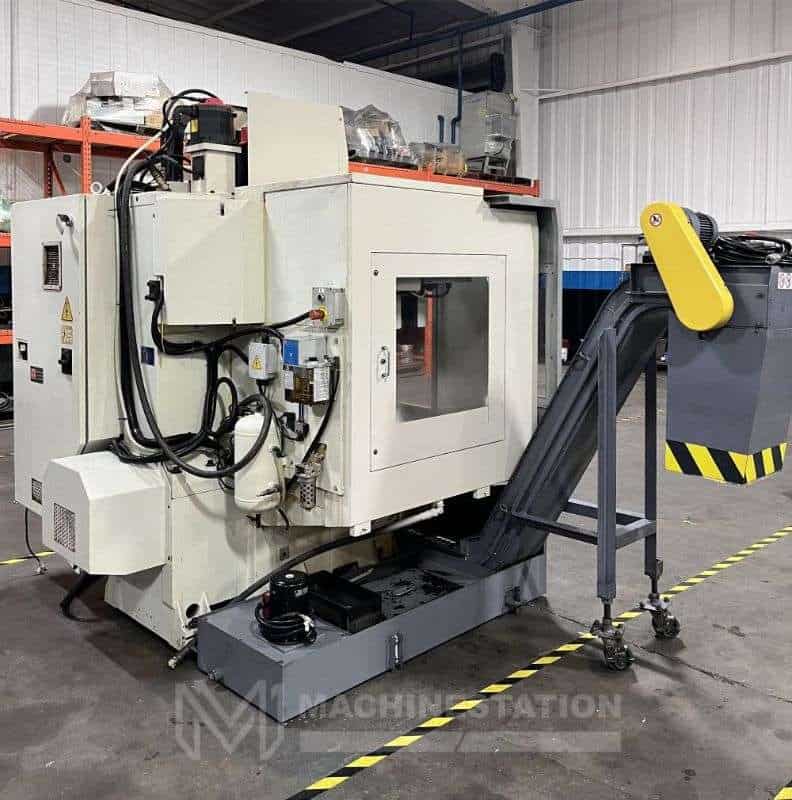

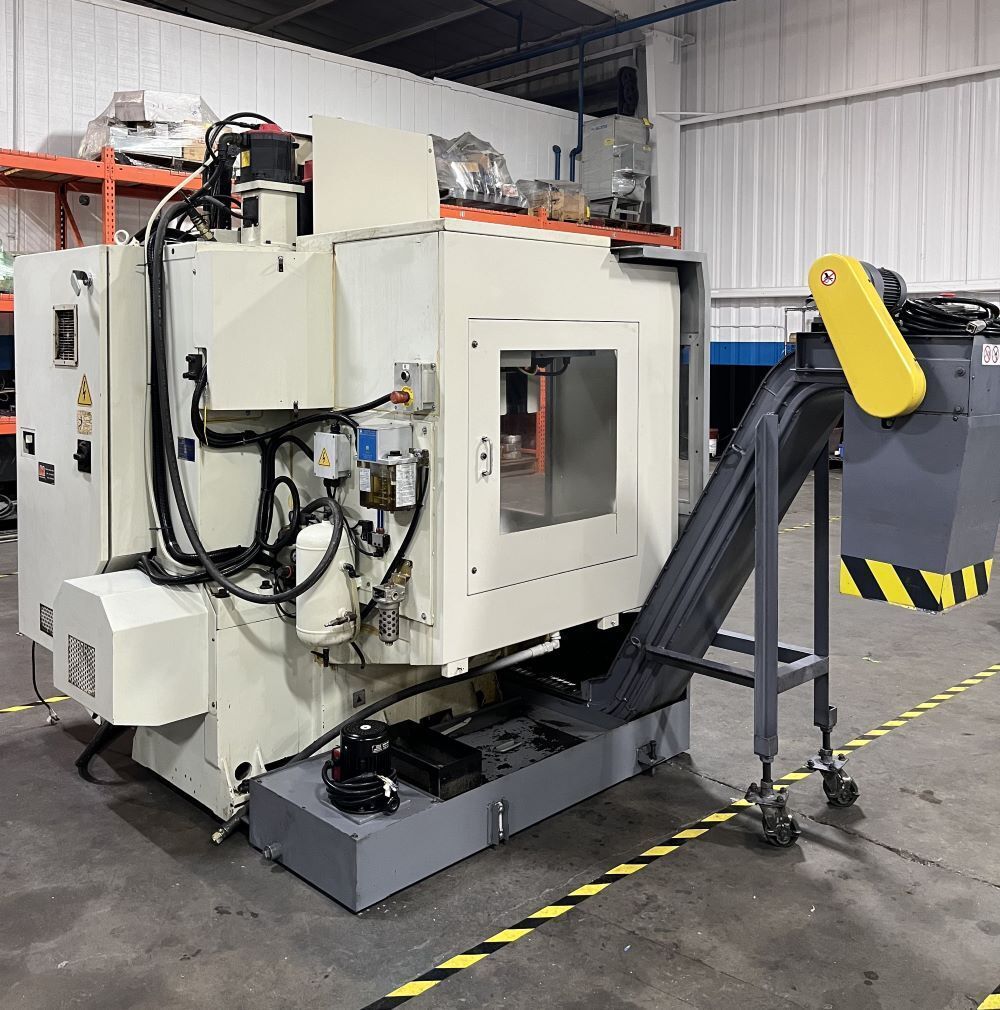

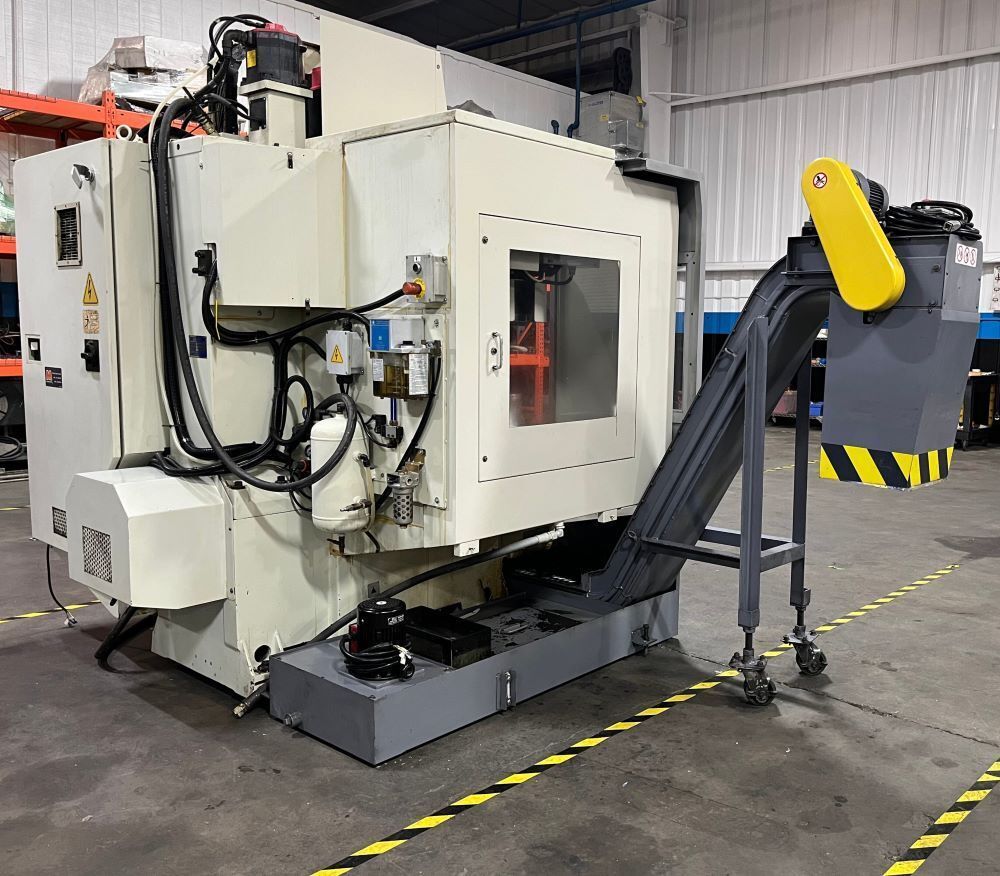

Chip Conveyor
Telescopic way covers



Travels:
X-Axis: 24″
Y-Axis: 12″
Z-Axis: 18″
Rapid Traverse Rates: 787 IPM
Cutting Feed Rates: 493 IPM
Spindle Nose to Table (Min.- Max.): 2.7″ – 20.8″

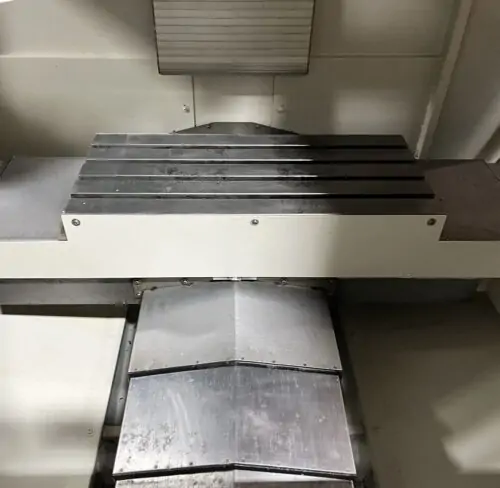

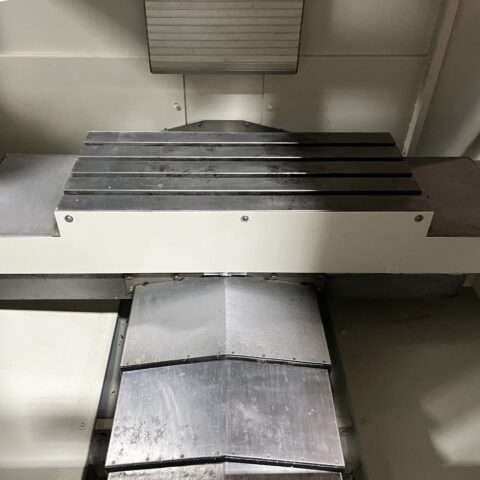

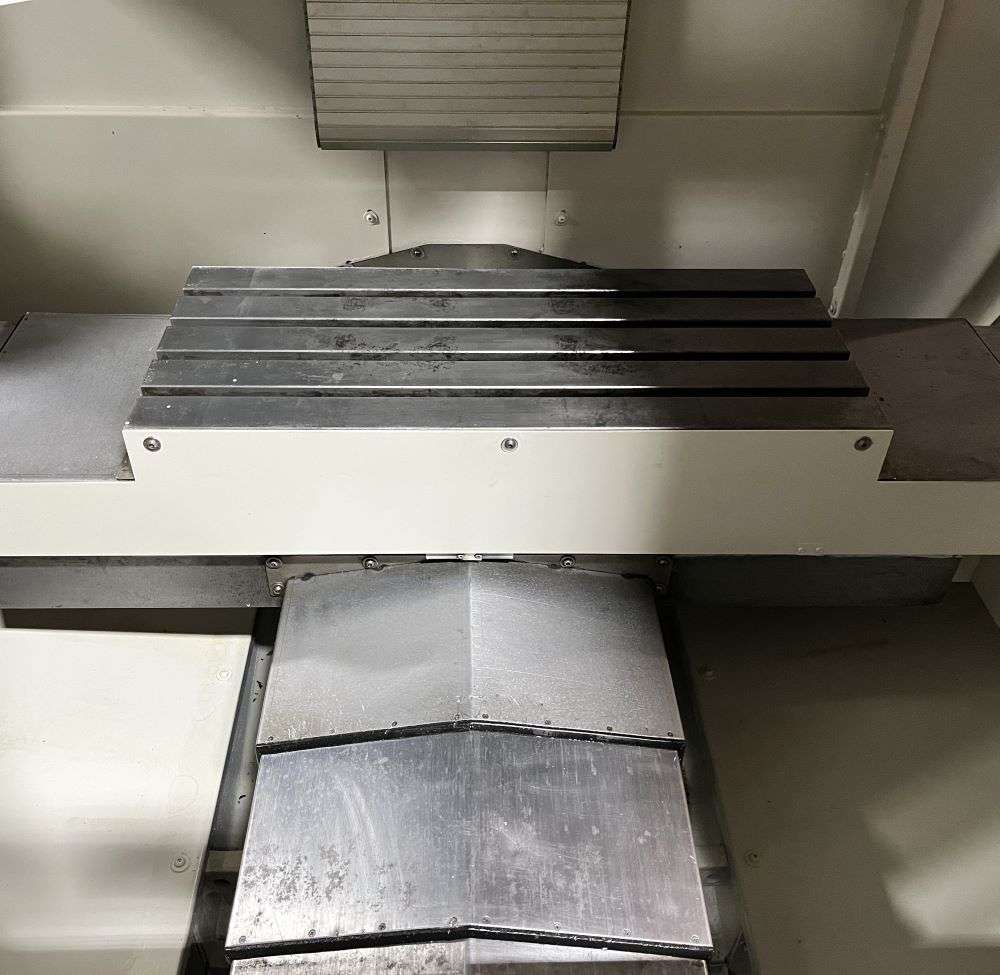

Table
Length: 28″
Width: 12″
Max Weight on Table: 800 lbs



Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 10 HP



Automatic Tool Changer:
Capacity: 16 Station
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.7″ – 4.7″
Max Tool Length: 9.1″



General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: 74″ x 78″ x 90″ High (Without Chip Conveyor)
Weight: 6,900 lbs
