*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | SHW |
| Model: | UniSpeed 6 |
| Year: | 2015 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

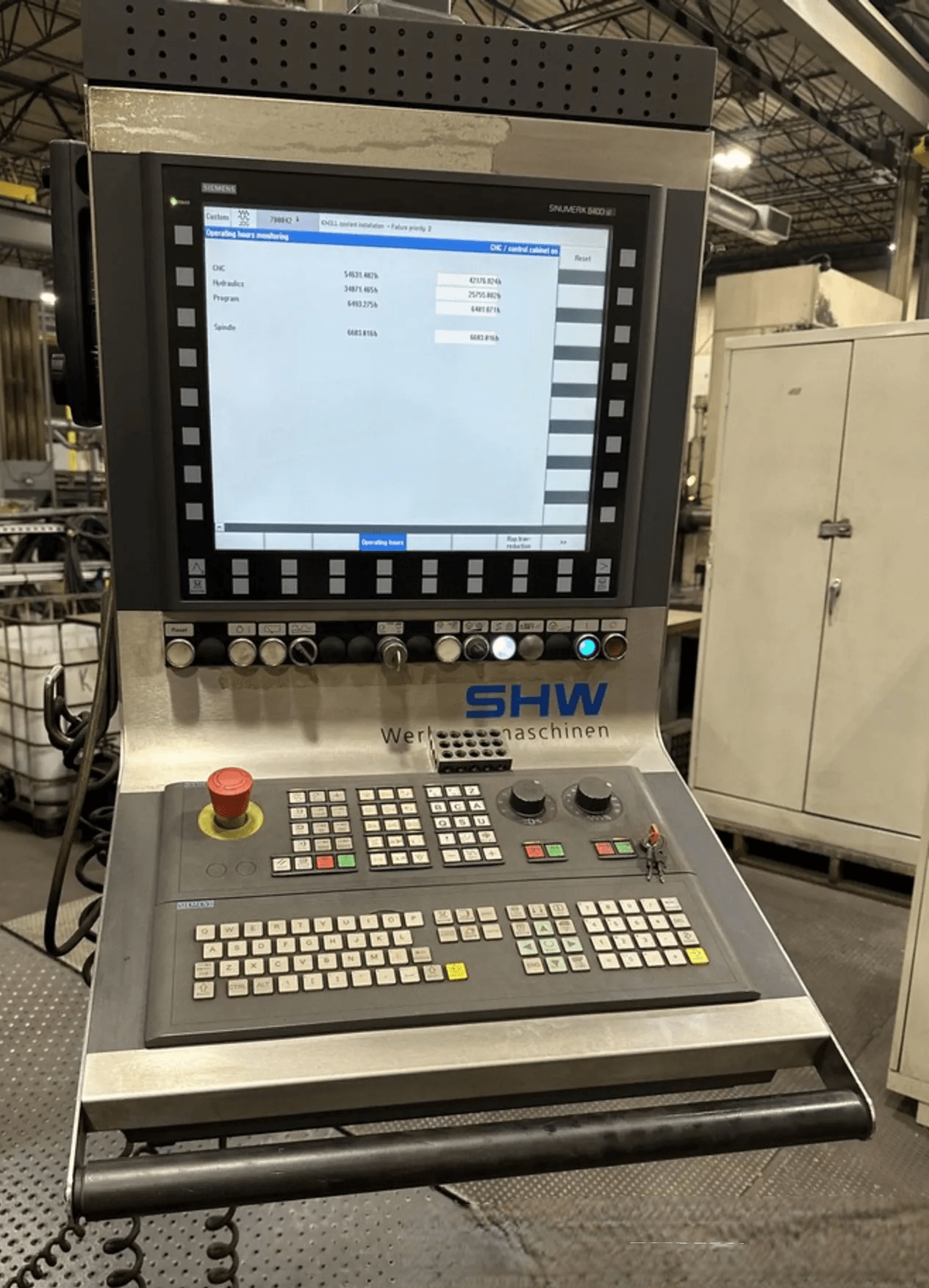

| Control: | Siemens Sinumerik 840D Solution Line CNC Control |
| Features: |
|---|
| Siemens Sinumerik 840D Solution Line CNC Control |
| 6-Axis Ram Type Horizontal/Vertical Machining Center |
| 2-Axis Orthogonal Milling Head |
| A-Axis (180° Tilting) |
| C-Axis (90° Swiveling) |
| CAT 50 Spindle |
| 90-Station Automatic Tool Changer |
| Chain Type Tool Changer |
| Built-In Contouring Rotary Table |
| 1000 PSI Through Spindle Coolant |
| Chip Conveyor |
| Coolant System |
| Hydraulic System |
| Full Enclosure |
| Work Lights |

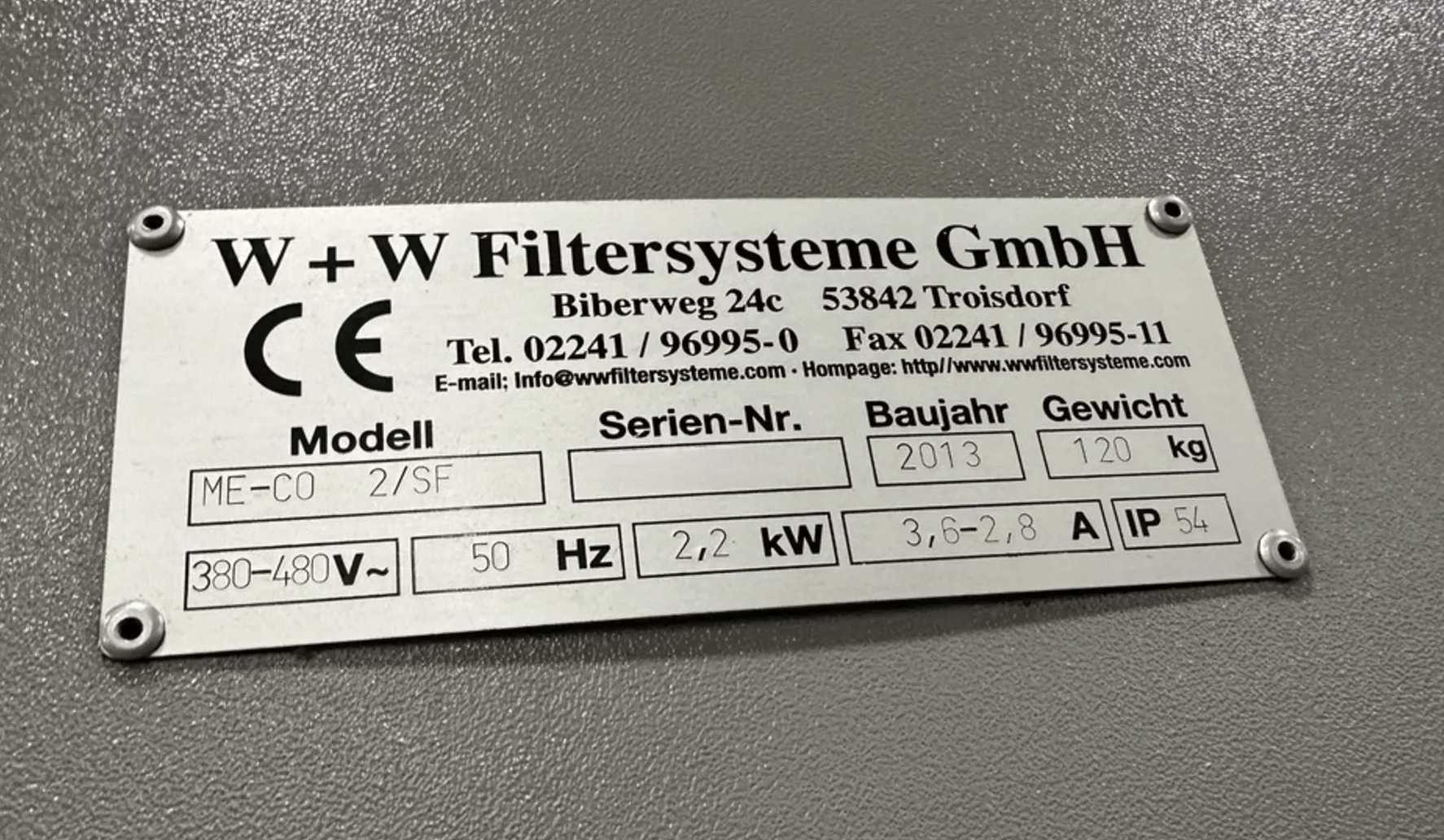

| Chiller & Filtration Unit |

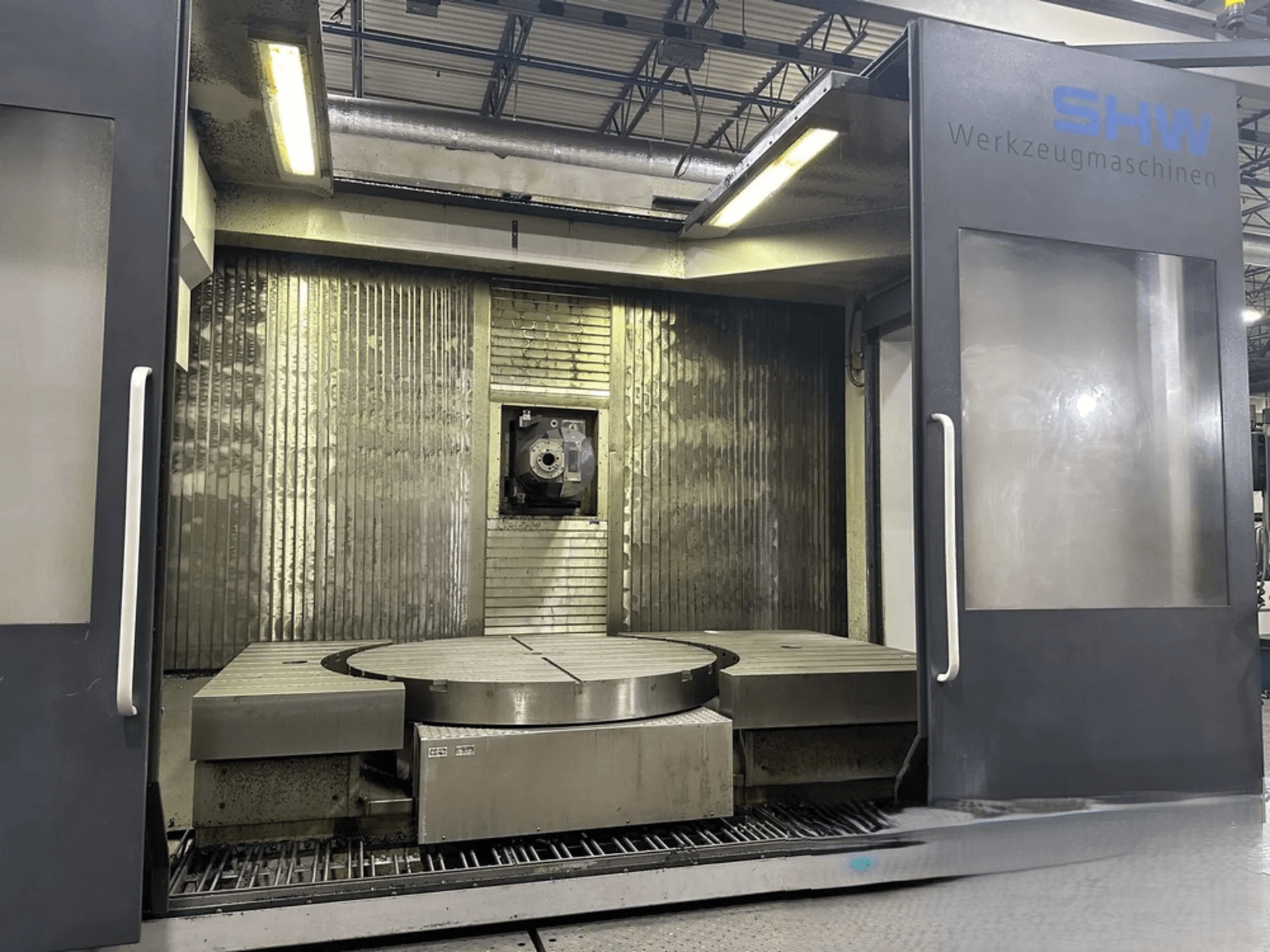

| Table: |
|---|
| Table Size: 63″ × 119″ |
| Built-In Contouring Rotary Table: 63″ |
| Maximum Table Load: 6 Tons |
| Travels: |
|---|
| X-Axis Travel: 118″ |
| Y-Axis Travel: 51″ |
| Z-Axis Travel: 51″ |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Maximum Spindle Speed: 6,000 RPM |
| Through Spindle Coolant: 1000 PSI |
| Rotary: |
|---|
| Type: Orthogonal Milling Head |
| A-Axis Rotation: 180° |
| C-Axis Rotation: 90° |
| Feed Rates: |
|---|
| Programmable Feed Rate: 0 – 30,000 mm/min |
| Linear Axis Acceleration: 2 m/s² |

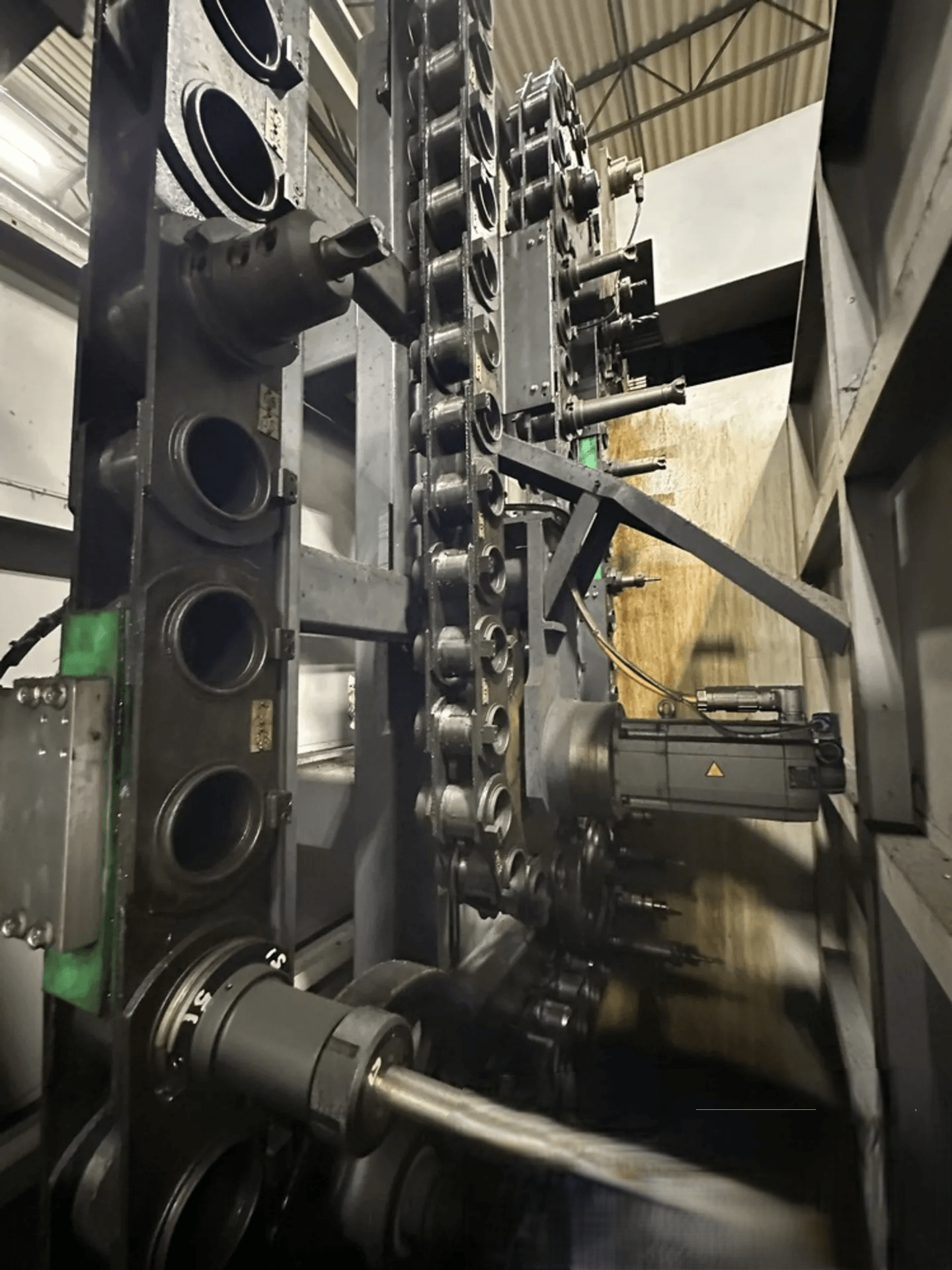

| Automatic Tool Changer: |
|---|
| Tool Changer Type: Chain |
| Tool Capacity: 90 Stations |
| Magazine Capacity Available: 48 / 66 / 90 / 120 Tools |
| General: |
|---|
| Machine Weight: Approx. 45,000 kg (99,200 lbs) |
