*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Smart |
| Model No.: |
NL-3000BM |
| Year of Manufacture: |
2020 |
| Condition: |
Used |
| Machine Type: |
CNC Turning Center |

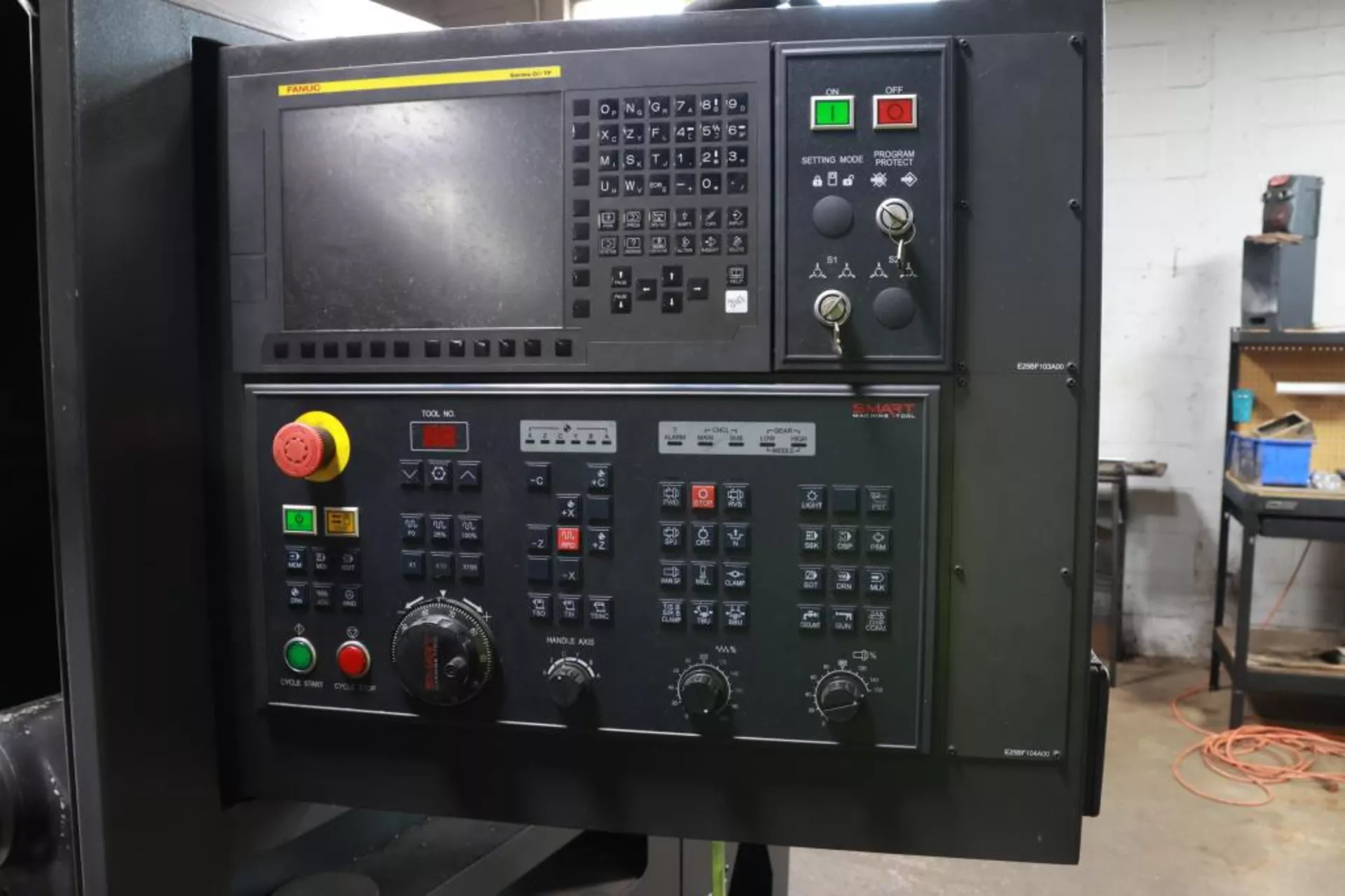

| CNC Control: |
Fanuc CNC Control |
| Country of Origin: |
South Korea |
| Equipped With: |
| Live Tooling (Milling Capability) |
| 12-Station BMT Turret |
| Hydraulic Tailstock |
| Fanuc CNC Control |
| Chip Conveyor |
| Coolant System |
| Fully Enclosed Guarding |
| Heavy Duty Slant Bed Construction |
| Capacity: |
| Max Swing Over Bed: 30.0″ |
| Max Turning Diameter: 16.0″ |
| Max Turning Length: 30.0″ |
| Bar Capacity: 3.0″ |
| Spindle: |

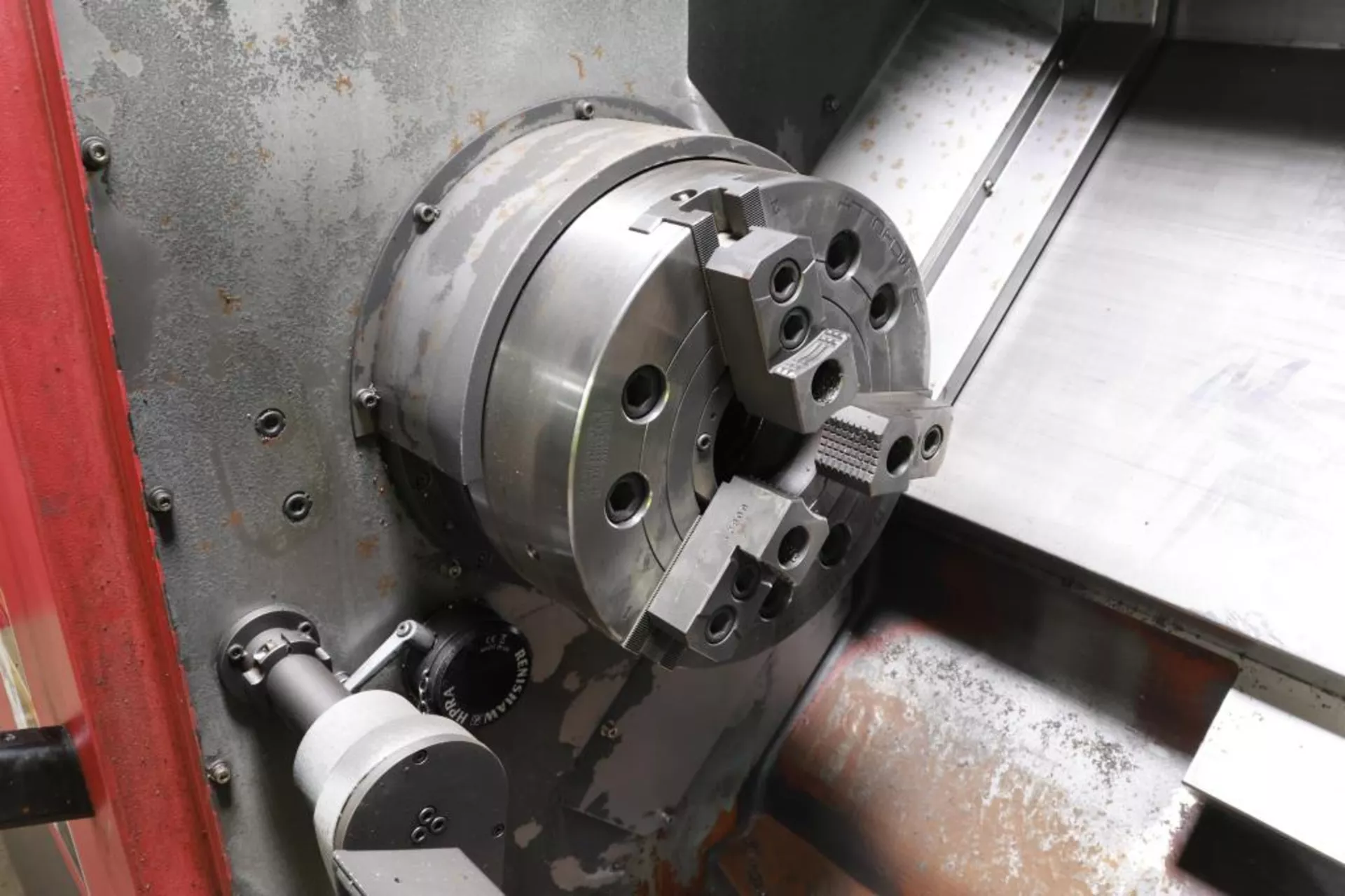

| Chuck Size: 10″ – 12″ Hydraulic |
| Spindle Speed: 3,500 RPM |
| Spindle Bore: 3.15″ |
| Spindle Nose: A2-8 |
| Main Motor: 25 – 30 HP |

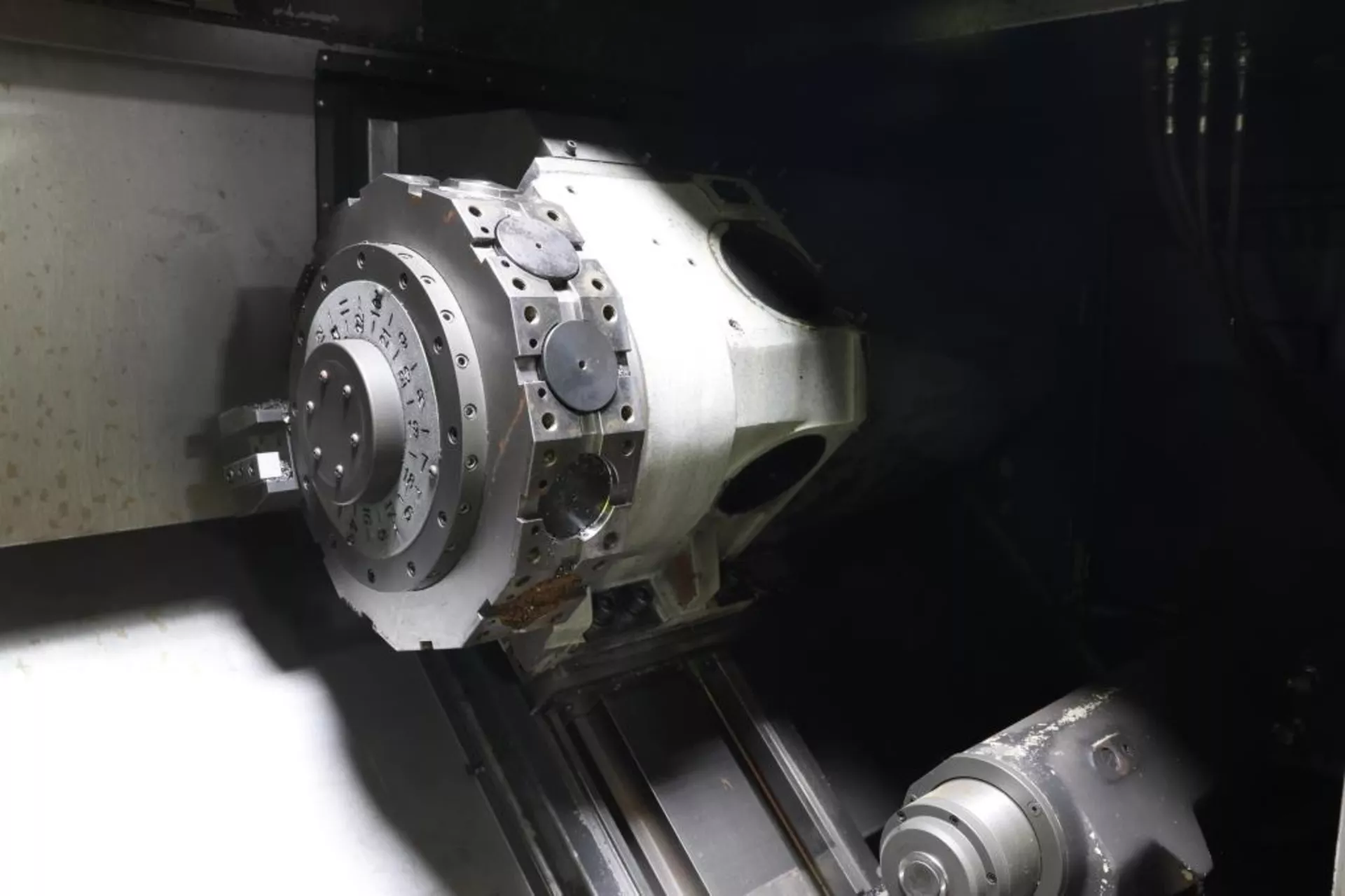

| Turret / Tooling: |
| Stations: 12 |
| Live Tooling: Yes |
| Tooling Type: BMT |
| Rotary Tool Speed: ~4,000 RPM |
| Travels: |
| X-Axis Travel: 10.0″ |
| Z-Axis Travel: 32.0″ |
| Rapid Traverse (X/Z): ~945 / 1,181 IPM |
| Tailstock: |
| Type: Programmable Hydraulic Tailstock |
| Quill Diameter: 3.5″ |
| Quill Travel: 4.0″ – 5.0″ |
| Taper: MT-4 / MT-5 |
| Coolant & Chip Handling: |
| Coolant System: Yes |
| Chip Conveyor: Yes |
| Electrical: |
| Power Requirement: 220V / 3 Phase / 60 Hz |
| General: |
| Machine Weight: ~13,000 – 15,000 lbs |
