*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

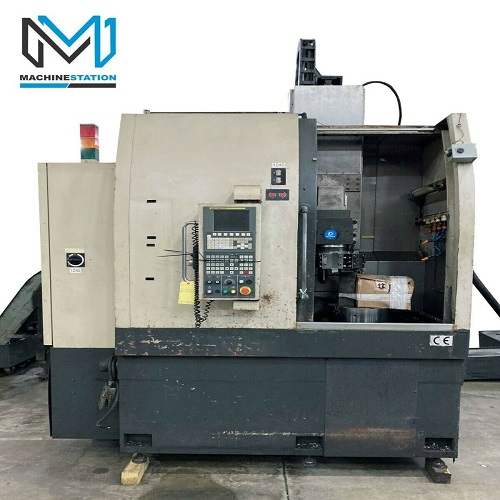

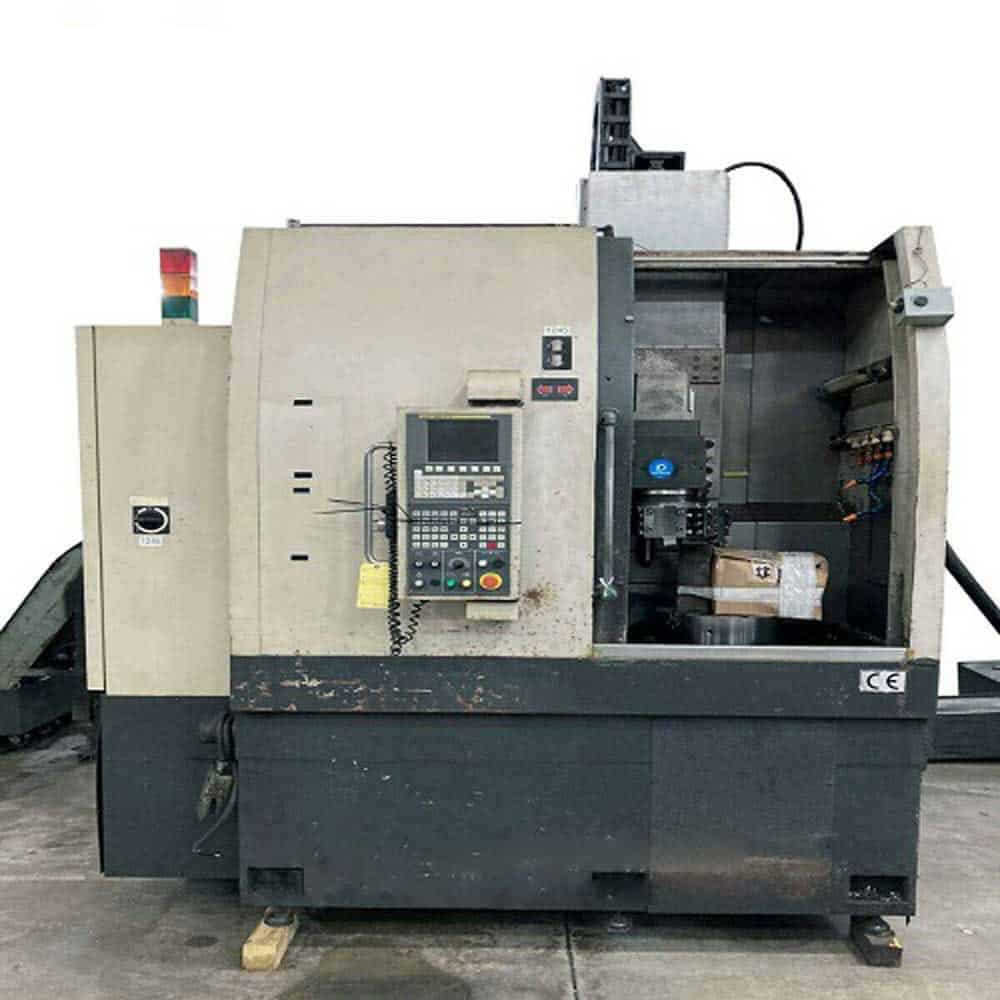

| SKU: | 2242 |
| Make: | SMTCL Shenyang |
| Model: | VTC-4048II |

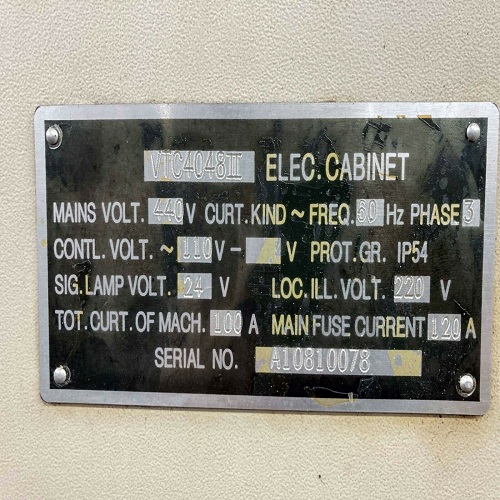

| Serial: | A10810078 |
| Year: | 2008 |
| Condition: | Good |
| Cutting Hours: | 6345 |
| Equipped With: |
|---|
| 12″ 3 jaw Chuck (15″ Capable) |
| Fanuc Oi-TC CNC Control |

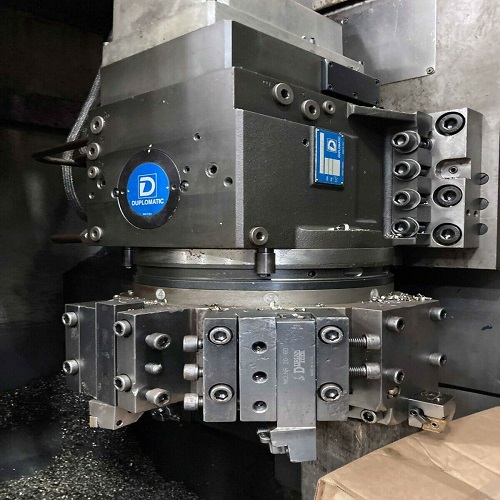

| 8 Station Turret |
| PCMCIA Card Interface |
| Coolant System |
| Chip Conveyor |
| Comes with 4 Tool Holders |
| Spindle Orientation Right |
| Travel: |
|---|
| X Axis Travel: 9.84″ |
| Z Axis Travel: 19.67″ |
| Rapid feed rate: 787 IPM |
| Cutting Feedrate: 630 IPM |
| Specifications: |
|---|
| Max Turning Diameter: 15.75″ |
| Max Swing Diameter: 19.67″ |
| Max Turning Height: 18.9″ |
| Max Spindle Speed: 2200 RPM |
| Spindle: A2-8 |
| Spindle Power: 25HP |
| Table Load Capacity: 880 lbs |
| General: |
|---|
| Dimensions: 117″ x 93″ x 124″ High ?? |
| Weight : 22,500 lbs Approx. |
