*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us with any questions before purchasing. All sales are final.*

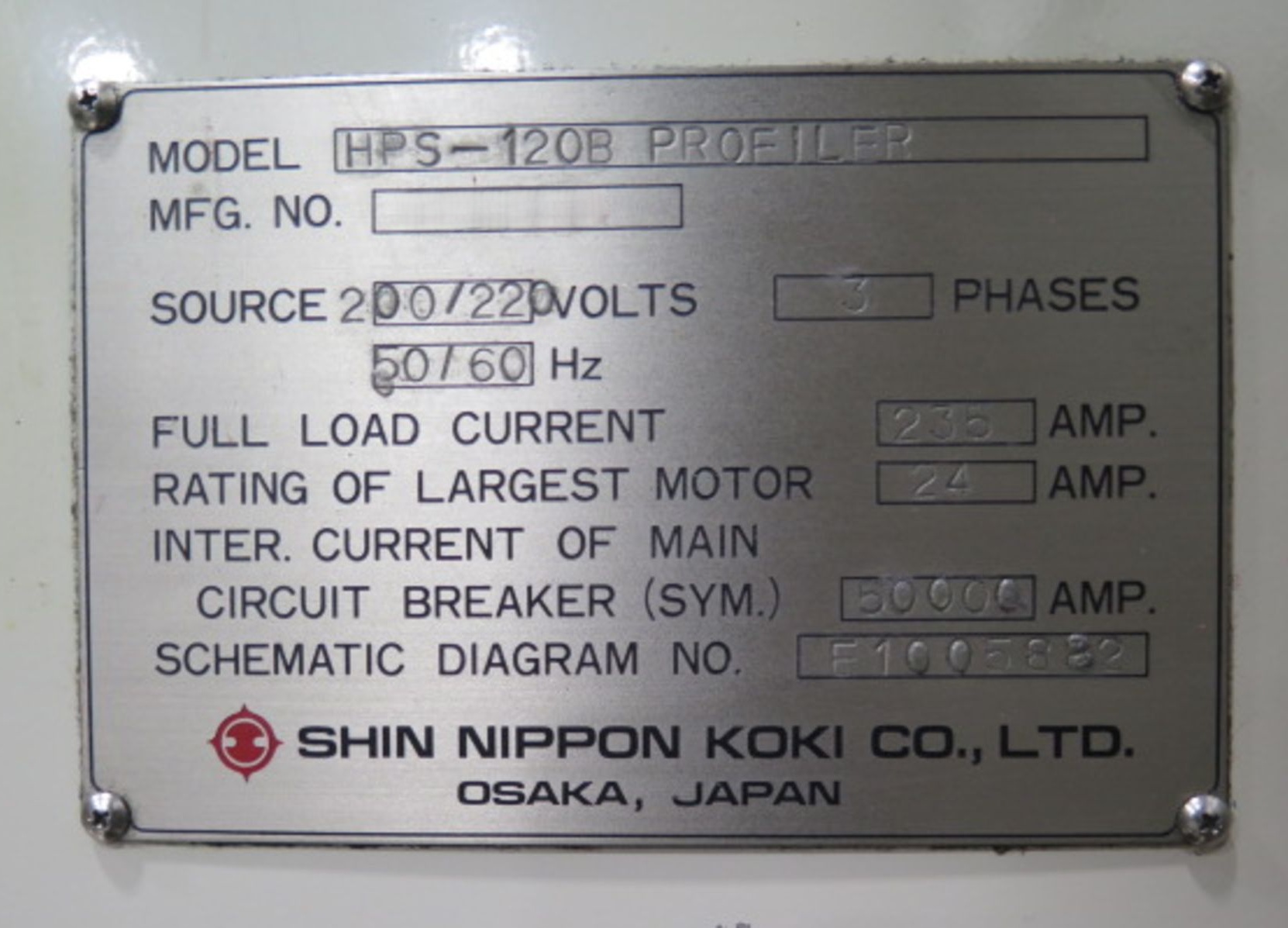

| Make: | SNK |
| Model: | HPS-120B/5 |
| Year: | 2000 |
| Machine Type: | CNC 5-Axis Horizontal Machining Center |
| Features: |
|---|
| Fanuc 15iM 5-Axis CNC Control |
| Articulating Spindle Head |
| A & C Axis |
| 120″ × 48″ Hydraulic Tilt Table |
| 50 HP High-Torque Spindle Motor |
| 50 Taper Gear Head Spindle |
| Through-Spindle Coolant |
| Box Way Heavy Construction |
| Tool Presetter |
| MPG Control / Handwheel |
| Rigid Tapping |
| RS-232 Port |
| Telescopic Way Covers |
| Chip Blaster Mist Collector |
| Chiller Unit |
| Coolant Tank |
| Chip Conveyor |
| Capacity: |
|---|
| Table Size: 48″ W × 120″ L |
| Maximum Table Load: 11,000 lbs. |
| Table Position – Loading: 0° Horizontal |
| Table Position – Machining: 90° Vertical |
| Travels: |
|---|
| X-Axis Travel: 120″ |
| Y-Axis Travel: 52″ |
| Z-Axis Travel: 30″ |
| A-Axis Spindle Head Tilt: ±90° |
| C-Axis Spindle Head Rotation: ±270° |
| Spindle Nose to Table: 5″ – 33″ |
| Spindle: |
|---|
| Spindle Type: Articulated 5-Axis |
| Spindle Power: 50 HP |
| Spindle Taper: 50 |
| Spindle Speed: 12,000 RPM |
| Spindle Type: Gear Head |
| Feedrates: |
|---|
| Rapid Traverse X & Z: 945 IPM |
| Rapid Traverse Y: 787 IPM |
| Rapid Traverse A & C: 1,800 DPM |
| Cutting Feed X/Y/Z: 393 IPM |
| Cutting Feed A/C: 1,800 DPM |
| General: |
|---|
| Power Source: 220V / 3-Phase / 50/60 Hz |
| Air Requirement: 100 PSI / 4 SCFM |
| Machine Dimensions (Approx.): 379″ L × 308″ W × 153″ H |
| Machine Weight (Approx.): 100,000–120,000 lbs. |
