Sold
SNK RB 5M (4)
M
SNK RB 5M (2)

SNK RB-5M CNC Bridge Mill

SKU 11727
Make/Model SNK RB-5M
Year 2017
Video On Request
Out of stock
SKU: 11727
Make/Model: SNK RB-5M
Year: 2017
Video: On Request
SKU: 11727

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: SNK
Model: RB-5M
Year: 2017
Features:
Fanuc Series 31i-B CNC Control
Right Angle Head (1° Indexing)
Straight Vertical Head
60-Position Automatic Tool Changer
Automatic Attachment Changer
CAT 50 Spindle
60 HP Spindle Motor
Coolant Through Spindle

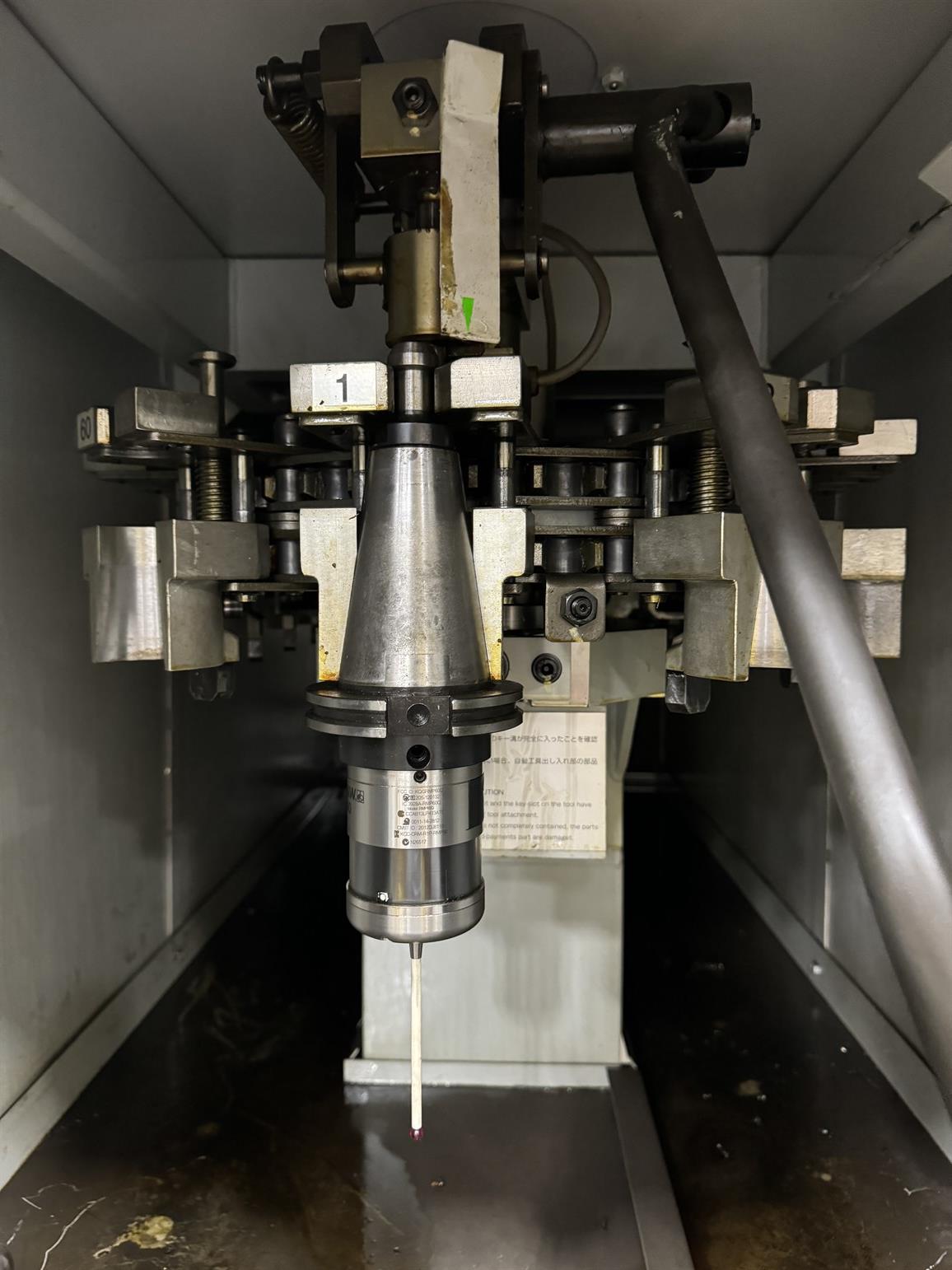

Renishaw RMP60 Wireless Probe
Hennig Chip Conveyor
Coolant Pump System
4th-Axis Capable
Operator Platform with Safety Railings
Capacity:
Table Size: 196.8″ × 98.4″
Table Load Capacity: 33,000 lbs
Distance Between Columns: 122″
Travels:
X-Axis Travel: 206.6″
Y-Axis Travel: 133.8″
Z-Axis Travel: 31.5″
W-Axis Travel: 55.1″
Spindle:
Spindle Taper: CAT 50
Spindle Speed Range: 40 – 4,500 RPM
Spindle Motor: 60 HP
Automatic Tool Changer:
Tool Capacity: 60 Tools
General:
Electrical: 220 V / 3 Phase / 50/60 Hz
Machine Dimensions (Approx.): 460″ × 280″ × 290″
Machine Weight (Approx.): 88,000 lbs
Capacity:
Table Size: 4,999 mm × 2,499 mm
Table Load Capacity: 33,000 lbs
Distance Between Columns: 3,099 mm
Travels:
X-Axis Travel: 5,248 mm
Y-Axis Travel: 3,399 mm
Z-Axis Travel: 800 mm
W-Axis Travel: 1,400 mm
Spindle:
Spindle Taper: CAT 50
Spindle Speed Range: 40 – 4,500 RPM
Spindle Motor: 60 HP
Automatic Tool Changer:
Tool Capacity: 60 Tools
General:
Electrical: 220 V / 3 Phase / 50/60 Hz
Machine Dimensions (Approx.): 11,684 mm × 7,112 mm × 7,366 mm
Machine Weight (Approx.): 88,000 lbs
CategoriesCNC Bridge / Gantry Mill
MakeSNK
ModelRB-5M
  • Fanuc Series 31i-B CNC Control
  • Right Angle Head (1° Indexing)
  • Straight Vertical Head
  • 60-Position Automatic Tool Changer
  • Automatic Attachment Changer
  • CAT 50 Spindle
  • 60 HP Spindle Motor
  • Coolant Through Spindle
  • Renishaw RMP60 Wireless Probe
  • Hennig Chip Conveyor
  • Coolant Pump System
  • 4th-Axis Capable
  • Operator Platform with Safety Railings
SNK RB 5M (4)MSNK RB 5M (2)
