*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | SNK Ikegai |
| Model No.: | NB130PE3.5 |
| Year of Manufacture: | 2007 |
| Condition: | Used – Good |
| Features: |
|---|

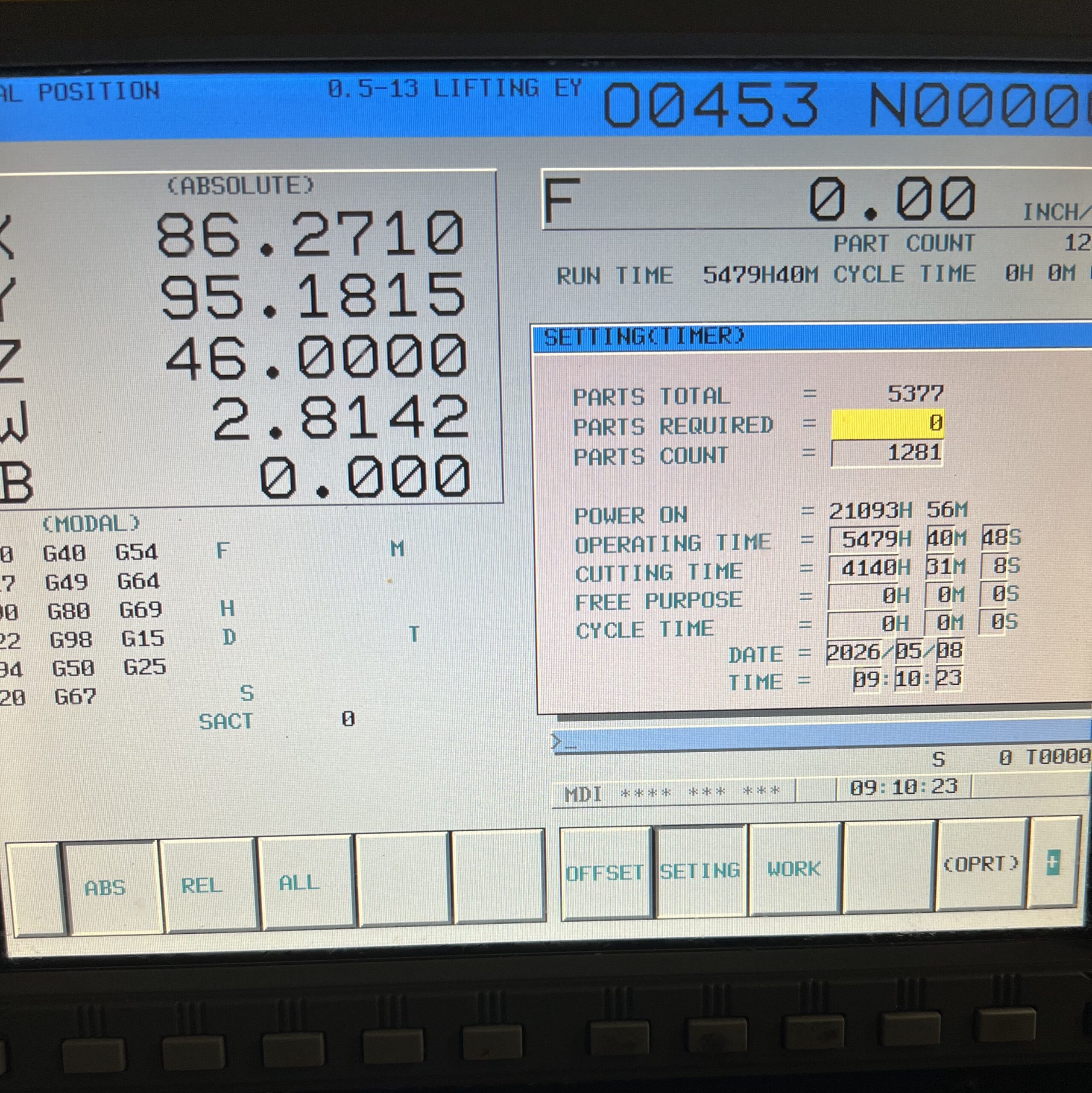

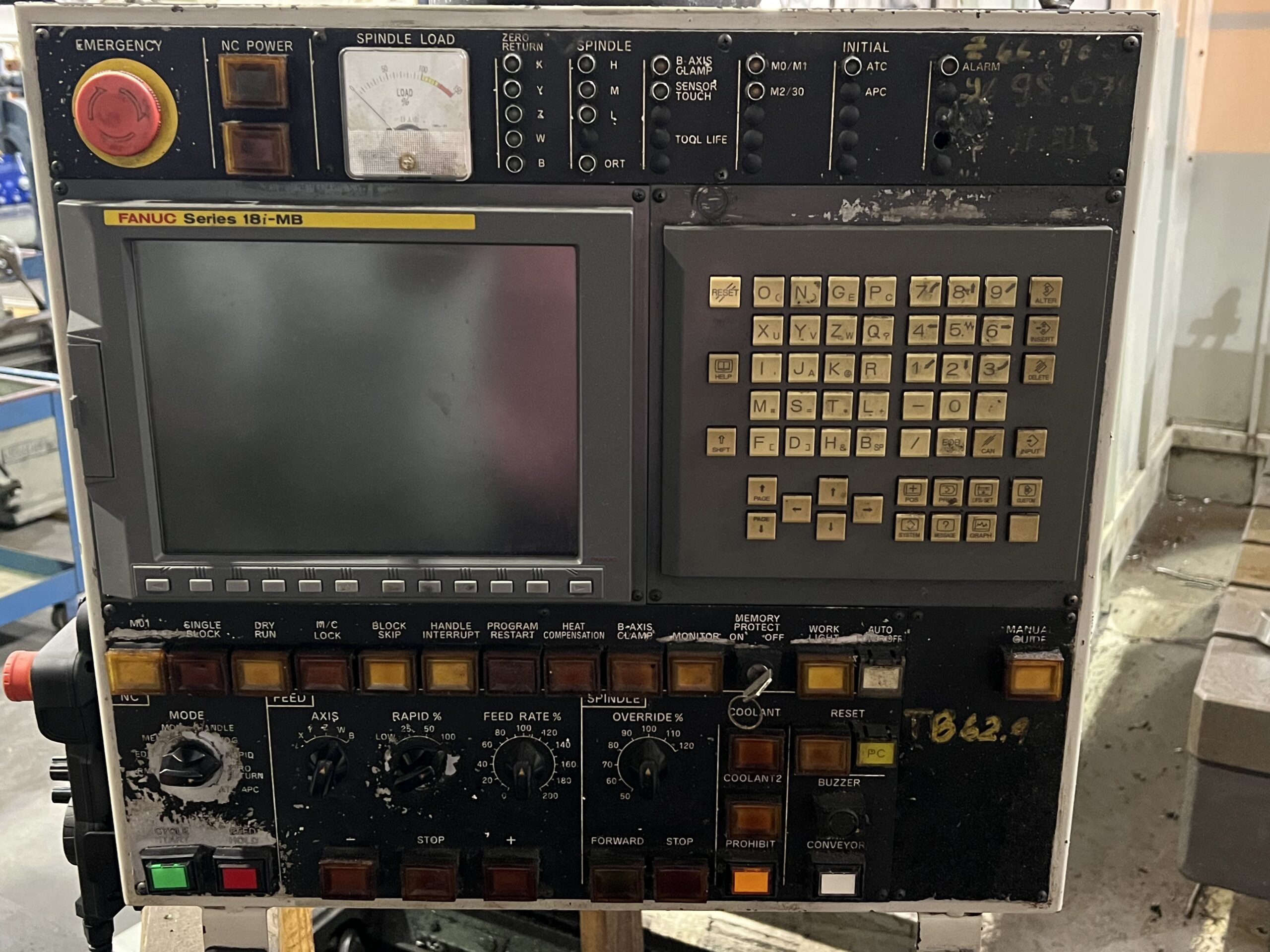

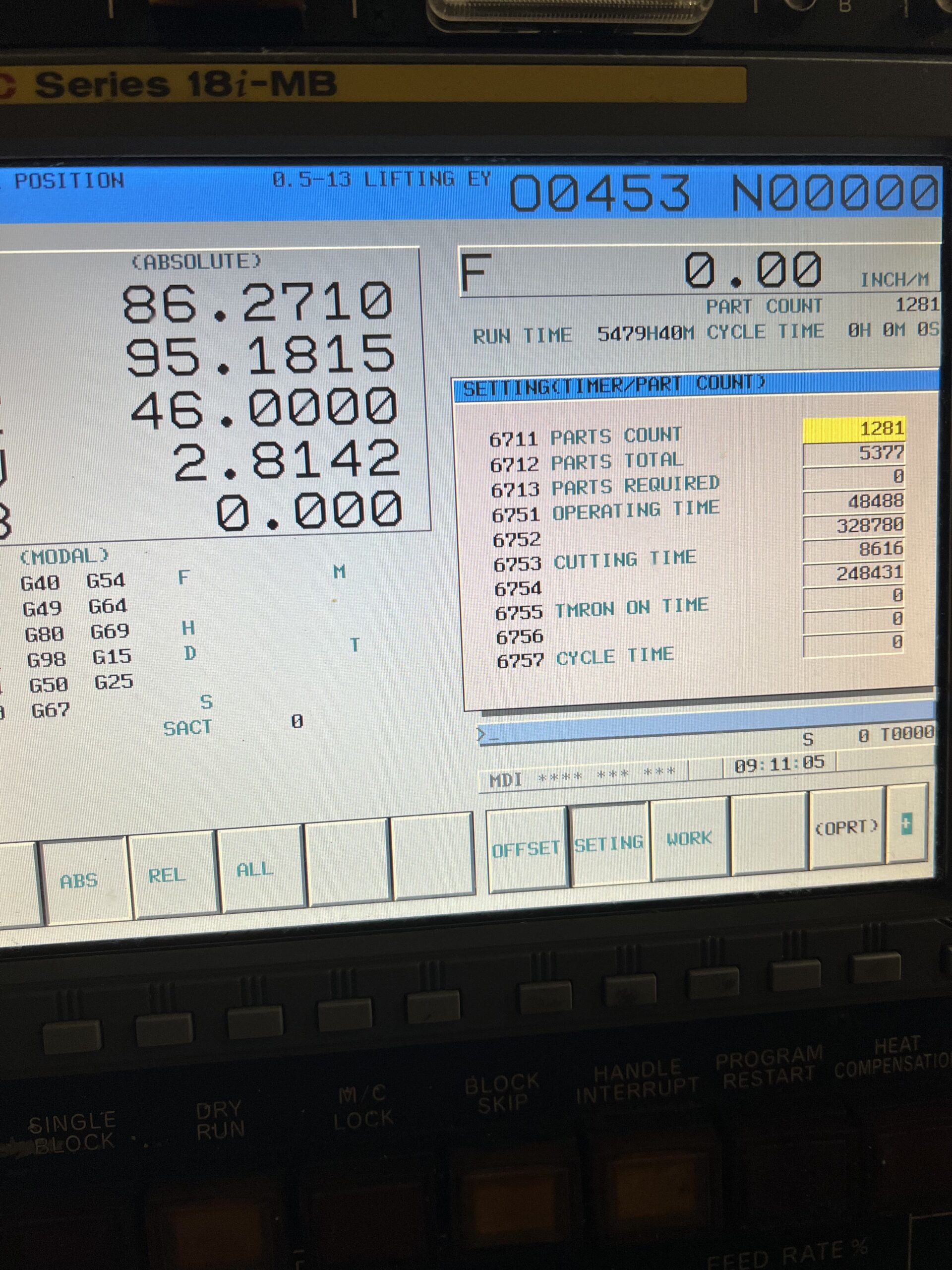

| Fanuc 18i-MB Series CNC Control |
| 5.118″ Spindle Diameter |
| Full 4th Axis CNC Rotary Table |
| Heavy Table Load Capacities |

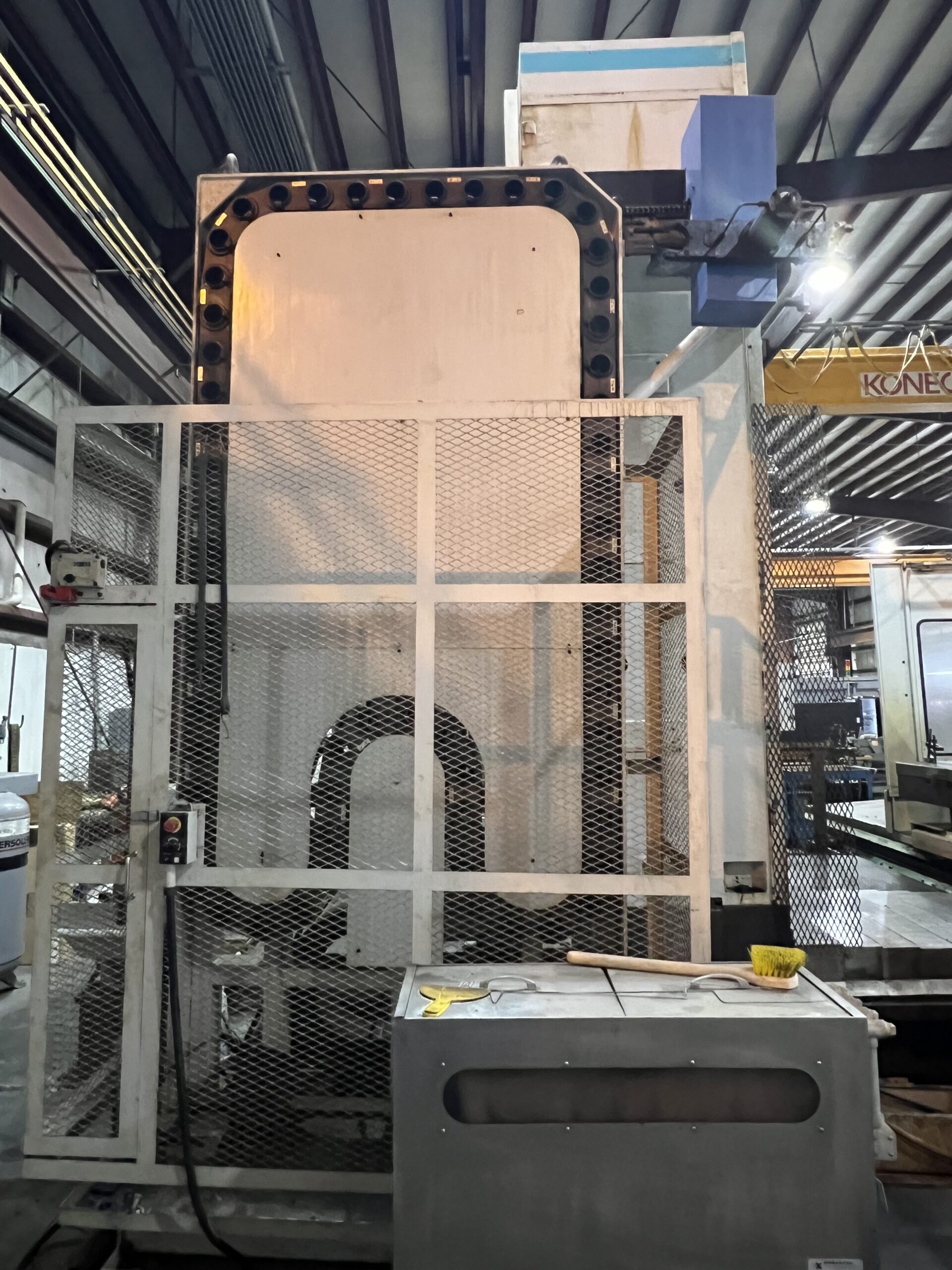

| 60 Station Automatic Tool Changer |

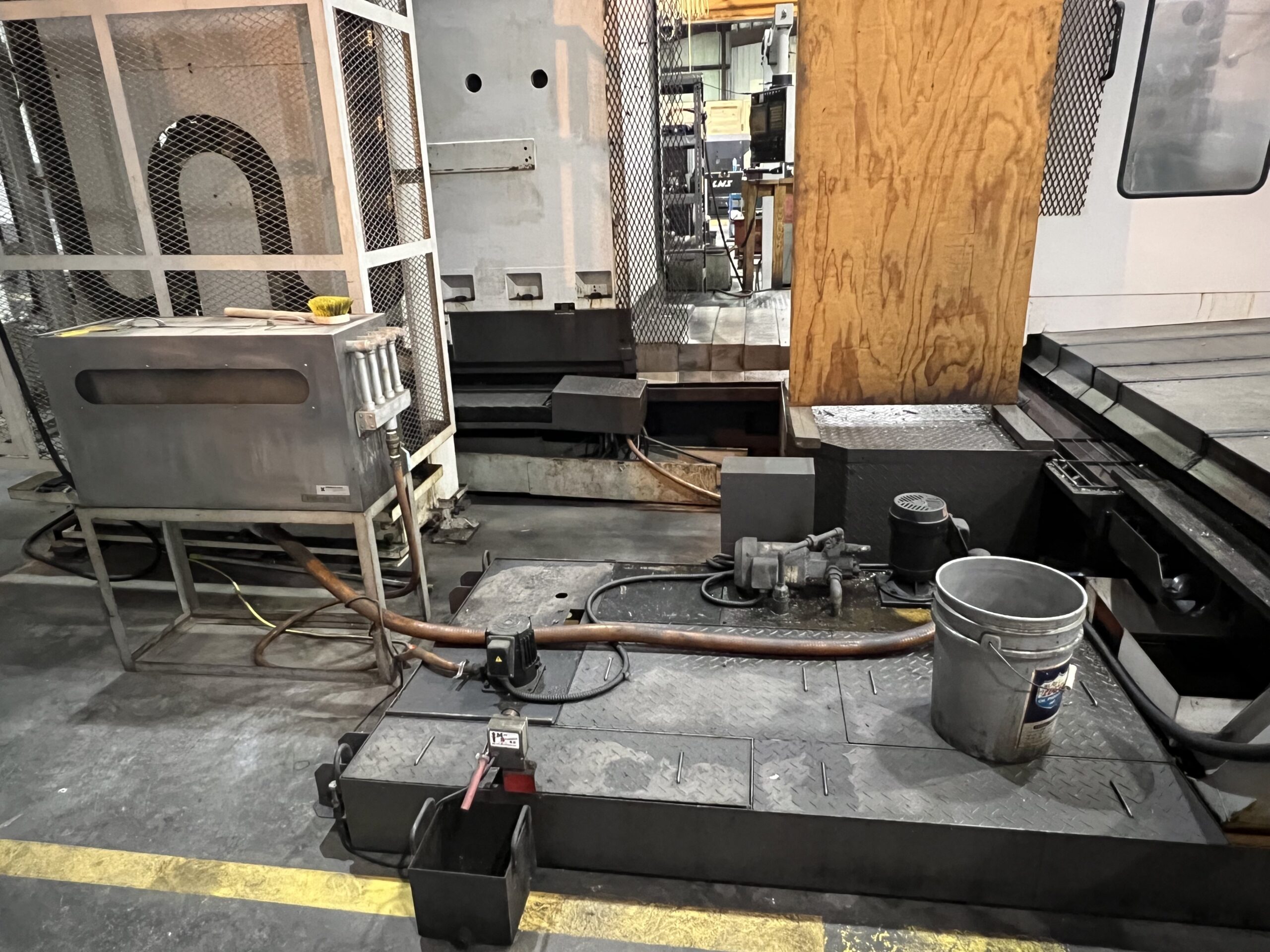

| Coolant Tank |

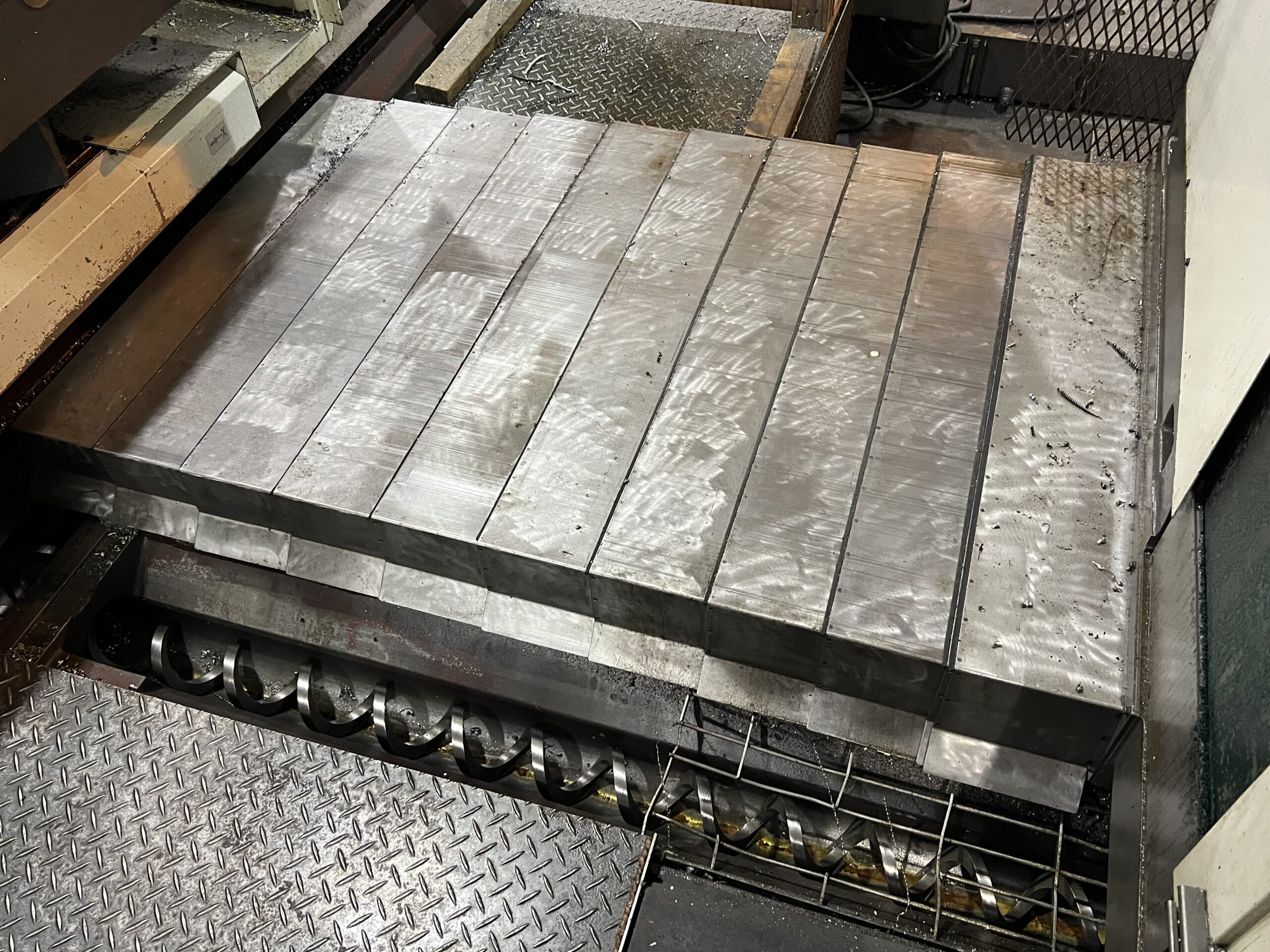

| Chip Conveyor |
| Travels: |
|---|
| Table Longitudinal Travel (X Axis): 137.80″ |
| Headstock Vertical Travel (Y Axis): 98.43″ |
| Column Cross Travel (Z Axis): 62.99″ |
| Spindle Quill Travel (W Axis): 27.56″ |

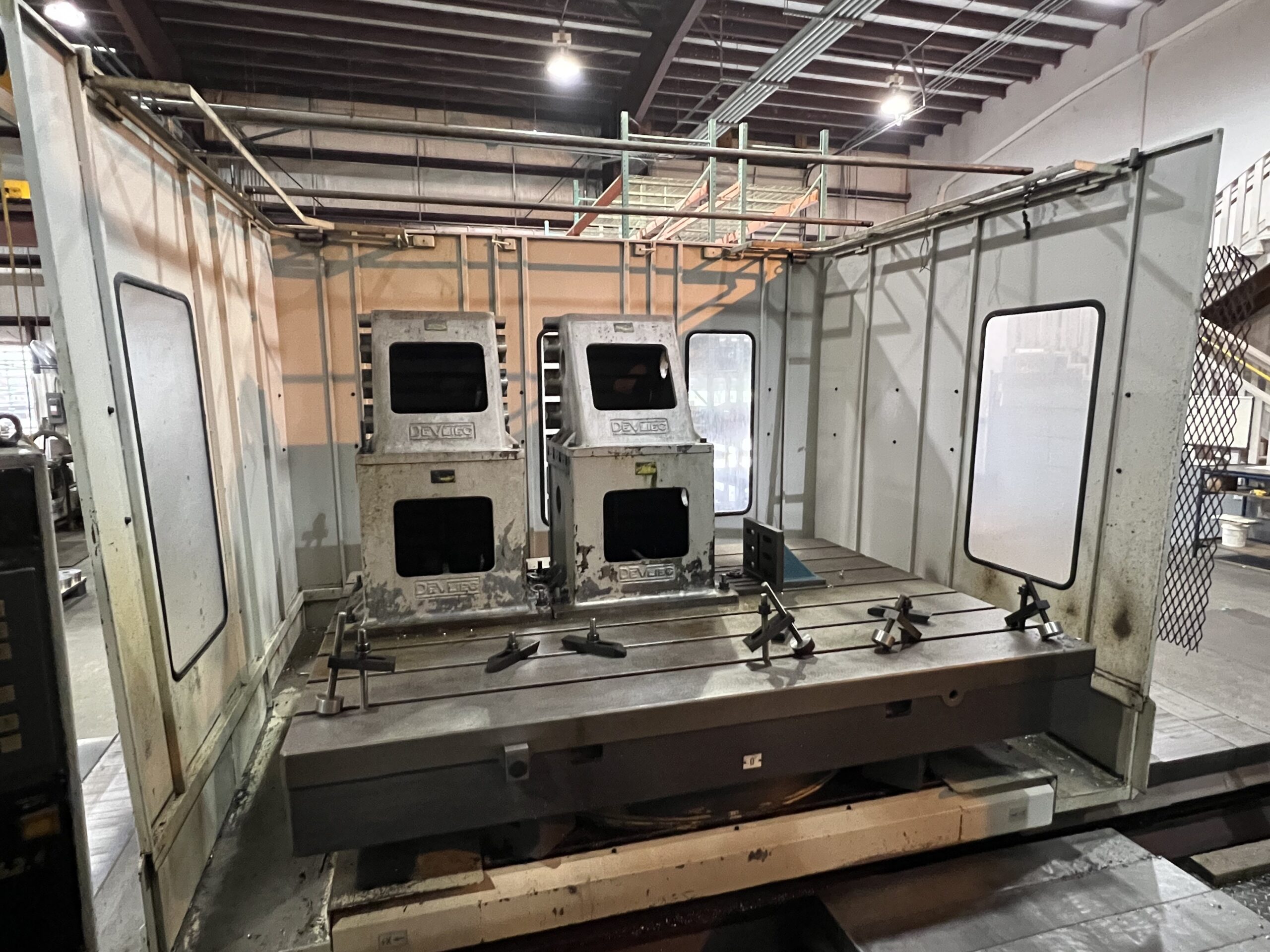

| Rotary Table: |
|---|
| Length: 86.61″ |
| Width: 62.99″ |
| Maximum Table Load Capacity: 22,046 lbs |
| Table Indexing Increment: 0.001° / 90° pin |

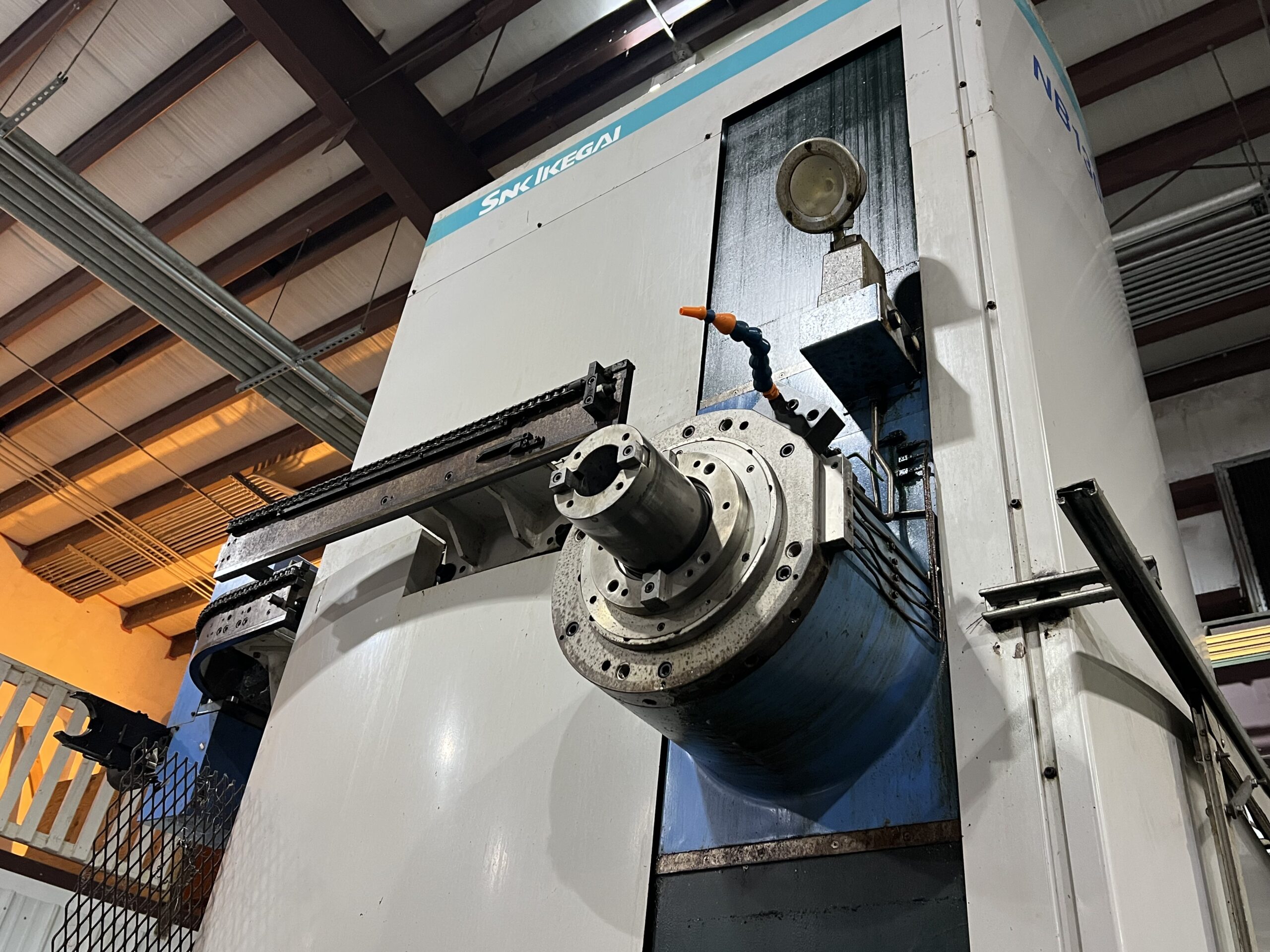

| Spindle: |
|---|
| Spindle Diameter: 5.118″ |
| Spindle Speed Range: 5 – 2,500 RPM |
| Spindle Taper: 50 |
| Maximum Torque: 2,372 ft-lbs Approx. |
| Power: 30 / 35 HP |
| Feed Rates: |
|---|
| Rapid Traverse X Axis: 315 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse Z Axis: 394 IPM |
| Rapid Traverse W Axis: 236 IPM |
| Cutting Feed Rate: 197 IPM |
| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Taper: 50 |
| Maximum Tool Diameter: 5.51″ |
| Maximum Tool Length: 15.75″ |
| Maximum Tool Weight: 55 lbs |
| Tool Selection: Random Bi-Directional |
| General: |
|---|

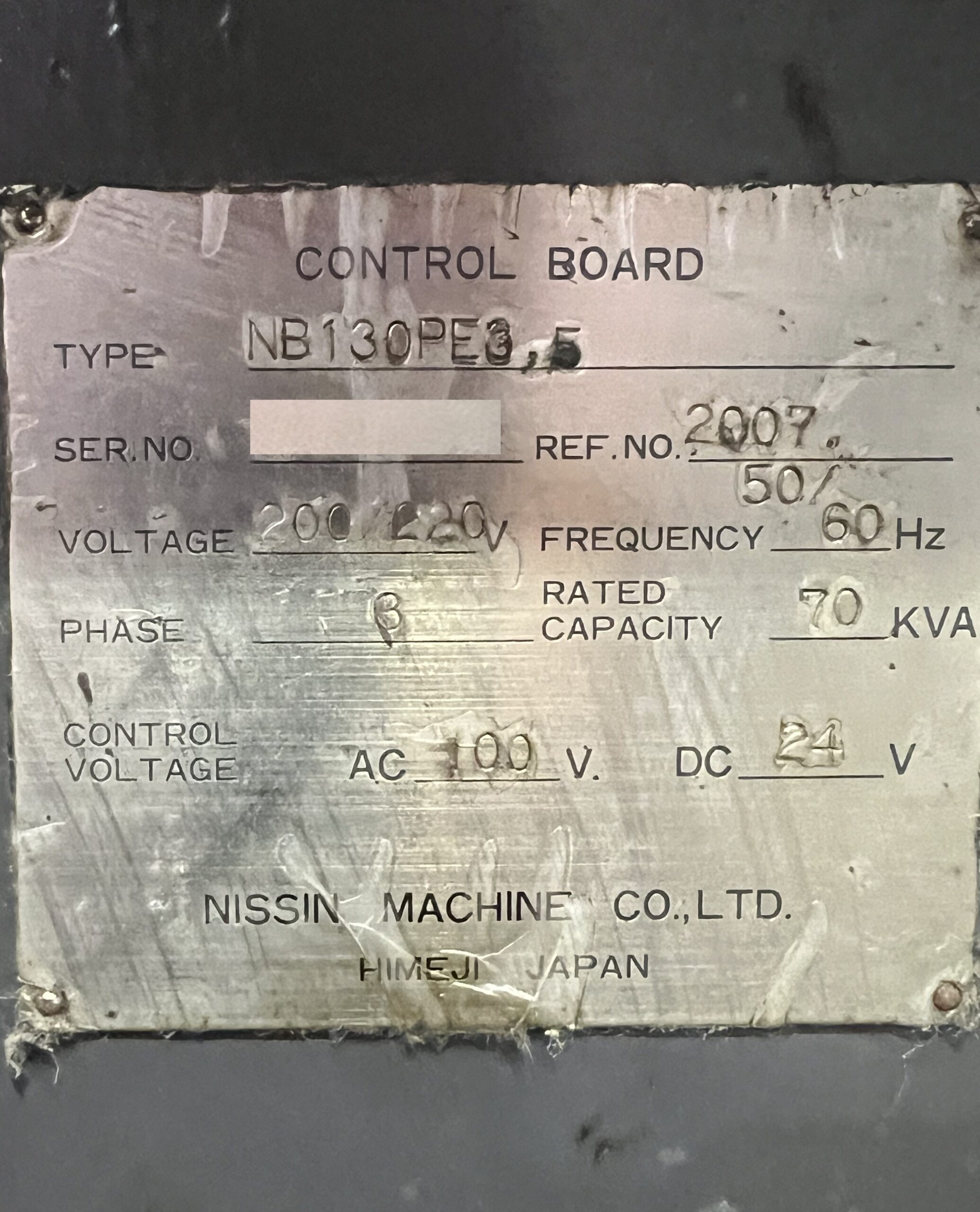

| Power: 220V / 3-Phase / 60 Hz / 70 kVA |
| Overall Dimensions: 287″ x 264″ x 196″ High Approx. |
| Weight: 79,365 lbs Approx. |
