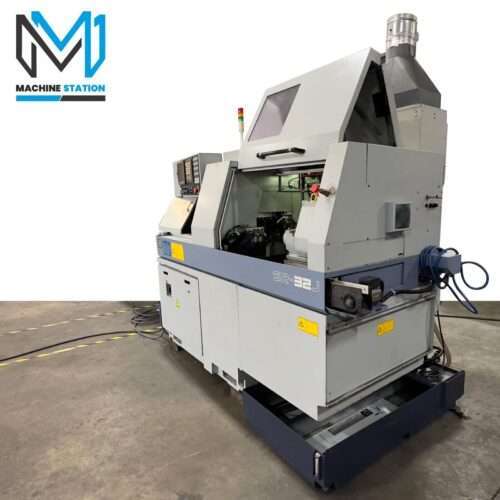

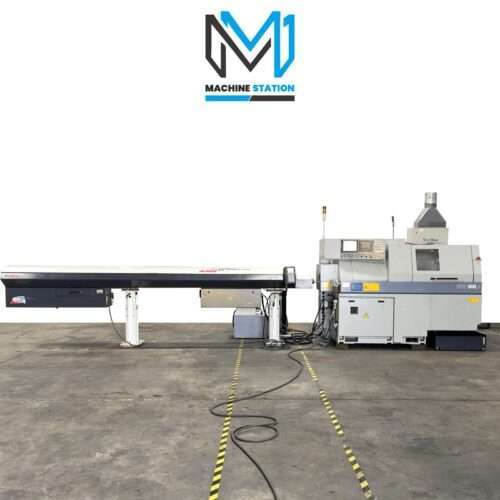

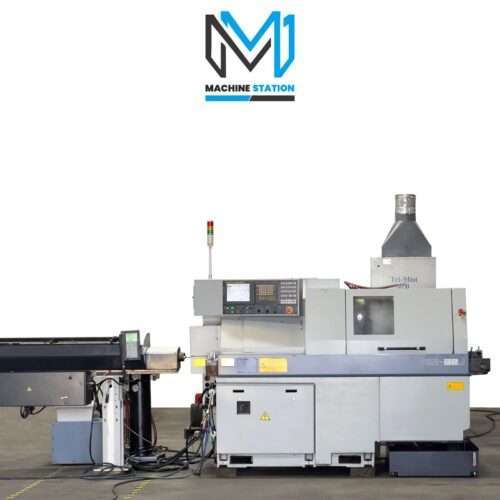

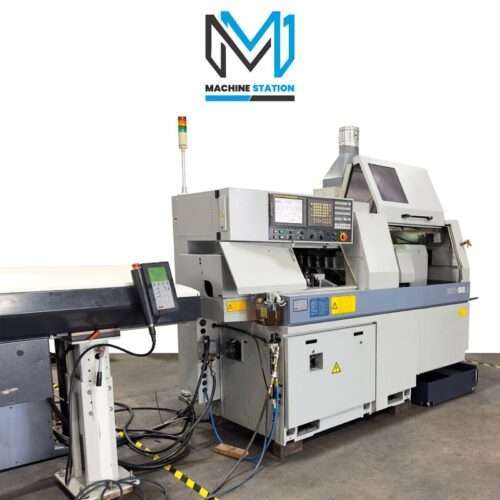

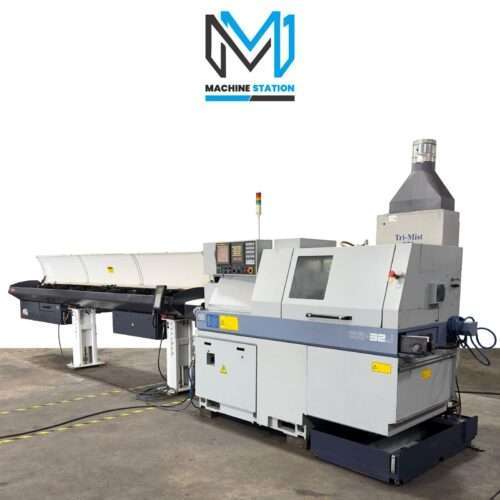

Star SR-32J CNC Swiss Screw Type 7 Axis Automatic Lathe Turning

Out of stock

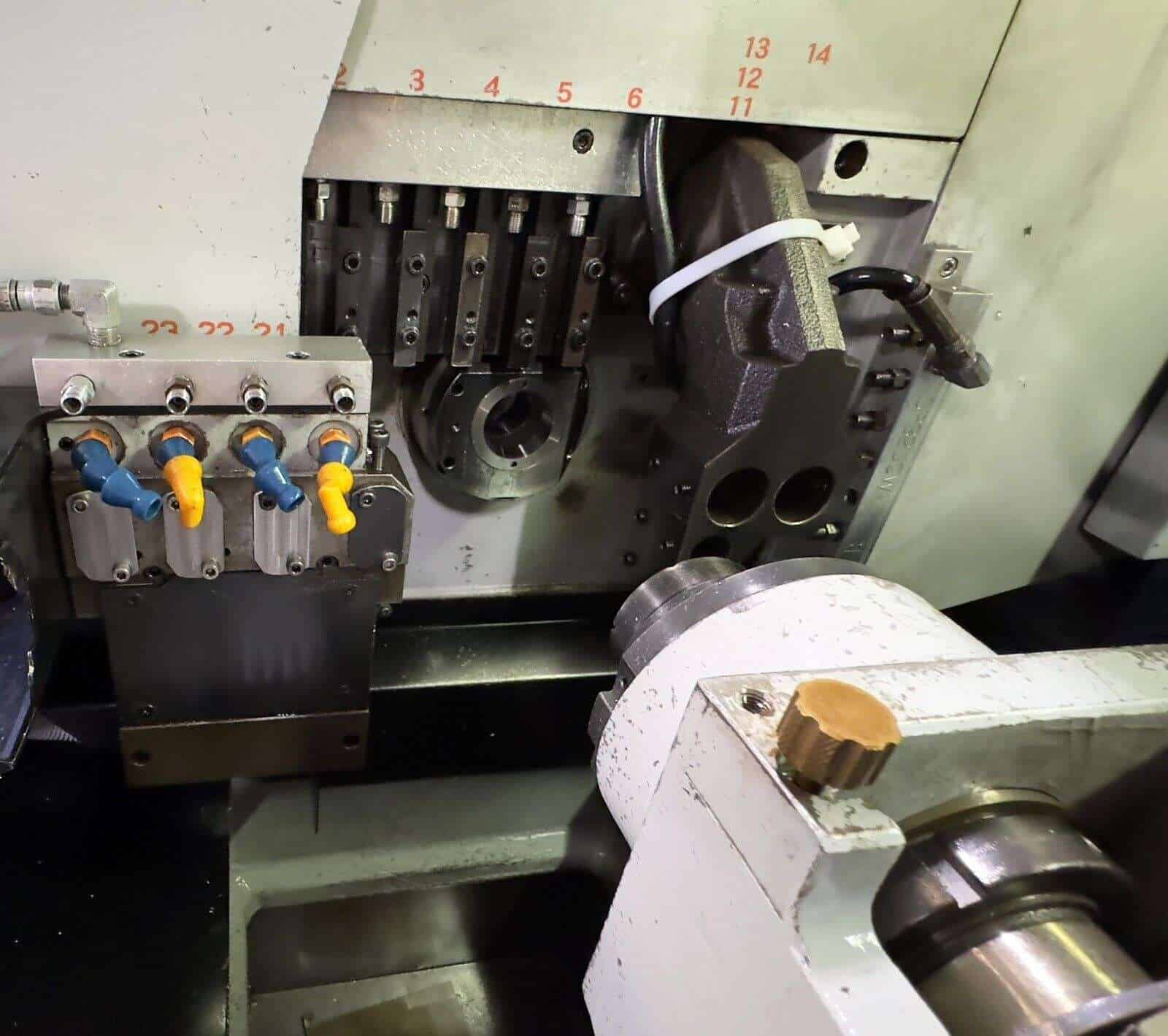

Used Star SR-32J CNC Swiss Screw Type 7 Axis Automatic Lathe Turning for Sale.

Location: Lake Elsinore, CA
SKU: 2504
Make/Model: Star SR-32J
Video: [fusion_button link=”https://www.youtube.com/watch?v=G5G9_UTHVmA” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]
SKU: 2504



*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2504

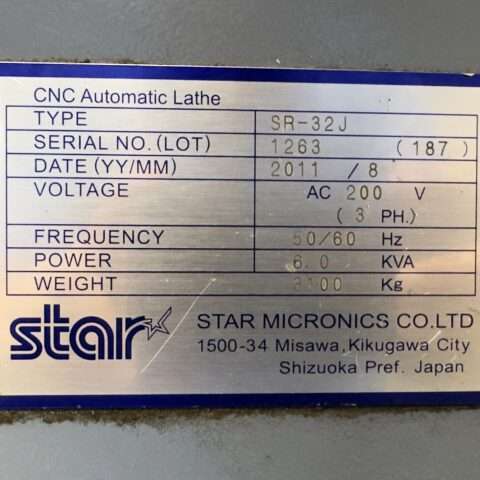

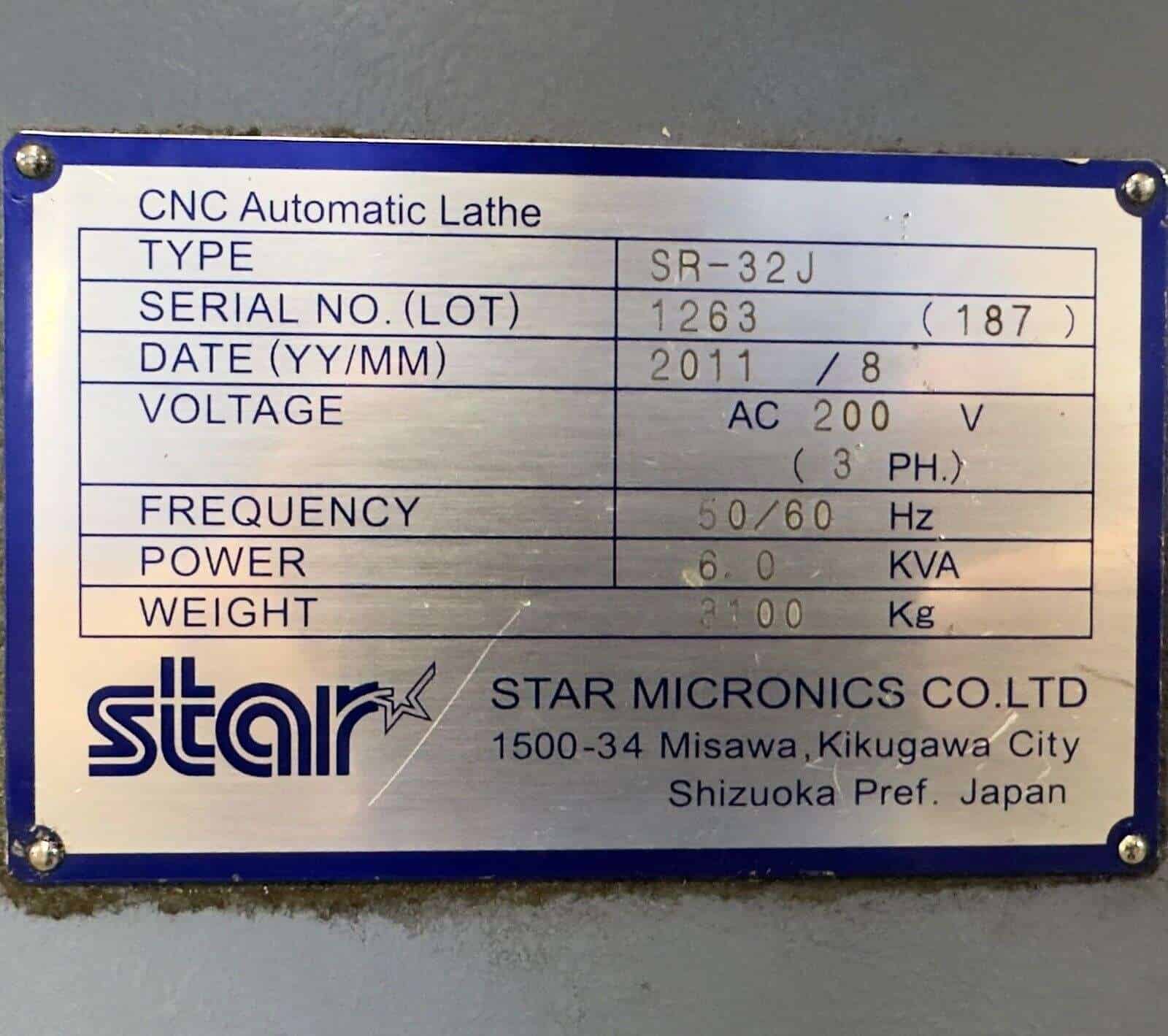

Make: STAR
Model: SR-32J
Year: 08/2011



Equipped With:

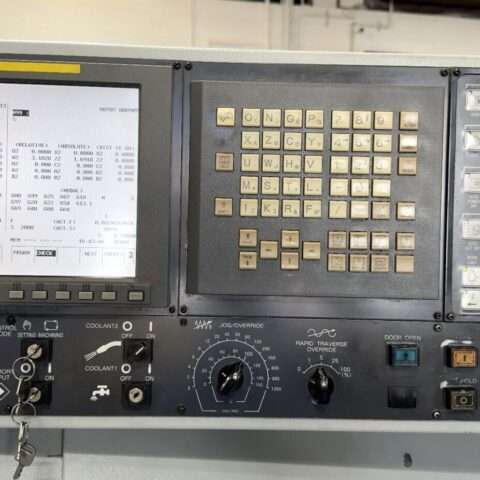

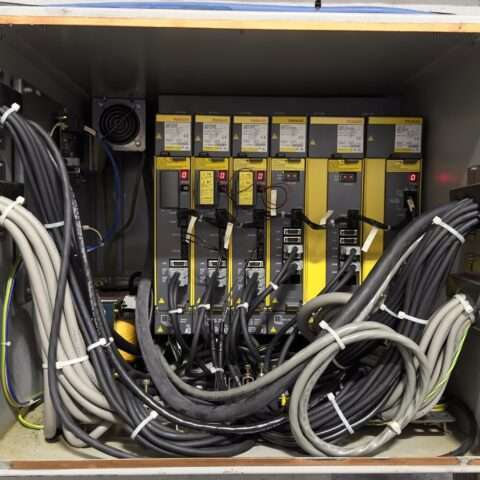

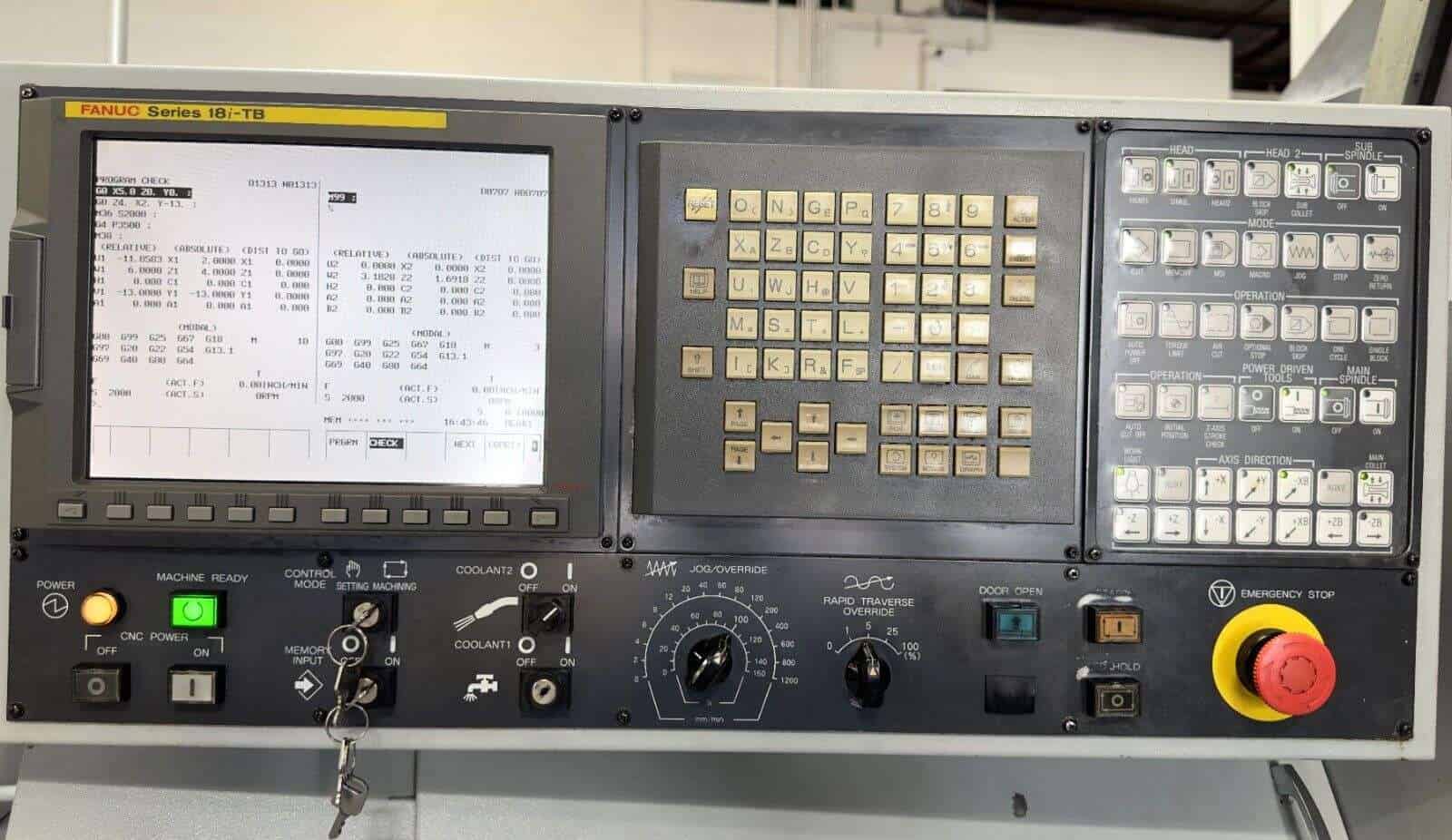

Fanuc 18i-TB CNC Control

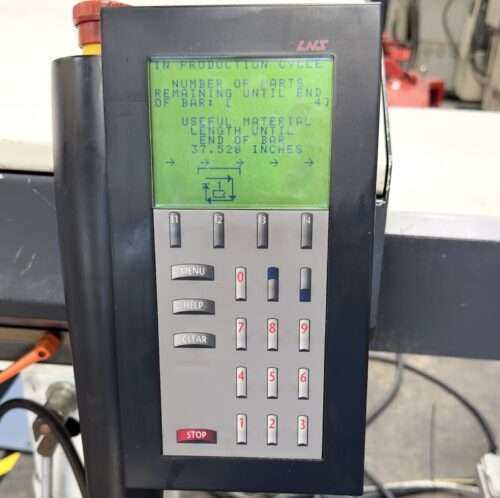

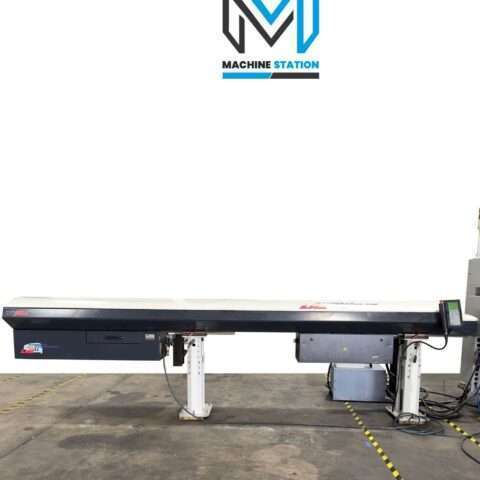

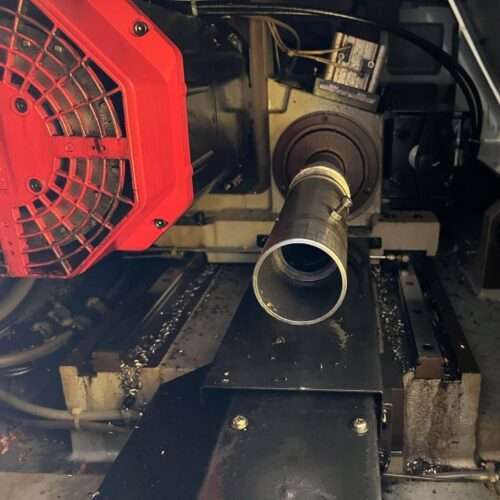

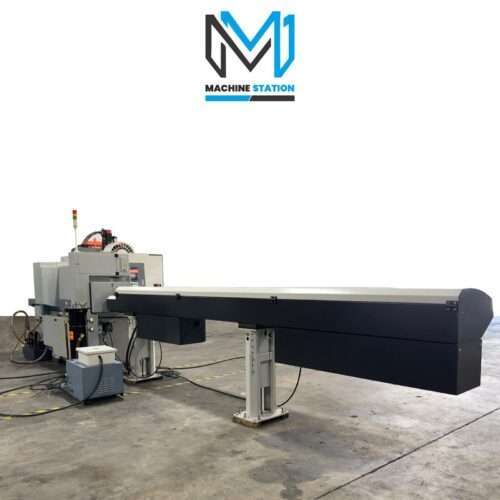

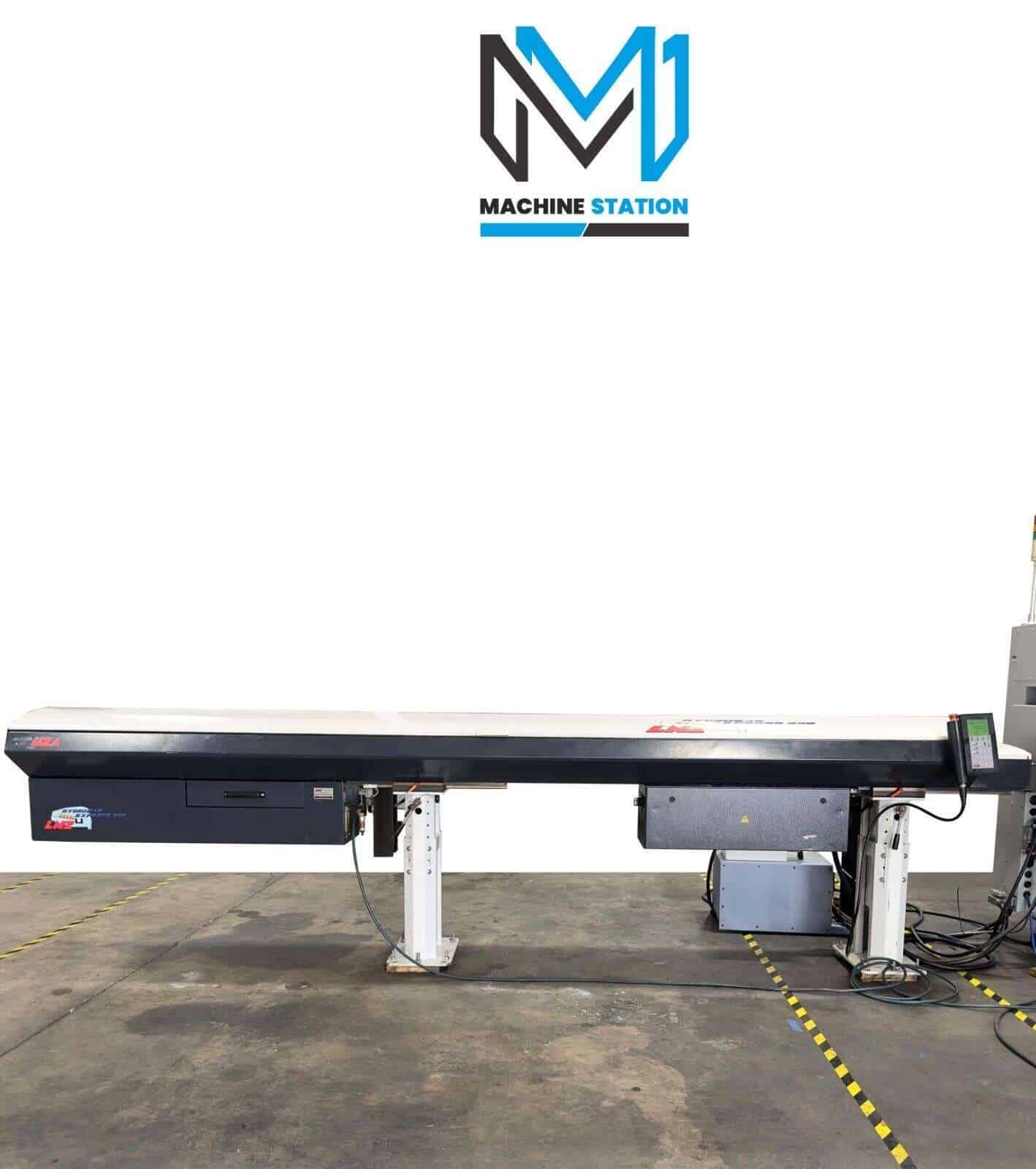

LNS Express 332 Bar Feeder
Full C Axis and Live Tools Capable
Long Parts Capable
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System

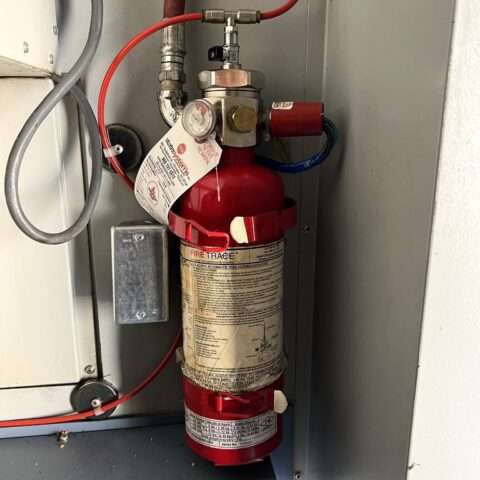

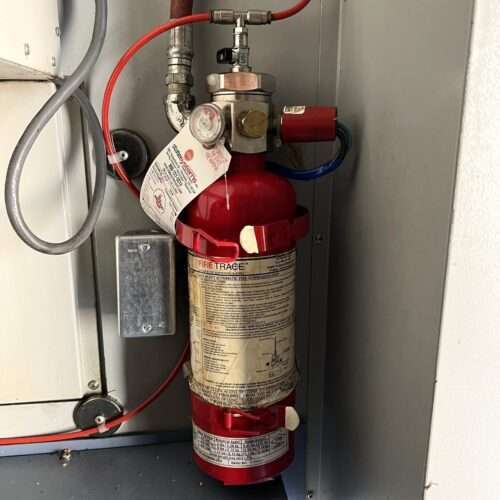

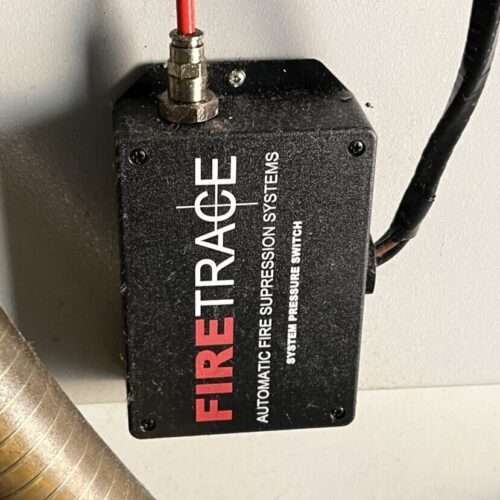

Fire Suppression System

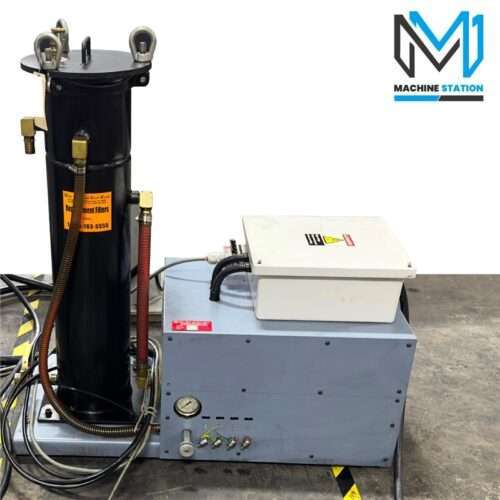

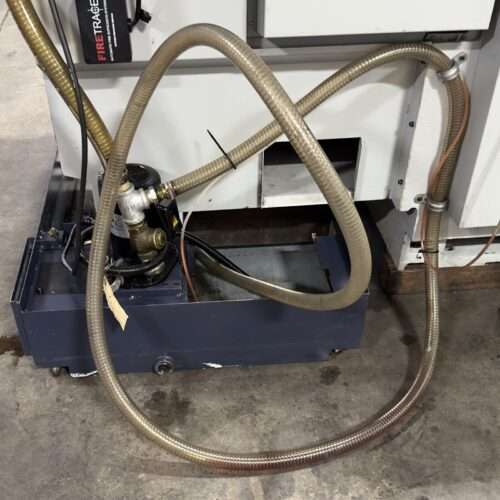

High Pressure Coolant System

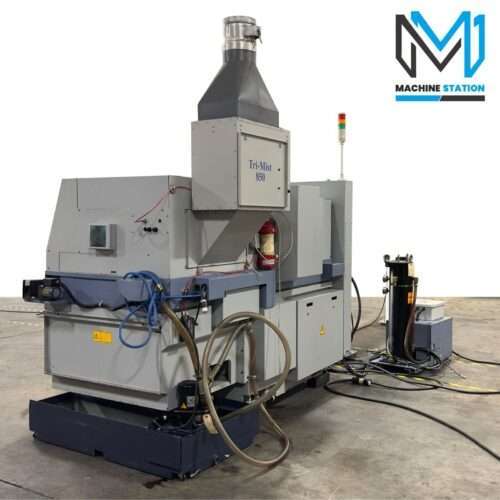

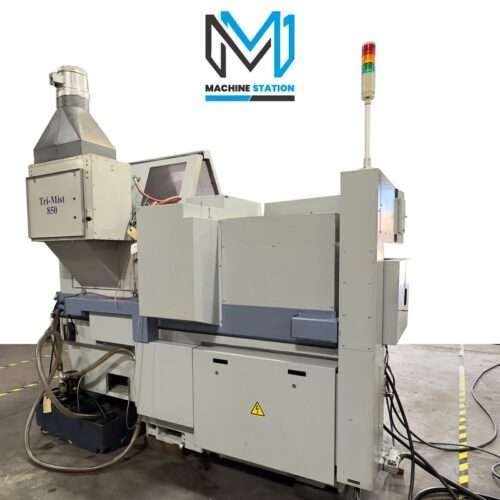

Mist Collector
Part Conveyor



Capacity:
Max Turning Diameter: 1.26″ (32 mm)
Max Turning Length: 12.60″ (320 mm)
Max Turning Length with Gripping Unit: 11.26″ (286 mm)
Max Bar Capacity: 1.26″ (32 mm)
Tool Capacity: 18



Spindle:
Main Spindle Index: 0.01 Degree (C-axis control)
Main Spindle Bore: 1.26″ (32 mm)
Main Spindle Speed: 7,000 RPM
Mian Spindle Motor: 3.7 kw

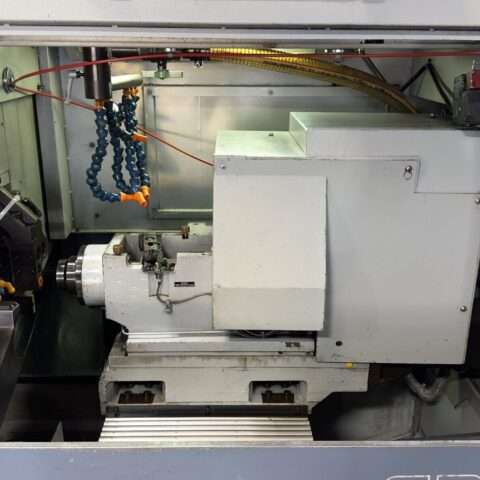

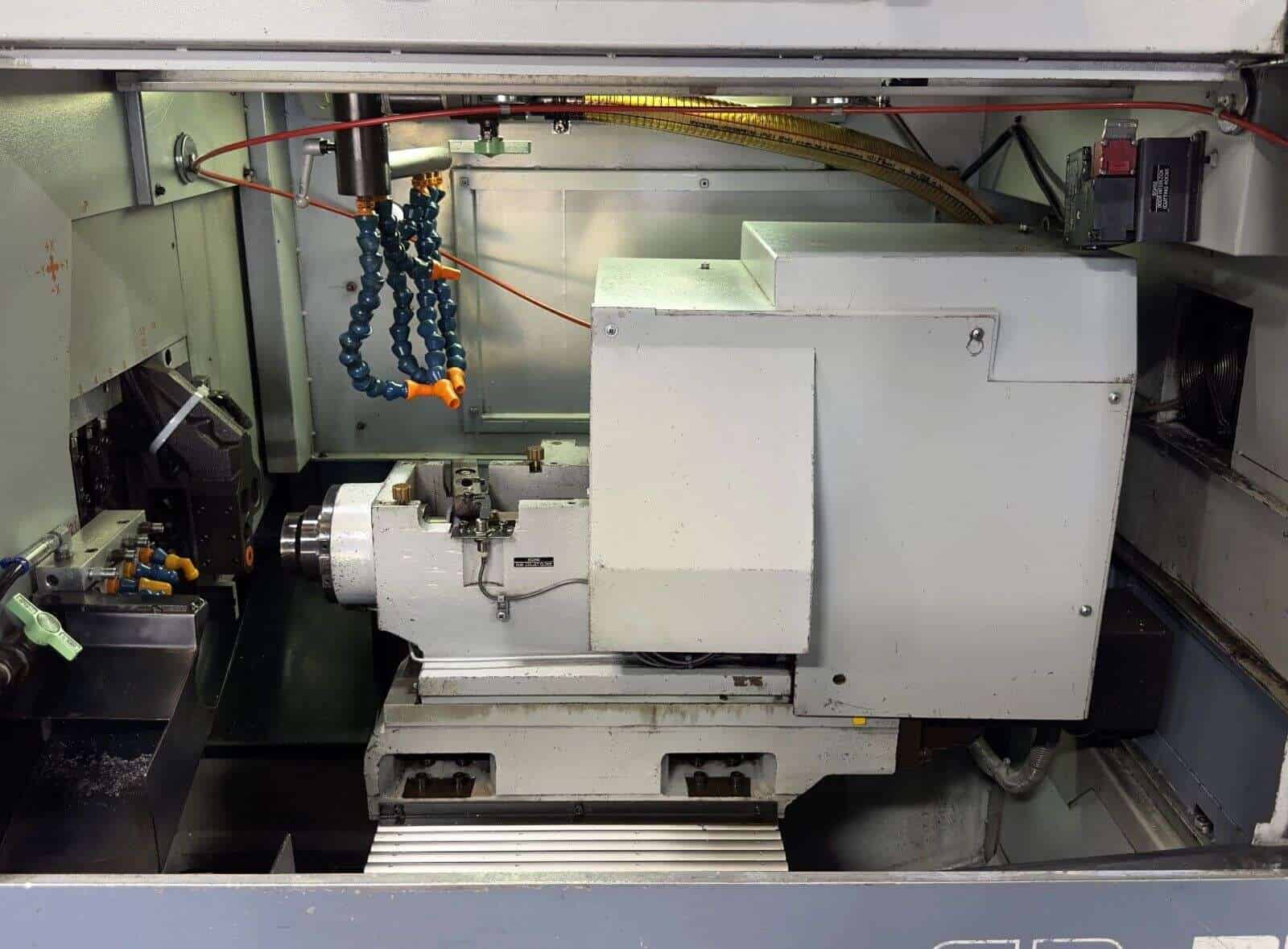

Back Spindle Index: 0.01 Degree (C-axis control)
Back Spindle Speed: 7000 RPM
Back Spindle Motor: 2.2 kw

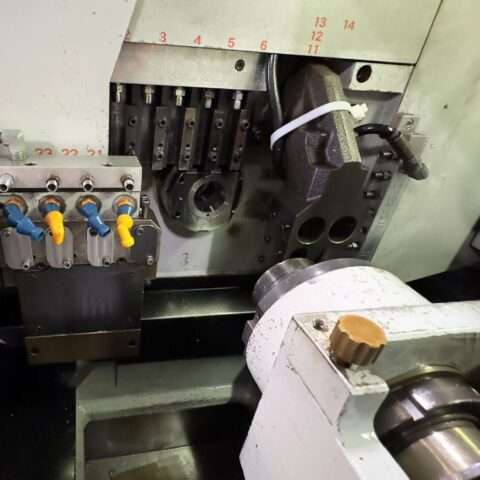

Standard Tools:
Turning Tools: 5
Stationary Tools: 5
Max Drilling Capability: 33/64″ (13 mm)
Max Tapping Capability: M12 x P1.75
Die Cutting Capability: M12 x P1.75



Power Driven Tools Attachment:
Front Working Power Driven Tools: 4
Back Working Power Driven Tools: 4
Max Front Drilling: 25/64″ (10 mm)
Max Front Milling: 25/64″ (10 mm)
Max Front Tapping: M8 x P1.25
Driven Tool Speed: 6000 RPM
Driven Tool Motor: 1 kw



General:
Power Source: AC 220 V/ Three Phase/ 60 Hz
Overall Dimensions: 106″ x 51″ x 75″ High
Weight: 6,834 lbs Approx.
