*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Tsugami |
| Model No.: |
BW209Z |
| Year of Manufacture: |
2018 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Swiss-Type Turning Center |
| CNC Control: |

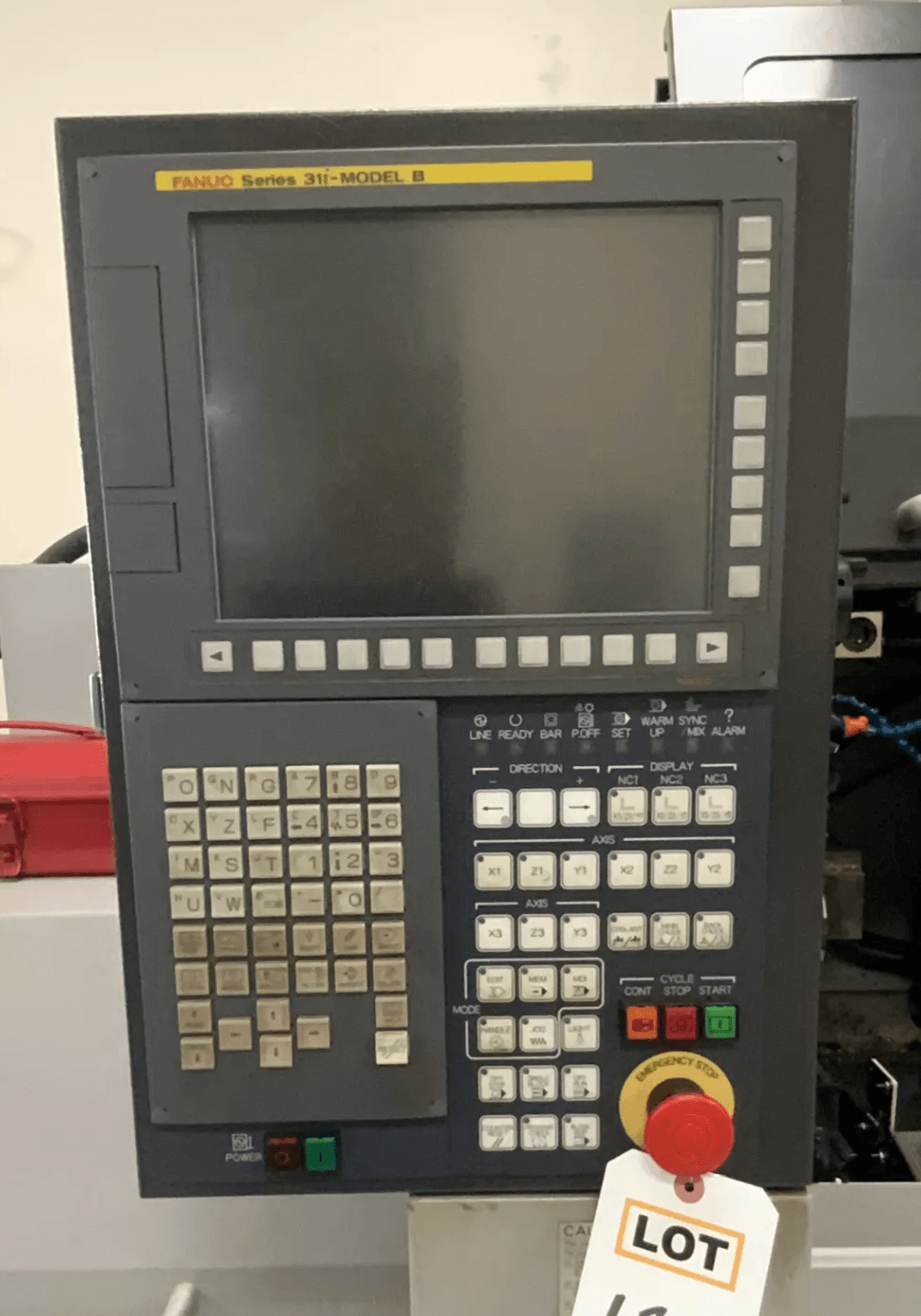

Fanuc Series 31i-Model B |
| Country of Origin: |
Japan |
| Equipped With: |
| Fanuc 31i-Model B CNC Control |
| Dual Spindle (Main & Sub-Spindle) |
| Swiss-Type Sliding Headstock |
| Guide Bushing Configuration |
| Live Tooling Capability |
| Gang Tooling + Turret Configuration |
| Bar Feeder Interface (Bar Feeder Ready) |
| Coolant System |
| Chip Conveyor |
| Parts Catcher |
| Tri-Mist Mist Collector |
| Full Enclosure |
| Capacity: |
| Maximum Bar Capacity: 20 mm (0.78″) |
| Maximum Turning Length: Approx. 200 mm |
| Spindle: |
| Main Spindle Speed: Up to 10,000 RPM |
| Sub-Spindle Speed: Up to 10,000 RPM |
| Tooling: |
| Multiple Tool Stations (Gang + Turret) |
| Live Tool Stations: Yes |
| Back Working Capability: Yes |
| General: |
| Power Requirement: 220V / 3-Phase |
| High-Speed, High-Precision Swiss Lathe |
| Ideal for Medical, Electronics, and Precision Components Manufacturing |
