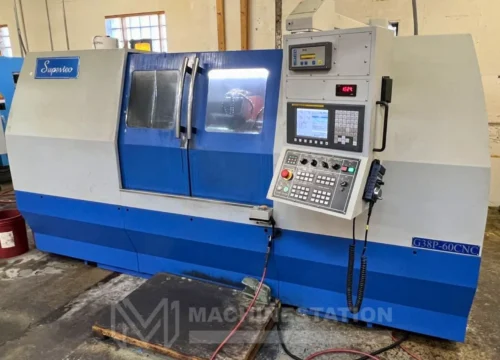

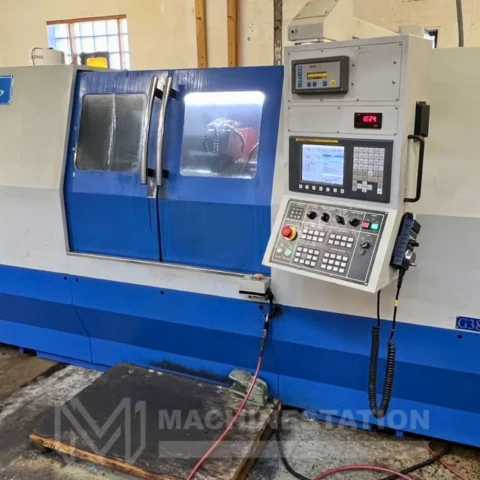

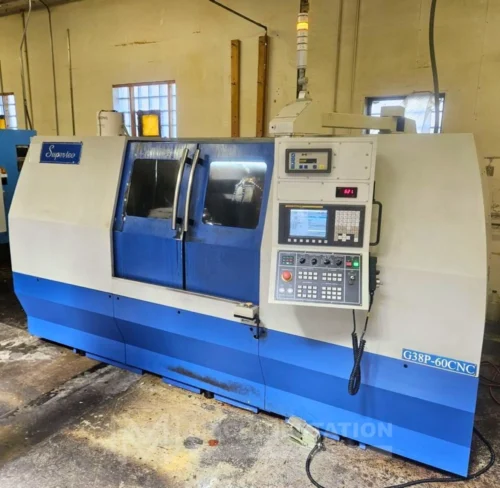

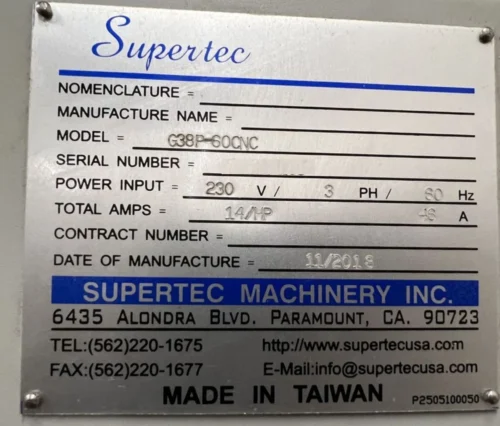

| Make: | SUPERTEC G38P-60CNC |
| Model: | G38P-60CNC |
| Year: | 2018 |
| Condition: | used |
All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.
| Equipped With: |
| MPG Handwheel Control |

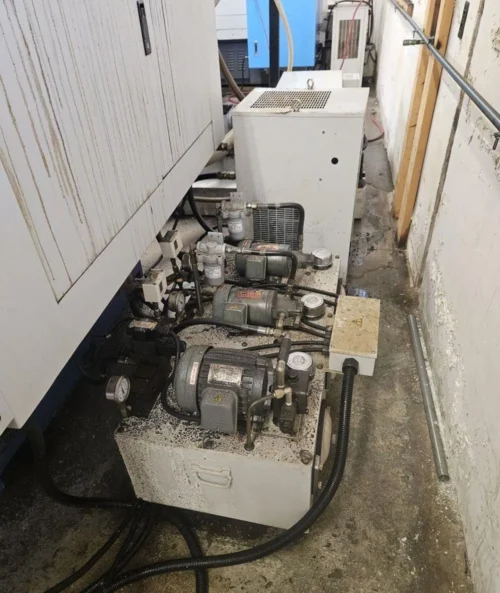

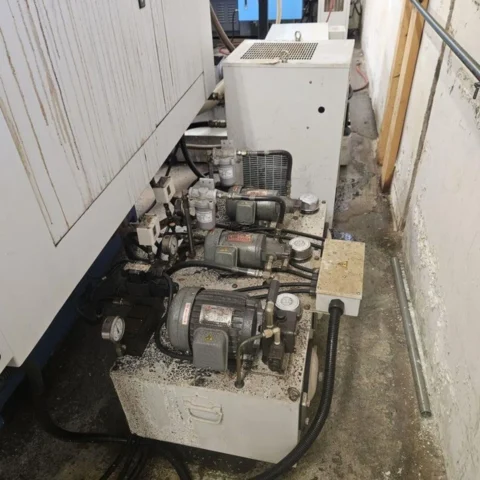

| Spindle Chiller Unit |

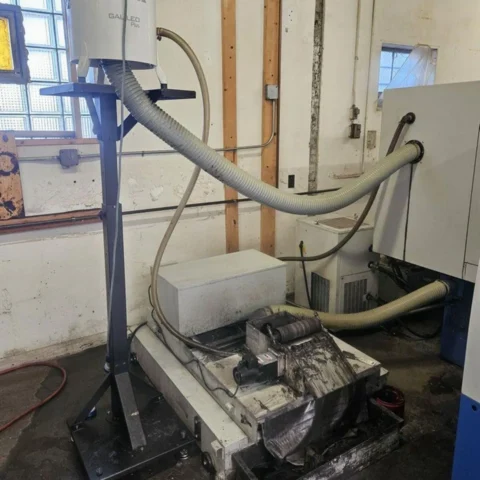

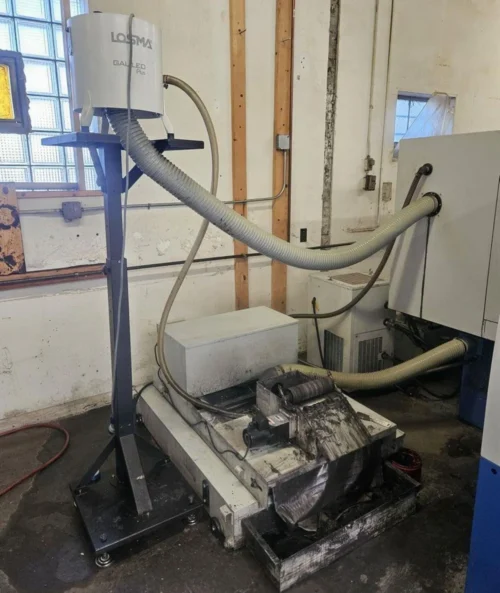

| Coolant System |
| Hydraulic Tailstock |
| Features: |

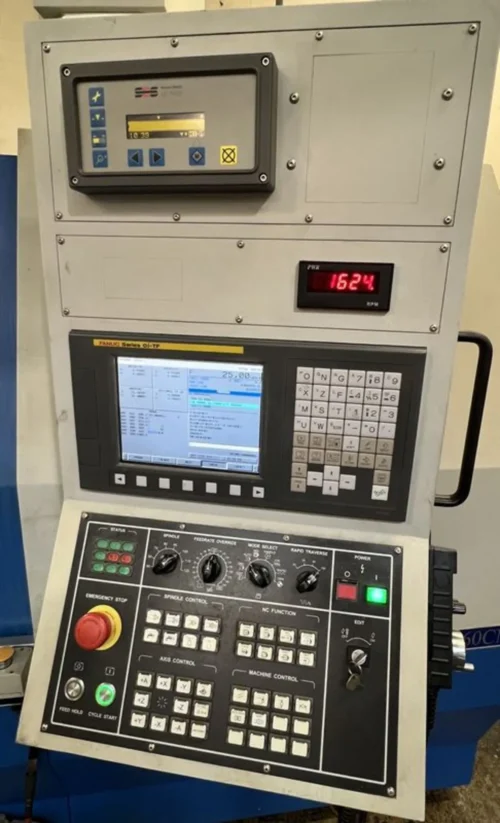

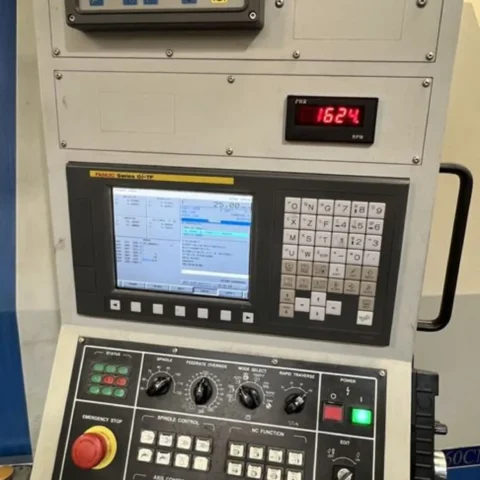

| Fanuc Oi-TF CNC Control |
| Absolute/Incremental Combined Programming |
| Swivelable Table |
| Inch / Metric Conversion |
| Stored Stroke Check |
| Auto Reference Point Return |
| Automatic Acceleration & Deceleration |
| Automatic Lubrication system |
| Capacity: |
| Max Grinding Diameter: 14.17″ |
| Max Grinding Length: 23.62″ |
| Max load Capacity: 330 lbs |
| Swing Over Table: 15″ |
| Center Distance Between Spindle & Slide Table: 24″ |
| Distance Between Centers: 24″ |
| Grinding Wheel: |
| Speed: 2000 RPM |
| Wheel Size: 20″ X 2″ – 4″ X 6″ |
| Grinding Wheel Seat: |
| Feed Angle: 90 Degree |
| Maximum Feeding Speed: 236 IPM |
| Least Travel Increment: 0.001 Degree |
| Total Feeding Travel: 11.02″ |
| Motor: 10 HP |
| Workhead: |
| Speed: 10 – 600 RPM |
| Center Taper: MT-4 |
| Motor: 1.5 HP |
| Table: |
| Rotation Angle: +/- 9 Degree |
| Least Travel Increment: 0.001 Degree |
| Rapid Feed Rate: 393 IPM |
| Tailstock: |
| Tailstock Quill Stroke: 1″ |
| Tailstock Taper: MT-4 |
| General: |

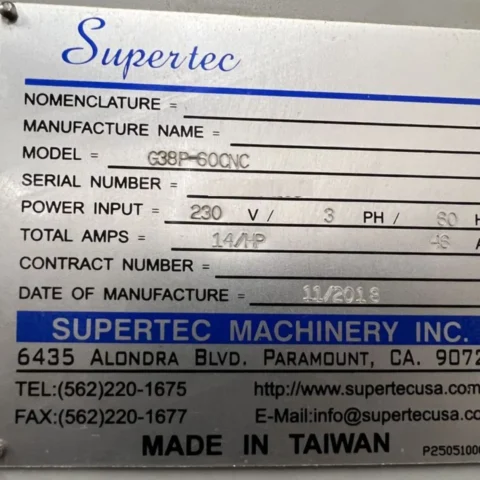

| Power Source: AC 230 V / Three Phase / 60 Hz |
| Power Requirement: 6.5kva |
| Overall Dimensions: 187″ x 90″ x 90″ High Approx. |
| Weight: 14330 lbs Approx. |
