*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | GRAY |
| Model: | RINGMASTER 60″ |
| Equipped With: |
|---|

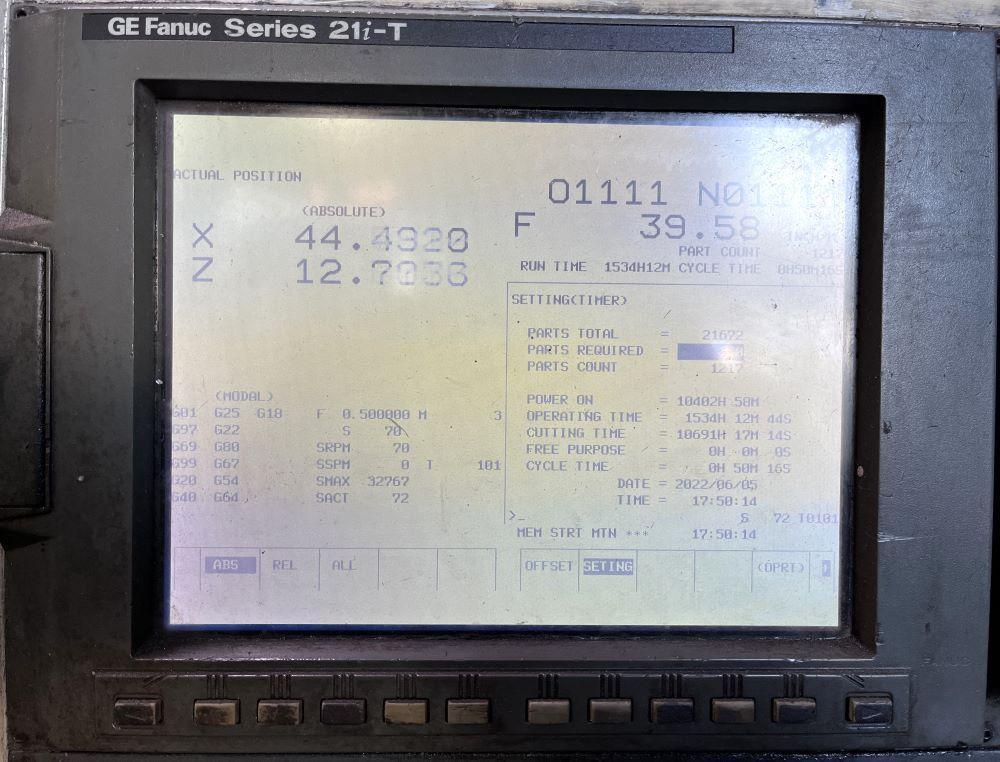

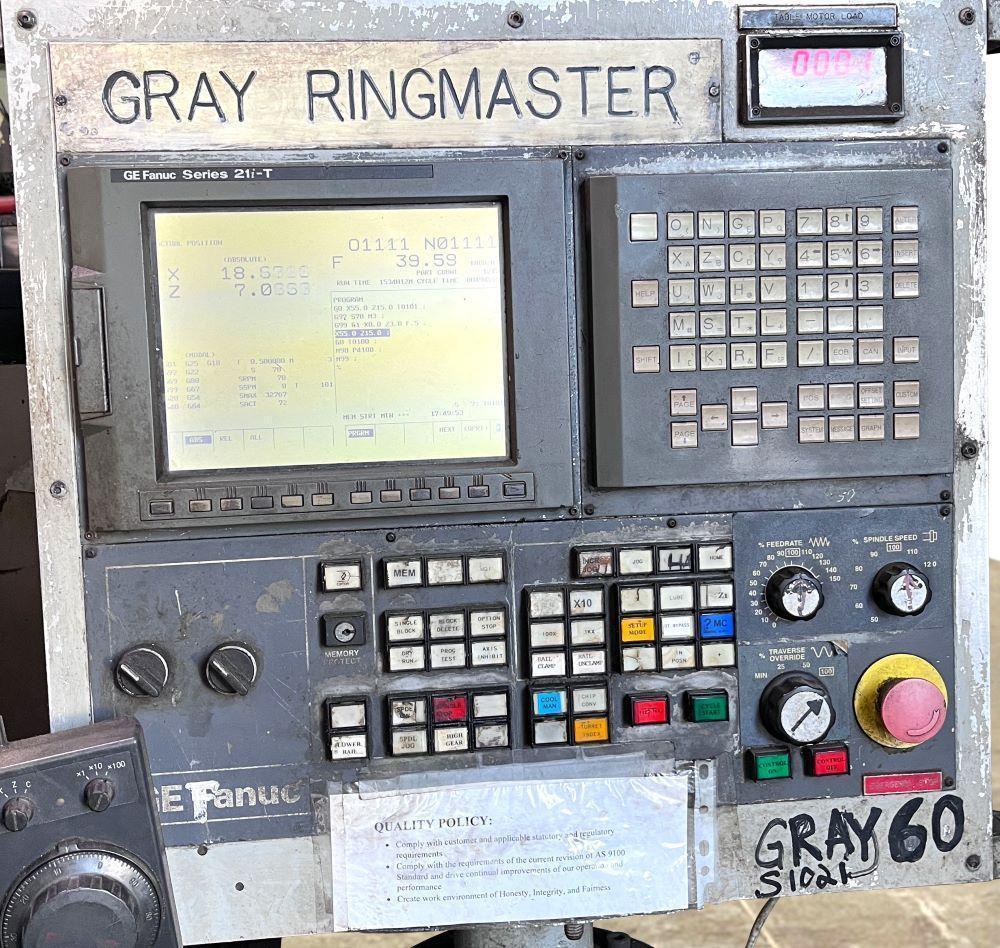

| Fanuc 21i-T CNC Control |
| 60″ 4-Jaw Chuck |
| 5 Station Turret |
| 75 HP Spindle Motor |
| Kennametal Tool Holding System KM-80 Tool Holders |
| Vertical Ram |
| MPG Control |
| RS-232 Port |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 60″ |
| Max Turning Height: 62″ |
| Max Height Under Rail: 70″ |
| Vertical Ram Travel: 36″ |
| Vertical Turret Travel on Rail: 30″ |
| Horizontal Turret Travel on Rail: 56″ |
| Max Swing: 64″ |
| Table Load Capacity: lbs |
| Table Speeds: 4 – 22 – 75 RPM |
| General: |
|---|
| Power Source: 220 V, Three Phase, 60 Hz |
| Dimensions: 154″ x 156″ x 162″ High |
| Weight : 40,000 lbs Approx. |
