*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

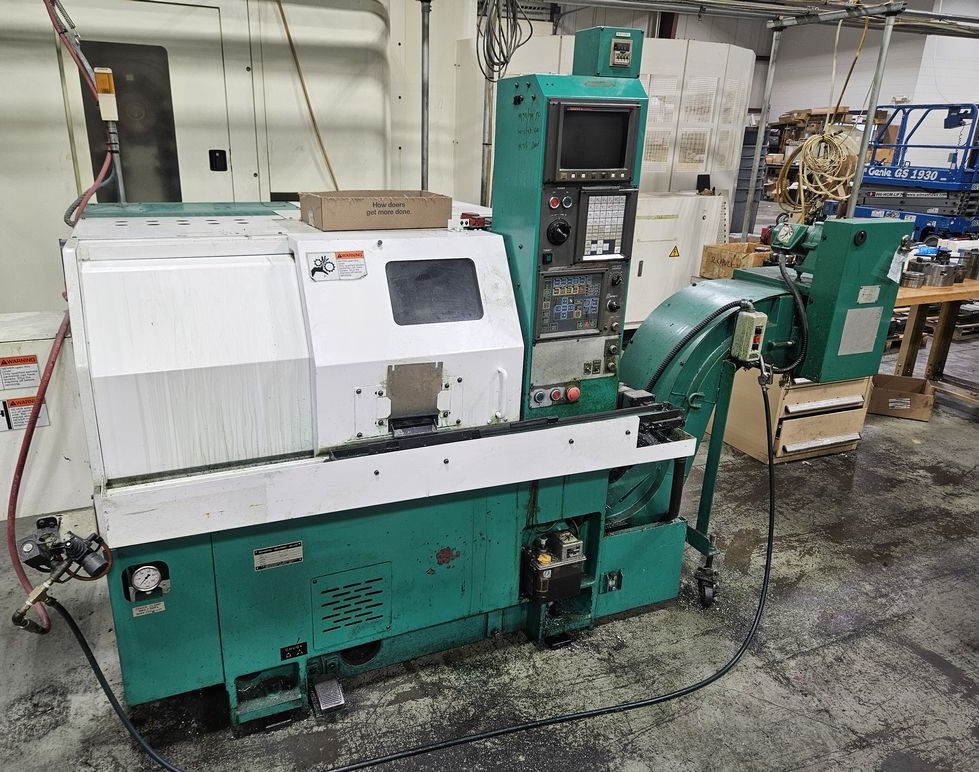

| Make: | Takamatsu |
| Model: | X10 |
| Machine Type: | CNC Chucker |

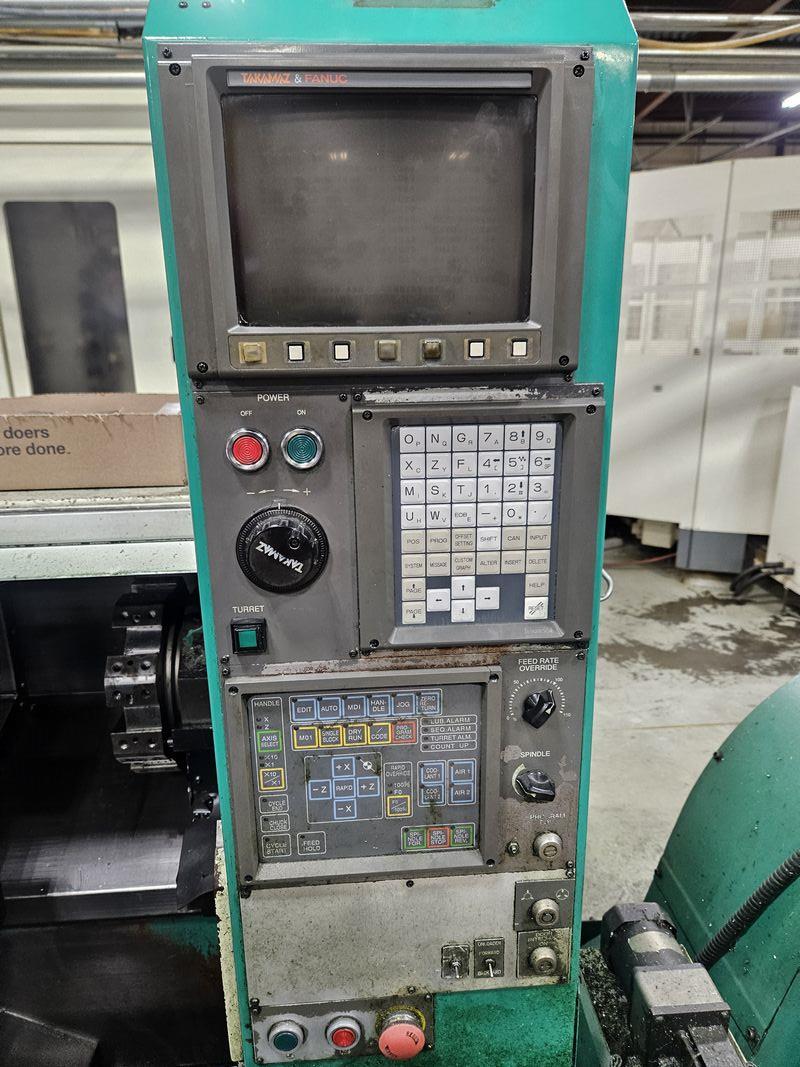

| CNC Control: | Takamazu & Fanuc |
| Equipped With: |
|---|

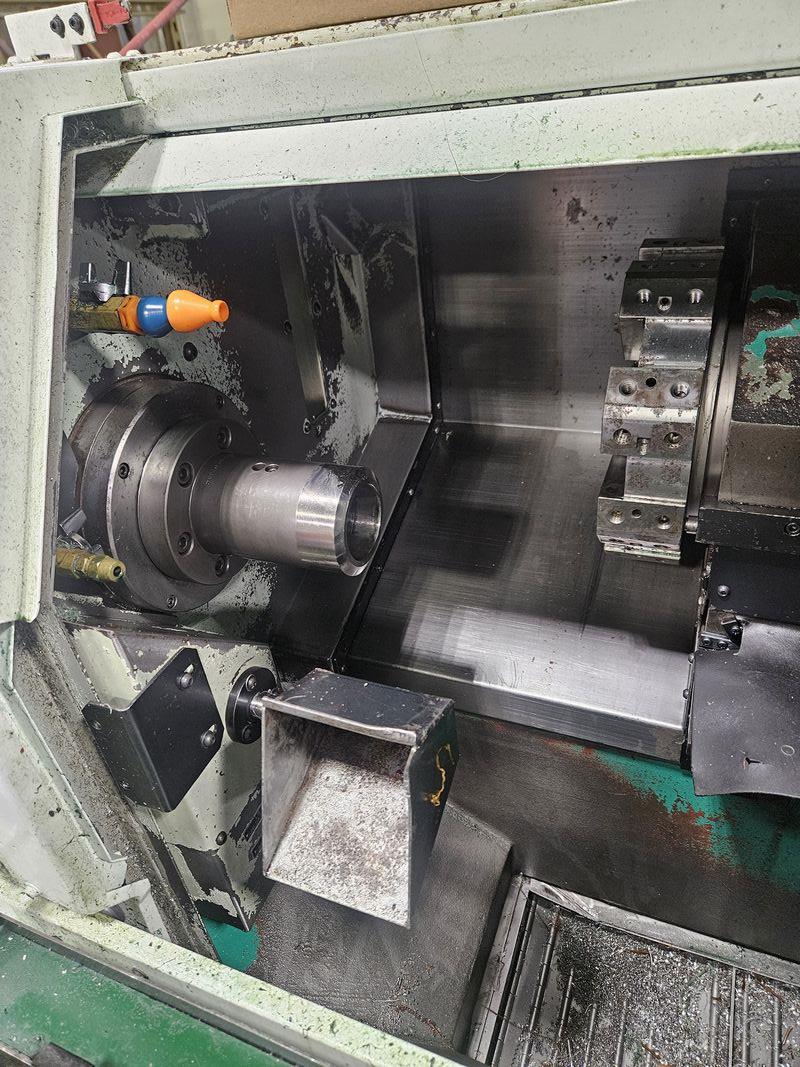

| Chuck: Collet Chuck |
| Part Handling: Part Catcher & Conveyor |
| Chip Management: Chip Conveyor |
| Coolant System: Included |
| Capacity: |
|---|
| Chuck Size: 6″ |
| Max. Turning Diameter: 7.09″ |
| Max. Turning Length: 7.48″ |
| Max. Bar Capacity: 1.02″ |
| Spindle Bore: 1.81″ |
| Travels: |
|---|
| X-Axis Travel: 4.72″ |
| Z-Axis Travel: 9.06″ |
| Rapid Traverse – X: 472 IPM |
| Rapid Traverse – Z: 709 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Bearing I.D.: 2.95″ |
| Spindle Speed: Up to 3,500 RPM |
| Spindle Motor: 7.5 HP |
| Turret: |
|---|
| Turret Type: Hydraulic Turret |
| Turret Positions: 8 Stations |
| Max. Tool Size: 0.79″ Square |
| Max. Boring Bar Diameter: 0.98″ |
| General: |
|---|
| Machine Weight (Approx.): 4,850 lbs. |
| Machine Dimensions (Approx.): 54″ W × 54″ D × 68″ H |
