*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

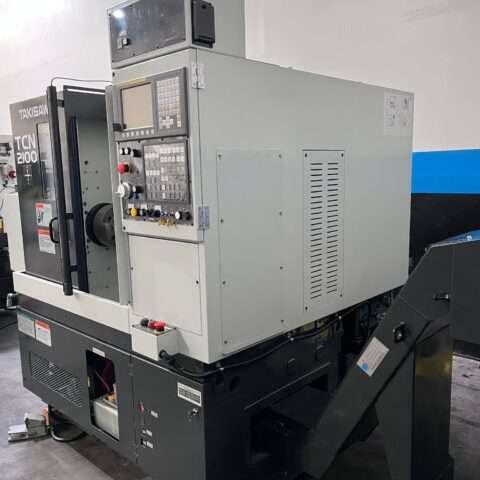

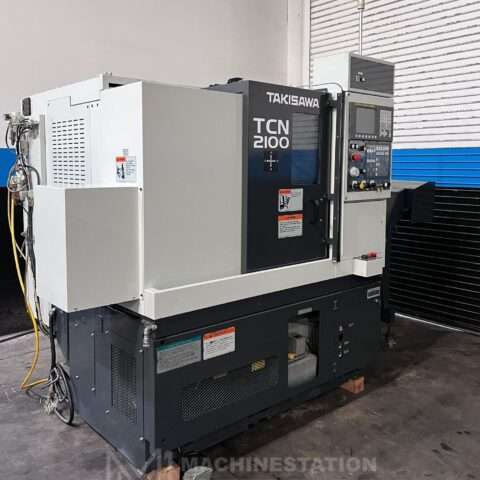

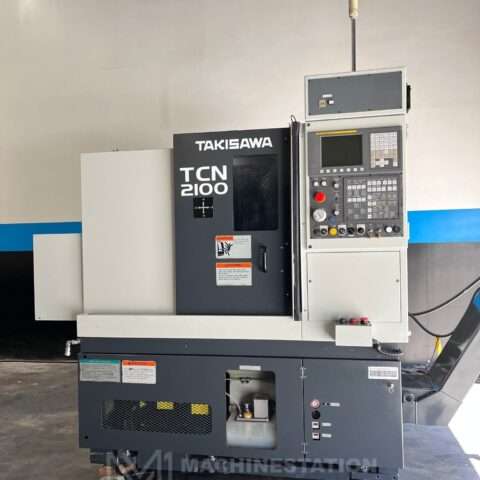

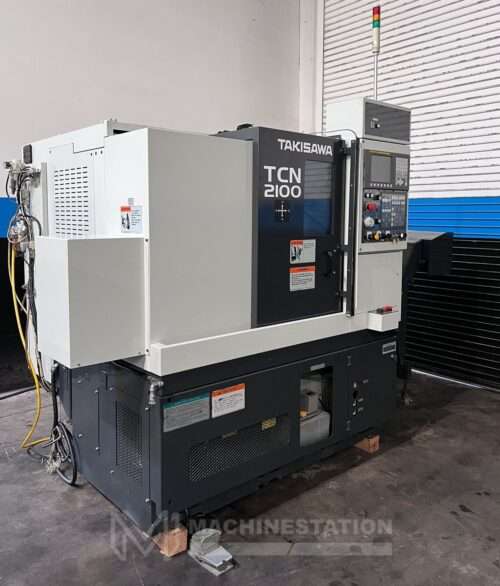

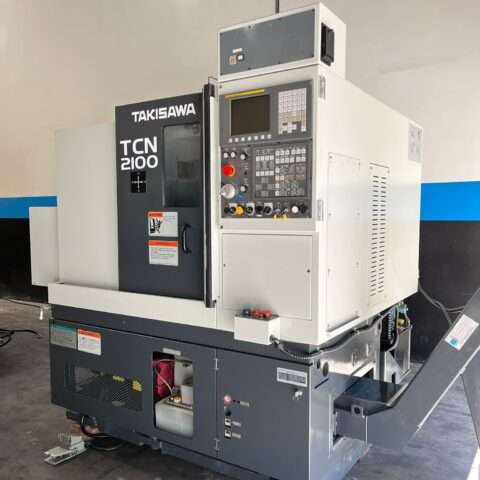

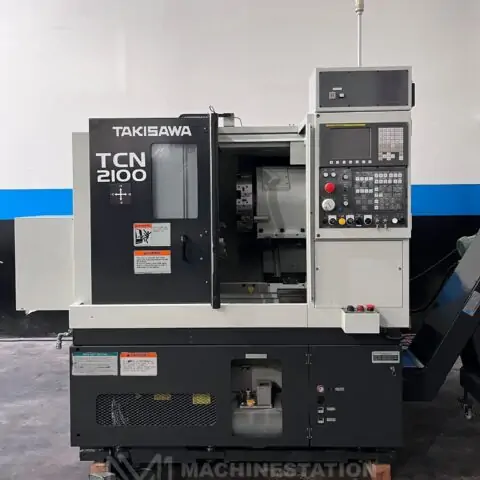

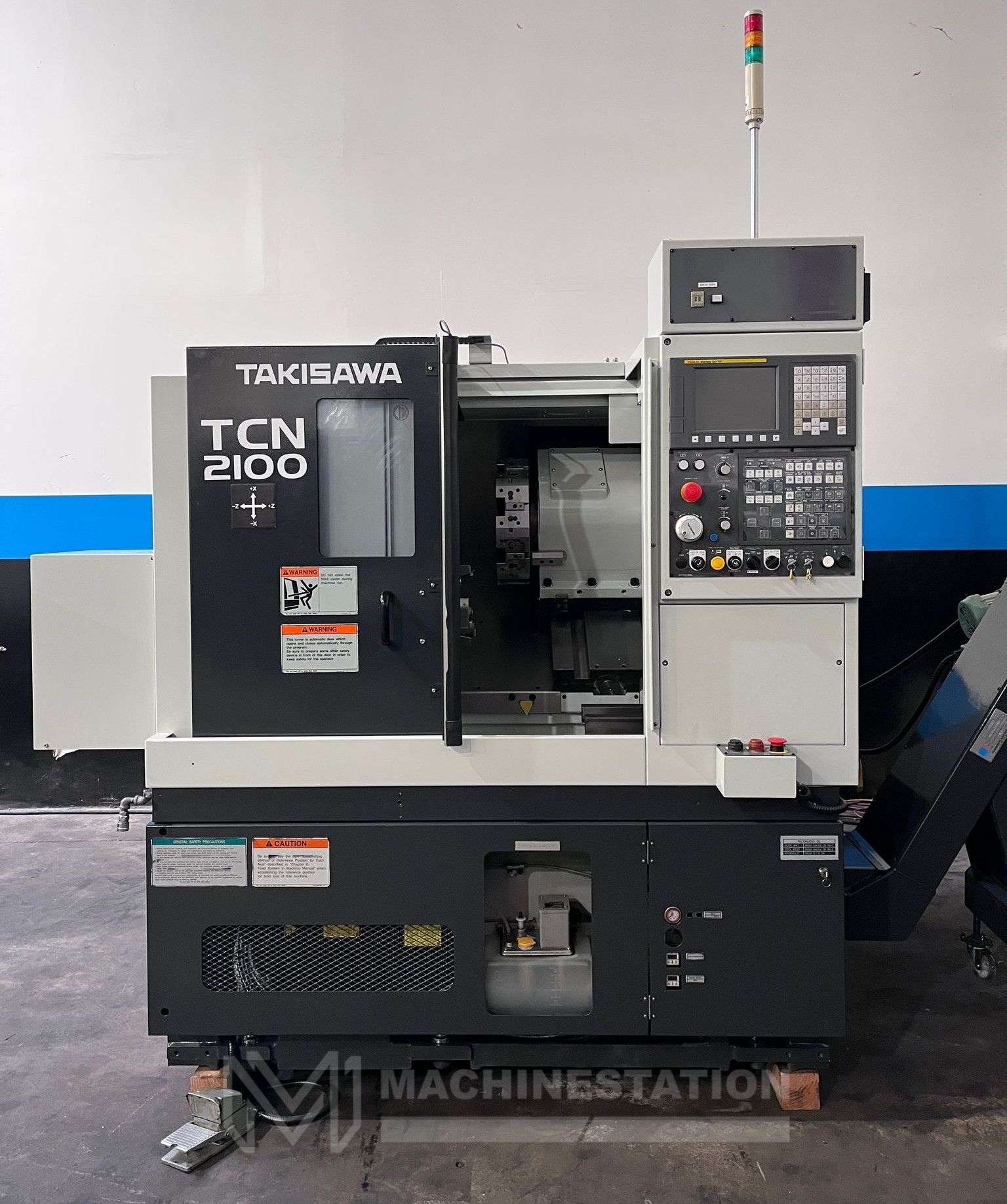

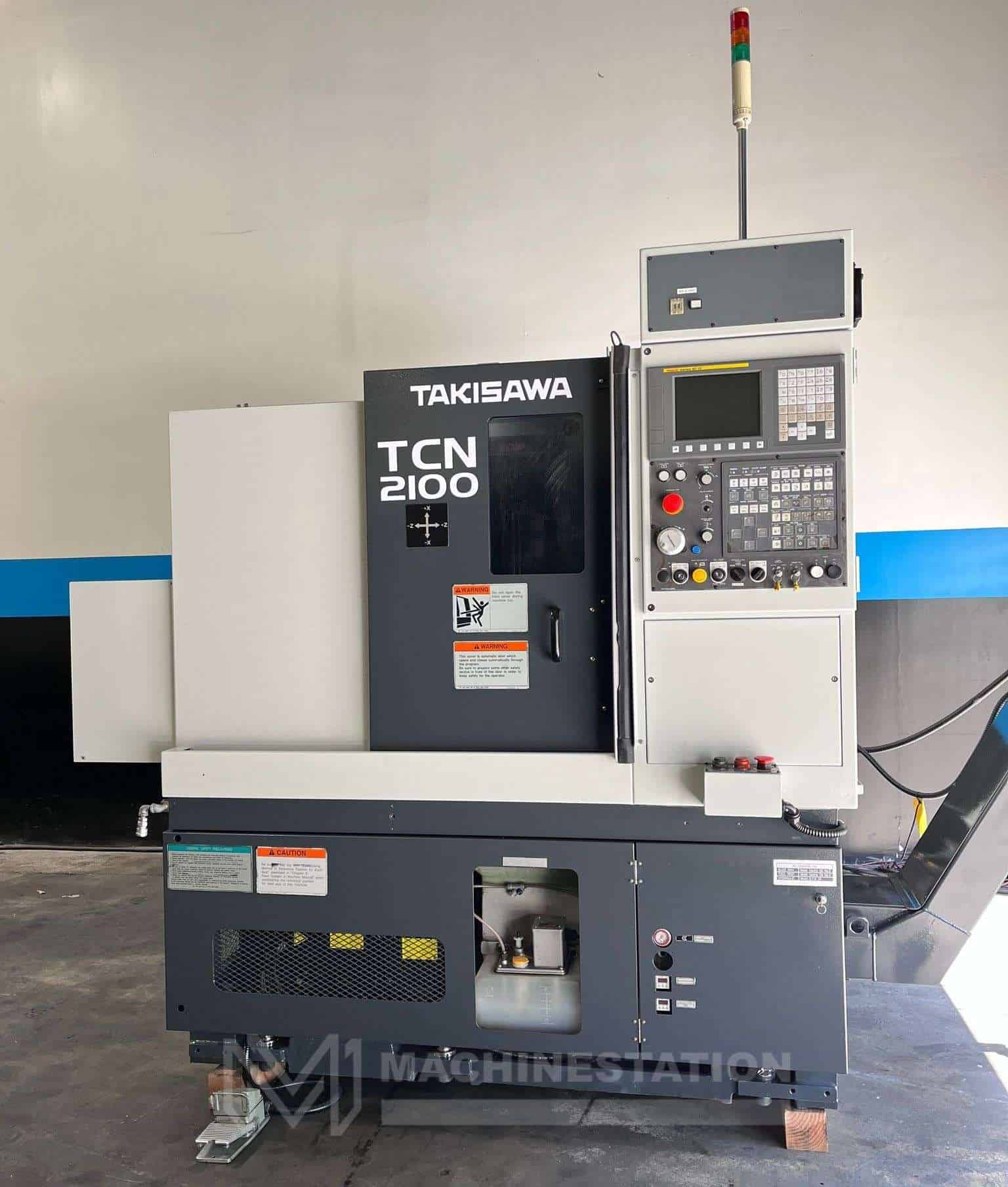

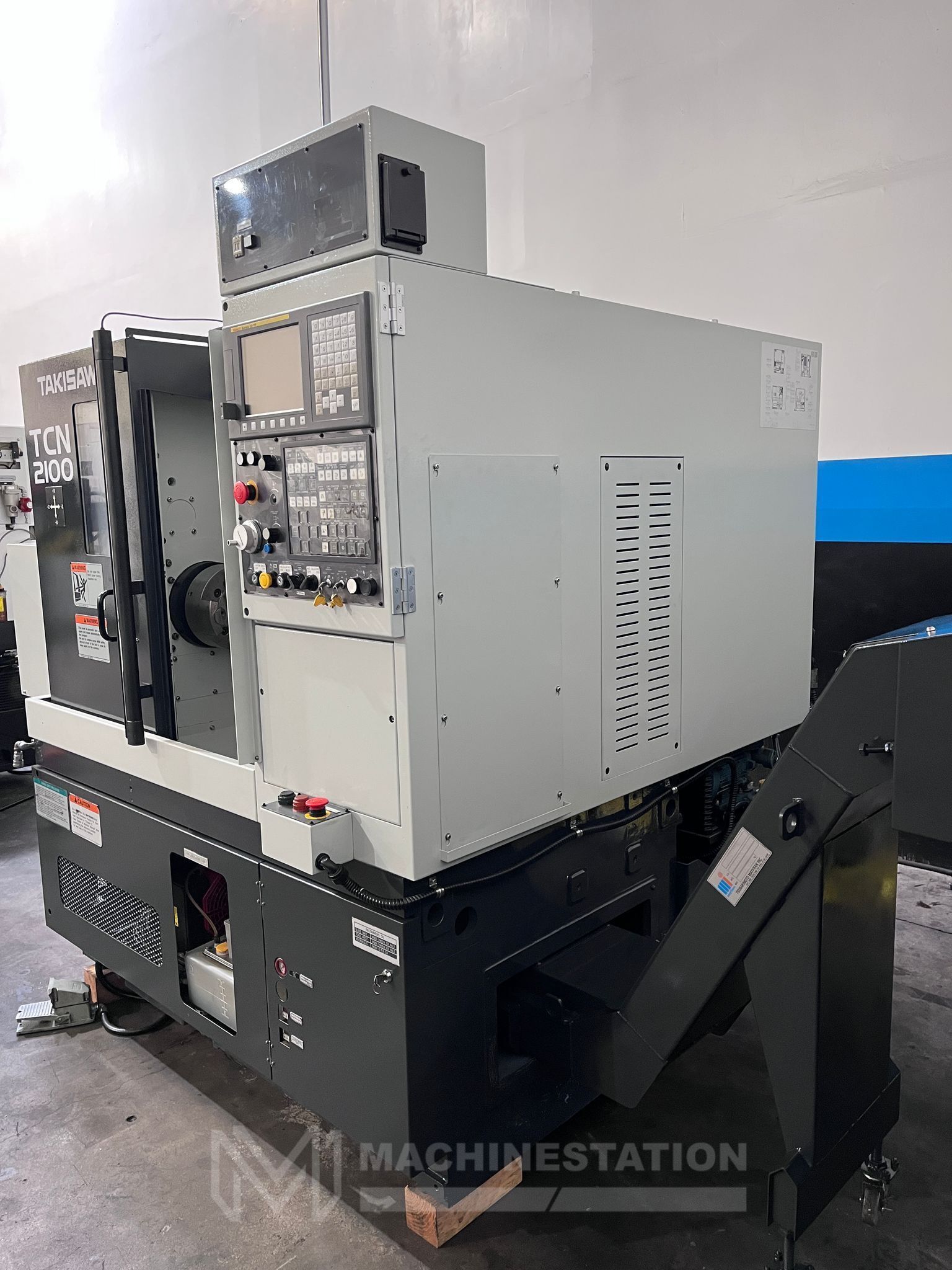

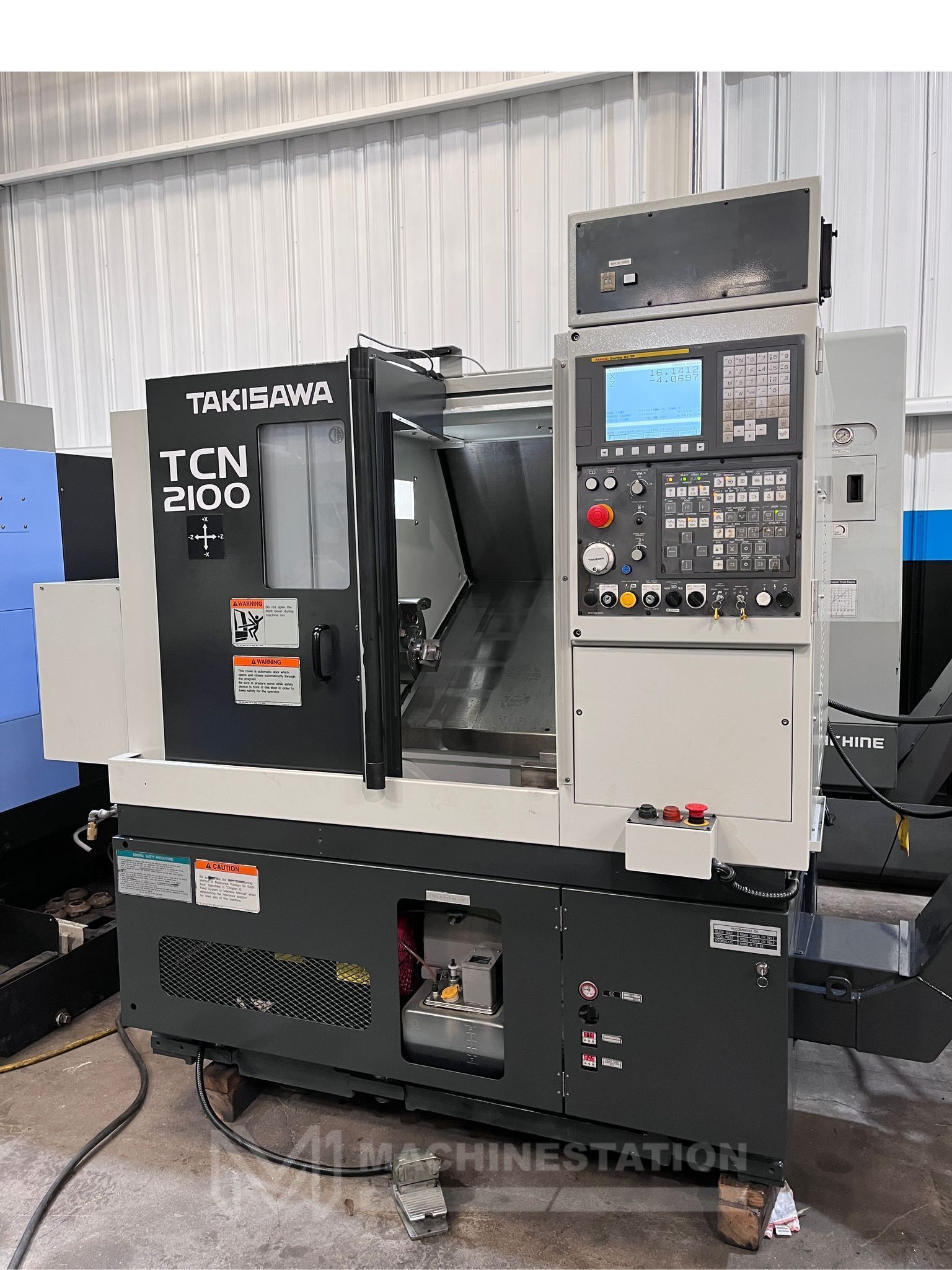

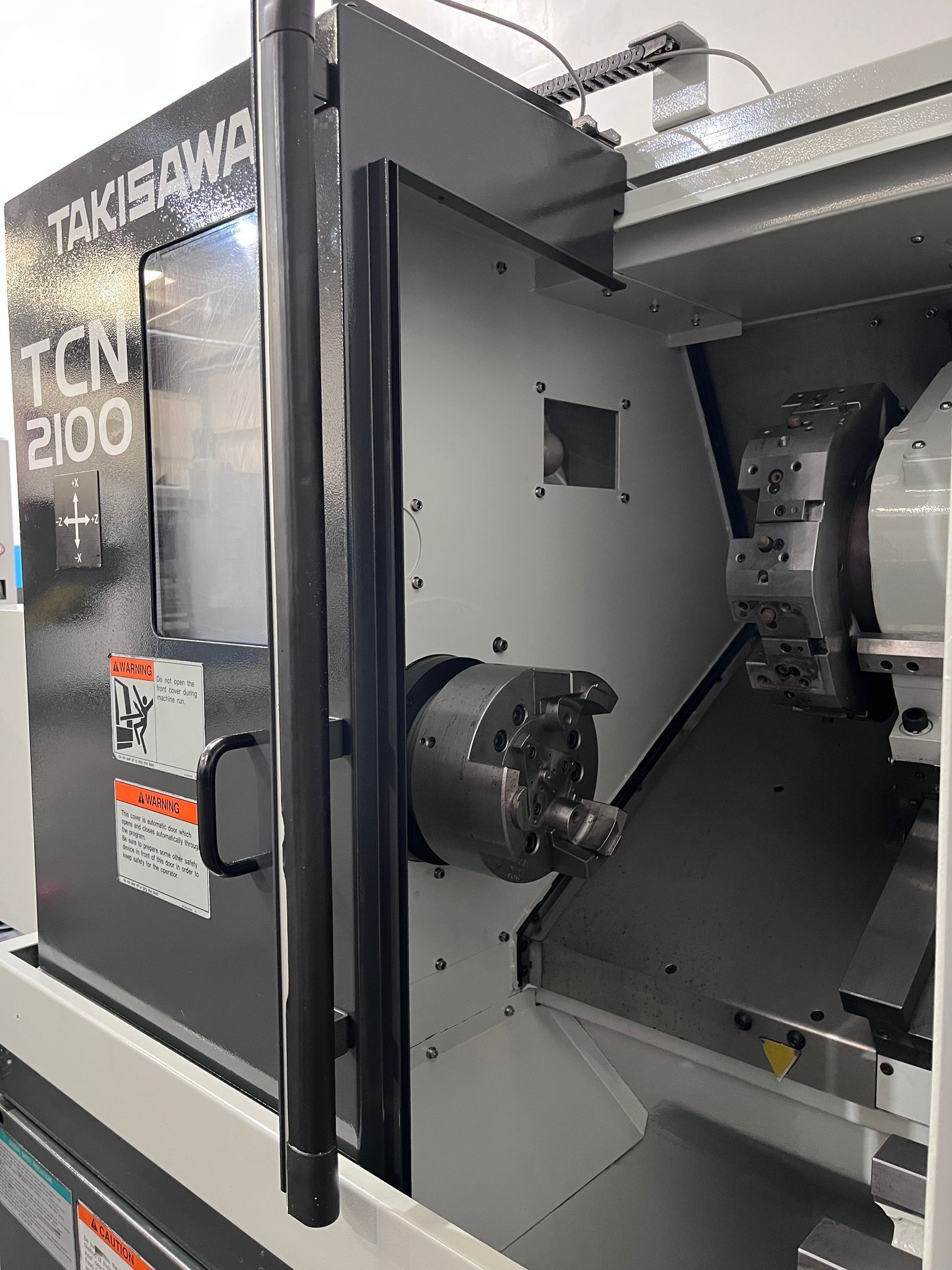

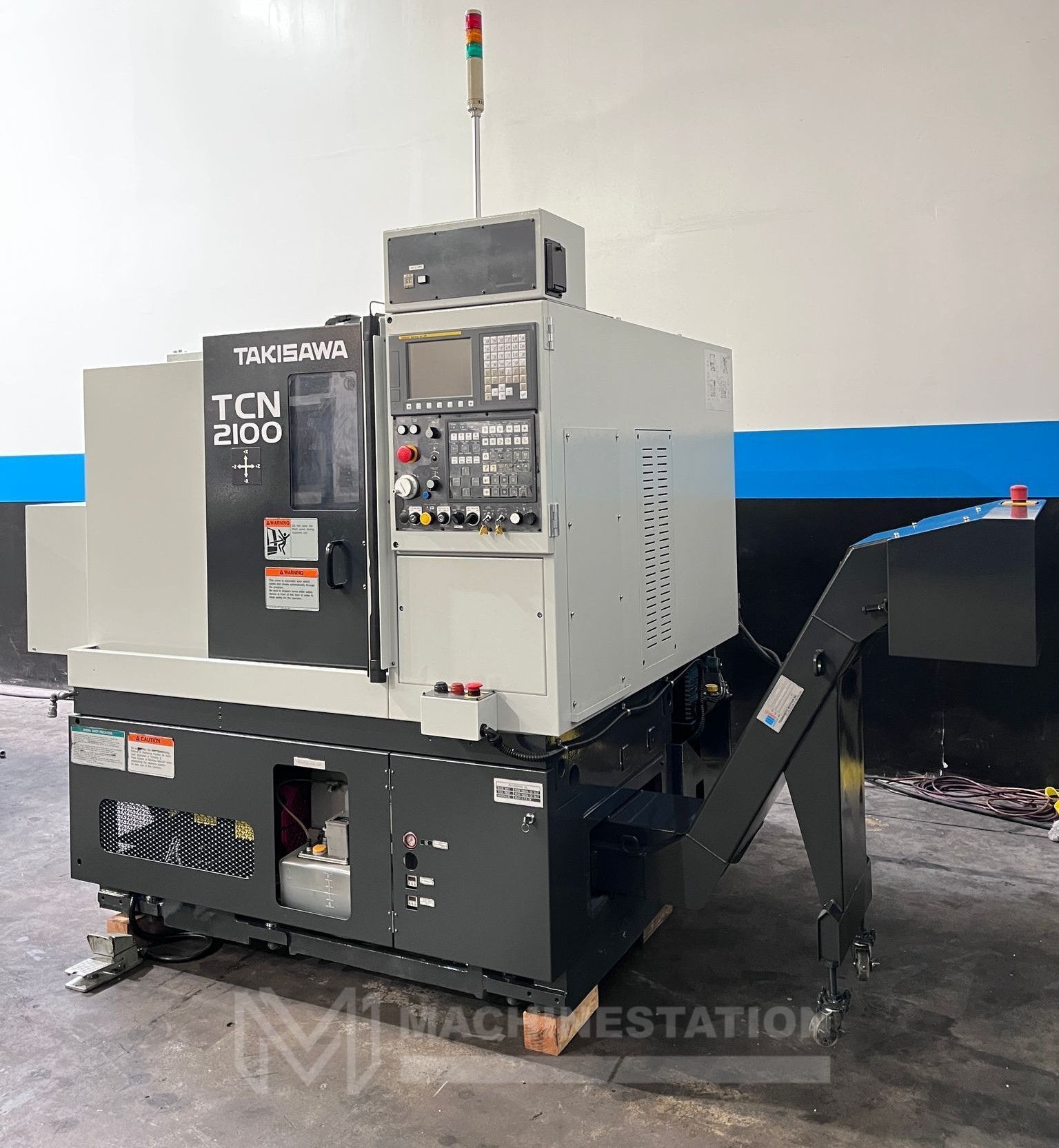

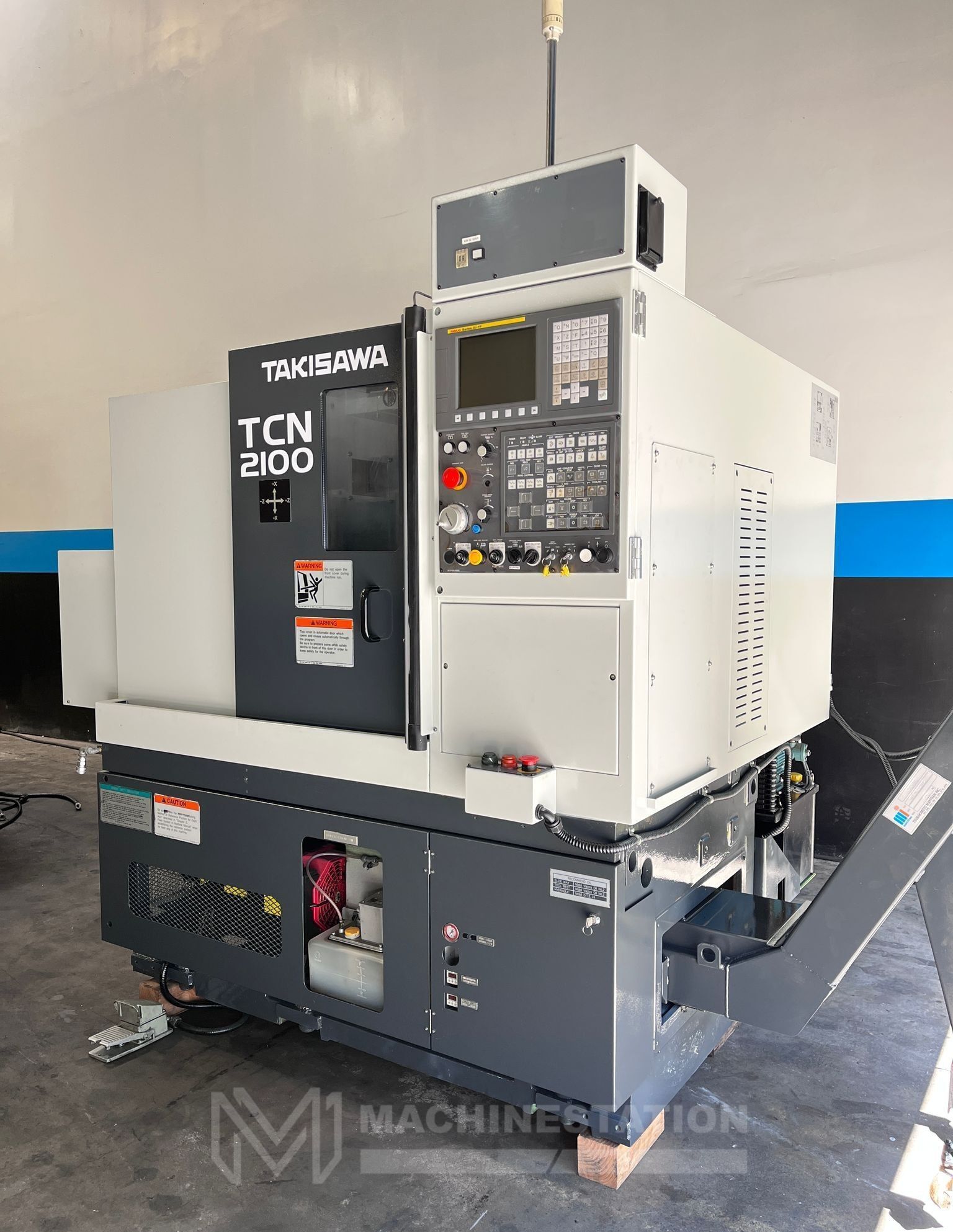

| Make: | Takisawa |

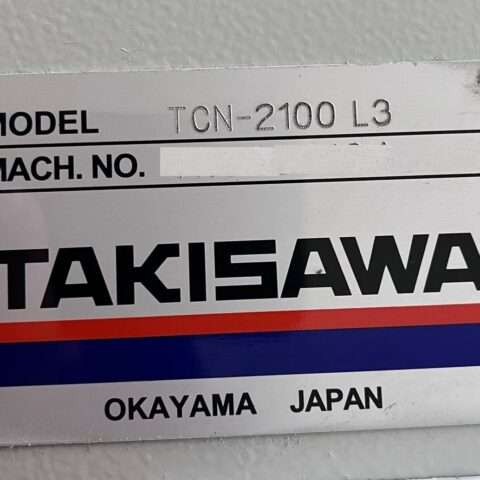

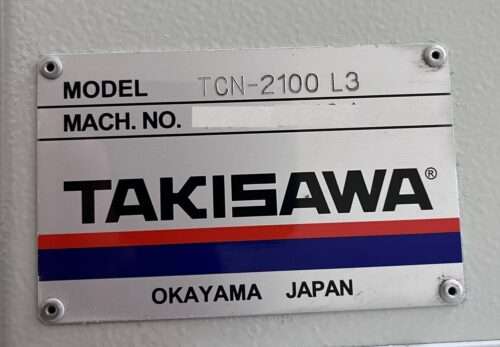

| Model: | TCN-2100 L3 |
| Year: | 2016 |
| Condition: | Used – Good |
| Equipped With: |
|---|

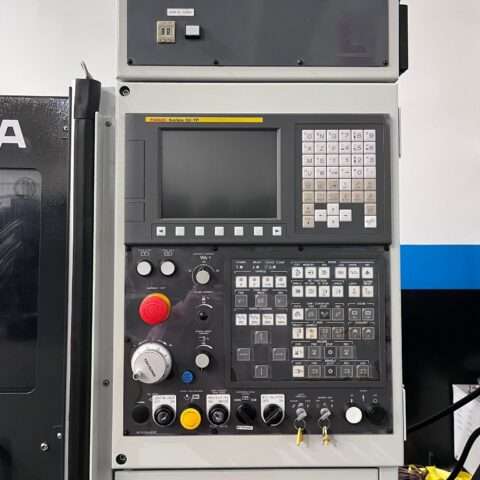

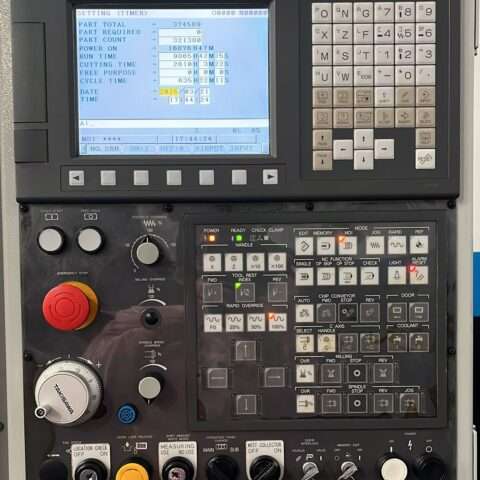

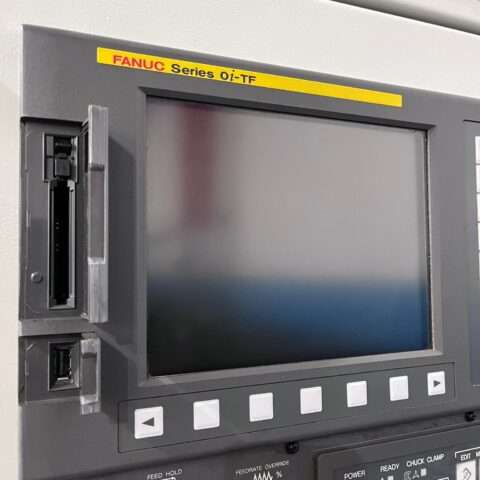

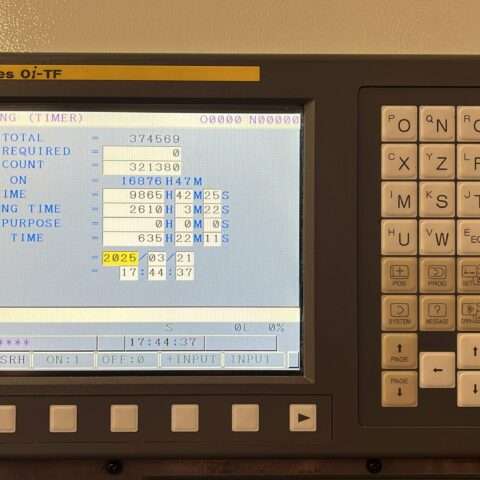

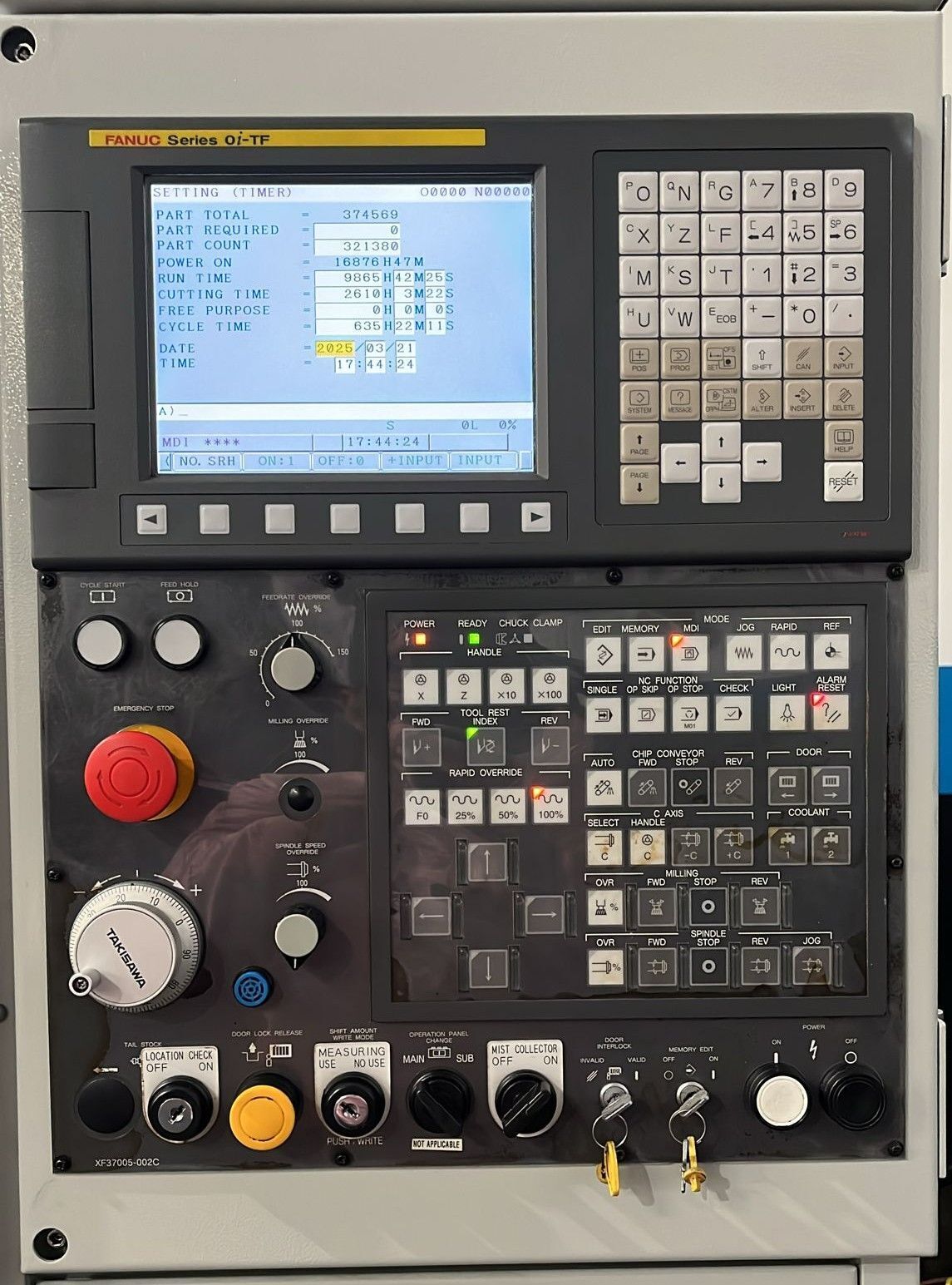

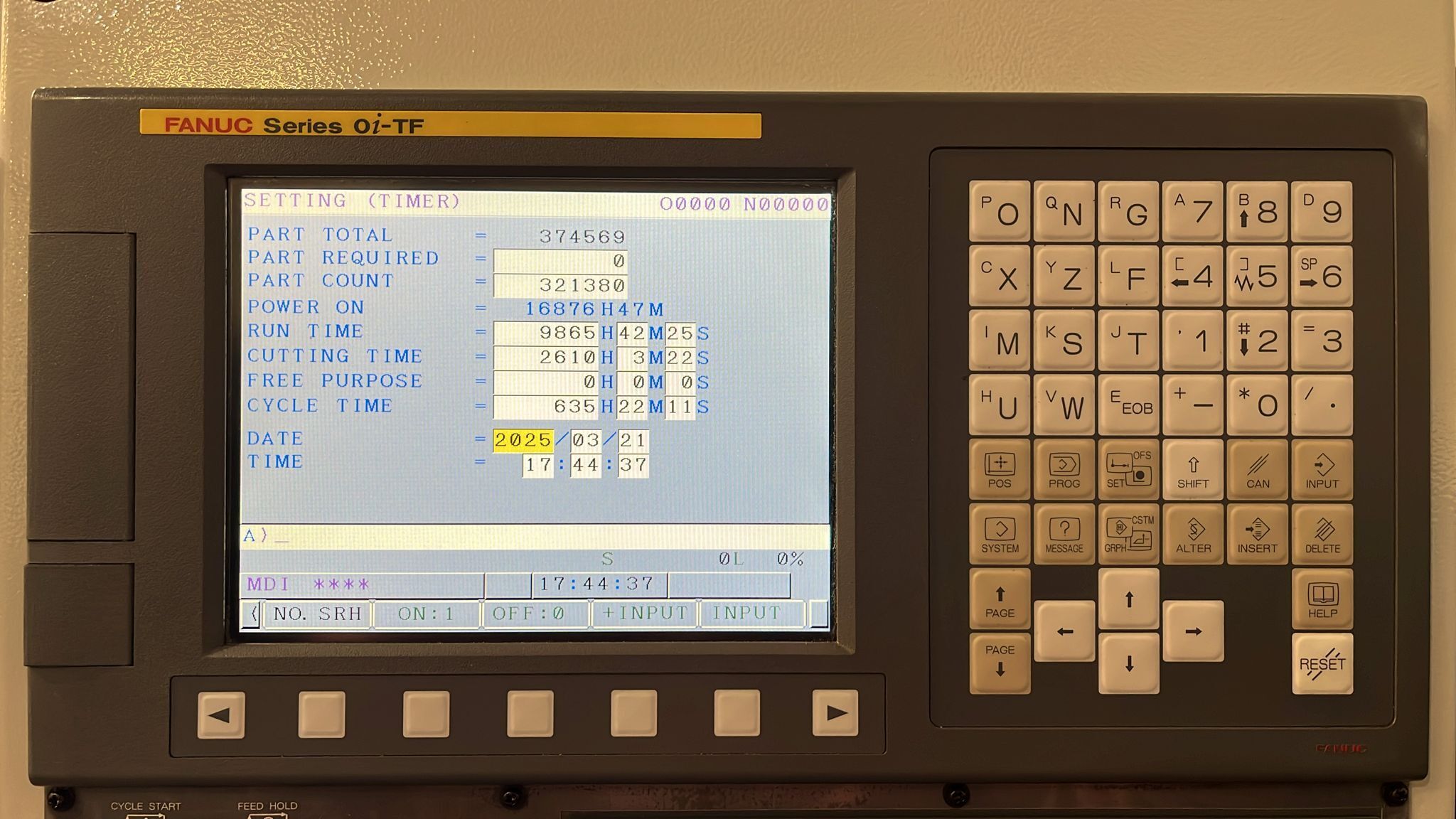

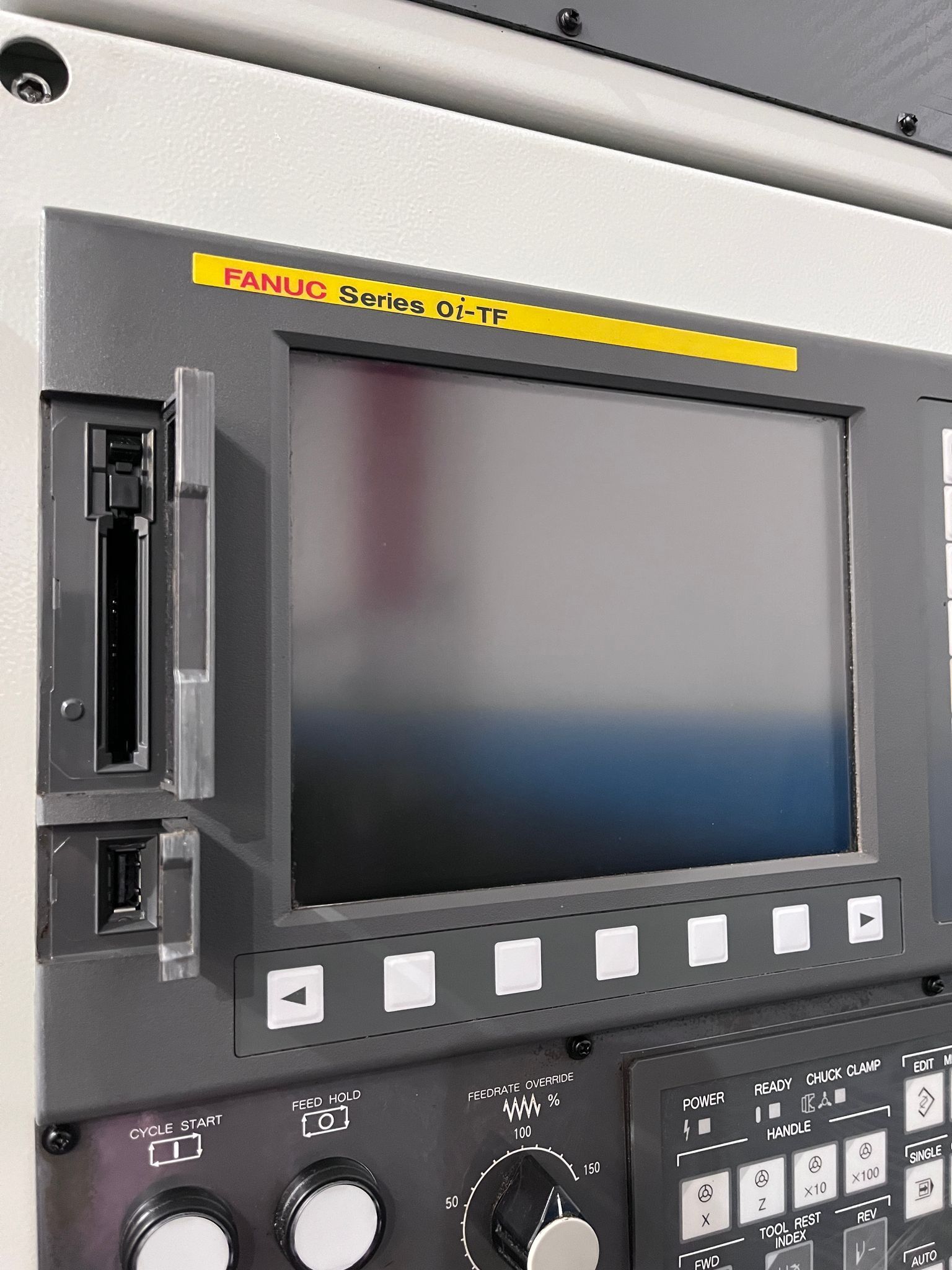

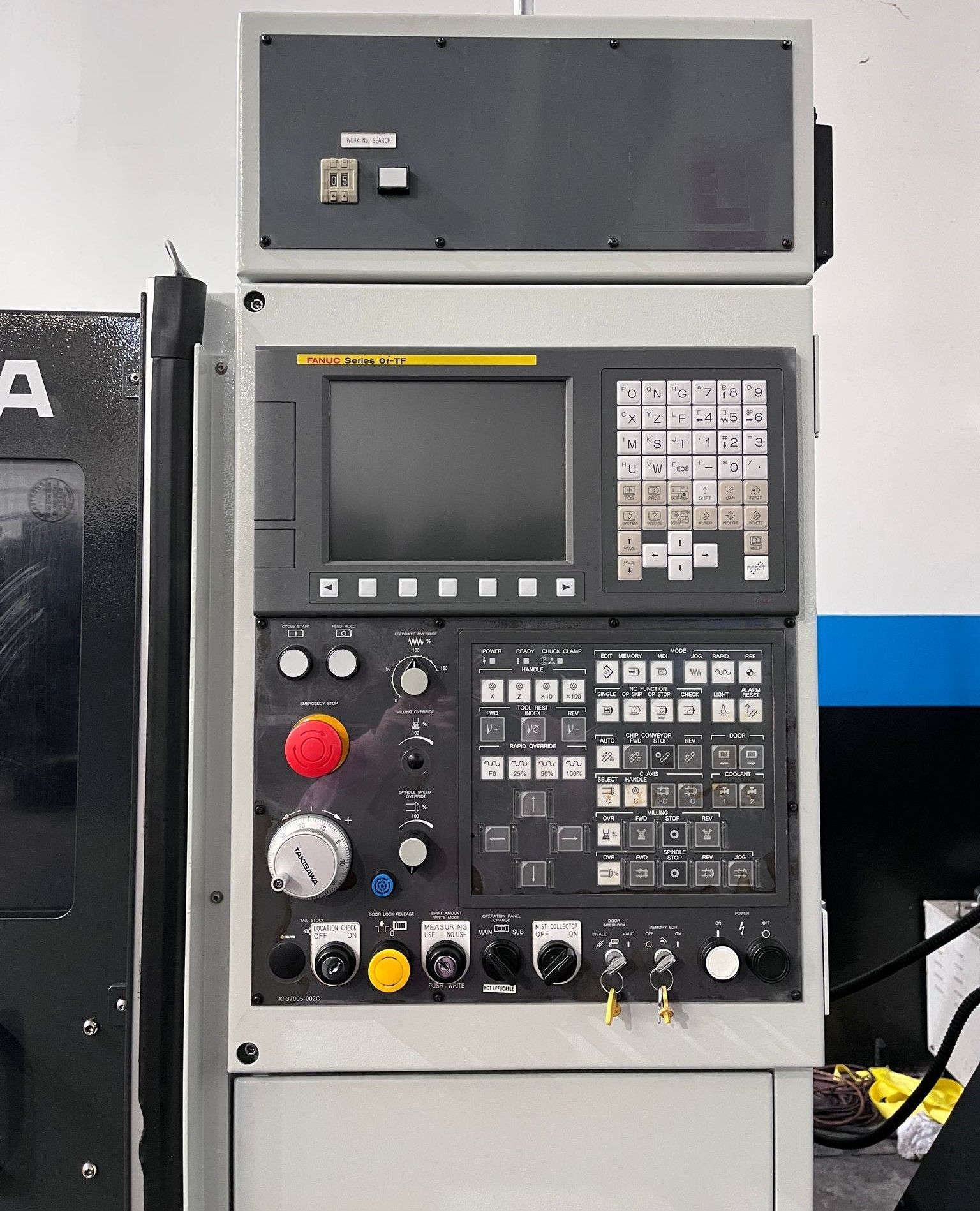

| Fanuc Oi-TF CNC Control |

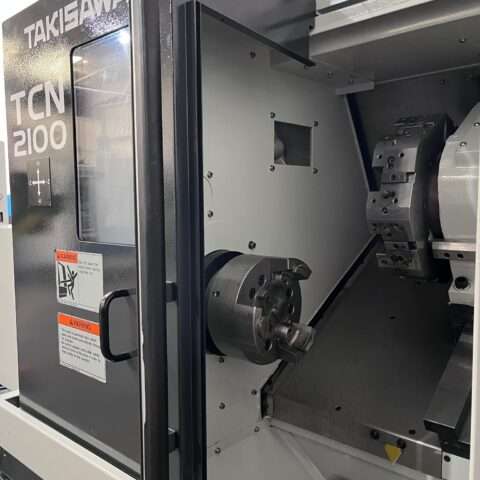

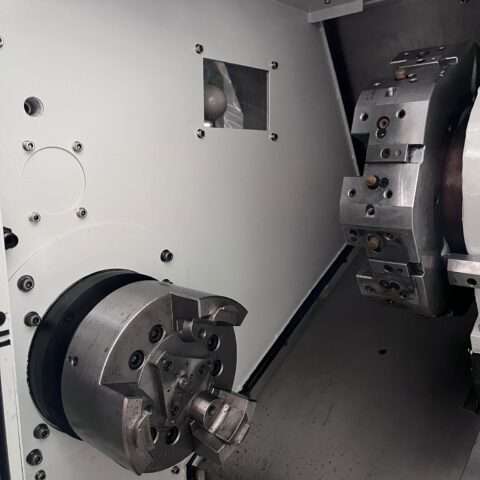

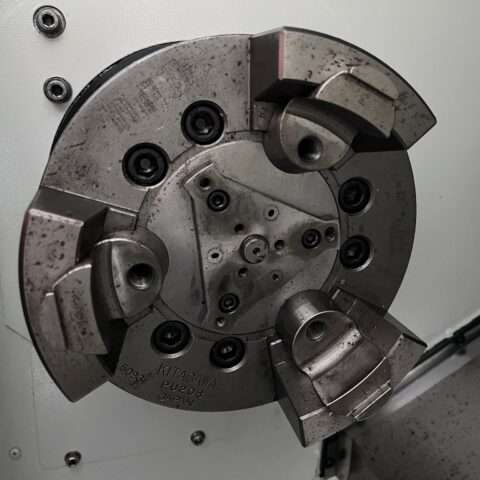

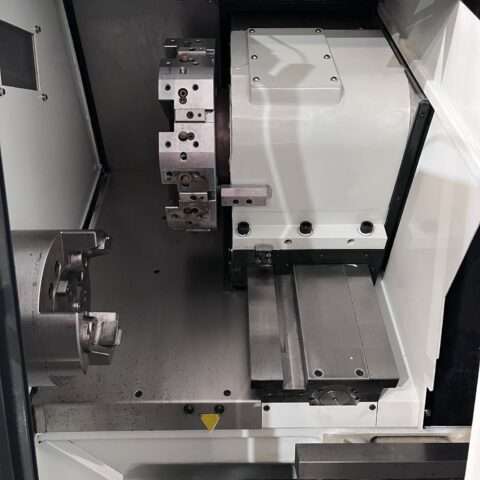

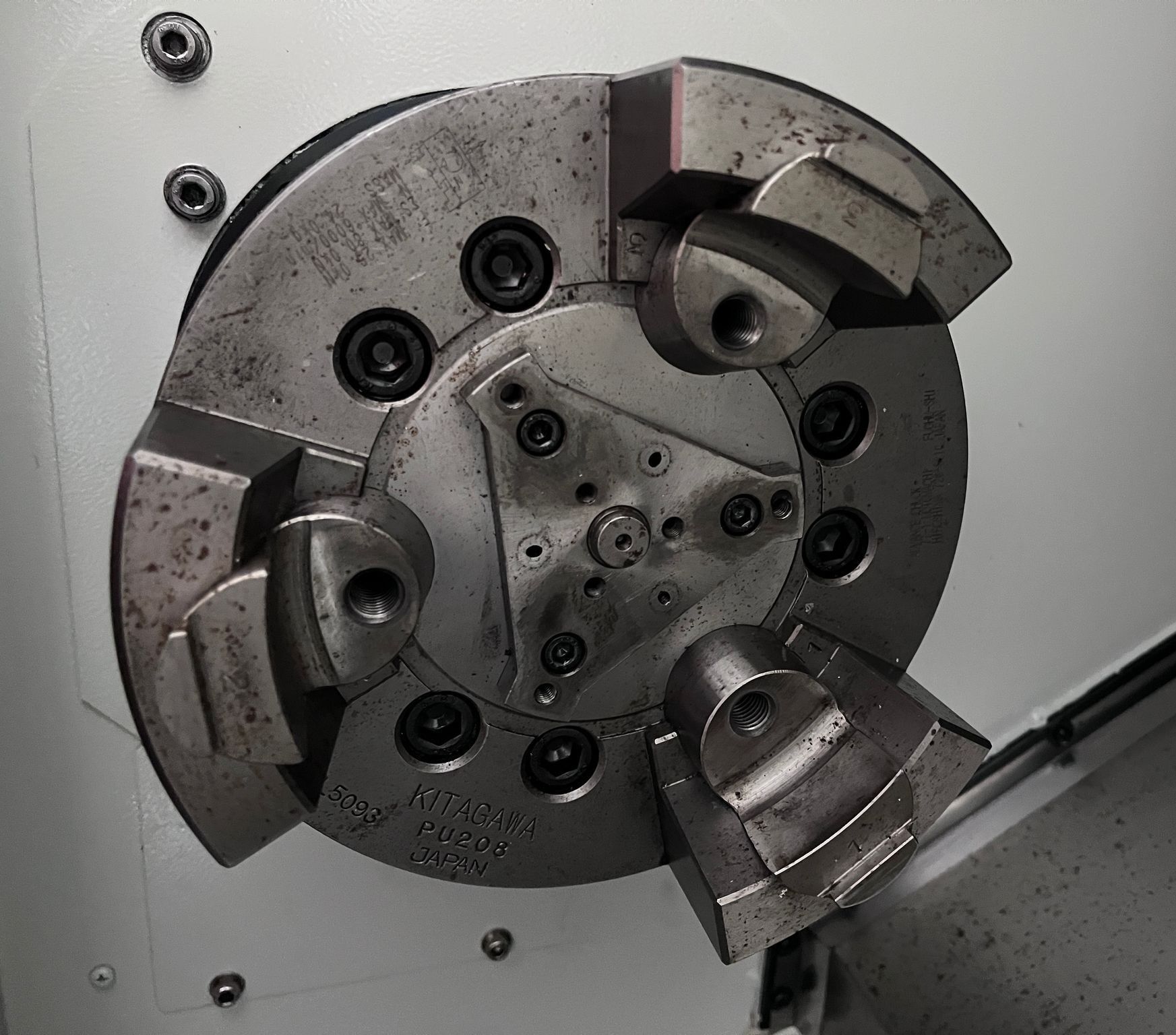

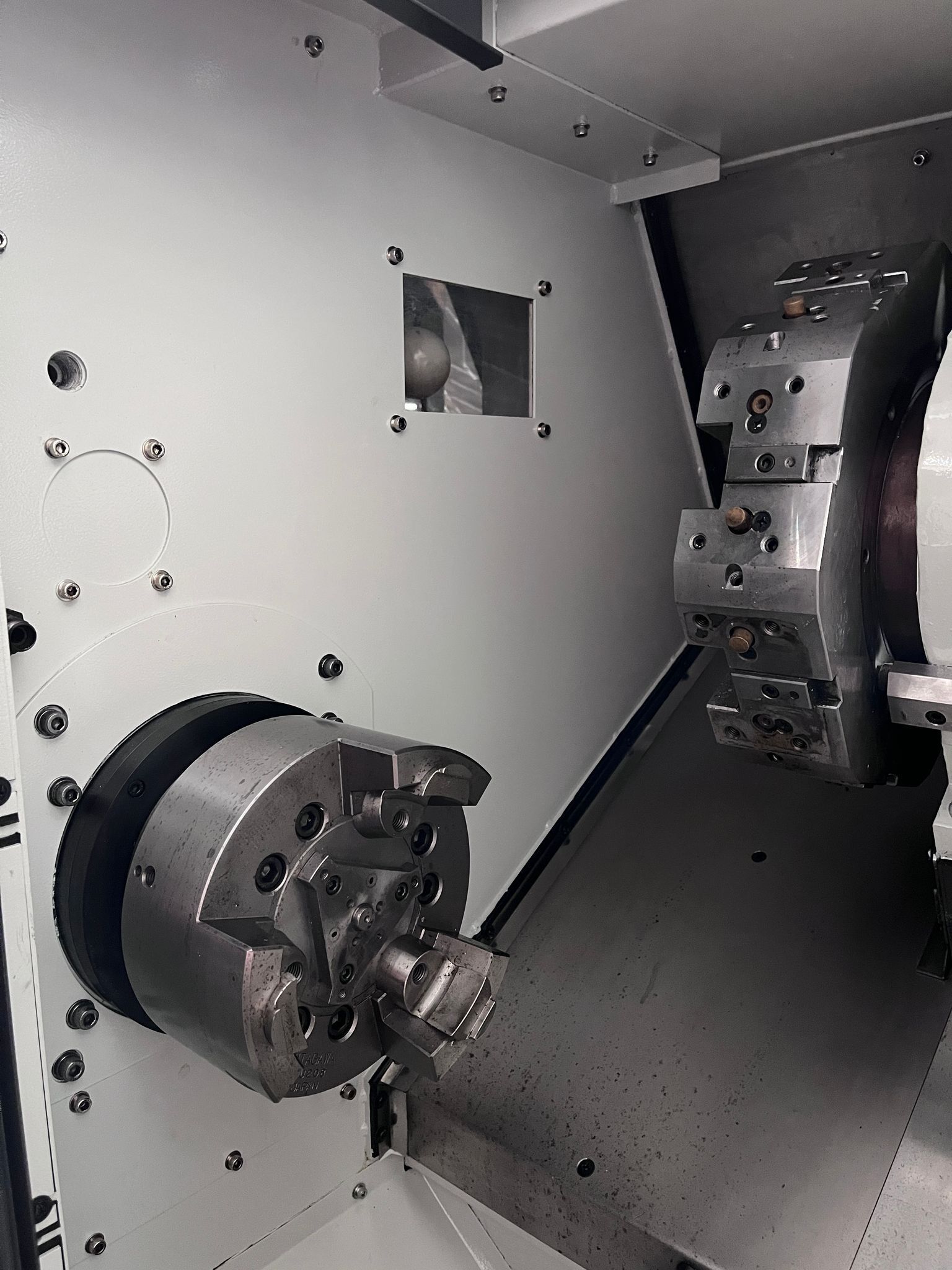

| 8” 3-Jaw Kitagawa PU-208 Pull Lock Power Chuck |

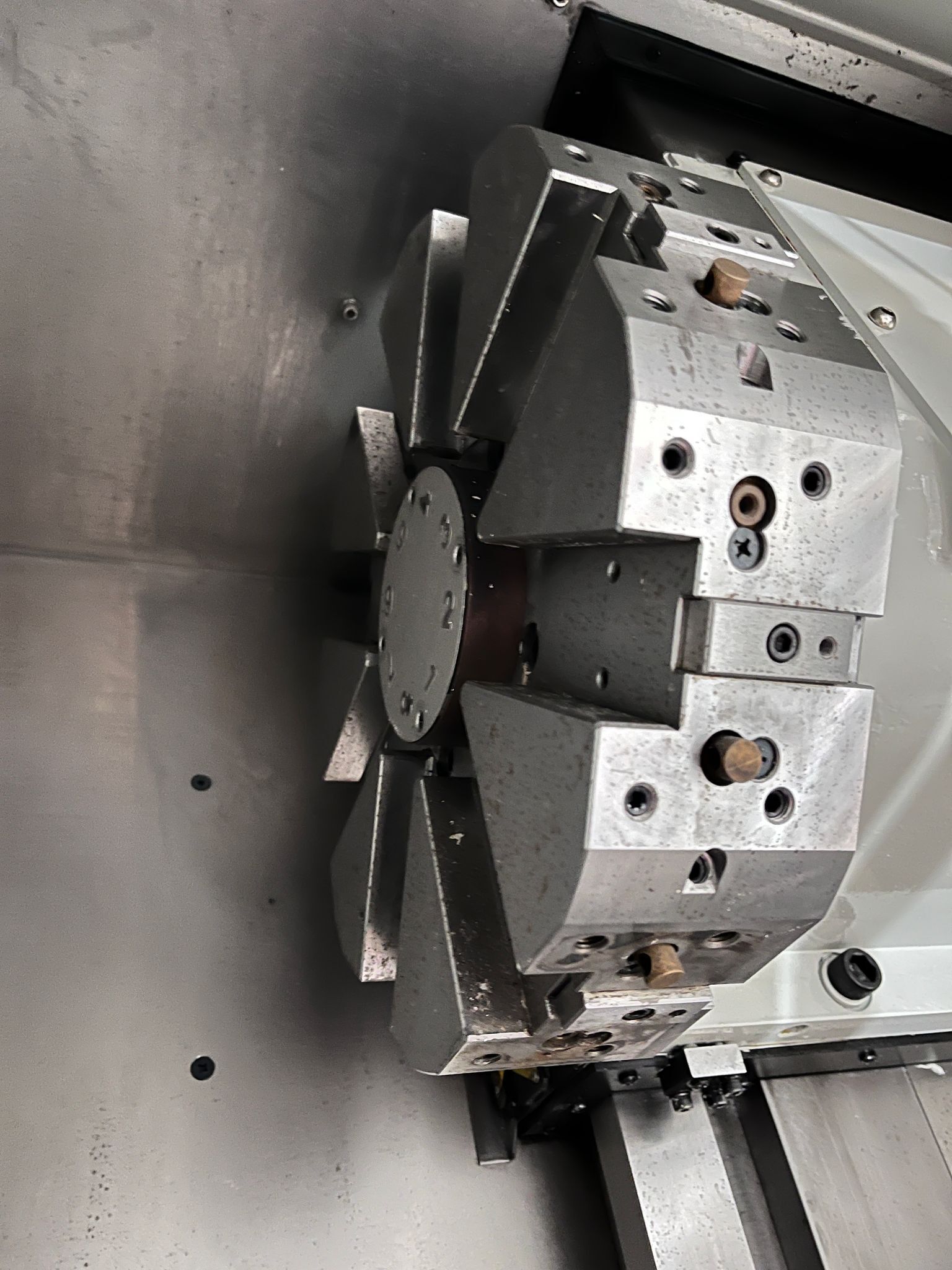

| 8-Station Automatic Turret |
| PCMCIA Card & USB Drive Interface |
| Rigid Tapping |

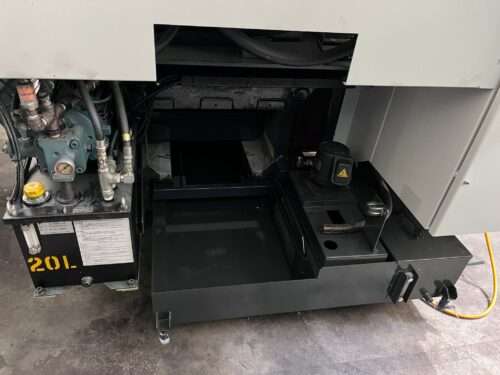

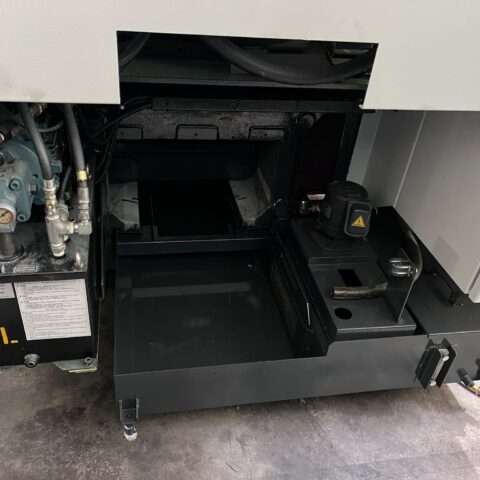

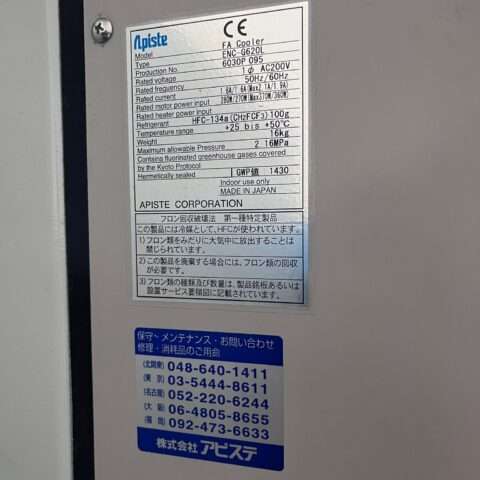

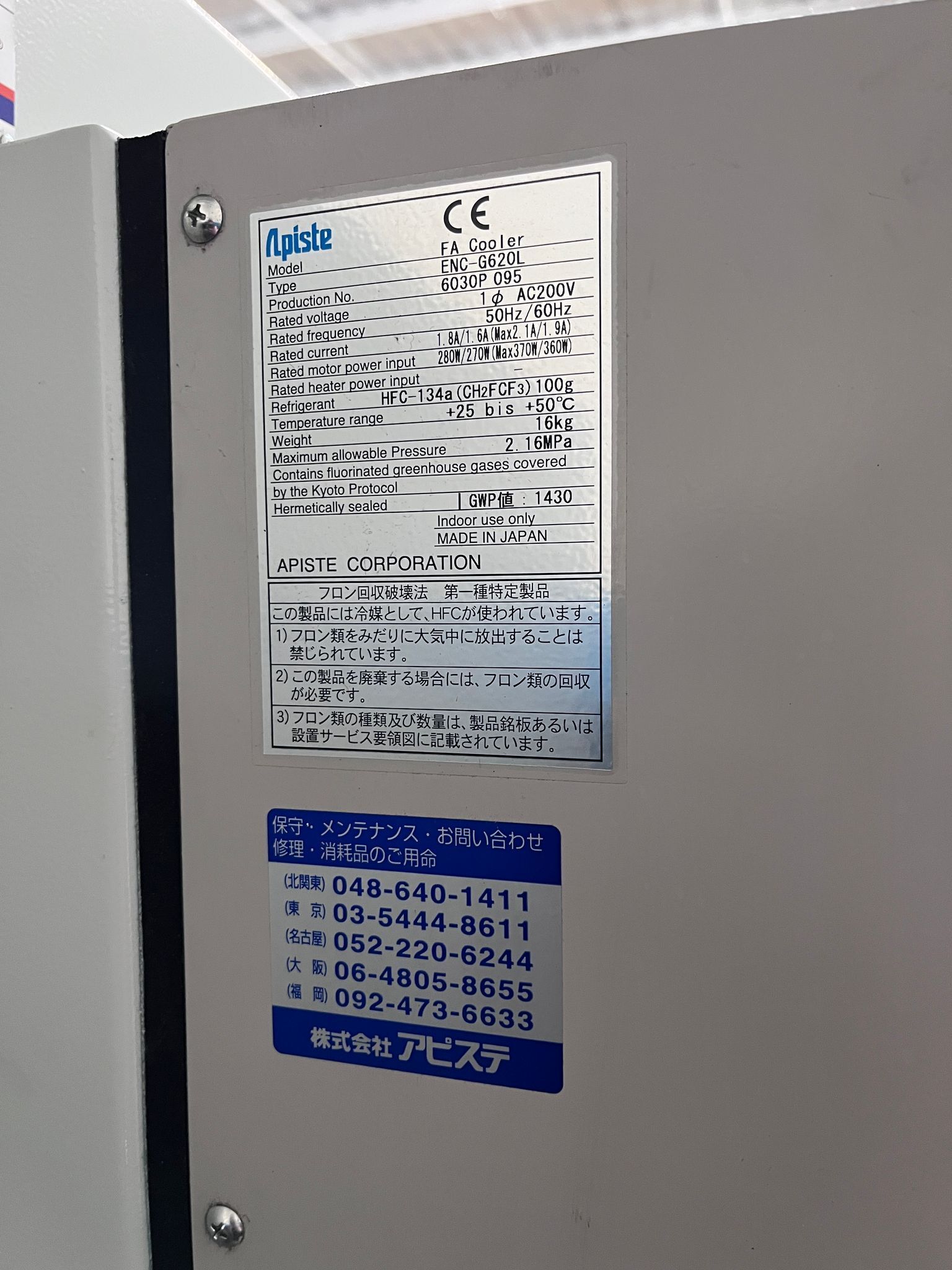

| Coolant System |
| Automatic Lubrication system |
| Foot Switch |

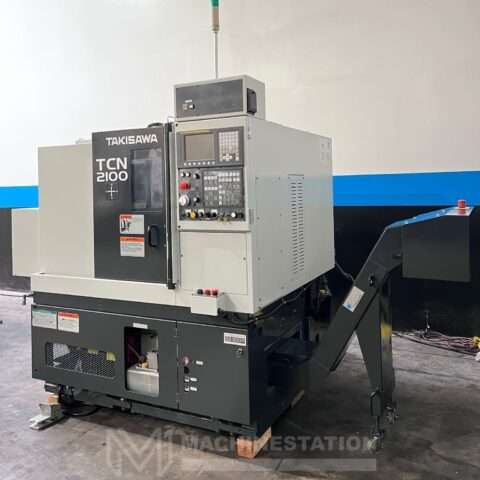

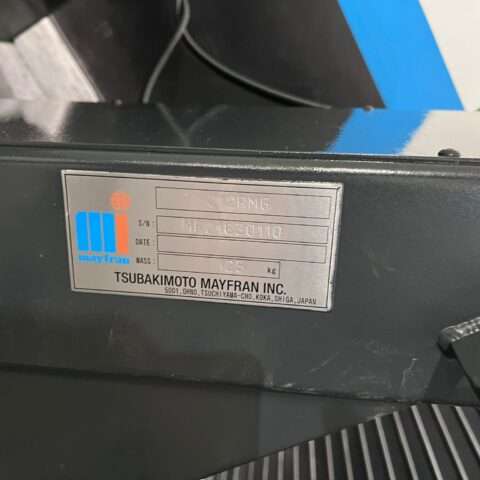

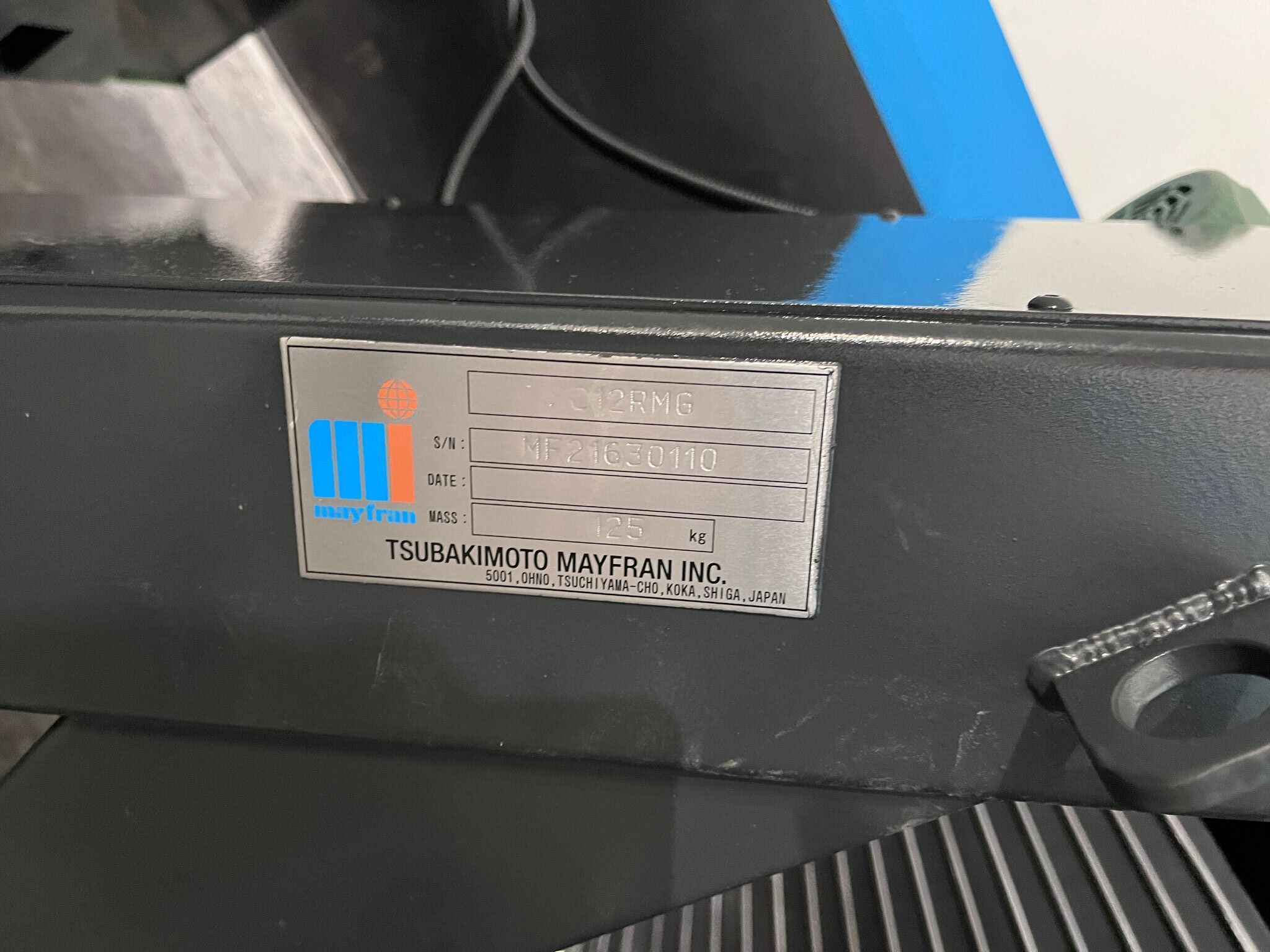

| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 15.75″ |
| Max Turning Length: 11.81″ |
| Swing Over Bed: 15.75″ |
| Max Bar Capacity: 2.00″ |
| Travels: |
|---|
| X Axis Travel: 9.05″ |
| Z Axis Travel: 13.5″ |
| Rapid Traverse X Axis: 945 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.5″ |
| Spindle Speed: 3200 RPM |
| Spindle Motor: 15 HP |

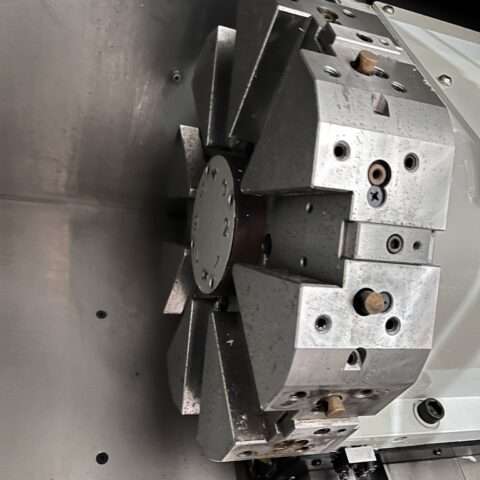

| Turret: |
|---|
| Turret Capacity: 8 Stations |
| Turning Tool Shank: 1″ |
| Boring Bar Shank Diameter: 1.5″ |
| Tool Holders Type: BMT |
| General: |
|---|
| Power Source: AC 208 V, Three Phase, 50/60 Hz |
| Power Requirement: 15 kva |
| Overall Dimensions: 69″ x 60″ x 67″ High Approx. |
| Weight : 5,952 lbs Approx. |
