*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

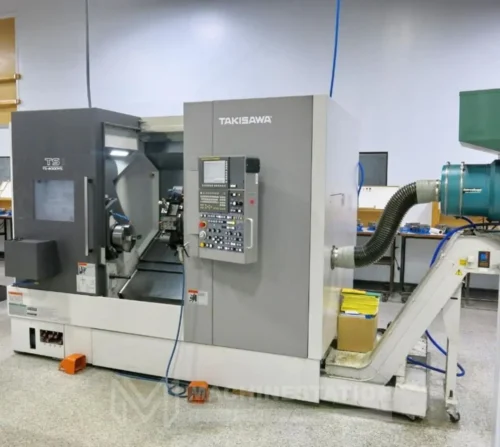

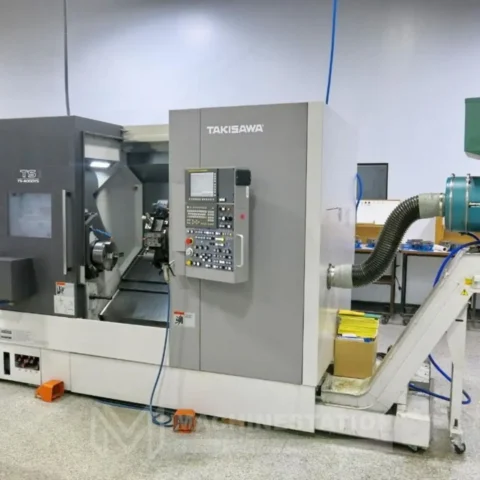

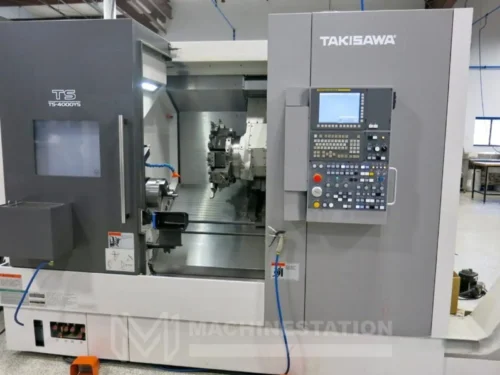

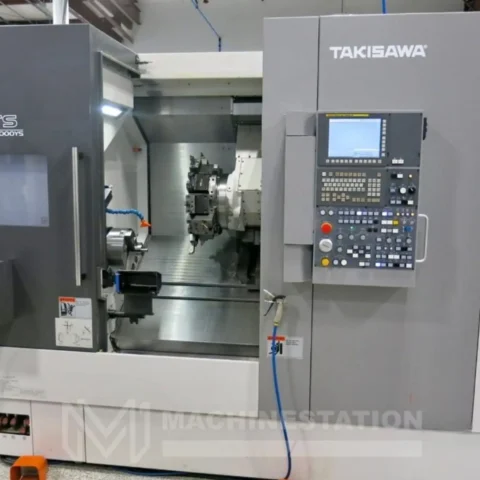

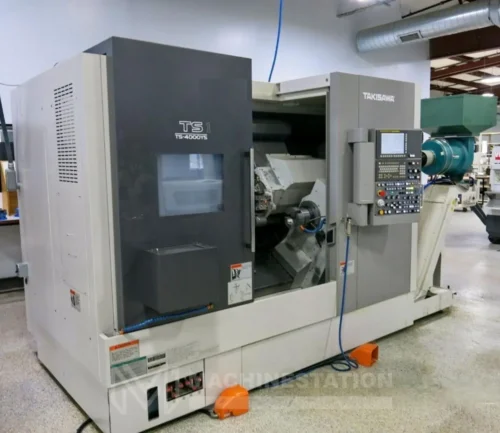

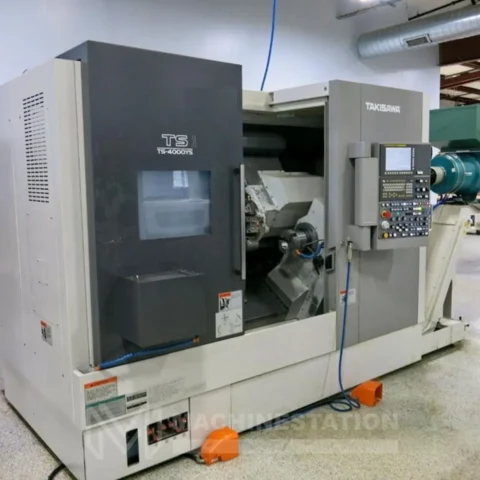

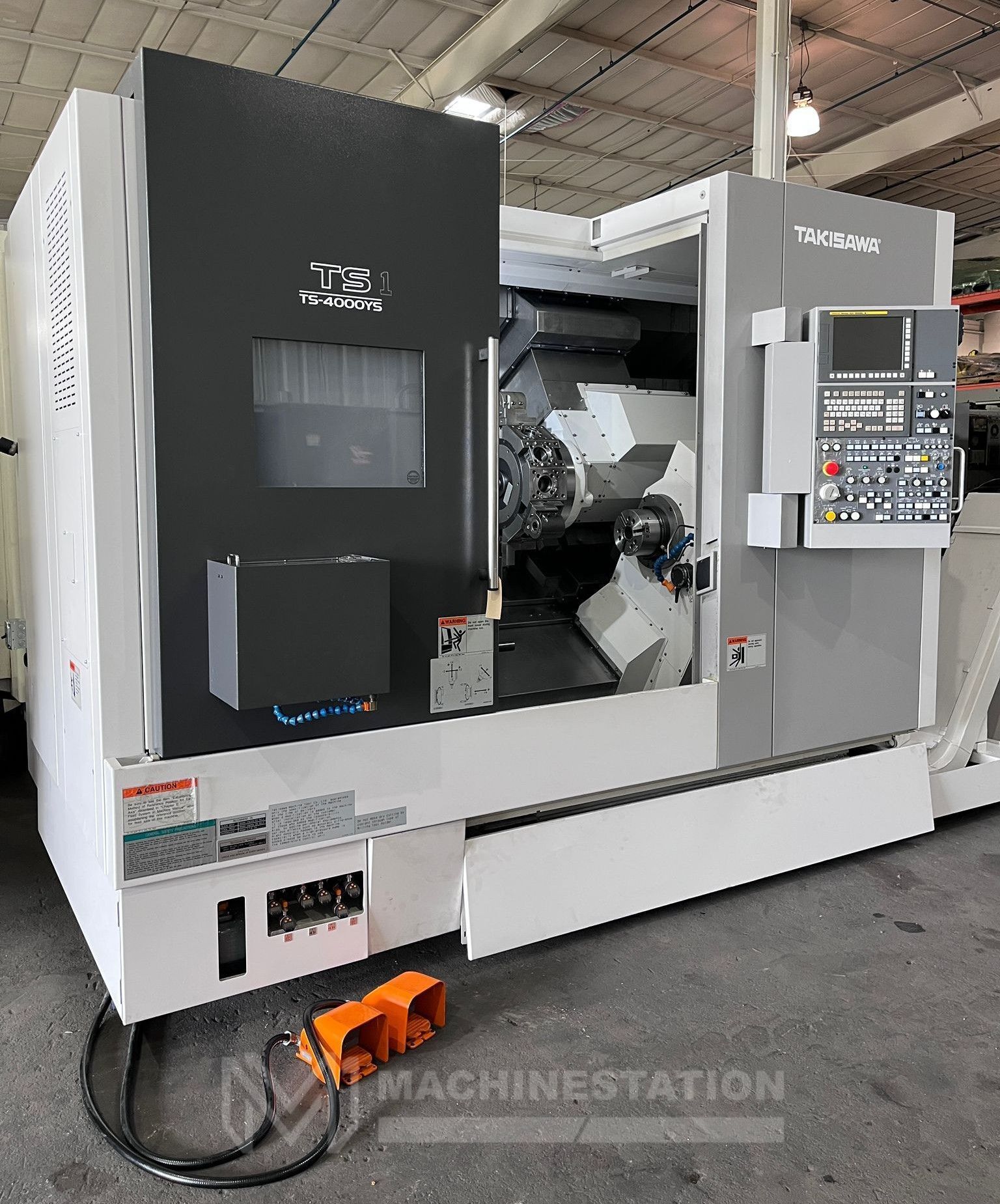

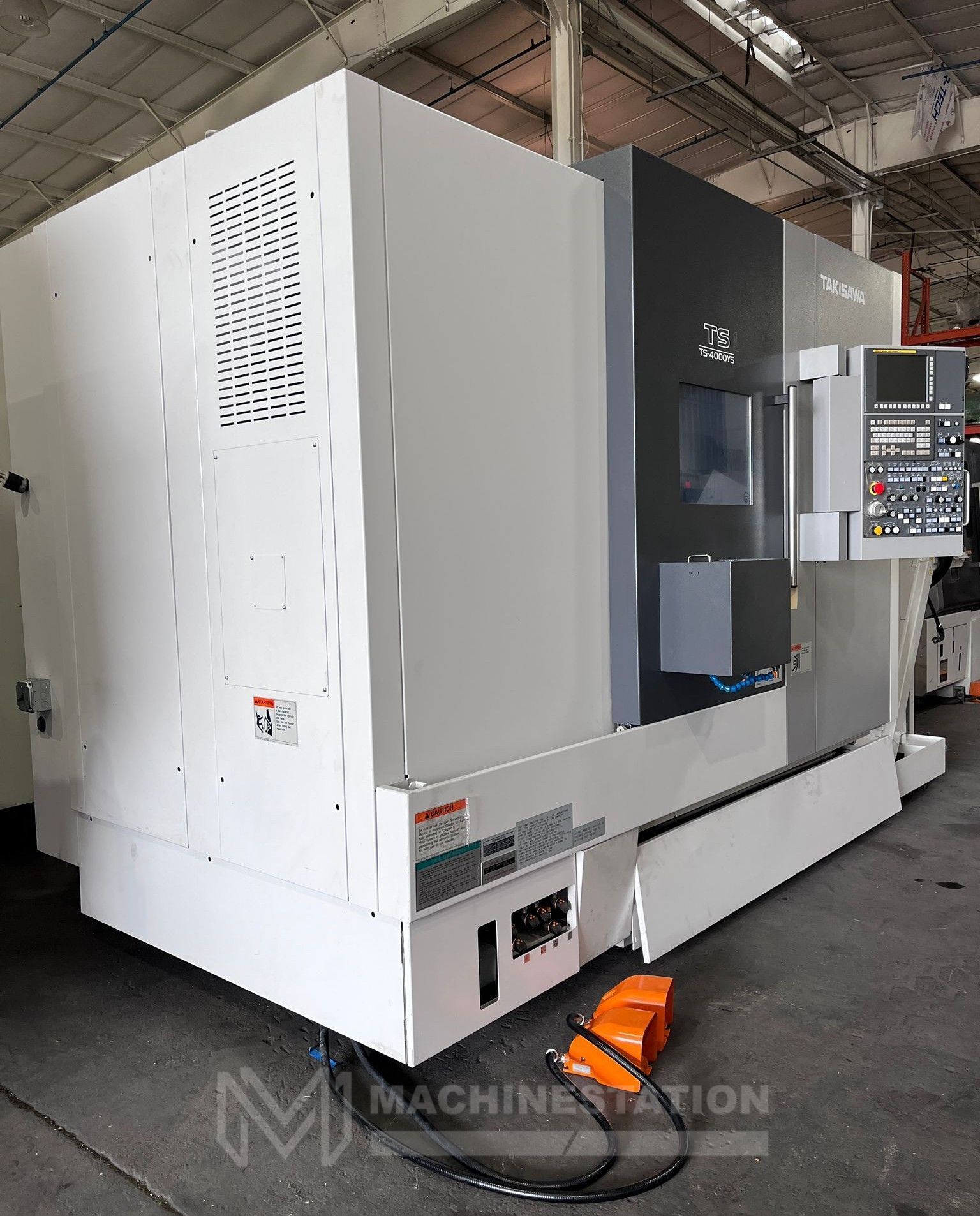

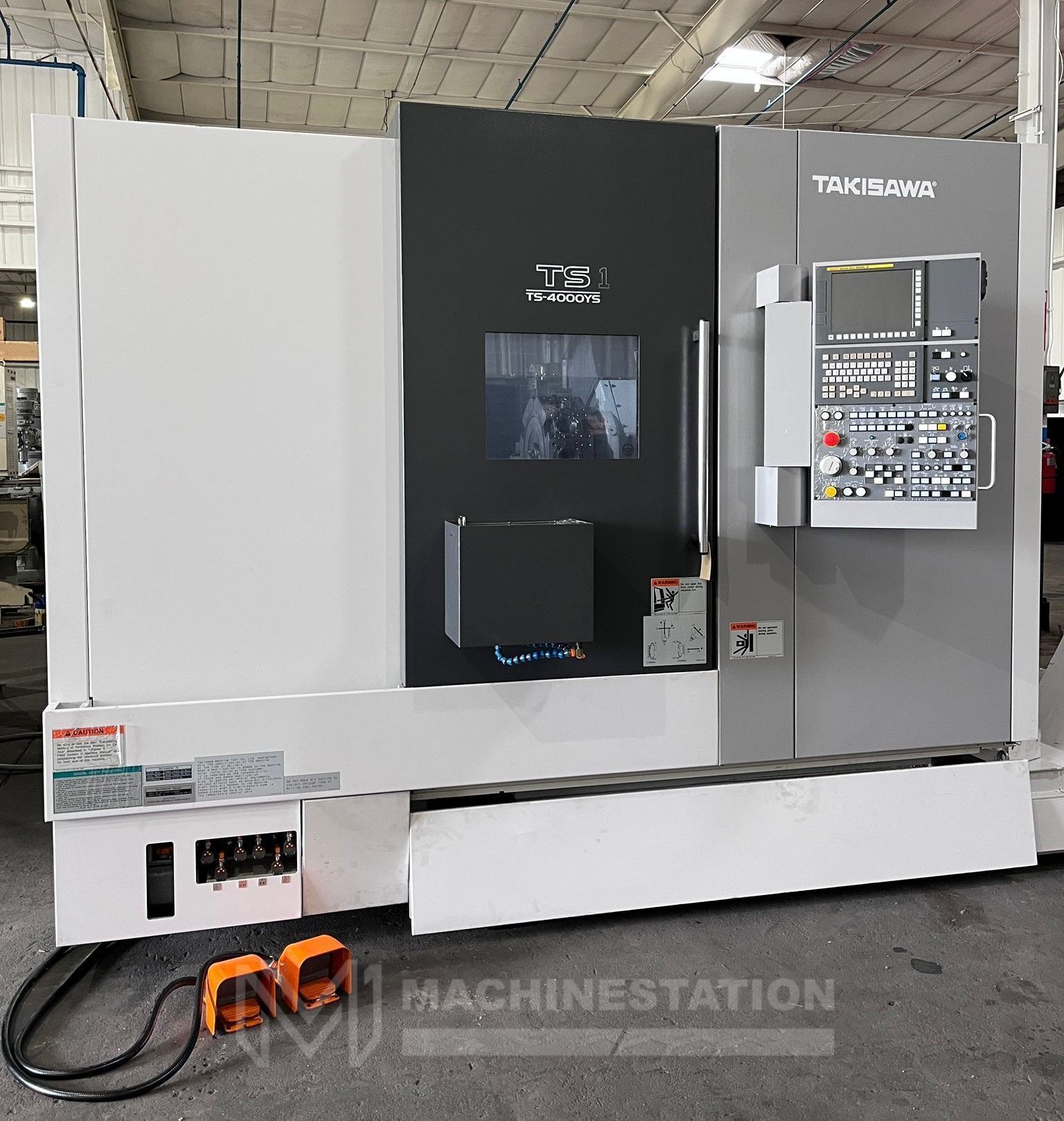

| Make: | Takisawa |
| Model: | TS-4000YS |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

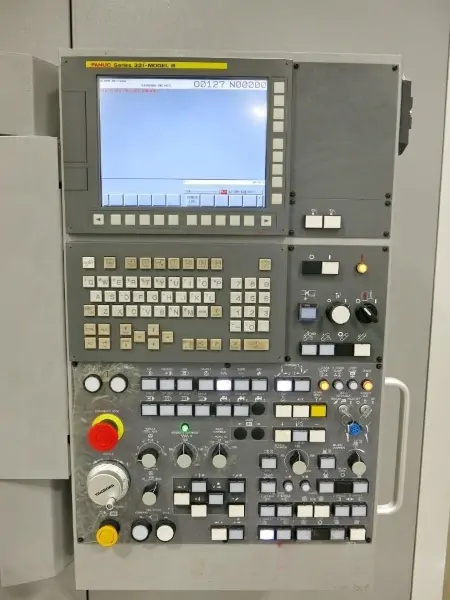

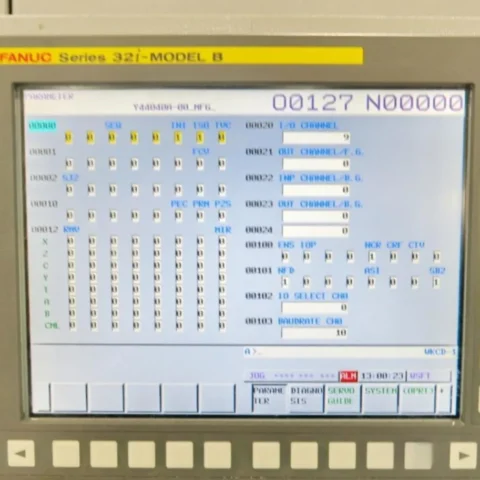

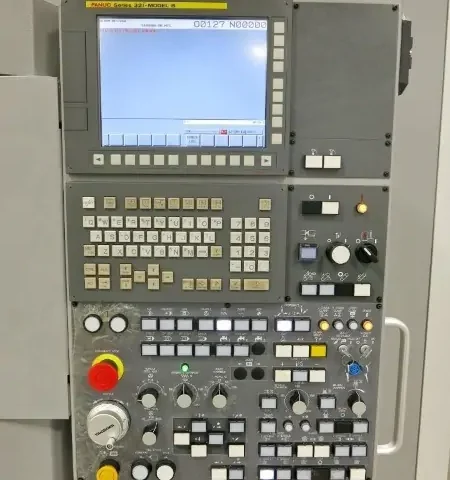

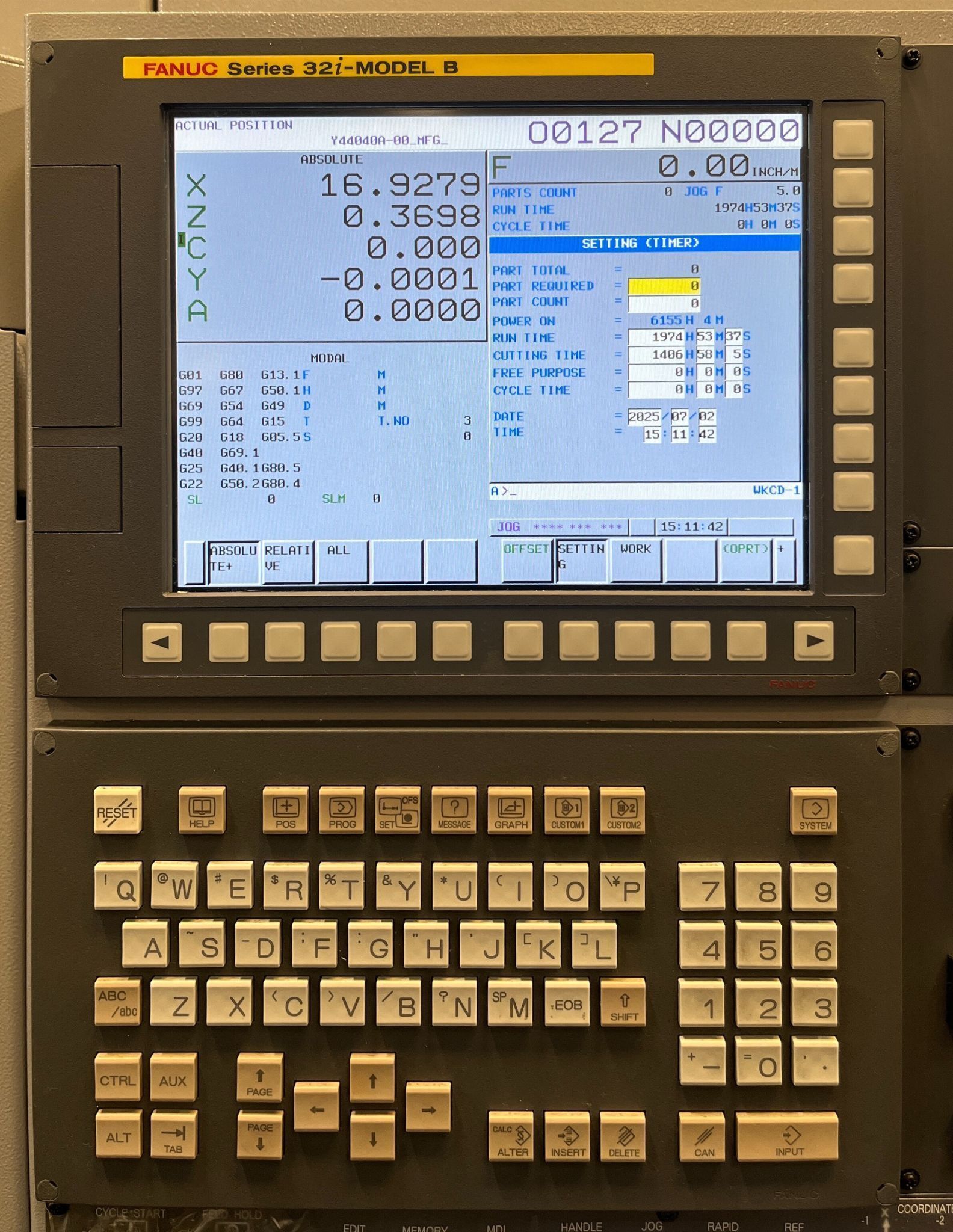

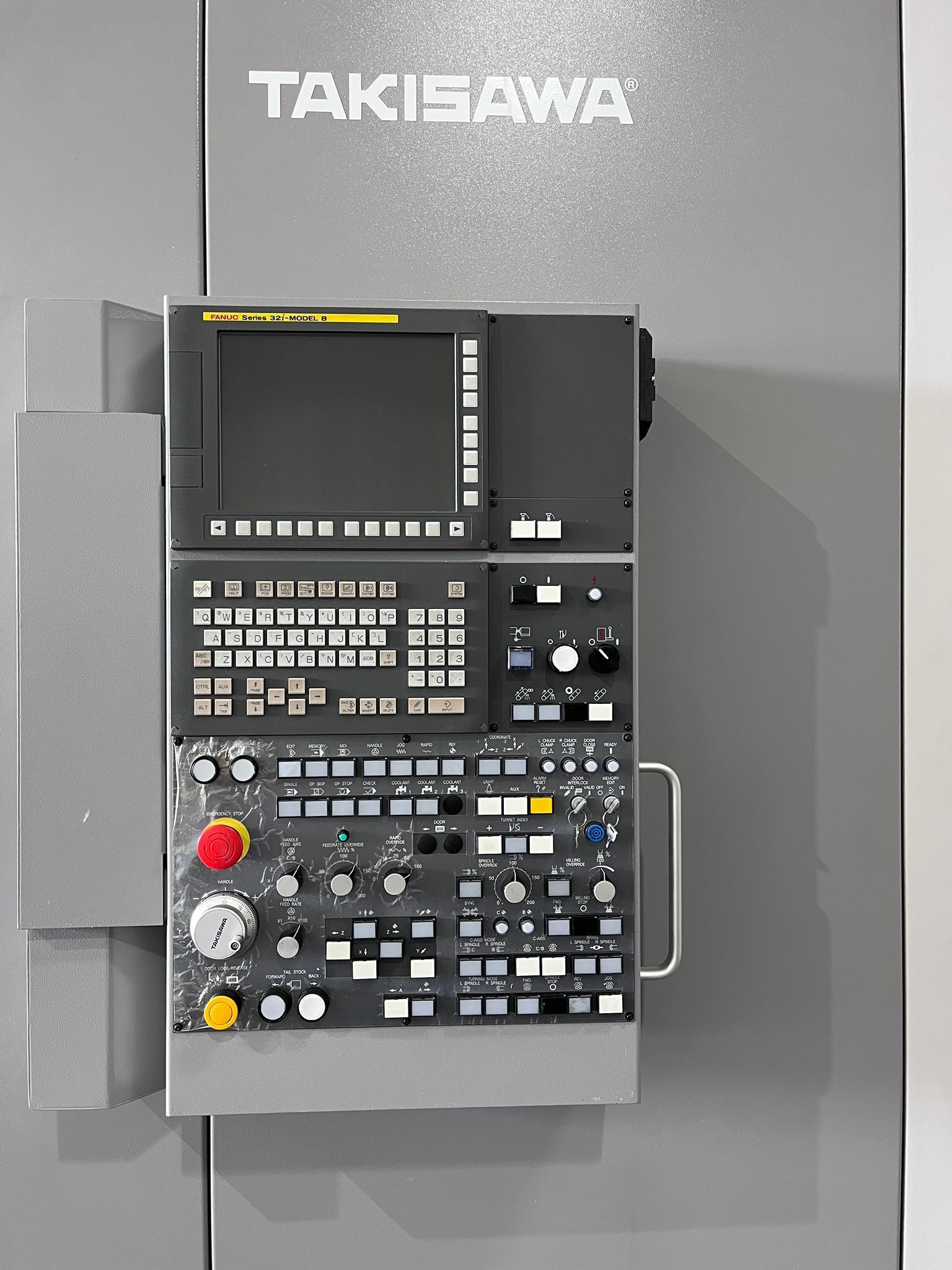

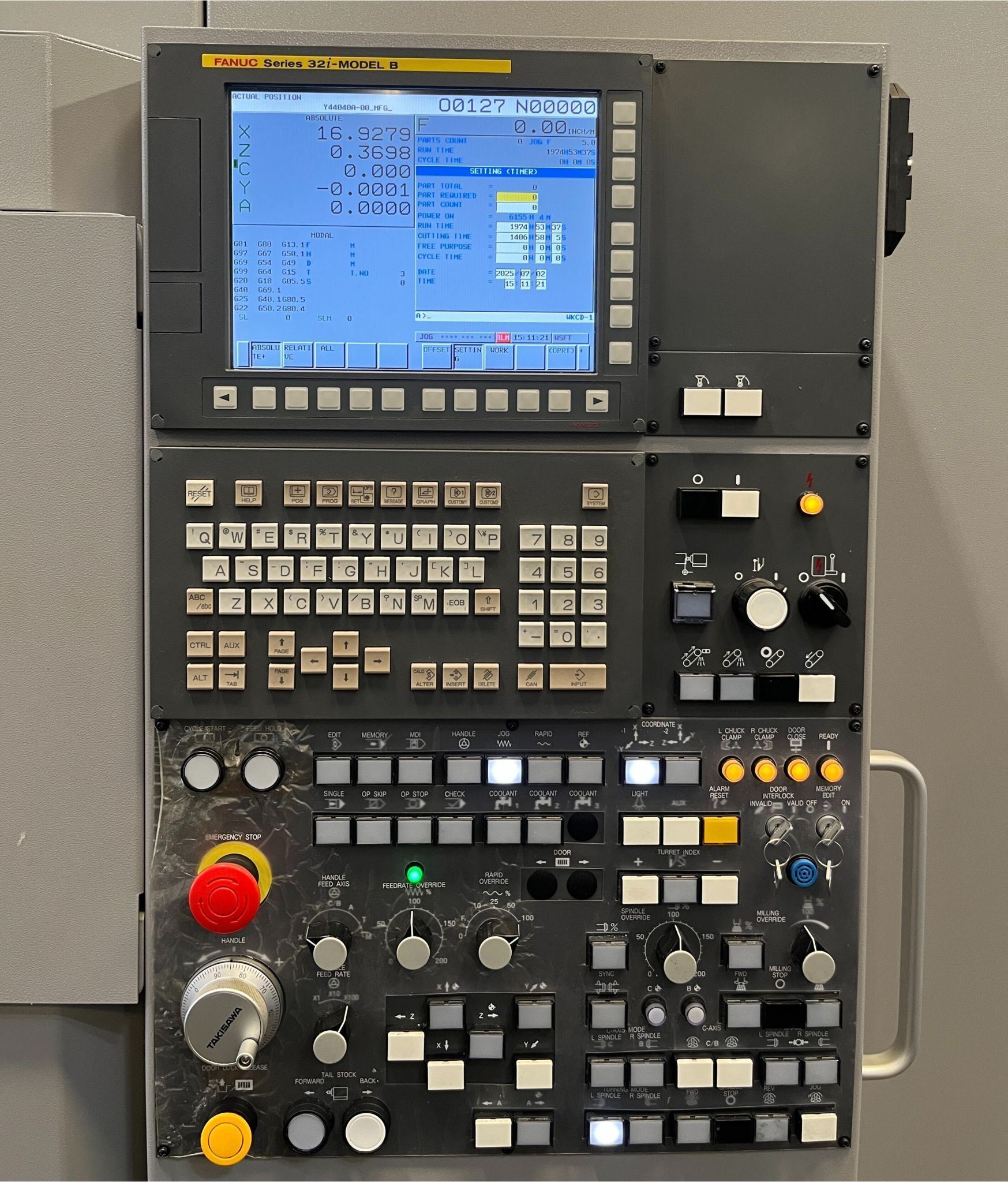

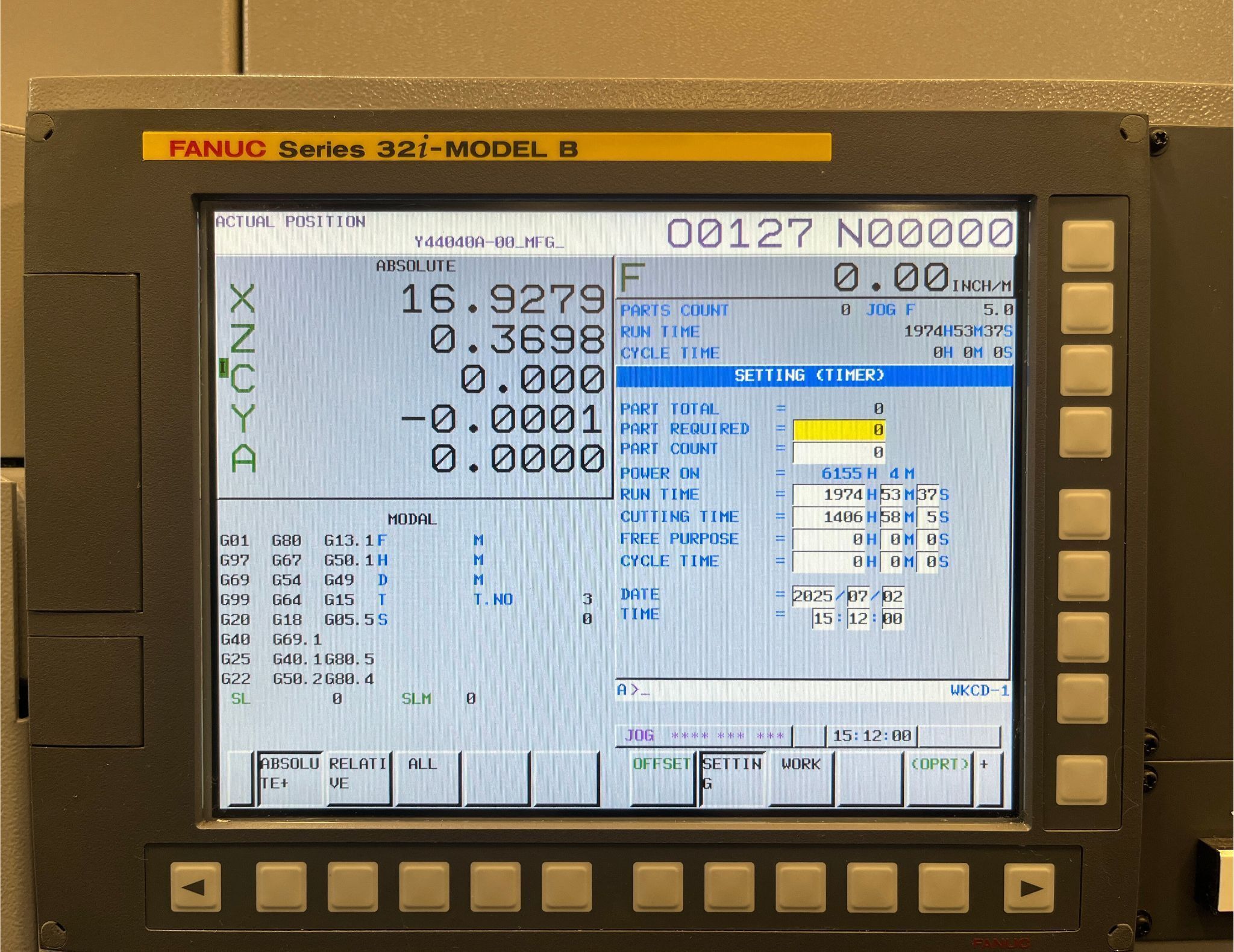

| Fanuc 32i-MB CNC Control |

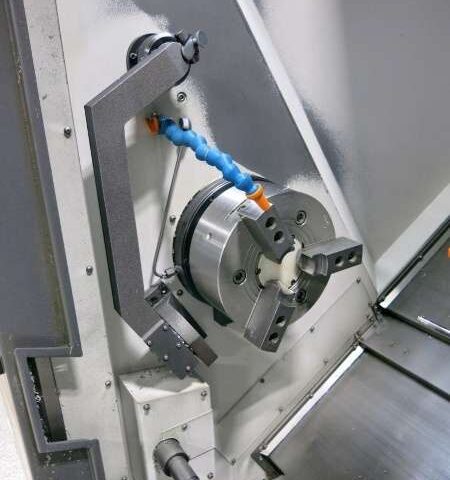

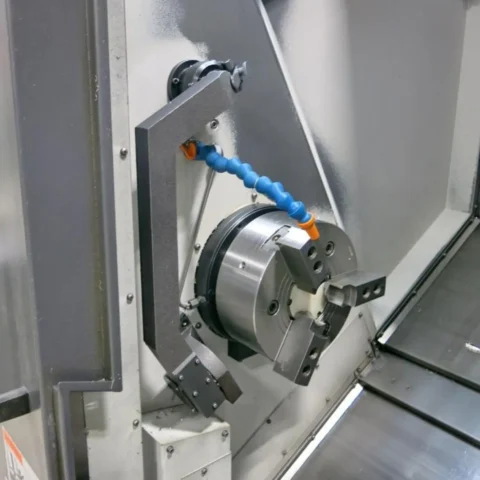

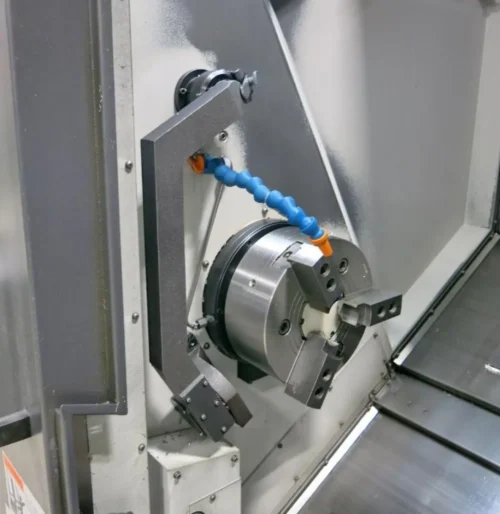

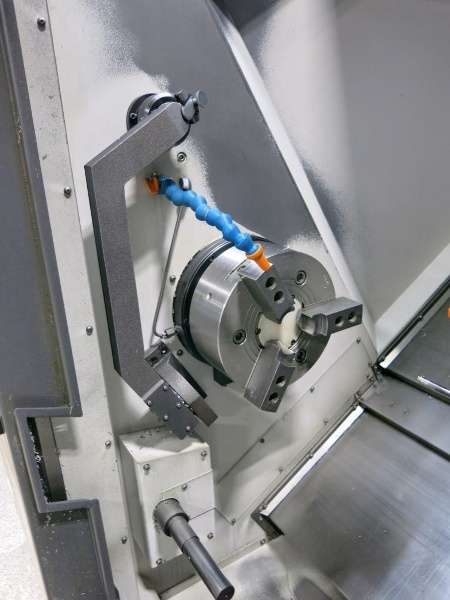

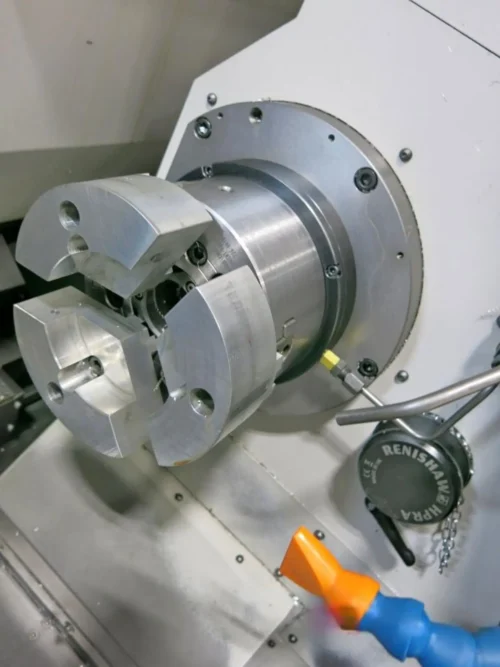

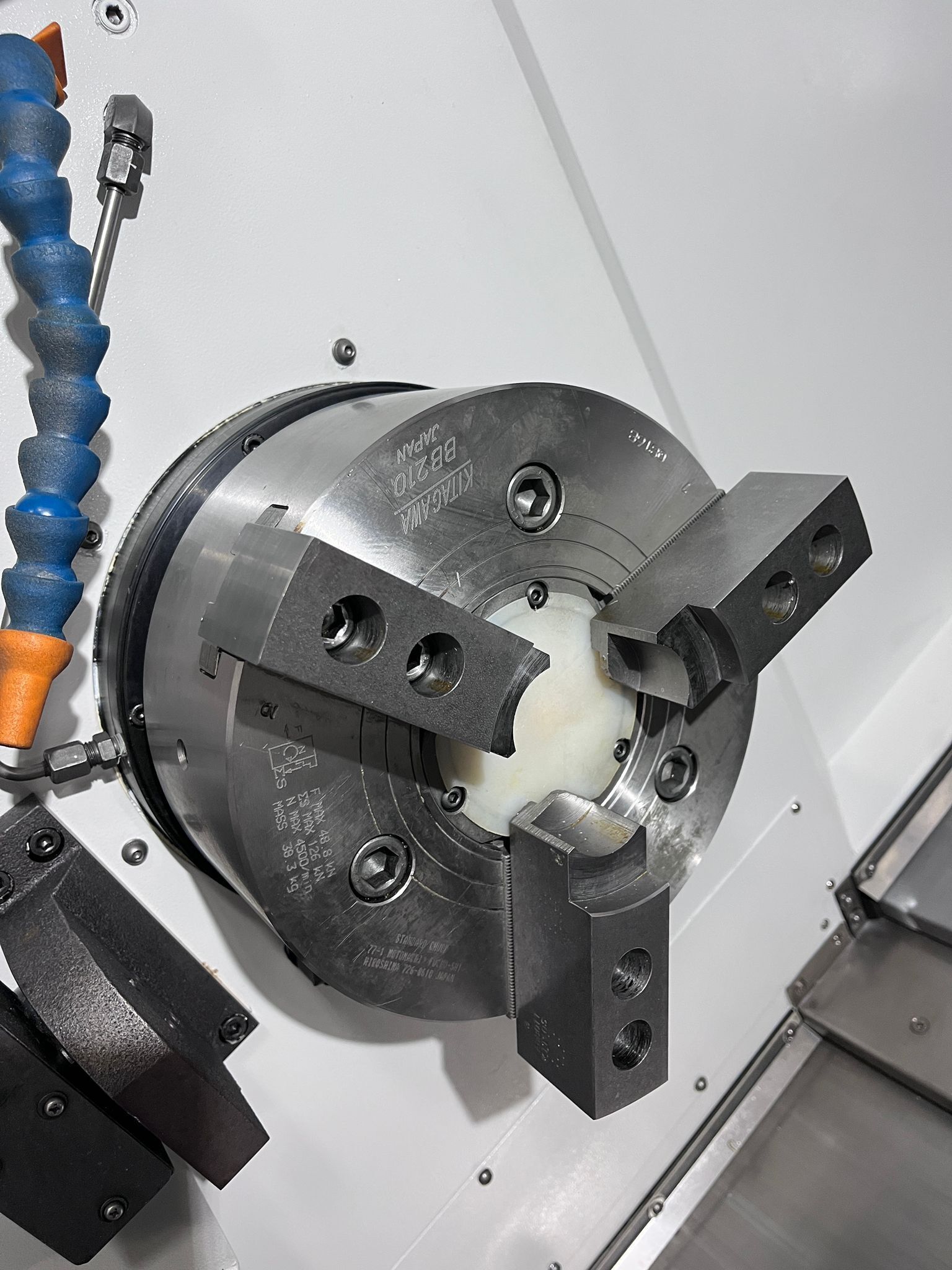

| 10″ 3-Jaw Kitagawa Chuck on Main Spindle |

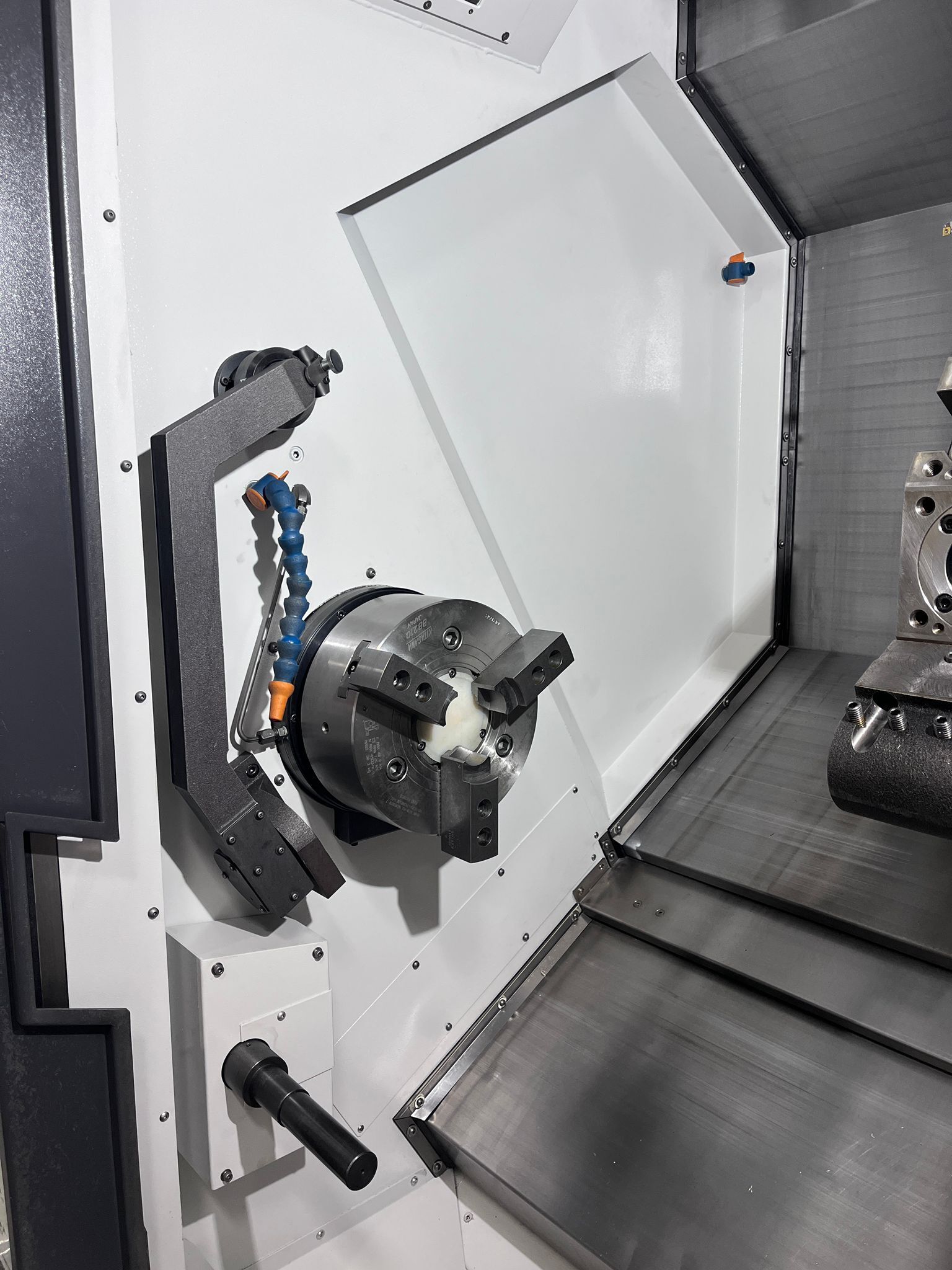

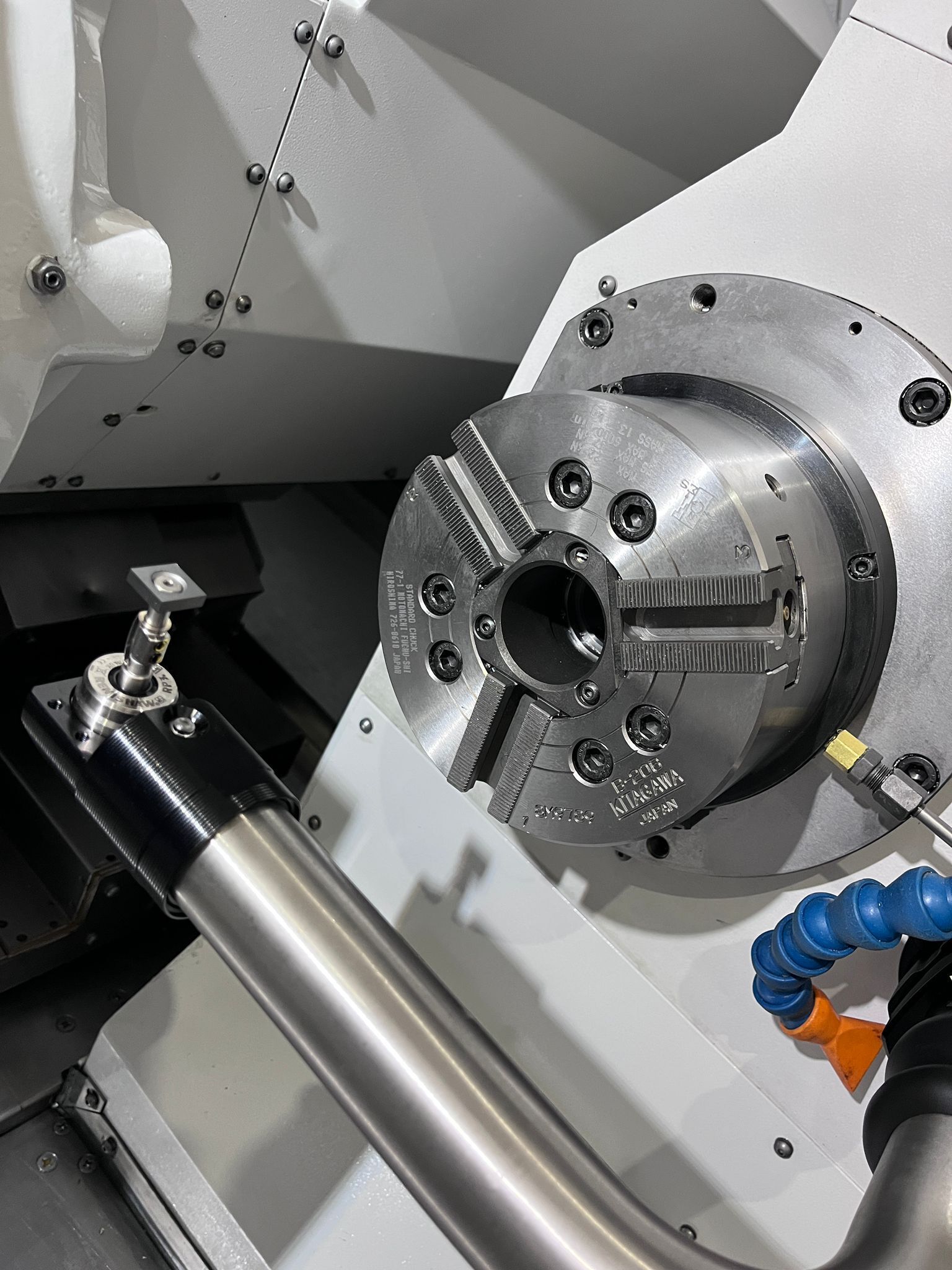

| 6″ 3-Jaw Kitagawa Chuck on Sub Spindle |
| Servo Controlled C Axis on Both Spindles |
| Sub Spindle |

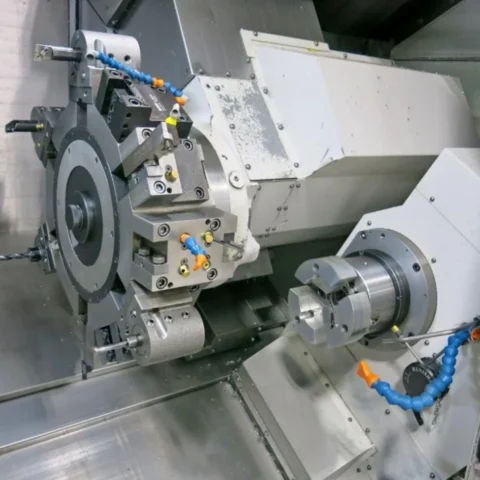

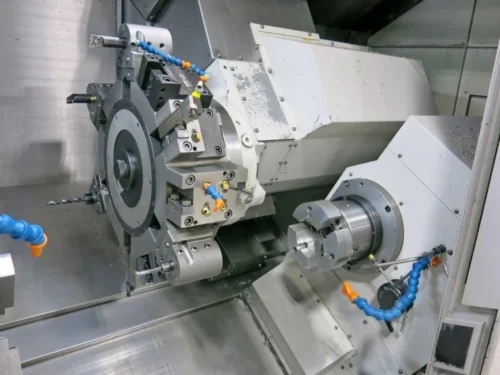

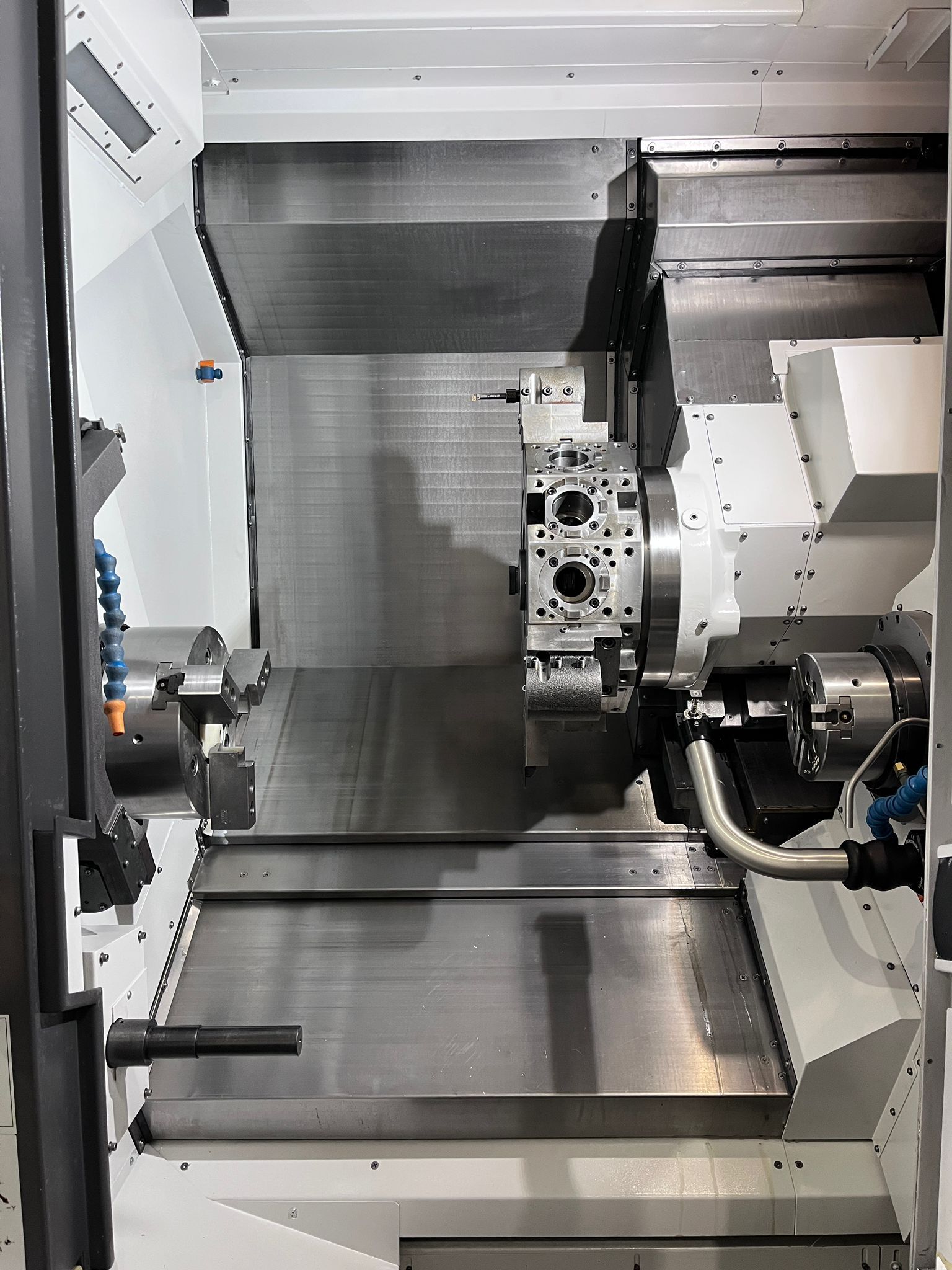

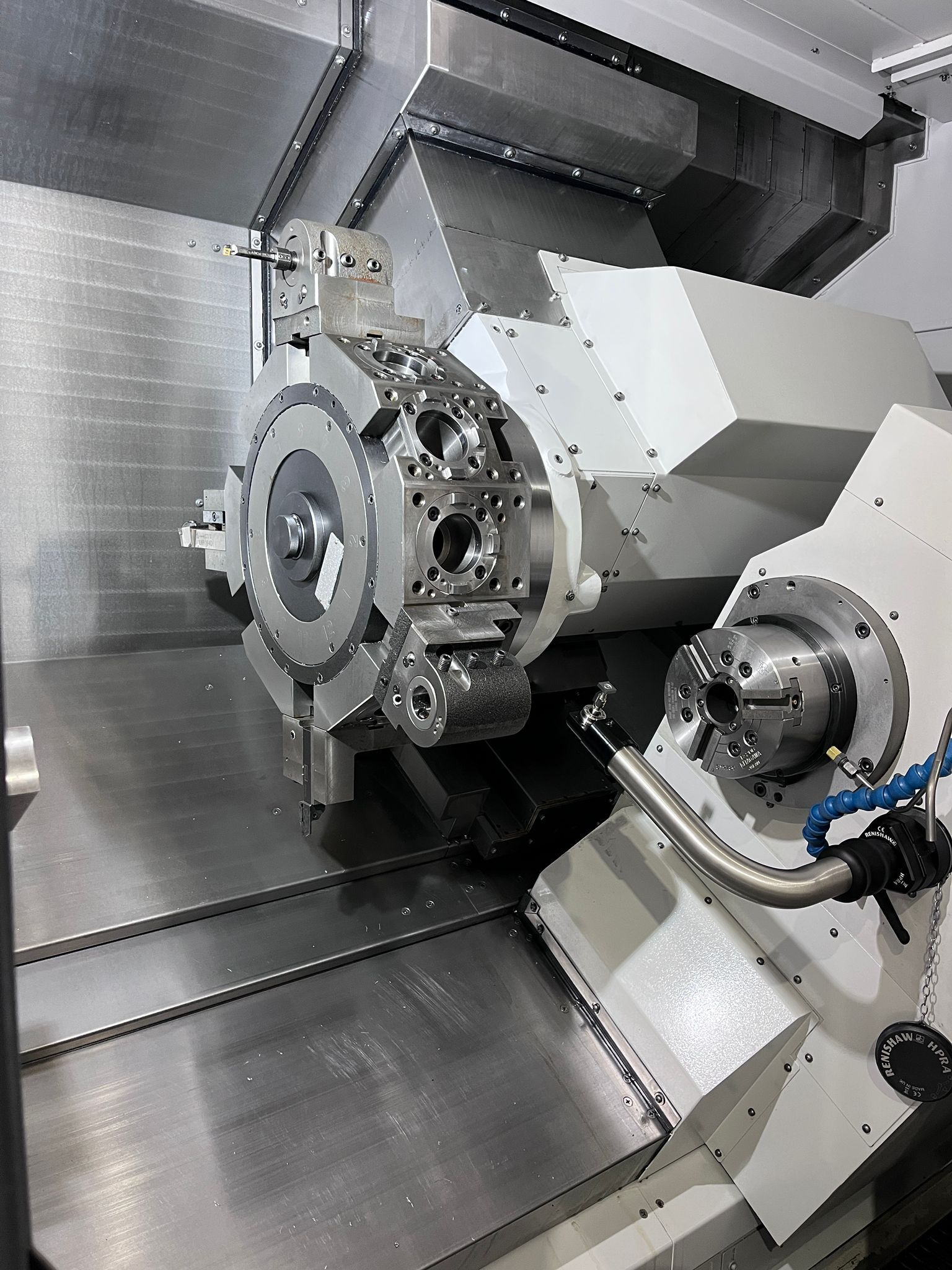

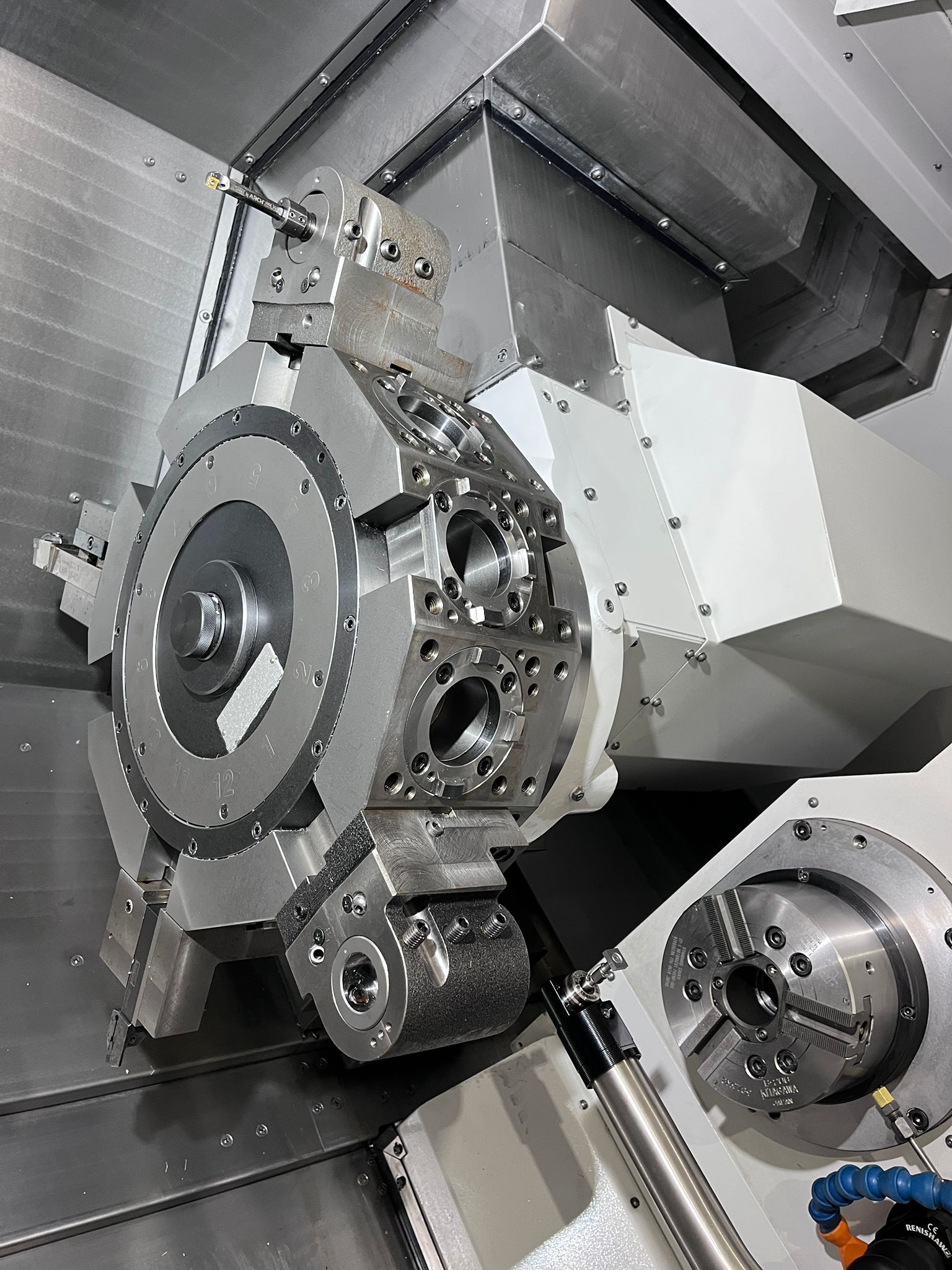

| 12 Station All Holder Type Live Tool Turret |
| Y Axis on Turret |
| Tool Presetter |
| Parts Catcher |

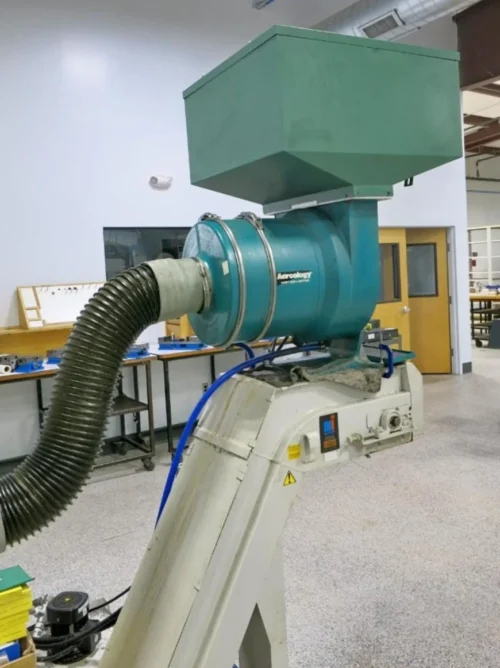

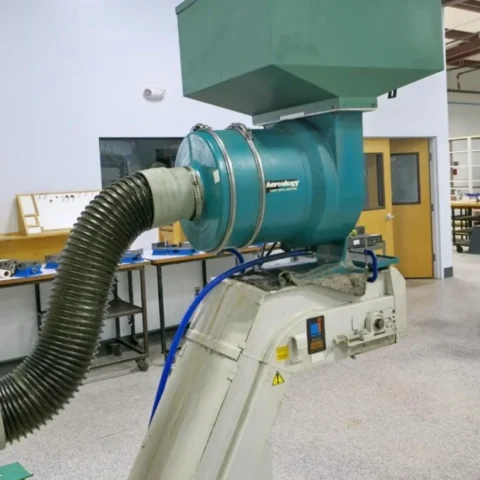

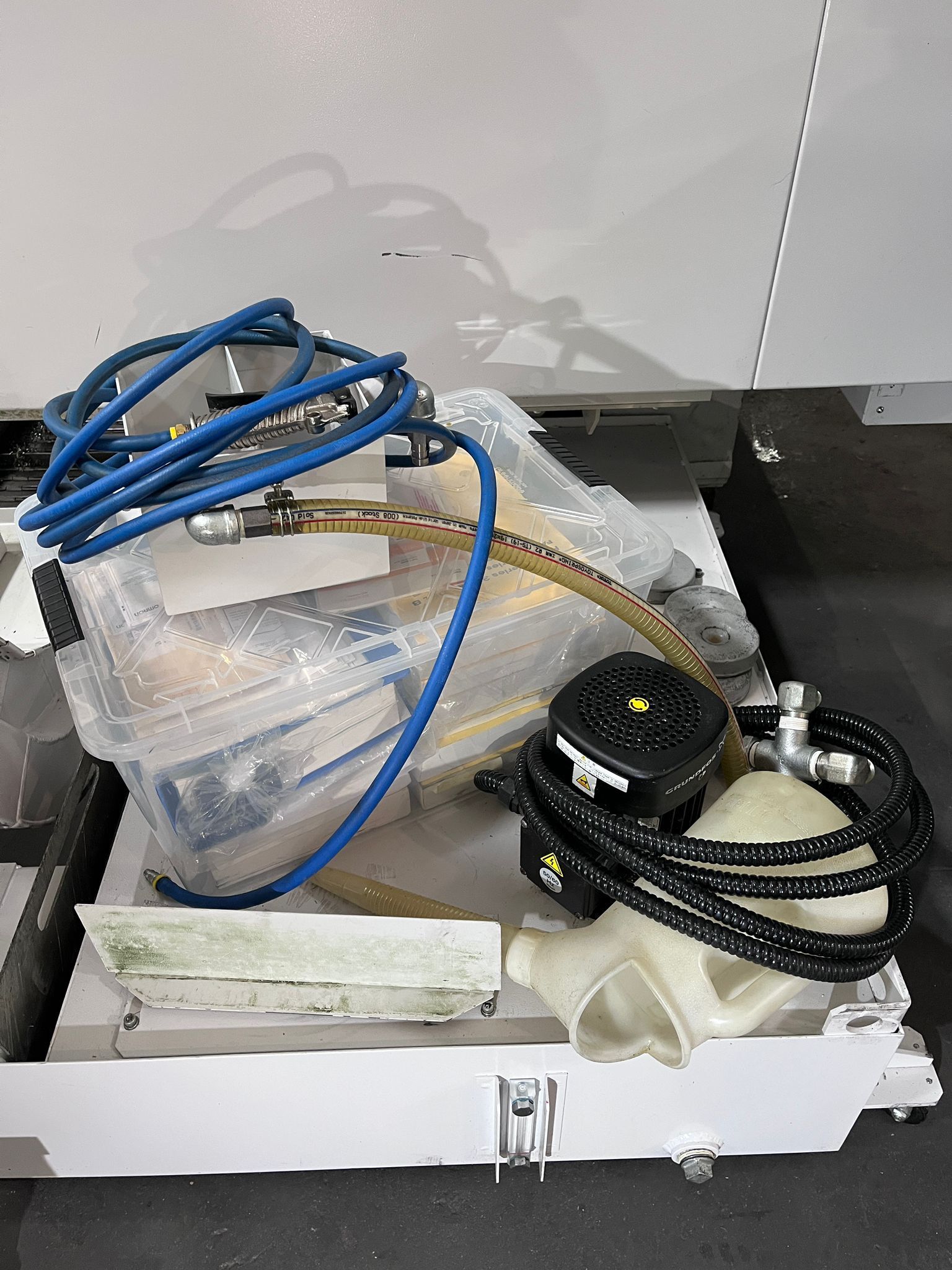

| Aercolgy Mist Collector |

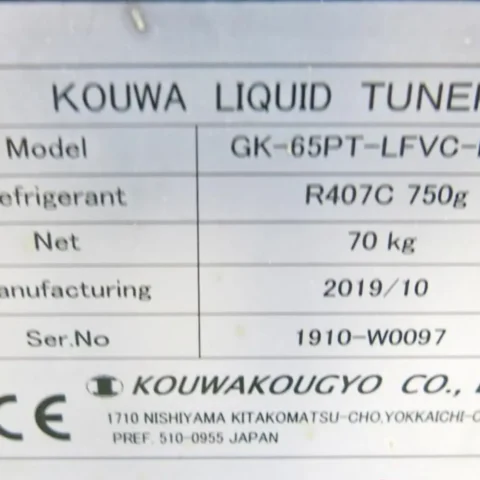

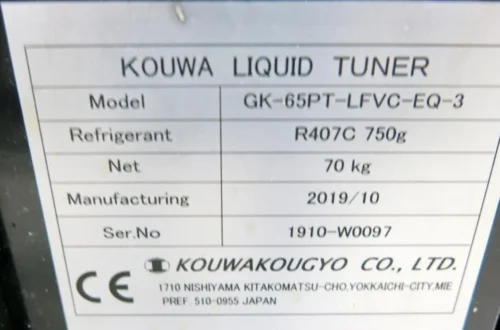

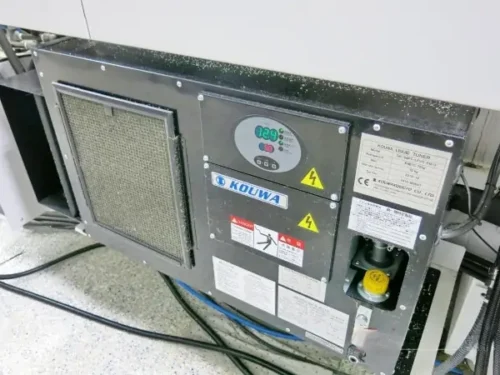

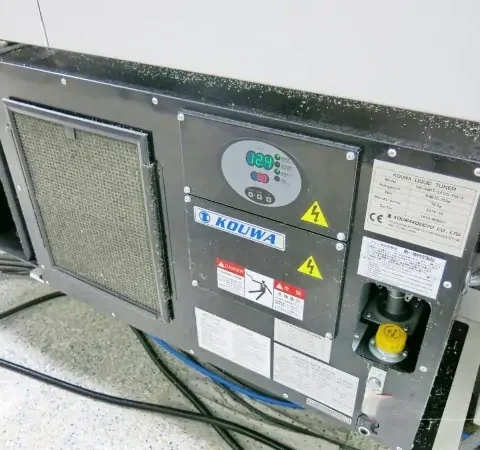

| Kouwa Liquid Tuner |
| Quick-Flex Tooling |

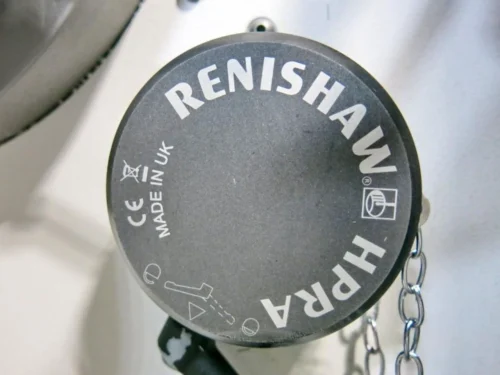

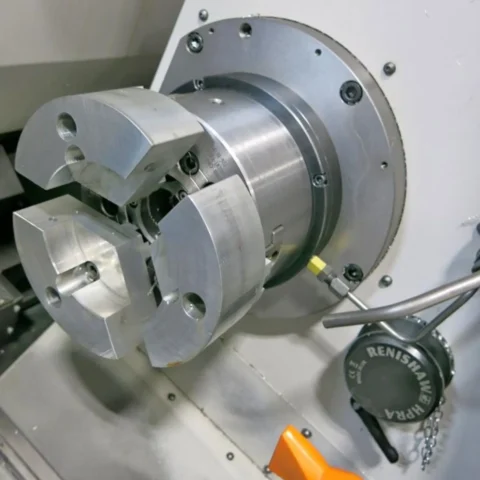

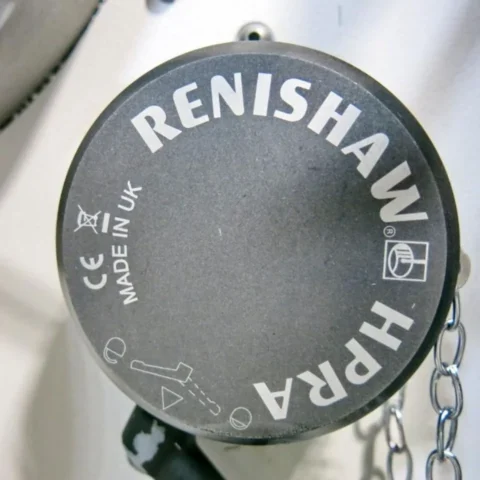

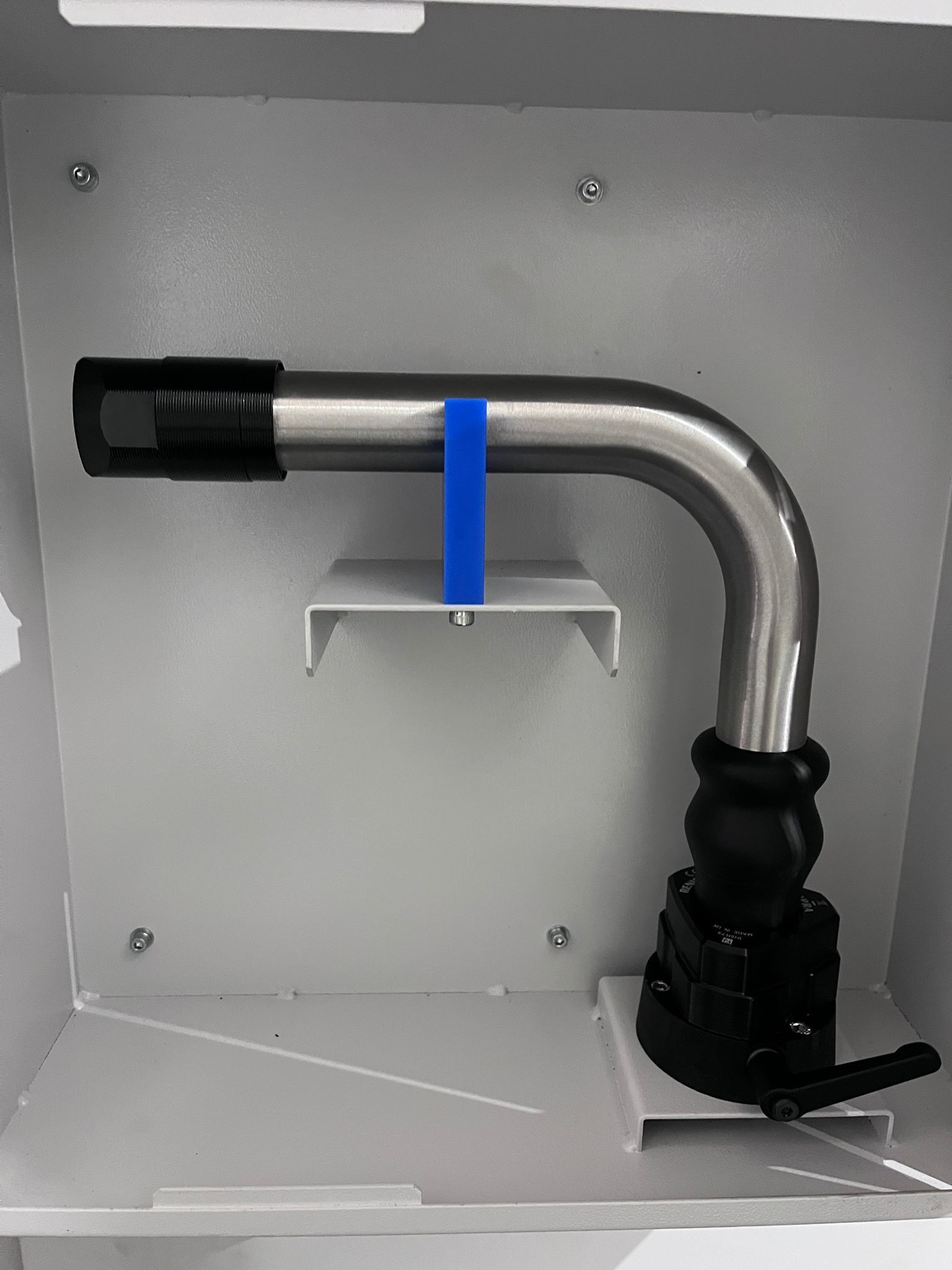

| Renishaw HPRA |
| Coolant System |
| Chip Conveyor |
| Books & Manuals |
| Misc. Live & Statics Tool Holders (Mounted on Turret as shown in the images) |
| Capacity: |
|---|
| Max Swing Over Bed: 23.62″ |
| Max Turning Diameter: 14.57″ |
| Max Turning Length: 29.53″ |
| Max Bar Capacity: 3.23″ |
| Travels: |
|---|
| X Axis Travel: 10.51″ |
| Y Axis Travel: -1.97″ ～ +2.76″ |
| Z Axis Travel: 33.07″ |
| A Axis Travel (Sub Spindle): 30.71″ |
| C Axis Indexing: 360 Degree (0.001) |
| Rapid Traverse Rate X, Z & A Axis: 1181 IPM |
| Rapid Traverse Rate Y Axis: 393 IPM |
| Main Spindle: |
|---|
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.70″ |
| Main Spindle Speed: 4200 RPM |
| Man Spindle Motor: 30 HP |
| Sub Spindle: |
|---|
| Sub Spindle Nose: F140 |
| Sub Spindle Bore: 2.09″ |
| Sub Spindle Speed: 6000 RPM |
| Sub Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Rotary Tool Speed: 6,000 RPM |
| Rotary Tool Motor: 10 HP |
| Tool Holders Type: All Type |
| General: |
|---|

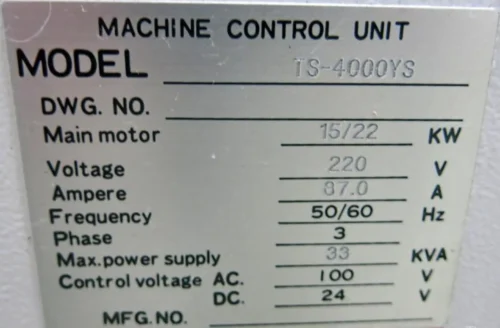

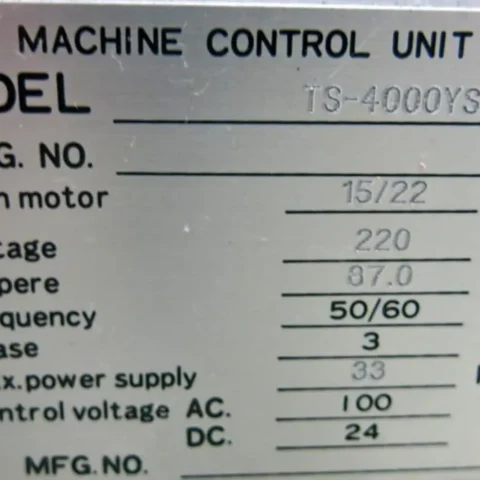

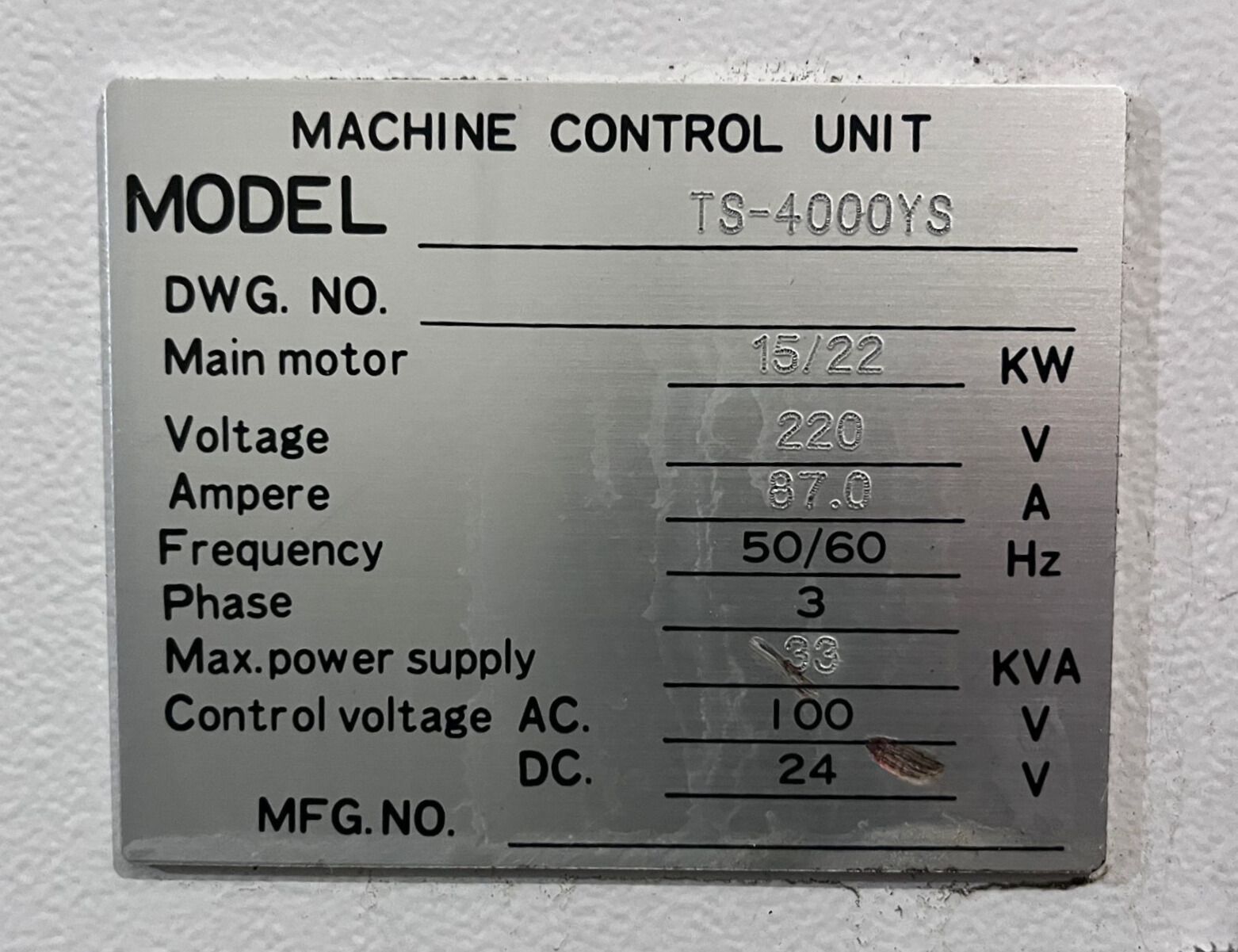

| Power Source: AC 220 V Three Phase 50/60 Hz |
| Power Requirement: 33 kva |
| Overall Dimensions: 118″ x 85″ x 90″ High Approx. |
| Weight : 14,740 lbs Approx. |
