*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Tos Varnsdorf |
| Model: |
W100A |
| Year: |
1980 |
| Condition: |
Used – Good |
| Features: |
- 3.94″ Spindle Diameter
- 4th Axis Rotary Table
- Heavy Table Load Capacities
- Gear Head Spindle for Powerful Torque
- Facing Chuck
- Tailstock

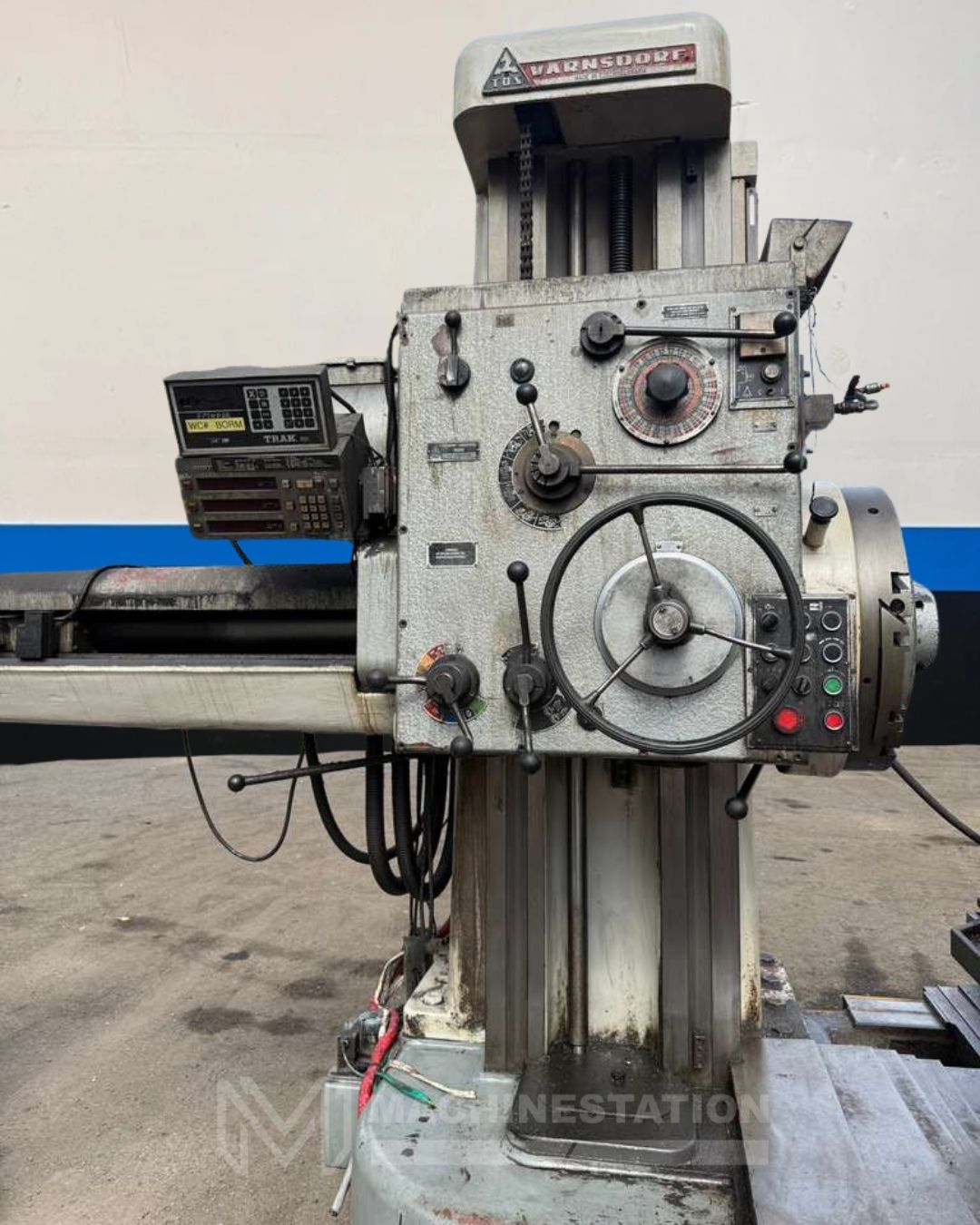

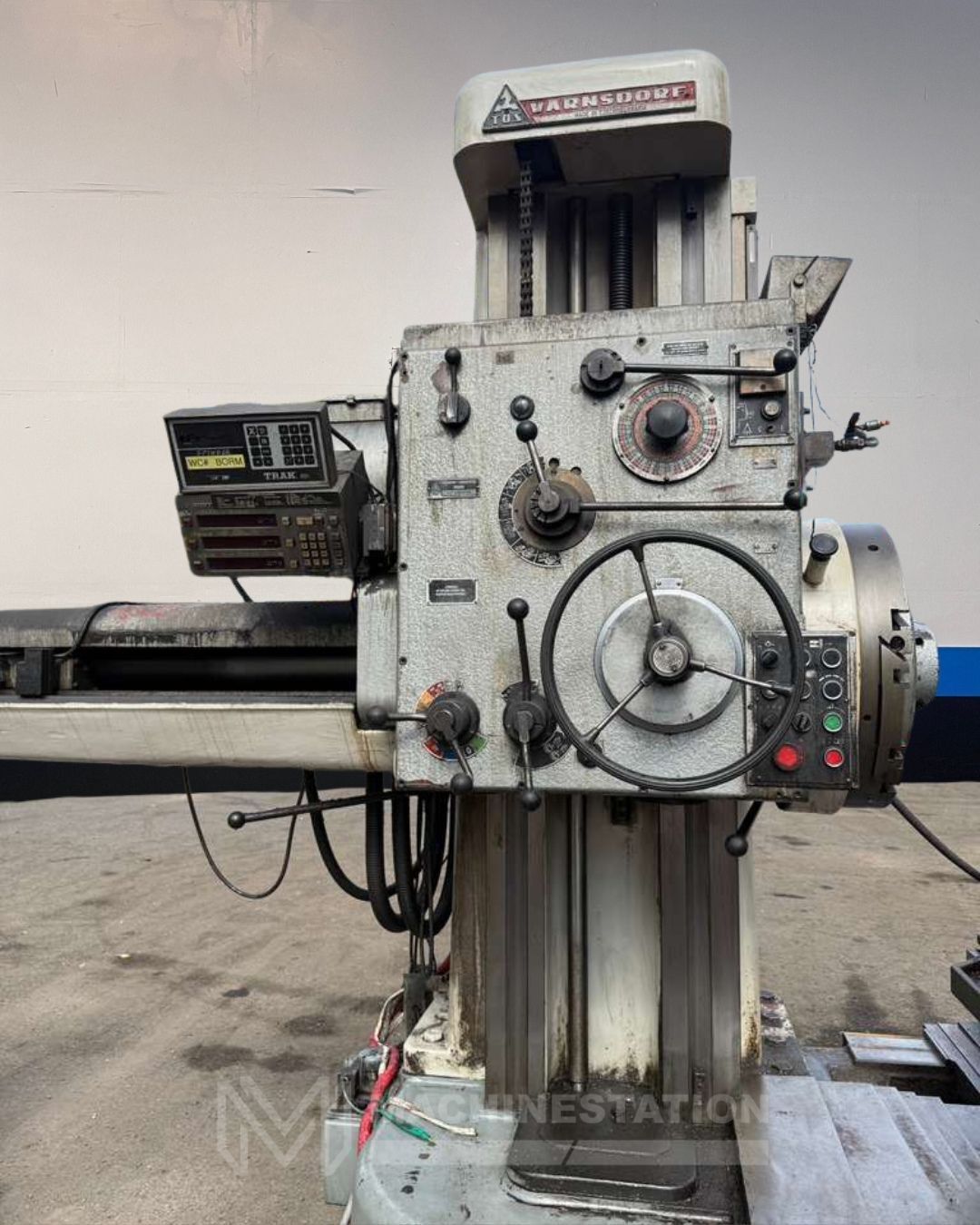

- DRO

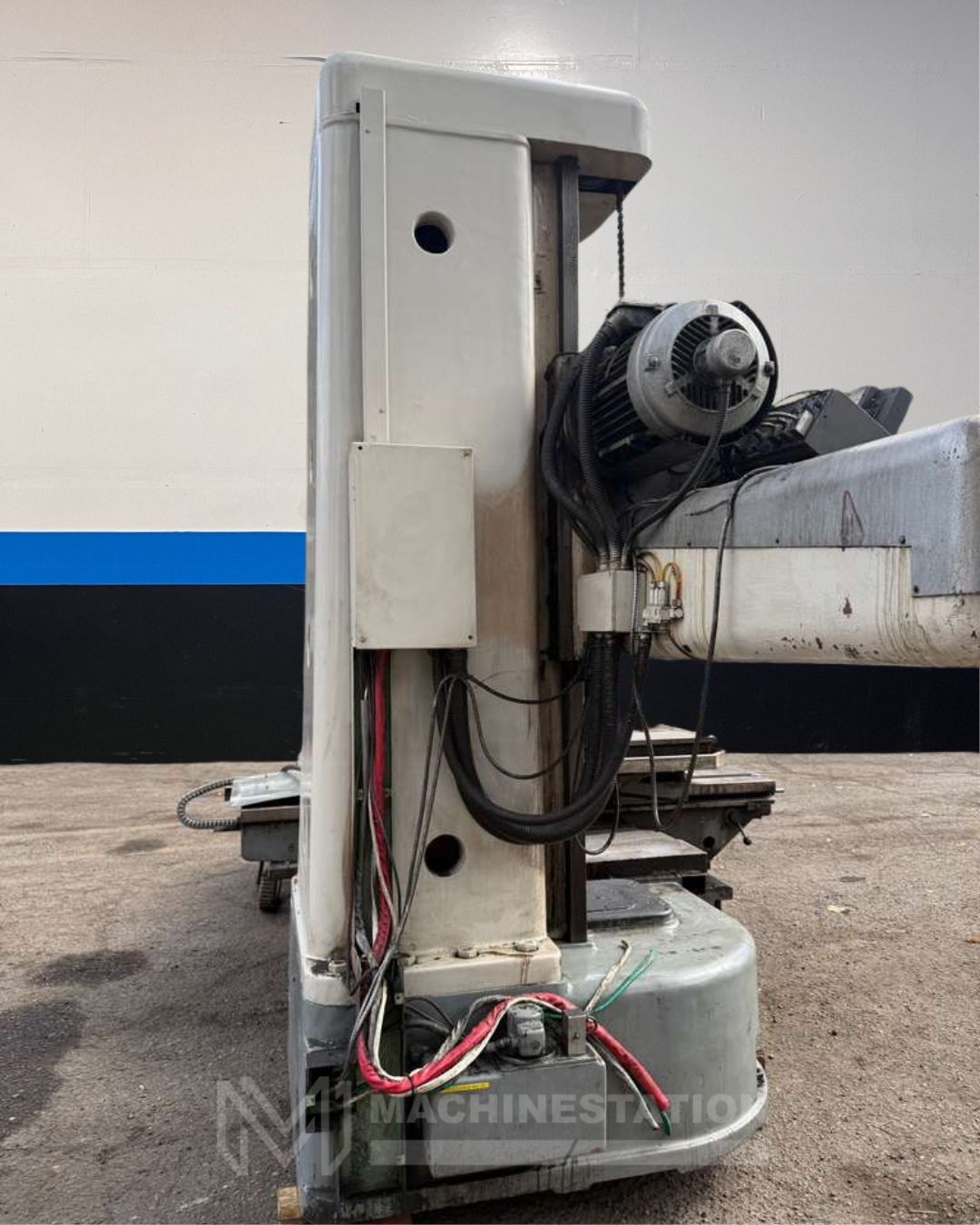

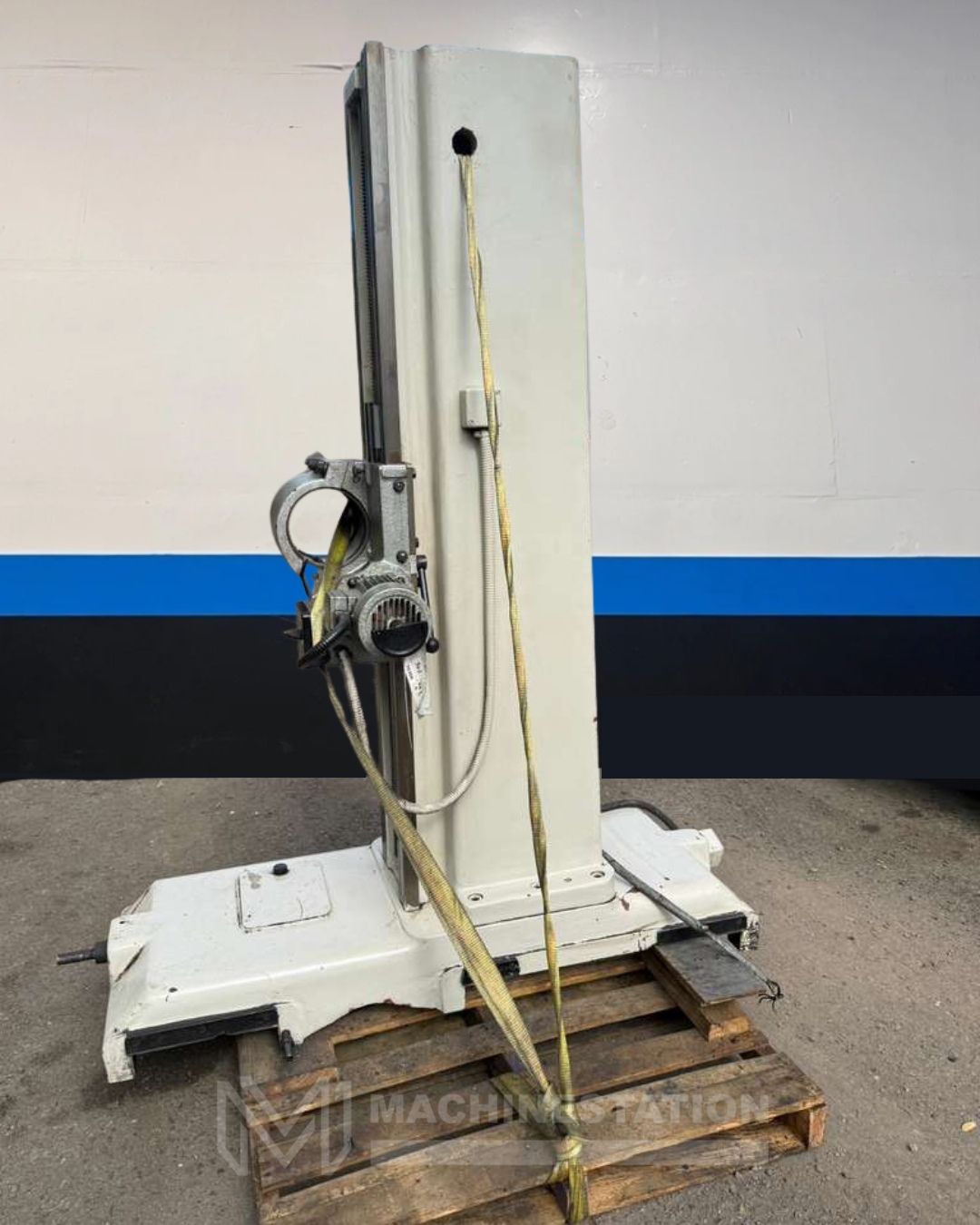

- Note: Machine is dismantled and Ready to be loaded on the Truck
|
| Travels: |
- X Axis (Table Traverse Travel): 63.00″
- Y Axis (Headstock Vertical Travel): 44.09″
- Z Axis (Table Longitudinal Travel): 49.21″
- W Axis (Spindle Stroke): 27.6″
|
| Feed Rates: |
- Feeds For Boring – 32 Stages: 0.0008 – 0.47 inch/rev.
- Feeds For Milling – 18 Stages: 0.71 – 35.43 inch/min
- Rapid Travese (Spindle Stroke, Headstock and Trable): 110.24 inch/min
|

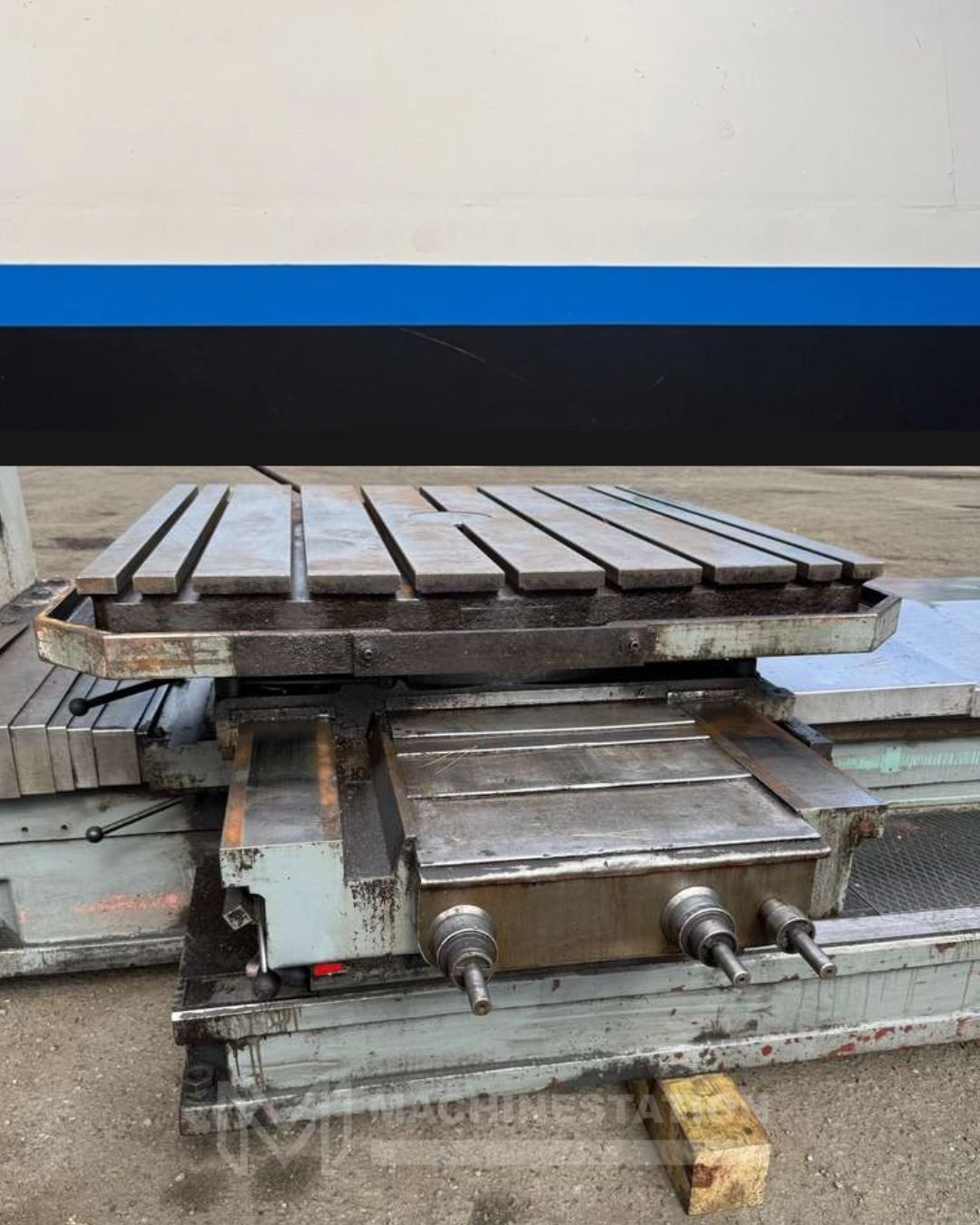

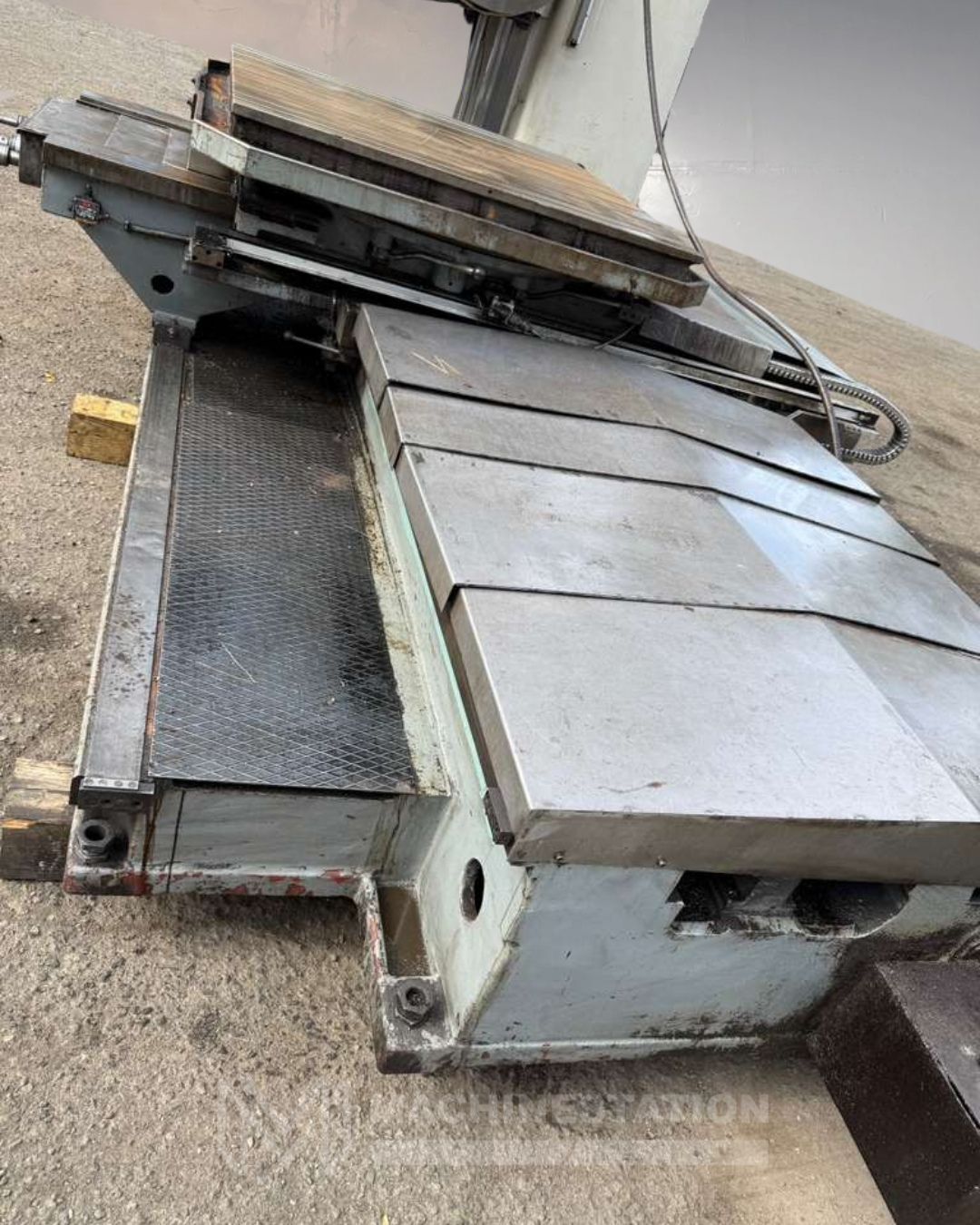

| Rotary Table: |
- Length: 49.21″
- Width: 49.21″
- Max Weight on Table: 6,624 lbs
- Indexing: 1 Degree
|
| Spindle: |
- Spindle Diameter: 3.94″
- Spindle Range: 7.1 – 1,120 RPM
- Spindle Taper: 50
- Power: 15 HP
|
| Facing Head: |
- Daimeter: 23.62″
- Slide Travel: 8.26″
- Facing Diameter Max: 35.43″
- Speed Range: 7.1 – 224 RPM
|
| General: |
- Power: 66FLA / 205-220v / 3-Phase
- Machine Dimensions: 234″ x 118″ x 118″ High
- Machine Weight: 30,905 lbs. Approx.
|
