*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

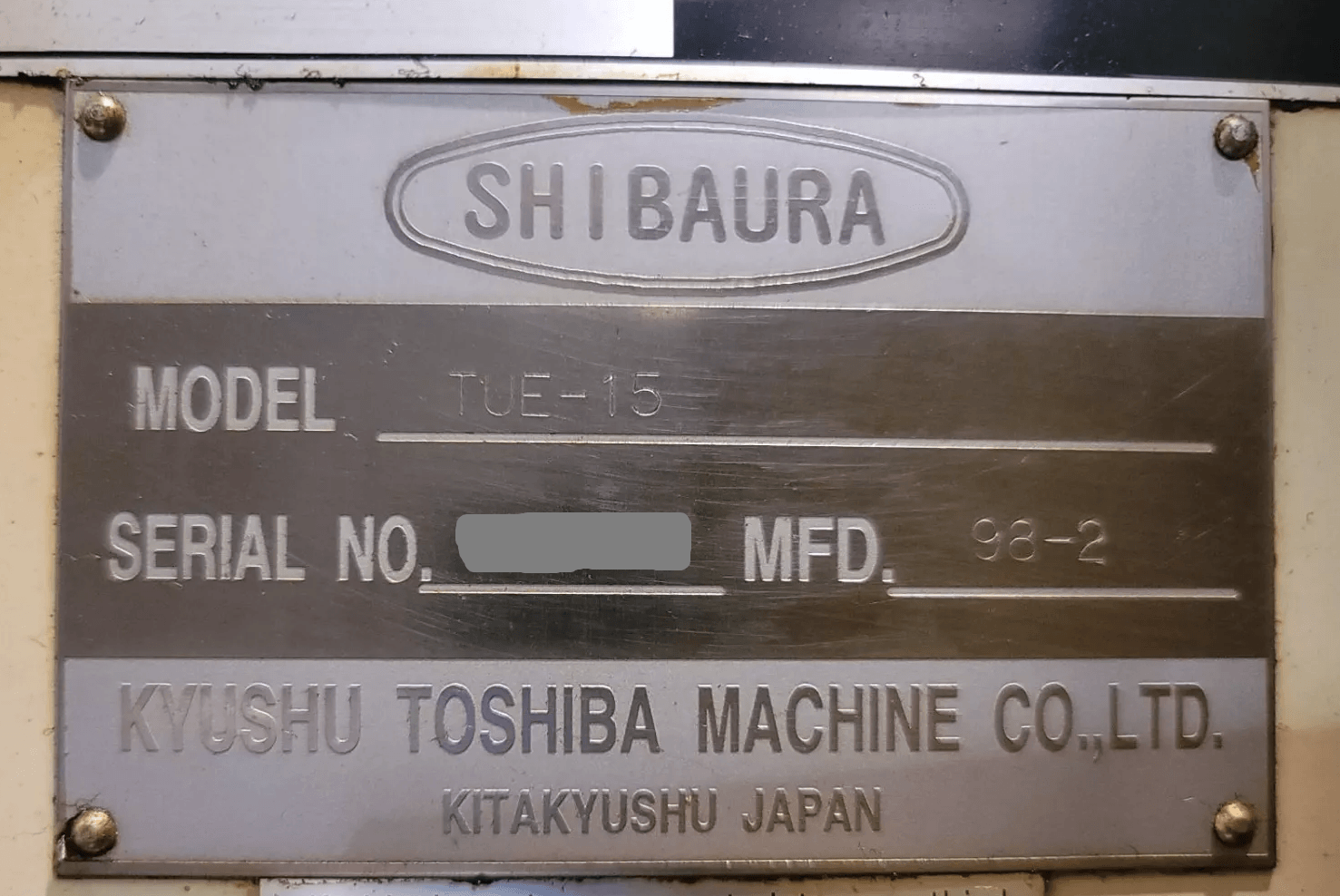

| Make: |
Toshiba |
| Model No.: |
TUE-15 |
| Year of Manufacture: |
1998 |
| Condition: |
Used – Good |
| Machine Type: |

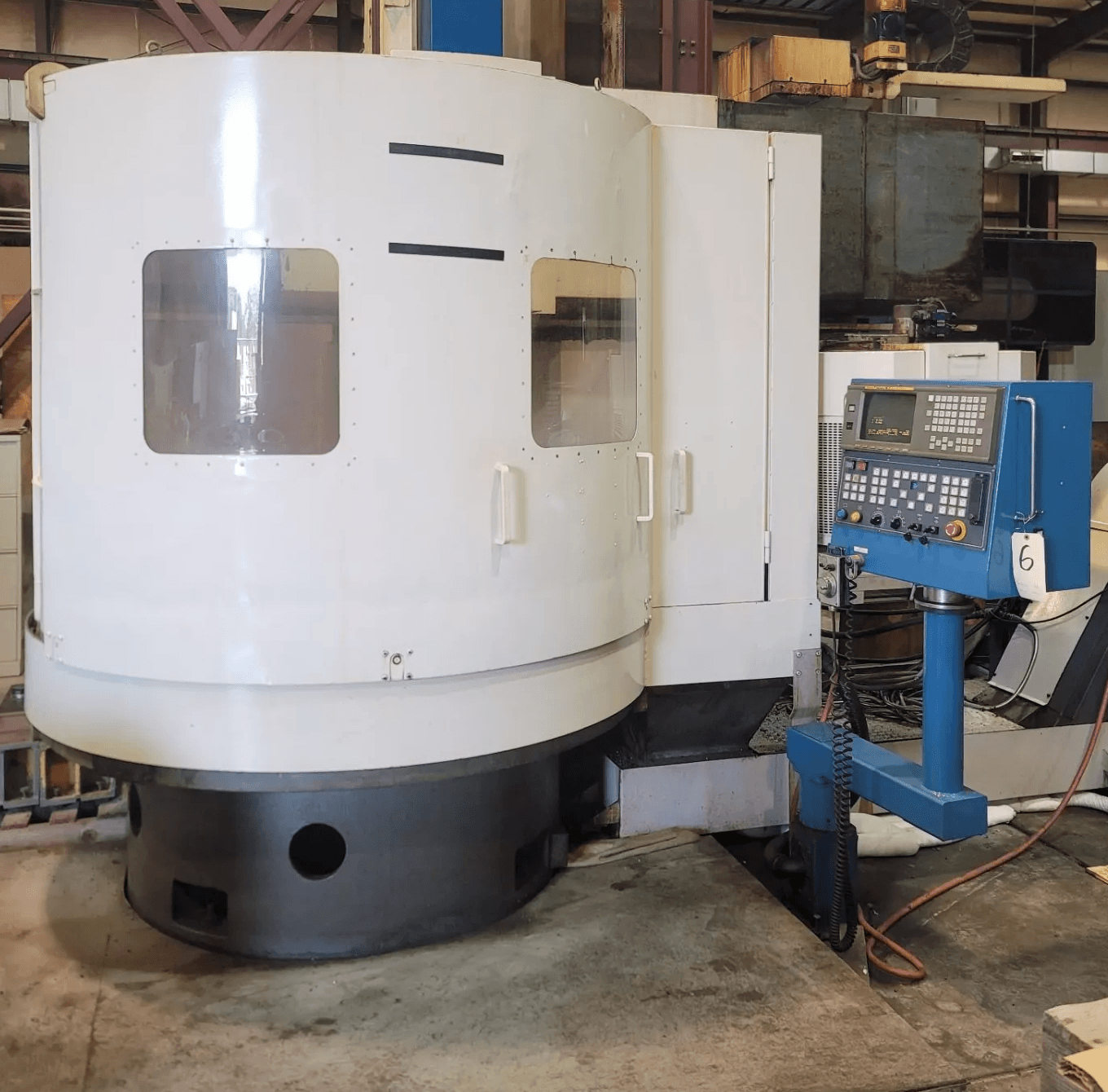

CNC Vertical Turning Lathe / Boring Mill |
| CNC Control: |

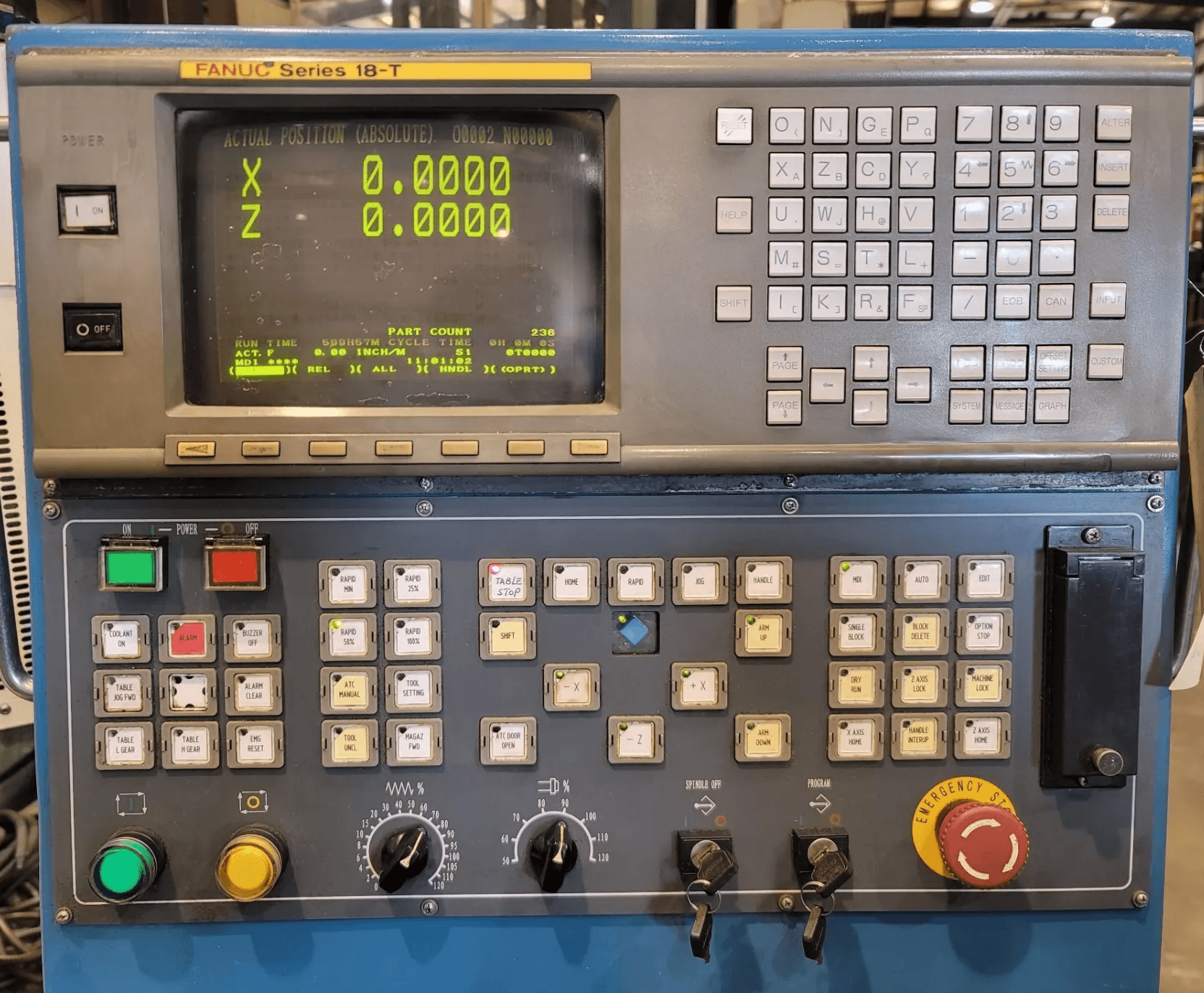

Fanuc Series 18-T CNC Control |
| Equipped With: |
| Fanuc 18-T CNC Control |
| Heavy-Duty Vertical Ram |
| Large Rotary Table |
| Multi-Position Tooling System |
| Enclosed Guarding |
| Coolant System |
| Capacity: |
| Table Diameter: ~60″ |
| Maximum Swing: ~63″ – 70″ (approx.) |
| Maximum Turning Height: ~50″ – 60″ (approx.) |
| Maximum Table Load: ~10,000 – 15,000 lbs (est.) |
| Travels: |
| X-Axis Travel: Approx. 40″+ |
| Z-Axis Travel: Approx. 50″+ |
| Spindle / Table: |
| Table Speed: Variable |
| Table Drive: Gear Driven |
| High Torque Main Drive |
| Electrical: |
| Voltage: 460V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
| Estimated Machine Weight: 30,000 – 40,000 lbs |
| Features: |
| Rigid construction for heavy-duty turning applications |
| Ideal for large rings, flanges, and heavy components |
| Fanuc control for reliability and ease of operation |
| Vertical design improves part handling and stability |
| Excellent for oil & gas, power generation, and heavy fabrication |
