*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

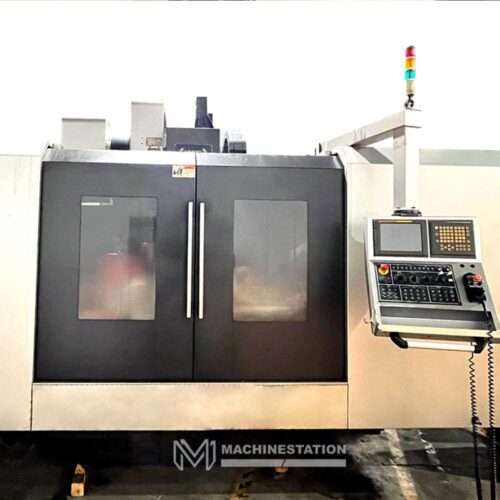

| Make: | Toyoda Awea |
| Model: | BM-1600 |
| Serial: | 6020 |
| Year: | 2006/2007 |

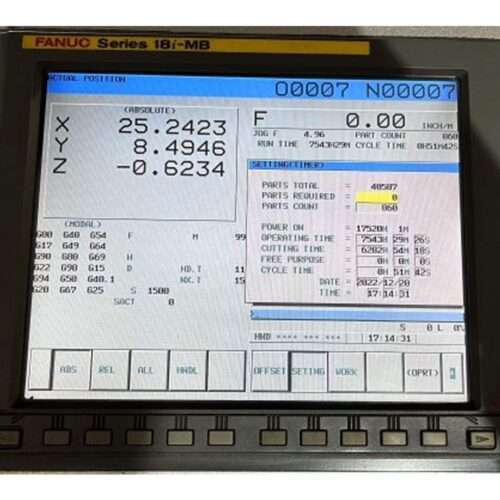

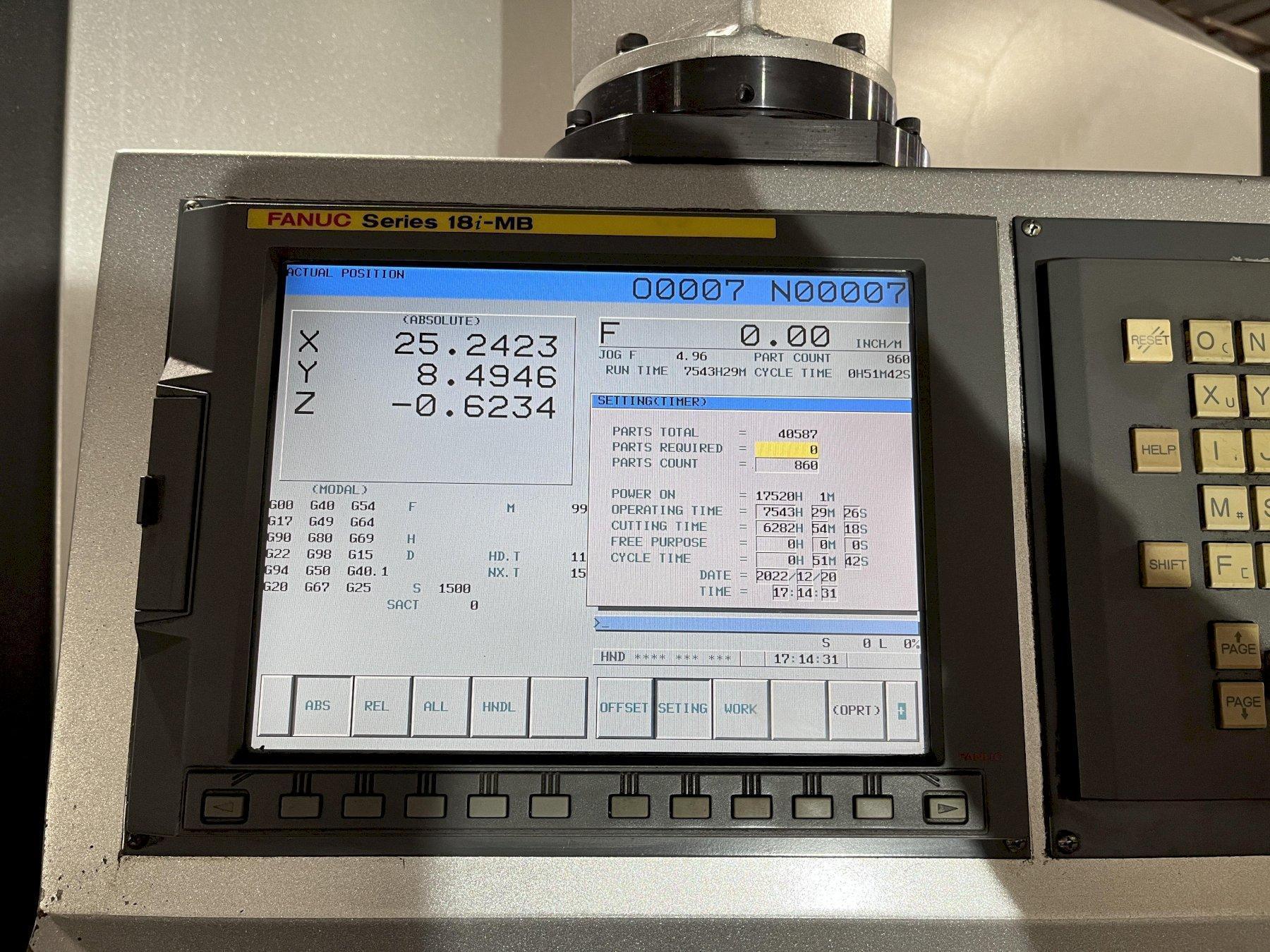

| Cutting Time: | 6282 Hours |
| Equipped With: |
|---|

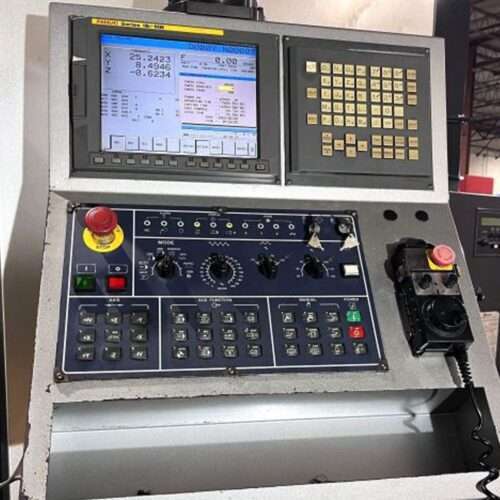

| Fanuc 18i-MB series CNC Control |
| Box Way construction |
| Box Way Heavy Construction |
| 30 Automatic tool changer |
| 50 Taper Spindle |
| 6,000 RPM High Torque Spindle |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Telescopic Way Covers |
| Flood Coolant System |
| Work Light |
| Books and Manuals |
| Travels: |
|---|
| X-Axis: 63″ |
| Y-Axis: 31.5″ |
| Z-Axis: 31.5″ |
| X, Y Axis Rapid Traverse rates: 787 IPM |
| Z Axis Rapid Traverse rates: 708 IPM |
| Cutting Feedrate: 472 IPM |
| Spindle Nose to Table (Min.- Max.): 7.87″ – 39.3″ |
| Table: |
|---|
| Length: 67″ |
| Width: 31.5″ |
| T-Slot no. & Width: 5 X 0.7″ |
| Max Weight on Table: 4409 lbs |
| Spindle: |
|---|
| Taper Size: 50 |
| Speed Range: 6,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Diameter (Full): 6.29″ |
| Max Tool Diameter (adj. pocket empty): 11.8″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 205-220v / 40kva / 3-Phase |
| Overall Dimensions: 185″ x 128″ x 122″ High |
| Weight: 33000 lbs |
